Welded in Place Hubs

Welded Hubs 1

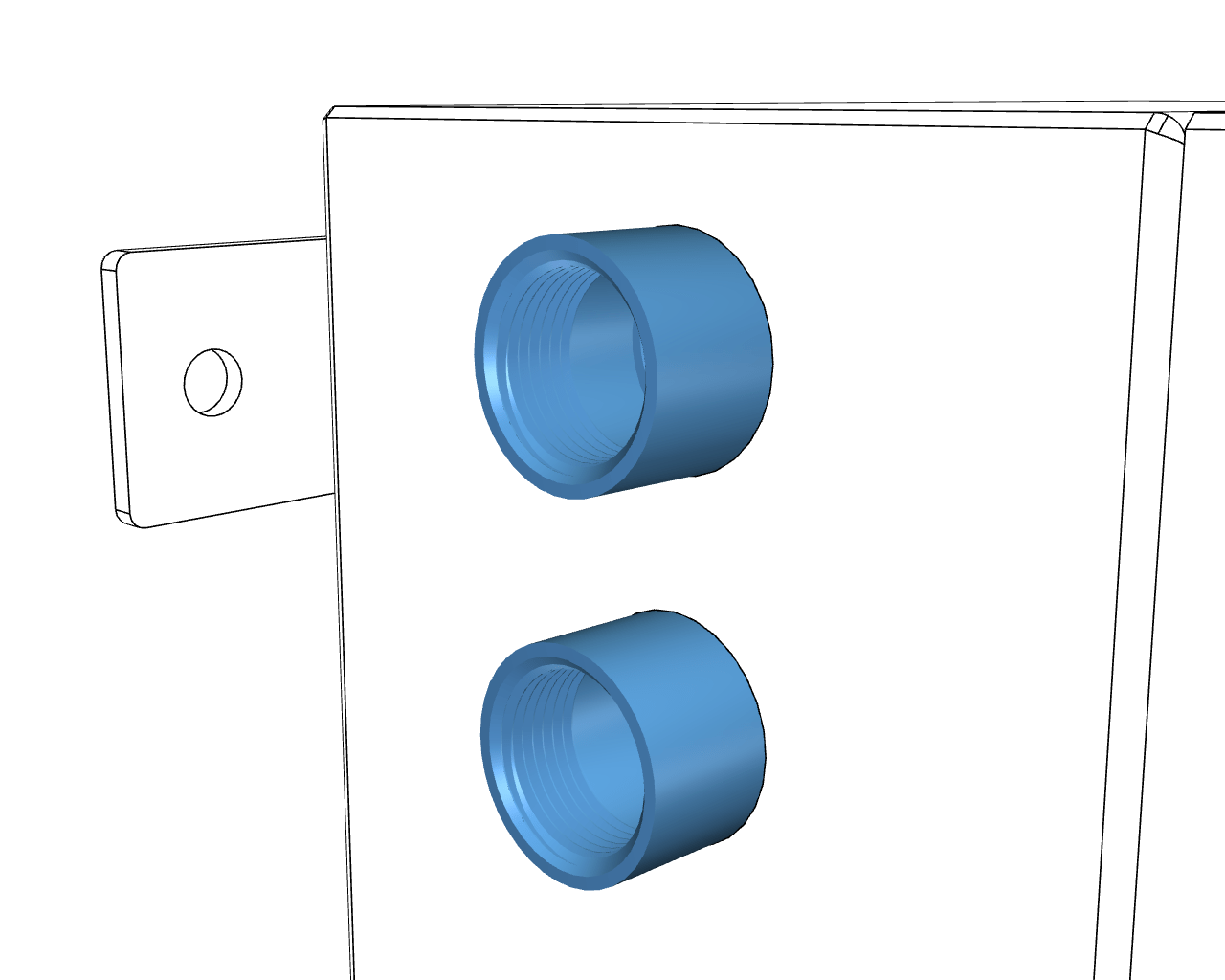

Welded Hubs 2

ACCESSORY CODE: *

* Customer Modification Code is required when the Accessory component selected requires any of the following:

Enclosure cutouts, through holes or penetrations
Customer involved design for accessory placement

This code is added in front of the part number by SLAYSON to provide a unique identifier for the customer specific engineering data.

DOWNLOAD

SPECIFICATIONS

NPT Threaded
NEMA 6P | IP68
360° Seam Welded In-Place
Customizable Configurations

Material

To Match Enclosure

KEY FUNCTIONS & BENEFITS

IP68/NEMA 6P watertight seal ensures superior protection against water, dust, and contaminants.
The permanent welded connection eliminates the risk of loosening, leaks, or corrosion associated with threaded or bolted connections.
Can be strategically positioned on any enclosure surface to align with new or existing conduit systems.
Built from high-strength materials to withstand corrosive, marine, and outdoor environments and electrical faults.

APPLICATION

SLAYSON® Welded In-Place Hubs provide a permanent, watertight entry solution for conduit pipes in our stainless steel, aluminum, and brass enclosures. Engineered for maximum durability and protection, these hubs maintain a fully sealed enclosure, even in the most demanding environments.

The SLAYSON® Welded In-Place Hub is the ultimate choice for long-lasting conduit entry solutions, ensuring flawless enclosure integrity in even the harshest conditions.

WELDED IN PLACE HUBS

IMPERIAL	A	B		L
Part Number	Size Inches	Outside Diameter		Length		Thread Type	Material
Part Number	in	in	mm	in	mm
HWIS-050	0.5	1.04	26.5	1.57	40	NPT	Stainless Steel 316
HWIS-075	0.75	1.32	33.5	1.61	41	NPT	Stainless Steel 316
HWIS-100	1	1.57	40	1.57	40	NPT	Stainless Steel 316
HWIS-125	1.25	1.89	48	2.07	52.5	NPT	Stainless Steel 316
HWIS-150	1.5	2.2	56	2.07	52.5	NPT	Stainless Steel 316
HWIS-200	2	2.68	68	2.13	54	NPT	Stainless Steel 316
HWIS-250	2.5	3.09	78.5	2.48	63	NPT	Stainless Steel 316
HWIS-300	3	3.72	94.5	2.72	69	NPT	Stainless Steel 316
HWIS-400	4	4.84	123	3.27	83	NPT	Stainless Steel 316
