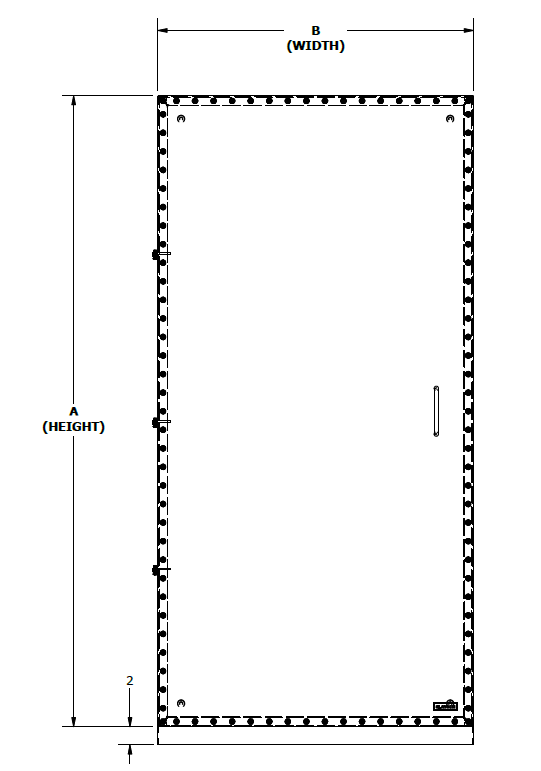

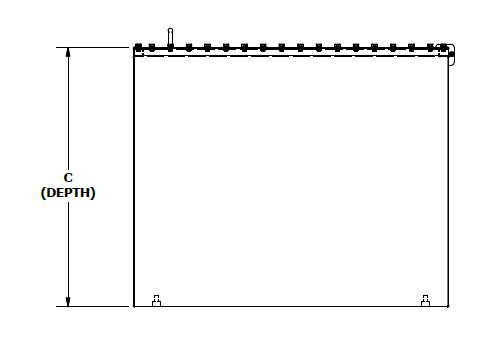

IMPERIAL A B C D E F INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Slope Roof Height Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm in mm
CSMI724242 72 1828.8 42 1066.8 42 1066.8 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724236 72 1828.8 42 1066.8 36 914.4 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724230 72 1828.8 42 1066.8 30 762.0 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724224 72 1828.8 42 1066.8 24 609.6 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724218 72 1828.8 42 1066.8 18 457.2 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724216 72 1828.8 42 1066.8 16 406.4 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI724212 72 1828.8 42 1066.8 12 304.8 68 1727.2 44 1117.6 46 460.0 68 1727.2 38 965.2 14
CSMI723636 72 1828.8 36 914.4 36 914.4 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723634 72 1828.8 36 914.4 34 863.6 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723630 72 1828.8 36 914.4 30 762.0 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723624 72 1828.8 36 914.4 24 609.6 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723618 72 1828.8 36 914.4 18 457.2 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723616 72 1828.8 36 914.4 16 406.4 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723612 72 1828.8 36 914.4 12 304.8 68 1727.2 38 965.2 40 400.0 68 1727.2 32 812.8 14
CSMI723434 72 1828.8 34 863.6 34 863.6 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723430 72 1828.8 34 863.6 30 762.0 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723424 72 1828.8 34 863.6 24 609.6 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723418 72 1828.8 34 863.6 18 457.2 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723416 72 1828.8 34 863.6 16 406.4 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723412 72 1828.8 34 863.6 12 304.8 68 1727.2 36 914.4 38 380.0 68 1727.2 30 762.0 14
CSMI723030 72 1828.8 30 762.0 30 762.0 68 1727.2 32 812.8 34 340.0 68 1727.2 26 660.4 14
CSMI723024 72 1828.8 30 762.0 24 609.6 68 1727.2 32 812.8 34 340.0 68 1727.2 26 660.4 14
CSMI723018 72 1828.8 30 762.0 18 457.2 68 1727.2 32 812.8 34 340.0 68 1727.2 26 660.4 14
CSMI723016 72 1828.8 30 762.0 16 406.4 68 1727.2 32 812.8 34 340.0 68 1727.2 26 660.4 14
CSMI723012 72 1828.8 30 762.0 12 304.8 68 1727.2 32 812.8 34 340.0 68 1727.2 26 660.4 14
CSMI722424 72 1828.8 24 609.6 24 609.6 68 1727.2 26 660.4 28 280.0 68 1727.2 20 508.0 14
CSMI722418 72 1828.8 24 609.6 18 457.2 68 1727.2 26 660.4 28 280.0 68 1727.2 20 508.0 14
CSMI722416 72 1828.8 24 609.6 16 406.4 68 1727.2 26 660.4 28 280.0 68 1727.2 20 508.0 14
CSMI722412 72 1828.8 24 609.6 12 304.8 68 1727.2 26 660.4 28 280.0 68 1727.2 20 508.0 14
CSMI604242 60 1524.0 42 1066.8 42 1066.8 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604236 60 1524.0 42 1066.8 36 914.4 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604230 60 1524.0 42 1066.8 30 762.0 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604224 60 1524.0 42 1066.8 24 609.6 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604218 60 1524.0 42 1066.8 18 457.2 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604216 60 1524.0 42 1066.8 16 406.4 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI604212 60 1524.0 42 1066.8 12 304.8 56 1422.4 44 1117.6 46 460.0 56 1422.4 38 965.2 14
CSMI603636 60 1524.0 36 914.4 36 914.4 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603634 60 1524.0 36 914.4 34 863.6 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603630 60 1524.0 36 914.4 30 762.0 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603624 60 1524.0 36 914.4 24 609.6 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603618 60 1524.0 36 914.4 18 457.2 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603616 60 1524.0 36 914.4 16 406.4 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603612 60 1524.0 36 914.4 12 304.8 56 1422.4 38 965.2 40 400.0 56 1422.4 32 812.8 14
CSMI603434 60 1524.0 34 863.6 34 863.6 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603430 60 1524.0 34 863.6 30 762.0 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603424 60 1524.0 34 863.6 24 609.6 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603418 60 1524.0 34 863.6 18 457.2 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603416 60 1524.0 34 863.6 16 406.4 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603412 60 1524.0 34 863.6 12 304.8 56 1422.4 36 914.4 38 380.0 56 1422.4 30 762.0 14
CSMI603030 60 1524.0 30 762.0 30 762.0 56 1422.4 32 812.8 34 340.0 56 1422.4 26 660.4 14
CSMI603024 60 1524.0 30 762.0 24 609.6 56 1422.4 32 812.8 34 340.0 56 1422.4 26 660.4 14
CSMI603018 60 1524.0 30 762.0 18 457.2 56 1422.4 32 812.8 34 340.0 56 1422.4 26 660.4 14
CSMI603016 60 1524.0 30 762.0 16 406.4 56 1422.4 32 812.8 34 340.0 56 1422.4 26 660.4 14
CSMI603012 60 1524.0 30 762.0 12 304.8 56 1422.4 32 812.8 34 340.0 56 1422.4 26 660.4 14
CSMI602424 60 1524.0 24 609.6 24 609.6 56 1422.4 26 660.4 28 280.0 56 1422.4 20 508.0 14
CSMI602418 60 1524.0 24 609.6 18 457.2 56 1422.4 26 660.4 28 280.0 56 1422.4 20 508.0 14
CSMI602416 60 1524.0 24 609.6 16 406.4 56 1422.4 26 660.4 28 280.0 56 1422.4 20 508.0 14
CSMI602412 60 1524.0 24 609.6 12 304.8 56 1422.4 26 660.4 28 280.0 56 1422.4 20 508.0 14
CSMI544242 54 1371.6 42 1066.8 42 1066.8 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544236 54 1371.6 42 1066.8 36 914.4 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544230 54 1371.6 42 1066.8 30 762.0 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544224 54 1371.6 42 1066.8 24 609.6 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544218 54 1371.6 42 1066.8 18 457.2 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544216 54 1371.6 42 1066.8 16 406.4 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI544212 54 1371.6 42 1066.8 12 304.8 50 1270.0 44 1117.6 46 460.0 50 1270.0 38 965.2 14
CSMI543636 54 1371.6 36 914.4 36 914.4 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543634 54 1371.6 36 914.4 34 863.6 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543630 54 1371.6 36 914.4 30 762.0 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543624 54 1371.6 36 914.4 24 609.6 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543618 54 1371.6 36 914.4 18 457.2 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543616 54 1371.6 36 914.4 16 406.4 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543612 54 1371.6 36 914.4 12 304.8 50 1270.0 38 965.2 40 400.0 50 1270.0 32 812.8 14
CSMI543434 54 1371.6 34 863.6 34 863.6 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543430 54 1371.6 34 863.6 30 762.0 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543424 54 1371.6 34 863.6 24 609.6 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543418 54 1371.6 34 863.6 18 457.2 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543416 54 1371.6 34 863.6 16 406.4 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543412 54 1371.6 34 863.6 12 304.8 50 1270.0 36 914.4 38 380.0 50 1270.0 30 762.0 14
CSMI543030 54 1371.6 30 762.0 30 762.0 50 1270.0 32 812.8 34 340.0 50 1270.0 26 660.4 14
CSMI543024 54 1371.6 30 762.0 24 609.6 50 1270.0 32 812.8 34 340.0 50 1270.0 26 660.4 14
CSMI543018 54 1371.6 30 762.0 18 457.2 50 1270.0 32 812.8 34 340.0 50 1270.0 26 660.4 14
CSMI543016 54 1371.6 30 762.0 16 406.4 50 1270.0 32 812.8 34 340.0 50 1270.0 26 660.4 14
CSMI543012 54 1371.6 30 762.0 12 304.8 50 1270.0 32 812.8 34 340.0 50 1270.0 26 660.4 14
CSMI542424 54 1371.6 24 609.6 24 609.6 50 1270.0 26 660.4 28 280.0 50 1270.0 20 508.0 14
CSMI542418 54 1371.6 24 609.6 18 457.2 50 1270.0 26 660.4 28 280.0 50 1270.0 20 508.0 14
CSMI542416 54 1371.6 24 609.6 16 406.4 50 1270.0 26 660.4 28 280.0 50 1270.0 20 508.0 14
CSMI542412 54 1371.6 24 609.6 12 304.8 50 1270.0 26 660.4 28 280.0 50 1270.0 20 508.0 14
CSMI484242 48 1219.2 42 1066.8 42 1066.8 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484236 48 1219.2 42 1066.8 36 914.4 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484230 48 1219.2 42 1066.8 30 762.0 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484224 48 1219.2 42 1066.8 24 609.6 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484218 48 1219.2 42 1066.8 18 457.2 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484216 48 1219.2 42 1066.8 16 406.4 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI484212 48 1219.2 42 1066.8 12 304.8 44 1117.6 44 1117.6 46 460.0 44 1117.6 38 965.2 14
CSMI483636 48 1219.2 36 914.4 36 914.4 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483634 48 1219.2 36 914.4 34 863.6 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483630 48 1219.2 36 914.4 30 762.0 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483624 48 1219.2 36 914.4 24 609.6 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483618 48 1219.2 36 914.4 18 457.2 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483616 48 1219.2 36 914.4 16 406.4 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483612 48 1219.2 36 914.4 12 304.8 44 1117.6 38 965.2 40 400.0 44 1117.6 32 812.8 14
CSMI483434 48 1219.2 34 863.6 34 863.6 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483430 48 1219.2 34 863.6 30 762.0 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483424 48 1219.2 34 863.6 24 609.6 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483418 48 1219.2 34 863.6 18 457.2 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483416 48 1219.2 34 863.6 16 406.4 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483412 48 1219.2 34 863.6 12 304.8 44 1117.6 36 914.4 38 380.0 44 1117.6 30 762.0 14
CSMI483030 48 1219.2 30 762.0 30 762.0 44 1117.6 32 812.8 34 340.0 44 1117.6 26 660.4 14
CSMI483024 48 1219.2 30 762.0 24 609.6 44 1117.6 32 812.8 34 340.0 44 1117.6 26 660.4 14
CSMI483018 48 1219.2 30 762.0 18 457.2 44 1117.6 32 812.8 34 340.0 44 1117.6 26 660.4 14
CSMI483016 48 1219.2 30 762.0 16 406.4 44 1117.6 32 812.8 34 340.0 44 1117.6 26 660.4 14
CSMI483012 48 1219.2 30 762.0 12 304.8 44 1117.6 32 812.8 34 340.0 44 1117.6 26 660.4 14
CSMI482424 48 1219.2 24 609.6 24 609.6 44 1117.6 26 660.4 28 280.0 44 1117.6 20 508.0 14
CSMI482418 48 1219.2 24 609.6 18 457.2 44 1117.6 26 660.4 28 280.0 44 1117.6 20 508.0 14
CSMI482416 48 1219.2 24 609.6 16 406.4 44 1117.6 26 660.4 28 280.0 44 1117.6 20 508.0 14
CSMI482412 48 1219.2 24 609.6 12 304.8 44 1117.6 26 660.4 28 280.0 44 1117.6 20 508.0 14
CSMI423636 42 1066.8 36 914.4 36 914.4 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423634 42 1066.8 36 914.4 34 863.6 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423630 42 1066.8 36 914.4 30 762.0 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423624 42 1066.8 36 914.4 24 609.6 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423618 42 1066.8 36 914.4 18 457.2 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423616 42 1066.8 36 914.4 16 406.4 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423612 42 1066.8 36 914.4 12 304.8 38 965.2 38 965.2 40 400.0 38 965.2 32 812.8 14
CSMI423434 42 1066.8 34 863.6 34 863.6 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423430 42 1066.8 34 863.6 30 762.0 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423424 42 1066.8 34 863.6 24 609.6 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423418 42 1066.8 34 863.6 18 457.2 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423416 42 1066.8 34 863.6 16 406.4 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423412 42 1066.8 34 863.6 12 304.8 38 965.2 36 914.4 38 380.0 38 965.2 30 762.0 14
CSMI423030 42 1066.8 30 762.0 30 762.0 38 965.2 32 812.8 34 340.0 38 965.2 26 660.4 14
CSMI423024 42 1066.8 30 762.0 24 609.6 38 965.2 32 812.8 34 340.0 38 965.2 26 660.4 14
CSMI423018 42 1066.8 30 762.0 18 457.2 38 965.2 32 812.8 34 340.0 38 965.2 26 660.4 14
CSMI423016 42 1066.8 30 762.0 16 406.4 38 965.2 32 812.8 34 340.0 38 965.2 26 660.4 14
CSMI423012 42 1066.8 30 762.0 12 304.8 38 965.2 32 812.8 34 340.0 38 965.2 26 660.4 14
CSMI422424 42 1066.8 24 609.6 24 609.6 38 965.2 26 660.4 28 280.0 38 965.2 20 508.0 14
CSMI422418 42 1066.8 24 609.6 18 457.2 38 965.2 26 660.4 28 280.0 38 965.2 20 508.0 14
CSMI422416 42 1066.8 24 609.6 16 406.4 38 965.2 26 660.4 28 280.0 38 965.2 20 508.0 14
CSMI422412 42 1066.8 24 609.6 12 304.8 38 965.2 26 660.4 28 280.0 38 965.2 20 508.0 14

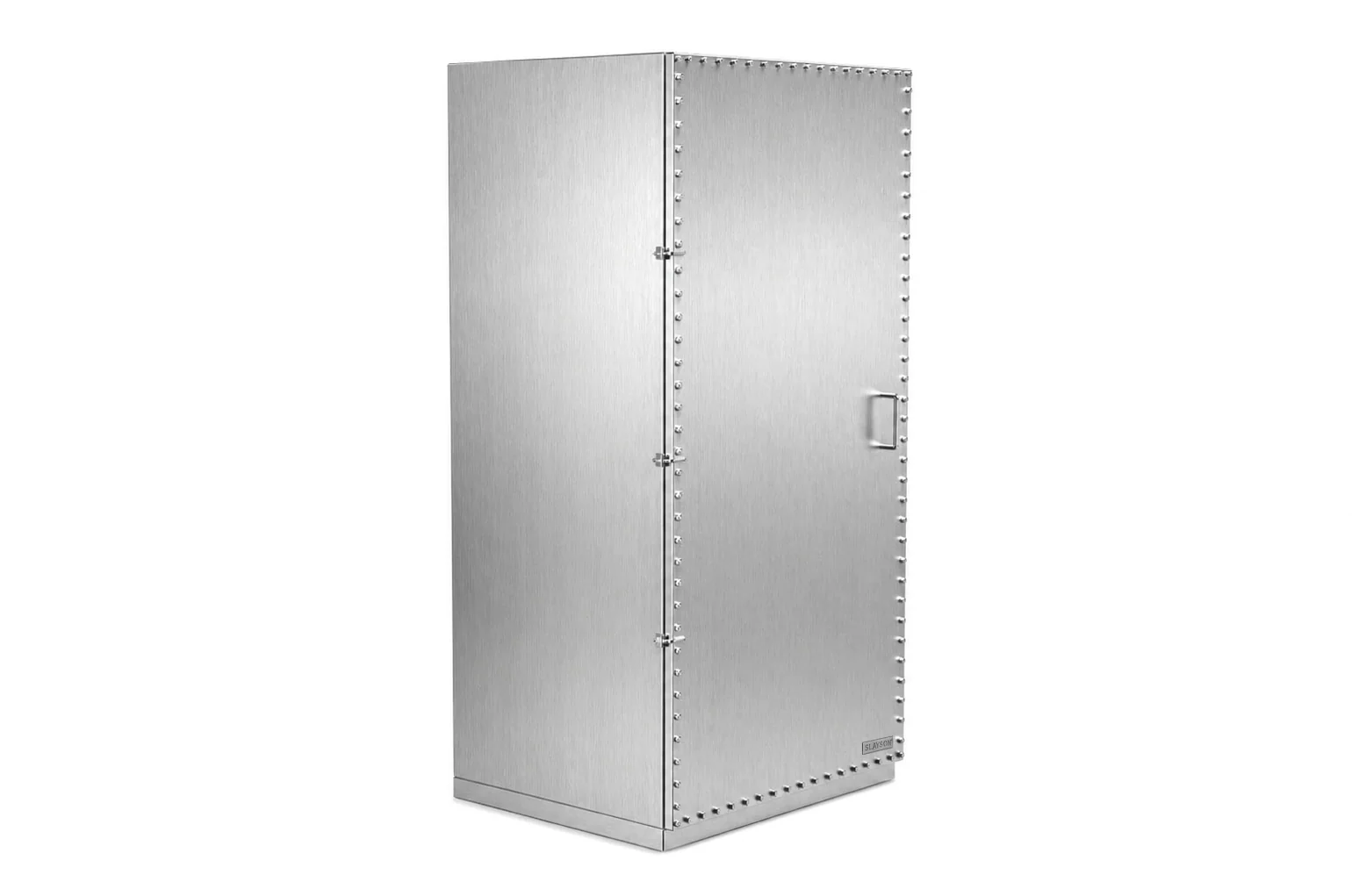

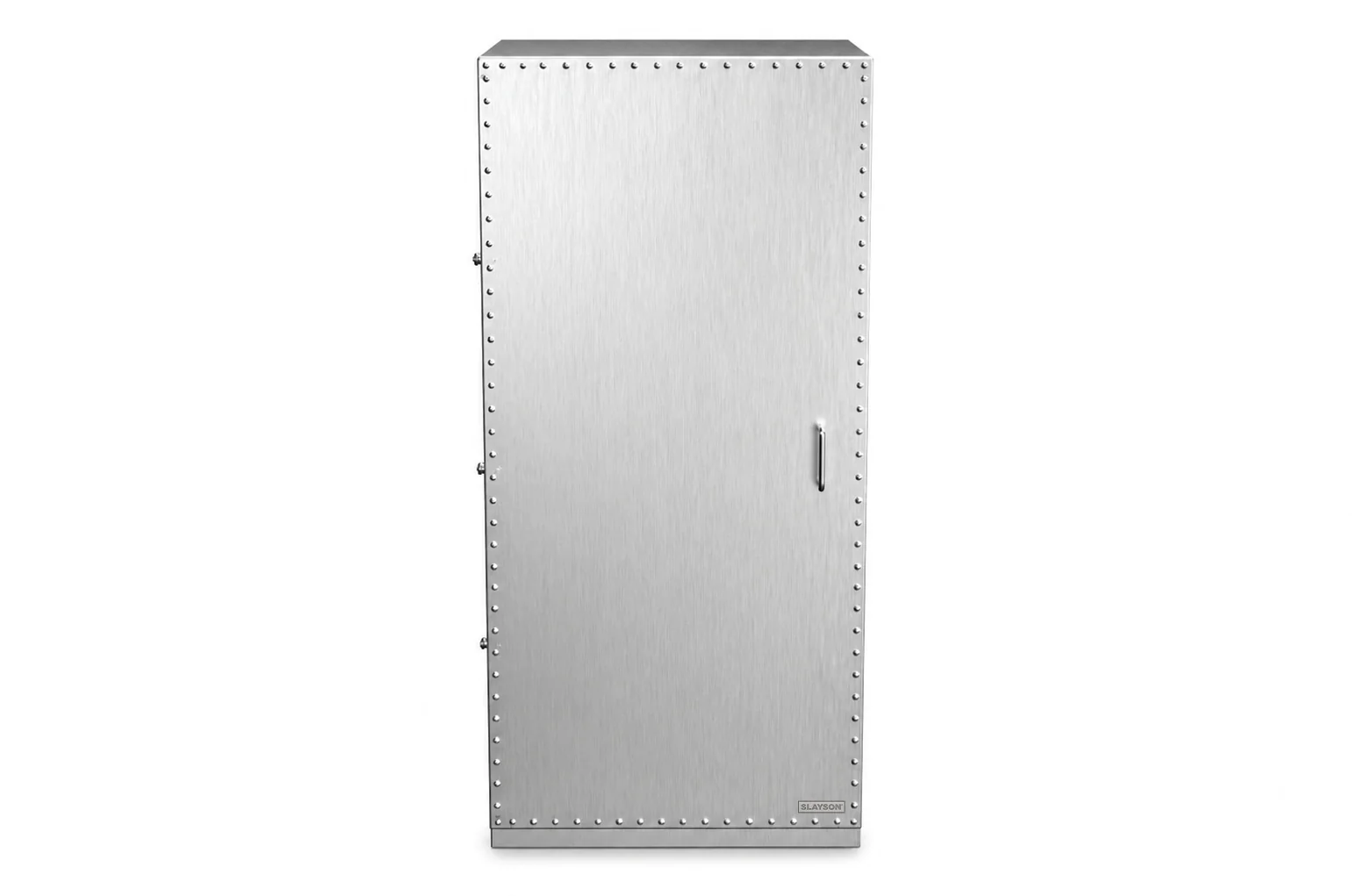

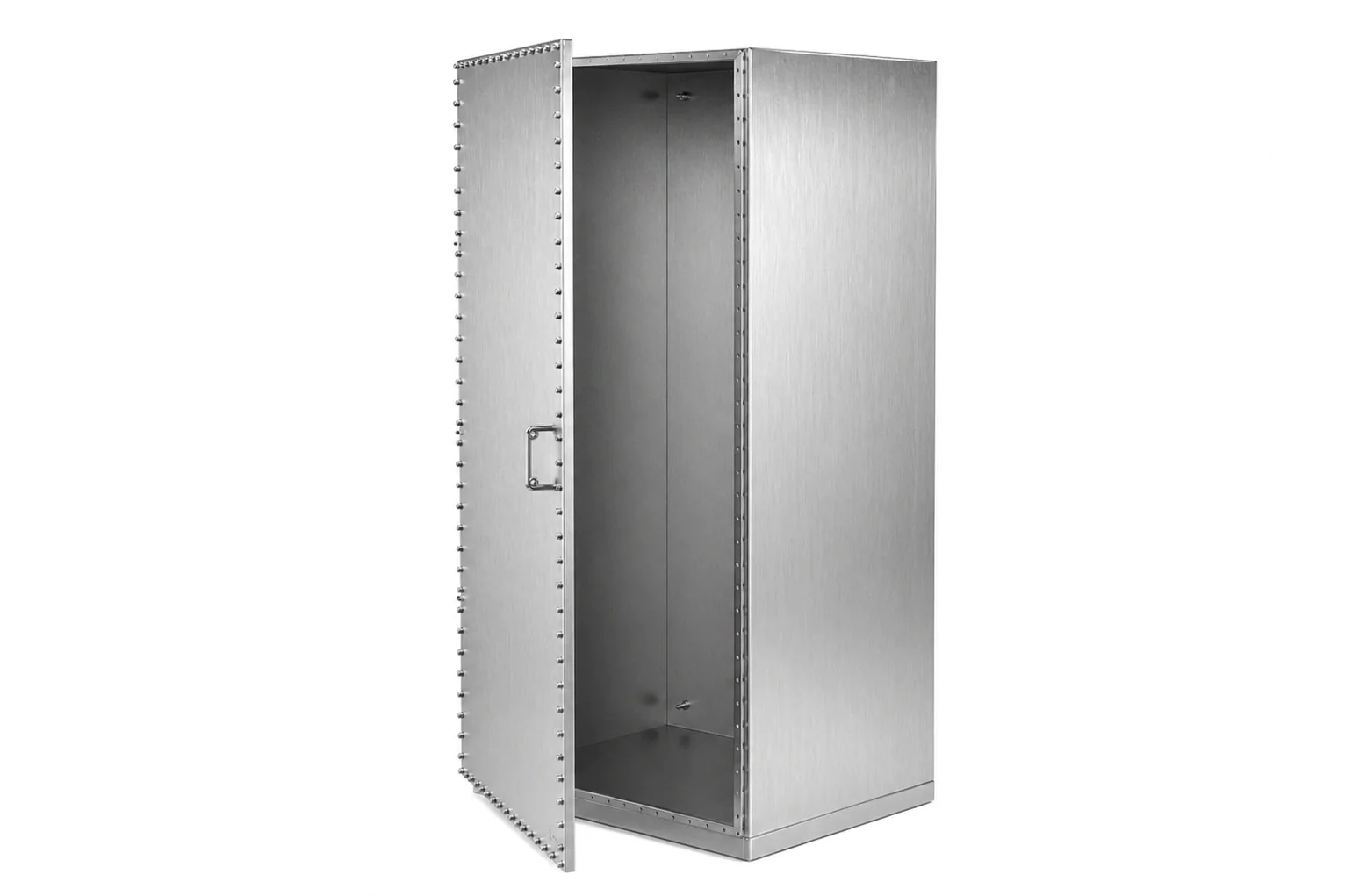

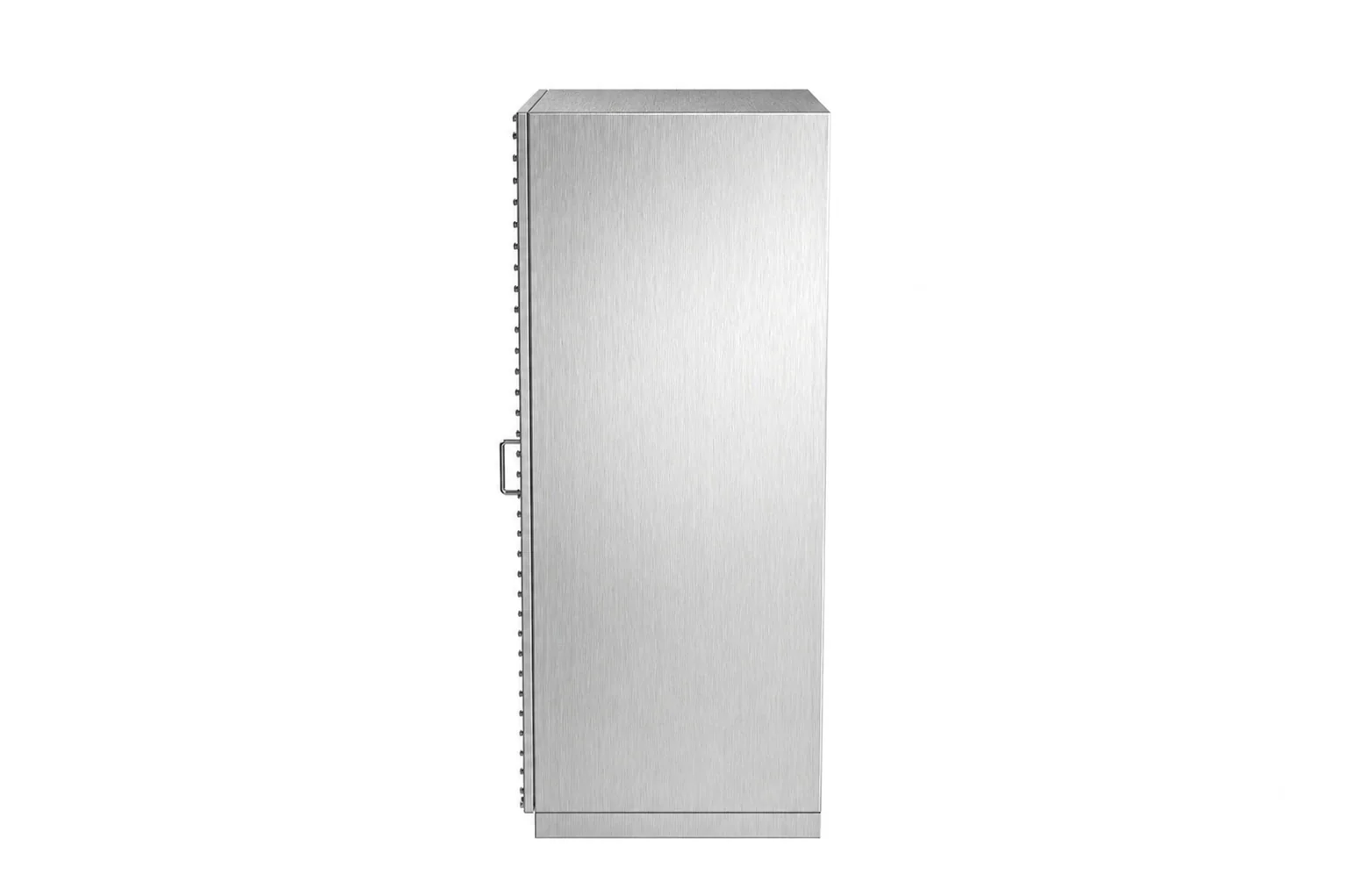

SUBMERSIBLE CABINETS OVERVIEW

The SLAYSON® SUBMERSIBLE ENCLOSURE Series is expertly designed with a narrow flange to maximise internal capacity and usable space. Rated NEMA 6P/IP68, these cabinets provide superior protection for critical electrical equipment and server racks, particularly in basements or low-lying areas prone to dust and water ingress. Capable of withstanding partial or prolonged submersion to depths of up to 5 metres, the SUBMERSIBLE ENCLOSURES Series is constructed from durable 12g Marine Grade Stainless Steel 316, ensuring long-term performance in harsh environments.

Equipped with multiple fasteners around the lid, SLAYSON® SUBMERSIBLE ENCLOSURES maintain consistent gasket pressure for reliable watertight sealing. Available in standard sizes from 36″x 24″ to 72″x 24″, these enclosures can be customised with a range of accessories, including additional server racks, thermal insulation, and padlock attachments. SLAYSON’s design and engineering teams collaborate with clients to deliver enclosures tailored to their exact needs.

If standard dimensions do not meet your project requirements, SLAYSON® offers bespoke design and engineering services to create a custom Submersible Enclosure for your specific application.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
