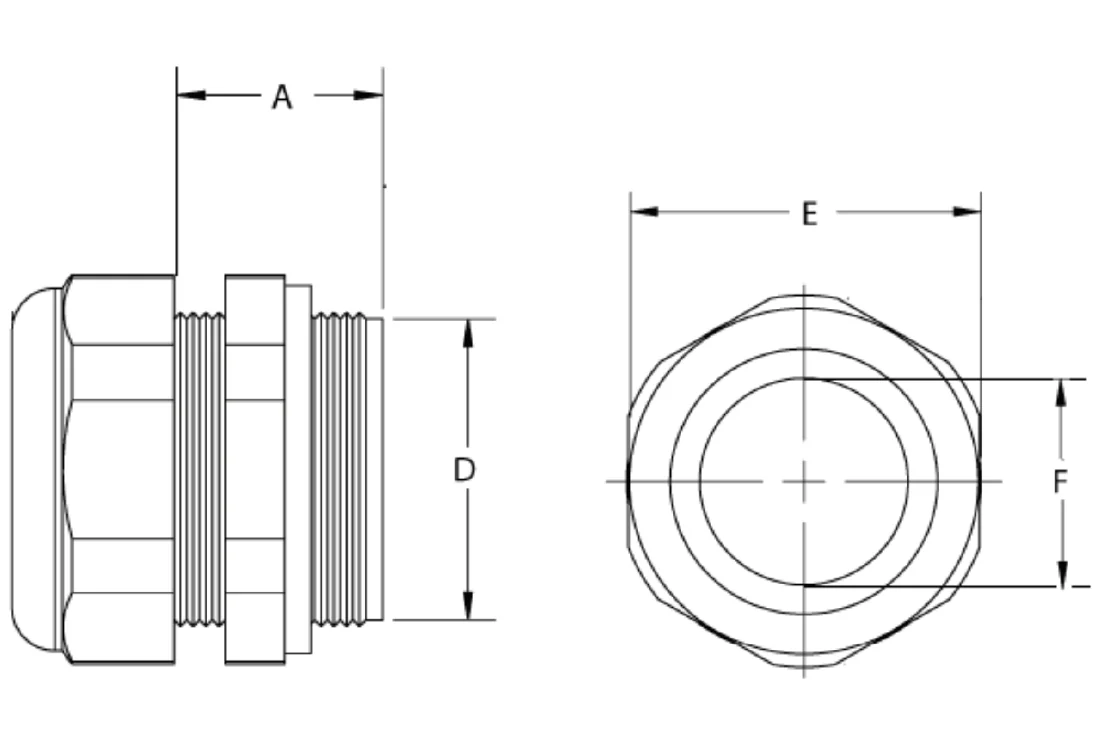

ACCESSORIES
| Clamp Range | Clamp Range | Material | |||||
| Part Number | Thread Type | Size | Min | Max | Min | Max | |
| in | in | mm | mm | ||||
| CGS-NPT025 | NPT | 1/4″ | 0.118 | 0.236 | 3.00 | 6.00 | Stainless Steel 316 |
| CGS-NPT037 | NPT | 3/8″ | 0.157 | 0.315 | 4.00 | 8.00 | Stainless Steel 316 |
| CGS-NPT050 | NPT | 1/2″ | 0.157 | 0.472 | 8.00 | 12.00 | Stainless Steel 316 |
| CGS-NPT075 | NPT | 3/4″ | 0.512 | 0.709 | 13.00 | 18.00 | Stainless Steel 316 |
| CGS-NPT100 | NPT | 1″ | 0.591 | 0.866 | 15.00 | 22.00 | Stainless Steel 316 |
| CGS-NPT125 | NPT | 1 1/4″ | 0.866 | 1.102 | 22.00 | 28.00 | Stainless Steel 316 |
| CGS-NPT150 | NPT | 1 1/2″ | 1.024 | 1.26 | 26.00 | 32.00 | Stainless Steel 316 |
| CGS-NPT200 | NPT | 2″ | 1.457 | 1.732 | 37.00 | 44.00 | Stainless Steel 316 |

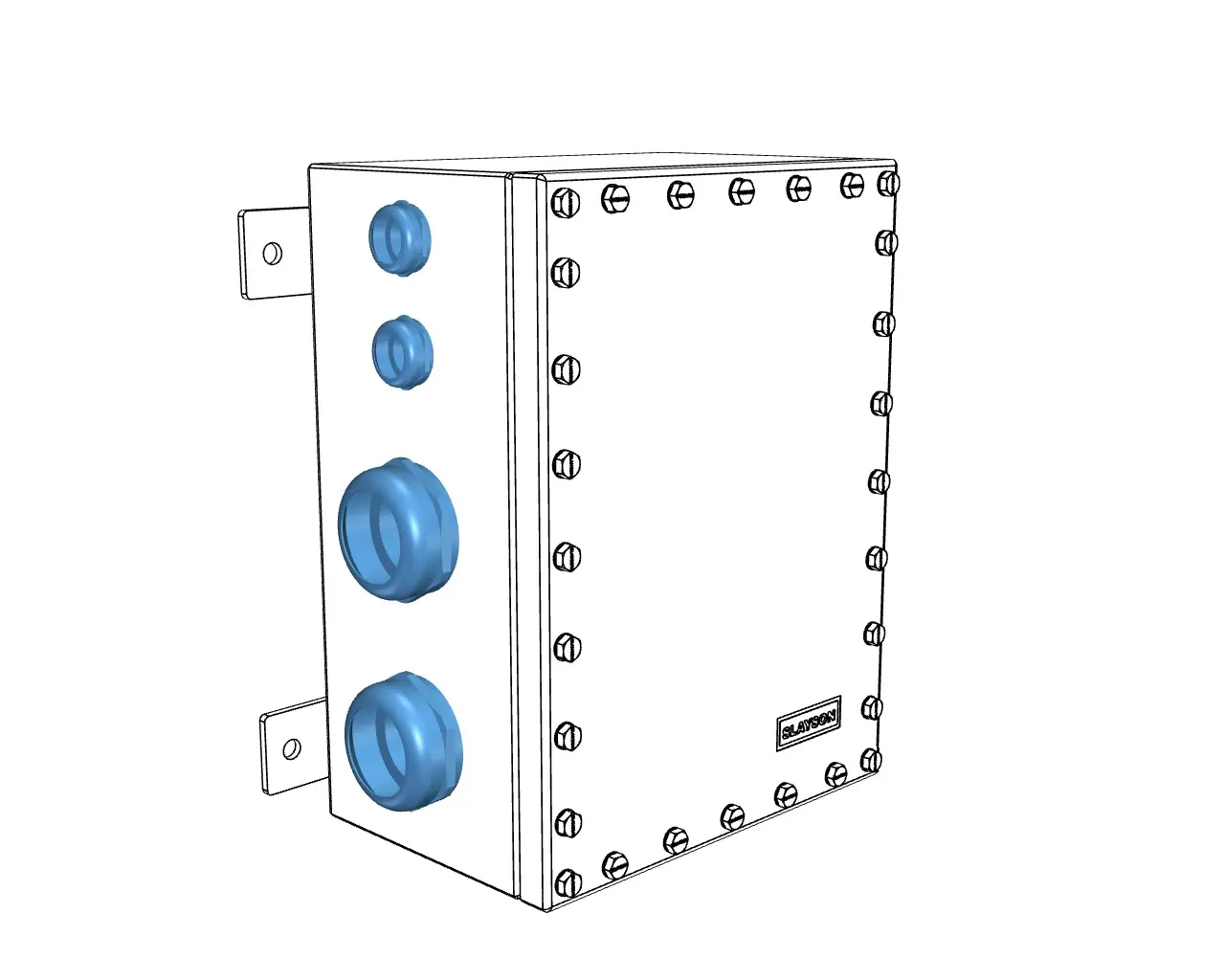

COMPACT SUBMERSIBLE ENCLOSURE OVERVIEW
The SLAYSON® COMPACT WATERPROOF Series has been engineered for environments where space is limited or equipment must be protected in challenging outdoor or industrial conditions. Rated NEMA 6 & IP67, it is designed to perform fully submerged for up to 1.5 metres for 24 hours, offering dependable protection against water, dust, and other environmental hazards. Constructed from impact and corrosion-resistant 14g 316 Marine Grade Stainless Steel, the COMPACT WATERPROOF Series safeguards vital electrical components across power, infrastructure, utility, and renewable energy sectors.
If your project requires a different size or configuration, SLAYSON® can design and engineer a custom COMPACT WATERPROOF ENCLOSURE to suit your exact specifications.
Design With Us
Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.
Locally Made
SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
