METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
NAD656540 65 650.0 65 650.0 40 400.0 55 550.0 70 700.0 60 600.0 60 600.0 2.00
NAD656535 65 650.0 65 650.0 35 350.0 55 550.0 70 700.0 60 600.0 60 600.0 2.00
NAD655535 65 650.0 55 550.0 35 350.0 55 550.0 60 600.0 60 600.0 50 500.0 2.00
NAD655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 60 600.0 45 450.0 2.00
NAD653525 65 650.0 35 350.0 25 250.0 55 550.0 40 400.0 60 600.0 30 300.0 2.00
NAD606040 60 600.0 60 600.0 40 400.0 50 500.0 65 650.0 55 550.0 55 550.0 2.00
NAD606035 60 600.0 60 600.0 35 350.0 50 500.0 65 650.0 55 550.0 55 550.0 2.00
NAD605035 60 600.0 50 500.0 35 350.0 50 500.0 55 550.0 55 550.0 45 450.0 2.00
NAD604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 55 550.0 40 400.0 2.00
NAD603025 60 600.0 30 300.0 25 250.0 50 500.0 35 350.0 55 550.0 25 250.0 2.00
NAD555535 55 550.0 55 550.0 35 350.0 45 450.0 60 600.0 50 500.0 50 500.0 2.00
NAD555530 55 550.0 55 550.0 30 300.0 45 450.0 60 600.0 50 500.0 50 500.0 2.00
NAD554530 55 550.0 45 450.0 30 300.0 45 450.0 50 500.0 50 500.0 40 400.0 2.00
NAD553525 55 550.0 35 250.0 25 250.0 45 450.0 40 400.0 50 500.0 30 300.0 2.00
NAD552520 55 550.0 25 250.0 20 200.0 45 450.0 30 300.0 50 500.0 20 200.0 2.00
NAD505035 50 500.0 50 500.0 35 350.0 40 400.0 55 550.0 45 450.0 45 450.0 2.00
NAD505030 50 500.0 50 500.0 30 300.0 40 400.0 55 550.0 45 450.0 45 450.0 2.00
NAD504030 50 500.0 40 400.0 30 300.0 40 400.0 45 450.0 45 450.0 35 350.0 2.00
NAD503035 50 500.0 30 300.0 25 250.0 40 400.0 35 350.0 45 450.0 25 250.0 2.00
NAD503020 50 500.0 30 300.0 20 200.0 40 400.0 35 350.0 45 450.0 25 250.0 2.00
NAD454535 45 450.0 45 450.0 35 350.0 35 350.0 50 500.0 40 400.0 40 400.0 2.00
NAD454530 45 450.0 45 450.0 30 300.0 35 350.0 50 500.0 40 400.0 40 400.0 2.00
NAD454030 45 450.0 40 400.0 30 300.0 35 350.0 45 450.0 40 400.0 35 350.0 2.00
NAD453525 45 450.0 35 350.0 25 250.0 35 350.0 40 400.0 40 400.0 30 300.0 2.00
NAD453020 45 450.0 30 300.0 20 200.0 35 350.0 35 350.0 40 400.0 25 250.0 2.00
NAD404030 40 400.0 40 400.0 30 300.0 30 300.0 45 450.0 35 350.0 35 350.0 2.00
NAD404025 40 400.0 40 400.0 25 250.0 30 300.0 45 450.0 35 350.0 35 350.0 2.00
NAD403525 40 400.0 35 350.0 25 250.0 30 300.0 40 400.0 35 350.0 30 300.0 2.00
NAD403020 40 400.0 30 300.0 20 200.0 30 300.0 35 350.0 35 350.0 25 250.0 2.00
NAD353530 35 350.0 35 350.0 30 300.0 25 250.0 40 400.0 30 300.0 30 300.0 2.00
NAD353525 35 350.0 35 350.0 25 250.0 25 250.0 40 400.0 30 300.0 30 300.0 2.00
NAD353025 35 350.0 30 300.0 25 250.0 25 250.0 35 350.0 30 300.0 25 250.0 2.00
NAD352520 35 350.0 25 250.0 20 200.0 25 250.0 30 300.0 30 300.0 20 200.0 2.00
NAD303025 30 300.0 30 300.0 25 250.0 20 200.0 35 350.0 25 250.0 25 250.0 2.00
NAD303020 30 300.0 30 300.0 20 200.0 20 200.0 35 350.0 25 250.0 25 250.0 2.00
NAD302520 30 300.0 25 250.0 20 200.0 20 200.0 30 300.0 25 250.0 20 200.0 2.00
NAD302015 30 300.0 20 200.0 15 150.0 20 200.0 25 250.0 25 250.0 15 150.0 2.00
NAD252520 25 250.0 25 250.0 20 200.0 15 150.0 30 300.0 20 200.0 20 200.0 2.00
NAD252515 25 250.0 25 250.0 15 150.0 15 150.0 30 300.0 20 200.0 20 200.0 2.00
NAD252015 25 250.0 20 200.0 15 150.0 15 150.0 25 250.0 20 200.0 15 150.0 2.00
NAD202015 20 200.0 20 200.0 15 150.0 10 100.0 25 250.0 15 150.0 15 150.0 2.00
NAD202010 20 200.0 20 200.0 10 100.0 10 100.0 25 250.0 15 150.0 15 150.0 2.00
IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
NADI262616 26 660.4 26 660.4 16 406.4 22 558.8 28 711.2 24 609.6 24 609.6 0.080”
NADI262614 26 660.4 26 660.4 14 355.6 22 558.8 28 711.2 24 609.6 24 609.6 0.080”
NADI262214 26 660.4 22 558.8 14 355.6 22 558.8 24 609.6 24 609.6 20 508.0 0.080”
NADI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 24 609.6 18 457.2 0.080”
NADI261410 26 660.4 14 355.6 10 254.0 22 558.8 16 406.4 24 609.6 12 304.8 0.080”
NADI242416 24 609.6 24 609.6 16 406.4 20 508.0 26 660.4 22 558.8 22 558.8 0.080”
NADI242424 24 609.6 24 609.6 14 355.6 20 508.0 26 660.4 22 558.8 22 558.8 0.080”
NADI242014 24 609.6 20 508.0 14 355.6 20 508.0 22 558.8 22 558.8 18 457.2 0.080”
NADI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 22 558.8 16 406.4 0.080”
NADI241210 24 609.6 12 304.8 10 254.0 20 508.0 14 355.6 22 558.8 10 254.0 0.080”
NADI222214 22 558.8 22 558.8 14 355.6 18 457.2 24 609.6 20 508.0 20 508.0 0.080”
NADI222212 22 558.8 22 558.8 12 304.8 18 457.2 24 609.6 20 508.0 20 508.0 0.080”
NADI221812 22 558.8 18 457.2 12 304.8 18 457.2 20 508.0 20 508.0 16 406.4 0.080”
NADI221410 22 558.8 14 355.6 10 254.0 18 457.2 16 406.4 20 508.0 12 304.8 0.080”
NADI221008 22 558.8 10 254.0 08 203.2 18 457.2 12 304.8 20 508.0 8 203.2 0.080”
NADI202014 20 508.0 20 508.0 14 355.6 16 406.4 22 558.8 18 457.2 18 457.2 0.080”
NADI202012 20 508.0 20 508.0 12 304.8 16 406.4 22 558.8 18 457.2 18 457.2 0.080”
NADI201612 20 508.0 16 406.4 12 304.8 16 406.4 18 457.2 18 457.2 14 355.6 0.080”
NADI201210 20 508.0 12 304.8 10 254.0 16 406.4 14 355.6 18 457.2 10 254.0 0.080”
NADI201208 20 508.0 12 304.8 08 203.2 16 406.4 14 355.6 18 457.2 10 254.0 0.080”
NADI181814 18 457.2 18 457.2 14 355.6 14 355.6 20 508.0 16 406.4 16 406.4 0.080”
NADI181812 18 457.2 18 457.2 12 304.8 14 355.6 20 508.0 16 406.4 16 406.4 0.080”
NADI181612 18 457.2 16 406.4 12 304.8 14 355.6 18 457.2 16 406.4 14 355.6 0.080”
NADI181410 18 457.2 14 355.6 10 254.0 14 355.6 16 406.4 16 406.4 12 304.8 0.080”
NADI181208 18 457.2 12 304.8 08 203.2 14 355.6 14 355.6 16 406.4 08 203.2 0.080”
NADI161612 16 406.4 16 406.4 12 304.8 12 304.8 18 457.2 14 355.6 14 355.6 0.080”
NADI161610 16 406.4 16 406.4 10 254.0 12 304.8 18 457.2 14 355.6 14 355.6 0.080”
NADI161410 16 406.4 14 355.6 10 254.0 12 304.8 16 406.4 14 355.6 12 304.8 0.080”
NADI161208 16 406.4 12 304.8 08 203.2 12 304.8 14 355.6 14 355.6 08 203.2 0.080”
NADI141412 14 355.6 14 355.6 12 304.8 10 254.0 16 406.4 12 304.8 06 152.4 0.080”
NADI141410 14 355.6 14 355.6 10 254.0 10 254.0 16 406.4 12 304.8 12 304.8 0.080”
NADI141210 14 355.6 12 304.8 10 254.0 10 254.0 14 355.6 12 304.8 10 254.0 0.080”
NADI141008 14 355.6 10 254.0 08 203.2 10 254.0 12 304.8 12 304.8 08 203.2 0.080”
NADI121210 12 304.8 12 304.8 10 254.0 08 203.2 14 355.6 10 254.0 06 152.4 0.080”
NADI121208 12 304.8 12 304.8 08 203.2 08 203.2 14 355.6 10 254.0 04 101.6 0.080”
NADI121008 12 304.8 10 254.0 08 203.2 08 203.2 12 304.8 08 203.2 08 203.2 0.080”
NADI120806 12 304.8 08 203.2 06 152.4 08 203.2 10 254.0 08 203.2 08 203.2 0.080”
NADI101008 10 254.0 10 254.0 08 203.2 06 152.4 12 304.8 08 203.2 06 152.4 0.080”
NADI101006 10 254.0 10 254.0 06 152.4 06 152.4 12 304.8 08 203.2 05 127.0 0.080”
NADI100806 10 254.0 08 203.2 06 152.4 06 152.4 10 254.0 06 152.4 04 101.6 0.080”
NADI080806 08 203.2 08 203.2 06 152.4 04 101.6 10 254.0 06 152.4 04 101.6 0.080”
NADI080804 08 203.2 08 203.2 04 101.6 04 101.6 10 254.0 07 177.8 05 127.0 0.080”

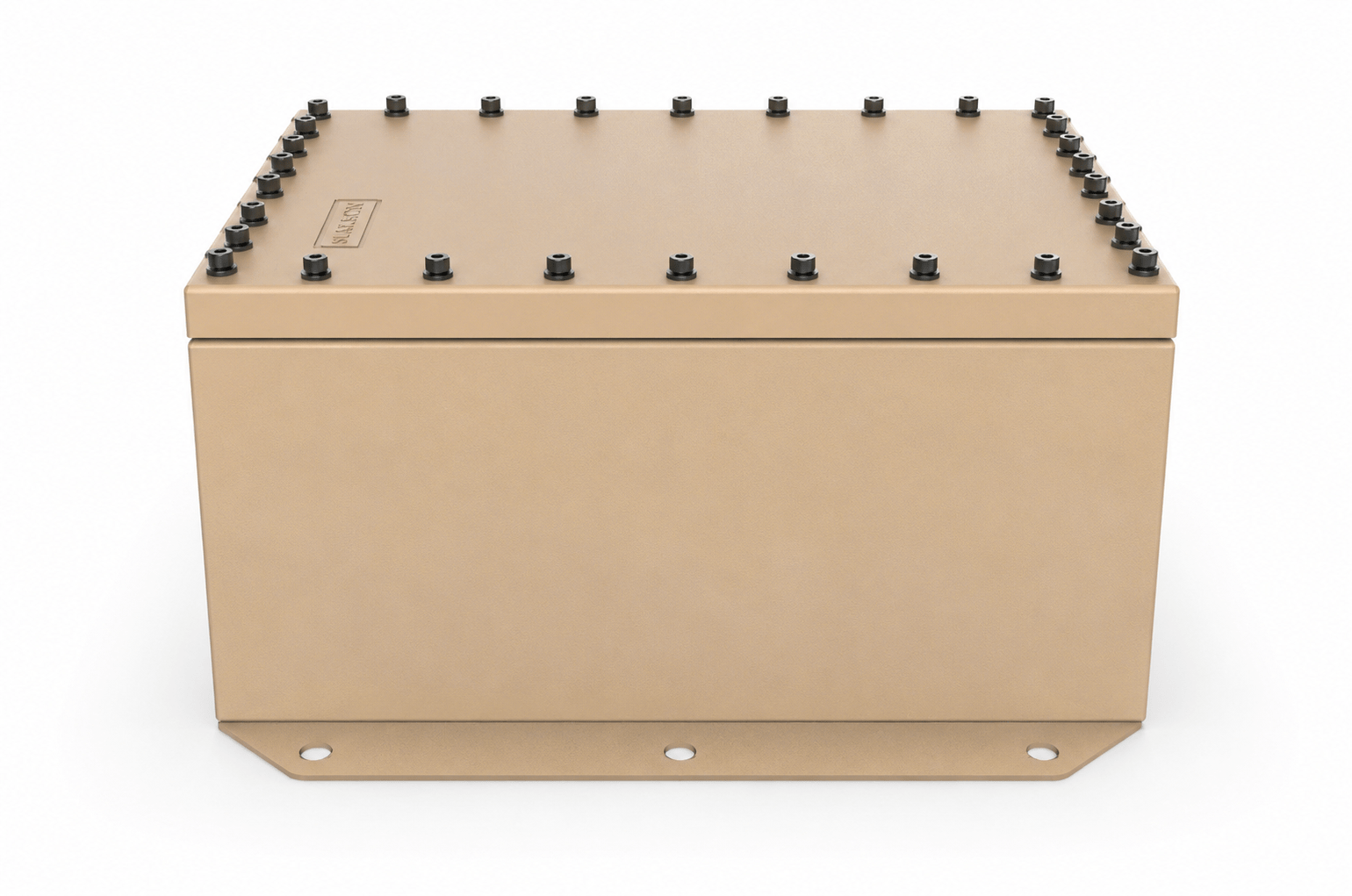

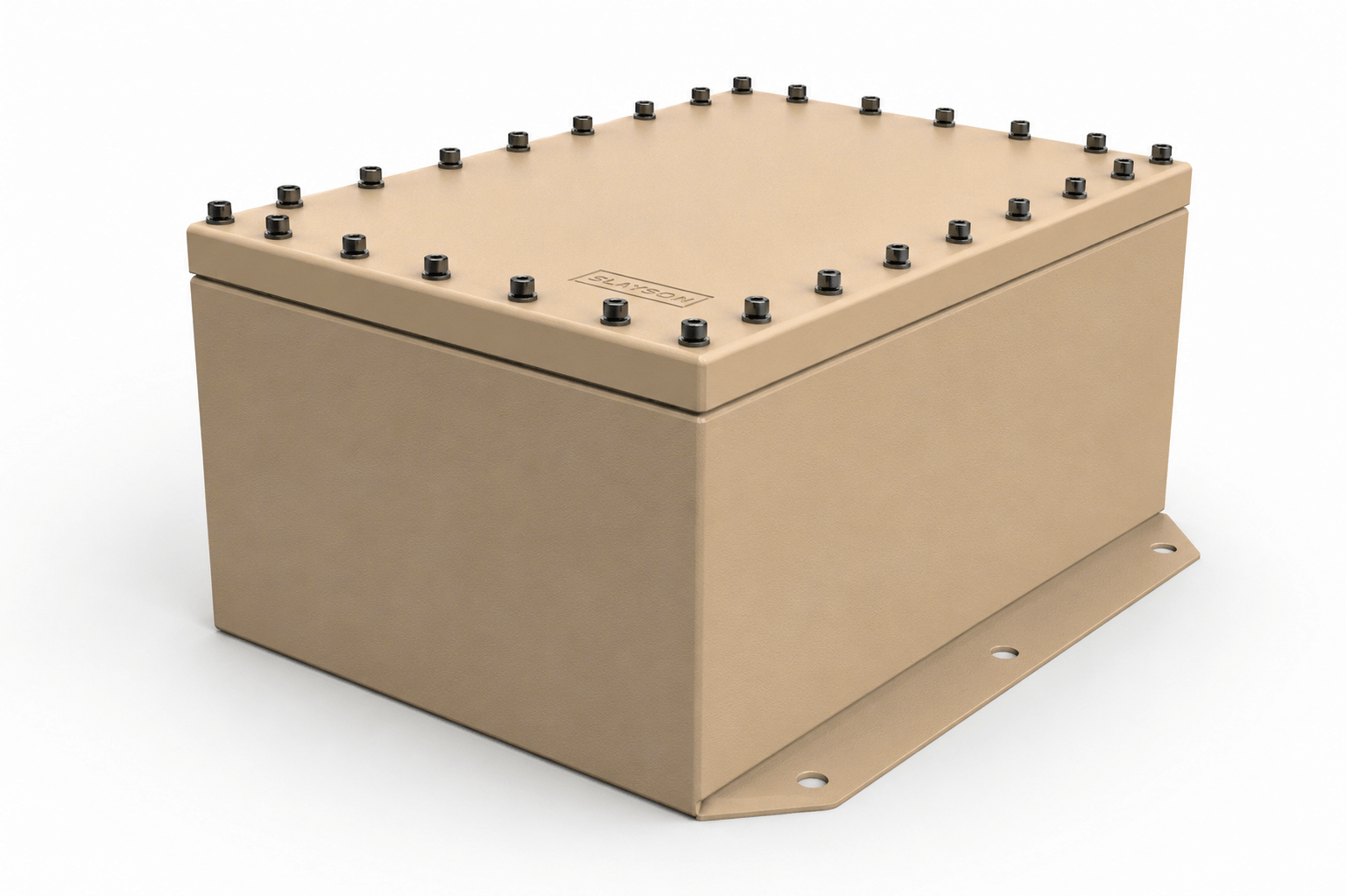

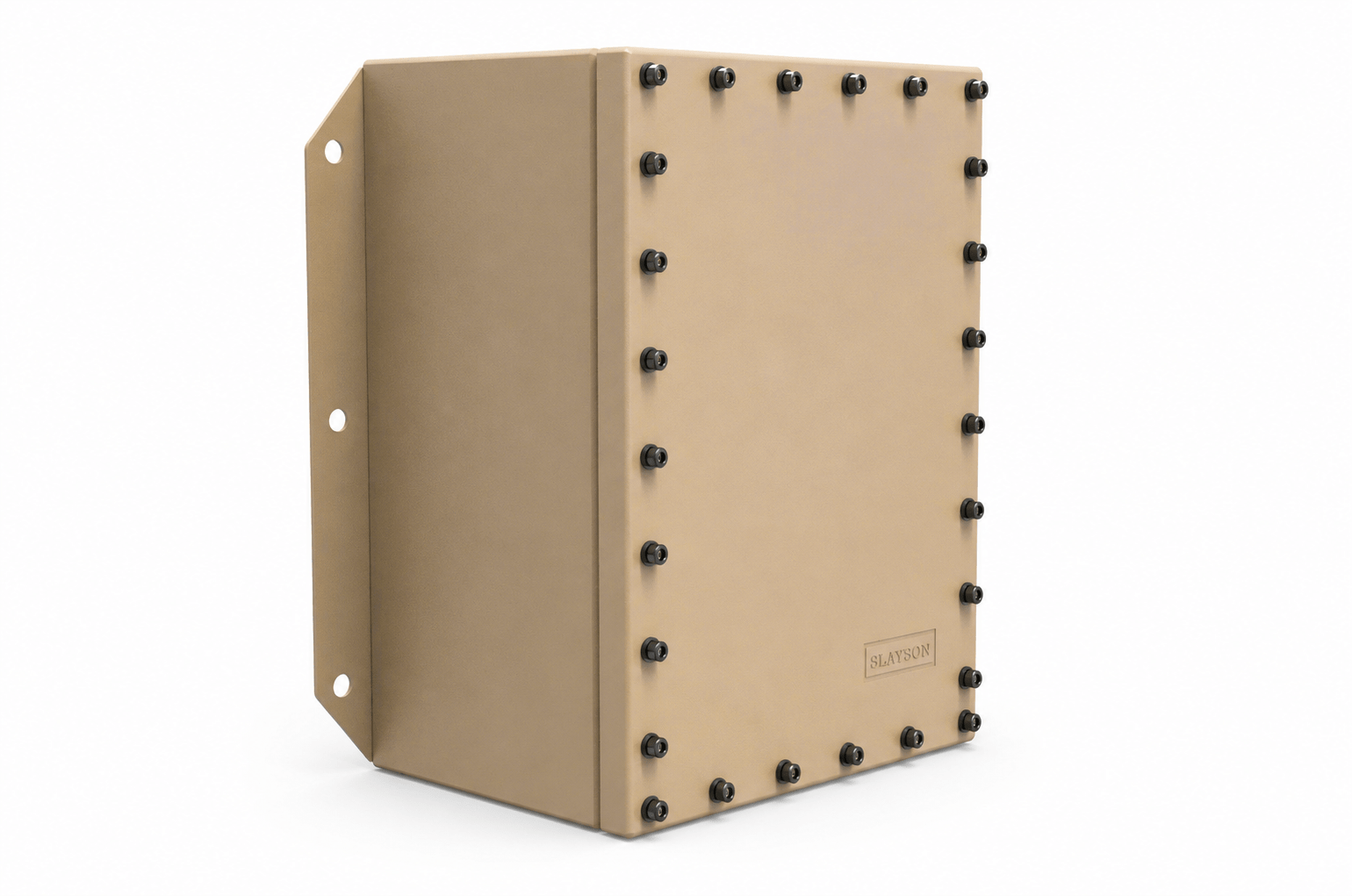

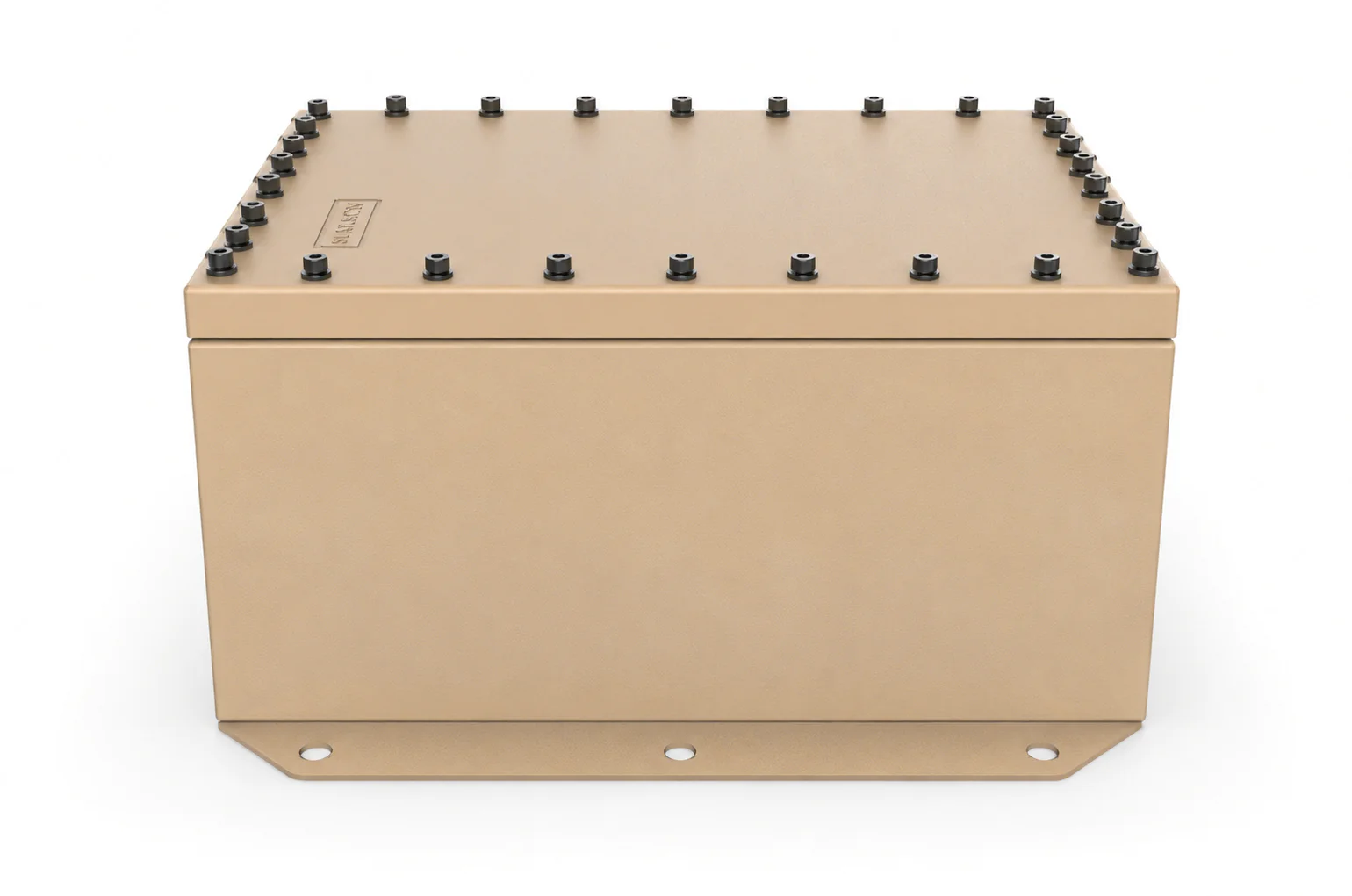

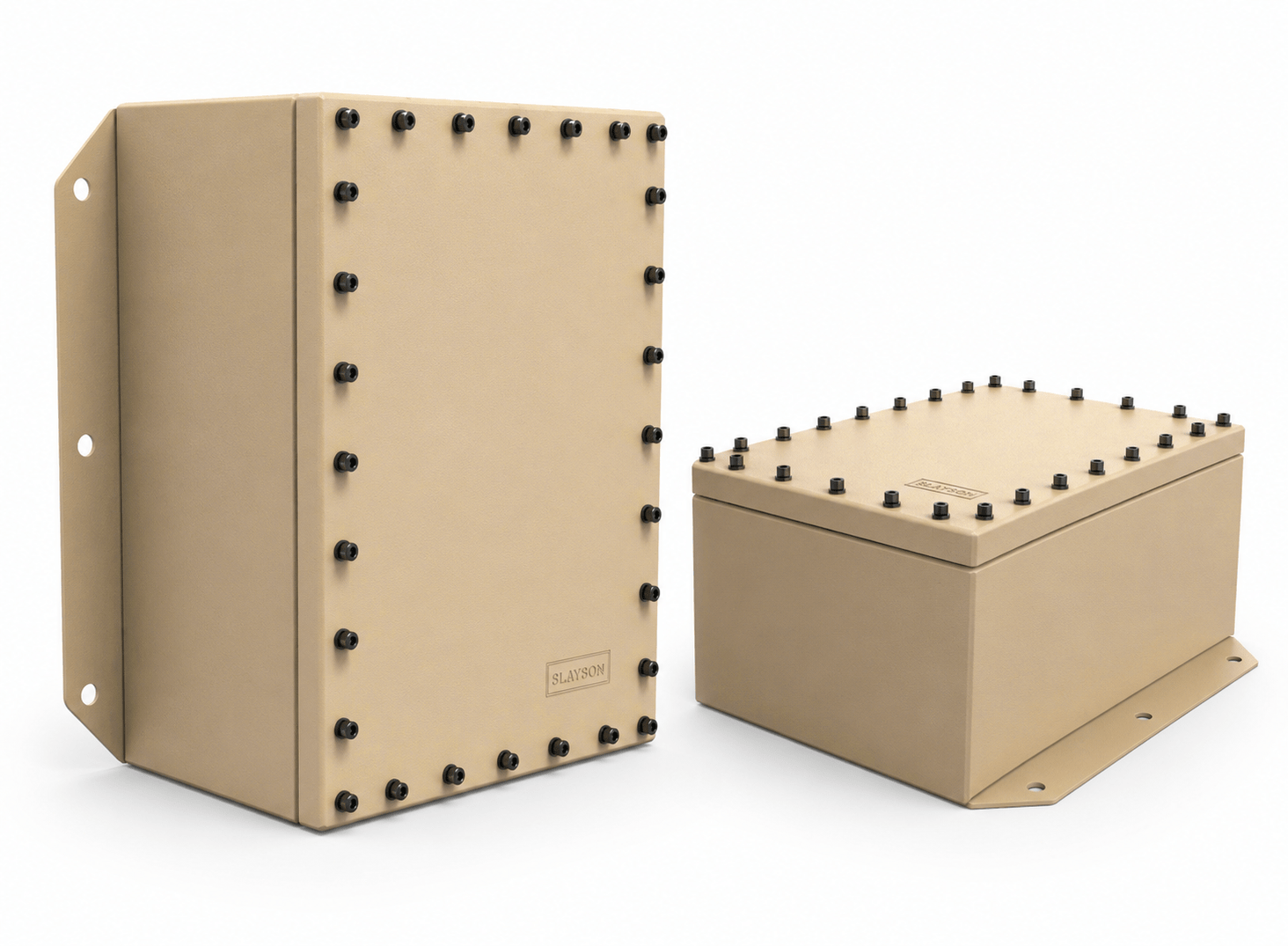

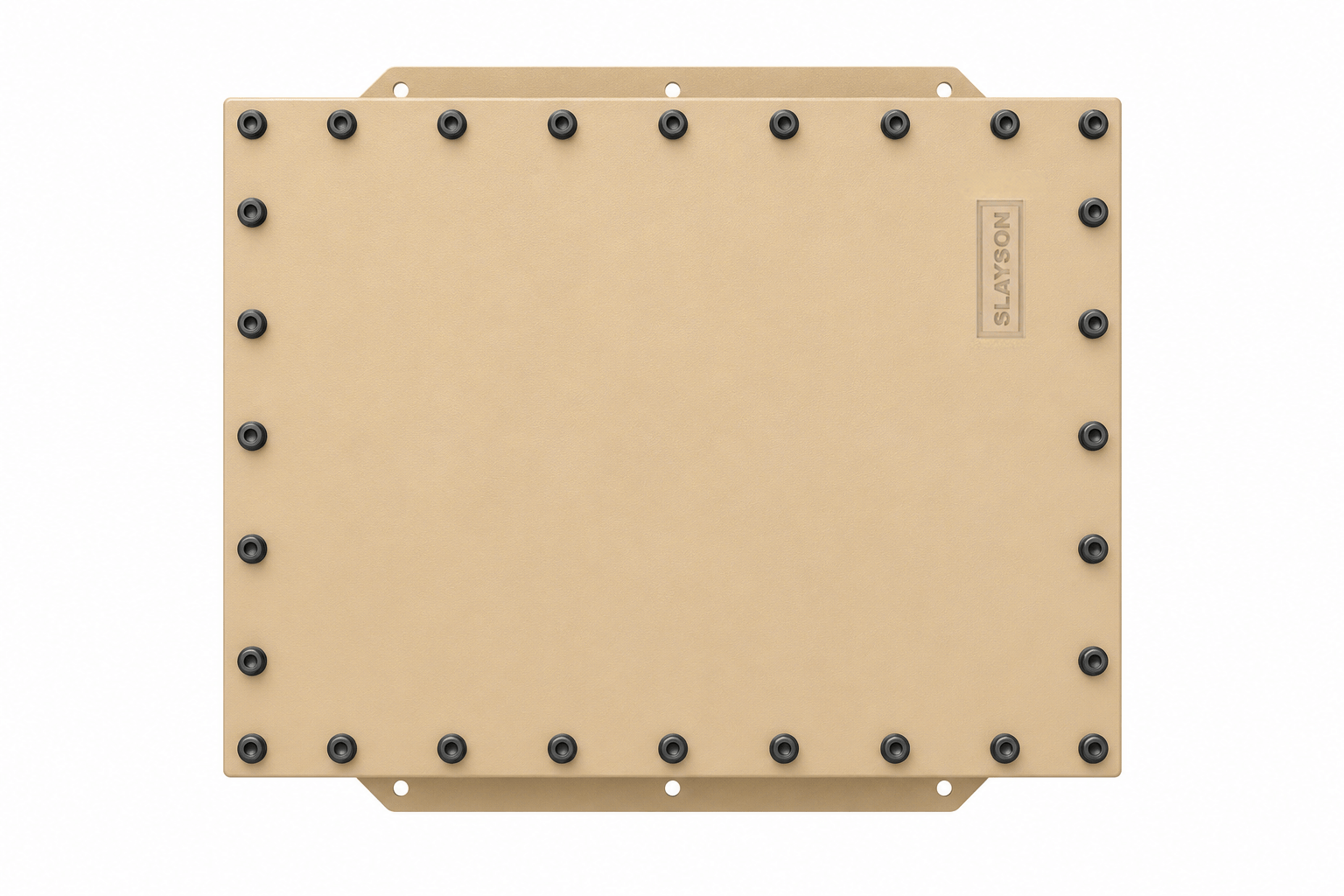

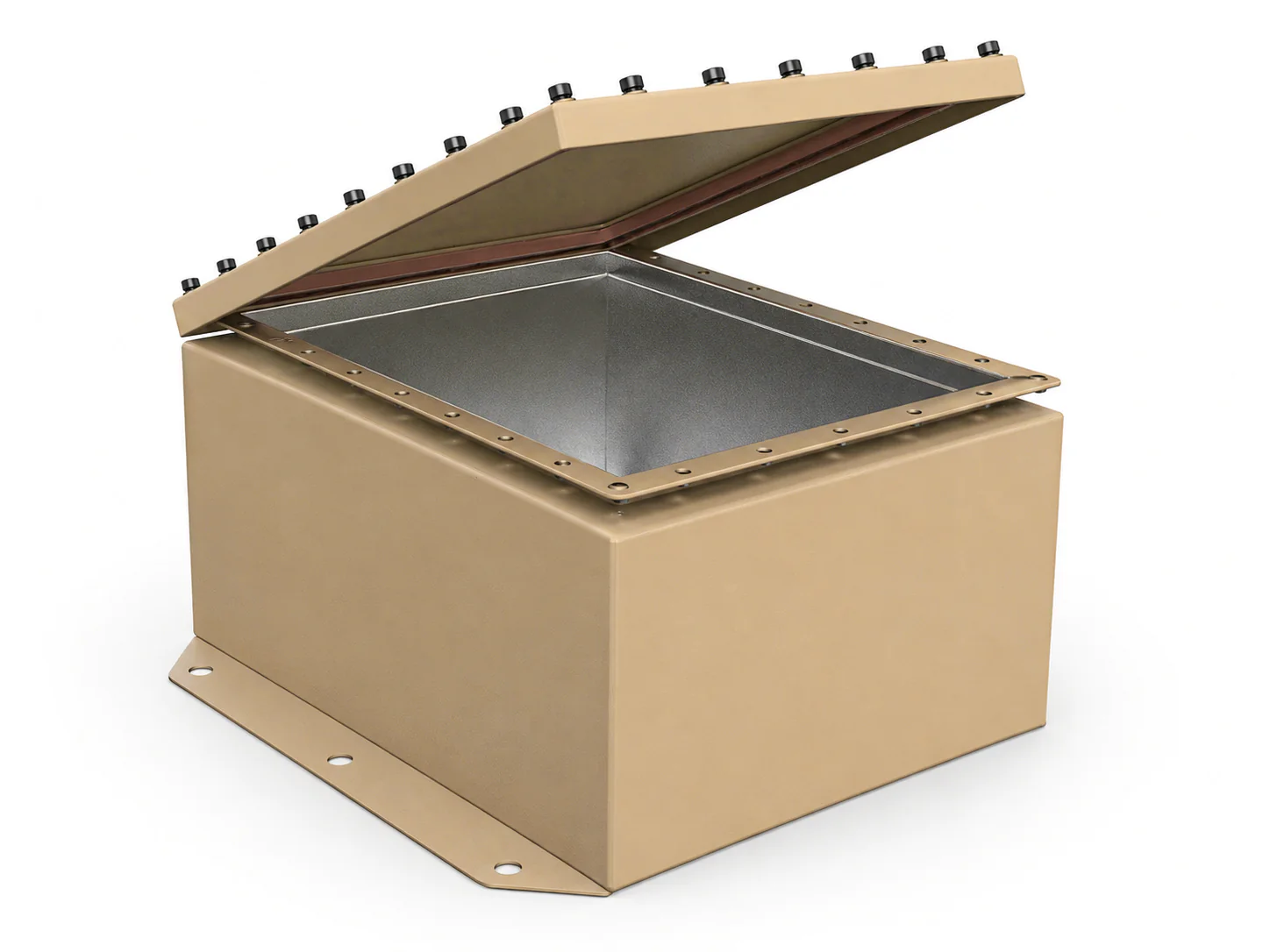

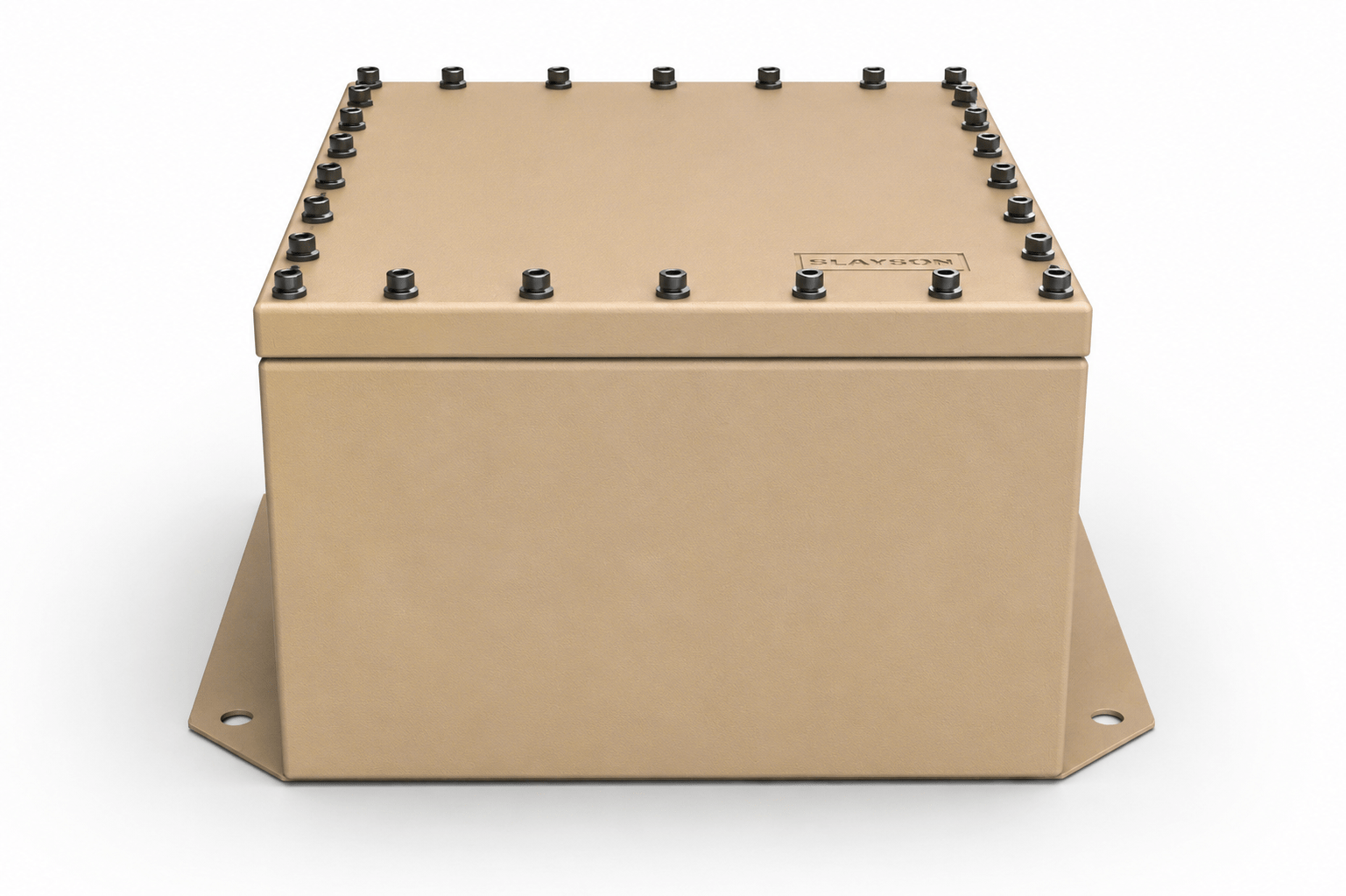

MIL-68 SUBMERSIBLE ENCLOSURE OVERVIEW

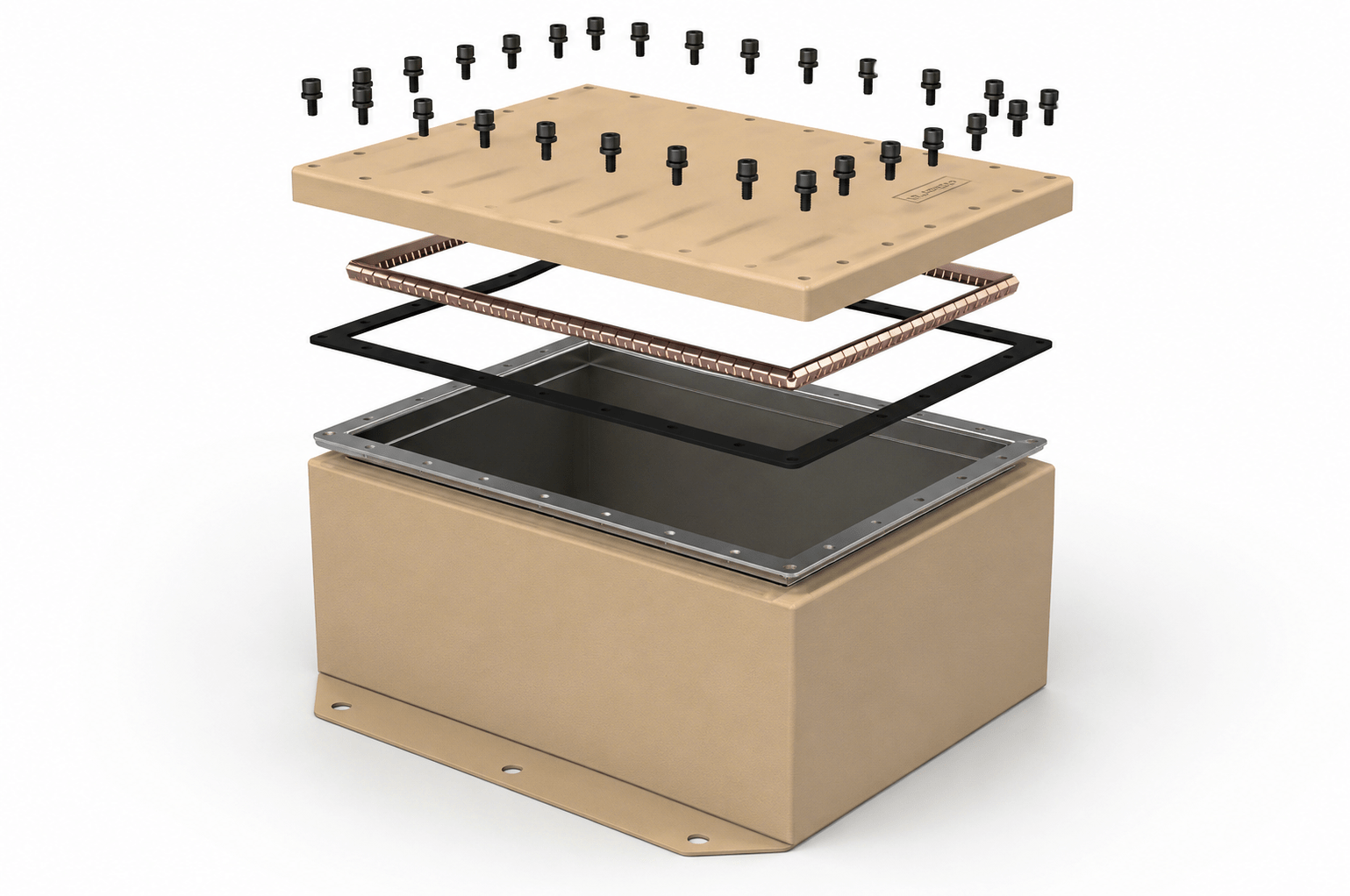

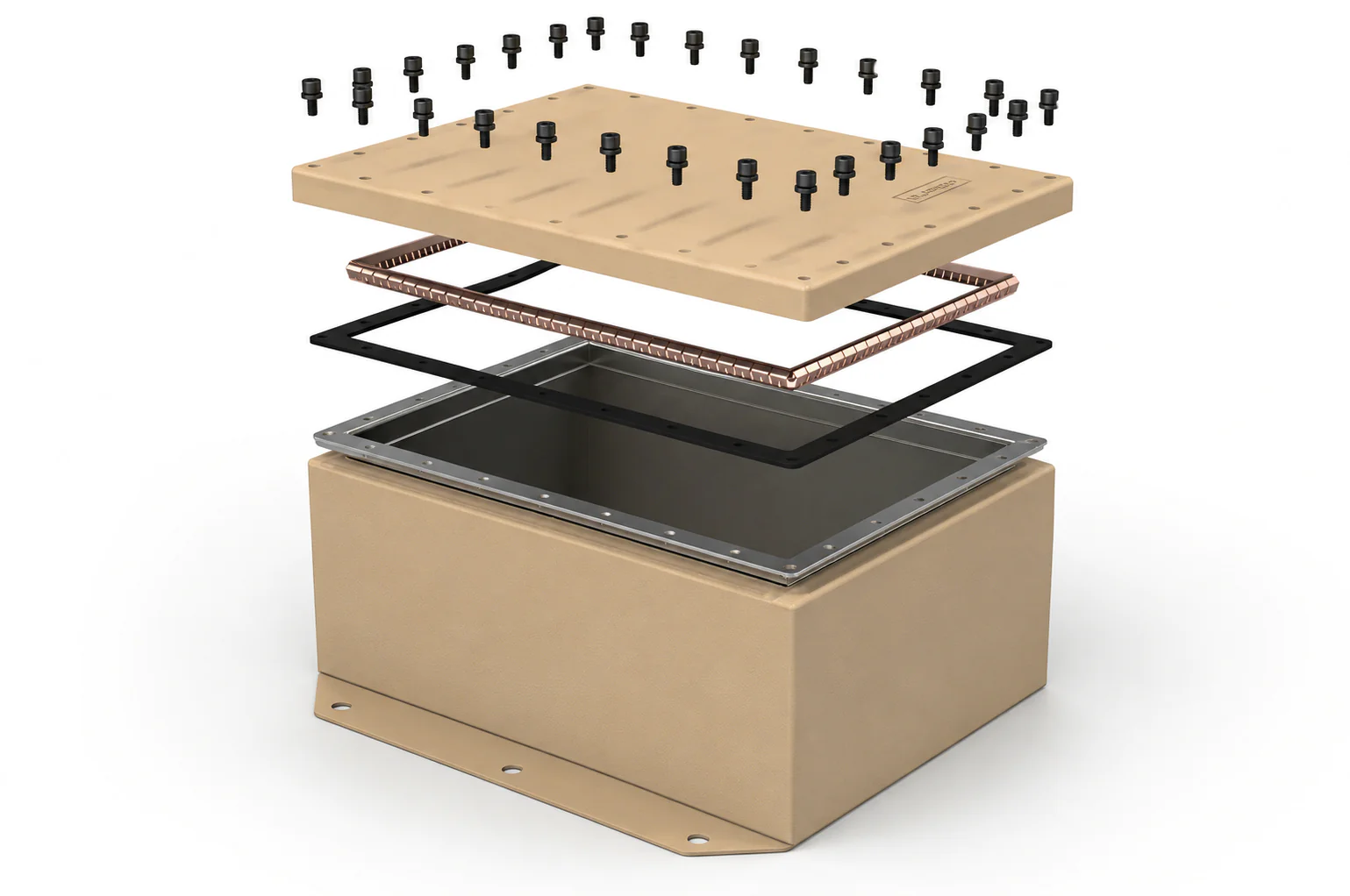

The SLAYSON® MIL-68 SUBMERSIBLE ENCLOSURE Series is specifically designed for the Defense and Military sectors, offering exceptional protection for indoor and outdoor applications. Rated NEMA 6P/IP68, these enclosures are extensively used in Military Vehicles, Heavy Equipment, GSE, Communications, Weapon Systems, and similar applications, safeguarding against dust and water ingress at depths of up to 5 metres. Constructed from Aerospace Grade Aluminium and featuring EMC Dual Gasket Technology (EDGT), the MIL-68 Series ensures vital electrical equipment is shielded from continuous or pulse EMI/RFI interference.

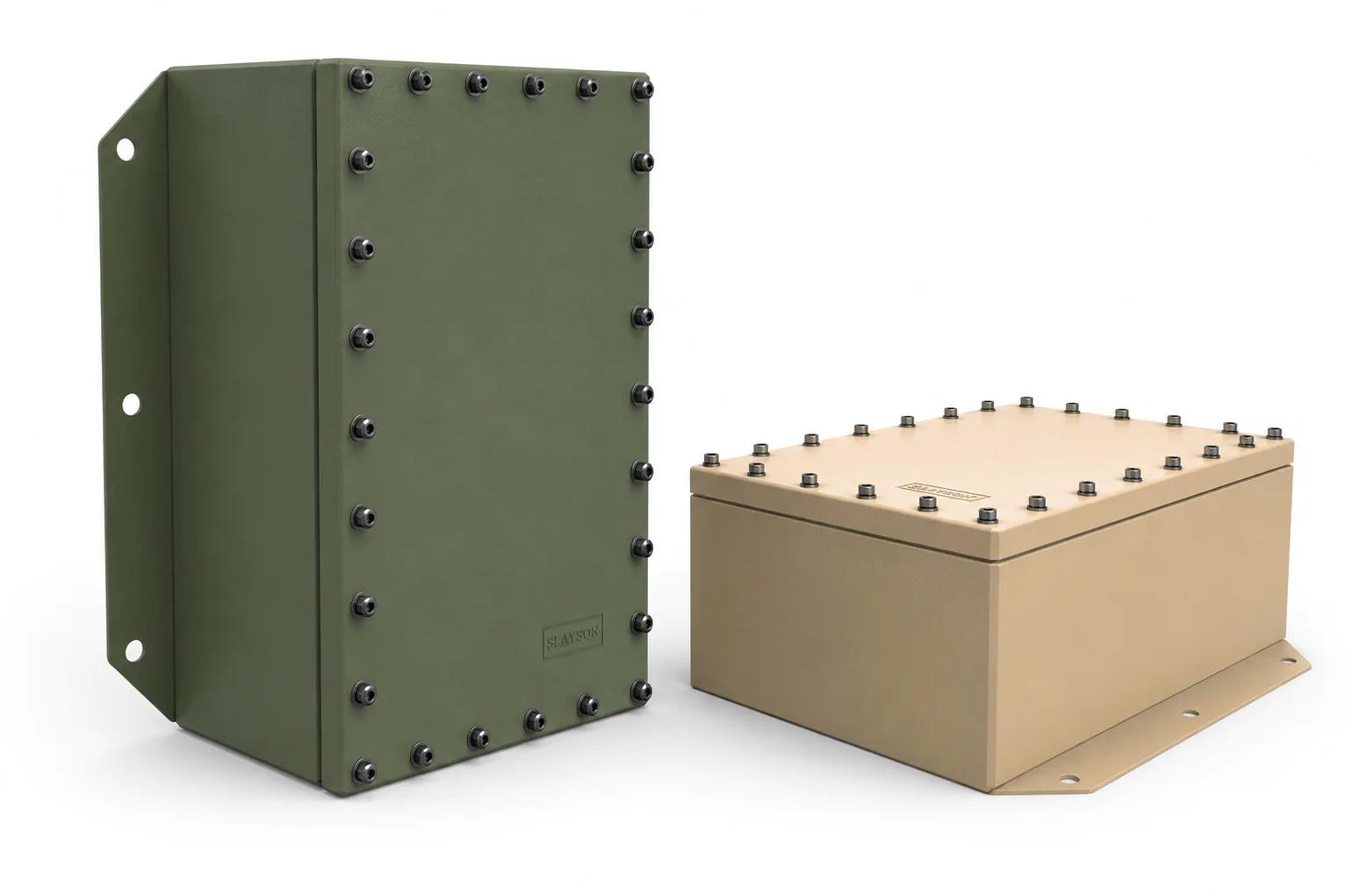

The MIL-68 Series is available in a range of finishes, including Desert Sand, Olive Drab, White, Black, and more, providing adaptability to diverse operational needs. Offered in standard sizes from 8″x 8″ to 16″x 16″, each enclosure can be customised with various accessories to suit specific requirements. SLAYSON’s design and engineering teams work closely with clients to deliver enclosures that meet precise specifications.

If the standard sizes or configurations do not meet your needs, SLAYSON® offers custom design and engineering services to create a bespoke MIL-68 enclosure tailored to your project requirements.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
