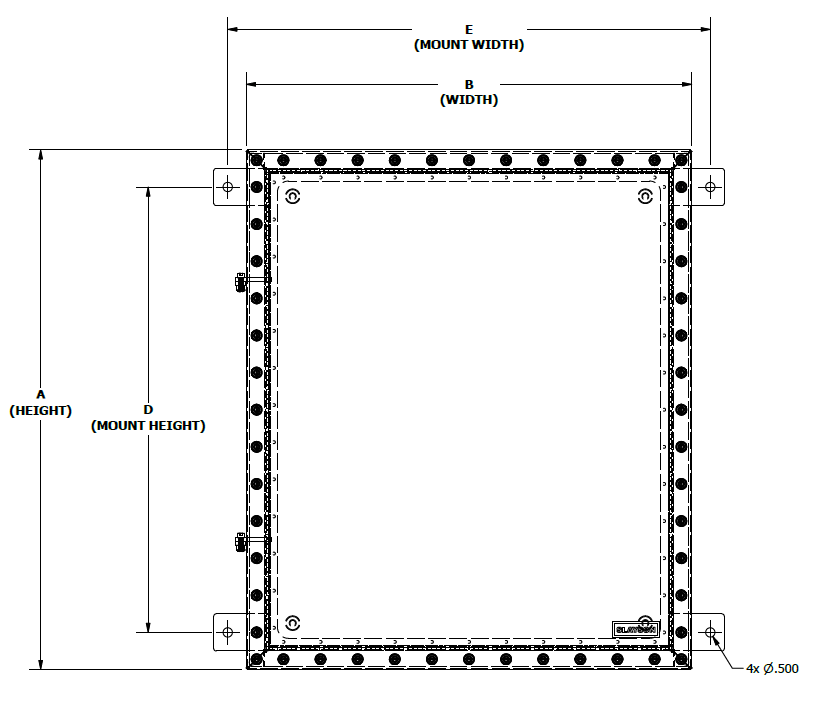

| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| EAD909060 | 90 | 900.0 | 90 | 900.0 | 60 | 600.0 | 80 | 800.0 | 95 | 950.0 | 80 | 800.0 | 80 | 800.0 | 0.08” |
| EAD909030 | 90 | 900.0 | 90 | 900.0 | 30 | 300.0 | 80 | 800.0 | 95 | 950.0 | 80 | 800.0 | 80 | 800.0 | 0.08” |
| EAD858560 | 85 | 850.0 | 85 | 850.0 | 60 | 600.0 | 75 | 750.0 | 90 | 900.0 | 75 | 750.0 | 75 | 750.0 | 0.08” |
| EAD858530 | 85 | 850.0 | 85 | 850.0 | 30 | 300.0 | 75 | 750.0 | 90 | 900.0 | 75 | 750.0 | 75 | 750.0 | 0.08” |
| EAD757545 | 75 | 750.0 | 75 | 750.0 | 45 | 450.0 | 65 | 650.0 | 80 | 800.0 | 65 | 650.0 | 65 | 650.0 | 0.08” |
| EAD756545 | 75 | 750.0 | 65 | 650.0 | 45 | 450.0 | 65 | 650.0 | 70 | 700.0 | 65 | 650.0 | 55 | 550.0 | 0.08” |
| EAD707040 | 70 | 700.0 | 70 | 700.0 | 40 | 400.0 | 60 | 600.0 | 75 | 750.0 | 60 | 600.0 | 60 | 600.0 | 0.08” |
| EAD706040 | 70 | 700.0 | 60 | 600.0 | 40 | 400.0 | 60 | 600.0 | 65 | 650.0 | 60 | 600.0 | 55 | 550.0 | 0.08” |
| EAD656535 | 65 | 650.0 | 65 | 650.0 | 35 | 350.0 | 55 | 550.0 | 70 | 700.0 | 55 | 550.0 | 55 | 550.0 | 0.08” |
| EAD655535 | 65 | 650.0 | 55 | 550.0 | 35 | 350.0 | 55 | 550.0 | 60 | 600.0 | 55 | 550.0 | 45 | 450.0 | 0.08” |
| EAD606030 | 60 | 600.0 | 60 | 600.0 | 30 | 300.0 | 50 | 500.0 | 65 | 650.0 | 50 | 500.0 | 50 | 500.0 | 0.08” |
| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| EADI363624 | 36 | 914.4 | 36 | 914.4 | 24 | 609.6 | 32 | 812.8 | 38 | 956.2 | 32 | 812.8 | 32 | 812.8 | 12 |
| EADI363612 | 36 | 914.4 | 36 | 914.4 | 12 | 304.8 | 32 | 812.8 | 38 | 956.2 | 32 | 812.8 | 32 | 812.8 | 12 |
| EADI343424 | 34 | 863.3 | 34 | 863.3 | 24 | 609.6 | 30 | 762.0 | 36 | 914.4 | 30 | 762.0 | 30 | 762,0 | 12 |
| EADI343412 | 34 | 863.3 | 34 | 863.3 | 12 | 304.8 | 30 | 762.0 | 36 | 914.4 | 30 | 762.0 | 30 | 762,0 | 12 |
| EADI303018 | 30 | 762.0 | 30 | 762.0 | 18 | 457.2 | 26 | 660.4 | 32 | 812.8 | 26 | 660.4 | 26 | 660.4 | 12 |
| EADI302818 | 30 | 762.0 | 28 | 711.2 | 18 | 457.2 | 26 | 660.4 | 28 | 711.2 | 26 | 660.4 | 26 | 660.4 | 12 |
| EADI282816 | 28 | 711.2 | 28 | 711.2 | 16 | 406.4 | 24 | 609.6 | 30 | 762.0 | 24 | 609.6 | 24 | 609.6 | 12 |
| EADI282416 | 28 | 711.2 | 24 | 609.6 | 16 | 406.4 | 24 | 609.6 | 26 | 660.4 | 24 | 609.6 | 24 | 609.6 | 12 |
| EADI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 28 | 711.2 | 22 | 558.8 | 22 | 558.8 | 12 |
| EADI262214 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 24 | 609.6 | 22 | 558.8 | 22 | 558.8 | 12 |

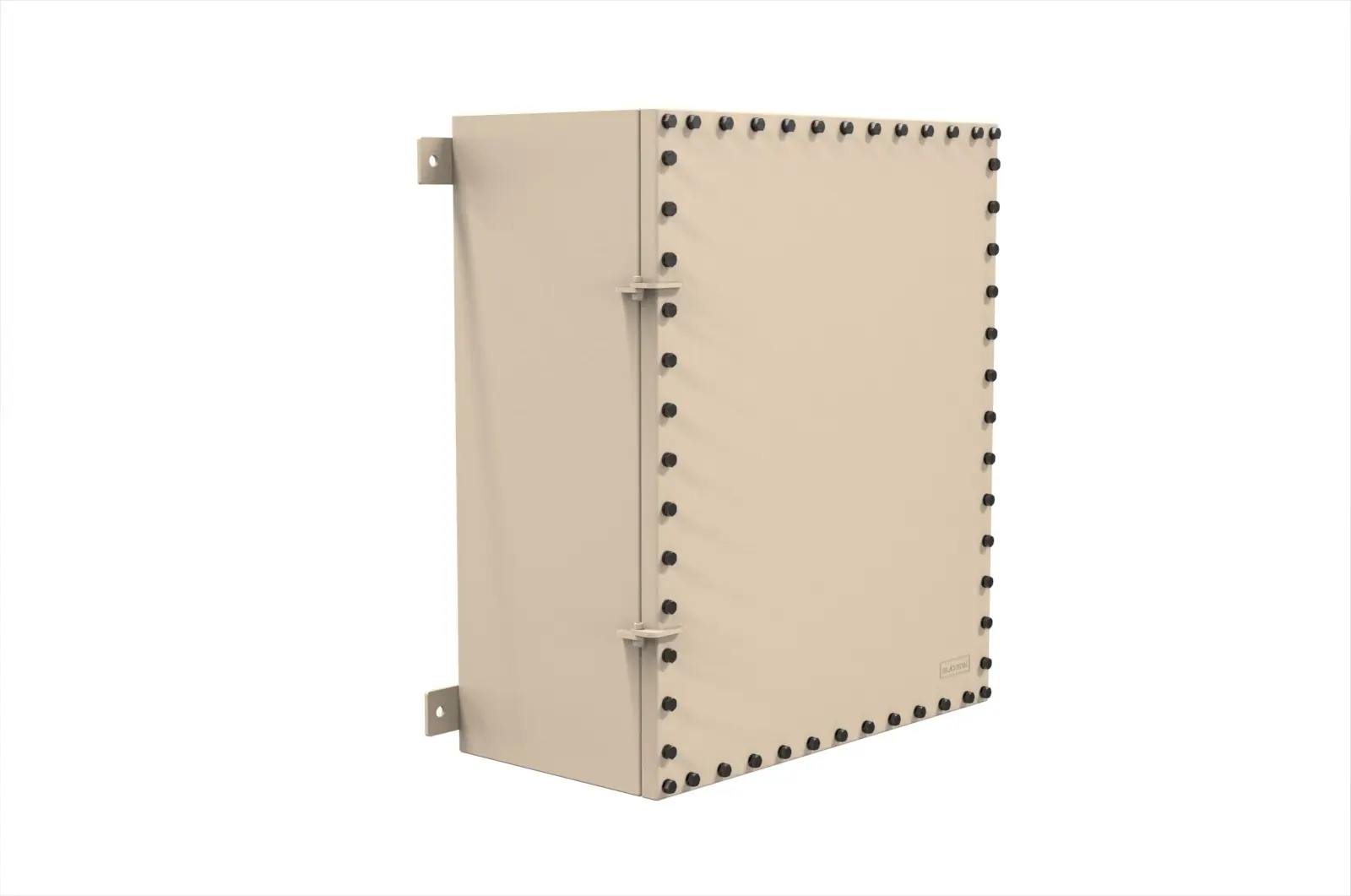

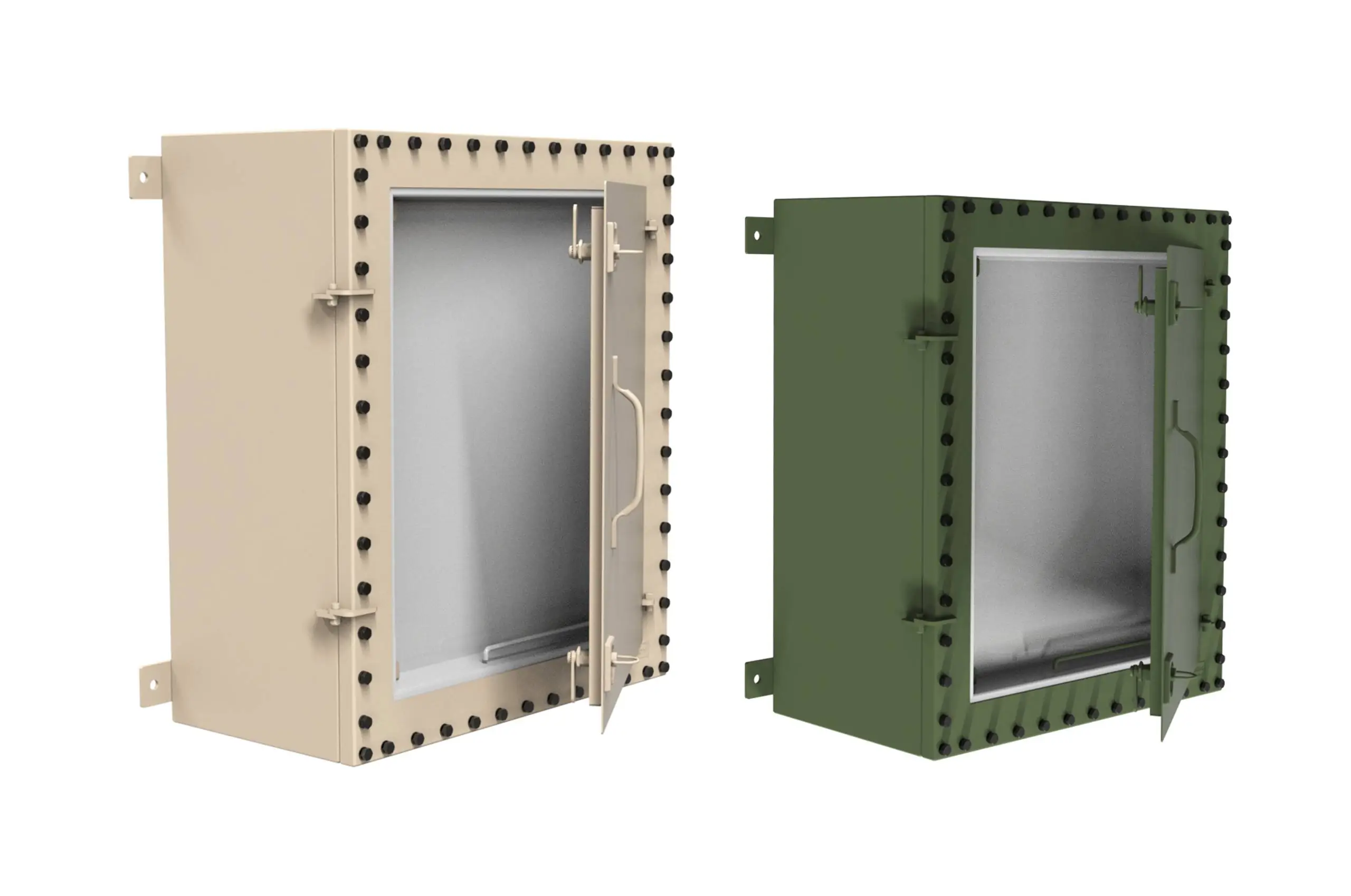

MIL-68 SHIELDED CONTROL PANEL OVERVIEW

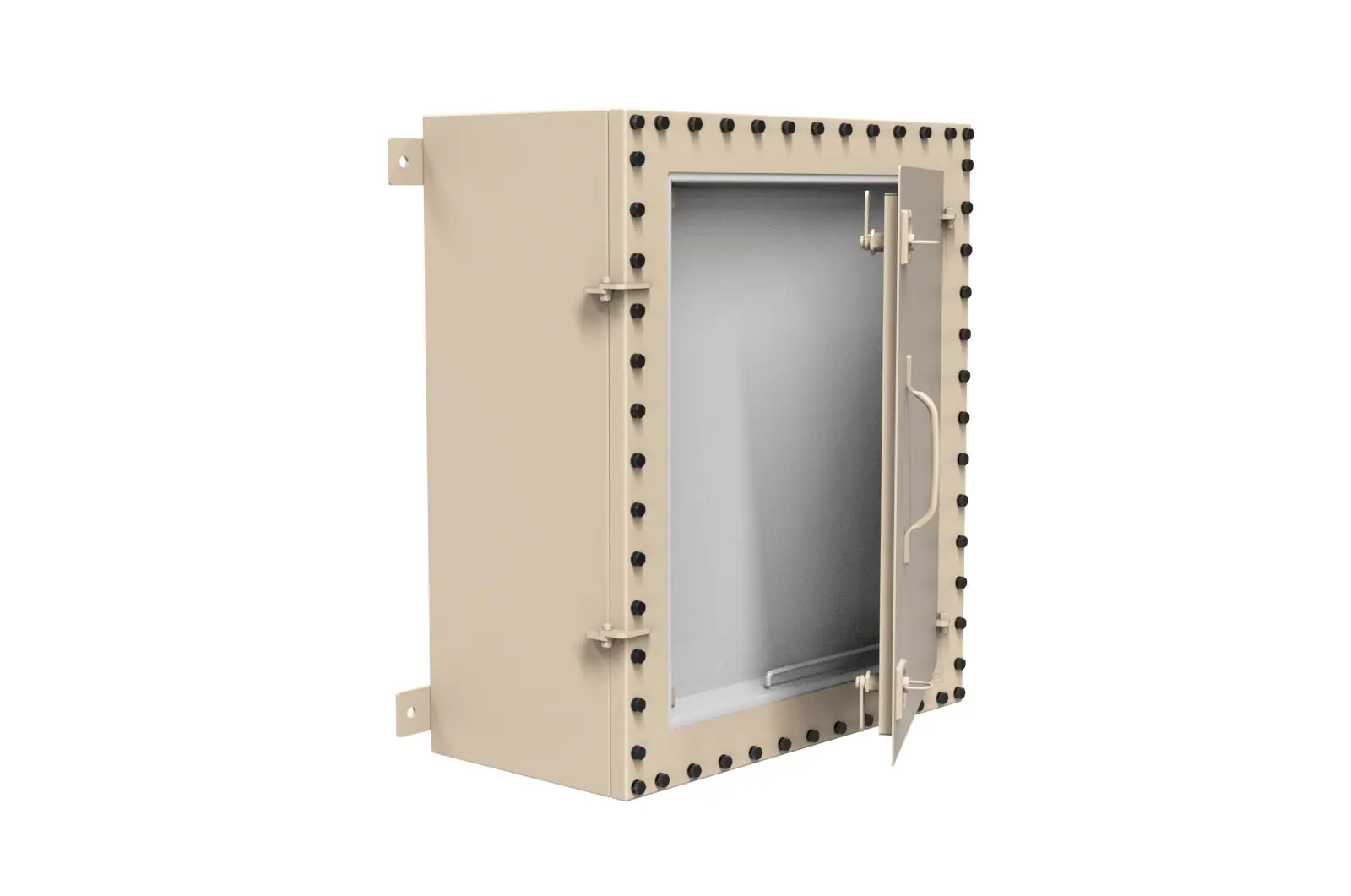

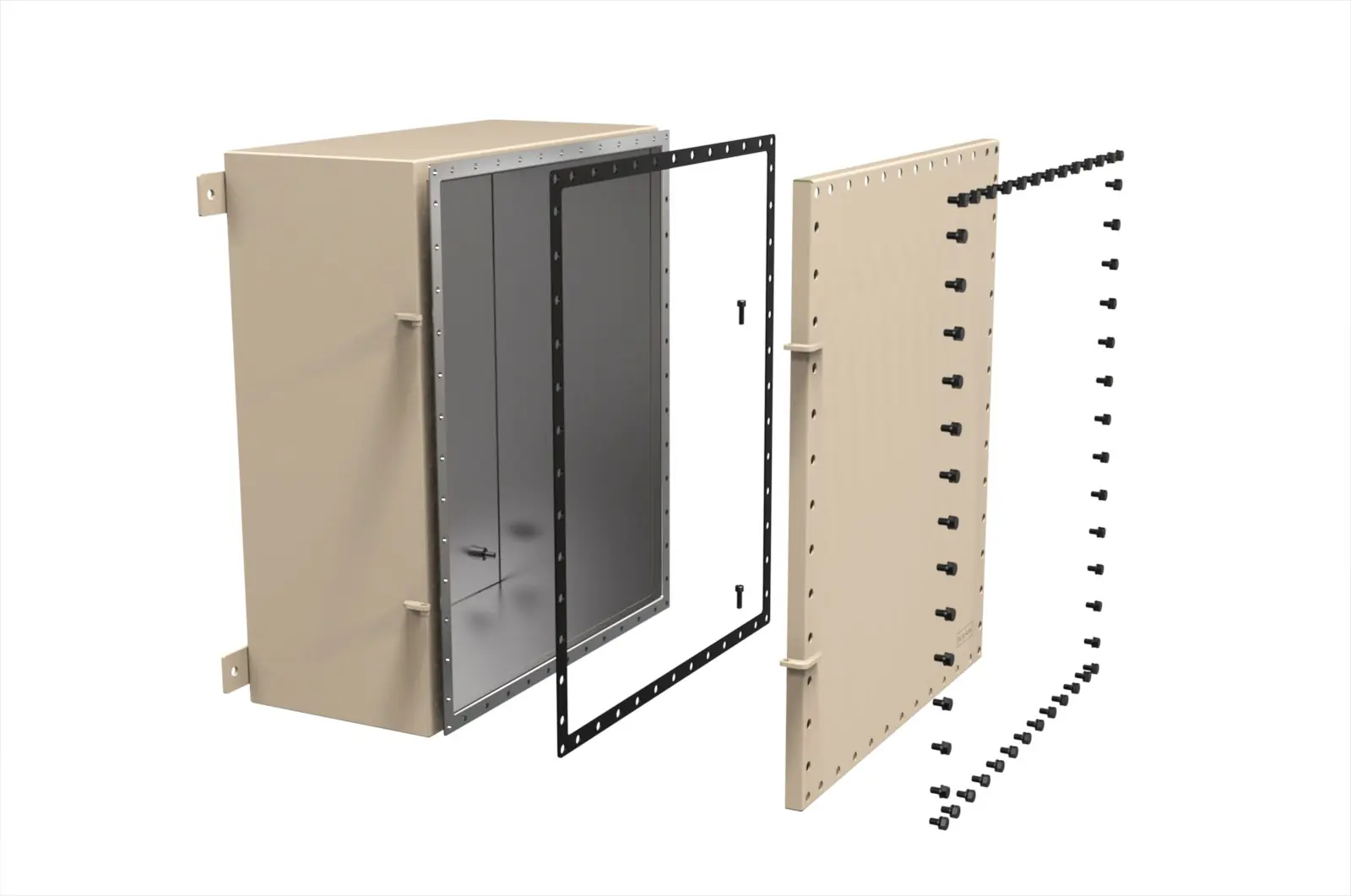

The SLAYSON® MIL-68 SHIELDED CONTROL PANEL provides superior protection for military vehicles, weapons systems, and electronic control hardware operating in the harshest environments. Featuring hermetic sealing, it ensures complete resistance to dust and water ingress. Dual Beryllium Copper gaskets deliver 360° EMC/EMP immunity, while the optional Shielded Access Door (IP66) accessory enables secure operational control access.
The MIL-68 SHIELDED CONTROL PANEL Series offers a Commercial Off-The-Shelf (COTS) range of rugged Shielded Control Panels and accessories, providing a proven and flexible panel enclosure system designed to meet stringent military specifications.
