| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| NSM656540 | 65 | 650.0 | 65 | 650.0 | 40 | 400.0 | 55 | 550.0 | 70 | 700.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| NSM656535 | 65 | 650.0 | 65 | 650.0 | 35 | 350.0 | 55 | 550.0 | 70 | 700.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| NSM655535 | 65 | 650.0 | 55 | 500.0 | 35 | 350.0 | 55 | 550.0 | 60 | 600.0 | 60 | 600.0 | 50 | 500.0 | 2.00 |
| NSM655030 | 65 | 650.0 | 50 | 500.0 | 30 | 300.0 | 55 | 550.0 | 55 | 550.0 | 60 | 600.0 | 45 | 450.0 | 2.00 |
| NSM653625 | 65 | 650.0 | 35 | 350.0 | 25 | 250.0 | 55 | 550.0 | 40 | 400.0 | 60 | 600.0 | 30 | 300.0 | 2.00 |
| NSM606040 | 60 | 600.0 | 60 | 600.0 | 40 | 400.0 | 50 | 500.0 | 65 | 650.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| NSM606035 | 60 | 600.0 | 60 | 600.0 | 35 | 350.0 | 50 | 500.0 | 65 | 650.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| NSM605035 | 60 | 600.0 | 50 | 500.0 | 35 | 350.0 | 50 | 500.0 | 55 | 550.0 | 55 | 550.0 | 45 | 450.0 | 2.00 |
| NSM604530 | 60 | 600.0 | 45 | 450.0 | 30 | 300.0 | 50 | 500.0 | 50 | 500.0 | 55 | 550.0 | 40 | 400.0 | 2.00 |
| NSM603025 | 60 | 600.0 | 30 | 300.0 | 25 | 250.0 | 50 | 500.0 | 35 | 350.0 | 55 | 550.0 | 25 | 250.0 | 2.00 |
| NSM555535 | 55 | 550.0 | 55 | 550.0 | 35 | 350.0 | 45 | 450.0 | 60 | 600.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| NSM555530 | 55 | 550.0 | 55 | 550.0 | 30 | 300.0 | 45 | 450.0 | 60 | 600.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| NSM554530 | 55 | 550.0 | 45 | 450.0 | 30 | 300.0 | 45 | 450.0 | 50 | 500.0 | 50 | 500.0 | 40 | 400.0 | 2.00 |
| NSM553525 | 55 | 550.0 | 35 | 350.0 | 25 | 250.0 | 45 | 450.0 | 40 | 400.0 | 50 | 500.0 | 30 | 300.0 | 2.00 |
| NSM552520 | 55 | 550.0 | 25 | 250.0 | 20 | 200.0 | 45 | 450.0 | 30 | 300.0 | 50 | 500.0 | 20 | 200.0 | 2.00 |
| NSM505035 | 50 | 500.0 | 50 | 500.0 | 35 | 350.0 | 40 | 400.0 | 55 | 550.0 | 45 | 450.0 | 45 | 450.0 | 2.00 |
| NSM505030 | 50 | 500.0 | 50 | 500.0 | 30 | 300.0 | 40 | 400.0 | 55 | 550.0 | 45 | 450.0 | 45 | 450.0 | 2.00 |
| NSM504030 | 50 | 500.0 | 40 | 400.0 | 30 | 300.0 | 40 | 400.0 | 45 | 450.0 | 45 | 450.0 | 35 | 350.0 | 2.00 |
| NSM504025 | 50 | 500.0 | 30 | 300.0 | 25 | 250.0 | 40 | 400.0 | 35 | 350.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| NSM503020 | 50 | 500.0 | 30 | 300.0 | 20 | 200.0 | 40 | 400.0 | 35 | 350.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| NSM454535 | 45 | 450.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 50 | 500.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| NSM454530 | 45 | 450.0 | 45 | 450.0 | 30 | 300.0 | 35 | 350.0 | 50 | 500.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| NSM454030 | 45 | 450.0 | 40 | 400.0 | 30 | 300.0 | 35 | 350.0 | 45 | 450.0 | 40 | 400.0 | 35 | 350.0 | 2.00 |
| NSM453525 | 45 | 450.0 | 35 | 350.0 | 25 | 250.0 | 35 | 350.0 | 40 | 400.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| NSM453020 | 45 | 450.0 | 30 | 300.0 | 20 | 200.0 | 35 | 350.0 | 35 | 350.0 | 40 | 400.0 | 25 | 250.0 | 2.00 |
| NSM404030 | 40 | 400.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| NSM404025 | 40 | 400.0 | 40 | 400.0 | 25 | 250.0 | 30 | 300.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| NSM403525 | 40 | 400.0 | 35 | 350.0 | 25 | 250.0 | 30 | 300.0 | 40 | 400.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| NSM403020 | 40 | 400.0 | 30 | 300.0 | 20 | 200.0 | 30 | 300.0 | 35 | 350.0 | 35 | 350.0 | 25 | 250.0 | 2.00 |
| NSM353530 | 35 | 350.0 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| NSM353525 | 35 | 350.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| NSM353025 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 25 | 250.0 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| NSM352520 | 35 | 350.0 | 25 | 250.0 | 20 | 200.0 | 25 | 250.0 | 30 | 300.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| NSM303025 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| NSM303020 | 30 | 300.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| NSM302520 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 20 | 200.0 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 2.00 |
| NSM302015 | 30 | 300.0 | 20 | 200.0 | 15 | 150.0 | 20 | 200.0 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 2.00 |
| NSM252520 | 25 | 250.0 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| NSM252515 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| NSM252015 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 15 | 150.0 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 2.00 |
| NSM202015 | 20 | 200.0 | 20 | 200.0 | 15 | 150.0 | 10 | 100.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 2.00 |
| NSM202010 | 20 | 200.0 | 20 | 200.0 | 10 | 100.0 | 10 | 100.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 2.00 |
| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| NSMI262616 | 26 | 660.4 | 26 | 660.4 | 16 | 406.4 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 14 |
| NSMI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 14 |
| NSMI262214 | 26 | 660.4 | 22 | 558.8 | 14 | 355.6 | 22 | 558.8 | 24 | 609.6 | 24 | 609.6 | 20 | 508.0 | 14 |
| NSMI262012 | 26 | 660.4 | 20 | 508.0 | 12 | 304.8 | 22 | 558.8 | 22 | 558.8 | 24 | 609.6 | 18 | 457.2 | 14 |
| NSMI261410 | 26 | 660.4 | 14 | 355.6 | 10 | 254.0 | 22 | 558.8 | 16 | 406.4 | 24 | 609.6 | 12 | 304.8 | 14 |
| NSMI242416 | 24 | 609.6 | 24 | 609.6 | 16 | 406.4 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 14 |
| NSMI242414 | 24 | 609.6 | 24 | 609.6 | 14 | 355.6 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 14 |
| NSMI242014 | 24 | 609.6 | 20 | 508.0 | 14 | 355.6 | 20 | 508.0 | 22 | 558.8 | 22 | 558.8 | 18 | 457.2 | 14 |
| NSMI241812 | 24 | 609.6 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 20 | 508.0 | 22 | 558.8 | 16 | 406.4 | 14 |
| NSMI241210 | 24 | 609.6 | 12 | 304.8 | 10 | 254.0 | 20 | 508.0 | 14 | 355.6 | 22 | 558.8 | 10 | 254.0 | 14 |
| NSMI222214 | 22 | 558.8 | 22 | 558.8 | 14 | 355.6 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 14 |
| NSMI222212 | 22 | 558.8 | 22 | 558.8 | 12 | 304.8 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 14 |
| NSMI221812 | 22 | 558.8 | 18 | 457.2 | 12 | 304.8 | 18 | 457.2 | 20 | 508.0 | 20 | 508.0 | 16 | 406.4 | 14 |
| NSMI221410 | 22 | 558.8 | 14 | 355.6 | 10 | 254.0 | 18 | 457.2 | 16 | 406.4 | 20 | 508.0 | 12 | 304.8 | 14 |
| NSMI221008 | 22 | 558.8 | 10 | 254.0 | 08 | 203.2 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 8 | 203.2 | 14 |
| NSMI202014 | 20 | 508.0 | 20 | 508.0 | 14 | 355.6 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 14 |
| NSMI202012 | 20 | 508.0 | 20 | 508.0 | 12 | 304.8 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 14 |
| NSMI201612 | 20 | 508.0 | 16 | 406.4 | 12 | 304.8 | 16 | 406.4 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 |
| NSMI201210 | 20 | 508.0 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 14 |
| NSMI201208 | 20 | 508.0 | 12 | 304.8 | 08 | 203.2 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 14 |
| NSMI181814 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 14 |
| NSMI181812 | 18 | 457.2 | 18 | 457.2 | 12 | 304.8 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 14 |
| NSMI181612 | 18 | 457.2 | 16 | 406.4 | 12 | 304.8 | 14 | 355.6 | 18 | 457.2 | 16 | 406.4 | 14 | 355.6 | 14 |
| NSMI181410 | 18 | 457.2 | 14 | 355.6 | 10 | 254.0 | 14 | 355.6 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 14 |
| NSMI181208 | 18 | 457.2 | 12 | 304.8 | 08 | 203.2 | 14 | 355.6 | 14 | 355.6 | 16 | 406.4 | 08 | 203.2 | 14 |
| NSMI161612 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 14 |
| NSMI161610 | 16 | 406.4 | 16 | 406.4 | 10 | 254.0 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 14 |
| NSMI161410 | 16 | 406.4 | 14 | 355.6 | 10 | 254.0 | 12 | 304.8 | 16 | 406.4 | 14 | 355.6 | 12 | 304.8 | 14 |
| NSMI161208 | 16 | 406.4 | 12 | 304.8 | 08 | 203.2 | 12 | 304.8 | 14 | 355.6 | 14 | 355.6 | 08 | 203.2 | 14 |
| NSMI141412 | 14 | 355.6 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 06 | 152.4 | 14 |
| NSMI141410 | 14 | 355.6 | 14 | 355.6 | 10 | 254.0 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 14 |
| NSMI141210 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 10 | 254.0 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 14 |
| NSMI141008 | 14 | 355.6 | 10 | 254.0 | 08 | 203.2 | 10 | 254.0 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 14 |
| NSMI121210 | 12 | 304.8 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 06 | 152.4 | 14 |
| NSMI121208 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 04 | 101.6 | 14 |
| NSMI121008 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 14 |
| NSMI120806 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 08 | 203.2 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 14 |
| NSMI101008 | 10 | 254.0 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 14 |
| NSMI101006 | 10 | 254.0 | 10 | 254.0 | 06 | 152.4 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 05 | 127.0 | 14 |
| NSMI100806 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 06 | 152.4 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 14 |
| NSMI080806 | 08 | 203.2 | 08 | 203.2 | 06 | 152.4 | 04 | 101.6 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 14 |
| NSMI080804 | 08 | 203.2 | 08 | 203.2 | 04 | 101.6 | 04 | 101.6 | 10 | 254.0 | 07 | 177.8 | 05 | 127.0 | 14 |

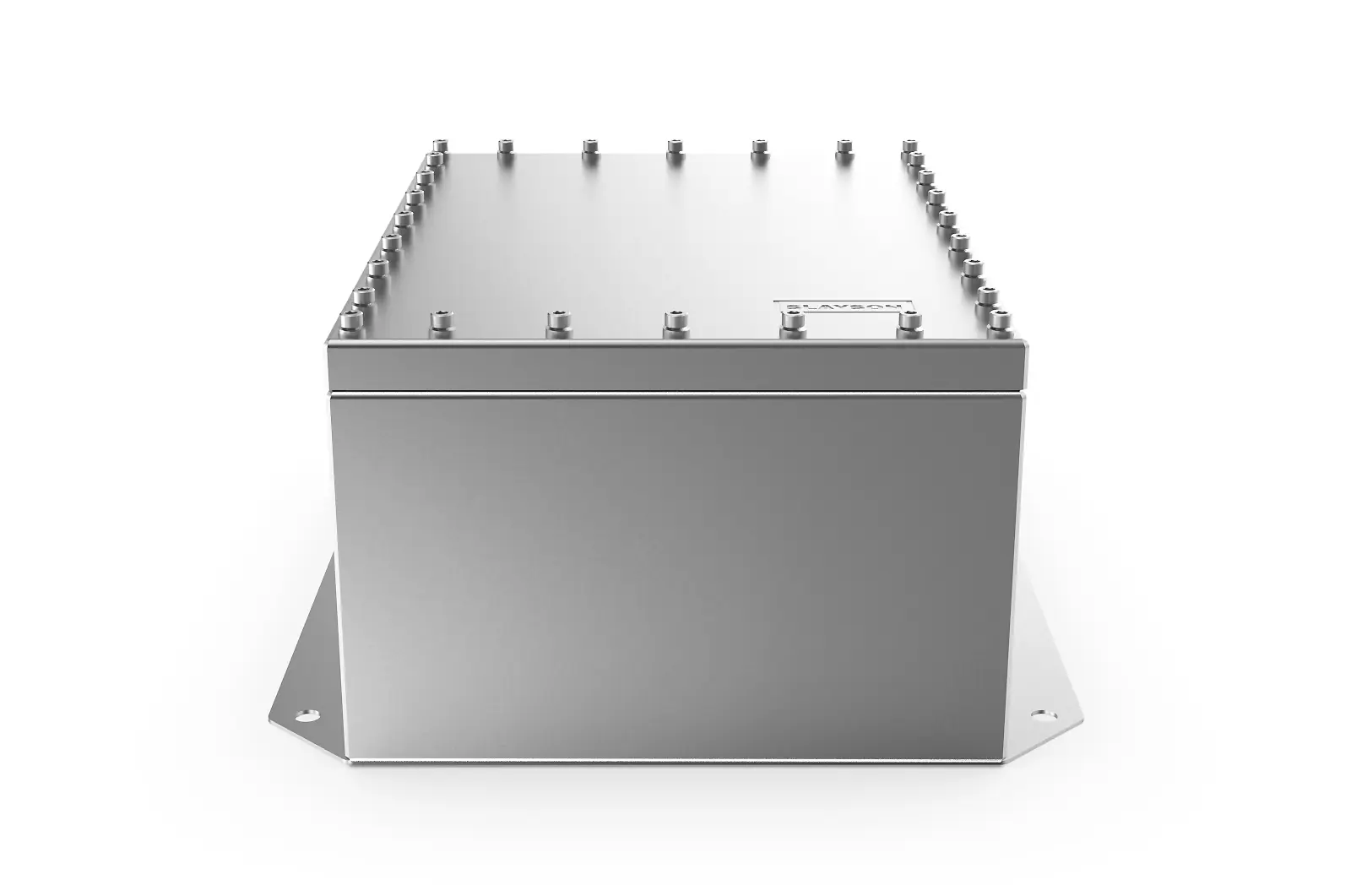

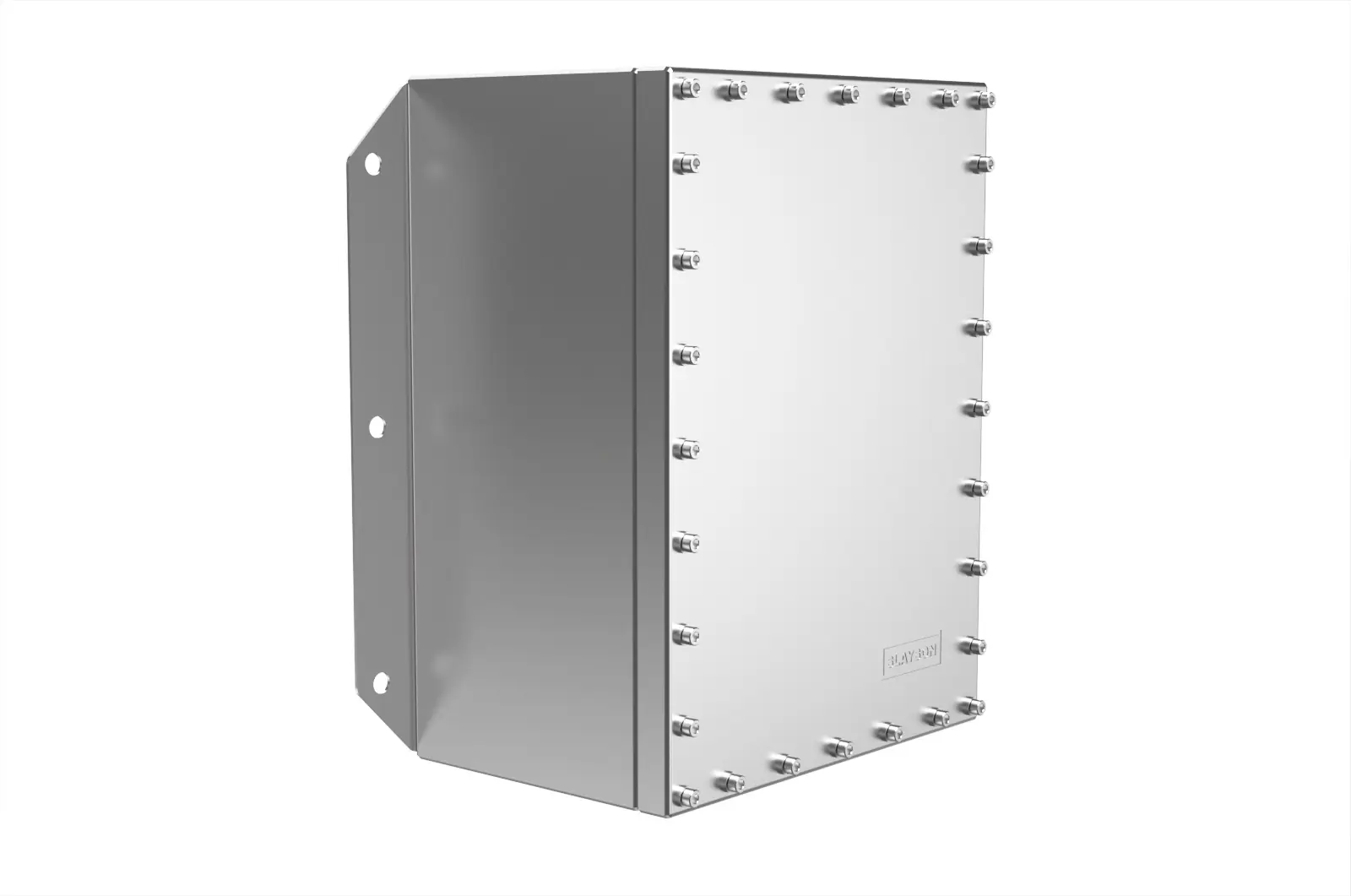

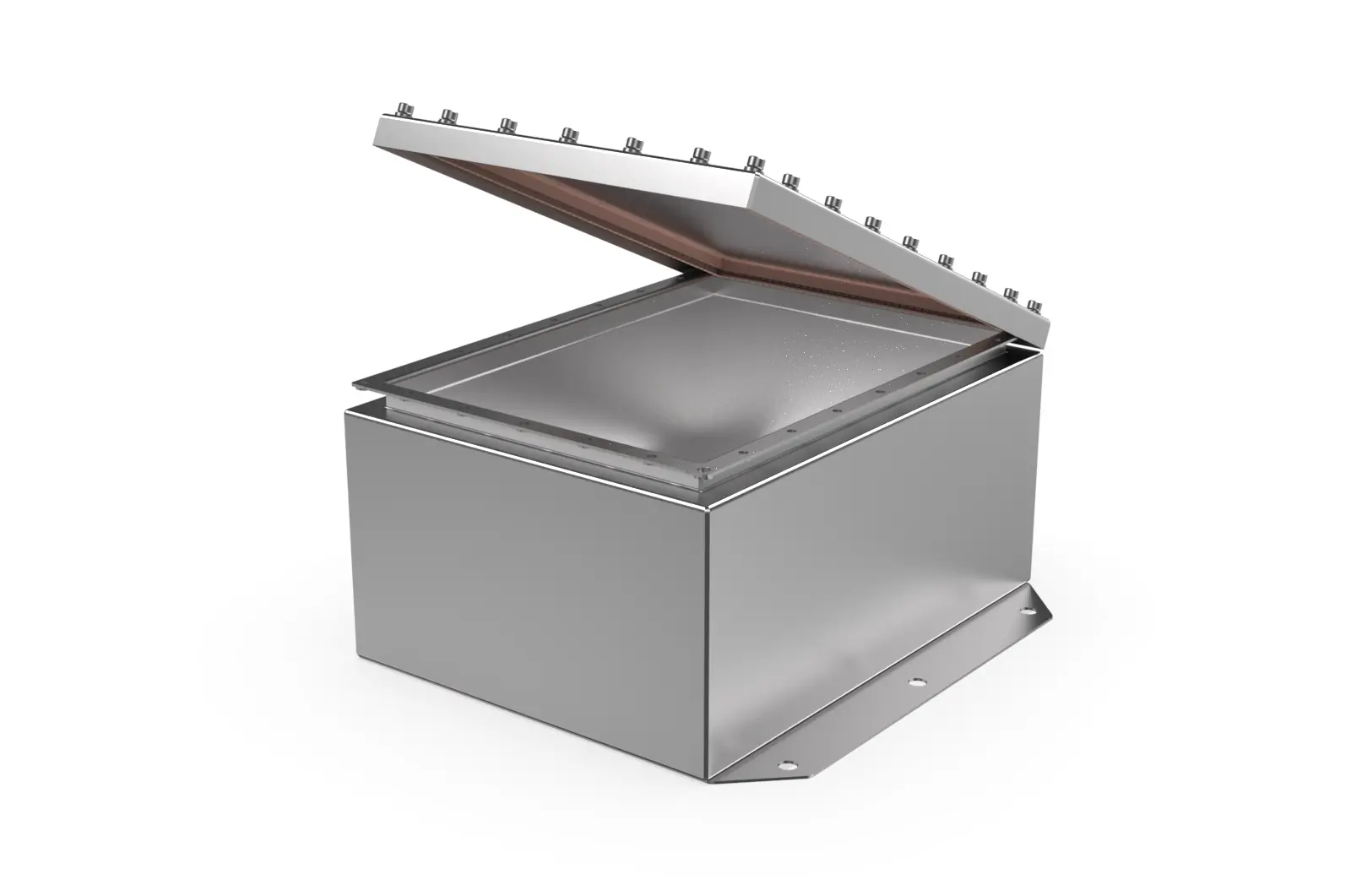

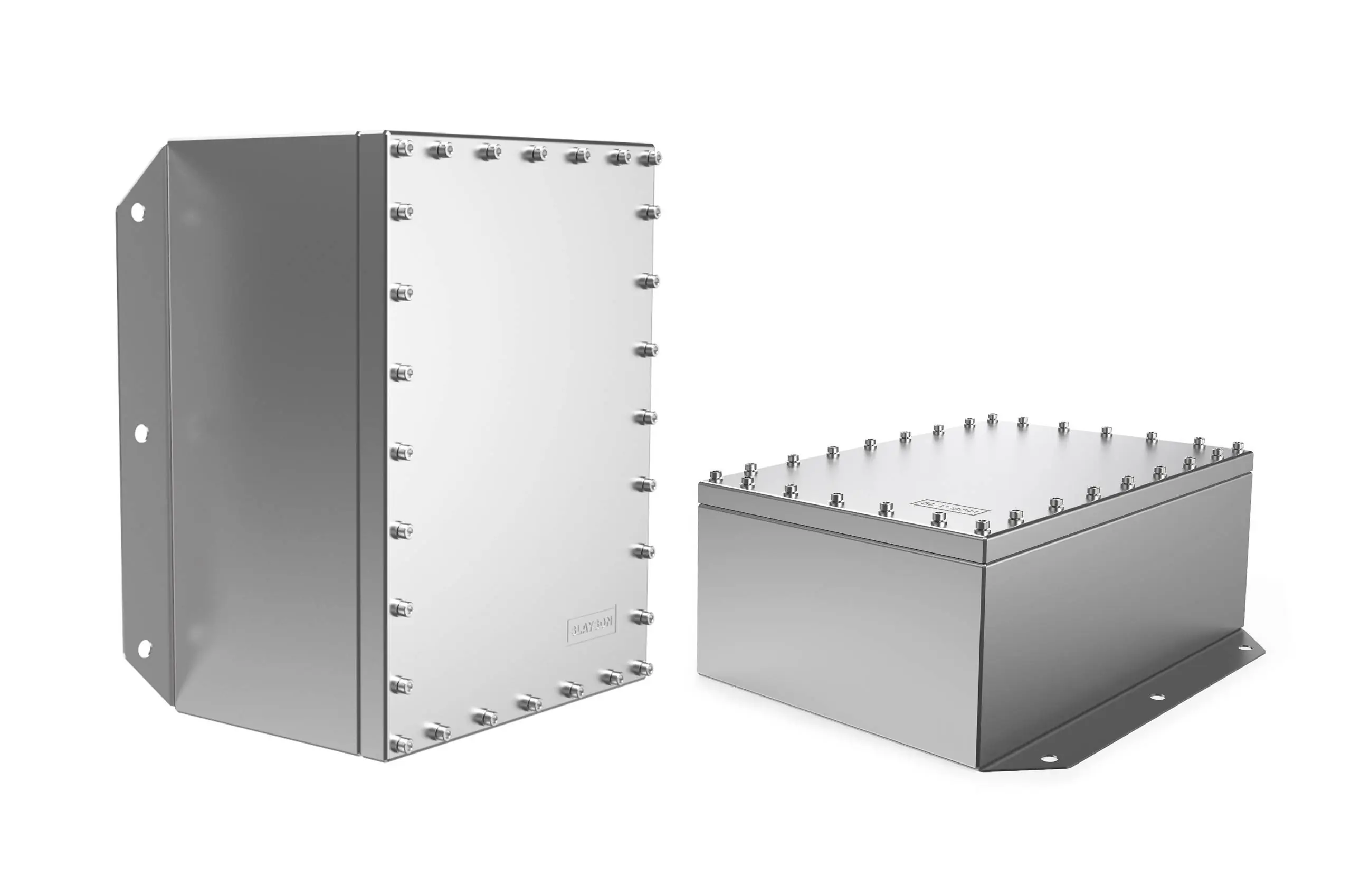

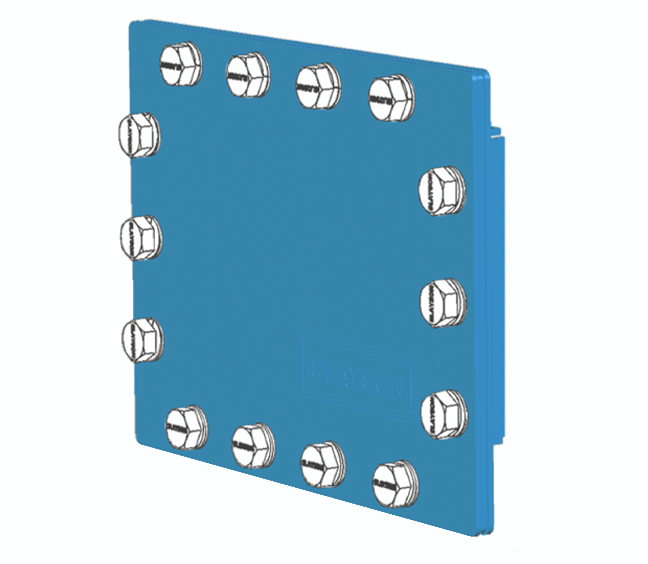

NAV-6P MARINE SUBMERSIBLE ENCLOSURE OVERVIEW

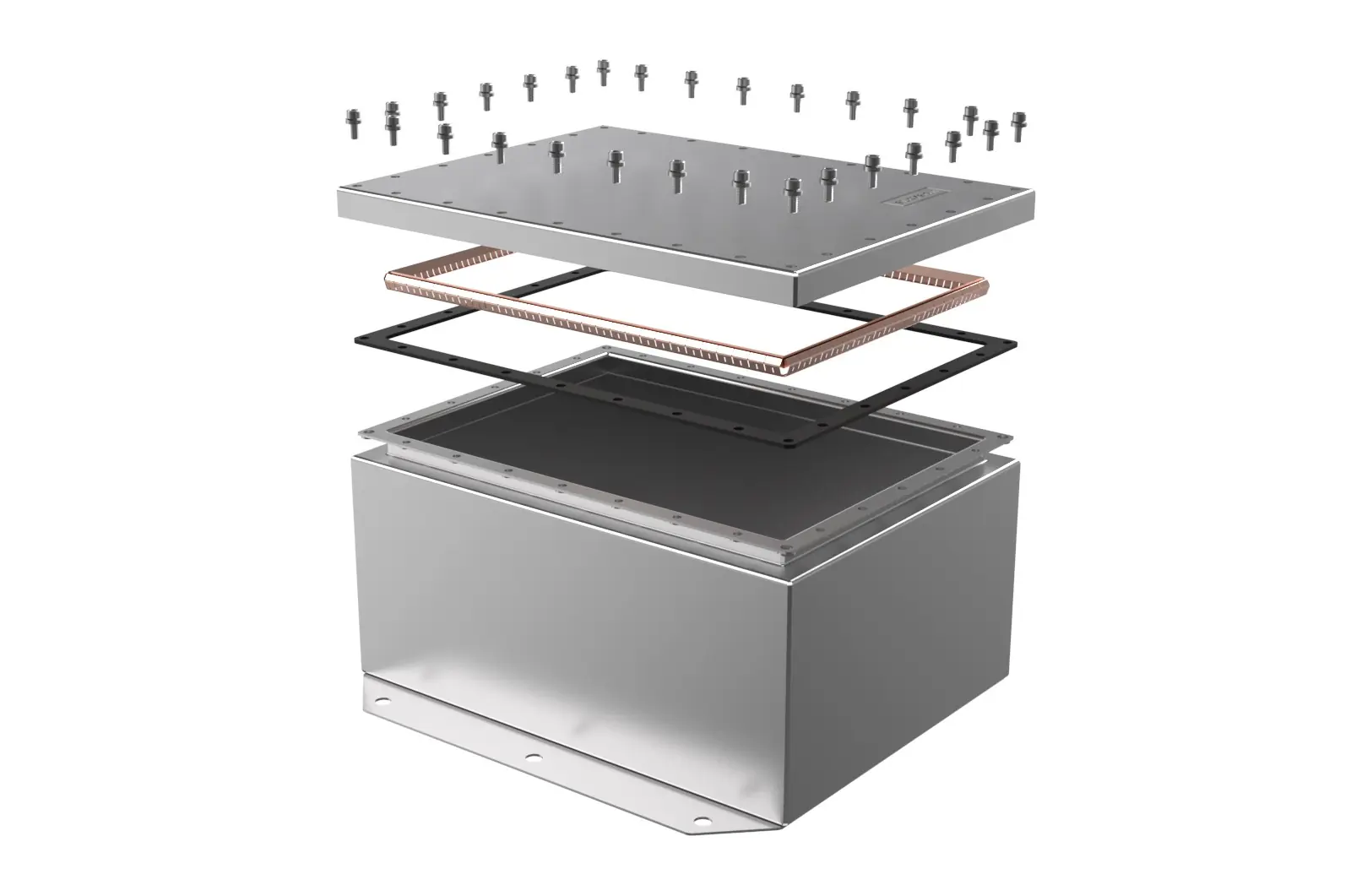

The SLAYSON® NAV-6P Series is expertly designed for Navy applications, providing reliable protection for indoor and outdoor use. Rated NEMA 6P/IP68, these enclosures are extensively deployed on Navy Vessels, Support Vessels, Heavy Equipment, Onshore Equipment, Communications, Weapon Systems, and similar environments. They ensure protection against dust and water ingress up to depths of 5 metres. Constructed from Marine Grade 316 Stainless Steel and equipped with EMC Dual Gasket Technology (EDGT), the NAV-6P Series safeguards critical electrical equipment from continuous EMF/RFI interference.
Available in finishes such as Navy Grey, White, Black, Anodized Black, and more, the NAV-6P Series offers versatility for various operational needs. Offered in standard sizes ranging from 8″x 8″ to 16″x 16″, each enclosure can be customised with an assortment of accessories to fit specific requirements. SLAYSON’s design and engineering teams collaborate closely with clients to deliver enclosures tailored to their exact specifications.
For non-standard sizes or unique project needs, SLAYSON® provides custom design and engineering services to develop a bespoke NAV-6P enclosure to meet your precise requirements.
