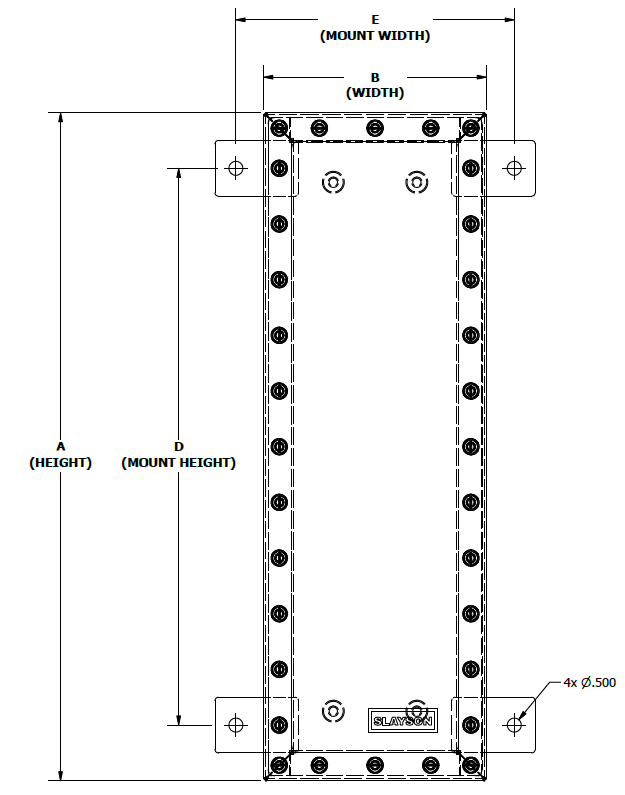

| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| LSM301010 | 30 | 300.0 | 10 | 100.0 | 10 | 100.0 | 25 | 250.0 | 15 | 150.0 | 30 | 300.0 | 10 | 100.0 | 2.00 |
| LSM301015 | 30 | 300.0 | 10 | 100.0 | 15 | 150.0 | 25 | 250.0 | 15 | 150.0 | 30 | 300.0 | 10 | 100.0 | 2.00 |
| LSM301020 | 30 | 300.0 | 10 | 100.0 | 20 | 200.0 | 25 | 250.0 | 15 | 150.0 | 30 | 300.0 | 10 | 100.0 | 2.00 |
| LSM301025 | 30 | 300.0 | 10 | 100.0 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 30 | 300.0 | 10 | 100.0 | 2.00 |
| LSM301510 | 30 | 300.0 | 15 | 150.0 | 10 | 100.0 | 25 | 250.0 | 20 | 200.0 | 30 | 300.0 | 15 | 150.0 | 2.00 |
| LSM301515 | 30 | 300.0 | 15 | 150.0 | 15 | 150.0 | 25 | 250.0 | 20 | 200.0 | 30 | 300.0 | 15 | 150.0 | 2.00 |
| LSM301520 | 30 | 300.0 | 15 | 150.0 | 20 | 200.0 | 25 | 250.0 | 20 | 200.0 | 30 | 300.0 | 15 | 150.0 | 2.00 |
| LSM301525 | 30 | 300.0 | 15 | 150.0 | 25 | 250.0 | 25 | 250.0 | 20 | 200.0 | 30 | 300.0 | 15 | 150.0 | 2.00 |
| LSM302010 | 30 | 300.0 | 20 | 200.0 | 10 | 100.0 | 25 | 250.0 | 25 | 250.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| LSM302015 | 30 | 300.0 | 20 | 200.0 | 15 | 150.0 | 25 | 250.0 | 25 | 250.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| LSM302020 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 25 | 250.0 | 25 | 250.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| LSM302025 | 30 | 300.0 | 20 | 200.0 | 25 | 250.0 | 25 | 250.0 | 25 | 250.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| LSM302510 | 30 | 300.0 | 25 | 250.0 | 10 | 100.0 | 25 | 250.0 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| LSM302515 | 30 | 300.0 | 25 | 250.0 | 15 | 150.0 | 25 | 250.0 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| LSM302520 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 25 | 250.0 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| LSM302525 | 30 | 300.0 | 25 | 250.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| LSM451010 | 45 | 450.0 | 10 | 100.0 | 10 | 100.0 | 40 | 400.0 | 15 | 150.0 | 45 | 450.0 | 10 | 100.0 | 2.00 |
| LSM451015 | 45 | 450.0 | 10 | 100.0 | 15 | 150.0 | 40 | 400.0 | 15 | 150.0 | 45 | 450.0 | 10 | 100.0 | 2.00 |
| LSM451020 | 45 | 450.0 | 10 | 100.0 | 20 | 200.0 | 40 | 400.0 | 15 | 150.0 | 45 | 450.0 | 10 | 100.0 | 2.00 |
| LSM451025 | 45 | 450.0 | 10 | 100.0 | 25 | 250.0 | 40 | 400.0 | 15 | 150.0 | 45 | 450.0 | 10 | 100.0 | 2.00 |
| LSM451010 | 45 | 450.0 | 15 | 150.0 | 10 | 100.0 | 40 | 400.0 | 20 | 200.0 | 45 | 450.0 | 15 | 150.0 | 2.00 |
| LSM451515 | 45 | 450.0 | 15 | 150.0 | 15 | 150.0 | 40 | 400.0 | 20 | 200.0 | 45 | 450.0 | 15 | 150.0 | 2.00 |
| LSM451520 | 45 | 450.0 | 15 | 150.0 | 20 | 200.0 | 40 | 400.0 | 20 | 200.0 | 45 | 450.0 | 15 | 150.0 | 2.00 |
| LSM451525 | 45 | 450.0 | 15 | 150.0 | 25 | 250.0 | 40 | 400.0 | 20 | 200.0 | 45 | 450.0 | 15 | 150.0 | 2.00 |
| LSM452010 | 45 | 450.0 | 20 | 200.0 | 10 | 100.0 | 40 | 400.0 | 25 | 250.0 | 45 | 450.0 | 20 | 200.0 | 2.00 |
| LSM452015 | 45 | 450.0 | 20 | 200.0 | 15 | 150.0 | 40 | 400.0 | 25 | 250.0 | 45 | 450.0 | 20 | 200.0 | 2.00 |
| LSM452020 | 45 | 450.0 | 20 | 200.0 | 20 | 200.0 | 40 | 400.0 | 25 | 250.0 | 45 | 450.0 | 20 | 200.0 | 2.00 |
| LSM452025 | 45 | 450.0 | 20 | 200.0 | 25 | 250.0 | 40 | 400.0 | 25 | 250.0 | 45 | 450.0 | 20 | 200.0 | 2.00 |
| LSM452510 | 45 | 450.0 | 25 | 250.0 | 10 | 100.0 | 40 | 400.0 | 30 | 300.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| LSM452515 | 45 | 450.0 | 25 | 250.0 | 15 | 150.0 | 40 | 400.0 | 30 | 300.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| LSM452520 | 45 | 450.0 | 25 | 250.0 | 20 | 200.0 | 40 | 400.0 | 30 | 300.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| LSM452525 | 45 | 450.0 | 25 | 250.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| LSM601010 | 60 | 600.0 | 10 | 100.0 | 10 | 100.0 | 55 | 550.0 | 15 | 150.0 | 60 | 600.0 | 10 | 100.0 | 2.00 |
| LSM601015 | 60 | 600.0 | 10 | 100.0 | 15 | 150.0 | 55 | 550.0 | 15 | 150.0 | 60 | 600.0 | 10 | 100.0 | 2.00 |
| LSM601020 | 60 | 600.0 | 10 | 100.0 | 20 | 200.0 | 55 | 550.0 | 15 | 150.0 | 60 | 600.0 | 10 | 100.0 | 2.00 |
| LSM601025 | 60 | 600.0 | 10 | 100.0 | 25 | 250.0 | 55 | 550.0 | 15 | 150.0 | 60 | 600.0 | 10 | 100.0 | 2.00 |
| LSM601010 | 60 | 600.0 | 15 | 150.0 | 10 | 100.0 | 55 | 550.0 | 20 | 200.0 | 60 | 600.0 | 15 | 150.0 | 2.00 |
| LSM601515 | 60 | 600.0 | 15 | 150.0 | 15 | 150.0 | 55 | 550.0 | 20 | 200.0 | 60 | 600.0 | 15 | 150.0 | 2.00 |
| LSM601520 | 60 | 600.0 | 15 | 150.0 | 20 | 200.0 | 55 | 550.0 | 20 | 200.0 | 60 | 600.0 | 15 | 150.0 | 2.00 |
| LSM601525 | 60 | 600.0 | 15 | 150.0 | 25 | 250.0 | 55 | 550.0 | 20 | 200.0 | 60 | 600.0 | 15 | 150.0 | 2.00 |
| LSM602010 | 60 | 600.0 | 20 | 200.0 | 10 | 100.0 | 55 | 550.0 | 25 | 250.0 | 60 | 600.0 | 20 | 200.0 | 2.00 |
| LSM602015 | 60 | 600.0 | 20 | 200.0 | 15 | 150.0 | 55 | 550.0 | 25 | 250.0 | 60 | 600.0 | 20 | 200.0 | 2.00 |
| LSM602020 | 60 | 600.0 | 20 | 200.0 | 20 | 200.0 | 55 | 550.0 | 25 | 250.0 | 60 | 600.0 | 20 | 200.0 | 2.00 |
| LSM602025 | 60 | 600.0 | 20 | 200.0 | 25 | 250.0 | 55 | 550.0 | 25 | 250.0 | 60 | 600.0 | 20 | 200.0 | 2.00 |
| LSM602510 | 60 | 600.0 | 25 | 250.0 | 10 | 100.0 | 55 | 550.0 | 30 | 300.0 | 60 | 600.0 | 25 | 250.0 | 2.00 |
| LSM602515 | 60 | 600.0 | 25 | 250.0 | 15 | 150.0 | 55 | 550.0 | 30 | 300.0 | 60 | 600.0 | 25 | 250.0 | 2.00 |
| LSM602520 | 60 | 600.0 | 25 | 250.0 | 20 | 200.0 | 55 | 550.0 | 30 | 300.0 | 60 | 600.0 | 25 | 250.0 | 2.00 |
| LSM602525 | 60 | 600.0 | 25 | 250.0 | 25 | 250.0 | 55 | 550.0 | 30 | 300.0 | 60 | 600.0 | 25 | 250.0 | 2.00 |
| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||

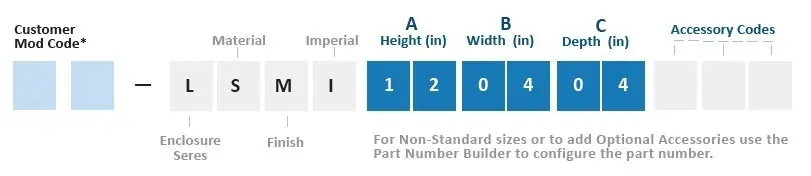

| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| LSMI120404 | 12 | 304.8 | 04 | 101.6 | 04 | 101.6 | 10 | 254.0 | 06 | 152.4 | 11 | 279.4 | 03 | 76.2 | 14 |
| LSMI120406 | 12 | 304.8 | 04 | 101.6 | 06 | 152.4 | 10 | 254.0 | 06 | 152.4 | 11 | 279.4 | 03 | 76.2 | 14 |
| LSMI120408 | 12 | 304.8 | 04 | 101.6 | 08 | 203.2 | 10 | 254.0 | 06 | 152.4 | 11 | 279.4 | 03 | 76.2 | 14 |
| LSMI120410 | 12 | 304.8 | 04 | 101.6 | 10 | 254.0 | 10 | 254.0 | 06 | 152.4 | 11 | 279.4 | 03 | 76.2 | 14 |
| LSMI120604 | 12 | 304.8 | 06 | 152.4 | 04 | 101.6 | 10 | 254.0 | 08 | 203.2 | 11 | 279.4 | 05 | 127.0 | 14 |
| LSMI120606 | 12 | 304.8 | 06 | 152.4 | 06 | 152.4 | 10 | 254.0 | 08 | 203.2 | 11 | 279.4 | 05 | 127.0 | 14 |
| LSMI120608 | 12 | 304.8 | 06 | 152.4 | 08 | 203.2 | 10 | 254.0 | 08 | 203.2 | 11 | 279.4 | 05 | 127.0 | 14 |
| LSMI120610 | 12 | 304.8 | 06 | 152.4 | 10 | 254.0 | 10 | 254.0 | 08 | 203.2 | 11 | 279.4 | 05 | 127.0 | 14 |
| LSMI120804 | 12 | 304.8 | 08 | 203.2 | 04 | 101.6 | 10 | 254.0 | 10 | 254.0 | 11 | 279.4 | 07 | 177.8 | 14 |
| LSMI120806 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 10 | 254.0 | 10 | 254.0 | 11 | 279.4 | 07 | 177.8 | 14 |
| LSMI120808 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 10 | 254.0 | 10 | 254.0 | 11 | 279.4 | 07 | 177.8 | 14 |
| LSMI120810 | 12 | 304.8 | 08 | 203.2 | 10 | 254.0 | 10 | 254.0 | 10 | 254.0 | 11 | 279.4 | 07 | 177.8 | 14 |
| LSMI121004 | 12 | 304.8 | 10 | 254.0 | 04 | 101.6 | 10 | 254.0 | 12 | 304.8 | 11 | 279.4 | 09 | 228.6 | 14 |
| LSMI121006 | 12 | 304.8 | 10 | 254.0 | 06 | 152.4 | 10 | 254.0 | 12 | 304.8 | 11 | 279.4 | 09 | 228.6 | 14 |
| LSMI121008 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 10 | 254.0 | 12 | 304.8 | 11 | 279.4 | 09 | 228.6 | 14 |
| LSMI121010 | 12 | 304.8 | 10 | 254.0 | 10 | 254.0 | 10 | 254.0 | 12 | 304.8 | 11 | 279.4 | 09 | 228.6 | 14 |
| LSMI180404 | 18 | 457.2 | 04 | 101.6 | 04 | 101.6 | 16 | 406.4 | 06 | 152.4 | 17 | 431.8 | 03 | 76.2 | 14 |
| LSMI180406 | 18 | 457.2 | 04 | 101.6 | 06 | 152.4 | 16 | 406.4 | 06 | 152.4 | 17 | 431.8 | 03 | 76.2 | 14 |
| LSMI180408 | 18 | 457.2 | 04 | 101.6 | 08 | 203.2 | 16 | 406.4 | 06 | 152.4 | 17 | 431.8 | 03 | 76.2 | 14 |
| LSMI180410 | 18 | 457.2 | 04 | 101.6 | 10 | 254.0 | 16 | 406.4 | 06 | 152.4 | 17 | 431.8 | 03 | 76.2 | 14 |
| LSMI180604 | 18 | 457.2 | 06 | 152.4 | 04 | 101.6 | 16 | 406.4 | 08 | 203.2 | 17 | 431.8 | 05 | 127.0 | 14 |
| LSMI180606 | 18 | 457.2 | 06 | 152.4 | 06 | 152.4 | 16 | 406.4 | 08 | 203.2 | 17 | 431.8 | 05 | 127.0 | 14 |
| LSMI180608 | 18 | 457.2 | 06 | 152.4 | 08 | 203.2 | 16 | 406.4 | 08 | 203.2 | 17 | 431.8 | 05 | 127.0 | 14 |
| LSMI180610 | 18 | 457.2 | 06 | 152.4 | 10 | 254.0 | 16 | 406.4 | 08 | 203.2 | 17 | 431.8 | 05 | 127.0 | 14 |
| LSMI180804 | 18 | 457.2 | 08 | 203.2 | 04 | 101.6 | 16 | 406.4 | 10 | 254.0 | 17 | 431.8 | 07 | 177.8 | 14 |
| LSMI180806 | 18 | 457.2 | 08 | 203.2 | 06 | 152.4 | 16 | 406.4 | 10 | 254.0 | 17 | 431.8 | 07 | 177.8 | 14 |
| LSMI180808 | 18 | 457.2 | 08 | 203.2 | 08 | 203.2 | 16 | 406.4 | 10 | 254.0 | 17 | 431.8 | 07 | 177.8 | 14 |
| LSMI180810 | 18 | 457.2 | 08 | 203.2 | 10 | 254.0 | 16 | 406.4 | 10 | 254.0 | 17 | 431.8 | 07 | 177.8 | 14 |
| LSMI181004 | 18 | 457.2 | 10 | 254.0 | 04 | 101.6 | 16 | 406.4 | 12 | 304.8 | 17 | 431.8 | 09 | 228.6 | 14 |
| LSMI181006 | 18 | 457.2 | 10 | 254.0 | 06 | 152.4 | 16 | 406.4 | 12 | 304.8 | 17 | 431.8 | 09 | 228.6 | 14 |
| LSMI181008 | 18 | 457.2 | 10 | 254.0 | 08 | 203.2 | 16 | 406.4 | 12 | 304.8 | 17 | 431.8 | 09 | 228.6 | 14 |
| LSMI181010 | 18 | 457.2 | 10 | 254.0 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 17 | 431.8 | 09 | 228.6 | 14 |
| LSMI240404 | 24 | 609.6 | 04 | 101.6 | 04 | 101.6 | 22 | 558.8 | 06 | 152.4 | 23 | 584.2 | 03 | 76.2 | 14 |
| LSMI240406 | 24 | 609.6 | 04 | 101.6 | 06 | 152.4 | 22 | 558.8 | 06 | 152.4 | 23 | 584.2 | 03 | 76.2 | 14 |
| LSMI240408 | 24 | 609.6 | 04 | 101.6 | 08 | 203.2 | 22 | 558.8 | 06 | 152.4 | 23 | 584.2 | 03 | 76.2 | 14 |
| LSMI240410 | 24 | 609.6 | 04 | 101.6 | 10 | 254.0 | 22 | 558.8 | 06 | 152.4 | 23 | 584.2 | 03 | 76.2 | 14 |
| LSMI240604 | 24 | 609.6 | 06 | 152.4 | 04 | 101.6 | 22 | 558.8 | 08 | 203.2 | 23 | 584.2 | 05 | 127.0 | 14 |
| LSMI240606 | 24 | 609.6 | 06 | 152.4 | 06 | 152.4 | 22 | 558.8 | 08 | 203.2 | 23 | 584.2 | 05 | 127.0 | 14 |
| LSMI240608 | 24 | 609.6 | 06 | 152.4 | 08 | 203.2 | 22 | 558.8 | 08 | 203.2 | 23 | 584.2 | 05 | 127.0 | 14 |
| LSMI240610 | 24 | 609.6 | 06 | 152.4 | 10 | 254.0 | 22 | 558.8 | 08 | 203.2 | 23 | 584.2 | 05 | 127.0 | 14 |
| LSMI240804 | 24 | 609.6 | 08 | 203.2 | 04 | 101.6 | 22 | 558.8 | 10 | 254.0 | 23 | 584.2 | 07 | 177.8 | 14 |
| LSMI240806 | 24 | 609.6 | 08 | 203.2 | 06 | 152.4 | 22 | 558.8 | 10 | 254.0 | 23 | 584.2 | 07 | 177.8 | 14 |
| LSMI240808 | 24 | 609.6 | 08 | 203.2 | 08 | 203.2 | 22 | 558.8 | 10 | 254.0 | 23 | 584.2 | 07 | 177.8 | 14 |
| LSMI240810 | 24 | 609.6 | 08 | 203.2 | 10 | 254.0 | 22 | 558.8 | 10 | 254.0 | 23 | 584.2 | 07 | 177.8 | 14 |
| LSMI241004 | 24 | 609.6 | 10 | 254.0 | 04 | 101.6 | 22 | 558.8 | 12 | 304.8 | 23 | 584.2 | 09 | 228.6 | 14 |
| LSMI241006 | 24 | 609.6 | 10 | 254.0 | 06 | 152.4 | 22 | 558.8 | 12 | 304.8 | 23 | 584.2 | 09 | 228.6 | 14 |
| LSMI241008 | 24 | 609.6 | 10 | 254.0 | 08 | 203.2 | 22 | 558.8 | 12 | 304.8 | 23 | 584.2 | 09 | 228.6 | 14 |
| LSMI241010 | 24 | 609.6 | 10 | 254.0 | 10 | 254.0 | 22 | 558.8 | 12 | 304.8 | 23 | 584.2 | 09 | 228.6 | 14 |

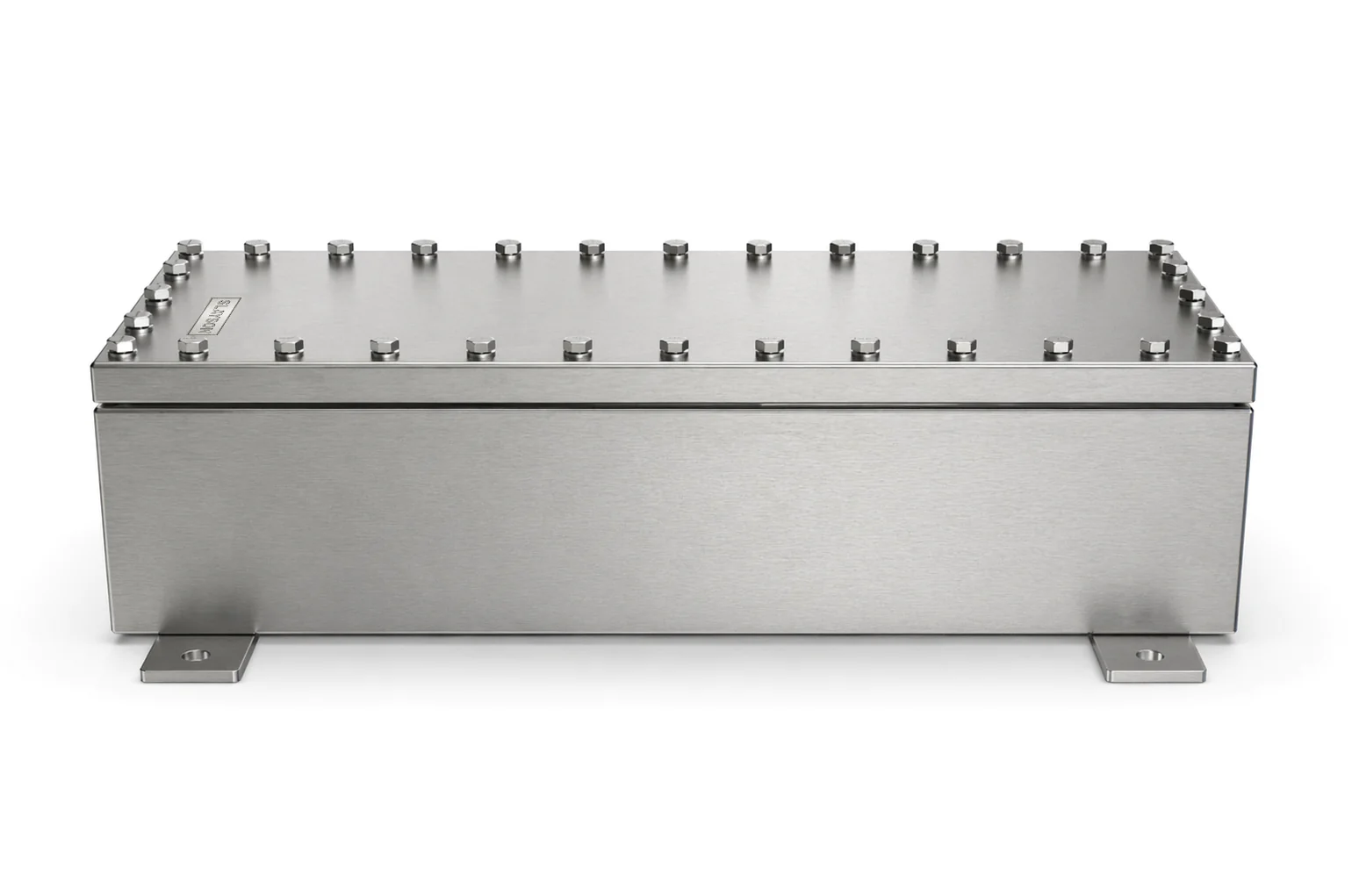

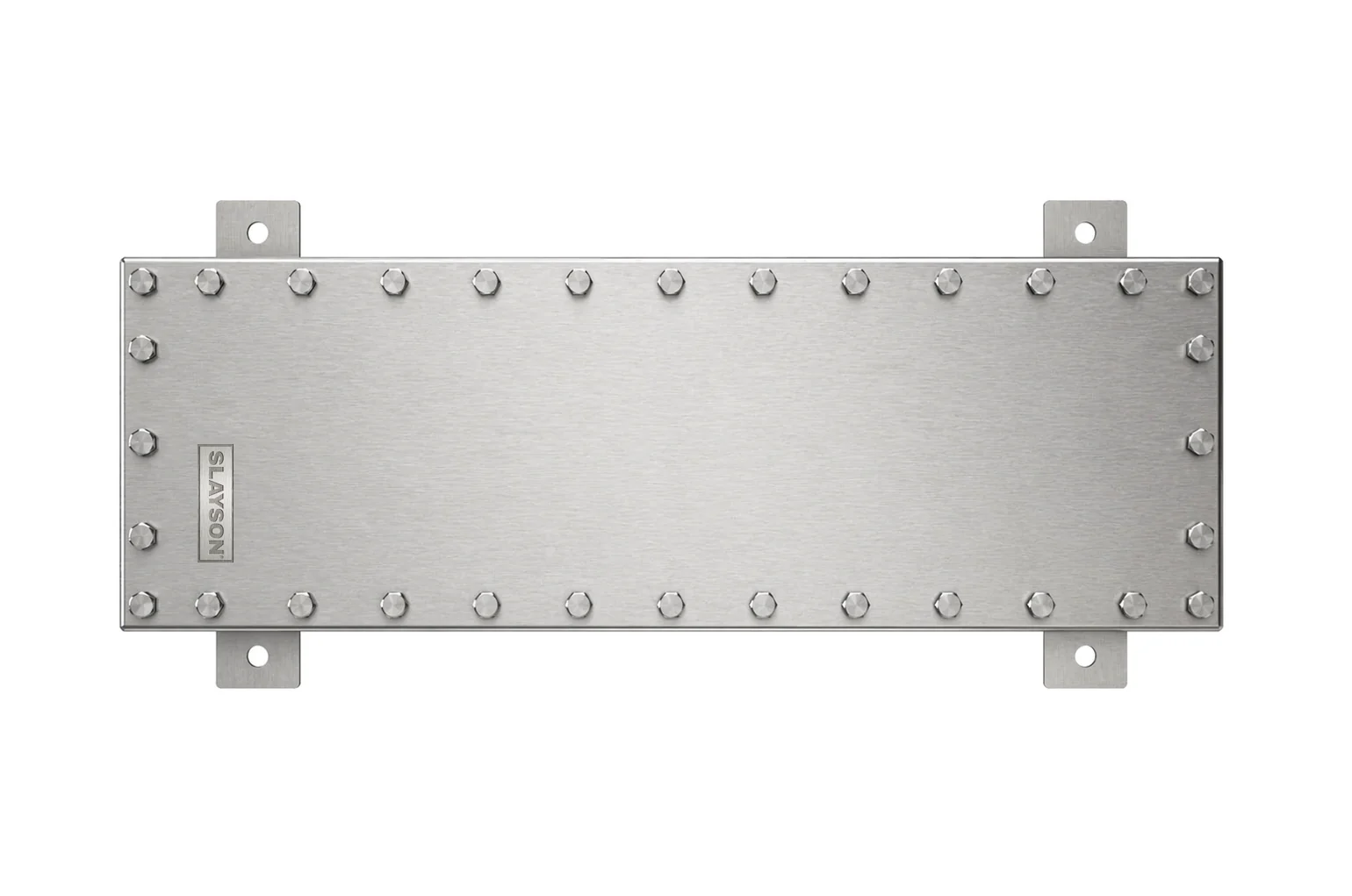

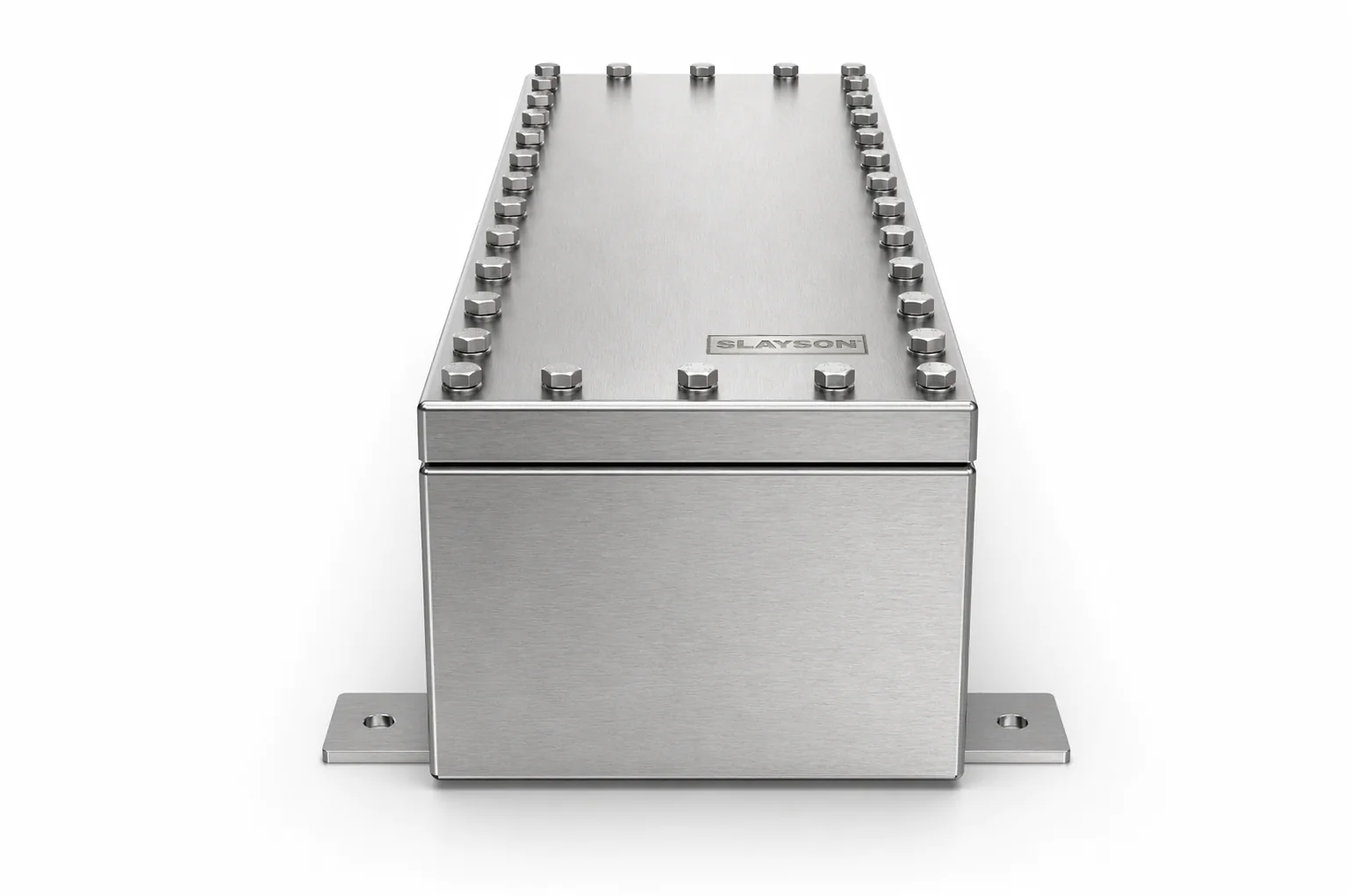

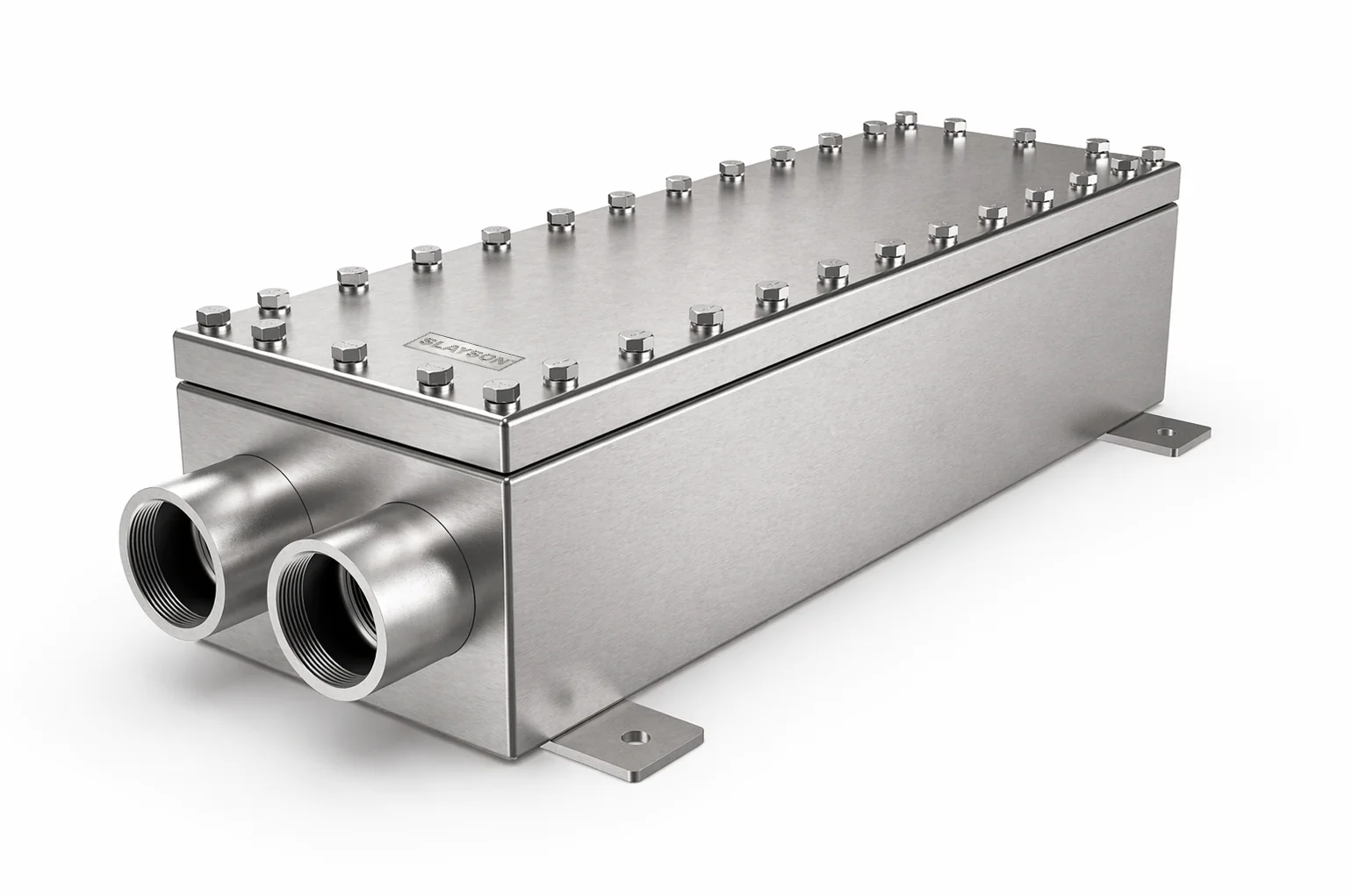

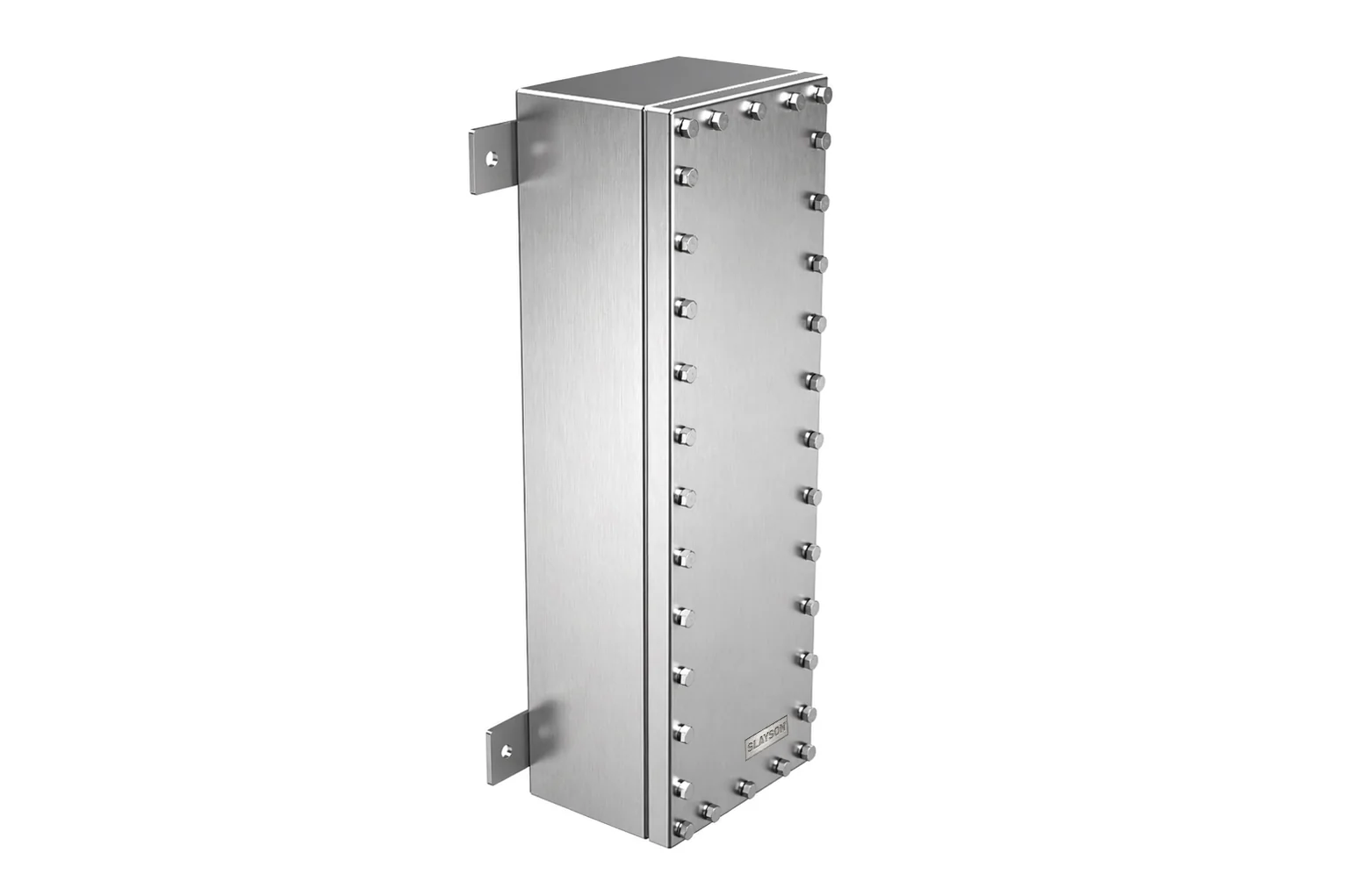

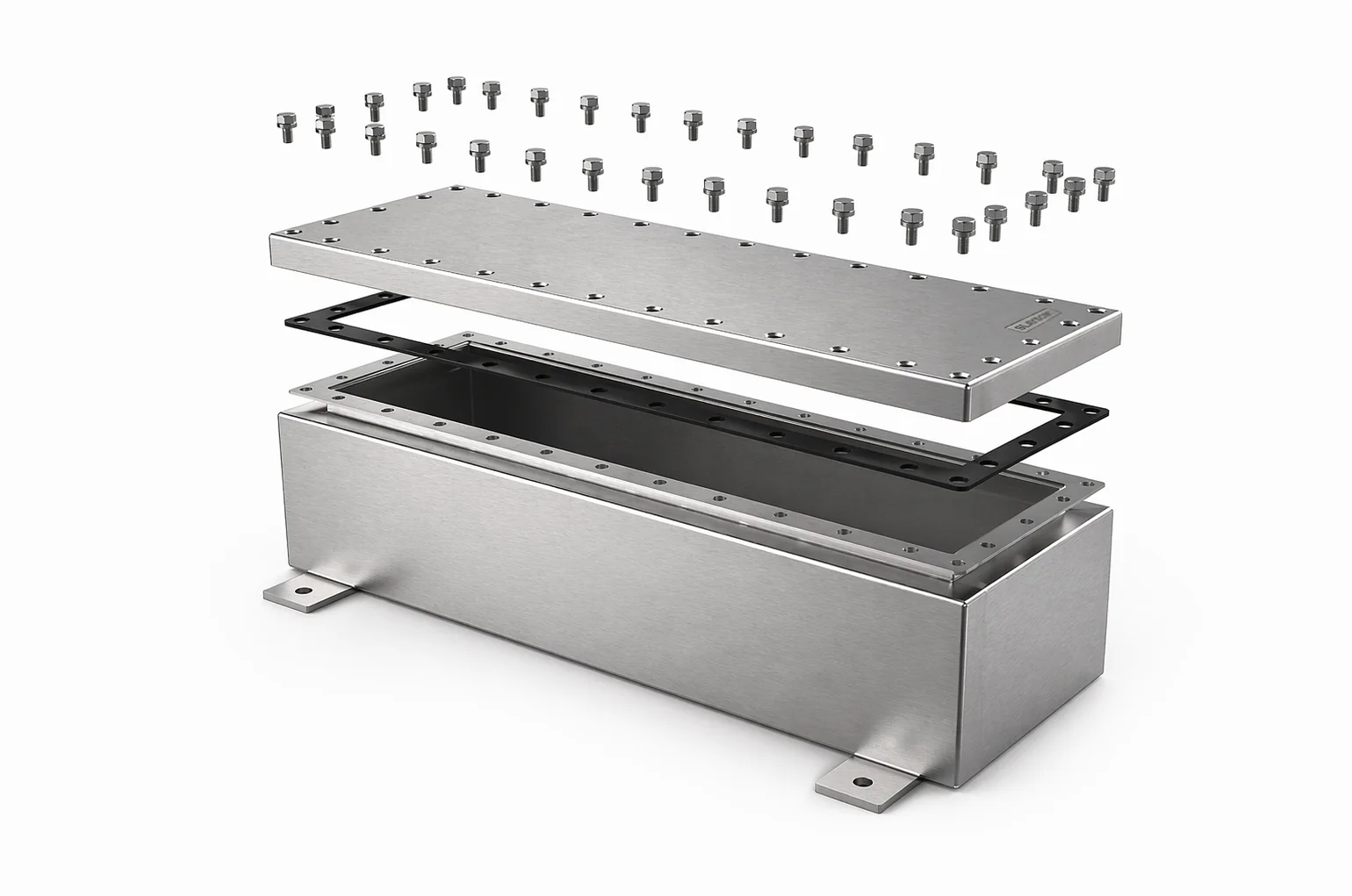

SUBMERSIBLE PULL BOX OVERVIEW
The SLAYSON® SUBMERSIBLE PULL BOX Series is engineered for inline conduit system installations, serving as pull and splice boxes to protect electrical conductors, connect conduit lengths, and provide access for maintenance and future modifications. Rated NEMA 6P/IP68, these enclosures deliver reliable protection against dust and water ingress for partial or prolonged submersion at depths up to 5 metres. Constructed from durable 14g Marine Grade Stainless Steel 316 or Aluminium with a Marine Grade Polyester Paint Finish, the series is built to endure harsh environmental conditions while safeguarding electrical connections, splices, and conductors.
Available in standard straight, 45º, and 90º configurations, the SUBMERSIBLE PULL BOX Series ranges in length from 12″ to 48″, and each enclosure can be customised with a variety of accessories to suit specific application needs. SLAYSON’s design and engineering teams collaborate closely with clients to ensure that each pull box meets precise requirements.
If a standard size or configuration doesn’t meet your project needs, SLAYSON® offers custom design and engineering services to create a Submersible Pull Box tailored to your exact specifications.
