ACCESSORIES
| IMPERIAL | A | A | C | B | INTERNAL MOUNT PLATE | ||||||||
| PART NUMBER | Height (AF) | Width (AF) | Depth | Mount Height | Height (AF) | Width (AF) | Gauge | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| OSMI363622 | 36 | 914.4 | 36 | 914.4 | 22 | 558.8 | 38 | 406.4 | 34 | 863.6 | 34 | 863.6 | 14 |
| OSMI343420 | 34 | 863.6 | 34 | 863.6 | 20 | 508.0 | 36 | 914.4 | 32 | 406.4 | 32 | 406.4 | 14 |
| OSMI303018 | 30 | 762.0 | 30 | 762.0 | 18 | 457.2 | 32 | 355.6 | 28 | 355.6 | 28 | 355.6 | 14 |
| OSMI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 28 | 355.6 | 24 | 609.6 | 24 | 609.6 | 14 |
| OSMI242412 | 24 | 609.6 | 24 | 609.6 | 12 | 304.8 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 14 |
| OSMI222212 | 22 | 558.8 | 22 | 558.8 | 12 | 304.8 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 14 |
| OSMI202012 | 20 | 508.0 | 20 | 508.0 | 12 | 304.8 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 14 |
| OSMI181810 | 18 | 457.2 | 18 | 457.2 | 10 | 254.0 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 14 |
| OSMI161610 | 16 | 406.4 | 16 | 406.4 | 10 | 254.0 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 14 |
| OSMI141410 | 14 | 355.6 | 14 | 355.6 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 14 |
| OSMI121208 | 12 | 304.8 | 12 | 304.8 | 8 | 203.2 | 14 | 355.6 | 10 | 254.0 | 10 | 254.0 | 14 |
For Metric sizes, please refer to the Imperial datasheet.

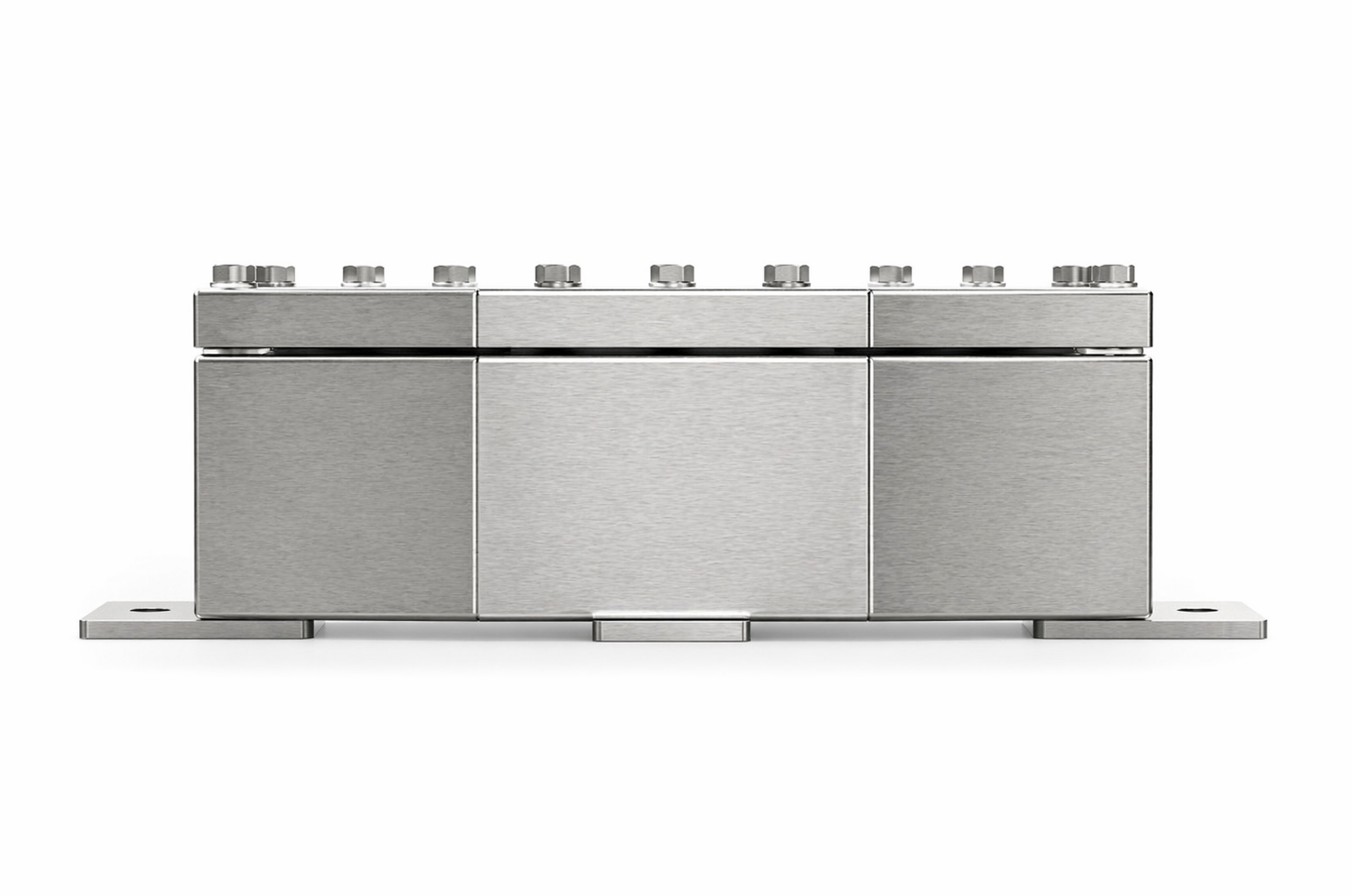

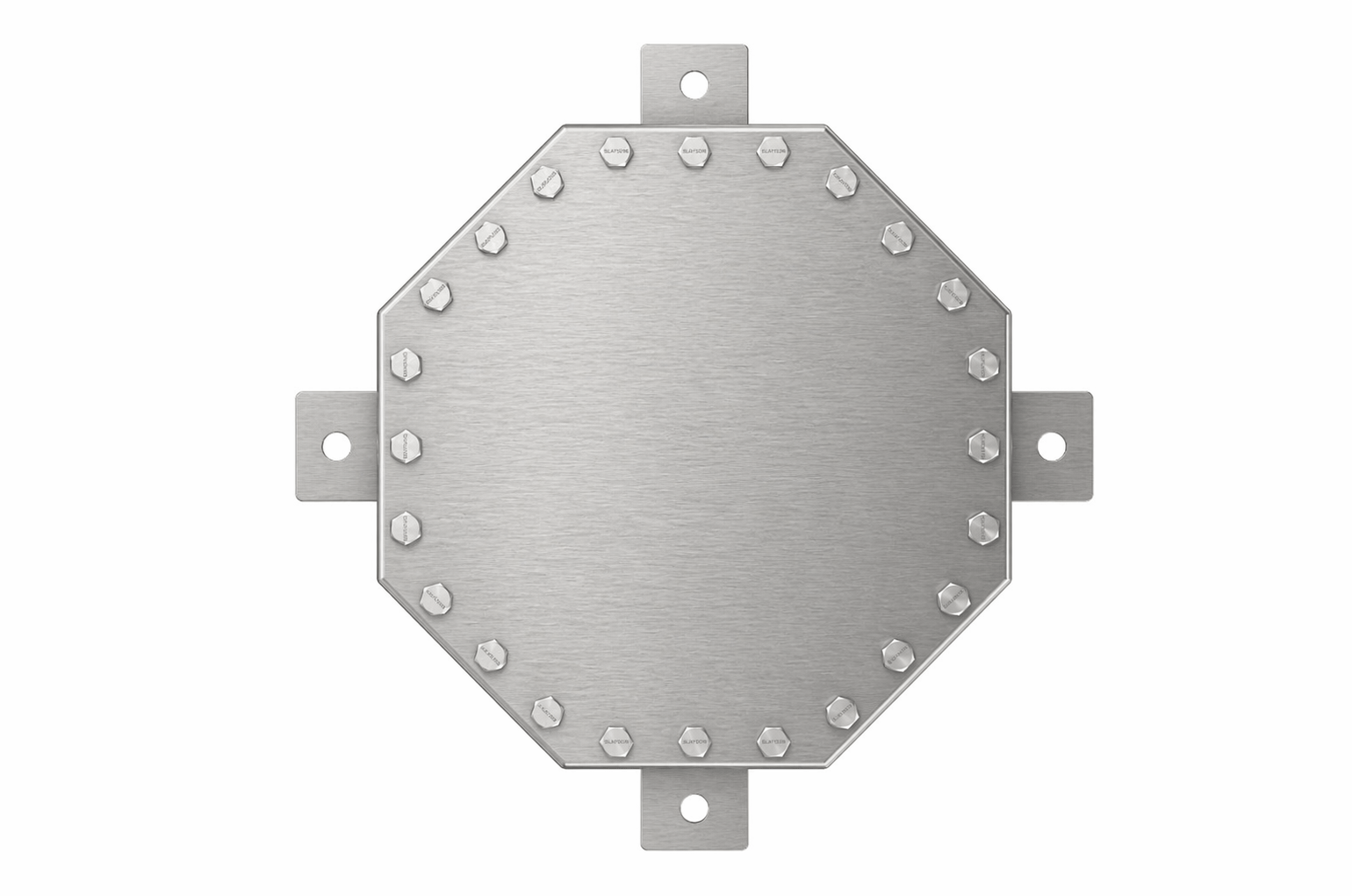

COMPACT SUBMERSIBLE ENCLOSURE OVERVIEW
The SLAYSON® COMPACT WATERPROOF Series has been engineered for environments where space is limited or equipment must be protected in challenging outdoor or industrial conditions. Rated NEMA 6 & IP67, it is designed to perform fully submerged for up to 1.5 metres for 24 hours, offering dependable protection against water, dust, and other environmental hazards. Constructed from impact and corrosion-resistant 14g 316 Marine Grade Stainless Steel, the COMPACT WATERPROOF Series safeguards vital electrical components across power, infrastructure, utility, and renewable energy sectors.
If your project requires a different size or configuration, SLAYSON® can design and engineer a custom COMPACT WATERPROOF ENCLOSURE to suit your exact specifications.
Design With Us
Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.
