For Metric sizes, please refer to the Imperial datasheet.

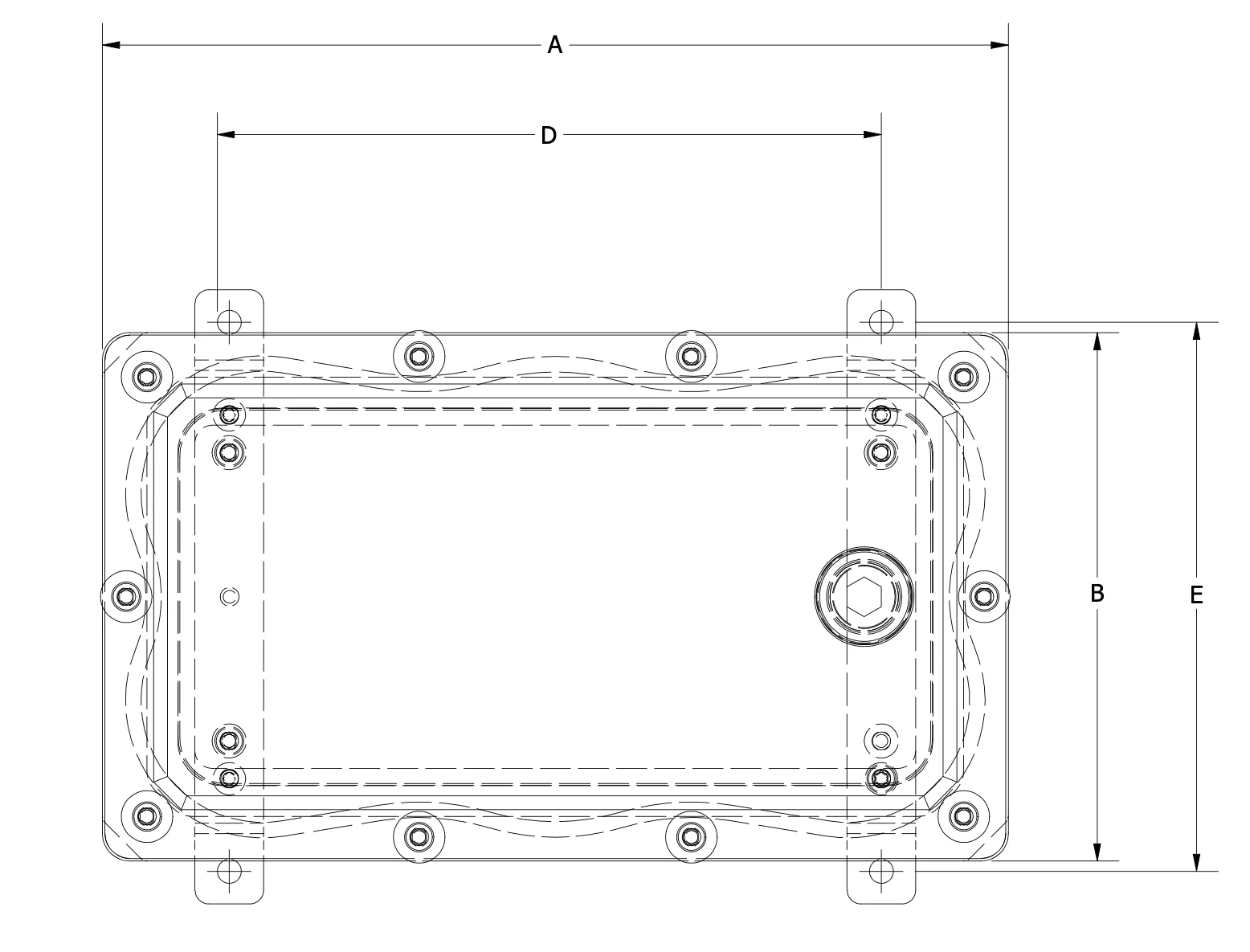

| IMPERIAL | A | B | C | D | E | F | ||||||
| PART NUMBER | External Height | External Width | External Depth | Internal Height | Internal Width | Internal Depth | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| AFBI061004 | 06 | 154 | 10.4 | 264 | 4.3 | 108 | 4.3 | 110 | 8.7 | 220 | 2.4 | 60 |
SUBSEA ALUMINUM FOX BOX OVERVIEW
The SLAYSON® SUBSEA ALUMINUM FOX BOX Series is specifically engineered to withstand extreme pressures at remarkable depths, providing reliable protection for critical electrical equipment. Rated NEMA 6P/IP68, these enclosures are designed for prolonged submersion and are extensively used on offshore oil rigs, submersible vessels, and similar applications. The ALUMINUM FOX BOX Series protects equipment from water ingress at depths of up to 400 metres (1,312 feet) and is constructed from Aerospace Grade Aluminum, ensuring exceptional durability in the harshest environments.
Available in a variety of finishes, the SUBSEA ALUMINUM FOX BOX Series can be customised with accessories such as internal back plates to meet unique operational needs. Each enclosure is equipped with alloy mounting hardware for secure and long-lasting performance. SLAYSON’s design and engineering teams work closely with clients to deliver tailored enclosures that meet precise project requirements.
If standard sizes or configurations are not suitable, SLAYSON® provides custom design and engineering services to create a bespoke SUBSEA ALUMINUM FOX BOX enclosure tailored to your specific needs.
