| METRIC | A | B | C | D | E | F | INTERNAL MOUNT PLATE | ||||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Slope Roof Height | Height | Width | Gauge | ||||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| WSM909050 | 90 | 900.0 | 90 | 900.0 | 50 | 500.0 | 80 | 800.0 | 95 | 950.0 | 100 | 1000.0 | 80 | 800.0 | 80 | 800.0 | 2.00 |
| WSM909040 | 90 | 900.0 | 90 | 900.0 | 40 | 400.0 | 80 | 800.0 | 95 | 950.0 | 100 | 1000.0 | 80 | 800.0 | 80 | 800.0 | 2.00 |
| WSM909030 | 90 | 900.0 | 90 | 900.0 | 30 | 300.0 | 80 | 800.0 | 95 | 950.0 | 100 | 1000.0 | 80 | 800.0 | 80 | 800.0 | 2.00 |
| WSM907550 | 90 | 900.0 | 75 | 750.0 | 50 | 500.0 | 80 | 800.0 | 80 | 800.0 | 85 | 850.0 | 80 | 800.0 | 65 | 650.0 | 2.00 |
| WSM907540 | 90 | 900.0 | 75 | 750.0 | 40 | 400.0 | 80 | 800.0 | 80 | 800.0 | 85 | 850.0 | 80 | 800.0 | 65 | 650.0 | 2.00 |
| WSM907530 | 90 | 900.0 | 75 | 750.0 | 30 | 300.0 | 80 | 800.0 | 80 | 800.0 | 85 | 850.0 | 80 | 800.0 | 65 | 650.0 | 2.00 |
| WSM906050 | 90 | 900.0 | 60 | 600.0 | 50 | 500.0 | 80 | 800.0 | 65 | 650.0 | 70 | 700.0 | 80 | 800.0 | 50 | 500.0 | 2.00 |
| WSM906040 | 90 | 900.0 | 60 | 600.0 | 40 | 400.0 | 80 | 800.0 | 65 | 650.0 | 70 | 700.0 | 80 | 800.0 | 50 | 500.0 | 2.00 |
| WSM906030 | 90 | 900.0 | 60 | 600.0 | 30 | 300.0 | 80 | 800.0 | 65 | 650.0 | 70 | 700.0 | 80 | 800.0 | 50 | 500.0 | 2.00 |
| WSM858540 | 85 | 850.0 | 85 | 850.0 | 40 | 400.0 | 75 | 750.0 | 90 | 900.0 | 95 | 950.0 | 75 | 750.0 | 75 | 750.0 | 2.00 |
| WSM858530 | 85 | 850.0 | 85 | 850.0 | 30 | 300.0 | 75 | 750.0 | 90 | 900.0 | 95 | 950.0 | 75 | 750.0 | 75 | 750.0 | 2.00 |
| WSM858525 | 85 | 850.0 | 85 | 850.0 | 25 | 250.0 | 75 | 750.0 | 90 | 900.0 | 95 | 950.0 | 75 | 750.0 | 75 | 750.0 | 2.00 |
| WSM857040 | 85 | 850.0 | 70 | 700.0 | 40 | 400.0 | 75 | 750.0 | 75 | 750.0 | 80 | 800.0 | 75 | 750.0 | 60 | 600.0 | 2.00 |
| WSM857030 | 85 | 850.0 | 70 | 700.0 | 30 | 300.0 | 75 | 750.0 | 75 | 750.0 | 80 | 800.0 | 75 | 750.0 | 60 | 600.0 | 2.00 |
| WSM857025 | 85 | 850.0 | 70 | 700.0 | 25 | 250.0 | 75 | 750.0 | 75 | 750.0 | 80 | 800.0 | 75 | 750.0 | 60 | 600.0 | 2.00 |
| WSM856040 | 85 | 850.0 | 60 | 600.0 | 40 | 400.0 | 75 | 750.0 | 65 | 650.0 | 70 | 700.0 | 75 | 750.0 | 50 | 500.0 | 2.00 |
| WSM856030 | 85 | 850.0 | 60 | 600.0 | 30 | 300.0 | 75 | 750.0 | 65 | 650.0 | 70 | 700.0 | 75 | 750.0 | 50 | 500.0 | 2.00 |
| WSM856025 | 85 | 850.0 | 60 | 600.0 | 25 | 250.0 | 75 | 750.0 | 65 | 650.0 | 70 | 700.0 | 75 | 750.0 | 50 | 500.0 | 2.00 |
| WSM757540 | 75 | 750.0 | 75 | 750.0 | 40 | 400.0 | 65 | 650.0 | 80 | 800.0 | 85 | 850.0 | 65 | 650.0 | 65 | 650.0 | 2.00 |
| WSM757530 | 75 | 750.0 | 75 | 750.0 | 30 | 300.0 | 65 | 650.0 | 80 | 800.0 | 85 | 850.0 | 65 | 650.0 | 65 | 650.0 | 2.00 |
| WSM757525 | 75 | 750.0 | 75 | 750.0 | 25 | 250.0 | 65 | 650.0 | 80 | 800.0 | 85 | 850.0 | 65 | 650.0 | 65 | 650.0 | 2.00 |
| WSM756040 | 75 | 750.0 | 60 | 600.0 | 40 | 400.0 | 65 | 650.0 | 65 | 650.0 | 70 | 700.0 | 65 | 650.0 | 50 | 500.0 | 2.00 |
| WSM756030 | 75 | 750.0 | 60 | 600.0 | 30 | 300.0 | 65 | 650.0 | 65 | 650.0 | 70 | 700.0 | 65 | 650.0 | 50 | 500.0 | 2.00 |
| WSM756025 | 75 | 750.0 | 60 | 600.0 | 25 | 250.0 | 65 | 650.0 | 65 | 650.0 | 70 | 700.0 | 65 | 650.0 | 50 | 500.0 | 2.00 |
| WSM755040 | 75 | 750.0 | 50 | 500.0 | 40 | 400.0 | 65 | 650.0 | 55 | 550.0 | 60 | 600.0 | 65 | 650.0 | 40 | 400.0 | 2.00 |
| WSM755030 | 75 | 750.0 | 50 | 500.0 | 30 | 300.0 | 65 | 650.0 | 55 | 550.0 | 60 | 600.0 | 65 | 650.0 | 40 | 400.0 | 2.00 |
| WSM755025 | 75 | 750.0 | 50 | 500.0 | 25 | 250.0 | 65 | 650.0 | 55 | 550.0 | 60 | 600.0 | 65 | 650.0 | 40 | 400.0 | 2.00 |
| WSM707040 | 70 | 700.0 | 70 | 700.0 | 40 | 400.0 | 60 | 600.0 | 75 | 750.0 | 80 | 800.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| WSM707030 | 70 | 700.0 | 70 | 700.0 | 30 | 300.0 | 60 | 600.0 | 75 | 750.0 | 80 | 800.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| WSM707025 | 70 | 700.0 | 70 | 700.0 | 25 | 250.0 | 60 | 600.0 | 75 | 750.0 | 80 | 800.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| WSM705540 | 70 | 700.0 | 55 | 550.0 | 40 | 400.0 | 60 | 600.0 | 60 | 600.0 | 65 | 650.0 | 60 | 600.0 | 45 | 450.0 | 2.00 |
| WSM705530 | 70 | 700.0 | 55 | 550.0 | 30 | 300.0 | 60 | 600.0 | 60 | 600.0 | 65 | 650.0 | 60 | 600.0 | 45 | 450.0 | 2.00 |
| WSM705525 | 70 | 700.0 | 55 | 550.0 | 25 | 250.0 | 60 | 600.0 | 60 | 600.0 | 65 | 650.0 | 60 | 600.0 | 45 | 450.0 | 2.00 |
| WSM704530 | 70 | 700.0 | 45 | 450.0 | 30 | 300.0 | 60 | 600.0 | 50 | 500.0 | 55 | 550.0 | 60 | 600.0 | 35 | 350.0 | 2.00 |
| WSM704525 | 70 | 700.0 | 45 | 450.0 | 25 | 250.0 | 60 | 600.0 | 50 | 500.0 | 55 | 550.0 | 60 | 600.0 | 35 | 350.0 | 2.00 |
| WSM704520 | 70 | 700.0 | 45 | 450.0 | 20 | 200.0 | 60 | 600.0 | 50 | 500.0 | 55 | 550.0 | 60 | 600.0 | 35 | 350.0 | 2.00 |
| WSM656530 | 65 | 650.0 | 65 | 650.0 | 30 | 300.0 | 55 | 550.0 | 70 | 700.0 | 75 | 750.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| WSM656525 | 65 | 650.0 | 65 | 650.0 | 25 | 250.0 | 55 | 550.0 | 70 | 700.0 | 75 | 750.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| WSM656520 | 65 | 650.0 | 65 | 650.0 | 20 | 200.0 | 55 | 550.0 | 70 | 700.0 | 75 | 750.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| WSM655030 | 65 | 650.0 | 50 | 500.0 | 30 | 300.0 | 55 | 550.0 | 55 | 550.0 | 60 | 600.0 | 55 | 550.0 | 40 | 400.0 | 2.00 |
| WSM655025 | 65 | 650.0 | 50 | 500.0 | 25 | 250.0 | 55 | 550.0 | 55 | 550.0 | 60 | 600.0 | 55 | 550.0 | 40 | 400.0 | 2.00 |
| WSM655020 | 65 | 650.0 | 50 | 500.0 | 20 | 200.0 | 55 | 550.0 | 55 | 550.0 | 60 | 600.0 | 55 | 550.0 | 40 | 400.0 | 2.00 |
| WSM654030 | 65 | 650.0 | 40 | 400.0 | 30 | 300.0 | 55 | 550.0 | 45 | 450.0 | 50 | 500.0 | 55 | 550.0 | 30 | 300.0 | 2.00 |
| WSM654025 | 65 | 650.0 | 40 | 400.0 | 25 | 250.0 | 55 | 550.0 | 45 | 450.0 | 50 | 500.0 | 55 | 550.0 | 30 | 300.0 | 2.00 |
| WSM654020 | 65 | 650.0 | 40 | 400.0 | 20 | 200.0 | 55 | 550.0 | 45 | 450.0 | 50 | 500.0 | 55 | 550.0 | 30 | 300.0 | 2.00 |
| WSM606030 | 60 | 600.0 | 60 | 600.0 | 30 | 300.0 | 50 | 500.0 | 65 | 650.0 | 70 | 700.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| WSM606025 | 60 | 600.0 | 60 | 600.0 | 25 | 250.0 | 50 | 500.0 | 65 | 650.0 | 70 | 700.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| WSM606020 | 60 | 600.0 | 60 | 600.0 | 20 | 200.0 | 50 | 500.0 | 65 | 650.0 | 70 | 700.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| WSM604530 | 60 | 600.0 | 45 | 450.0 | 30 | 300.0 | 50 | 500.0 | 50 | 500.0 | 55 | 550.0 | 50 | 500.0 | 35 | 350.0 | 2.00 |
| WSM694525 | 60 | 600.0 | 45 | 450.0 | 25 | 250.0 | 50 | 500.0 | 50 | 500.0 | 55 | 550.0 | 50 | 500.0 | 35 | 350.0 | 2.00 |
| WSM604520 | 60 | 600.0 | 45 | 450.0 | 20 | 200.0 | 50 | 500.0 | 50 | 500.0 | 55 | 550.0 | 50 | 500.0 | 35 | 350.0 | 2.00 |
| WSM603530 | 60 | 600.0 | 35 | 350.0 | 30 | 300.0 | 50 | 500.0 | 40 | 400.0 | 45 | 450.0 | 50 | 500.0 | 25 | 250.0 | 2.00 |
| WSM603525 | 60 | 600.0 | 35 | 350.0 | 25 | 250.0 | 50 | 500.0 | 40 | 400.0 | 45 | 450.0 | 50 | 500.0 | 25 | 250.0 | 2.00 |
| WSM603520 | 60 | 600.0 | 35 | 350.0 | 20 | 200.0 | 50 | 500.0 | 40 | 400.0 | 45 | 450.0 | 50 | 500.0 | 25 | 250.0 | 2.00 |
| IMPERIAL | A | B | C | D | E | F | INTERNAL MOUNT PLATE | ||||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Slope Roof Height | Height | Width | Gauge | ||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| WSMI363620 | 36 | 914.4 | 36 | 914.4 | 20 | 508.0 | 32 | 812.8 | 38 | 965.2 | 40 | 400.0 | 32 | 812.8 | 32 | 812.8 | 14 |
| WSMI363616 | 36 | 914.4 | 36 | 914.4 | 16 | 406.4 | 32 | 812.8 | 38 | 965.2 | 40 | 400.0 | 32 | 812.8 | 32 | 812.8 | 14 |
| WSMI363612 | 36 | 914.4 | 36 | 914.4 | 12 | 304.8 | 32 | 812.8 | 38 | 965.2 | 40 | 400.0 | 32 | 812.8 | 32 | 812.8 | 14 |
| WSMI363020 | 36 | 914.4 | 30 | 762.0 | 20 | 508.0 | 32 | 812.8 | 32 | 812.8 | 34 | 340.0 | 32 | 812.8 | 26 | 660.4 | 14 |
| WSMI363016 | 36 | 914.4 | 30 | 762.0 | 16 | 406.4 | 32 | 812.8 | 32 | 812.8 | 34 | 340.0 | 32 | 812.8 | 26 | 660.4 | 14 |
| WSMI363012 | 36 | 914.4 | 30 | 762.0 | 12 | 304.8 | 32 | 812.8 | 32 | 812.8 | 34 | 340.0 | 32 | 812.8 | 26 | 660.4 | 14 |
| WSMI362420 | 36 | 914.4 | 24 | 609.6 | 20 | 508.0 | 32 | 812.8 | 26 | 660.4 | 28 | 280.0 | 32 | 812.8 | 20 | 508.0 | 14 |
| WSMI362416 | 36 | 914.4 | 24 | 609.6 | 16 | 406.4 | 32 | 812.8 | 26 | 660.4 | 28 | 280.0 | 32 | 812.8 | 20 | 508.0 | 14 |
| WSMI362412 | 36 | 914.4 | 24 | 609.6 | 12 | 304.8 | 32 | 812.8 | 26 | 660.4 | 28 | 280.0 | 32 | 812.8 | 20 | 508.0 | 14 |
| WSMI343416 | 34 | 863.6 | 34 | 863.6 | 16 | 406.4 | 30 | 762.0 | 36 | 914.4 | 38 | 380.0 | 30 | 762.0 | 30 | 762.0 | 14 |
| WSMI343412 | 34 | 863.6 | 34 | 863.6 | 12 | 304.8 | 30 | 762.0 | 36 | 914.4 | 38 | 380.0 | 30 | 762.0 | 30 | 762.0 | 14 |
| WSMI343410 | 34 | 863.6 | 34 | 863.6 | 10 | 254.0 | 30 | 762.0 | 36 | 914.4 | 38 | 380.0 | 30 | 762.0 | 30 | 762.0 | 14 |
| WSMI342816 | 34 | 863.6 | 28 | 711.2 | 16 | 406.4 | 30 | 762.0 | 30 | 762.0 | 32 | 320.0 | 30 | 762.0 | 24 | 609.6 | 14 |
| WSMI342812 | 34 | 863.6 | 28 | 711.2 | 12 | 304.8 | 30 | 762.0 | 30 | 762.0 | 32 | 320.0 | 30 | 762.0 | 24 | 609.6 | 14 |
| WSMI342810 | 34 | 863.6 | 28 | 711.2 | 10 | 254.0 | 30 | 762.0 | 30 | 762.0 | 32 | 320.0 | 30 | 762.0 | 24 | 609.6 | 14 |
| WSMI342416 | 34 | 863.6 | 24 | 609.6 | 16 | 406.4 | 30 | 762.0 | 26 | 660.4 | 28 | 280.0 | 30 | 762.0 | 20 | 508.0 | 14 |
| WSMI342412 | 34 | 863.6 | 24 | 609.6 | 12 | 304.8 | 30 | 762.0 | 26 | 660.4 | 28 | 280.0 | 30 | 762.0 | 20 | 508.0 | 14 |
| WSMI342410 | 34 | 863.6 | 24 | 609.6 | 10 | 254.0 | 30 | 762.0 | 26 | 660.4 | 28 | 280.0 | 30 | 762.0 | 20 | 508.0 | 14 |
| WSMI303016 | 30 | 762.0 | 30 | 762.0 | 16 | 406.4 | 26 | 660.4 | 32 | 812.8 | 34 | 340.0 | 26 | 660.4 | 26 | 660.4 | 14 |
| WSMI303012 | 30 | 762.0 | 30 | 762.0 | 12 | 304.8 | 26 | 660.4 | 32 | 812.8 | 34 | 340.0 | 26 | 660.4 | 26 | 660.4 | 14 |
| WSMI303010 | 30 | 762.0 | 30 | 762.0 | 10 | 254.0 | 26 | 660.4 | 32 | 812.8 | 34 | 340.0 | 26 | 660.4 | 26 | 660.4 | 14 |
| WSMI302416 | 30 | 762.0 | 24 | 609.6 | 16 | 406.4 | 26 | 660.4 | 26 | 660.4 | 28 | 280.0 | 26 | 660.4 | 20 | 508.0 | 14 |
| WSMI302412 | 30 | 762.0 | 24 | 609.6 | 12 | 304.8 | 26 | 660.4 | 26 | 660.4 | 28 | 280.0 | 26 | 660.4 | 20 | 508.0 | 14 |
| WSMI302410 | 30 | 762.0 | 24 | 609.6 | 10 | 254.0 | 26 | 660.4 | 26 | 660.4 | 28 | 280.0 | 26 | 660.4 | 20 | 508.0 | 14 |
| WSMI302015 | 30 | 762.0 | 20 | 508.0 | 16 | 406.4 | 26 | 660.4 | 22 | 558.8 | 24 | 240.0 | 26 | 660.4 | 16 | 406.4 | 14 |
| WSMI302012 | 30 | 762.0 | 20 | 508.0 | 12 | 304.8 | 26 | 660.4 | 22 | 558.8 | 24 | 240.0 | 26 | 660.4 | 16 | 406.4 | 14 |
| WSMI302010 | 30 | 762.0 | 20 | 508.0 | 10 | 254.0 | 26 | 660.4 | 22 | 558.8 | 24 | 240.0 | 26 | 660.4 | 16 | 406.4 | 14 |
| WSMI282816 | 28 | 711.2 | 28 | 711.2 | 16 | 406.4 | 24 | 609.6 | 30 | 762.0 | 32 | 320.0 | 24 | 609.6 | 24 | 609.6 | 14 |
| WSMI282812 | 28 | 711.2 | 28 | 711.2 | 12 | 304.8 | 24 | 609.6 | 30 | 762.0 | 32 | 320.0 | 24 | 609.6 | 24 | 609.6 | 14 |
| WSMI282810 | 28 | 711.2 | 28 | 711.2 | 10 | 254.0 | 24 | 609.6 | 30 | 762.0 | 32 | 320.0 | 24 | 609.6 | 24 | 609.6 | 14 |
| WSMI282216 | 28 | 711.2 | 22 | 558.8 | 16 | 406.4 | 24 | 609.6 | 24 | 609.6 | 26 | 260.0 | 24 | 609.6 | 18 | 457.2 | 14 |
| WSMI282212 | 28 | 711.2 | 22 | 558.8 | 12 | 304.8 | 24 | 609.6 | 24 | 609.6 | 26 | 260.0 | 24 | 609.6 | 18 | 457.2 | 14 |
| WSMI282210 | 28 | 711.2 | 22 | 558.8 | 10 | 254.0 | 24 | 609.6 | 24 | 609.6 | 26 | 260.0 | 24 | 609.6 | 18 | 457.2 | 14 |
| WSMI281812 | 28 | 711.2 | 18 | 457.2 | 12 | 304.8 | 24 | 609.6 | 20 | 508.0 | 22 | 220.0 | 24 | 609.6 | 14 | 355.6 | 14 |
| WSMI281810 | 28 | 711.2 | 18 | 457.2 | 10 | 254.0 | 24 | 609.6 | 20 | 508.0 | 22 | 220.0 | 24 | 609.6 | 14 | 355.6 | 14 |
| WSMI281808 | 28 | 711.2 | 18 | 457.2 | 08 | 203.2 | 24 | 609.6 | 20 | 508.0 | 22 | 220.0 | 24 | 609.6 | 14 | 355.6 | 14 |
| WSMI262612 | 26 | 660.4 | 26 | 660.4 | 12 | 304.8 | 22 | 558.8 | 28 | 711.2 | 30 | 300.0 | 22 | 558.8 | 22 | 558.8 | 14 |
| WSMI262610 | 26 | 660.4 | 26 | 660.4 | 10 | 254.0 | 22 | 558.8 | 28 | 711.2 | 30 | 300.0 | 22 | 558.8 | 22 | 558.8 | 14 |
| WSMI262608 | 26 | 660.4 | 26 | 660.4 | 08 | 203.2 | 22 | 558.8 | 28 | 711.2 | 30 | 300.0 | 22 | 558.8 | 22 | 558.8 | 14 |
| WSMI262012 | 26 | 660.4 | 20 | 508.0 | 12 | 304.8 | 22 | 558.8 | 22 | 558.8 | 24 | 240.0 | 22 | 558.8 | 16 | 406.4 | 14 |
| WSMI262010 | 26 | 660.4 | 20 | 508.0 | 10 | 254.0 | 22 | 558.8 | 22 | 558.8 | 24 | 240.0 | 22 | 558.8 | 16 | 406.4 | 14 |
| WSMI262008 | 26 | 660.4 | 20 | 508.0 | 08 | 203.2 | 22 | 558.8 | 22 | 558.8 | 24 | 240.0 | 22 | 558.8 | 16 | 406.4 | 14 |
| WSMI261612 | 26 | 660.4 | 16 | 406.4 | 12 | 304.8 | 22 | 558.8 | 18 | 457.2 | 20 | 200.0 | 22 | 558.8 | 12 | 304.8 | 14 |
| WSMI261610 | 26 | 660.4 | 16 | 406.4 | 10 | 254.0 | 22 | 558.8 | 18 | 457.2 | 20 | 200.0 | 22 | 558.8 | 12 | 304.8 | 14 |
| WSMI261608 | 26 | 660.4 | 16 | 406.4 | 08 | 203.2 | 22 | 558.8 | 18 | 457.2 | 20 | 200.0 | 22 | 558.8 | 12 | 304.8 | 14 |
| WSMI242412 | 24 | 609.6 | 24 | 609.6 | 12 | 304.8 | 20 | 508.0 | 26 | 660.4 | 28 | 280.0 | 20 | 508.0 | 20 | 508.0 | 14 |
| WSMI242410 | 24 | 609.6 | 24 | 609.6 | 10 | 254.0 | 20 | 508.0 | 26 | 660.4 | 28 | 280.0 | 20 | 508.0 | 20 | 508.0 | 14 |
| WSMI242408 | 24 | 609.6 | 24 | 609.6 | 08 | 203.2 | 20 | 508.0 | 26 | 660.4 | 28 | 280.0 | 20 | 508.0 | 20 | 508.0 | 14 |
| WSMI241812 | 24 | 609.6 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 20 | 508.0 | 22 | 220.0 | 20 | 508.0 | 14 | 355.6 | 14 |
| WSMI241810 | 24 | 609.6 | 18 | 457.2 | 10 | 254.0 | 20 | 508.0 | 20 | 508.0 | 22 | 220.0 | 20 | 508.0 | 14 | 355.6 | 14 |
| WSMI241808 | 24 | 609.6 | 18 | 457.2 | 08 | 203.2 | 20 | 508.0 | 20 | 508.0 | 22 | 220.0 | 20 | 508.0 | 14 | 355.6 | 14 |
| WSMI241412 | 24 | 609.6 | 14 | 355.6 | 12 | 304.8 | 20 | 508.0 | 16 | 406.4 | 18 | 180.0 | 20 | 508.0 | 10 | 254.0 | 14 |
| WSMI241410 | 24 | 609.6 | 14 | 355.6 | 10 | 254.0 | 20 | 508.0 | 16 | 406.4 | 18 | 180.0 | 20 | 508.0 | 10 | 254.0 | 14 |
| WSMI241408 | 24 | 609.6 | 14 | 355.6 | 08 | 203.2 | 20 | 508.0 | 16 | 406.4 | 18 | 180.0 | 20 | 508.0 | 10 | 254.0 | 14 |

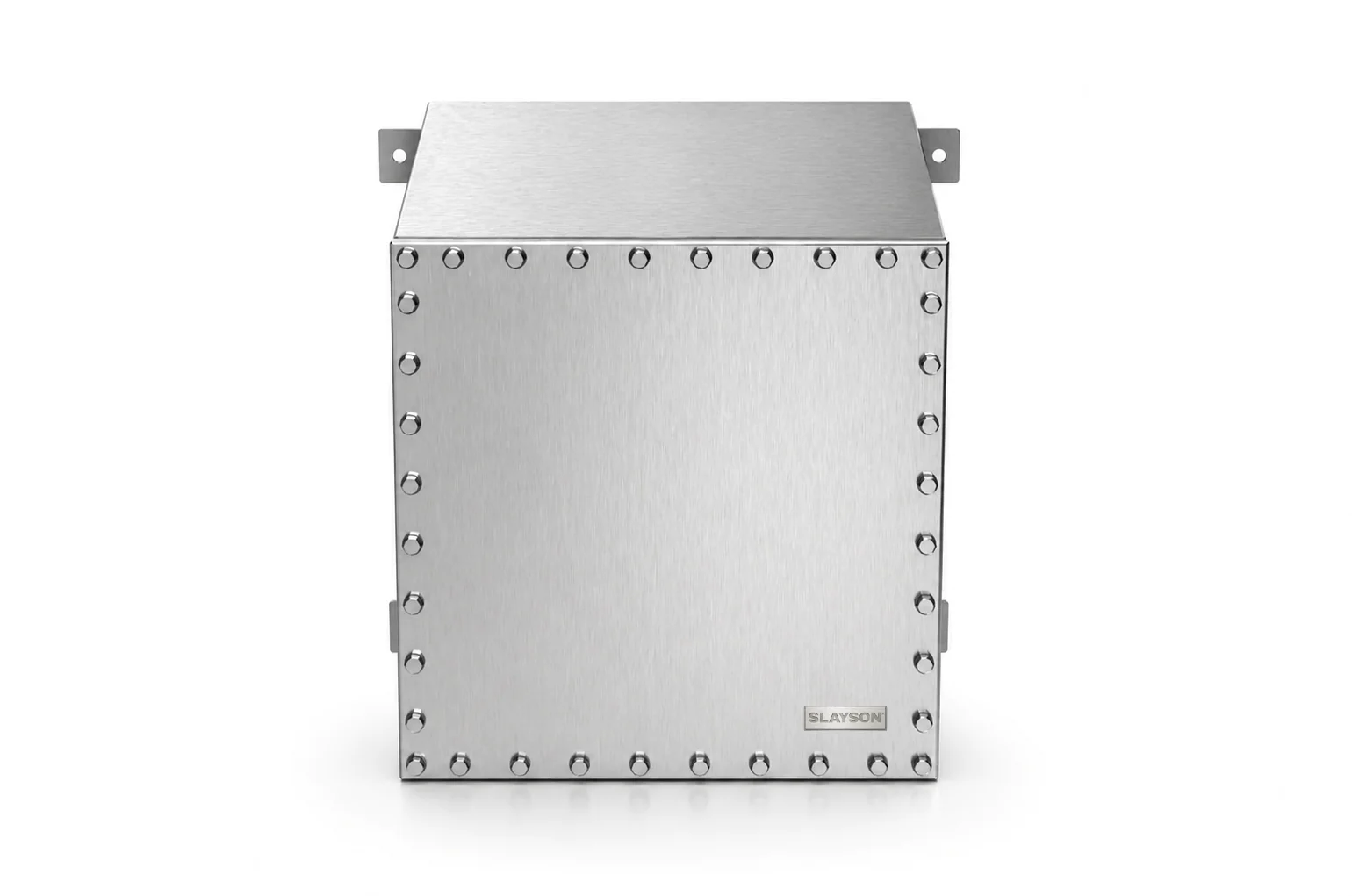

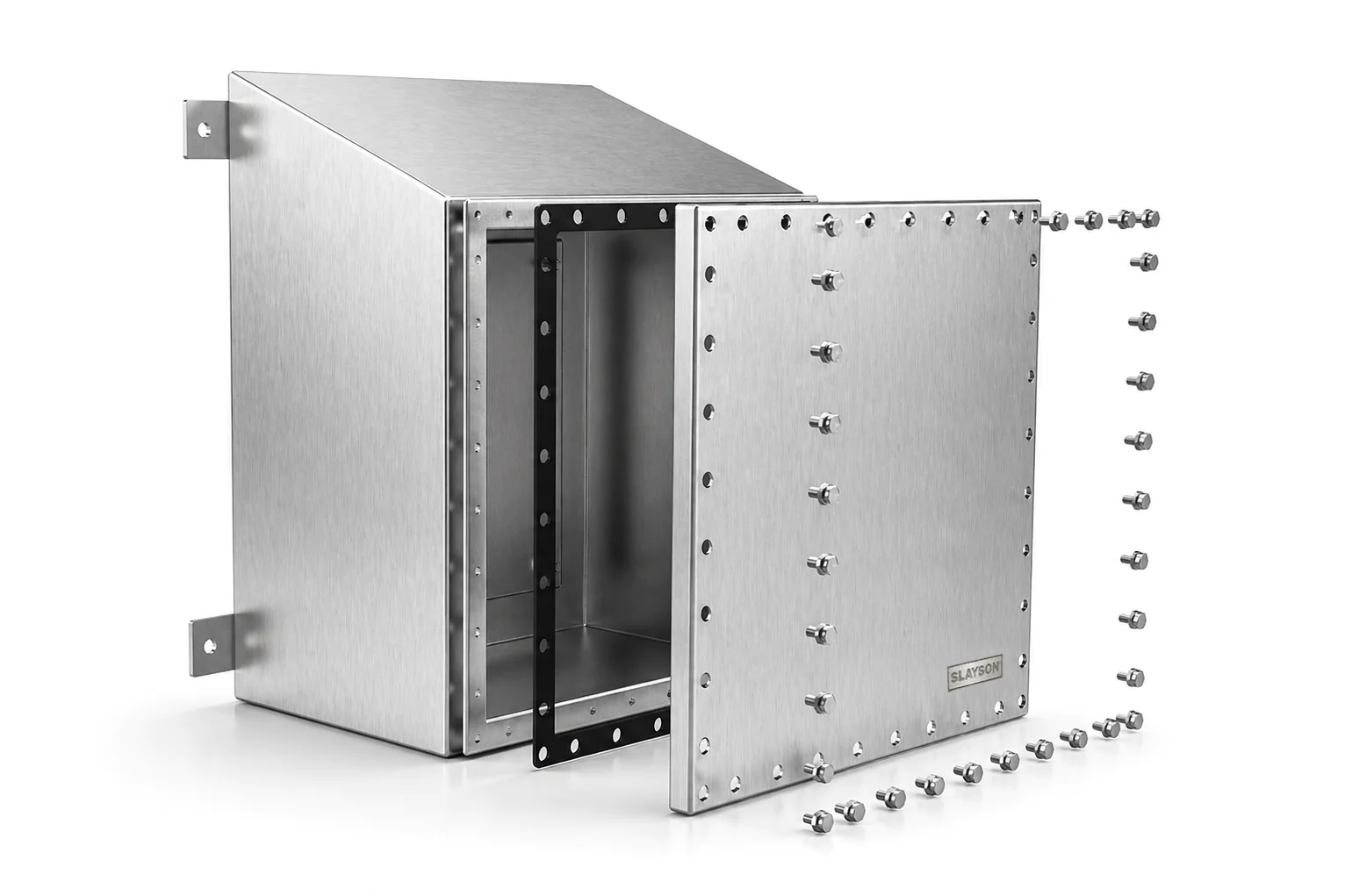

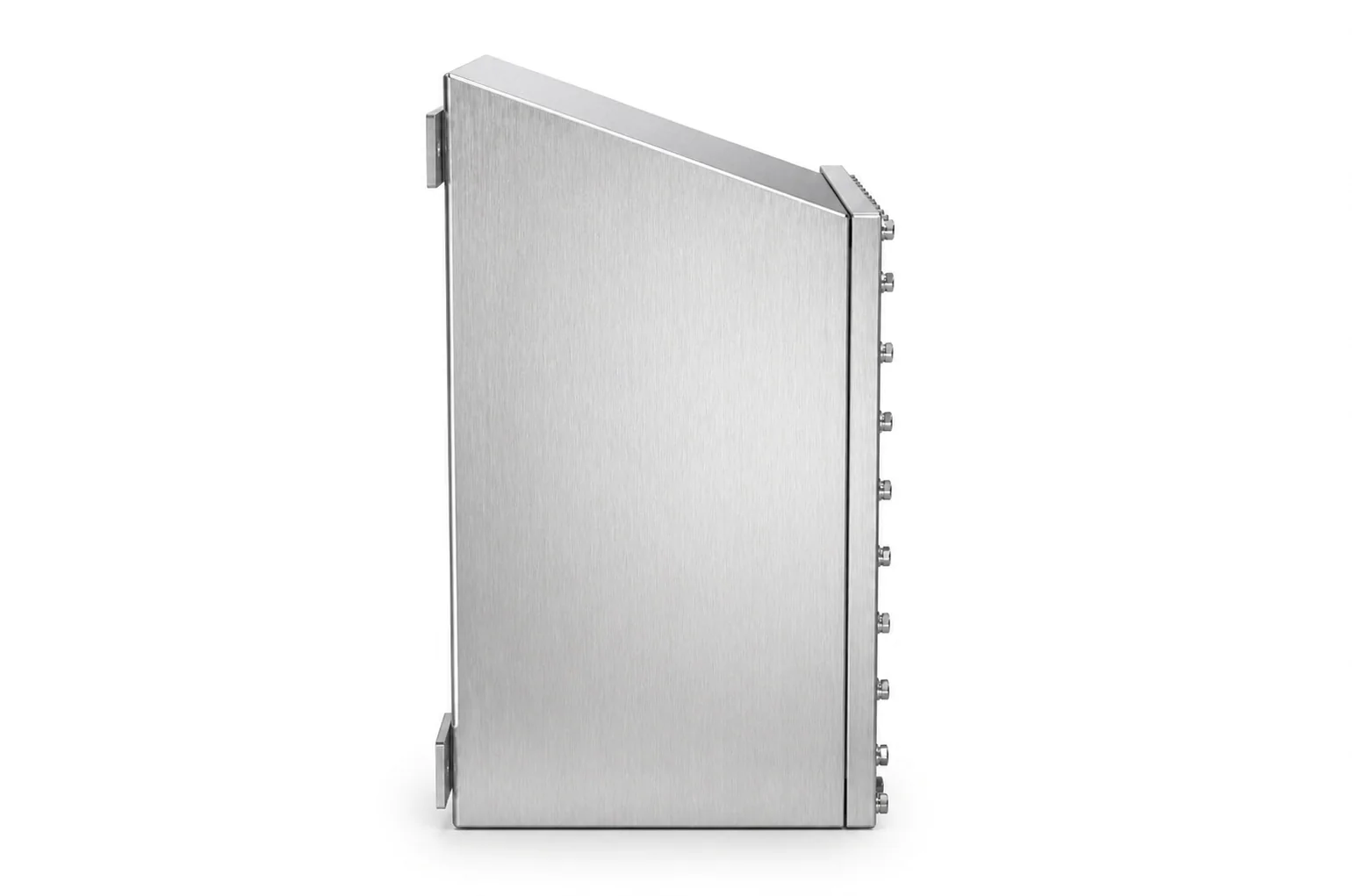

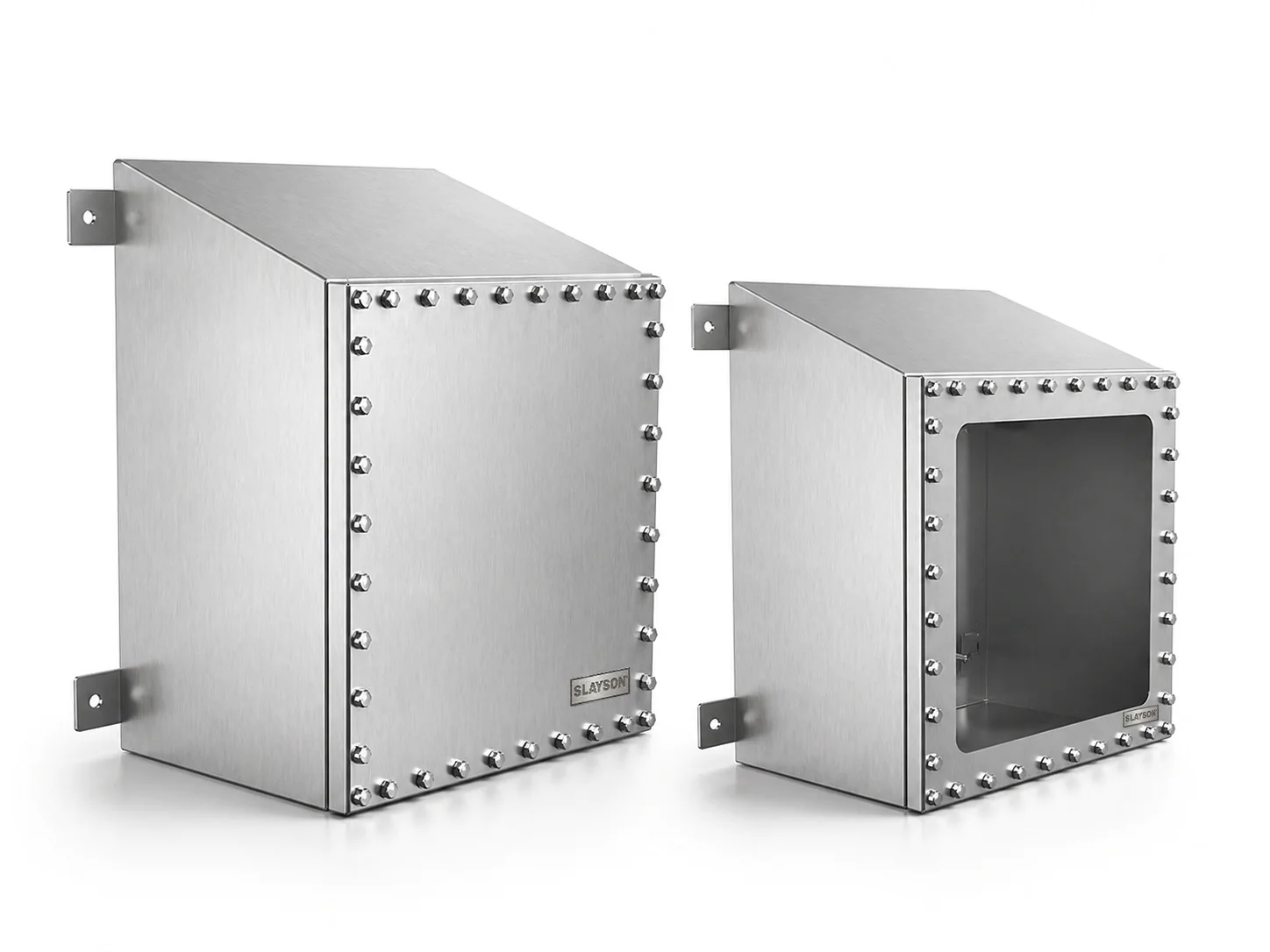

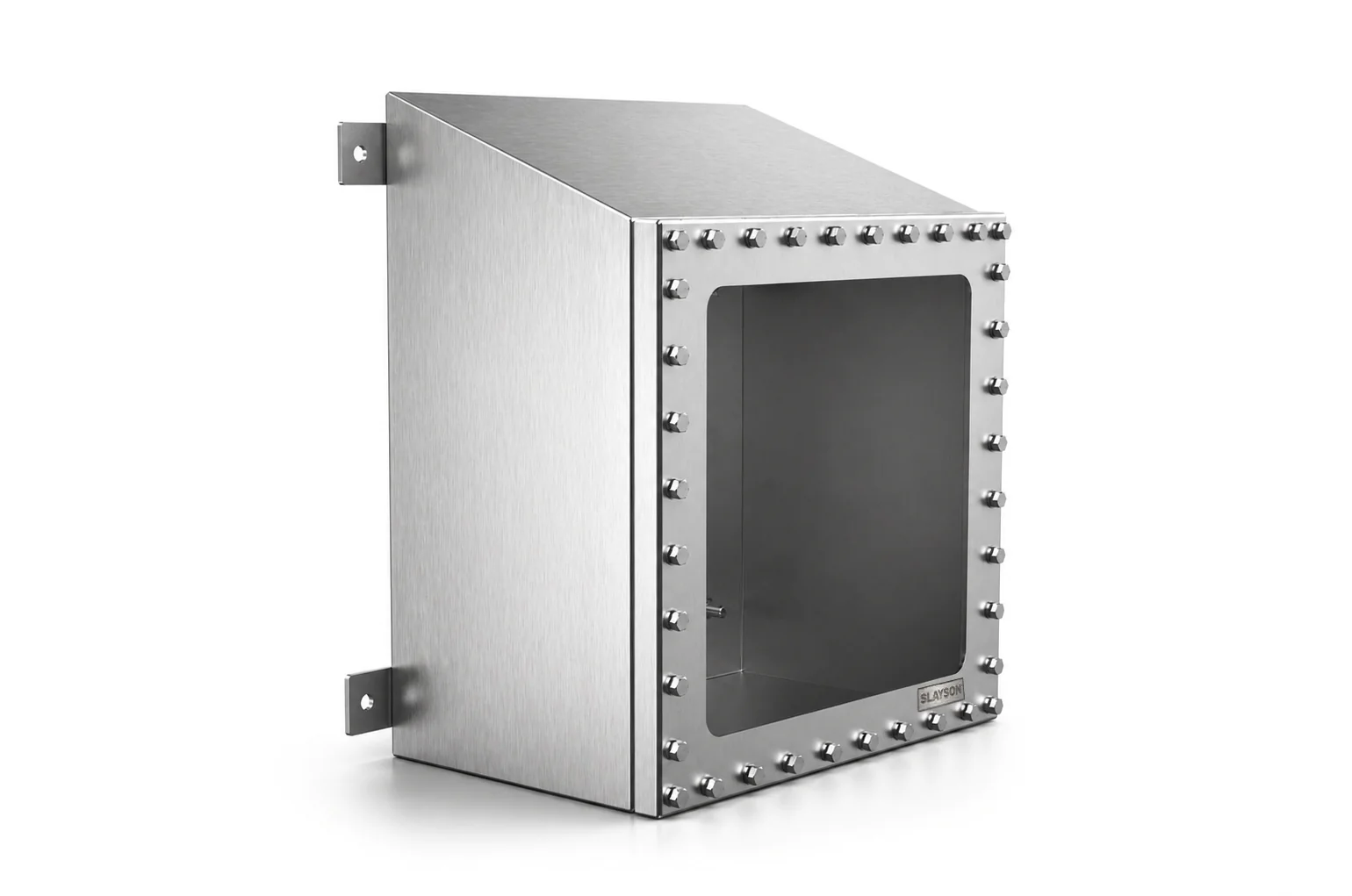

SUBMERSIBLE WATERSHED ENCLOSURE OVERVIEW
The SLAYSON® SUBMERSIBLE WATERSHED Series is expertly designed with a sloped top to prevent objects from being placed on the enclosure and to allow liquids to drain off efficiently. Rated NEMA 6P/IP68, it offers exceptional protection against dust and water ingress, ensuring the safety of vital electrical equipment even under partial or prolonged submersion up to depths of 5 metres. Constructed from robust 14g Marine Grade Stainless Steel 316 (Aerospace Grade Aluminium available on request), these enclosures are built to endure harsh and demanding environments.
Designed with an integral flange, the SUBMERSIBLE WATERSHED Series prevents water entry when the enclosure is open and is capable of withstanding high-temperature, high-pressure washdowns. Available in a range of sizes from 24″x 24″ to 36″x 36″, each unit can be customised with an array of accessories to meet specific application needs. SLAYSON’s design and engineering teams work closely with clients to ensure each enclosure delivers precise fit and functionality for their unique requirements.
