| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| JSM454535 | 45 | 450.0 | 45 | 450.0 | 35 | 350.0 | 55 | 550.0 | 52 | 520.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| JSM454530 | 45 | 450.0 | 45 | 450.0 | 30 | 300.0 | 55 | 550.0 | 52 | 520.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| JSM454520 | 45 | 450.0 | 45 | 450.0 | 20 | 200.0 | 55 | 550.0 | 52 | 520.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| JSM454515 | 45 | 450.0 | 45 | 450.0 | 15 | 150.0 | 55 | 550.0 | 52 | 520.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| JSM453530 | 45 | 450.0 | 35 | 350.0 | 30 | 300.0 | 55 | 550.0 | 42 | 420.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| JSM453525 | 45 | 450.0 | 35 | 350.0 | 25 | 250.0 | 55 | 550.0 | 42 | 420.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| JSM453520 | 45 | 450.0 | 35 | 350.0 | 20 | 200.0 | 55 | 550.0 | 42 | 420.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| JSM453515 | 45 | 450.0 | 35 | 350.0 | 15 | 150.0 | 55 | 550.0 | 42 | 420.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| JSM453025 | 45 | 450.0 | 30 | 300.0 | 25 | 250.0 | 55 | 550.0 | 37 | 370.0 | 40 | 400.0 | 25 | 250.0 | 2.00 |
| JSM453020 | 45 | 450.0 | 30 | 300.0 | 20 | 200.0 | 55 | 550.0 | 37 | 370.0 | 40 | 400.0 | 25 | 250.0 | 2.00 |
| JSM453015 | 45 | 450.0 | 30 | 300.0 | 15 | 150.0 | 55 | 550.0 | 37 | 370.0 | 40 | 400.0 | 25 | 250.0 | 2.00 |
| JSM404030 | 45 | 400.0 | 40 | 400.0 | 30 | 300.0 | 50 | 500.0 | 47 | 470.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| JSM404025 | 40 | 400.0 | 40 | 400.0 | 25 | 250.0 | 50 | 500.0 | 47 | 470.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| JSM404020 | 40 | 400.0 | 40 | 400.0 | 20 | 200.0 | 50 | 500.0 | 47 | 470.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| JSM404015 | 40 | 400.0 | 40 | 400.0 | 15 | 150.0 | 50 | 500.0 | 47 | 470.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| JSM403530 | 40 | 400.0 | 35 | 350.0 | 30 | 300.0 | 50 | 500.0 | 42 | 420.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| JSM403525 | 40 | 400.0 | 35 | 350.0 | 25 | 250.0 | 50 | 500.0 | 42 | 420.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| JSM403520 | 40 | 400.0 | 35 | 350.0 | 20 | 200.0 | 50 | 500.0 | 42 | 420.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| JSM403515 | 40 | 400.0 | 35 | 350.0 | 15 | 150.0 | 50 | 500.0 | 42 | 420.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| JSM403025 | 40 | 400.0 | 30 | 300.0 | 25 | 250.0 | 50 | 500.0 | 37 | 370.0 | 35 | 350.0 | 25 | 250.0 | 2.00 |
| JSM403020 | 40 | 400.0 | 30 | 300.0 | 20 | 200.0 | 50 | 500.0 | 37 | 370.0 | 35 | 350.0 | 25 | 250.0 | 2.00 |
| JSM403015 | 40 | 400.0 | 30 | 300.0 | 15 | 150.0 | 50 | 500.0 | 37 | 370.0 | 35 | 350.0 | 25 | 250.0 | 2.00 |
| JSM353530 | 40 | 350.0 | 35 | 350.0 | 30 | 300.0 | 45 | 450.0 | 42 | 420.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| JSM353525 | 35 | 350.0 | 35 | 350.0 | 25 | 250.0 | 45 | 450.0 | 42 | 420.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| JSM353520 | 35 | 350.0 | 35 | 350.0 | 20 | 200.0 | 45 | 450.0 | 42 | 420.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| JSM353515 | 35 | 350.0 | 35 | 350.0 | 15 | 150.0 | 45 | 450.0 | 42 | 420.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| JSM353025 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 45 | 450.0 | 37 | 370.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| JSM353020 | 35 | 350.0 | 30 | 300.0 | 20 | 200.0 | 45 | 450.0 | 37 | 370.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| JSM353015 | 35 | 350.0 | 30 | 300.0 | 15 | 150.0 | 45 | 450.0 | 37 | 370.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| JSM303025 | 35 | 300.0 | 30 | 300.0 | 25 | 250.0 | 40 | 400.0 | 37 | 370.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| JSM303020 | 30 | 300.0 | 30 | 300.0 | 20 | 200.0 | 40 | 400.0 | 37 | 370.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| JSM303015 | 30 | 300.0 | 30 | 300.0 | 15 | 150.0 | 40 | 400.0 | 37 | 370.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| JSM302520 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 40 | 400.0 | 32 | 320.0 | 25 | 250.0 | 20 | 200.0 | 2.00 |
| JSM302515 | 30 | 300.0 | 25 | 250.0 | 15 | 150.0 | 40 | 400.0 | 32 | 320.0 | 25 | 250.0 | 20 | 200.0 | 2.00 |
| JSM252520 | 30 | 250.0 | 25 | 250.0 | 20 | 200.0 | 35 | 350.0 | 32 | 320.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| JSM252515 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 35 | 350.0 | 32 | 320.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| JSM252510 | 25 | 250.0 | 25 | 250.0 | 10 | 100.0 | 35 | 350.0 | 32 | 320.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| JSM252015 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 35 | 350.0 | 27 | 270.0 | 20 | 200.0 | 15 | 150.0 | 2.00 |
| JSM252010 | 25 | 250.0 | 20 | 200.0 | 10 | 100.0 | 35 | 350.0 | 27 | 270.0 | 20 | 200.0 | 15 | 150.0 | 2.00 |
| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| JSMI181814 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 21 | 533.4 | 16 | 406.4 | 16 | 406.4 | 14 |
| JSMI181812 | 18 | 457.2 | 18 | 457.2 | 12 | 304.8 | 14 | 355.6 | 21 | 533.4 | 16 | 406.4 | 16 | 406.4 | 14 |
| JSMI181810 | 18 | 457.2 | 18 | 457.2 | 10 | 254.0 | 14 | 355.6 | 21 | 533.4 | 16 | 406.4 | 16 | 406.4 | 14 |
| JSMI181808 | 18 | 457.2 | 18 | 457.2 | 08 | 203.2 | 14 | 355.6 | 21 | 533.4 | 16 | 406.4 | 16 | 406.4 | 14 |
| JSMI181806 | 18 | 457.2 | 18 | 457.2 | 06 | 152.4 | 14 | 355.6 | 21 | 533.4 | 16 | 406.4 | 16 | 406.4 | 14 |
| JSMI181412 | 18 | 457.2 | 14 | 355.6 | 12 | 304.8 | 14 | 355.6 | 17 | 431.8 | 16 | 406.4 | 12 | 304.8 | 14 |
| JSMI181410 | 18 | 457.2 | 14 | 355.6 | 10 | 254.0 | 14 | 355.6 | 17 | 431.8 | 16 | 406.4 | 12 | 304.8 | 14 |
| JSMI181408 | 18 | 457.2 | 14 | 355.6 | 08 | 203.2 | 14 | 355.6 | 17 | 431.8 | 16 | 406.4 | 12 | 304.8 | 14 |
| JSMI181406 | 18 | 457.2 | 14 | 355.6 | 06 | 152.4 | 14 | 355.6 | 17 | 431.8 | 16 | 406.4 | 12 | 304.8 | 14 |
| JSMI181210 | 18 | 457.2 | 12 | 304.8 | 10 | 254.0 | 14 | 355.6 | 15 | 381.0 | 16 | 406.4 | 10 | 254.0 | 14 |
| JSMI181208 | 18 | 457.2 | 12 | 304.8 | 08 | 203.2 | 14 | 355.6 | 15 | 381.0 | 16 | 406.4 | 10 | 254.0 | 14 |
| JSMI181206 | 18 | 457.2 | 12 | 304.8 | 06 | 152.4 | 14 | 355.6 | 15 | 381.0 | 16 | 406.4 | 10 | 254.0 | 14 |
| JSMI161612 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 19 | 482.6 | 14 | 355.6 | 14 | 355.6 | 14 |
| JSMI161610 | 16 | 406.4 | 16 | 406.4 | 10 | 254.0 | 12 | 304.8 | 19 | 482.6 | 14 | 355.6 | 14 | 355.6 | 14 |
| JSMI161608 | 16 | 406.4 | 16 | 406.4 | 08 | 203.2 | 12 | 304.8 | 19 | 482.6 | 14 | 355.6 | 14 | 355.6 | 14 |
| JSMI161606 | 16 | 406.4 | 16 | 406.4 | 06 | 152.4 | 12 | 304.8 | 19 | 482.6 | 14 | 355.6 | 14 | 355.6 | 14 |
| JSMI161412 | 16 | 406.4 | 14 | 355.6 | 12 | 304.8 | 12 | 304.8 | 17 | 431.8 | 14 | 355.6 | 12 | 304.8 | 14 |
| JSMI161410 | 16 | 406.4 | 14 | 355.6 | 10 | 254.0 | 12 | 304.8 | 17 | 431.8 | 14 | 355.6 | 12 | 304.8 | 14 |
| JSMI161408 | 16 | 406.4 | 14 | 355.6 | 08 | 203.2 | 12 | 304.8 | 17 | 431.8 | 14 | 355.6 | 12 | 304.8 | 14 |
| JSMI161406 | 16 | 406.4 | 14 | 355.6 | 06 | 152.4 | 12 | 304.8 | 17 | 431.8 | 14 | 355.6 | 12 | 304.8 | 14 |
| JSMI161210 | 16 | 406.4 | 12 | 304.8 | 10 | 254.0 | 12 | 304.8 | 15 | 381.0 | 14 | 355.6 | 10 | 254.0 | 14 |
| JSMI161208 | 16 | 406.4 | 12 | 304.8 | 08 | 203.2 | 12 | 304.8 | 15 | 381.0 | 14 | 355.6 | 10 | 254.0 | 14 |
| JSMI161206 | 16 | 406.4 | 12 | 304.8 | 06 | 152.4 | 12 | 304.8 | 15 | 381.0 | 14 | 355.6 | 10 | 254.0 | 14 |
| JSMI141412 | 14 | 355.6 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 17 | 431.8 | 12 | 304.8 | 12 | 304.8 | 14 |
| JSMI141410 | 14 | 355.6 | 14 | 355.6 | 10 | 254.0 | 10 | 254.0 | 17 | 431.8 | 12 | 304.8 | 12 | 304.8 | 14 |
| JSMI141408 | 14 | 355.6 | 14 | 355.6 | 08 | 203.2 | 10 | 254.0 | 17 | 431.8 | 12 | 304.8 | 12 | 304.8 | 14 |
| JSMI141406 | 14 | 355.6 | 14 | 355.6 | 06 | 152.4 | 10 | 254.0 | 17 | 431.8 | 12 | 304.8 | 12 | 304.8 | 14 |
| JSMI141210 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 10 | 254.0 | 15 | 381.0 | 12 | 304.8 | 10 | 254.0 | 14 |
| JSMI141208 | 14 | 355.6 | 12 | 304.8 | 08 | 203.2 | 10 | 254.0 | 15 | 381.0 | 12 | 304.8 | 10 | 254.0 | 14 |
| JSMI141206 | 14 | 355.6 | 12 | 304.8 | 06 | 152.4 | 10 | 254.0 | 15 | 381.0 | 12 | 304.8 | 10 | 254.0 | 14 |
| JSMI121210 | 12 | 304.8 | 12 | 304.8 | 10 | 254.0 | 8 | 203.2 | 15 | 381.0 | 10 | 254.0 | 10 | 254.0 | 14 |
| JSMI121208 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 8 | 203.2 | 15 | 381.0 | 10 | 254.0 | 10 | 254.0 | 14 |
| JSMI121206 | 12 | 304.8 | 12 | 304.8 | 06 | 152.4 | 8 | 203.2 | 15 | 381.0 | 10 | 254.0 | 10 | 254.0 | 14 |
| JSMI121008 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 8 | 203.2 | 13 | 330.2 | 10 | 254.0 | 8 | 203.2 | 14 |
| JSMI121006 | 12 | 304.8 | 10 | 254.0 | 06 | 152.4 | 8 | 203.2 | 13 | 330.2 | 10 | 254.0 | 8 | 203.2 | 14 |
| JSMI101008 | 10 | 254.0 | 10 | 254.0 | 08 | 203.2 | 6 | 152.4 | 13 | 330.2 | 08 | 203.2 | 8 | 203.2 | 14 |
| JSMI101006 | 10 | 254.0 | 10 | 254.0 | 06 | 152.4 | 6 | 152.4 | 13 | 330.2 | 08 | 203.2 | 8 | 203.2 | 14 |
| JSMI101004 | 10 | 254.0 | 10 | 254.0 | 04 | 101.6 | 6 | 152.4 | 13 | 330.2 | 08 | 203.2 | 8 | 203.2 | 14 |
| JSMI100806 | 10 | 254.0 | 8 | 203.2 | 06 | 152.4 | 6 | 152.4 | 11 | 279.4 | 08 | 203.2 | 6 | 152.4 | 14 |
| JSMI100804 | 10 | 254.0 | 8 | 203.2 | 04 | 101.6 | 6 | 152.4 | 11 | 279.4 | 08 | 203.2 | 6 | 152.4 | 14 |
JUNCTION BOX OVERVIEW

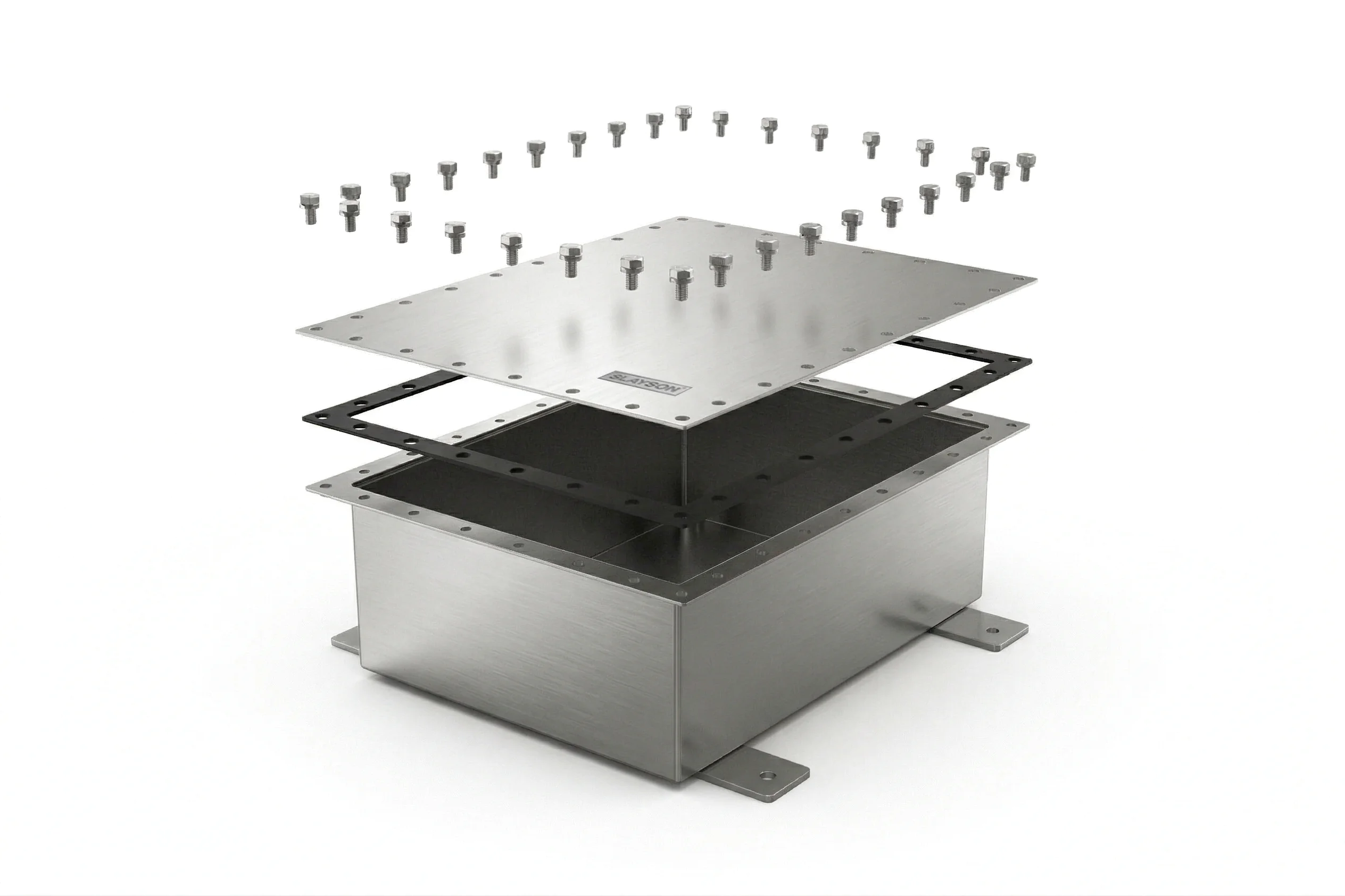

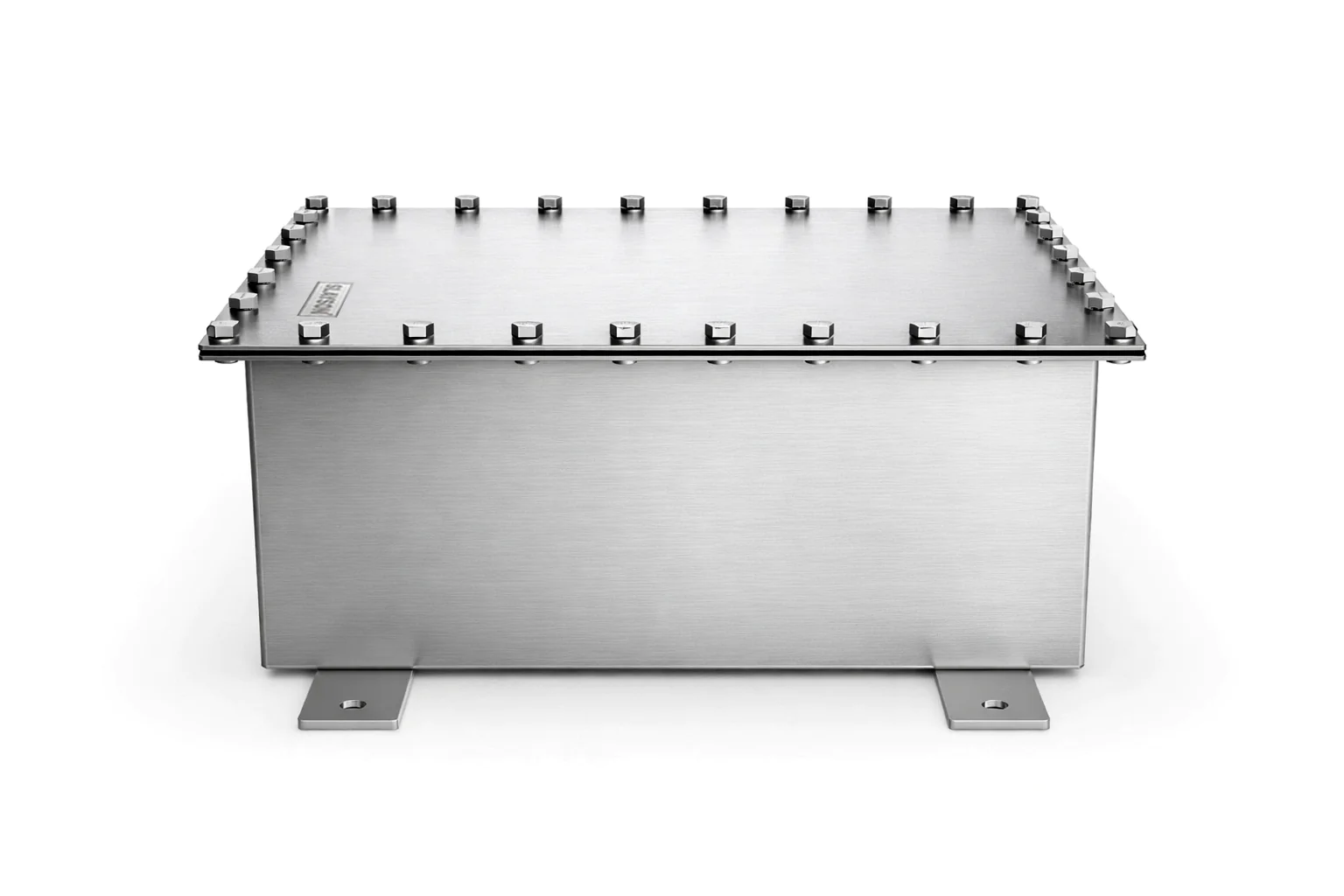

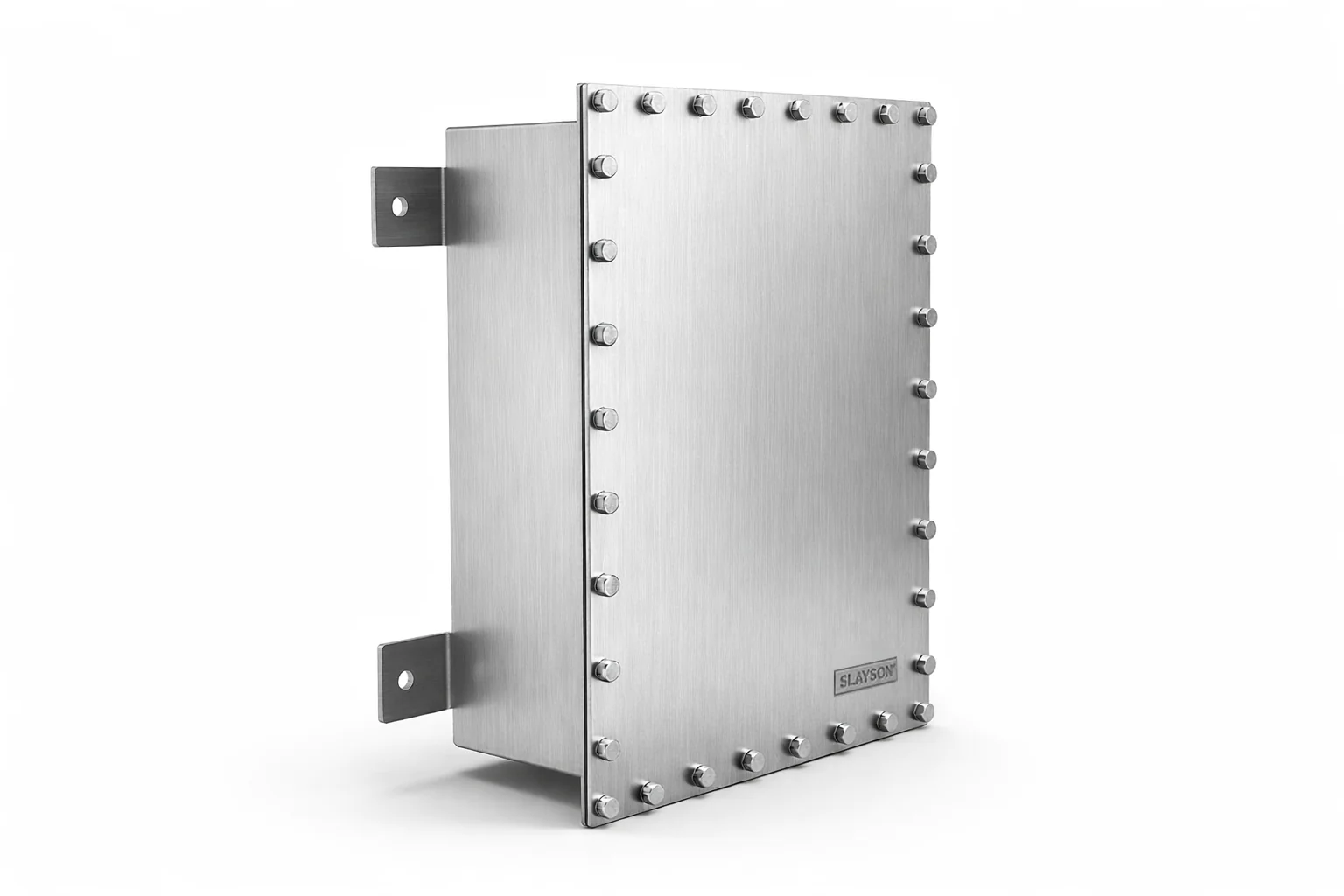

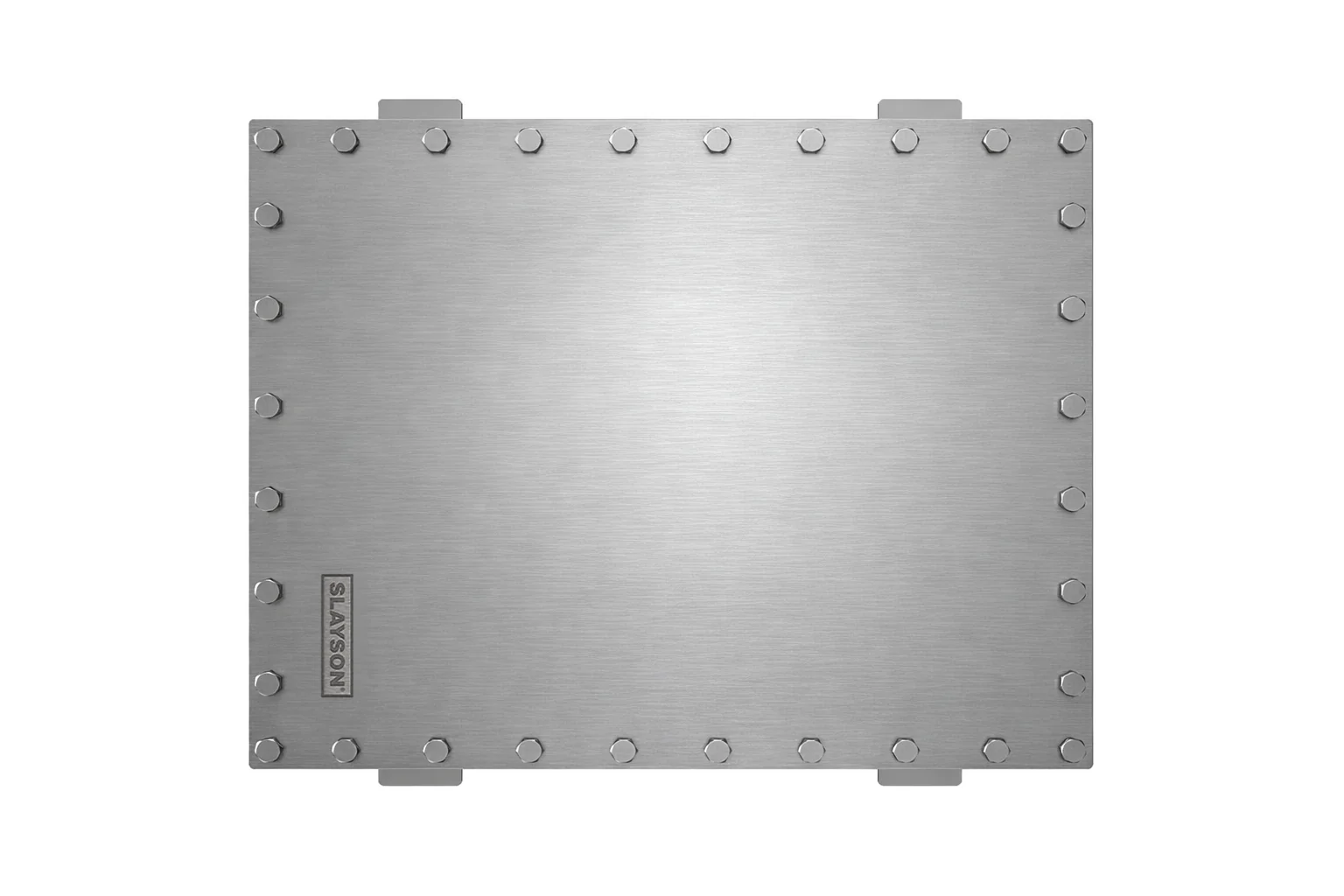

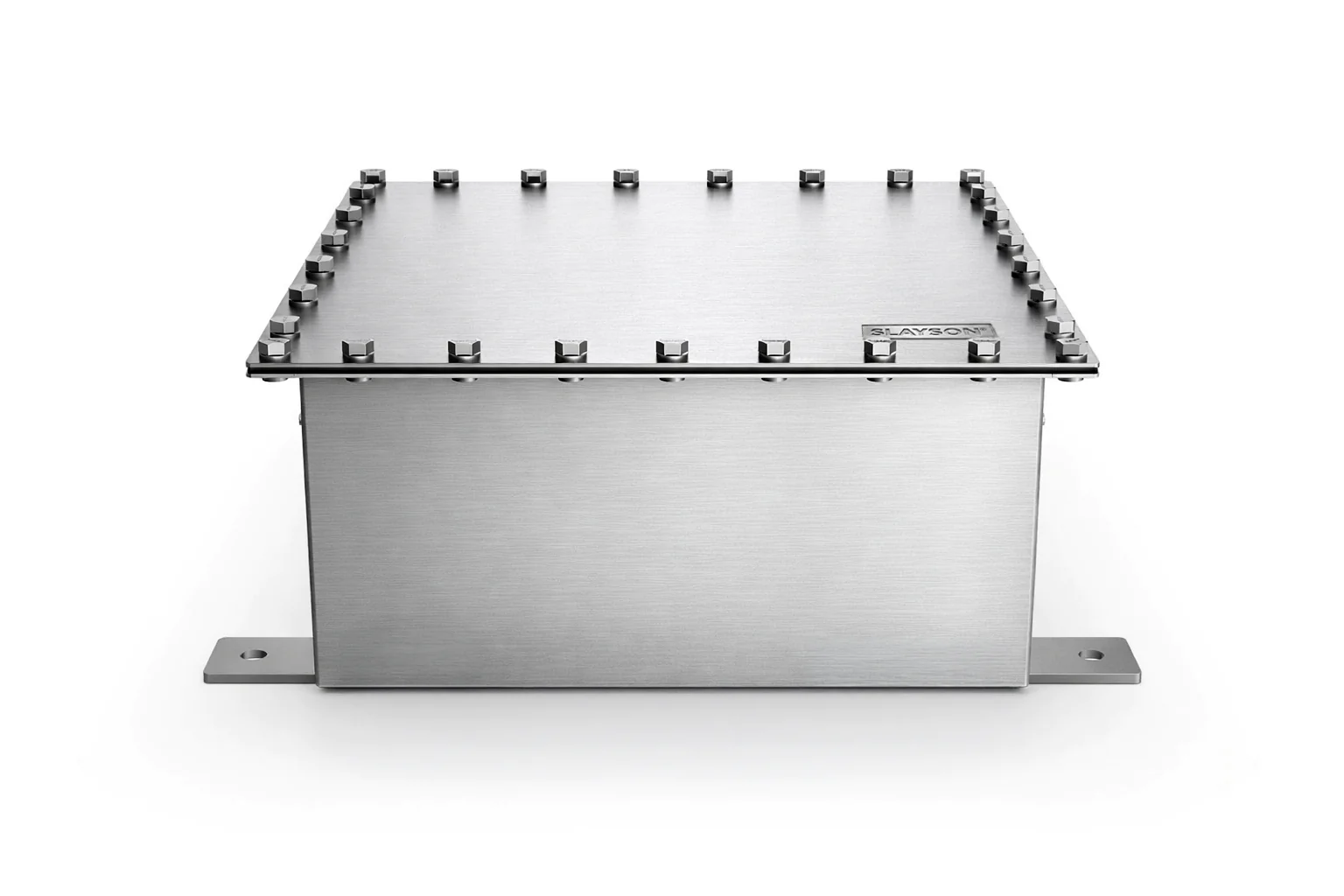

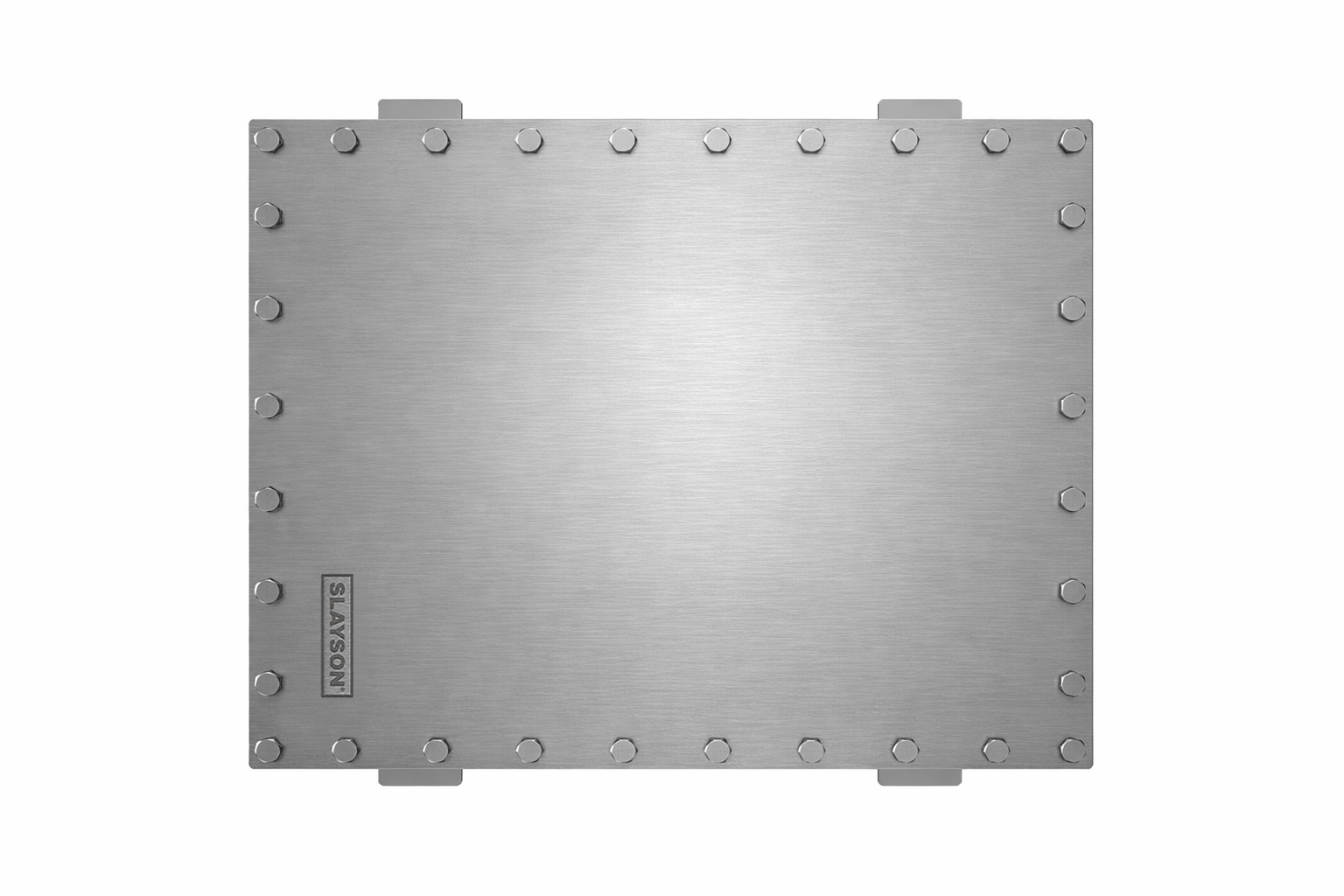

The SLAYSON® JUNCTION BOX Series is a robust solution for protecting electrical equipment in challenging environments. Designed with a 90° flange, these enclosures maximise internal capacity while providing an exceptional level of protection. Rated NEMA 6P/IP68, the JUNCTION BOX Series safeguards against dust and water ingress, making it suitable for both indoor and outdoor applications, withstanding prolonged submersion up to 5 metres. Engineered for durability, the series is available in a range of material options including 2.00mm Marine Grade Stainless Steel 316, Aluminium, or Brass.
This versatile series is available in a range of standard sizes from 10″x 8″ to 18″x 18″. Each enclosure can be easily modified with a large range of accessories to further enhance functionality. SLAYSON® understands the importance of precise fit and function, and their engineering teams work closely with customers to ensure the enclosures meet their specific requirements.
Should a standard size not meet your project needs, SLAYSON® offers design and engineering services to create a project specific JUNCTION BOX enclosure to your exact specifications. This ability to modify ensures that no matter the application, a reliable and proven solution can be delivered quickly.
