Renewable Energy Electrical Enclosures

To meet the changing global demands for renewable & sustainable power, there has been a push to go green.
Layer 2 1 1

Submersible NEMA 6P & IP68 Enclosures for Renewable Energy Applications

SLAYSON® proudly works alongside industry leaders in the Renewable Energy sector from solar to wind power and in between. Our enclosures are used throughout the world to protect vital electrical components that help produce power sustainably into the future. These enclosures are used both indoors and outdoors with constant exposure to weather, extreme temperatures and harsh conditions.

As global warming drives extreme weather and rising water levels, SLAYSON® can provide critical protection for vulnerable coastal and flood-prone infrastructure. We offer a range of enclosures from Junction Boxes, Wall-Mounted to Cabinets all rated NEMA 6, NEMA 6P and IP67 / IP68 to suit your needs. Our standard ranges are ready to install or our engineering team can modify any of our range or manufacture custom sizes to meet your needs.

Contact our team today to receive 3D CAD models, detailed engineering drawings, and a project-specific quote.

  • A

    Subsea Battery Box

    Series:

    ABBI

    Submersion Depth:

    328ft, 100m

    Size Range:

    12"x 18"

    NEMA
    IP68
    IK10
  • A

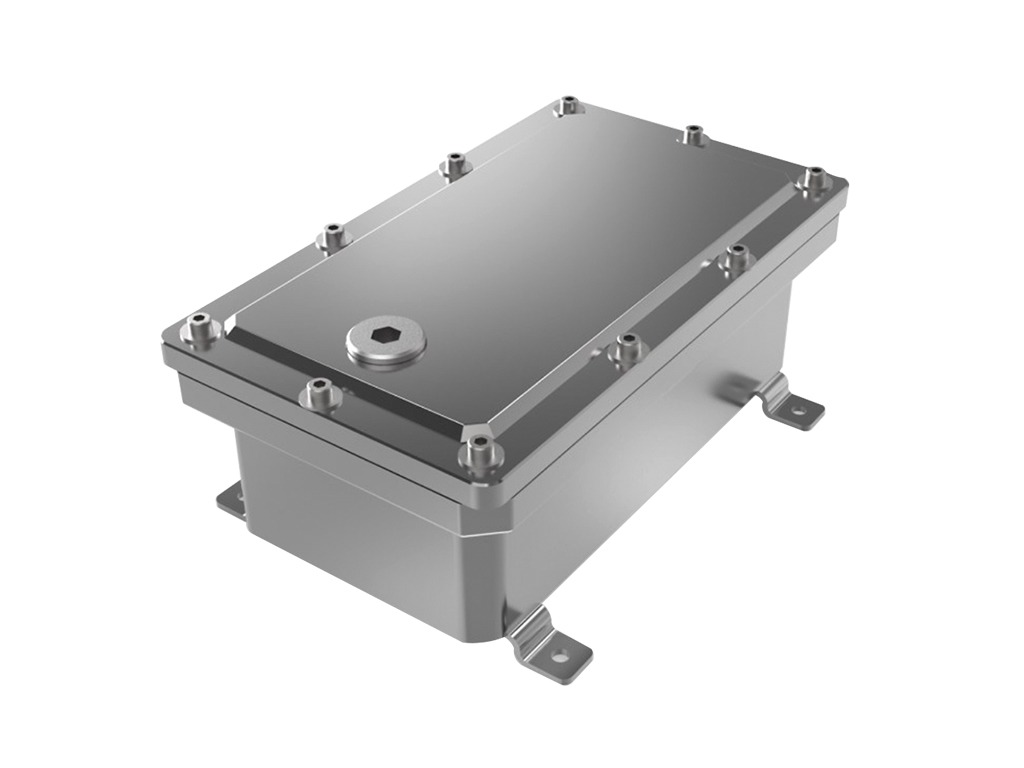

    Subsea Fox Box

    Series:

    AFBI

    Submersion Depth:

    1312ft, 400m

    Size Range:

    6"x 10"

    NEMA
    IP68
    IK10
  • S

    Standard Submersible Enclosure

    Series:

    ASMI

    Submersion Depth:

    15ft, 5m

    Size Range:

    24"x 24" to 36"x 36"

    NEMA
    IP68
    IK10
    UL Blue
  • S

    Submersible Pull Box

    Series:

    LSMI

    Submersion Depth:

    15ft, 5m

    Size Range:

    12"x 4" to 24"x 10"

    NEMA
    IP68
    IK10
    UL Blue
  • P

    Subsea Chest

    Series:

    DPSI

    Submersion Depth:

    262ft, 80m

    Size Range:

    9"x 30" to 21"x 42"

    NEMA
    IP68
    IK10
  • P

    Subsea Fox Box

    Series:

    DPFI

    Submersion Depth:

    164ft, 50m

    Size Range:

    9"x 30" to 21"x 42"

    NEMA
    IP68
    IK10

Why Renewable Sites Demand Submersible Enclosures

Electrical controls in renewable energy installations are often exposed to persistent moisture, standing water, and atmospheric salt, which can cause conventional junction boxes to fail. Installing standard NEMA 3R or 4X cabinets in these zones is not ideal since these units are prone to gasket degradation and short circuits when exposed to the elements.

Weatherproof electrical enclosures can provide the needed protection for vital control hardware and maintain grid reliability. These units are engineered for temporary and prolonged water immersion, protecting critical control systems from severe field hazards, including:

  • Heavy storm runoff that submerges subterranean vaults and low-lying equipment pads.
  • High-velocity water streams from routine solar panel maintenance that breach standard door seals.
  • Airborne salt spray and high humidity that rapidly corrode unrated metals and inferior gaskets.
  • Extreme temperature shifts that create internal vacuums and moisture condensation inside unvented cabinets.
  • Water-ingress short circuits that trigger extended generation outages and expensive field service calls.

Match Your Protection Level to Your Local Water Risk

Don't let mismatched equipment cause expensive outages. At SLAYSON, we build engineered commercial off-the-shelf (COTS) enclosures designed to eliminate water ingress failures across utility, contractor, and OEM projects.

NEMA 6/IP67 Enclosures

SLAYSON® provides NEMA 6 / IP67 enclosures designed for near-grade control panels, low-lying trench layouts, and sanitization zones that often get exposed to brief pooling and water-ingress hazards. With an IP67 designation, our enclosures are certified to provide total dust-tight sealing while preventing fluid entry during short-term immersion under specified water depths.

NEMA 6P/IP68 Enclosures

Our NEMA 6P / IP68 enclosures deliver the highest level of ingress protection available on the market. Engineered for prolonged or continuous submersion, these enclosures protect sensitive control hardware inside flooded vaults, lift stations, and coastal splash zones where water cannot drain away.

Configure a Fully Integrated, Watertight System

True waterproofing demands a fully integrated system. Our Commercially Available Off-The-Shelf (COTS) framework lets you rapidly configure standard base units to meet your exact application parameters.

Once you define your site parameters, our engineering team configures and pre-installs all required factory modifications, ensuring all components maintain full NEMA 6P or IP68 seal integrity.

We inspect the following integrated options prior to shipment:

  • Cable Entry Solutions: This includes all factory-welded conduit hubs, submersible cable glands, and precision entry cutouts deliver immediate, watertight field connections.
  • Internal Mounting Provisions: Custom backplates, DIN rails, and interior brackets designed to support complex PCB layouts, relays, and power electronics.
  • Hardware and Security Options: Rapid field access shouldn’t jeopardize waterproofing. We integrate padlocking hardware and hinged doors that simplify maintenance while keeping flange seals tight under pressure.
  • Custom Finishes and Marking: High-durability powder coatings, custom metal nameplates, identification plates, and CARC paint systems.

Mission-Critical Protection Across Every Energy Sector

At SLAYSON®, we partner with OEMs, utilities, and EPC contractors to protect mission-critical control, power distribution, and monitoring systems across demanding power generation environments.

Solar PV Infrastructure

We supply solar electrical enclosures designed for combiner boxes, inverter controls, weather stations, and tracker positioning hardware. Built with Type 316 stainless steel, our weatherproof enclosures for renewable energy assets are able to resist UV exposure and standing rainwater.

Wind Energy Installations

Vibration, wind, salt spray, and extreme thermal cycling have a strong impact on the controls on onshore and offshore turbines. To mitigate against these elements, our wind farm electrical enclosures shield nacelle monitoring, pitch control hardware, tower-base distribution, and subterranean junction boxes.

Renewable Energy and Battery Storage Enclosures

As grid-scale storage needs increase, all supporting equipment must be able to handle intense environmental conditions. We supply renewable energy and battery storage enclosures for various applications that demand sealed protection for external HVAC control panels, battery management system (BMS) communications, safety interlocks, and auxiliary power distribution.

Your Fast-Track Enclosure Selection Guide

To identify the right submersible electrical enclosures for your project, evaluate these core selection variables:

  • Water Depth and Duration: If equipment is exposed to temporary standing water or washdown pooling, choose NEMA 6/IP67. For water treatment facilities and locations subject to continuous or deep submersion, specify NEMA 6P / IP68.
  • Material Selection: Select Marine-Grade 316 Stainless Steel for high-corrosion coastal zones or Lightweight Aluminum for weight-sensitive or elevated installations.
  • Size and Internal Layout: Choose compact junction boxes (JSMI Series) for sensor nodes, wall-mounted enclosures (ASMI Series) for control panels, or freestanding cabinets (CSMI Series) for large power distribution systems.



Rapid Engineering Support: From Concept to Production

Missing CAD models and slow quote turnarounds stall project submittals and compromise bidding deadlines. As NEMA 6P and IP68 specialists, we eliminate specification bottlenecks by delivering complete design data directly to your team:

  • Integrate native 3D CAD models and dimensioned submittal drawings straight into your master layout to eliminate specification bottlenecks.
  • Lock in bill-of-materials pricing with transparent, itemized engineering quotes that advance your bid documentation without delay.
  • Prototype specialized OEM designs using our COTS scalability framework to evaluate complex internal layouts before full production runs.
  • Deploy factory-modified units directly to the job site to solve immediate utility water ingress issues and get the grid back online.

Frequently Asked Questions

Do you support one-off build modifications and large OEM production runs?2026-11-18T16:48:53+00:00

Yes. We work with contractors and utilities requiring single, custom-modified enclosures for immediate field fixes, as well as OEM manufacturers requiring high-volume production runs following testing and evaluation.

What information should I provide to get a fast quote?2026-11-18T16:49:23+00:00

To get an accurate quote quickly, provide your required internal dimensions, submersion depth or environmental exposure, preferred material (stainless steel or aluminum), and any required cutouts or accessories.

Can you add accessories or custom cutouts before shipment?2026-11-18T16:49:58+00:00

Yes. We pre-install welded conduit hubs, cable glands, internal rails, and custom cutouts in our factory through our Modified Off-The-Shelf (MOTS) service.

Can SLAYSON provide 3D CAD models and engineering drawings?2026-11-18T16:40:40+00:00

Yes. We supply full CAD models and detailed engineering drawings during the specification phase to help you integrate our enclosures into your design package quickly.

Which rating do I need for temporary flooding vs. continuous submersion?2026-11-18T16:39:27+00:00

For applications where enclosures will be briefly flooded, choose NEMA 6 (IP67). However, if your enclosure will remain submerged for continuous periods, we recommend a NEMA 6P (IP68) enclosure instead.

Can SLAYSON enclosures be used for offshore or underwater renewable energy systems?2026-08-20T01:48:26+00:00

Yes. SLAYSON offers deeper-rated SUBSEA enclosure solutions for applications requiring protection from underwater environments, including renewable energy systems exposed to significant submersion depths.

How do you protect renewable energy equipment from flooding?2026-08-20T01:47:27+00:00

Renewable energy equipment installed in coastal, low-lying, or flood-prone areas may require enclosures designed to protect sensitive electrical and electronic equipment from rising water and flooding. SLAYSON offers IP67 and IP68 enclosure solutions for applications where water exposure and submersion are concerns.

Why are submersible enclosures important for renewable energy projects?2026-08-20T01:45:23+00:00

Renewable energy installations are increasingly located in coastal, low-lying, and weather-exposed areas. Submersible enclosures can help protect critical electrical equipment when storm surge, flooding, or rising water levels create a risk of prolonged water exposure.

What protection do enclosures for solar and wind energy systems need?2026-08-20T01:44:32+00:00

Solar and wind energy systems often require enclosures that protect electrical equipment from harsh outdoor conditions, including weather, moisture, extreme temperatures, and flooding. The appropriate enclosure depends on the equipment and environmental conditions of the installation.

What renewable energy applications use SLAYSON enclosures?2026-08-20T01:43:43+00:00

SLAYSON enclosures are used to protect electrical components and control equipment in renewable energy applications including solar, wind, and other power generation systems.
