SUBSEA SEA CHEST – DPSI SERIES

DATASHEET BADGE
Download PDF

INDUSTRY STANDARDS

NEMA Type 6, 6P
IP67/68 IEC 60529
IK10 Impact Resistant

APPLICATION

The SUBSEA range of Deep Submersible Enclosures are the leaders in underwater system protection. Used by renewable energy, Submarine and ROV companies requiring ultimate protection against extreme marine conditions. Manufactured from Rigid Polyurethane Composite with corrosion resistant Stainless Steel type 316 hardware and a single piece Silicon O-ring that provides watertight protection of your vital electrical equipment whilst still allowing acoustic and wireless signal transmission. SLAYSON’s SUBSEA range of enclosures and accessories deliver a reliable enclosure system to meet both the operational and environmental demands for any underwater application.

SPECIFICATIONS

  • Submersible up to 262 ft / 80 m (IEC 60529)
  • Corrosion Resistant Salt Spray Tested (ASTM B117)
  • Seamless Single Mould Construction
  • Single piece Silicon Sealing O-Ring
  • Stainless Steel 316 Hardware & Fasteners
  • Single piece Silicon Sealing O-Ring
  • Stainless Steel 316 Hardware & Fasteners
  • Internal fastening locations for optional Back Plate accessory
  • High Impact & Crush Resistance (IK10)

MATERIAL

Rigid Polyurethane Composite (Yellow)*

FINISH

Gloss Mold Finish*
*Alternative color options available on request

OPTIONAL ACCESSORIES

  • Standard Internal Mount/Back Plates
  • Hinged Lid
  • Optical Window Lid
  • Lock Tab
  • Captive Lid Fasteners
  • Internal Swing out Panel
  • Stainless Steel Type 316 Cable Glands / Cord grips
  • Shock & Vibration Isolation Mount Kit

CODE

  • B
  • H
  • O
  • L
  • C
  • S

NEED A QUOTE OR MORE INFORMATION?

PART NUMBER BUILDER

SUBSEA SEA CHEST - DPSI SERIES - PART NUMBER BUILDER

*Generated by SLAYSON Engineering for customer specific modifications

MODIFICATIONS AND CUSTOMIZATION

SLAYSON excels at modifying and personalizing all our Enclosure products to meet your exact specifications. Whether you require cutouts, welded in-place bosses or a non-standard size. Contact our experienced Engineers about your project specific solution.

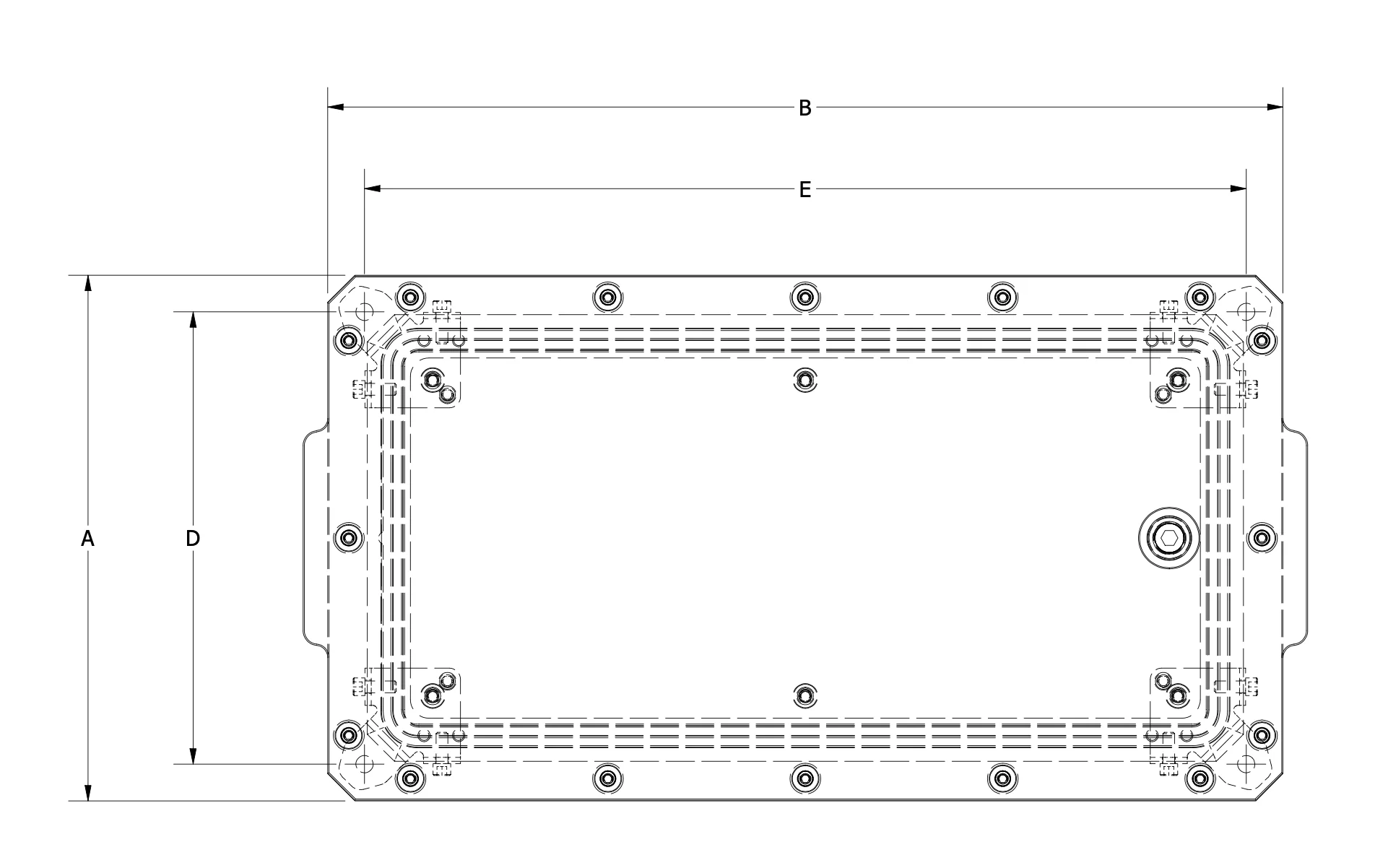

A B C D E F
PART NUMBER External Height External Width External Depth Internal Height Internal Width Internal Depth
in mm in mm in mm in mm in mm in mm
DPSI214226 21 533.4 42 1066.8 26 660.4 16 406.4 36 914.4 21 533.4
DPSI194024 19 482.6 40 1016.0 24 609.6 14 355.6 34 863.6 19 482.6
DPSI163620 15 381.0 36 914.0 20 508.0 10 254.0 30 762.0 15 381.0
DPSI072613 11 282.5 32 814.0 16.7 425.0 6.5 166.0 25.4 644.0 11.6 296.0
DPSI093014 9 228.6 30 762.0 14 355.6 4 101.6 22 558.8 9 228.6

SUBSEA SEA-CHEST OVERVIEW

The SLAYSON SUBSEA Sea Chest Series has been engineered to withstand high pressure at greater depths, and is rated NEMA 6P/IP68 for prolonged submersion. SLAYSON SUBSEA Sea Chest enclosures are used on offshore oil rigs, submersible vessels and more to protect vital electrical equipment from water ingress up to depths of 262ft/80m. The SUBSEA Sea Chest comes standard in rigid Polyurethane Composite, making it capable of protecting vital electrical equipment in both fresh and saltwater environments.

SLAYSON SUBSEA Sea Chest enclosures come in an array of colors, and can be easily modified with accessories such as an internal back plate or clear lid. All SUBSEA Polyurethane enclosures come with stainless steel fasteners and hardware. SLAYSON design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON will design and engineer a custom SUBSEA Sea Chest enclosure to meet your requirements.
