NEMA 6P / IP68 ENCLOSURES

SUBMERSIBLE JUNCTION BOX NEMA 6P IP68

SUBMERSIBLE JUNCTION BOX

NEMA 6P | IP68
JSMI SERIES

Material: Stainless Steel Type 316,
Aluminum
Submersion Depth: 15ft, 5m
Size Range :6″x 6″ to 18″x 18″
Industries: Automation & Control,
Infrastructure, Maritime, Oil & Gas,
Renewable Energy, Tunnels &
Underground

COMPACT SUBMERSIBLE ENCLOSURE NEMA 6P IP68

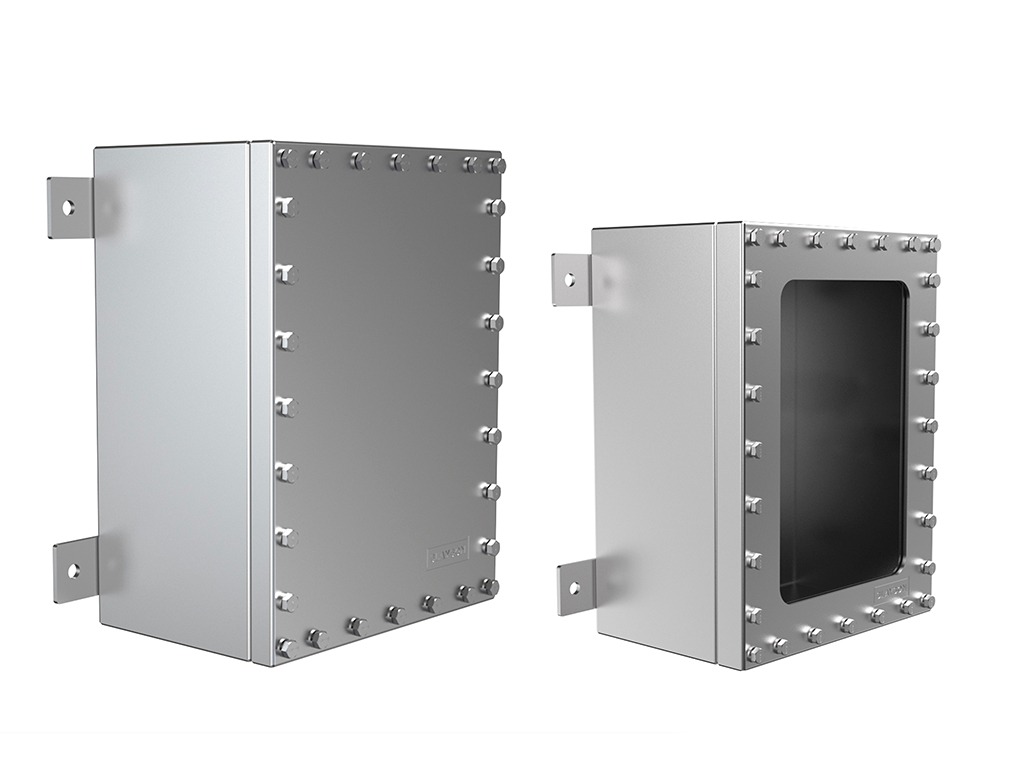

COMPACT SUBMERSIBLE
ENCLOSURE

NEMA 6P | IP68
ASMI SERIES

Material: Stainless Steel Type 316, Aluminum
Submersion Depth: 15ft, 5m
Size Range :12″x 10″ to 22″x 22″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

STANDARD SUBMERSIBLE ENCLOSURE NEMA 6P IP68

STANDARD SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
ASMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 15ft, 5m
Size Range :24″x 24″ to 36″x 36″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

400x334 Aluminium Standard Submersible Enclosure

ALUMINIUM STANDARD SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
AAMI SERIES

Material: Aluminum
Submersion Depth: 15ft, 5m
Size Range :24″x 24″ to 36″x 36″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

WATERSHED SUBMERSIBLE ENCLOSURE NEMA 6P IP68

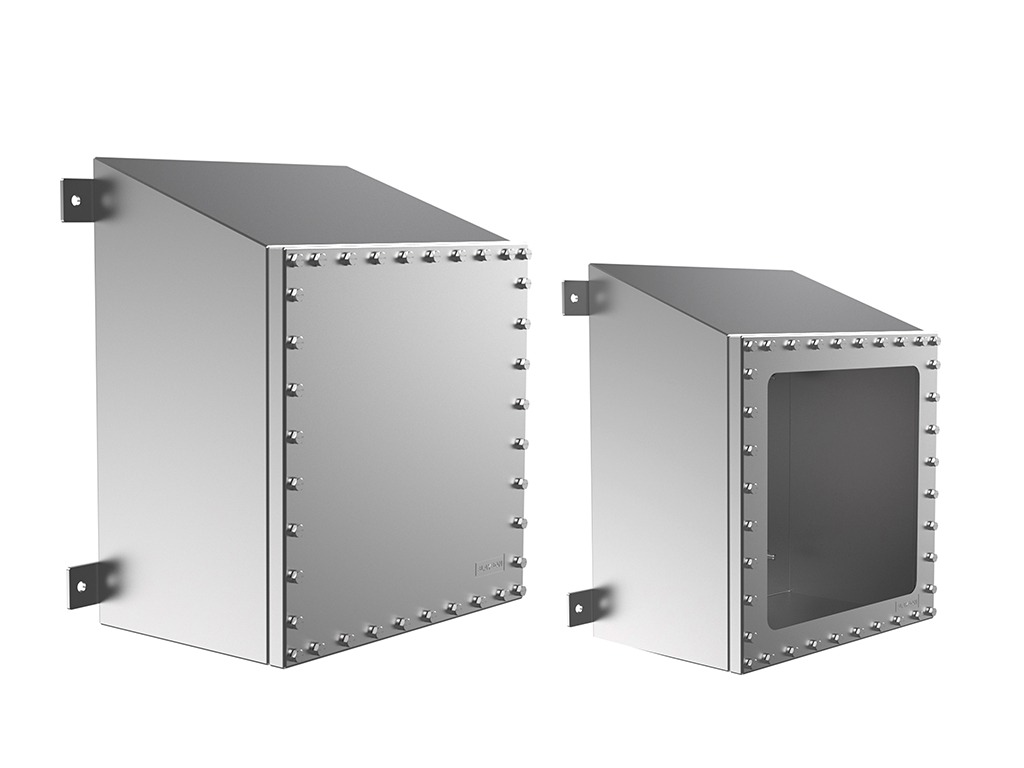

WATERSHED SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
WSMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 15ft, 5m
Size Range :24″x 24″ to 36″x 36″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

400x334 mil control 68

MIL-CONTROL-68 SHIELDED CONTROL PANEL

NEMA 6P | IP68
EAMI SERIES

Material: Aluminum
Submersion Depth: 15ft, 5m
Size Range : 26″x 26″ to 36″x 36″
Industries: Defense, Navy

400x334 nav control 6p

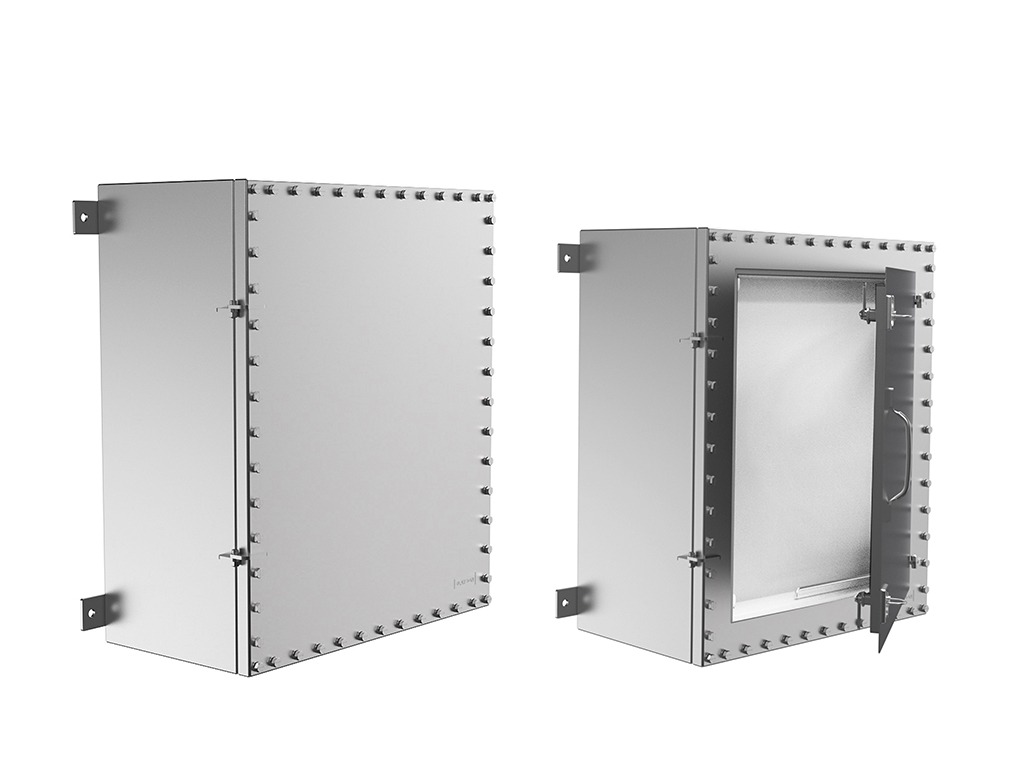

NAV-CONTROL-6P SHIELDED CONTROL PANEL

NEMA 6P | IP68
ESMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 15ft, 5m
Size Range : 26″x 26″ to 36″x 36″
Industries: Defense, Navy

MIL-XP-68 INTERLOCK BOX NEMA 6P IP68

MIL-XP-68 INTERLOCK BOX

NEMA 6P | IP68
PAMI SERIES

Material: Aluminum
Submersion Depth: 15ft, 5m
Size Range :8″x 6″ to 24″x 24″
Industries: Defense Industry – Watertight Enclosures & Watertight Junction Boxes

NAV-XP-6P MARINE INTERLOCK BOX NEMA 6P IP68

NAV-XP-6P MARINE INTERLOCK BOX

NEMA 6P | IP68
PSMI SERIES

Material: Stainless Steel
Submersion Depth: 15ft, 5m
Size Range :8″x 6″ to 24″x 24″
Industries: Defense Industry – Watertight Enclosures & Watertight Junction Boxes

SUBMERSIBLE OCTABOX - OSMI SERIES

SUBMERSIBLE OCTABOX

NEMA 6P | IP68
OSMI SERIES

Material: Stainless Steel Type 316, Aluminum
Rating: 15ft, 5m
Size Range :12″x 12″ to 36″x 36″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

MIL-68 SUBMERSIBLE ENCLOSURE NEMA 6P IP68

MIL-68 SUBMERSIBLE ENCLOSURE

IP68
MLMI SERIES

Material: Aluminum
Submersion Depth: 15ft, 5m
Size Range :8″x 8″ to 16″x 16″
Industries: Defense, Navy

NAV-6P MARINE SUBMERSIBLE ENCLOSURE

NAV-6P MARINE SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
NSMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 15ft, 5m
Size Range :8″x 8″ to 16″x 16″
Industries: Defense, Navy

DEEP STANDARD SUBMERSIBLE ENCLOSURE NEMA 6P IP68

DEEP STANDARD SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
BSMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 10m, 30ft
Size Range :10″x 10″ to 20″x 20″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

DEEP COMPACT SUBMERSIBLE ENCLOSURE NEMA 6P IP68

DEEP COMPACT SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
BSMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 10m, 30ft
Size Range : 10″x 10″ to 20″x 20″
Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

SUBSEA SEA CHEST - DPSI SERIES

SUBSEA SEA CHEST

NEMA 6P | IP68
DPSI SERIES

Material: Polyurethane Composite
Submersion Depth: 262ft, 80m
Size Range :9″x 30″ to 21″x 42″
Industries: Automation & Control, Maritime, Oil & Gas, Renewable Energy

SUBSEA FOX BOX - DPFI SERIES

SUBSEA FOX BOX

NEMA 6P | IP68
DPFI SERIES

Material: Polyurethane Composite
Submersion Depth: 164ft, 50m
Size Range :9″x 30″ to 21″x 42″
Industries: Automation & Control, Maritime, Oil & Gas, Renewable Energy

SUBSEA Q BOX - DPQI SERIES

SUBSEA Q BOX

NEMA 6P | IP68
DPQI SERIES

Material: Polyurethane Composite
Submersion Depth: 30m, 98ft
Size Range: 10″x 12″ to 19″x 20″
Industries: Automation & Control, Maritime, Oil & Gas, Renewable Energy

SUBSEA BATTERY BOX

SUBSEA BATTERY BOX

NEMA 6P | IP68
DPBI SERIES

Material: Polyurethane Composite
Submersion Depth: 131ft, 40m
Size Range :8.8″x 17″ to 15″x 24″
Industries: Automation & Control, Maritime, Oil & Gas, Renewable Energy

SUBSEA ALUMINUM BATTERY BOX - ABBI SERIES

SUBSEA ALUMINUM BATTERY BOX

NEMA 6P | IP68
ABBI SERIES

Material: Aluminum
Submersion Depth: 100m, 328ft
Size Range :12″x 18″
Industries: Automation & Control, Maritime, Oil & Gas, Tunnels & Underground

SUBSEA ALUMINUM BILLET BOX

SUBSEA ALUMINUM BILLET BOX

NEMA 6P | IP68
BBBI SERIES

Material: Aluminum
Submersion Depth: 200m, 656ft
Size Range :7″x 11.4″
Industries: Automation & Control, Maritime, Oil & Gas, Tunnels & Underground

SUBSEA ALUMINUM FOX BOX - AFBI SERIES

SUBSEA ALUMINUM
FOX BOX

NEMA 6P | IP68
AFBI SERIES

Material: Aluminum
Submersion Depth: 1312ft, 400m
Size Range :6″x 10.4″
Industries: Automation & Control, Maritime, Oil & Gas, Tunnels & Underground

FREESTAND SUBMERSIBLE ENCLOSURE NEMA 6P IP68

FREESTAND SUBMERSIBLE ENCLOSURE

NEMA 6P | IP68
CSMI SERIES

Material: Stainless Steel Type 316
Submersion Depth: 15ft, 5m
Size Range : 36″x 24″ to 72″x 24″
Industries: Automation & Control, Infrastructure, Oil & Gas, Renewable Energy

NEMA 6P Enclosures provide the highest degree of protection against water / dust ingress and corrosion. NEMA 6P is the equivalent to an IP68 rating with the addition of a corrosion resistant element. This is why NEMA 6P enclosures are commonly made from high grade Stainless Steel. Both enclosure types are capable of being submerged under a limited height of water whilst protecting the components inside.

SLAYSON® offers a range of NEMA 6P and IP68 Enclosures manufactured from different materials such as Stainless Steel, Powder Coated Aluminum and Polyurethane Composite, their adherence to the NEMA 250 standard make them corrosion resistant and waterproof to specified depths.

SLAYSON’s® range of Standard Off the Shelf Enclosures provide protection for your vital equipment against common issues such as rain, prolonged water submersion, ice formation, dust ingress and corrosive environments. NEMA 6P enclosures are commonly used in areas prone to water submersion and heavy water wash-down applications.

View our standard range of Commercial Off The Shelf Enclosures below, available in a variety of sizes and specifications, all of which can be modified to suit your exact needs and requirements

WHAT IS NEMA 6P?

NEMA Type 6P definition as per NEMA 250 STANDARD

Definition: Type 6P enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (hose directed water and the entry of water during prolonged submersion at a limited depth); that provides an additional level of protection against corrosion and that will be undamaged by the external formation of ice on the enclosure.

SLAYSON® engineers, designs and manufactures enclosures to NEMA 6P in adherence to the NEMA rating requirement standards

Why is SLAYSON® the right choice in NEMA 6P enclosures to suit your application and environment?

Our engineering team has the knowledge and experience to assist customers in understanding the requirements of NEMA 6P and IP68 enclosures and help clients with selecting an enclosure to meet their specific environmental and applicational needs. SLAYSON® makes selecting a waterproof enclosure easy, saving you time and money, while most importantly delivering enclosure systems that will protect your equipment within the harshest environments.

SLAYSON®’s approach to NEMA 6P enclosures is to reduce the confusion associated with selecting the right enclosure, by offering a standard range of sizes and styles which can be easily modified to suit your desired configurations. Our experienced team is here to help.

SLAYSON® has the most diverse selection of NEMA 6P and IP68 enclosures on the market. With a range of series and sizes, our standard enclosures can be configured for any industry from infrastructure to defence.

Materials for SLAYSON® enclosures.

Stainless Steel

The most common material used for NEMA 6P enclosures is Type 316 Stainless Steel due to its excellent corrosion resistance and material strength under pressure. 316 Stainless Steel used in submersible enclosures contain higher levels of chrome and nickel ensuring much higher corrosion resistance, which is especially necessary within saltwater environments. Another useful feature of high-grade Stainless Steel is that due to this composition there is a reduced level of surface oxidation, which eliminates the need for paint or protective coatings. SLAYSON® Stainless Steel Enclosures come standard with a polished finish but are also available in alternate finishes such as non-reflective blasted and more. Contact the team at SLAYSON® for more information on our Stainless Steel and NEMA 6P and IP68 Enclosures

Aluminium Alloys

Aluminium alloys such as 5052, 6061 can be used for some NEMA 6P applications. Whilst these materials have reasonable corrosion resistance, they will be required to have a protective coating added to meet Type 6P requirements. Aluminium enclosures are also commonly used for IP68 rated enclosures, where corrosion problems are less of an issue.

Within marine and corrosive environments protective coatings such as powder coating is commonly applied to create a surface barrier which will inhibit corrosion. SLAYSON® has an extensive range of protective coatings available on all of our Aluminium enclosures. To learn more, reach out to the team at SLAYSON®.

Polyurethane Composite

Polyurethane Composite is commonly used within our SUBSEA range of enclosures which are exposed to much higher pressures. Polyurethane is corrosion resistant and suitable in all marine environments. SLAYSON® polyurethane enclosures come standard with Type 316 Stainless Steel Hardware to ensure corrosion protection within all environments.

One of the main benefits with a Polyurethane Composite material is the ability to increase sidewall thickness and minimise joints and potential fracture points. This is particularly useful in SUBSEA applications where protection from extreme pressure is required. SLAYSON® is also able to manufacture these types of enclosures in a variety of colours to suit your needs.

Speak to our team to learn more about SLAYSON’s® SUBSEA range of Polyurethane Composite Enclosures

What is NEMA 6P?

Basic Type 6P Definition Overview

  • Provides protection in a prolonged submersion for a defined period
  • Protection from rain, water submersion, ice formation and ingress of dust
  • NEMA 6P requires construction from corrosion resistant materials

Materials and Coatings Overview

  • Stainless Steel Type 316– Impact resistant, Durable & Corrosion Resistant
  • Powder Coated Aluminum(5052, 6061)– Lighter
  • Polyurethane Composite – Good Corrosion Resistance, thicker and good at high pressure

SLAYSON® is the only global manufacturer that specialises in ONLY NEMA 6P and IP68 Enclosures. Our enclosure solutions come in a variety of standard sizes, shapes and materials, ALL of which can be modified to suit your exact environmental and applicational needs.

To speak to the global specialists in waterproof enclosures contact us for free information on all our enclosure ranges.

MODIFICATIONS AND CUSTOMIZATION

View all products

Modified Off The Shelf (MOTS) Enclosures

We can modify any Standard Enclosure to include cut-outs, such as rectangular, circular, D hole or any shape on any side or lid of the Enclosure, and fit any of our 200 accessories , such as Lid Hinges , Internal Mount Panels, and Welded in place Bosses for IP68 conduit seal to the enclosure. To find out more about our MOTS enclosures click here.

MOTS ENCLOSURES

Custom Enclosures

If you need something more specialised, we can engineer and design a custom enclosure exactly to your specifications. This process is fast and accurate, by using our existing proven designs our engineers will work with you to create Engineering Data Packs and 3D Models for approval prior to manufacture. To learn more about creating a custom enclosure solution click here

CUSTOM ENCLOSURES
