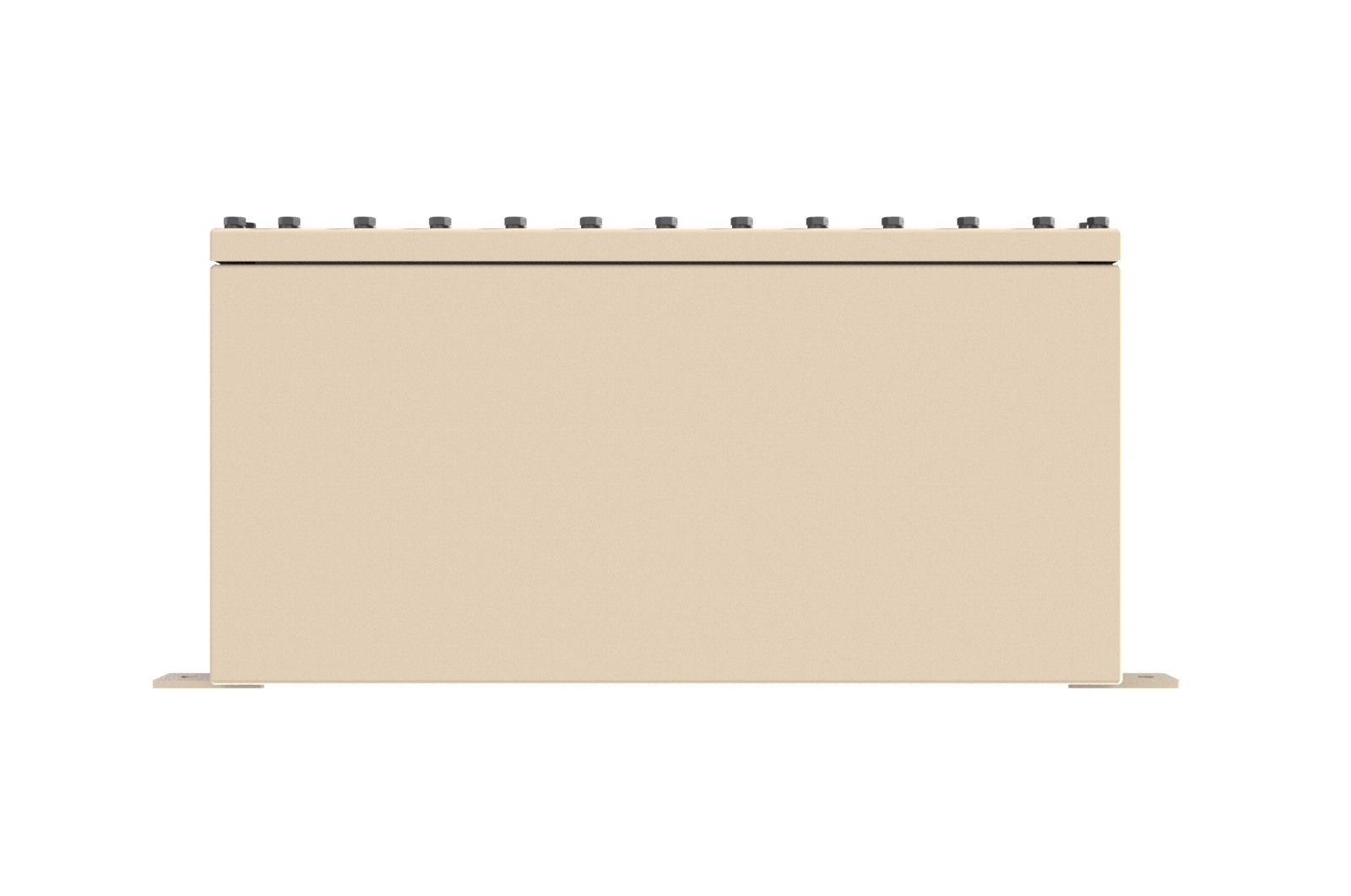

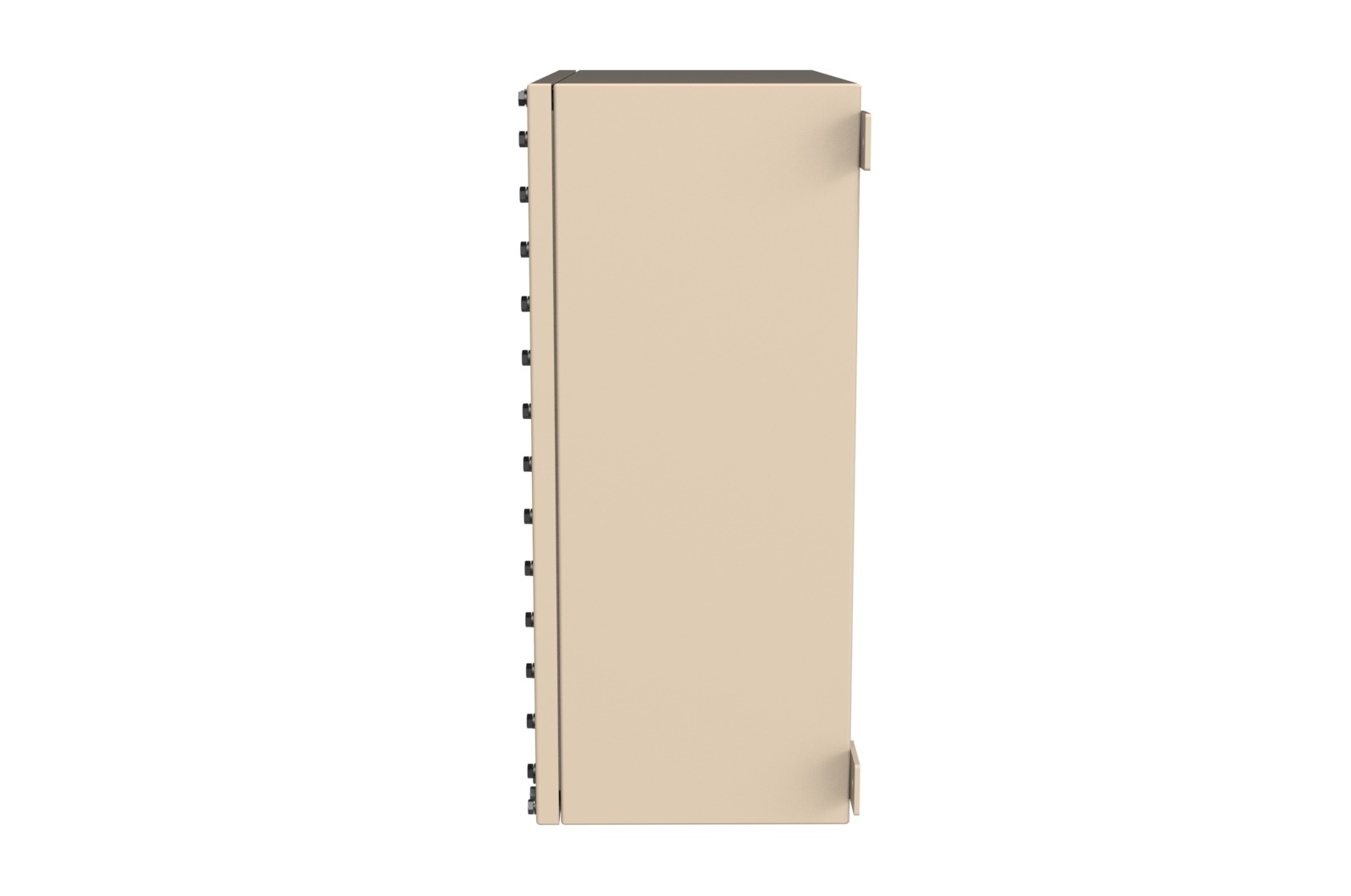

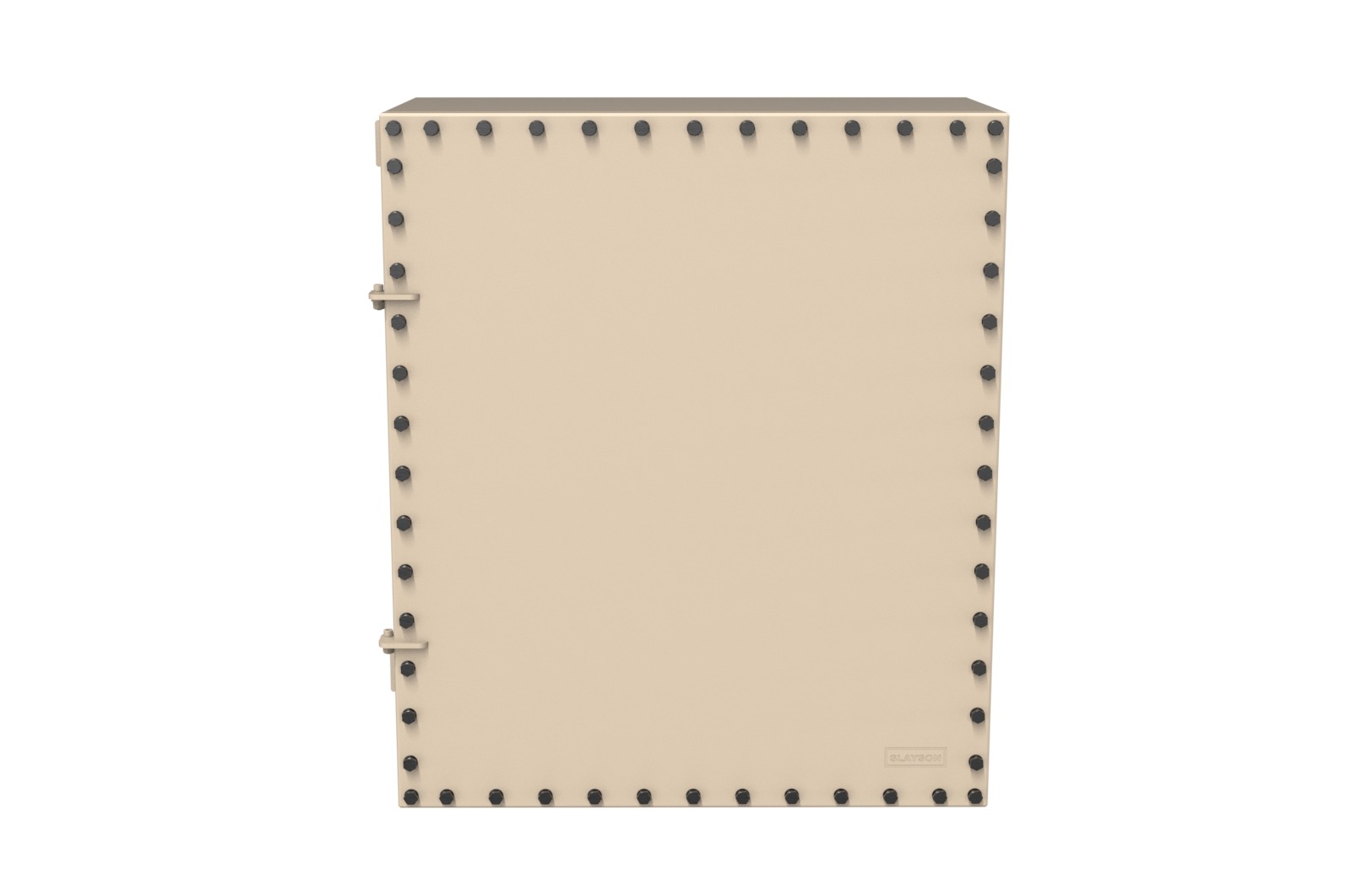

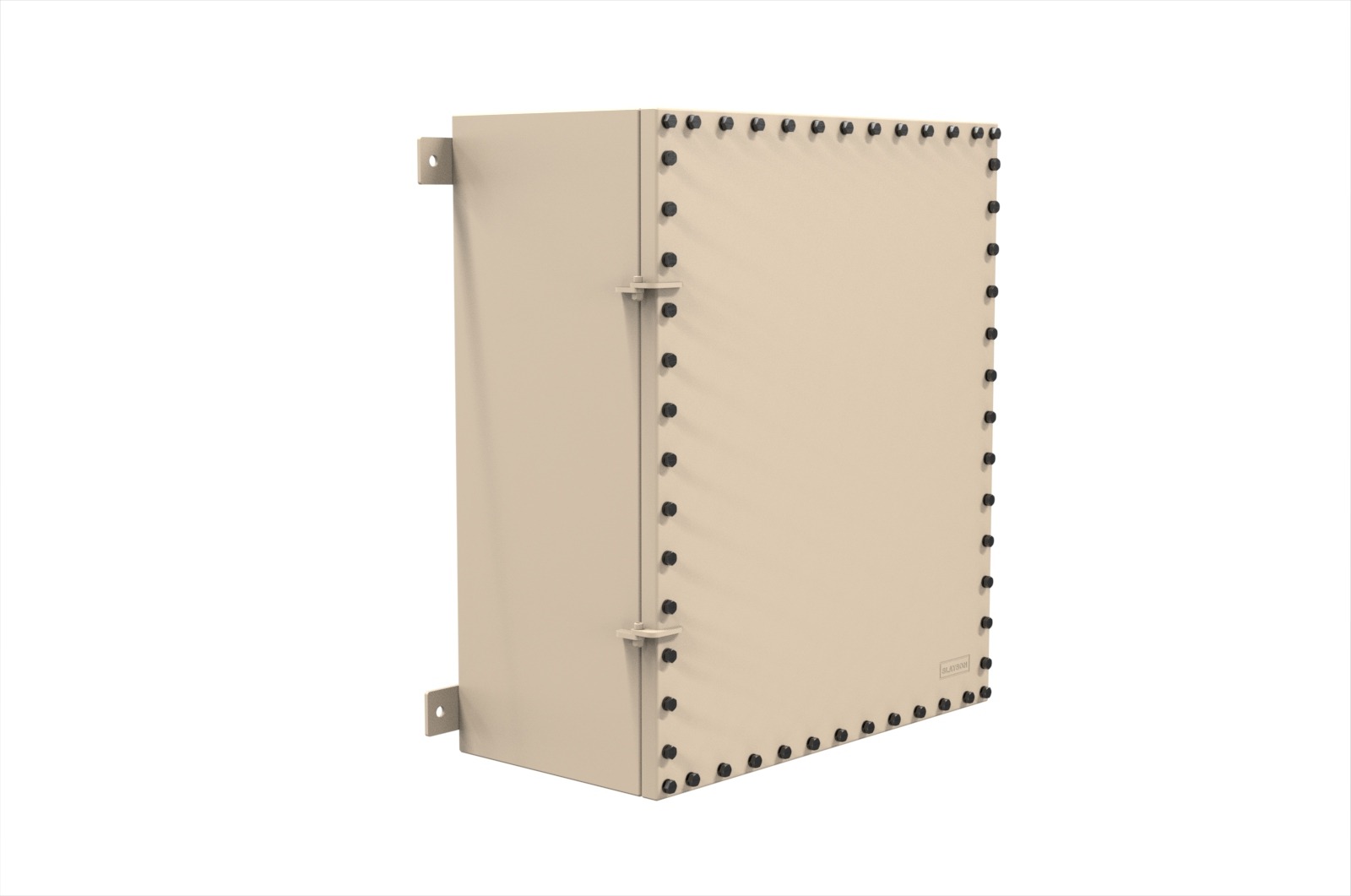

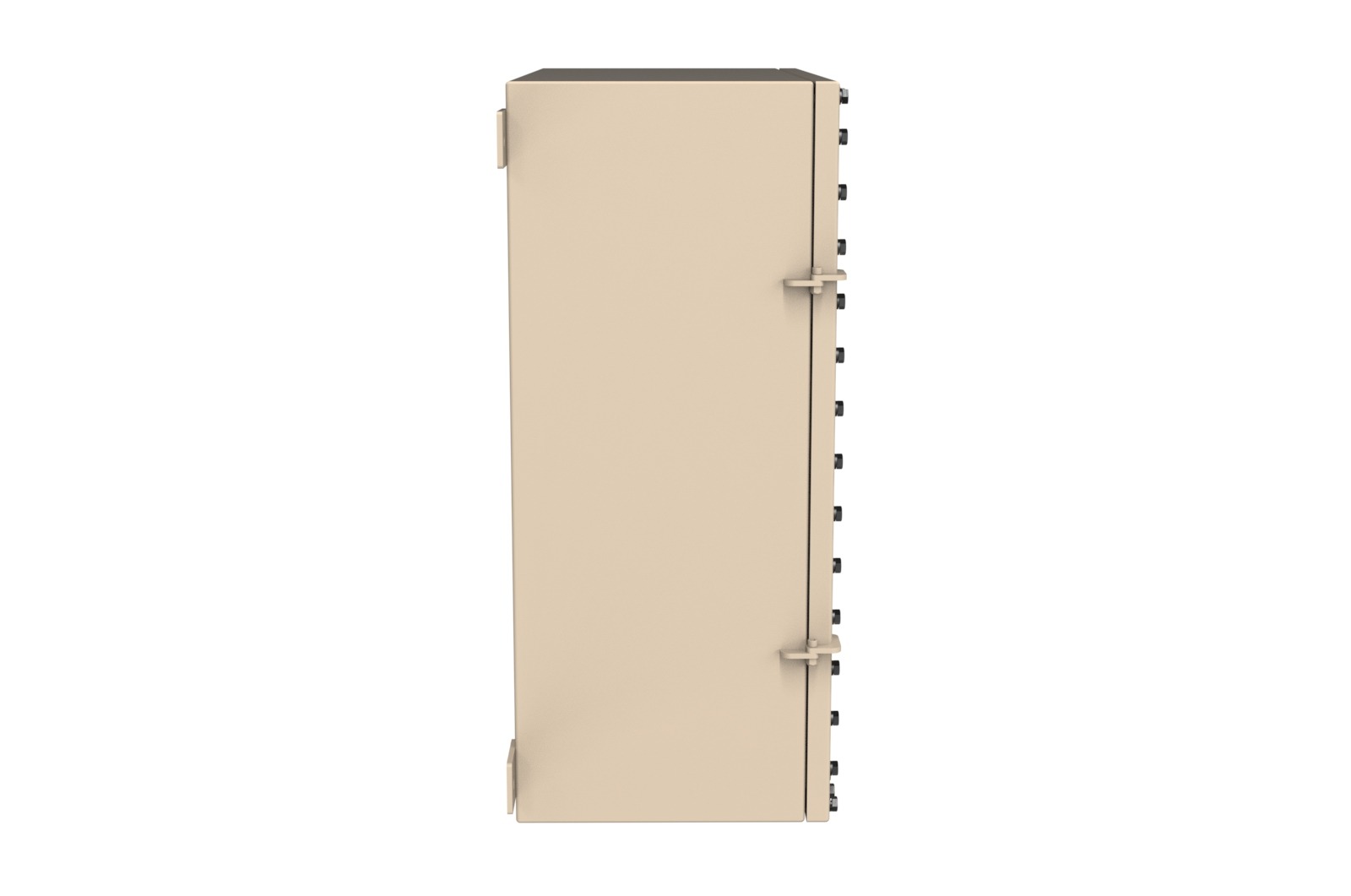

MIL-68 OVERVIEW

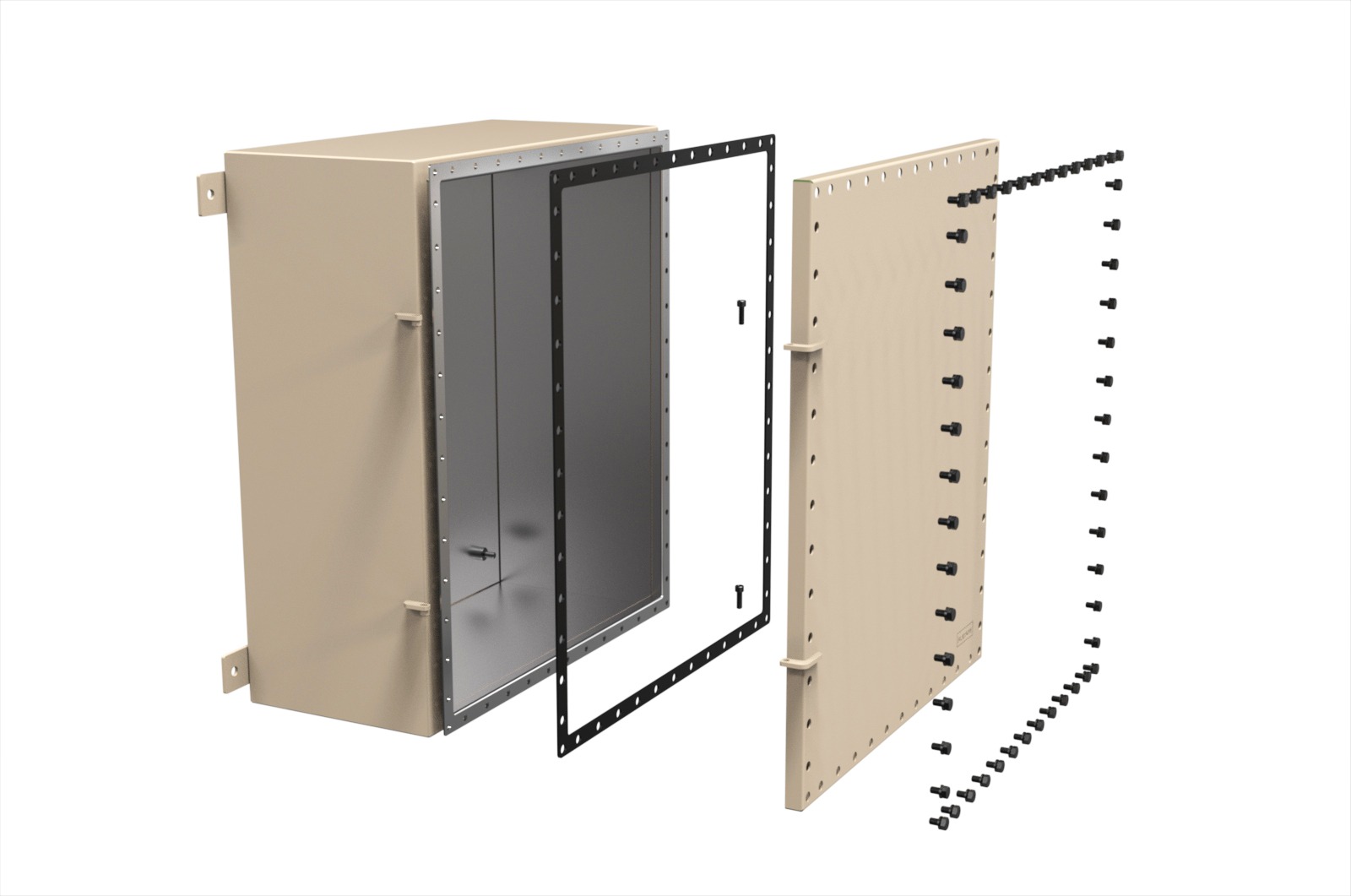

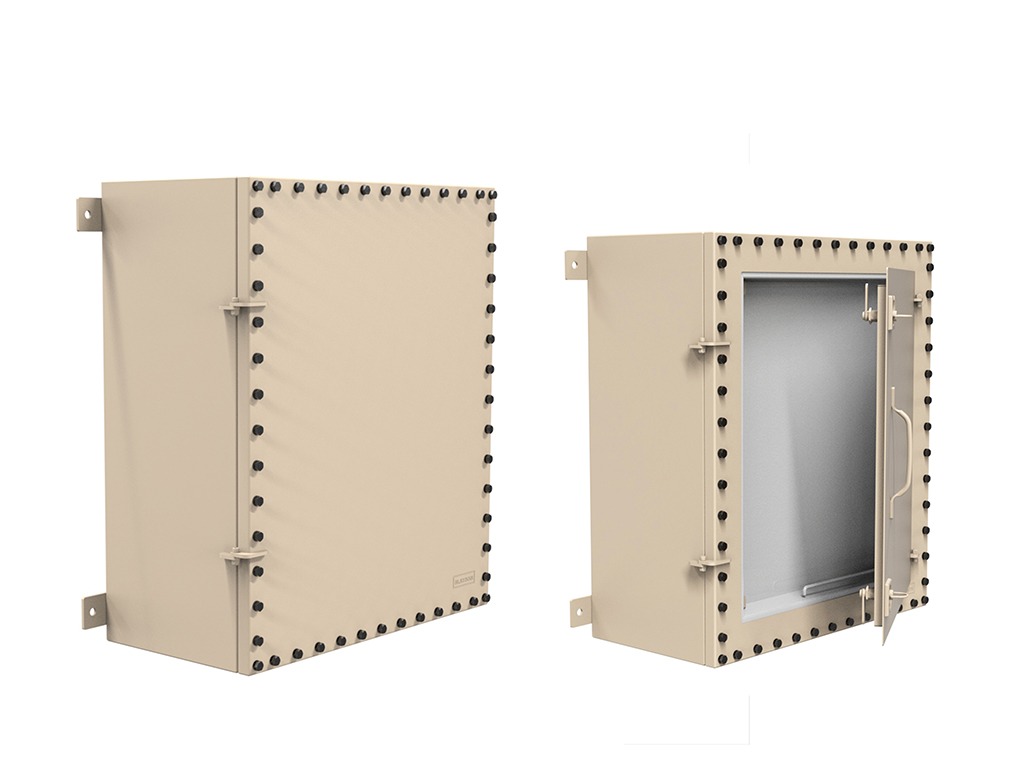

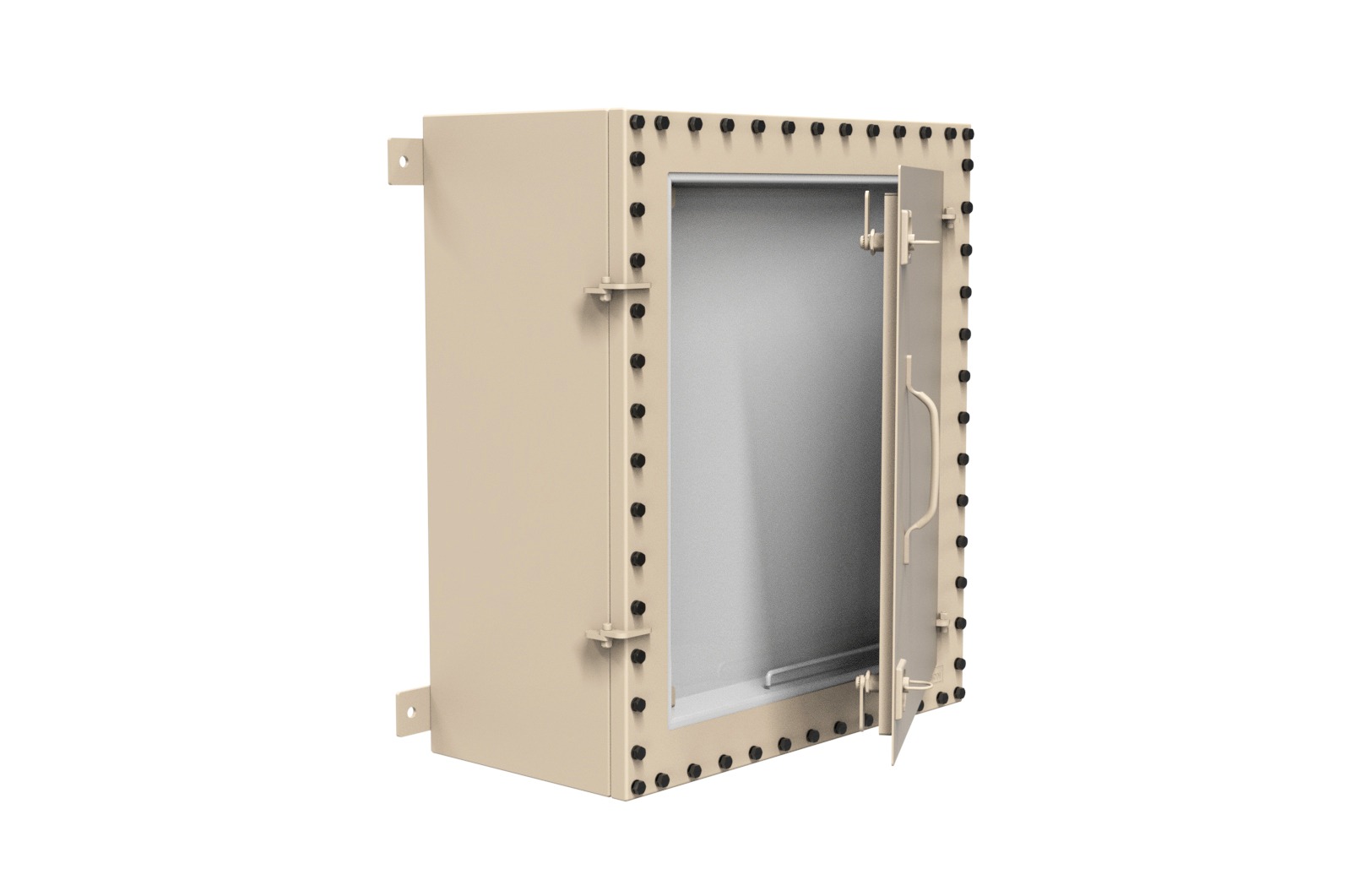

The MIL-CONTROL-68 offers ultimate protection for military vehicles, weapons systems, and electronic control hardware deployed in the harshest environments. This Panel series has hermetic sealing preventing any ingress of dust and water, with dual Beryllium Copper gasket to insure complete 360° EMC/EMP immunity and operational control access using the Shielded Access Door (IP66) optional accessory. The MIL-CONTROL- 68 offers a COTS range of Shielded Control Panels and Accessories delivering a proven, flexible and rugged panel enclosure system to MIL specification.

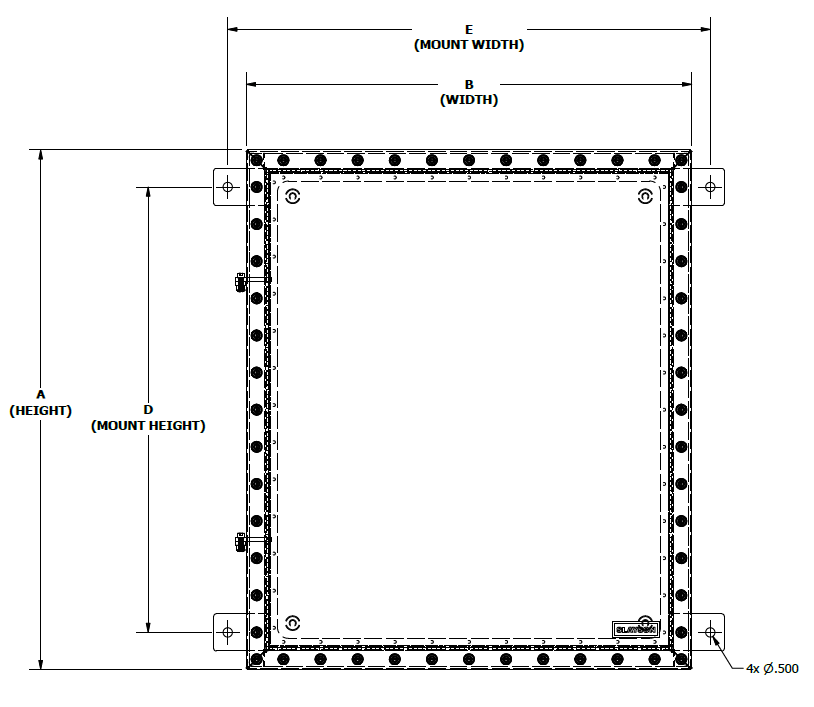

| A | B | C | D | E | INTERNAL MOUNT PLATE | ||||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| MLMI262616 | 26 | 660.4 | 26 | 660.4 | 16 | 406.4 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 0.080” |
| MLMI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 0.080” |
| MLMI262214 | 26 | 660.4 | 22 | 558.8 | 14 | 355.6 | 22 | 558.8 | 24 | 609.6 | 24 | 609.6 | 20 | 508.0 | 0.080” |
| MLMI262012 | 26 | 660.4 | 20 | 508.0 | 12 | 304.8 | 22 | 558.8 | 22 | 558.8 | 24 | 609.6 | 18 | 457.2 | 0.080” |
| MLMI261410 | 26 | 660.4 | 14 | 355.6 | 10 | 254.0 | 22 | 558.8 | 16 | 406.4 | 24 | 609.6 | 12 | 304.8 | 0.080” |
| MLMI242416 | 24 | 609.6 | 24 | 609.6 | 16 | 406.4 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 0.080” |
| MLMI242424 | 24 | 609.6 | 24 | 609.6 | 14 | 355.6 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 0.080” |
| MLMI242014 | 24 | 609.6 | 20 | 508.0 | 14 | 355.6 | 20 | 508.0 | 22 | 558.8 | 22 | 558.8 | 18 | 457.2 | 0.080” |
| MLMI241812 | 24 | 609.6 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 20 | 508.0 | 22 | 558.8 | 16 | 406.4 | 0.080” |
| MLMI241210 | 24 | 609.6 | 12 | 304.8 | 10 | 254.0 | 20 | 508.0 | 14 | 355.6 | 22 | 558.8 | 10 | 254.0 | 0.080” |
| MLMI222214 | 22 | 558.8 | 22 | 558.8 | 14 | 355.6 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 0.080” |
| MLMI222212 | 22 | 558.8 | 22 | 558.8 | 12 | 304.8 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 0.080” |
| MLMI221812 | 22 | 558.8 | 18 | 457.2 | 12 | 304.8 | 18 | 457.2 | 20 | 508.0 | 20 | 508.0 | 16 | 406.4 | 0.080” |
| MLMI221410 | 22 | 558.8 | 14 | 355.6 | 10 | 254.0 | 18 | 457.2 | 16 | 406.4 | 20 | 508.0 | 12 | 304.8 | 0.080” |
| MLMI221008 | 22 | 558.8 | 10 | 254.0 | 08 | 203.2 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 8 | 203.2 | 0.080” |
| MLMI202014 | 20 | 508.0 | 20 | 508.0 | 14 | 355.6 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 0.080” |
| MLMI202012 | 20 | 508.0 | 20 | 508.0 | 12 | 304.8 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 0.080” |
| MLMI201612 | 20 | 508.0 | 16 | 406.4 | 12 | 304.8 | 16 | 406.4 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 0.080” |
| MLMI201210 | 20 | 508.0 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 0.080” |
| MLMI201208 | 20 | 508.0 | 12 | 304.8 | 08 | 203.2 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 0.080” |
| MLMI181814 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 0.080” |
| MLMI181812 | 18 | 457.2 | 18 | 457.2 | 12 | 304.8 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 0.080” |
| MLMI181612 | 18 | 457.2 | 16 | 406.4 | 12 | 304.8 | 14 | 355.6 | 18 | 457.2 | 16 | 406.4 | 14 | 355.6 | 0.080” |
| MLMI181410 | 18 | 457.2 | 14 | 355.6 | 10 | 254.0 | 14 | 355.6 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 0.080” |
| MLMI181208 | 18 | 457.2 | 12 | 304.8 | 08 | 203.2 | 14 | 355.6 | 14 | 355.6 | 16 | 406.4 | 08 | 203.2 | 0.080” |
| MLMI161612 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 0.080” |
| MLMI161610 | 16 | 406.4 | 16 | 406.4 | 10 | 254.0 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 0.080” |
| MLMI161410 | 16 | 406.4 | 14 | 355.6 | 10 | 254.0 | 12 | 304.8 | 16 | 406.4 | 14 | 355.6 | 12 | 304.8 | 0.080” |
| MLMI161208 | 16 | 406.4 | 12 | 304.8 | 08 | 203.2 | 12 | 304.8 | 14 | 355.6 | 14 | 355.6 | 08 | 203.2 | 0.080” |
| MLMI141412 | 14 | 355.6 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 06 | 152.4 | 0.080” |
| MLMI141410 | 14 | 355.6 | 14 | 355.6 | 10 | 254.0 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 0.080” |
| MLMI141210 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 10 | 254.0 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 0.080” |
| MLMI141008 | 14 | 355.6 | 10 | 254.0 | 08 | 203.2 | 10 | 254.0 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 0.080” |
| MLMI121210 | 12 | 304.8 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 06 | 152.4 | 0.080” |
| MLMI121208 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 04 | 101.6 | 0.080” |
| MLMI121008 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 0.080” |
| MLMI120806 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 08 | 203.2 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 0.080” |
| MLMI101008 | 10 | 254.0 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 0.080” |
| MLMI101006 | 10 | 254.0 | 10 | 254.0 | 06 | 152.4 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 05 | 127.0 | 0.080” |
| MLMI100806 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 06 | 152.4 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 0.080” |
| MLMI080806 | 08 | 203.2 | 08 | 203.2 | 06 | 152.4 | 04 | 101.6 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 0.080” |
| MLMI080804 | 08 | 203.2 | 08 | 203.2 | 04 | 101.6 | 04 | 101.6 | 10 | 254.0 | 07 | 177.8 | 05 | 127.0 | 0.080” |
