SUBSEA ALUMINUM BATTERY BOX – ABBI SERIES

DATASHEET BADGE
Download PDF

INDUSTRY STANDARDS

NEMA Type 6, 6P
IP67/68 IEC 60529
IK10 Impact Resistant

APPLICATION

The SUBSEA range of Aluminum Submersible Enclosures are the leaders in underwater system protection. Used by renewable energy, Submarine and ROV companies requiring ultimate protection against extreme marine conditions. Manufactured from marine grade Aluminum with corrosion resistant Stainless Steel type 316 hardware and a single piece Silicon O-ring that provides watertight protection of your vital electrical equipment whilst still allowing acoustic and wireless signal transmission. SLAYSON’s SUBSEA range of enclosures and accessories deliver a reliable enclosure system to meet both the operational and environmental demands for any underwater application.

SPECIFICATIONS

  • Prolonged Submersible up to 328 ft / 100 mtr (IEC 60529)
  • Corrosion Resistant Salt Spray Tested (ASTM B117)
  • Heavy Duty Stainless Steel Type 316 mount feet
  • Single piece Silicon Sealing O-Ring
  • Stainless Steel 316 Fasteners & Hardware
  • Internal fastening locations for optional Back Plate accessory
  • High Impact & Crush Resistance (IK10)

MATERIAL

Marine Grade 5083 Aluminum*

FINISH

Natural Finish*
*Alternative color options available on request

OPTIONAL ACCESSORIES

  • Standard Internal Mount/Back Plates
  • Hinged Lid
  • Optical Window Lid
  • Lock Tab
  • Captive Lid Fasteners
  • Internal Swing out Panel
  • Stainless Steel Type 316 Cable Glands / Cord grips
  • Shock & Vibration Isolation Mount Kits

CODE

  • B
  • H
  • O
  • L
  • C
  • S

NEED A QUOTE OR MORE INFORMATION?

PART NUMBER BUILDER

SUBSEA ALUMINUM BATTERY BOX - ABBI SERIES - PART NUMBER BUILDER

*Generated by SLAYSON Engineering for customer specific modifications

MODIFICATIONS AND CUSTOMIZATION

SLAYSON excels at modifying and personalizing all our Enclosure products to meet your exact specifications. Whether you require cutouts, welded in-place bosses or a non-standard size. Contact our experienced Engineers about your project specific solution.

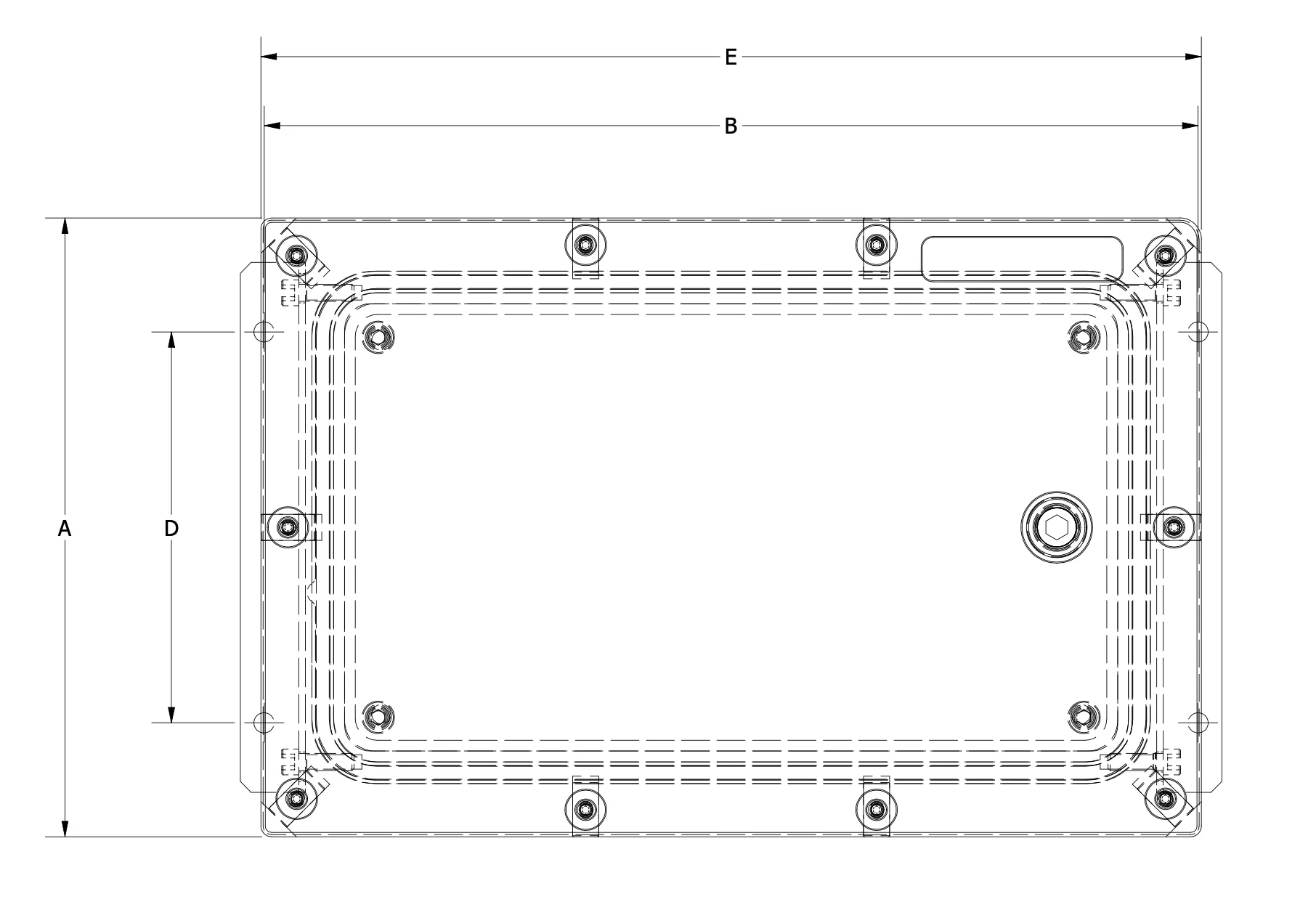

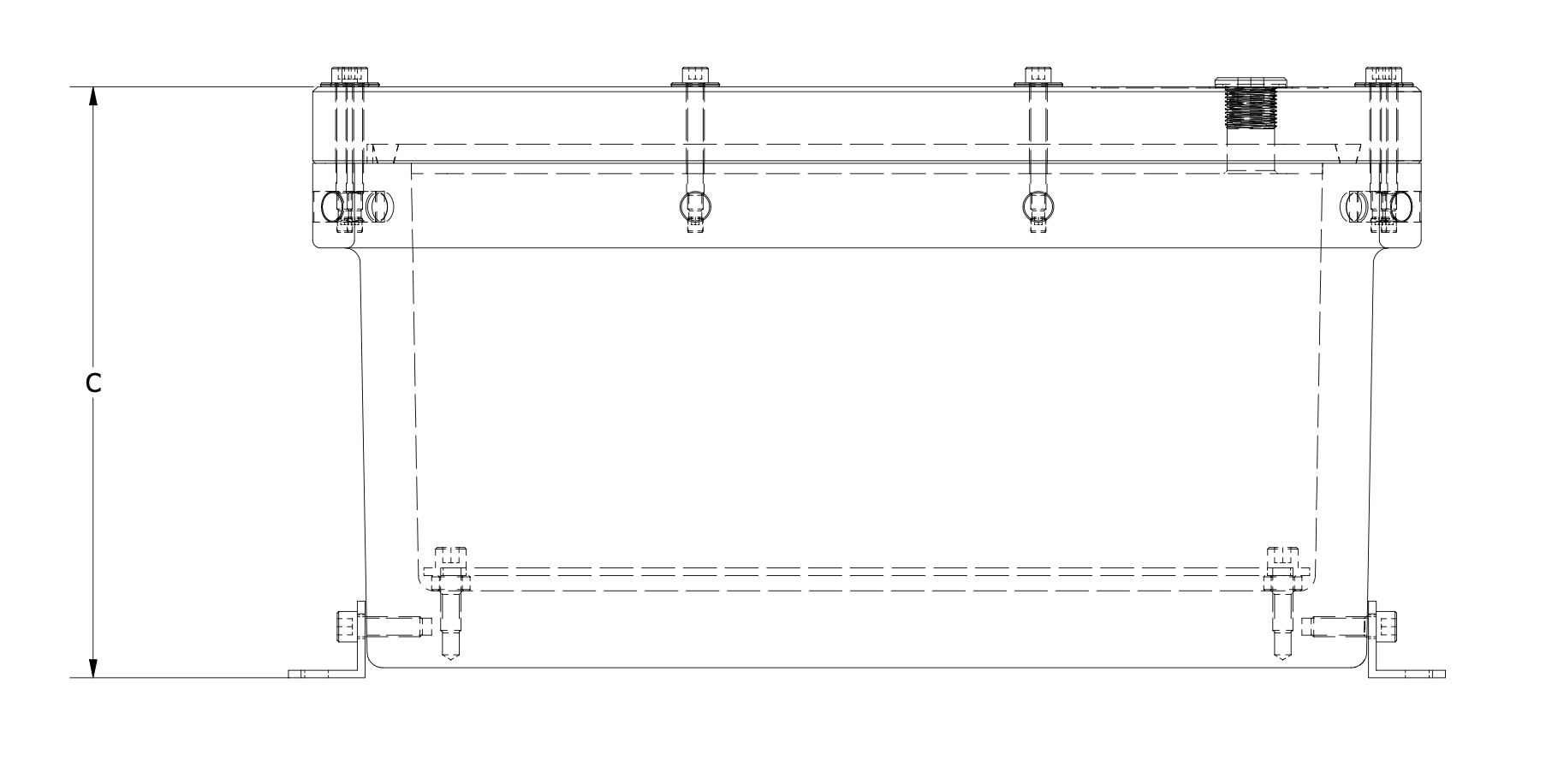

A B C D E F
PART NUMBER External Height External Width External Depth Internal Height Internal Width Internal Depth
in mm in mm in mm in mm in mm in mm
ABBI121809 12 306.0 18 456.0 9 227.0 14.3 364.0 7.3 185.0 3.6 92.0

SUBSEA ALUMINUM BATTERY BOX OVERVIEW

The SLAYSON SUBSEA Aluminum Battery Box Series has been engineered to withstand high pressure at greater depths, and is rated NEMA 6P/IP68 for prolonged submersion. SLAYSON SUBSEA Aluminum Battery Box enclosures are used on offshore oil rigs, submersible vessels and more to protect vital electrical equipment from water ingress up to depths of 328ft/100m. The SUBSEA Aluminum Battery Box comes standard in Aerospace Grade Aluminum, making it capable of protecting vital electrical equipment in the most extreme environments.

SLAYSON SUBSEA Aluminum Battery Box enclosures come in an array of finishes, and can be easily modified with accessories such as an internal back plate. All SUBSEA Aluminum enclosures come with alloy mounting hardware. SLAYSON design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON will design and engineer a custom SUBSEA Aluminum Battery Box enclosure to meet your requirements.
