SUBMERSIBLE STANDARD OVERVIEW

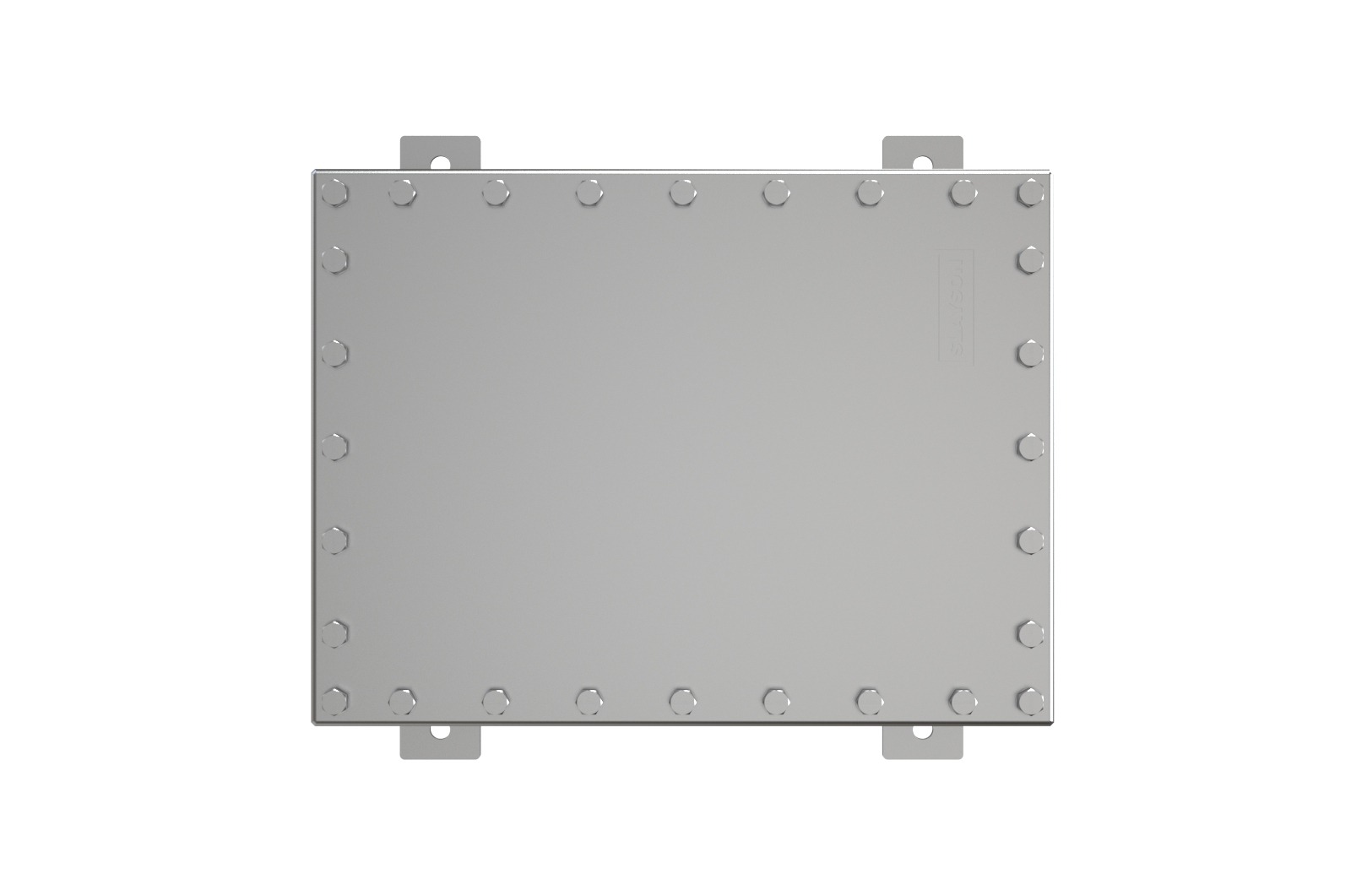

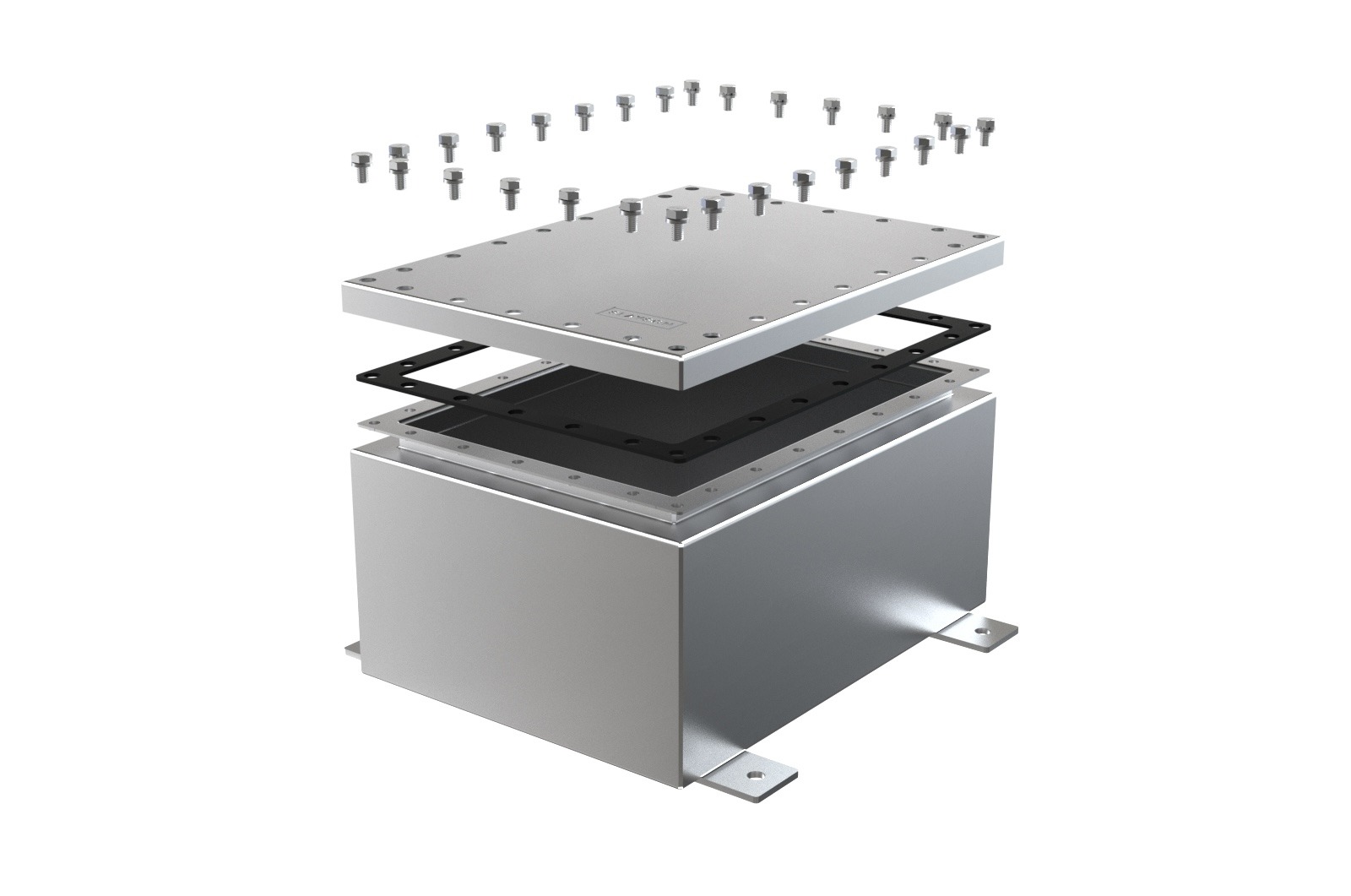

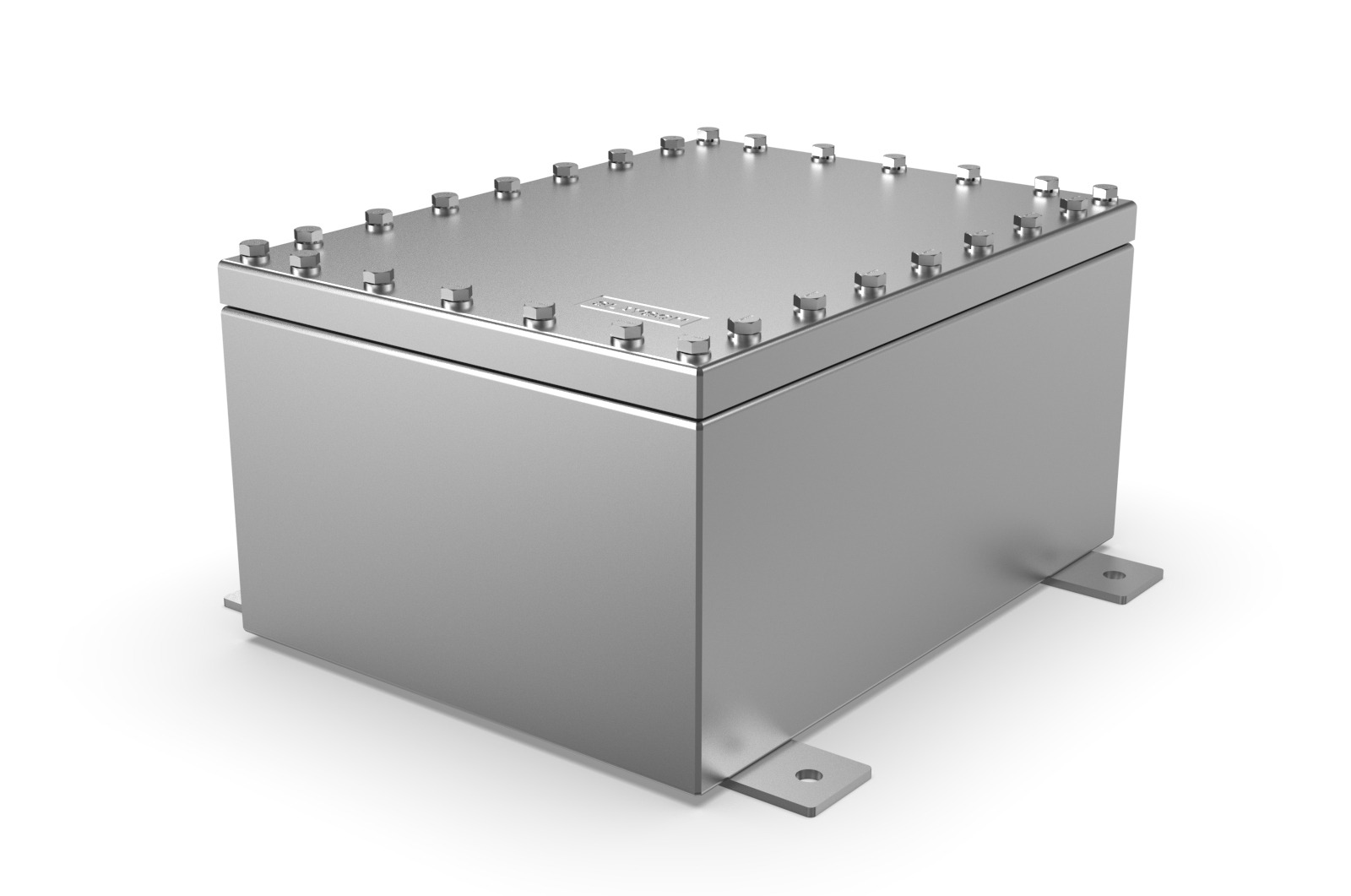

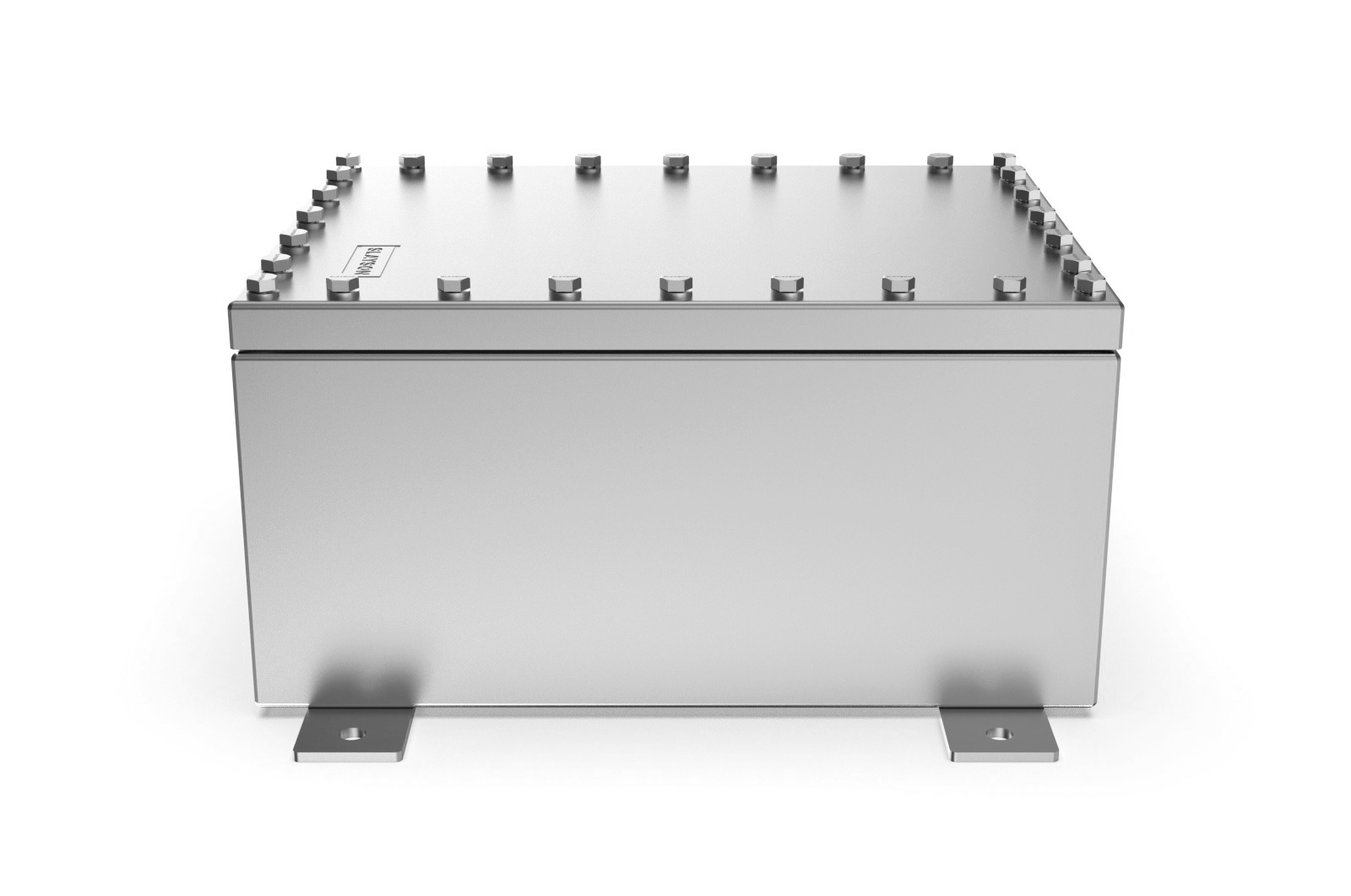

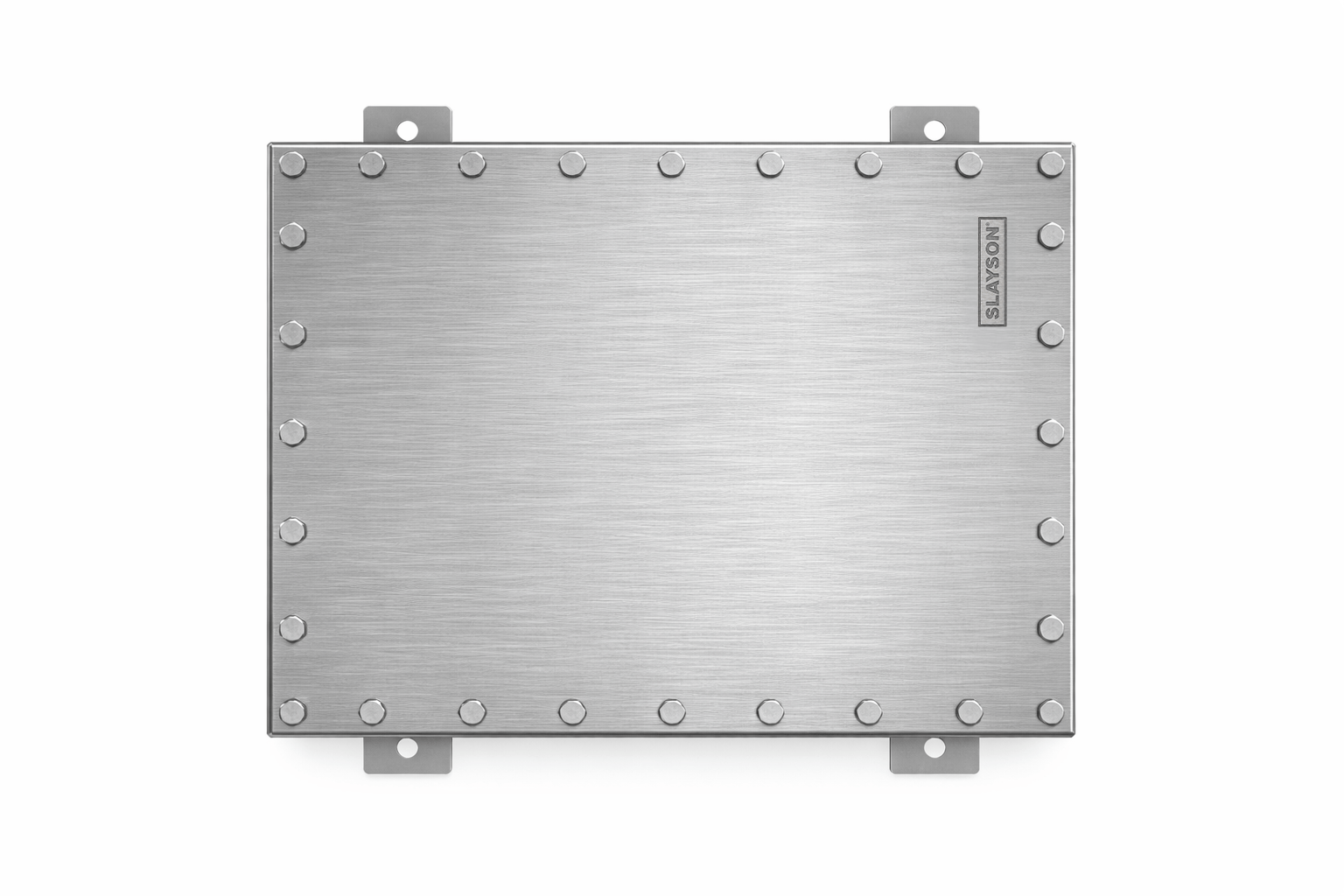

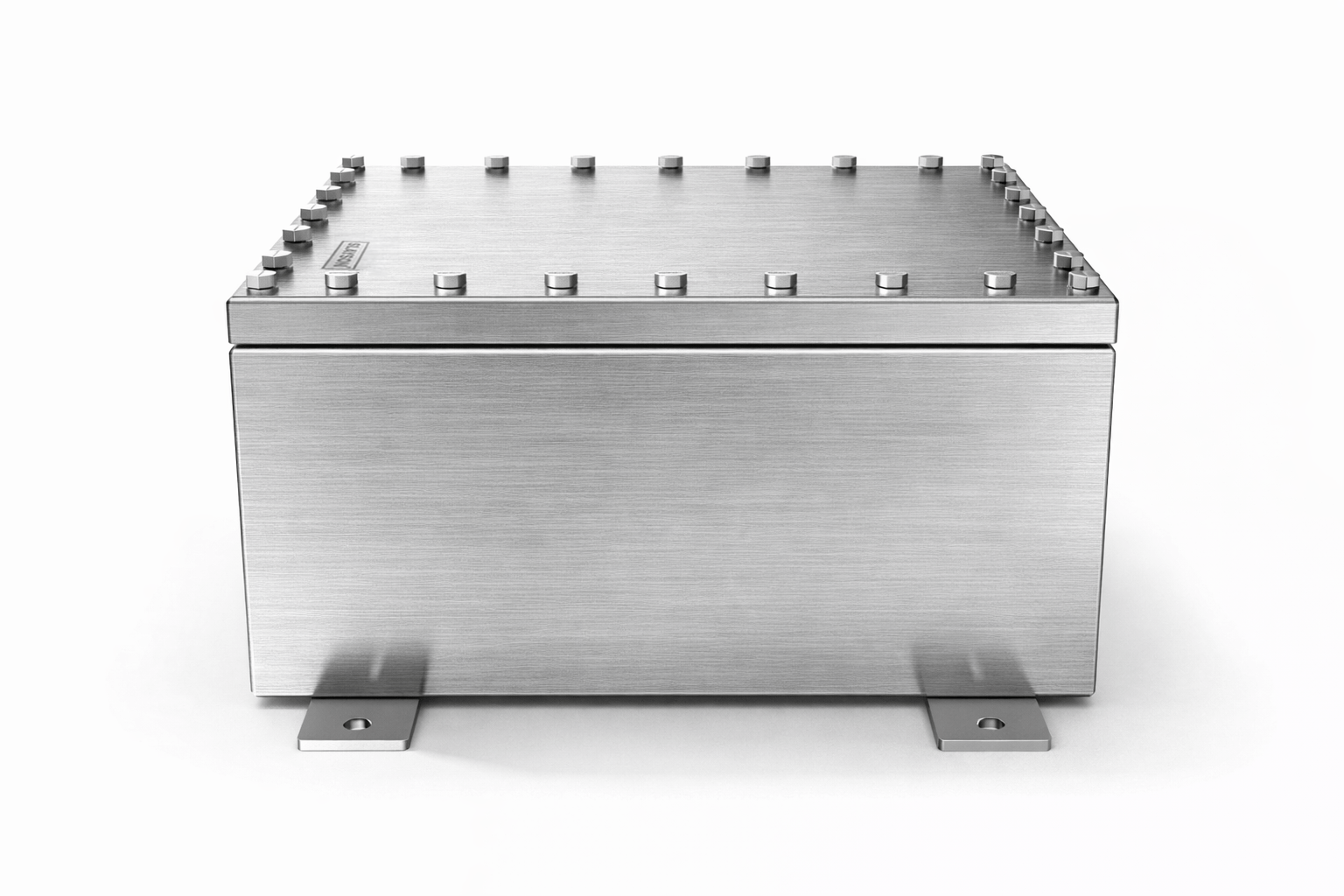

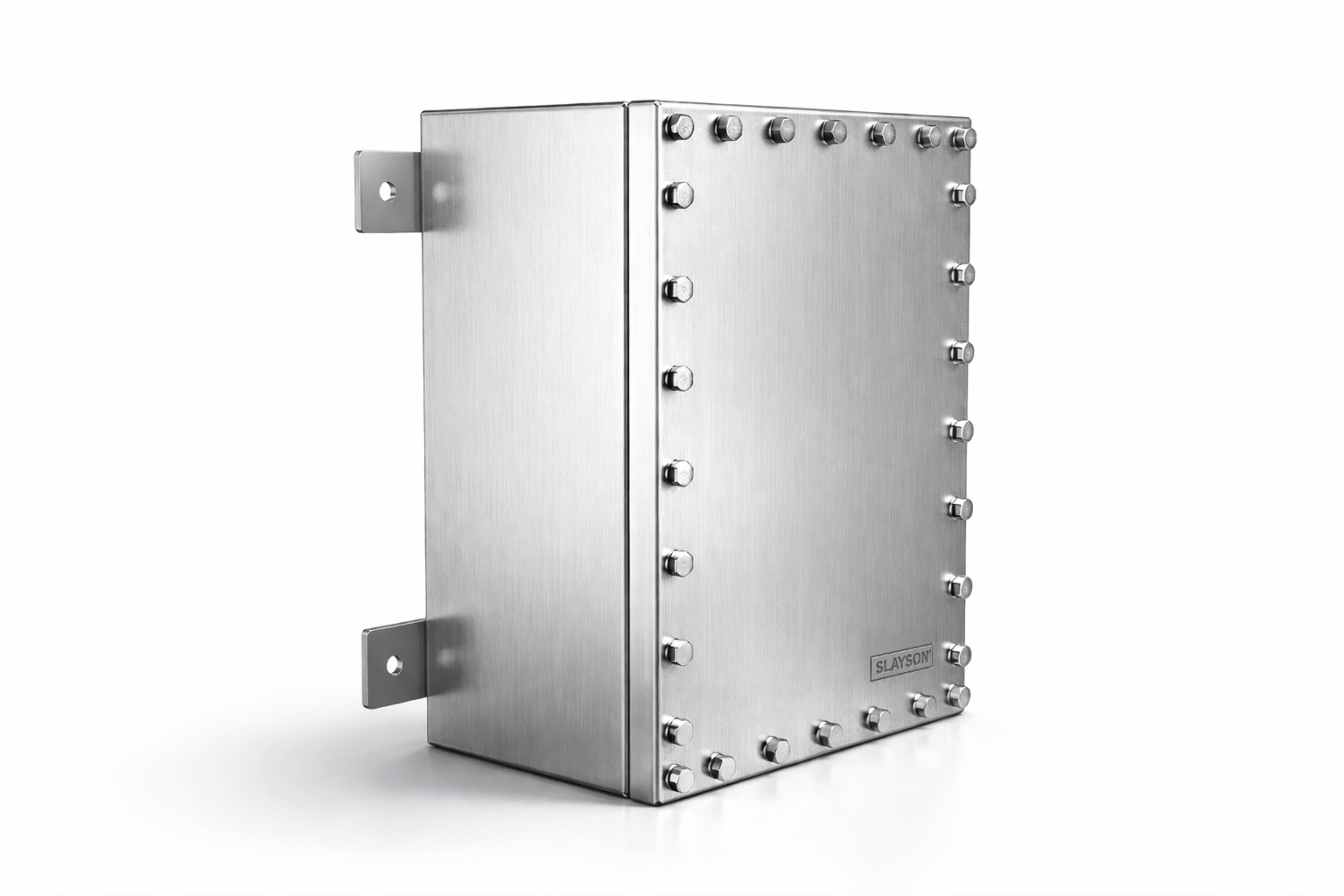

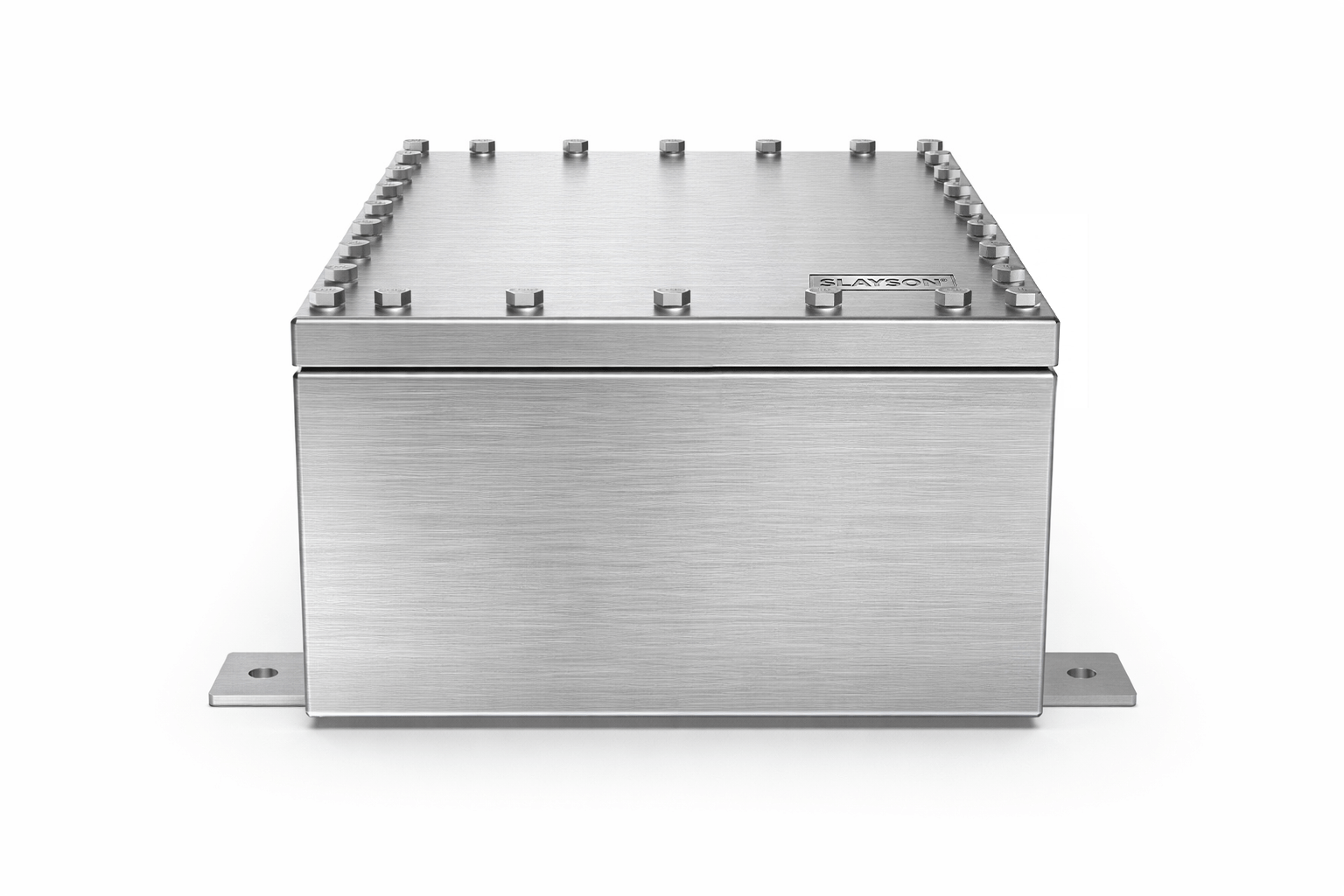

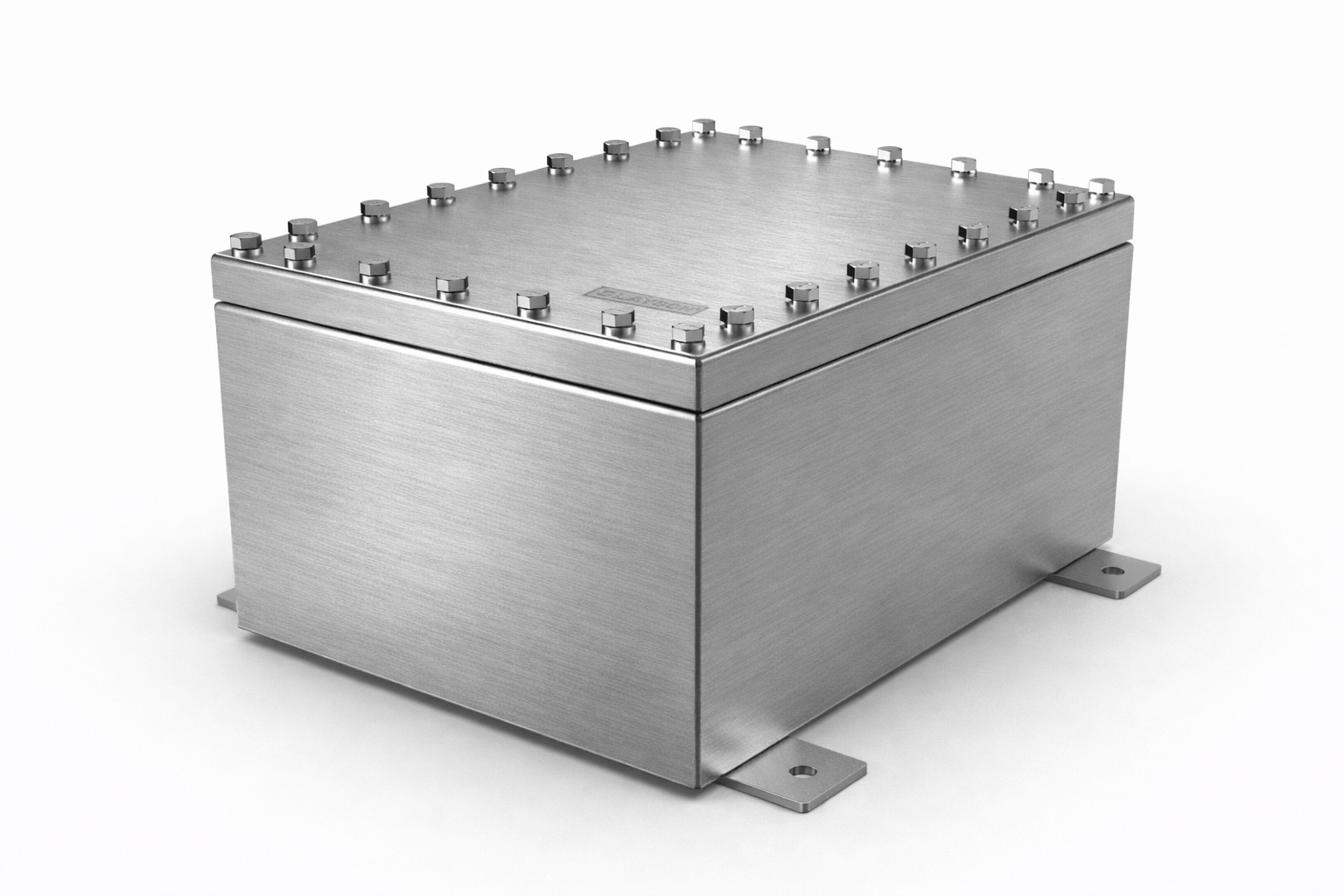

SLAYSON Submersible Octabox Series offers NEMA 6P / IP68 protection against water and dust ingress at depths up to 15ft / 5m. Submersible Standard Enclosures are manufactured as standard from 14g Marine Grade 316 Stainless Steel, ensuring protection in harsh and corrosive environments.

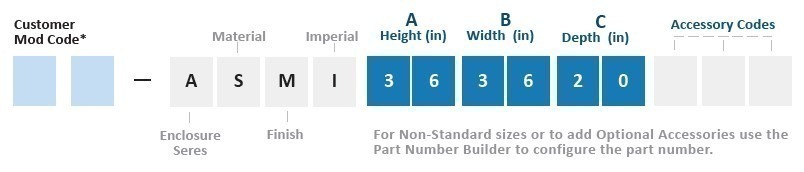

Part Number Material Code Builder

ASMI– Type 316 Marine Grade Stainless Steel (14 gauge)

AAMI – Aluminum (0.064″)

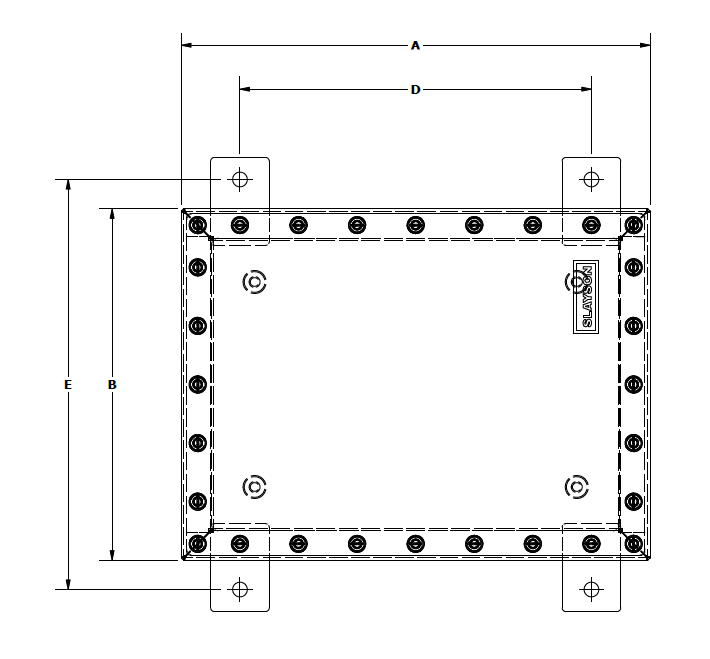

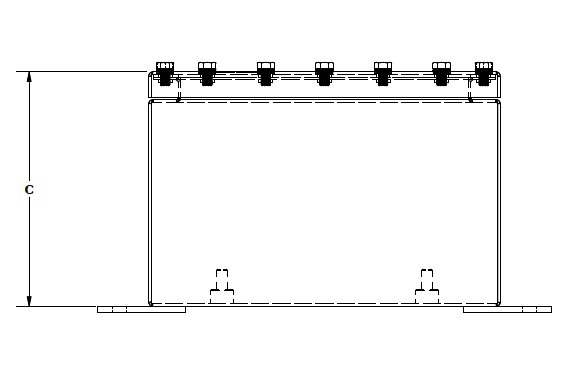

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
ASMI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 32 812.8 32 812.8 14
ASMI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 32 812.8 32 812.8 14
ASMI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 32 812.8 32 812.8 14
ASMI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 32 812.8 26 660.4 14
ASMI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 32 812.8 26 660.4 14
ASMI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 32 812.8 26 660.4 14
ASMI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 32 812.8 20 508.0 14
ASMI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 32 812.8 20 508.0 14
ASMI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 32 812.8 20 508.0 14
ASMI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 30 762.0 30 762.0 14
ASMI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 30 762.0 30 762.0 14
ASMI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 30 762.0 30 762.0 14
ASMI242816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 30 762.0 24 609.6 14
ASMI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 30 762.0 24 609.6 14
ASMI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 30 762.0 24 609.6 14
ASMI342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 30 762.0 20 508.0 14
ASMI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 30 762.0 20 508.0 14
ASMI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 30 762.0 20 508.0 14
ASMI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 26 660.4 26 660.4 14
ASMI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 26 660.4 26 660.4 14
ASMI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 26 660.4 26 660.4 14
ASMI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 26 660.4 20 508.0 14
ASMI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 26 660.4 20 508.0 14
ASMI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 26 660.4 20 508.0 14
ASMI302016 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 26 660.4 16 406.4 14
ASMI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 26 660.4 16 406.4 14
ASMI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 26 660.4 16 406.4 14
ASMI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 24 609.6 24 609.6 14
ASMI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 24 609.6 24 609.6 14
ASMI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 24 609.6 24 609.6 14
ASMI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 24 609.6 18 457.2 14
ASMI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 24 609.6 18 457.2 14
ASMI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 24 609.6 18 457.2 14
ASMI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 24 609.6 14 355.6 14
ASMI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 24 609.6 14 355.6 14
ASMI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 24 609.6 14 355.6 14
ASMI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 22 558.8 22 558.8 14
ASMI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 22 558.8 22 558.8 14
ASMI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 22 558.8 22 558.8 14
ASMI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 22 558.8 16 406.4 14
ASMI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 22 558.8 16 406.4 14
ASMI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 22 558.8 16 406.4 14
ASMI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 22 558.8 12 304.8 14
ASMI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 22 558.8 12 304.8 14
ASMI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 22 558.8 12 304.8 14
ASMI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 20 508.0 20 508.0 14
ASMI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 20 508.0 20 508.0 14
ASMI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 20 508.0 20 508.0 14
ASMI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 20 508.0 14 355.6 14
ASMI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 20 508.0 14 355.6 14
ASMI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 20 508.0 14 355.6 14
ASMI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 20 508.0 10 254.0 14
ASMI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 20 508.0 10 254.0 14
ASMI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 20 508.0 10 254.0 14
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
ASM909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
ASM909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
ASM909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
ASM907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
ASM907550 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
ASM907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
ASM906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
ASM906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
ASM906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
ASM858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
ASM858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
ASM858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
ASM857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
ASM857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
ASM857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
ASM856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
ASM856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
ASM856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
ASM757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
ASM757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
ASM757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
ASM756040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
ASM756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
ASM756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
ASM755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
ASM755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
ASM755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
ASM707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
ASM707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
ASM707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
ASM705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
ASM705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
ASM705525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
ASM704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
ASM704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
ASM704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
ASM656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
ASM656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
ASM656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
ASM655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
ASM655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
ASM655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
ASM654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
ASM654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
ASM654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
ASM606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
ASM606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
ASM606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
ASM604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
ASM604525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
ASM604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
ASM603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
ASM603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
ASM603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
