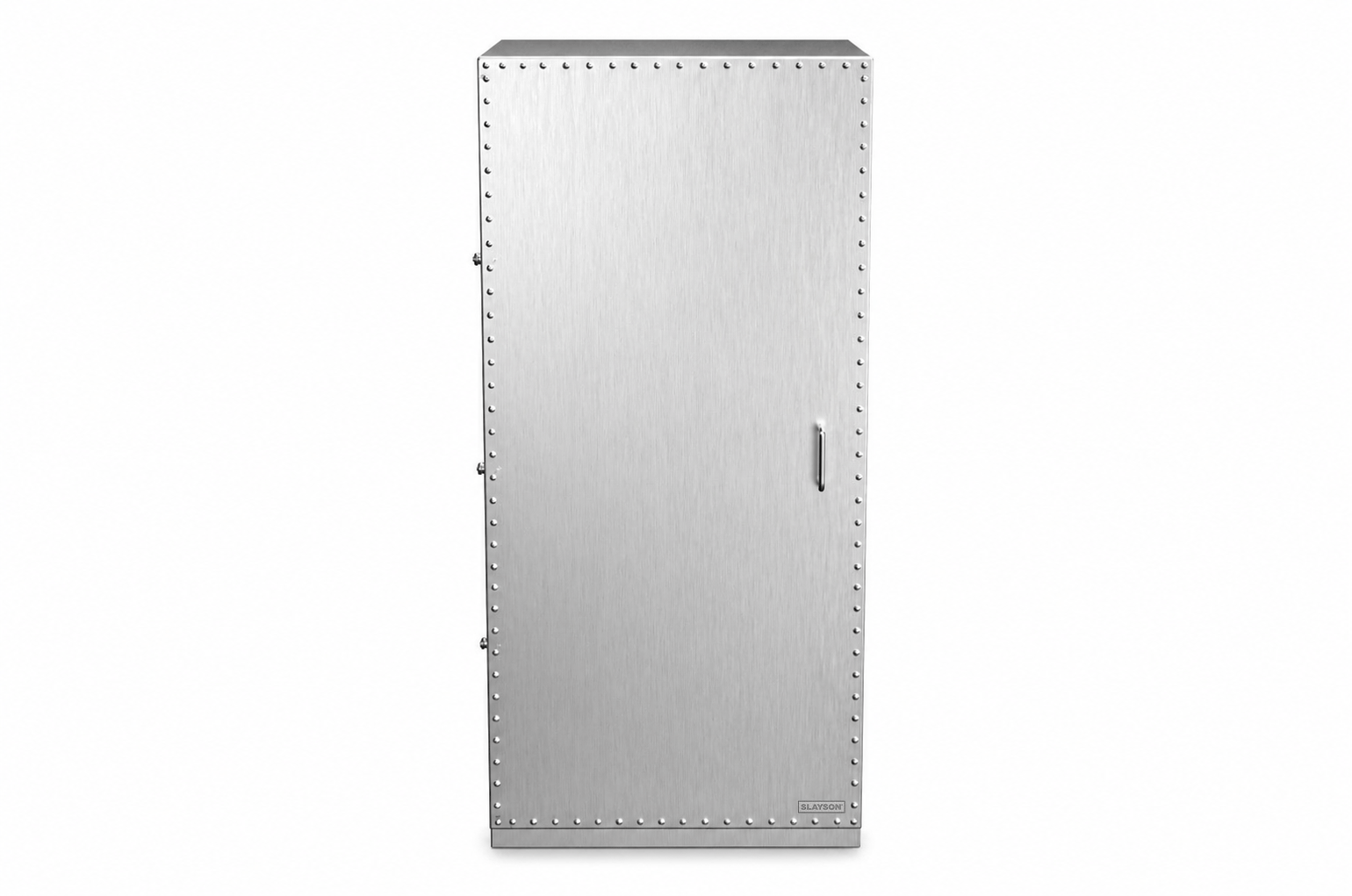

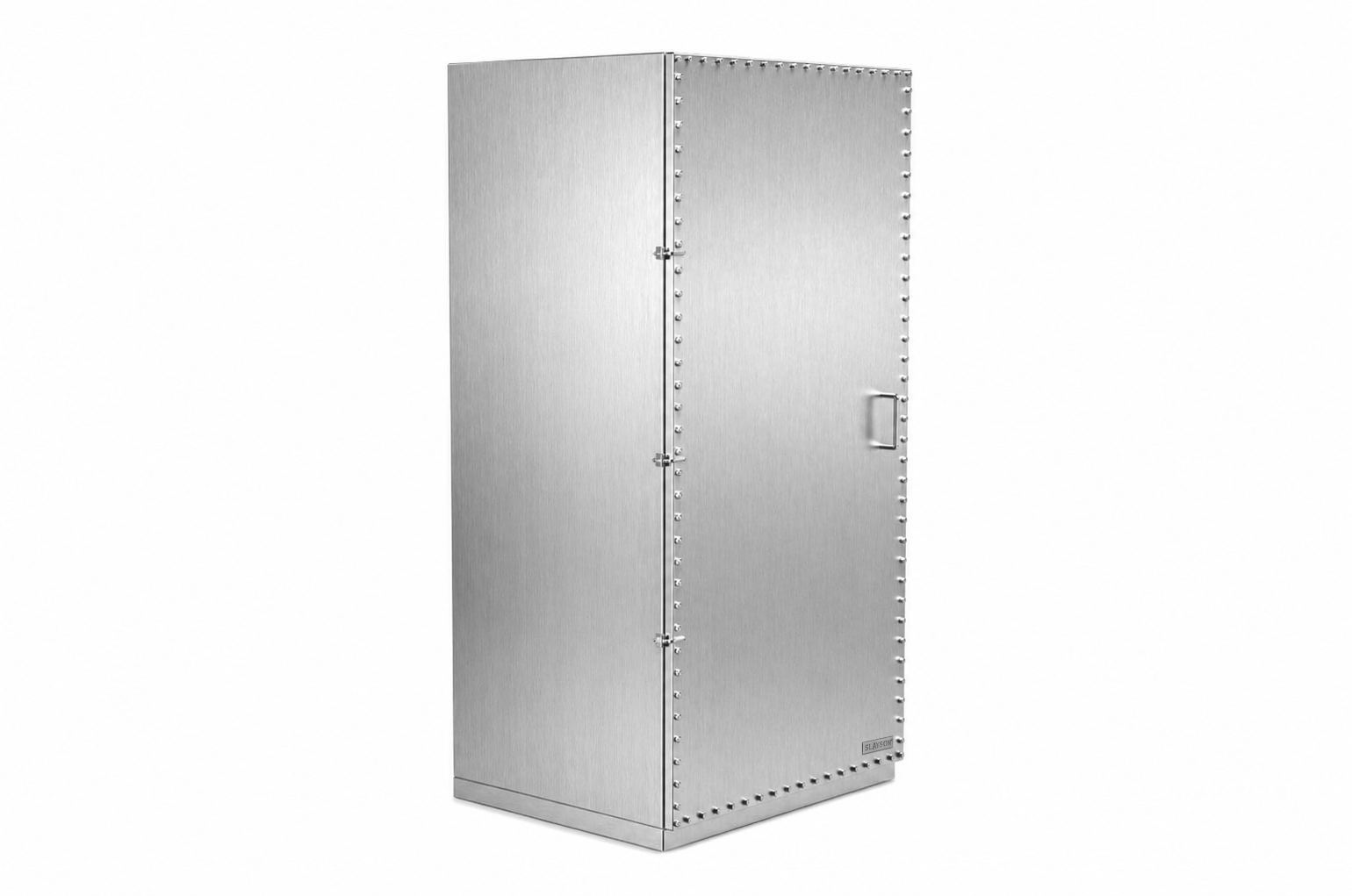

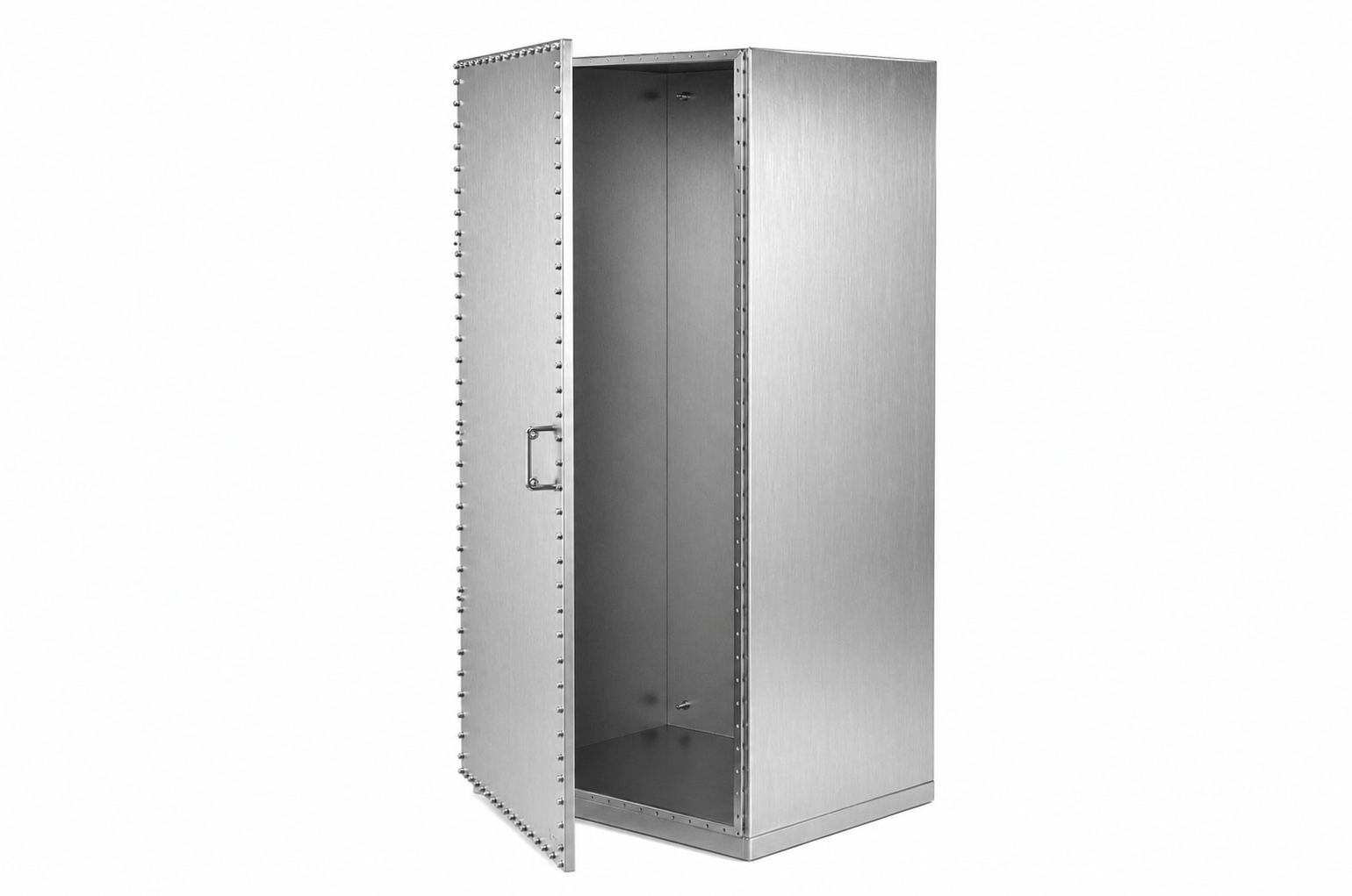

FREESTAND SUBMERSIBLE ENCLOSURE SINGLE DOOR – CSMI SERIES

DATASHEET BADGE
Download PDF

INDUSTRY STANDARDS

NEMA Type 6, 6P
IP67/68 IEC 60529
IK10 Impact Resistant

APPLICATION

The FREESTAND SUBMERSIBLE CABINET PANEL is the industry standard for power utility, infrastructure and renewal energy companies requiring ultimate protection against extreme environmental conditions. Manufactured from corrosion resistant Stainless Steel Type 316 and a single piece Neoprene Gasket to provide watertight protection of your vital electrical equipment. SLAYSON’s FREESTAND SUBMERSIBLE range of cabinet panel enclosures and accessories can be wall or floor mounted to deliver a reliable enclosures system to meet all of industries environmental challenges.

SPECIFICATIONS

  • Prolonged Submersible up to 15 ft / 5 mtr (IEC 60529)
  • Corrosion Resistant Salt Spray Test (ASTM B117)
  • Seams continuously welded and ground smooth
  • Raised Floor Mounting Plinth
  • Trough Collar Sealing Flange
  • Single piece Neoprene Gasket
  • Stainless Steel 316 Fasteners & Hardware
  • Heavy-duty lifting eye hooks
  • Internal T Weld Nut fastening locations for optional Back Plate accessory
  • High Impact & Crush Resistance (IK10)
  • Heavy-gauge removable door hinges

MATERIAL

14 gauge | 2.00mm Stainless Steel Type 316*

FINISH

#4 Brush Surface Finish*
*Alternative finish & material options available on request

OPTIONAL ACCESSORIES

  • Internal Mount/Back Plates

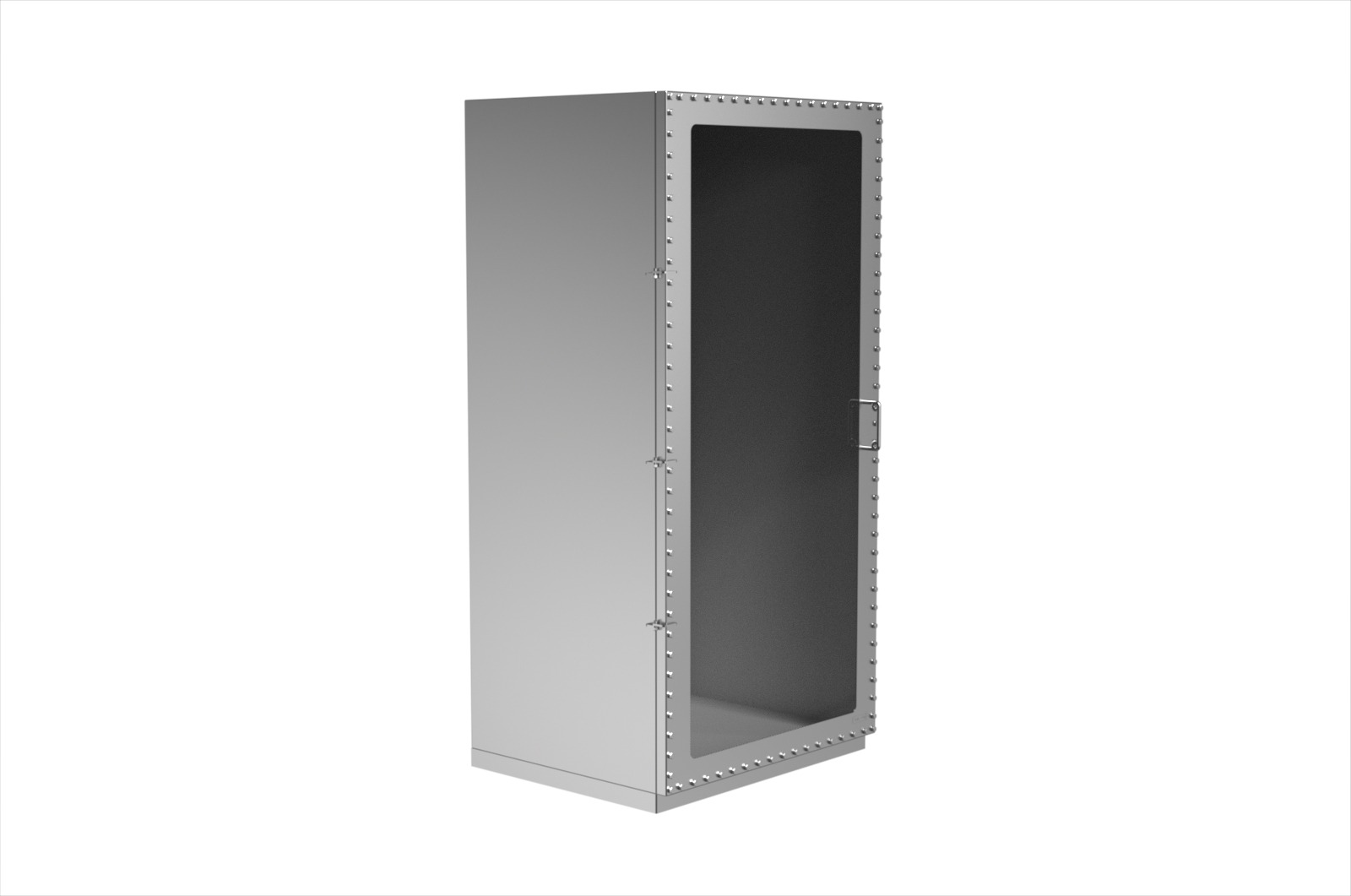

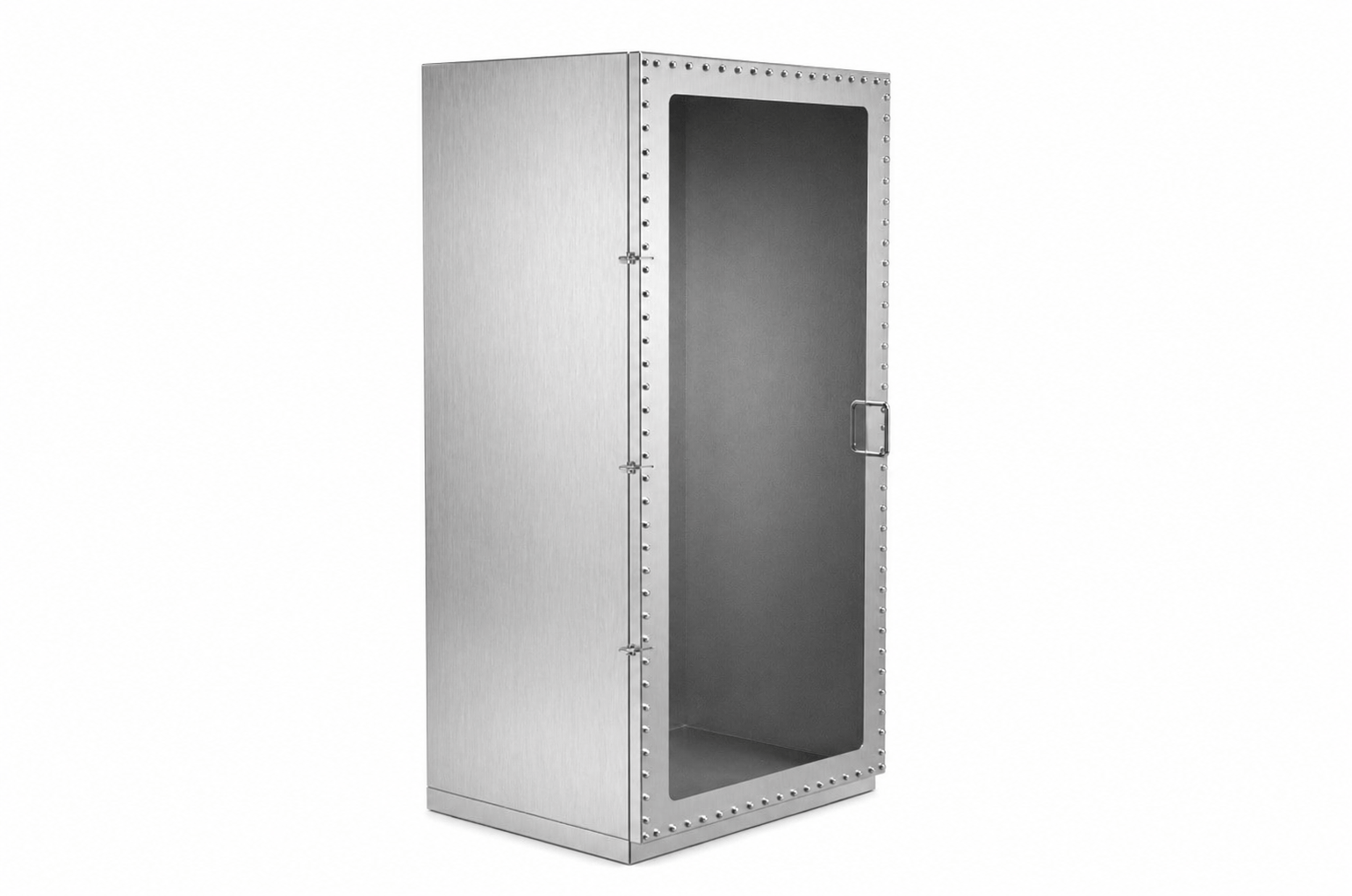

  • Optical Door Window
  • Padlock Tab
  • Captive Lid Fasteners
  • Internal Swing out Panel
  • Ground Stud
  • Welded in place Threaded Bosses
  • Stainless Steel Type 316 Cable Glands / Cord grips
  • Seismic Shock & Vibration Isolation Mount Kit
  • Dual Gasket Beryllium Copper for 360° EMC / RFI Shielding
  • External Grounding Stud
  • Heavy Duty wall mount tabs

CODE

  • B
  • H
  • O
  • L
  • C
  • S

NEED A QUOTE OR MORE INFORMATION?

PART NUMBER BUILDER

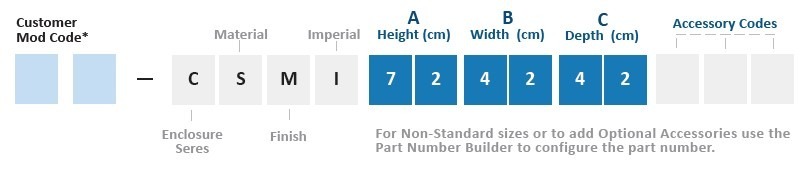

FREESTAND SUBMERSIBLE ENCLOSURE SINGLE DOOR - CSMI SERIES - PART NUMBER BUILDER

*Generated by SLAYSON Engineering for customer specific modifications

MODIFICATIONS AND CUSTOMIZATION

SLAYSON excels at modifying and personalizing all our Enclosure products to meet your exact specifications. Whether you require cutouts, welded in-place bosses or a non-standard size. Contact our experienced Engineers about your project specific solution.

A B C
PART NUMBER Height Width Depth Gauge
in mm in mm in mm
CSMI722442 72 1828 24 609 42 1066 14
CSMI722436 72 1828 24 609 36 914 14
CSMI722430 72 1828 24 609 30 457.2 14
CSMI722424 72 1828 24 609 24 609 14
CSMI602442 60 1524 24 609 42 1066 14
CSMI602436 60 1524 24 609 36 914 14
CSMI602430 60 1524 24 609 30 762 14
CSMI602424 60 1524 24 609 24 609 14
CSMI542442 54 1371 24 609 42 1066 14
CSMI542424 54 1371 24 609 24 609 14
CSMI482442 48 1219 24 609 42 1066 14
CSMI482424 48 1219 24 609 24 609 14
CSMI422442 42 1066 24 609 42 1066 14
CSMI422424 42 1066 24 609 24 609 14
CSMI362424 36 914 24 609 24 609 14

SUBMERSIBLE CABINETS OVERVIEW

The SLAYSON Submersible Cabinet Series has been engineered with a minimal flange width to increase internal capacity and usable space. It is rated NEMA 6P/IP68 for partial or prolonged submersion. SLAYSON Submersible Cabinets are generally used in basements or low-lying areas to protect vital electrical equipment and server racks from dust and water ingress up to depths of 15ft/5m. The Submersible Cabinet Series comes standard in corrosion resistant 12g 316 Marine Grade Stainless Steel, making it capable of protecting vital electrical equipment in harsh environments.

SLAYSON Submersible Cabinet enclosures have multiple fasteners about the lid to ensure constant gasket pressure. The Submersible Cabinet Series is available in a variety of sizes (36″x 24″ to 72″x 24″); each one is easily modified with accessories such as additional server racks, thermal insulation, padlock attachments and more. SLAYSON design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON will design and engineer a custom Submersible Cabinet enclosure to meet your requirements.
