METRIC A B C D E INTERNAL MOUNT PLATE

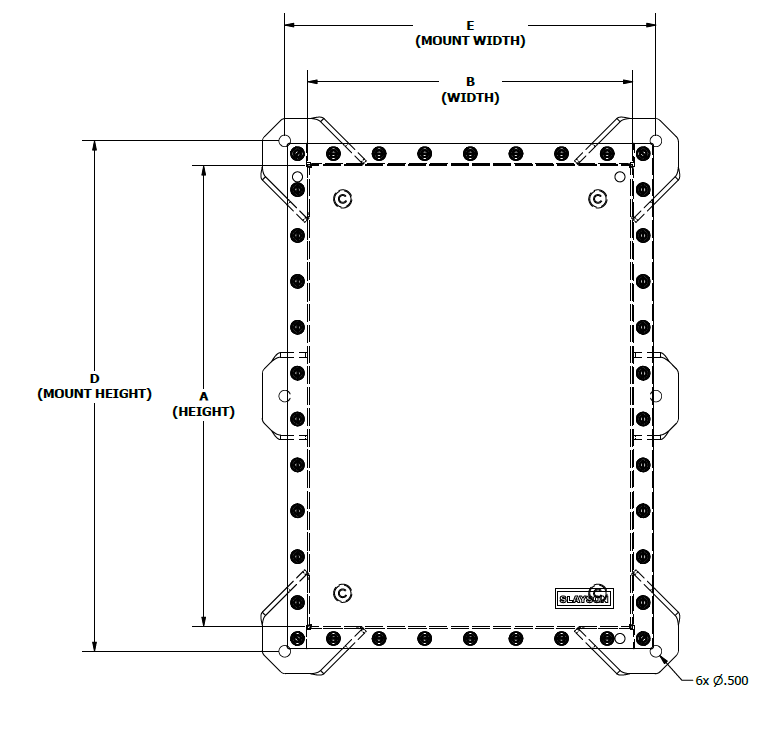

PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
DSM454535 45 450.0 45 450.0 35 350.0 55 550.0 52 520.0 40 400.0 40 400.0 3.00
DSM454530 45 450.0 45 450.0 30 300.0 55 550.0 52 520.0 40 400.0 40 400.0 3.00
DSM454520 45 450.0 45 450.0 20 200.0 55 550.0 52 520.0 40 400.0 40 400.0 3.00
DSM454515 45 450.0 45 450.0 15 150.0 55 550.0 52 520.0 40 400.0 40 400.0 3.00
DSM453530 45 450.0 35 350.0 30 300.0 55 550.0 42 420.0 40 400.0 30 300.0 3.00
DSM453525 45 450.0 35 350.0 25 250.0 55 550.0 42 420.0 40 400.0 30 300.0 3.00
DSM453520 45 450.0 35 350.0 20 200.0 55 550.0 42 420.0 40 400.0 30 300.0 3.00
DSM453515 45 450.0 35 350.0 15 150.0 55 550.0 42 420.0 40 400.0 30 300.0 3.00
DSM453025 45 450.0 30 300.0 25 250.0 55 550.0 37 370.0 40 400.0 25 250.0 3.00
DSM453020 45 450.0 30 300.0 20 200.0 55 550.0 37 370.0 40 400.0 25 250.0 3.00
DSM453015 45 450.0 30 300.0 15 150.0 55 550.0 37 370.0 40 400.0 25 250.0 3.00
DSM404030 45 400.0 40 400.0 30 300.0 50 500.0 47 470.0 35 350.0 35 350.0 3.00
DSM404025 40 400.0 40 400.0 25 250.0 50 500.0 47 470.0 35 350.0 35 350.0 3.00
DSM404020 40 400.0 40 400.0 20 200.0 50 500.0 47 470.0 35 350.0 35 350.0 3.00
DSM404015 40 400.0 40 400.0 15 150.0 50 500.0 47 470.0 35 350.0 35 350.0 3.00
DSM403530 40 400.0 35 350.0 30 300.0 50 500.0 42 420.0 35 350.0 30 300.0 3.00
DSM403525 40 400.0 35 350.0 25 250.0 50 500.0 42 420.0 35 350.0 30 300.0 3.00
DSM403520 40 400.0 35 350.0 20 200.0 50 500.0 42 420.0 35 350.0 30 300.0 3.00
DSM403515 40 400.0 35 350.0 15 150.0 50 500.0 42 420.0 35 350.0 30 300.0 3.00
DSM403025 40 400.0 30 300.0 25 250.0 50 500.0 37 370.0 35 350.0 25 250.0 3.00
DSM403020 40 400.0 30 300.0 20 200.0 50 500.0 37 370.0 35 350.0 25 250.0 3.00
DSM403015 40 400.0 30 300.0 15 150.0 50 500.0 37 370.0 35 350.0 25 250.0 3.00
DSM353530 40 350.0 35 350.0 30 300.0 45 450.0 42 420.0 30 300.0 30 300.0 3.00
DSM353525 35 350.0 35 350.0 25 250.0 45 450.0 42 420.0 30 300.0 30 300.0 3.00
DSM353520 35 350.0 35 350.0 20 200.0 45 450.0 42 420.0 30 300.0 30 300.0 3.00
DSM353515 35 350.0 35 350.0 15 150.0 45 450.0 42 420.0 30 300.0 30 300.0 3.00
DSM353025 35 350.0 30 300.0 25 250.0 45 450.0 37 370.0 30 300.0 25 250.0 3.00
DSM353020 35 350.0 30 300.0 20 200.0 45 450.0 37 370.0 30 300.0 25 250.0 3.00
DSM353015 35 350.0 30 300.0 15 150.0 45 450.0 37 370.0 30 300.0 25 250.0 3.00
DSM303025 35 300.0 30 300.0 25 250.0 40 400.0 37 370.0 25 250.0 25 250.0 3.00
DSM303020 30 300.0 30 300.0 20 200.0 40 400.0 37 370.0 25 250.0 25 250.0 3.00
DSM303015 30 300.0 30 300.0 15 150.0 40 400.0 37 370.0 25 250.0 25 250.0 3.00
DSM302520 30 300.0 25 250.0 20 200.0 40 400.0 32 320.0 25 250.0 20 200.0 3.00
DSM302515 30 300.0 25 250.0 15 150.0 40 400.0 32 320.0 25 250.0 20 200.0 3.00
DSM252520 30 250.0 25 250.0 20 200.0 35 350.0 32 320.0 20 200.0 20 200.0 3.00
DSM252515 25 250.0 25 250.0 15 150.0 35 350.0 32 320.0 20 200.0 20 200.0 3.00
DSM252510 25 250.0 25 250.0 10 100.0 35 350.0 32 320.0 20 200.0 20 200.0 3.00
DSM252015 25 250.0 20 200.0 15 150.0 35 350.0 27 270.0 20 200.0 15 150.0 3.00
DSM252010 25 250.0 20 200.0 10 100.0 35 350.0 27 270.0 20 200.0 15 150.0 3.00

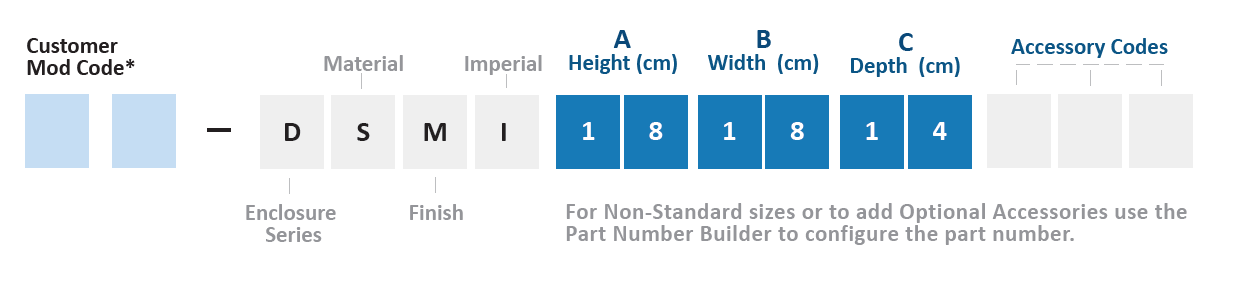

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
DSMI181814 18 457.2 18 457.2 14 355.6 14 355.6 21 533.4 16 406.4 16 406.4 12
DSMI181812 18 457.2 18 457.2 12 304.8 14 355.6 21 533.4 16 406.4 16 406.4 12
DSMI181810 18 457.2 18 457.2 10 254.0 14 355.6 21 533.4 16 406.4 16 406.4 12
DSMI181808 18 457.2 18 457.2 08 203.2 14 355.6 21 533.4 16 406.4 16 406.4 12
DSMI181806 18 457.2 18 457.2 06 152.4 14 355.6 21 533.4 16 406.4 16 406.4 12
DSMI181412 18 457.2 14 355.6 12 304.8 14 355.6 17 431.8 16 406.4 12 304.8 12
DSMI181410 18 457.2 14 355.6 10 254.0 14 355.6 17 431.8 16 406.4 12 304.8 12
DSMI181408 18 457.2 14 355.6 08 203.2 14 355.6 17 431.8 16 406.4 12 304.8 12
DSMI181406 18 457.2 14 355.6 06 152.4 14 355.6 17 431.8 16 406.4 12 304.8 12
DSMI181210 18 457.2 12 304.8 10 254.0 14 355.6 15 381.0 16 406.4 10 254.0 12
DSMI181208 18 457.2 12 304.8 08 203.2 14 355.6 15 381.0 16 406.4 10 254.0 12
DSMI181206 18 457.2 12 304.8 06 152.4 14 355.6 15 381.0 16 406.4 10 254.0 12
DSMI161612 16 406.4 16 406.4 12 304.8 12 304.8 19 482.6 14 355.6 14 355.6 12
DSMI161610 16 406.4 16 406.4 10 254.0 12 304.8 19 482.6 14 355.6 14 355.6 12
DSMI161608 16 406.4 16 406.4 08 203.2 12 304.8 19 482.6 14 355.6 14 355.6 12
DSMI161606 16 406.4 16 406.4 06 152.4 12 304.8 19 482.6 14 355.6 14 355.6 12
DSMI161412 16 406.4 14 355.6 12 304.8 12 304.8 17 431.8 14 355.6 12 304.8 12
DSMI161410 16 406.4 14 355.6 10 254.0 12 304.8 17 431.8 14 355.6 12 304.8 12
DSMI161408 16 406.4 14 355.6 08 203.2 12 304.8 17 431.8 14 355.6 12 304.8 12
DSMI161406 16 406.4 14 355.6 06 152.4 12 304.8 17 431.8 14 355.6 12 304.8 12
DSMI161210 16 406.4 12 304.8 10 254.0 12 304.8 15 381.0 14 355.6 10 254.0 12
DSMI161208 16 406.4 12 304.8 08 203.2 12 304.8 15 381.0 14 355.6 10 254.0 12
DSMI161206 16 406.4 12 304.8 06 152.4 12 304.8 15 381.0 14 355.6 10 254.0 12
DSMI141412 14 355.6 14 355.6 12 304.8 10 254.0 17 431.8 12 304.8 12 304.8 12
DSMI141410 14 355.6 14 355.6 10 254.0 10 254.0 17 431.8 12 304.8 12 304.8 12
DSMI141408 14 355.6 14 355.6 08 203.2 10 254.0 17 431.8 12 304.8 12 304.8 12
DSMI141406 14 355.6 14 355.6 06 152.4 10 254.0 17 431.8 12 304.8 12 304.8 12
DSMI141210 14 355.6 12 304.8 10 254.0 10 254.0 15 381.0 12 304.8 10 254.0 12
DSMI141208 14 355.6 12 304.8 08 203.2 10 254.0 15 381.0 12 304.8 10 254.0 12
DSMI141206 14 355.6 12 304.8 06 152.4 10 254.0 15 381.0 12 304.8 10 254.0 12
DSMI121210 12 304.8 12 304.8 10 254.0 8 203.2 15 381.0 10 254.0 10 254.0 12
DSMI121208 12 304.8 12 304.8 08 203.2 8 203.2 15 381.0 10 254.0 10 254.0 12
DSMI121206 12 304.8 12 304.8 06 152.4 8 203.2 15 381.0 10 254.0 10 254.0 12
DSMI121008 12 304.8 10 254.0 08 203.2 8 203.2 13 330.2 10 254.0 8 203.2 12
DSMI121006 12 304.8 10 254.0 06 152.4 8 203.2 13 330.2 10 254.0 8 203.2 12
DSMI101008 10 254.0 10 254.0 08 203.2 6 152.4 13 330.2 08 203.2 8 203.2 12
DSMI101006 10 254.0 10 254.0 06 152.4 6 152.4 13 330.2 08 203.2 8 203.2 12
DSMI101004 10 254.0 10 254.0 04 101.6 6 152.4 13 330.2 08 203.2 8 203.2 12
DSMI100806 10 254.0 8 203.2 06 152.4 6 152.4 11 279.4 08 203.2 6 152.4 12
DSMI100804 10 254.0 8 203.2 04 101.6 6 152.4 11 279.4 08 203.2 6 152.4 12

DEEP JUNCTION BOX OVERVIEW

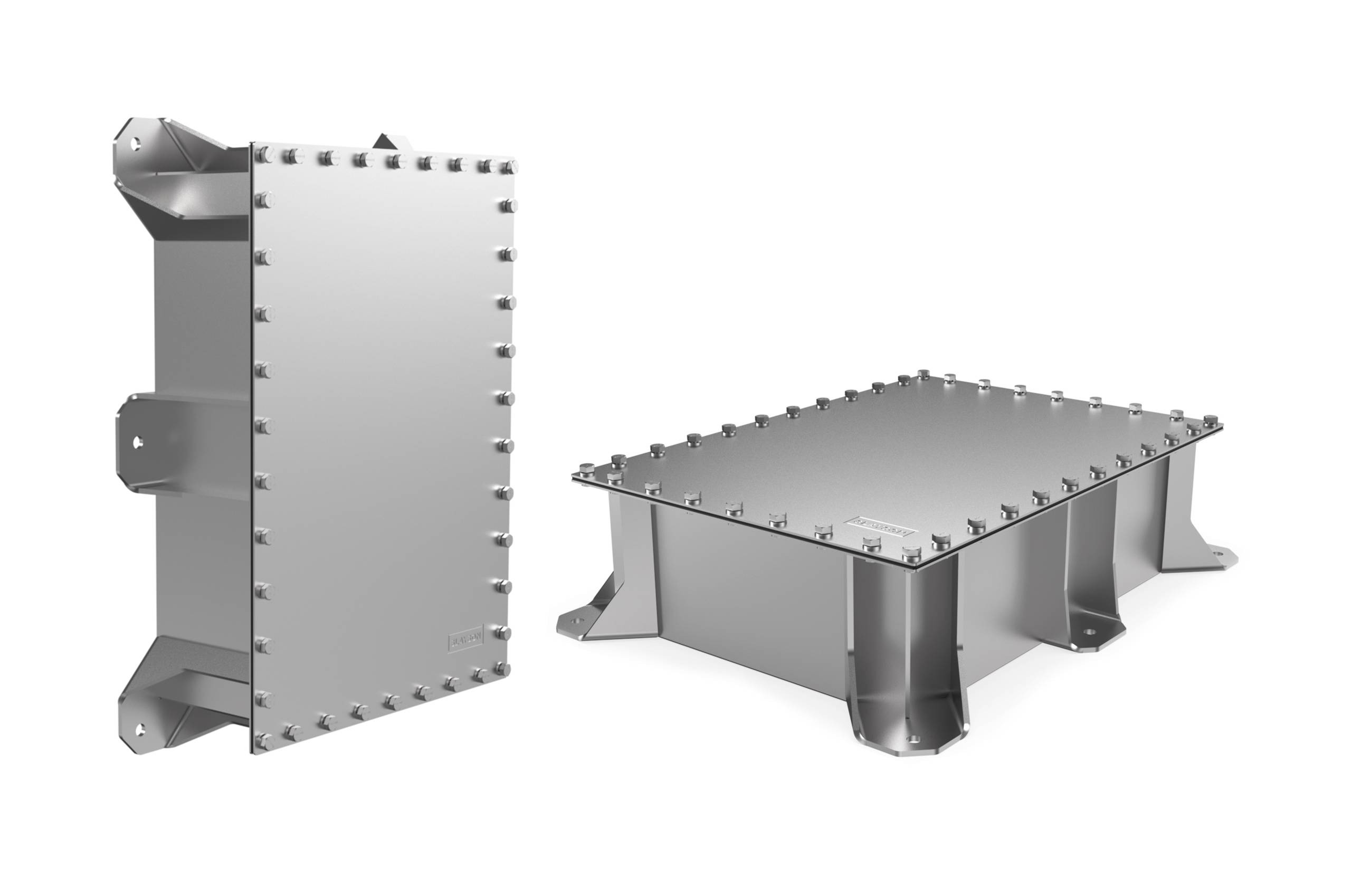

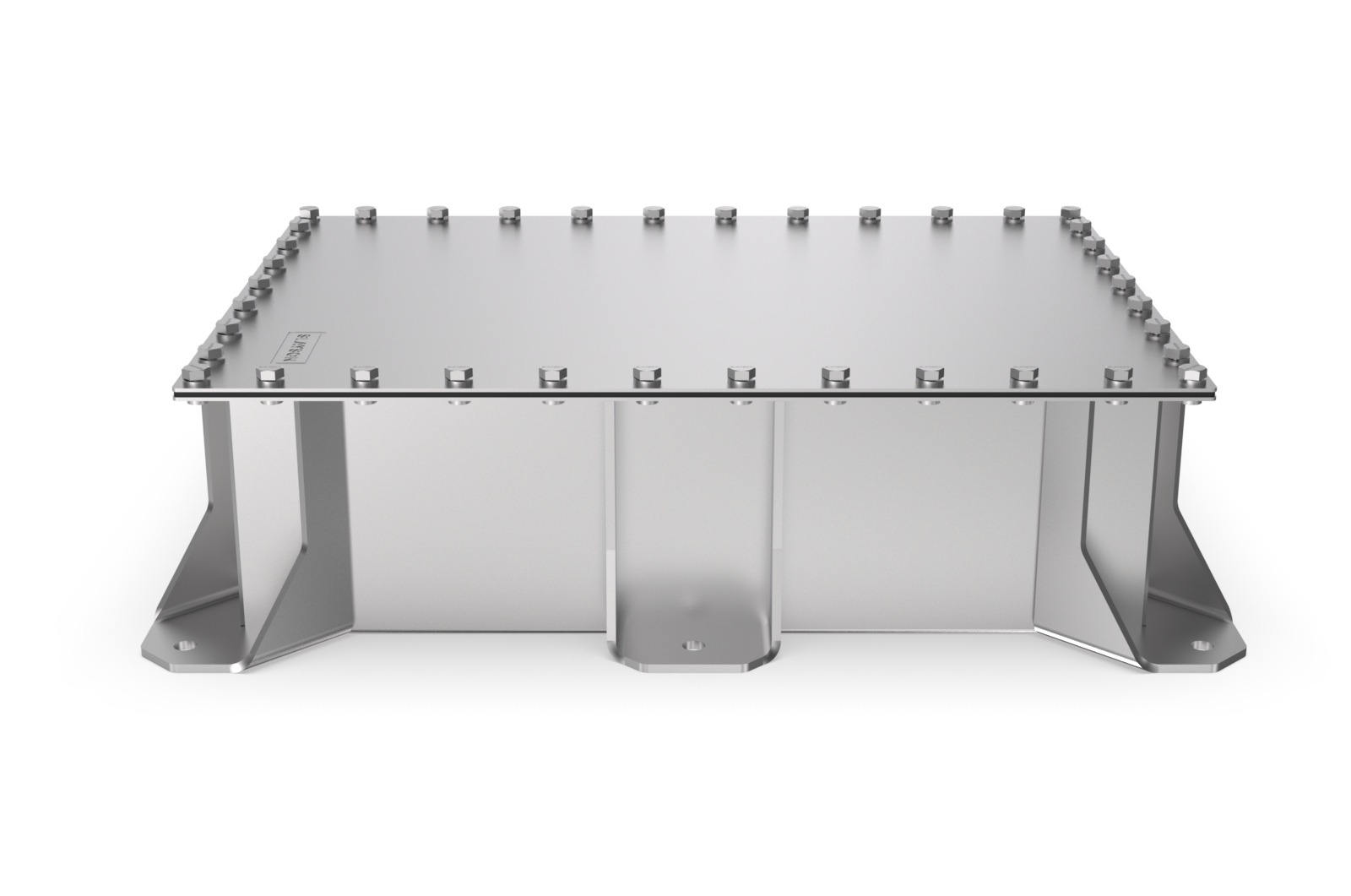

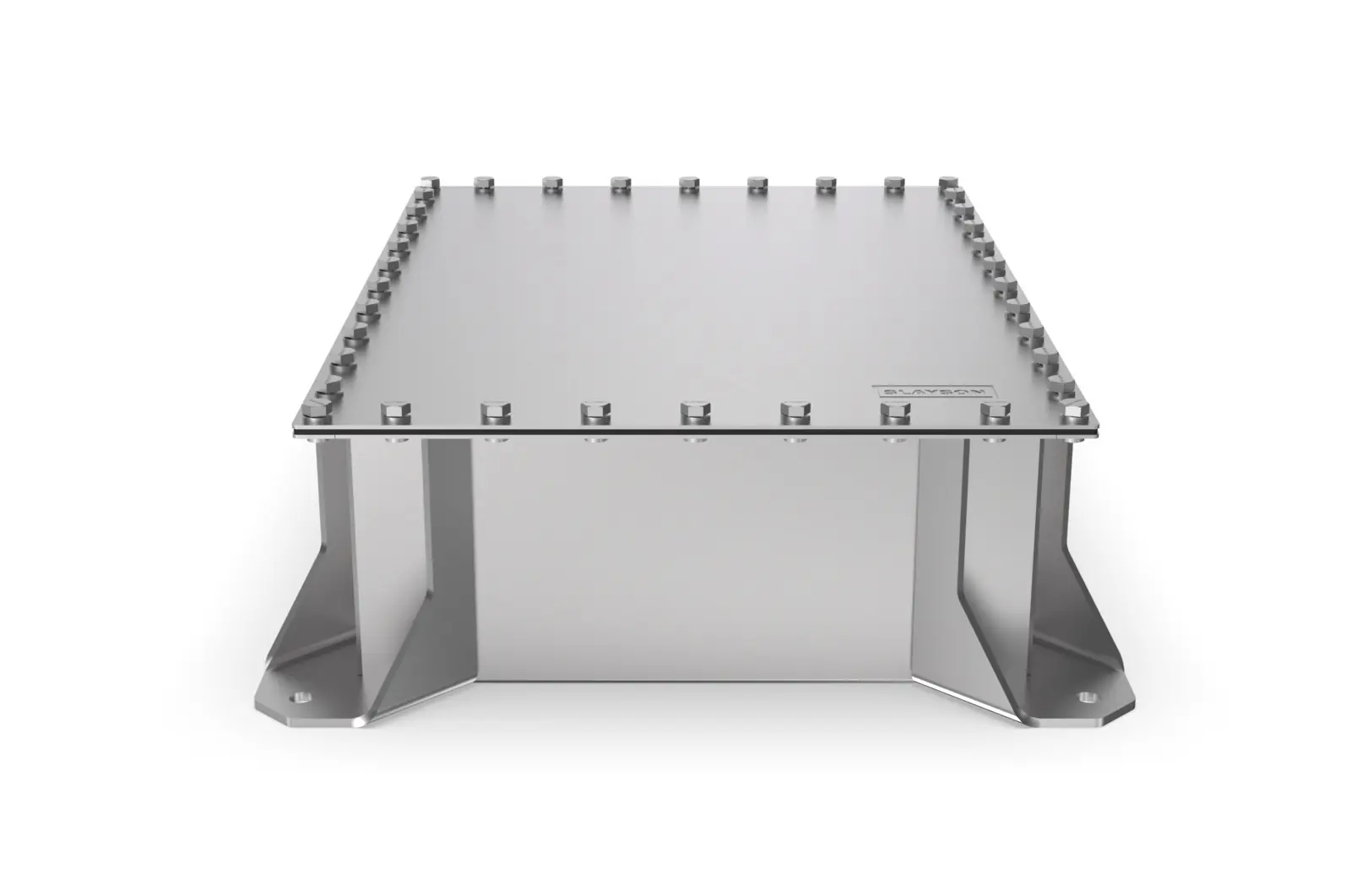

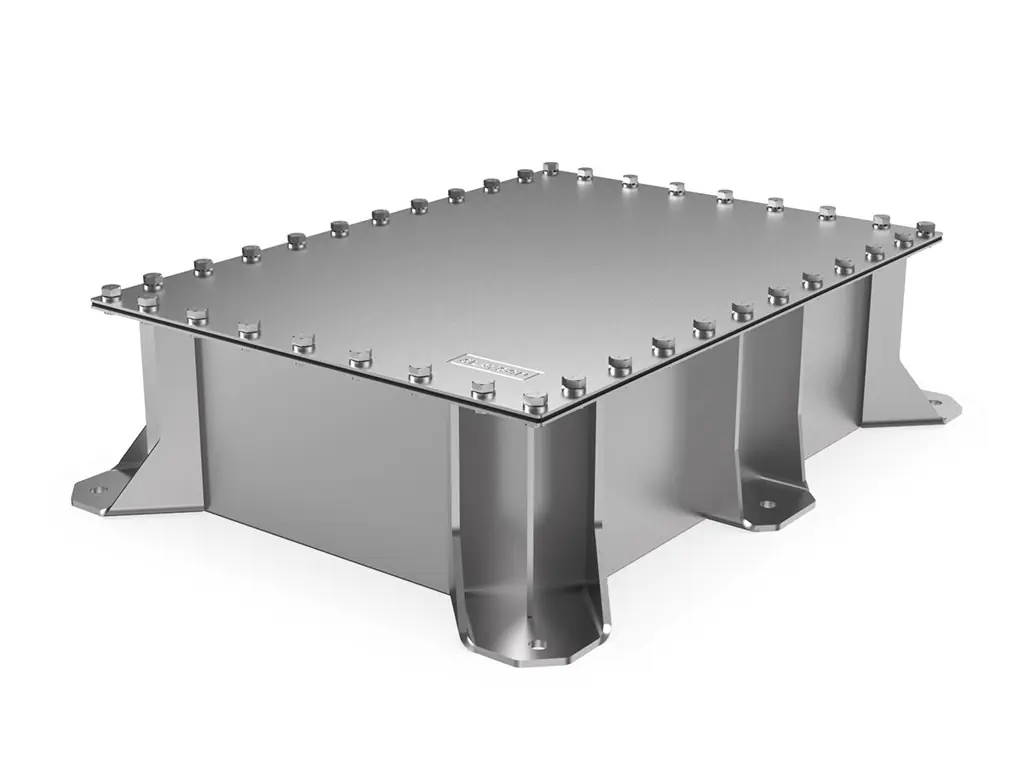

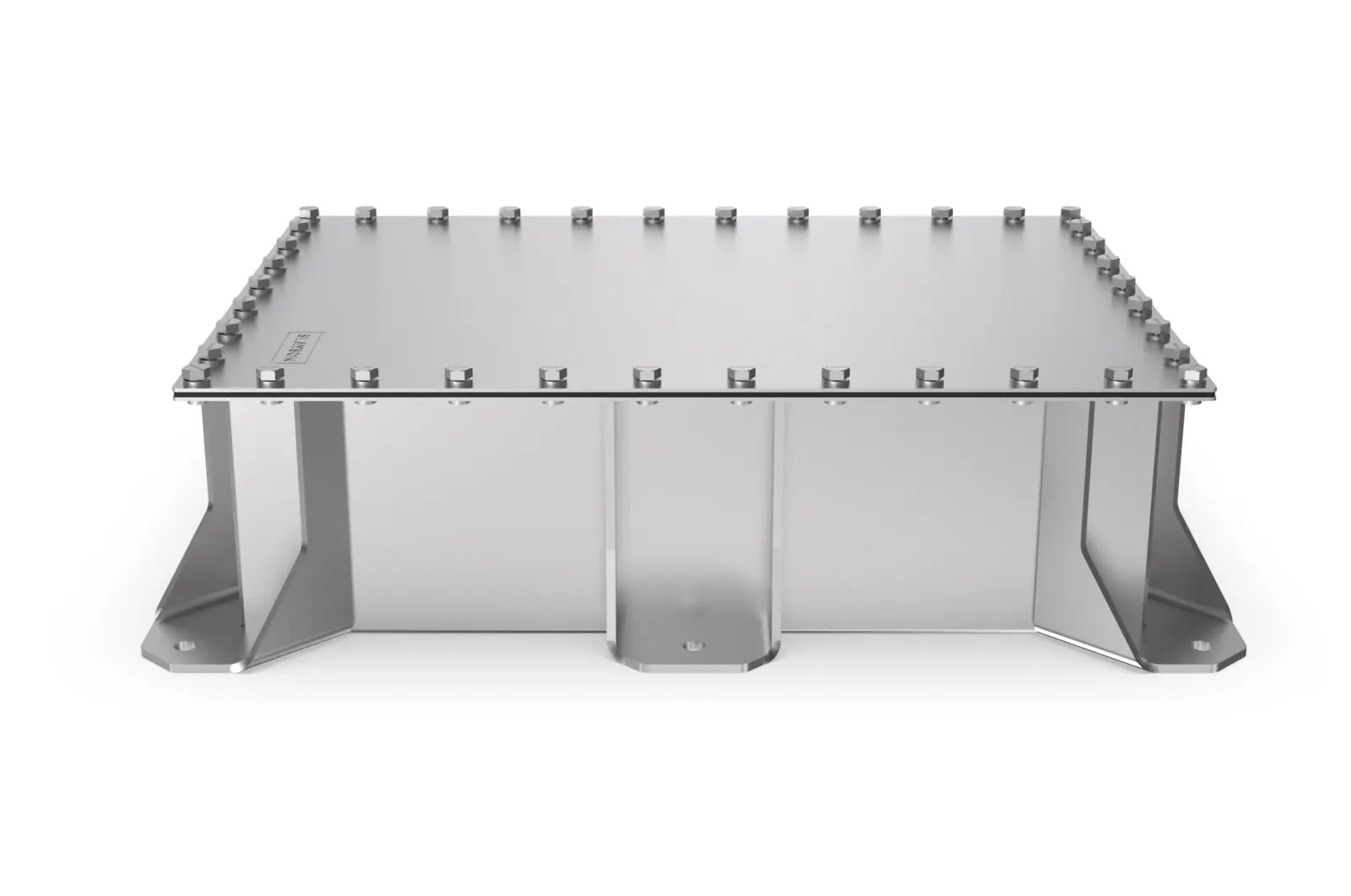

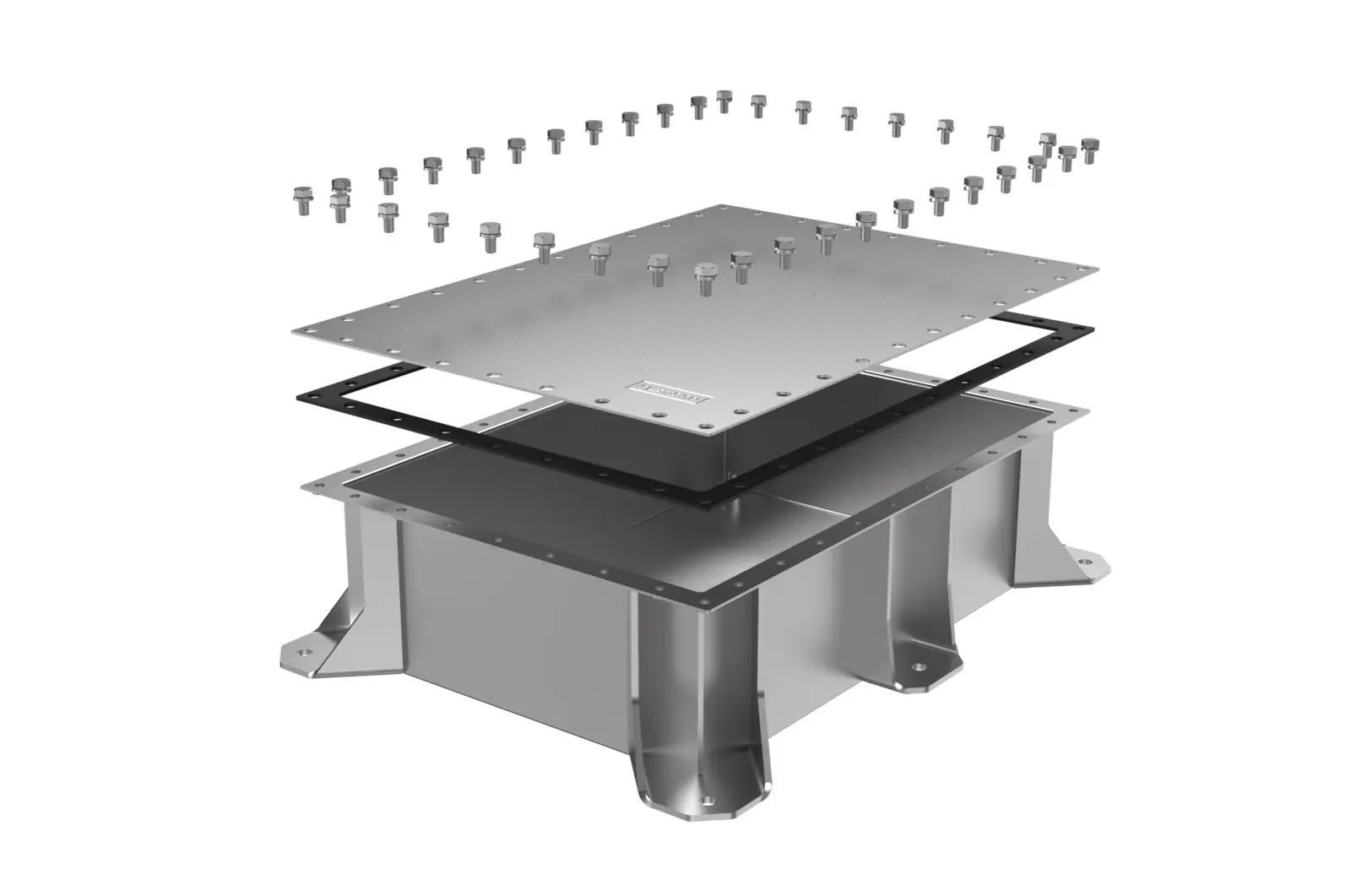

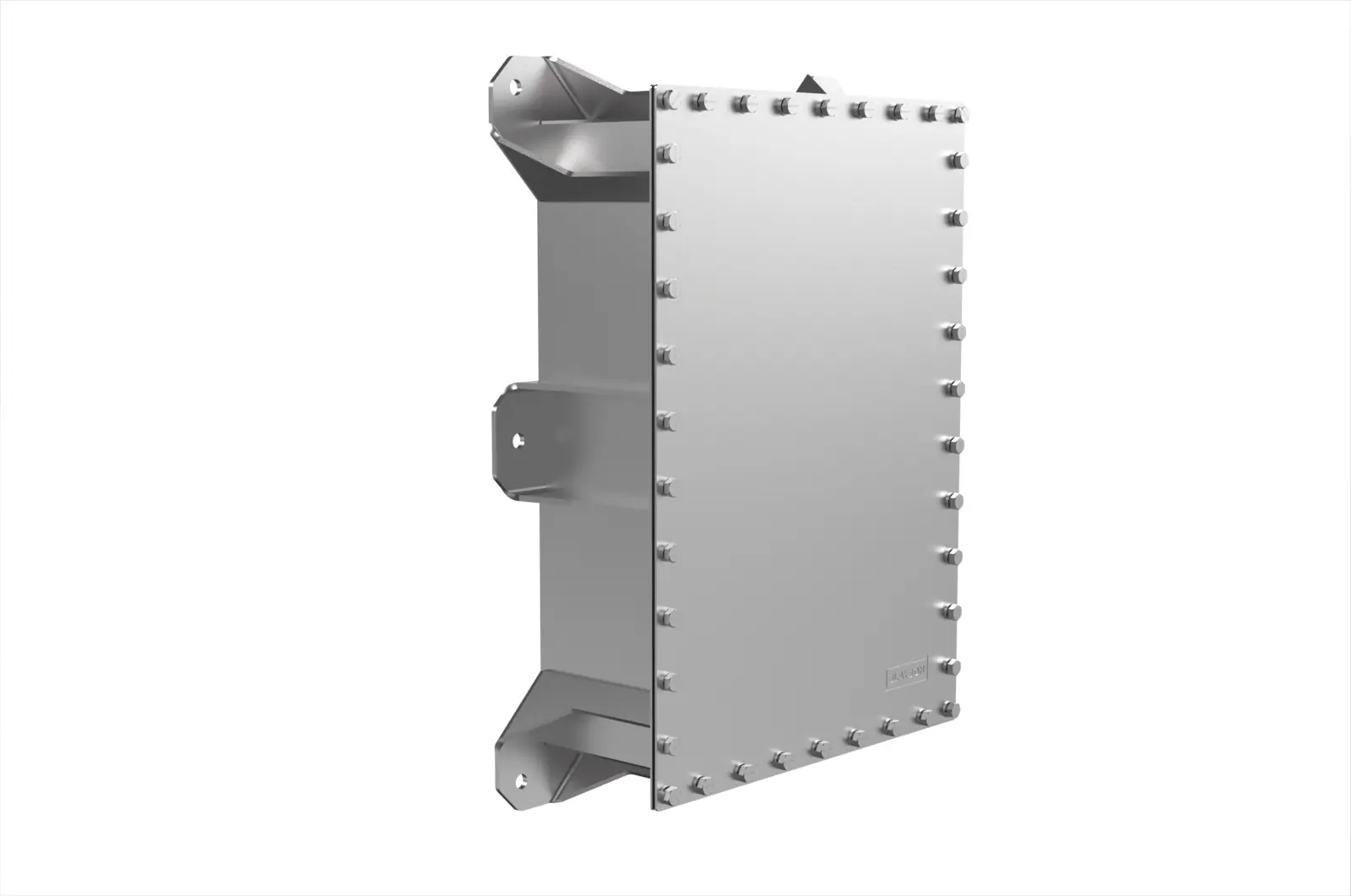

The SLAYSON® DEEP SUBMERSIBLE JUNCTION BOX is a highly durable and dependable enclosure designed to safeguard critical electrical systems and controls in extreme submersion conditions. Its unique exoskeletal design provides superior strength and mounting support, ensuring it can withstand intense pressure at significant depths. SLAYSON’s DEEP SUBMERSIBLE JUNCTION BOX Series and accessories offer a reliable enclosure system to meet the toughest environmental demands across industries.
