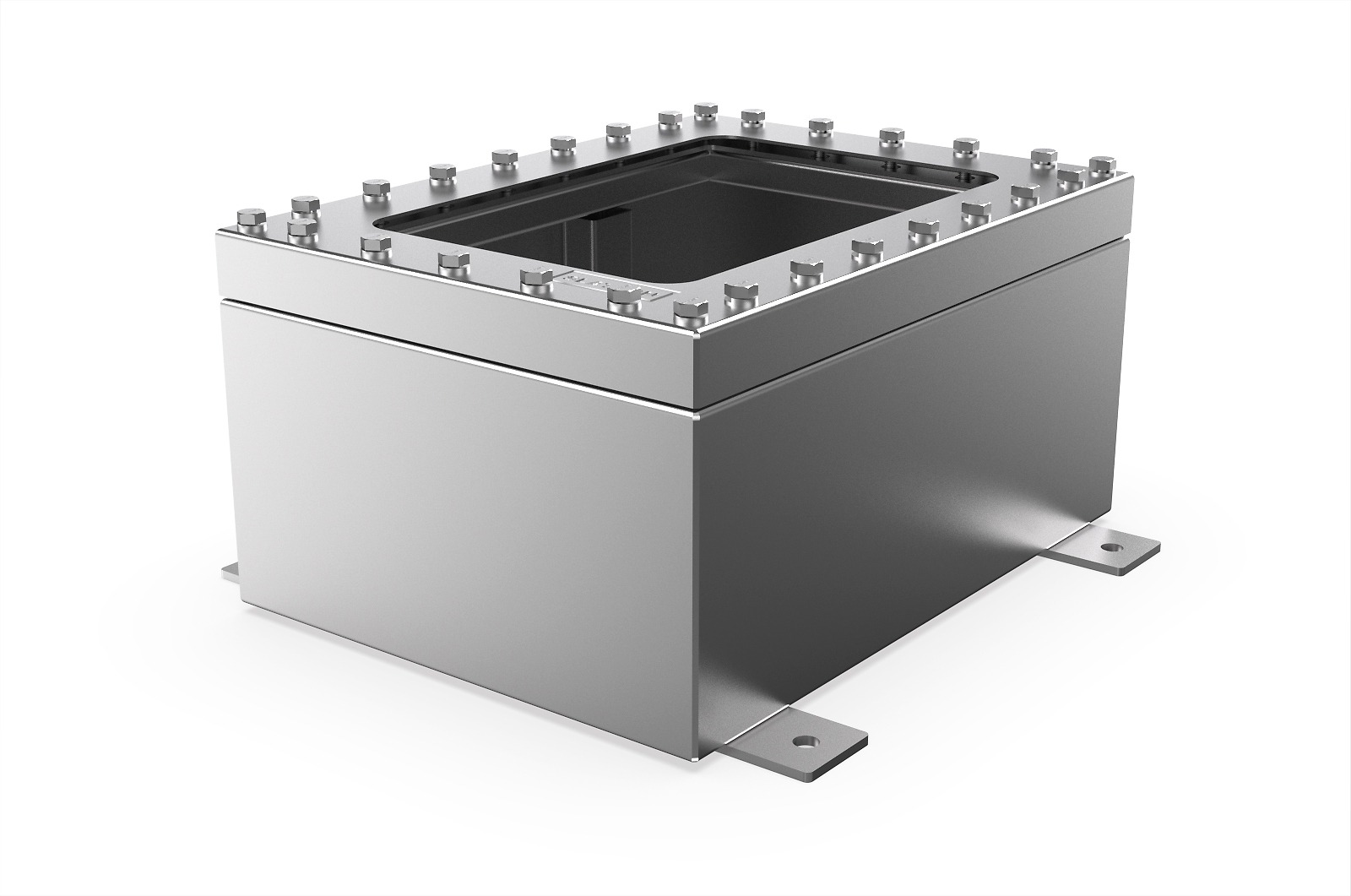

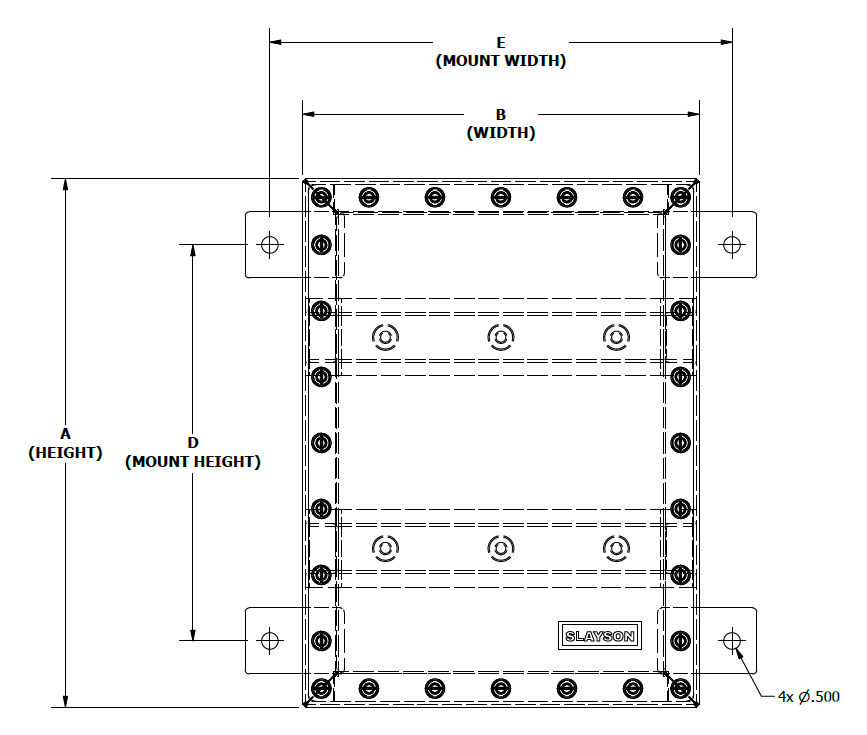

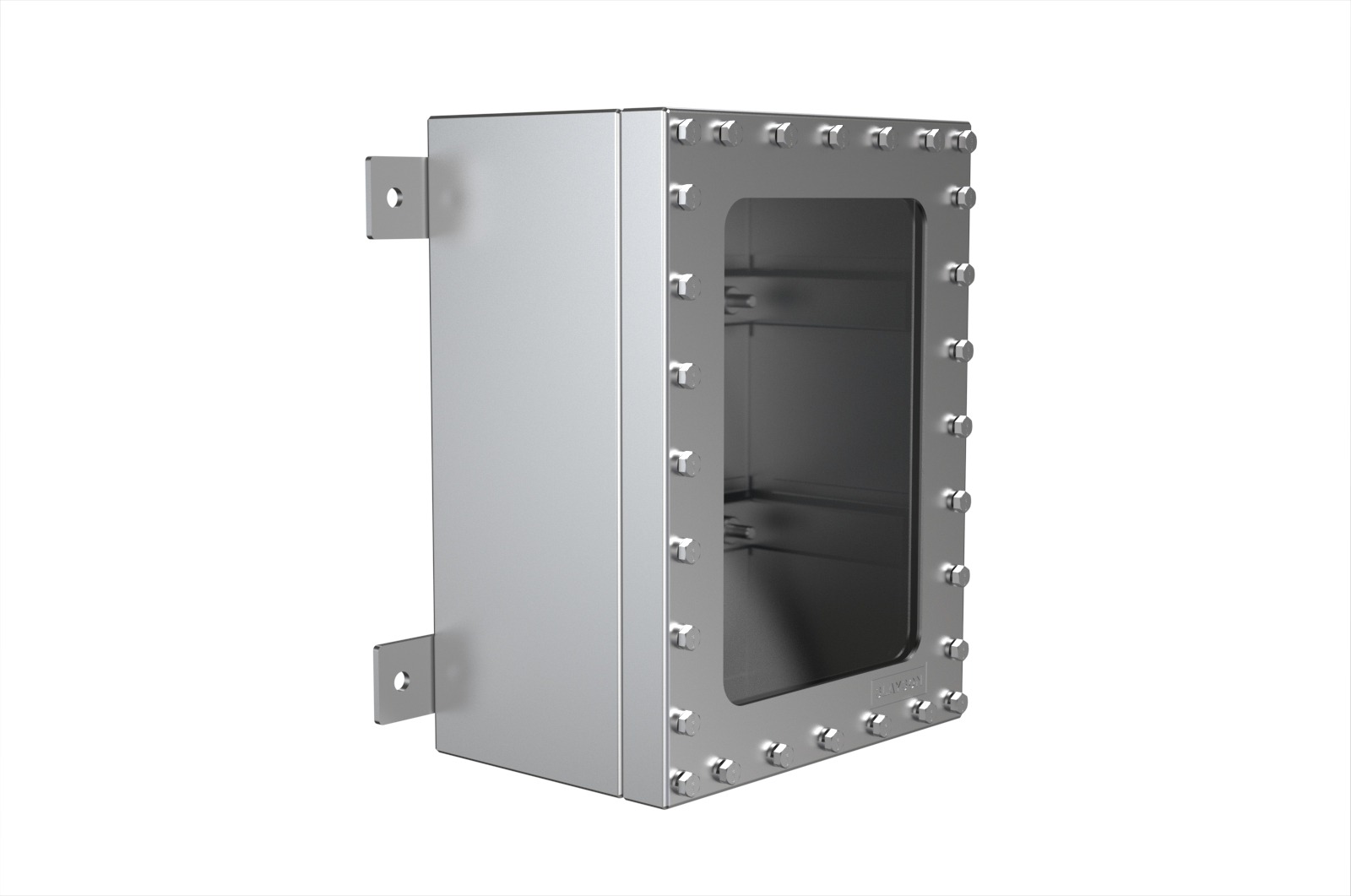

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
BSMI222216 22 558.8 22 558.8 16 406.4 18 457.2 24 609.6 18 457.2 18 457.2 14
BSMI222212 22 558.8 22 558.8 12 304.8 18 457.2 24 609.6 18 457.2 18 457.2 14
BSMI222210 22 558.8 22 558.8 10 254.0 18 457.2 24 609.6 18 457.2 18 457.2 14
BSMI222208 22 558.8 22 558.8 08 203.2 18 457.2 24 609.6 18 457.2 18 457.2 14
BSMI221612 22 558.8 16 406.4 12 304.8 18 457.2 18 457.2 18 457.2 12 304.8 14
BSMI221610 22 558.8 16 406.4 10 254.0 18 457.2 18 457.2 18 457.2 12 304.8 14
BSMI221608 22 558.8 16 406.4 08 203.2 18 457.2 18 457.2 18 457.2 12 304.8 14
BSMI221606 22 558.8 16 406.4 06 152.4 18 457.2 18 457.2 18 457.2 12 304.8 14
BSMI221210 22 558.8 12 304.8 10 254.0 18 457.2 14 355.6 18 457.2 08 203.2 14
BSMI221208 22 558.8 12 304.8 08 203.2 18 457.2 14 355.6 18 457.2 08 203.2 14
BSMI221206 22 558.8 12 304.8 06 152.4 18 457.2 14 355.6 18 457.2 08 203.2 14
BSMI202016 20 508.0 20 508.0 16 406.4 16 406.4 22 558.8 16 406.4 16 406.4 14
BSMI202012 20 508.0 20 508.0 12 304.8 16 406.4 22 558.8 16 406.4 16 406.4 14
BSMI202008 20 508.0 20 508.0 08 203.2 16 406.4 22 558.8 16 406.4 16 406.4 14
BSMI202006 20 508.0 20 508.0 06 152.4 16 406.4 22 558.8 16 406.4 16 406.4 14
BSMI201412 20 508.0 14 355.6 12 304.8 16 406.4 16 406.4 16 406.4 10 254.0 14
BSMI201410 20 508.0 14 355.6 10 254.0 16 406.4 16 406.4 16 406.4 10 254.0 14
BSMI201408 20 508.0 14 355.6 08 203.2 16 406.4 16 406.4 16 406.4 10 254.0 14
BSMI201406 20 508.0 14 355.6 06 152.4 16 406.4 16 406.4 16 406.4 10 254.0 14
BSMI201210 20 508.0 12 304.8 10 254.0 16 406.4 14 355.6 16 406.4 08 203.2 14
BSMI201208 20 508.0 12 304.8 08 203.2 16 406.4 14 355.6 16 406.4 08 203.2 14
BSMI201206 20 508.0 12 304.8 06 152.4 16 406.4 14 355.6 16 406.4 08 203.2 14
BSMI181814 18 457.2 18 457.2 14 355.6 14 355.6 20 508.0 14 355.6 14 355.6 14
BSMI181812 18 457.2 18 457.2 12 304.8 14 355.6 20 508.0 14 355.6 14 355.6 14
BSMI181808 18 457.2 18 457.2 08 203.2 14 355.6 20 508.0 14 355.6 14 355.6 14
BSMI181806 18 457.2 18 457.2 06 152.4 14 355.6 20 508.0 14 355.6 14 355.6 14
BSMI181412 18 457.2 14 355.6 12 304.8 14 355.6 16 406.4 14 355.6 10 254.0 14
BSMI181410 18 457.2 14 355.6 10 254.0 14 355.6 16 406.4 14 355.6 10 254.0 14
BSMI181408 18 457.2 14 355.6 08 203.2 14 355.6 16 406.4 14 355.6 10 254.0 14
BSMI181406 18 457.2 14 355.6 06 152.4 14 355.6 16 406.4 14 355.6 10 254.0 14
BSMI181210 18 457.2 12 304.8 10 254.0 14 355.6 14 355.6 14 355.6 08 203.2 14
BSMI181208 18 457.2 12 304.8 08 203.2 14 355.6 14 355.6 14 355.6 08 203.2 14
BSMI181206 18 457.2 12 304.8 06 152.4 14 355.6 14 355.6 14 355.6 08 203.2 14
BSMI161612 16 406.4 16 406.4 12 304.8 12 304.8 18 457.2 12 304.8 12 304.8 14
BSMI161610 16 406.4 16 406.4 10 254.0 12 304.8 18 457.2 12 304.8 12 304.8 14
BSMI161608 16 406.4 16 406.4 08 203.2 12 304.8 18 457.2 12 304.8 12 304.8 14
BSMI161606 16 406.4 16 406.4 06 152.4 12 304.8 18 457.2 12 304.8 12 304.8 14
BSMI161412 16 406.4 14 355.6 12 304.8 12 304.8 16 406.4 12 304.8 10 254.0 14
BSMI161410 16 406.4 14 355.6 10 254.0 12 304.8 16 406.4 12 304.8 10 254.0 14
BSMI161408 16 406.4 14 355.6 08 203.2 12 304.8 16 406.4 12 304.8 10 254.0 14
BSMI161406 16 406.4 14 355.6 06 152.4 12 304.8 16 406.4 12 304.8 10 254.0 14
BSMI161210 16 406.4 12 304.8 10 254.0 12 304.8 14 355.6 12 304.8 08 203.2 14
BSMI161208 16 406.4 12 304.8 08 203.2 12 304.8 14 355.6 12 304.8 08 203.2 14
BSMI161206 16 406.4 12 304.8 06 152.4 12 304.8 14 355.6 12 304.8 08 203.2 14
BSMI141412 14 355.6 14 355.6 12 304.8 10 254.0 16 406.4 10 254.0 10 254.0 14
BSMI141410 14 355.6 14 355.6 10 254.0 10 254.0 16 406.4 10 254.0 10 254.0 14
BSMI141408 14 355.6 14 355.6 08 203.2 10 254.0 16 406.4 10 254.0 10 254.0 14
BSMI141406 14 355.6 14 355.6 06 152.4 10 254.0 16 406.4 10 254.0 10 254.0 14
BSMI141210 14 355.6 12 304.8 10 254.0 10 254.0 14 355.6 10 254.0 08 203.2 14
BSMI141208 14 355.6 12 304.8 08 203.2 10 254.0 14 355.6 10 254.0 08 203.2 14
BSMI141206 14 355.6 12 304.8 06 152.4 10 254.0 14 355.6 10 254.0 08 203.2 14
BSMI121210 12 304.8 12 304.8 10 254.0 08 203.2 14 355.6 08 203.2 08 203.2 14
BSMI121208 12 304.8 12 304.8 08 203.2 08 203.2 14 355.6 08 203.2 08 203.2 14
BSMI121206 12 304.8 12 304.8 06 152.4 08 203.2 14 355.6 08 203.2 08 203.2 14
BSMI121008 12 304.8 10 254.0 08 203.2 08 203.2 12 304.8 08 203.2 06 152.4 14
BSMI121006 12 304.8 10 254.0 06 152.4 08 203.2 12 304.8 08 203.2 06 152.4 14
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
BAG555545 55 550.0 55 550.0 40 400.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
BAG555530 55 550.0 55 550.0 30 300.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
BAG555525 55 550.0 55 550.0 25 250.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
BAG555520 55 550.0 55 550.0 20 200.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
BAG554030 55 550.0 40 400.0 30 300.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
BAG554025 55 550.0 40 400.0 25 250.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
BAG554020 55 550.0 40 400.0 20 200.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
BAG554015 55 550.0 40 400.0 15 150.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
BAG553025 55 550.0 30 300.0 25 250.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
BAG553020 55 550.0 30 300.0 20 200.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
BAG553015 55 550.0 30 300.0 15 150.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
BAG505040 50 500.0 50 500.0 40 400.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
BAG505030 50 500.0 50 500.0 30 300.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
BAG505020 50 500.0 50 500.0 20 200.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
BAG505015 50 500.0 50 500.0 15 150.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
BAG503530 50 500.0 35 350.0 30 300.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
BAG503525 50 500.0 35 350.0 25 250.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
BAG503520 50 500.0 35 350.0 20 200.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
BAG503515 50 500.0 35 350.0 15 150.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
BAG503025 50 500.0 30 300.0 25 250.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
BAG503020 50 500.0 30 300.0 20 200.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
BAG503015 50 500.0 30 300.0 15 150.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
BAG454535 45 450.0 45 450.0 35 350.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
BAG454530 45 450.0 45 450.0 30 300.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
BAG454520 45 450.0 45 450.0 20 200.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
BAG454515 45 450.0 45 450.0 15 150.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
BAG453530 45 450.0 35 350.0 30 300.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
BAG453525 45 450.0 35 350.0 25 250.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
BAG453520 45 450.0 35 350.0 20 200.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
BAG453515 45 450.0 35 350.0 15 150.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
BAG453025 45 450.0 30 300.0 25 250.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
BAG453020 45 450.0 30 300.0 20 200.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
BAG453015 45 450.0 30 300.0 15 150.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
BAG404030 40 400.0 40 400.0 30 300.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
BAG404025 40 400.0 40 400.0 25 250.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
BAG404020 40 400.0 40 400.0 20 200.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
BAG404015 40 400.0 40 400.0 15 150.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
BAG403530 40 400.0 35 350.0 30 300.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
BAG403525 40 400.0 35 350.0 25 250.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
BAG403520 40 400.0 35 350.0 20 200.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
BAG403515 40 400.0 35 350.0 15 150.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
BAG403025 40 400.0 30 300.0 25 250.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
BAG403020 40 400.0 30 300.0 20 200.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
BAG403015 40 400.0 30 300.0 15 150.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
BAG353530 35 350.0 35 350.0 30 300.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
BAG353525 35 350.0 35 350.0 25 250.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
BAG353520 35 350.0 35 350.0 20 200.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
BAG353515 35 350.0 35 350.0 15 150.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
BAG353025 35 350.0 30 300.0 25 250.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
BAG353020 35 350.0 30 300.0 20 200.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
BAG353015 35 350.0 30 300.0 15 150.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
BAG303025 30 300.0 30 300.0 25 250.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
BAG303020 30 300.0 30 300.0 20 200.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
BAG303015 30 300.0 30 300.0 15 150.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
BAG302520 30 300.0 25 250.0 20 200.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00
BAG302515 30 300.0 25 250.0 15 150.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00

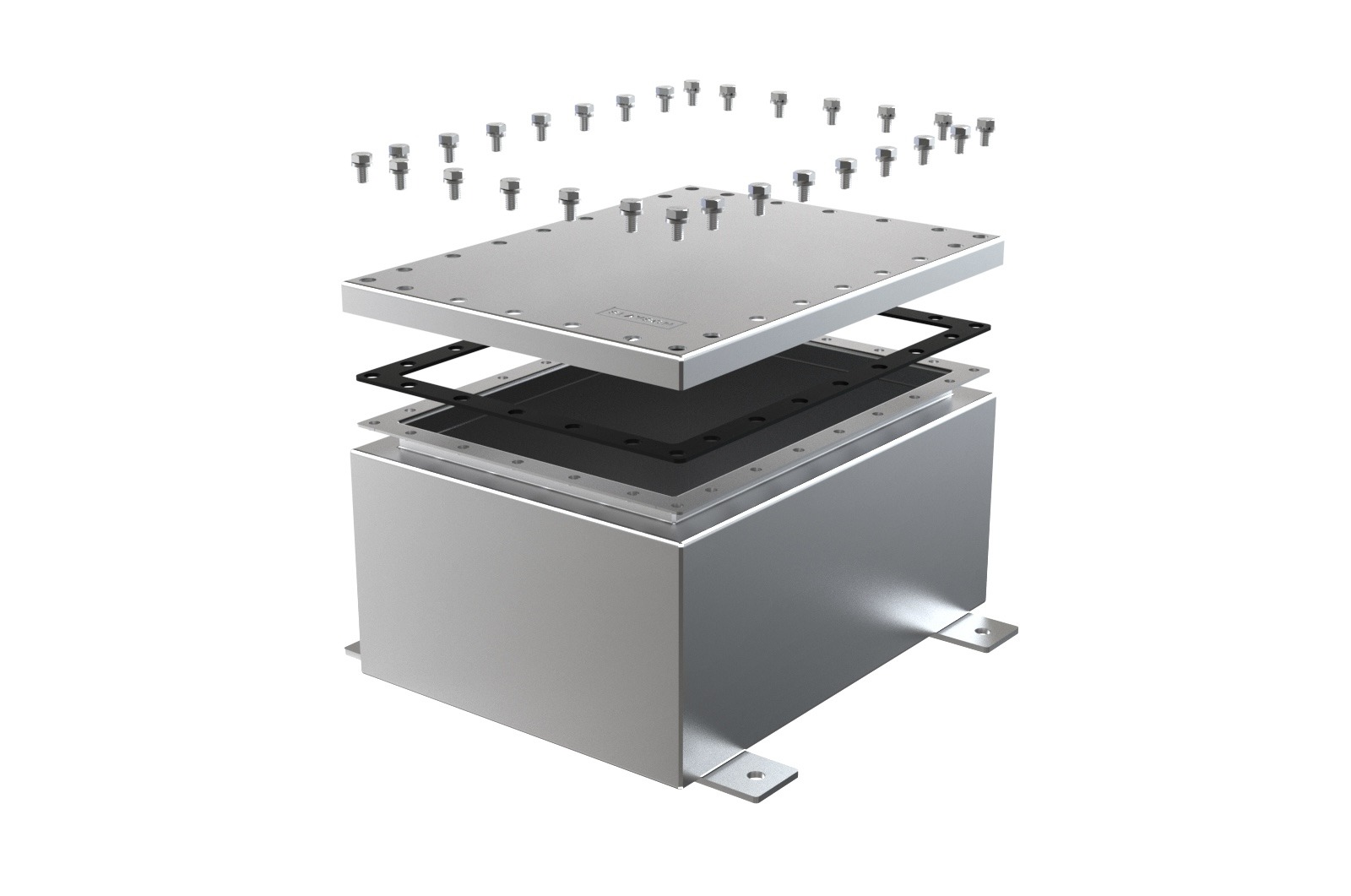

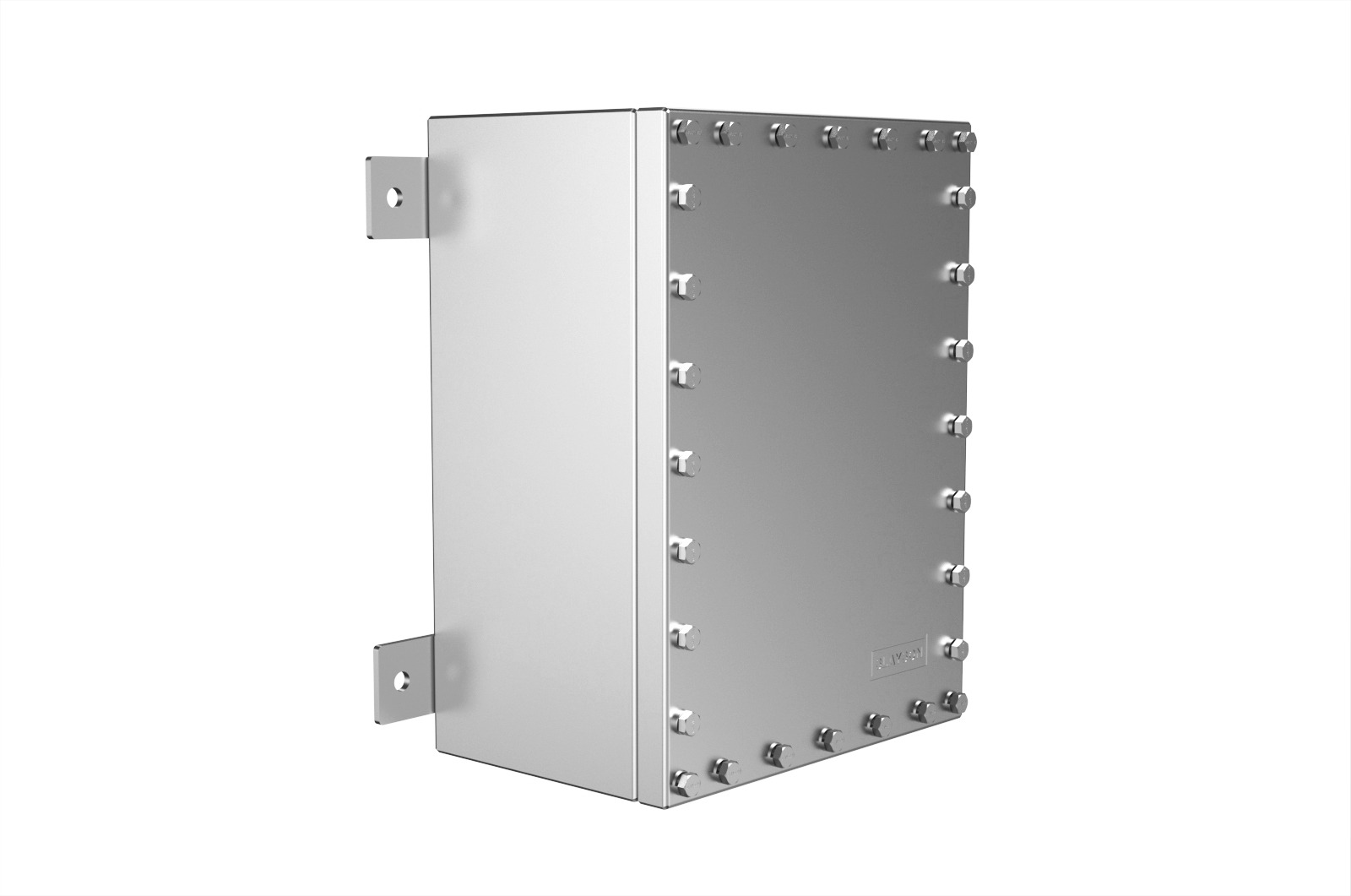

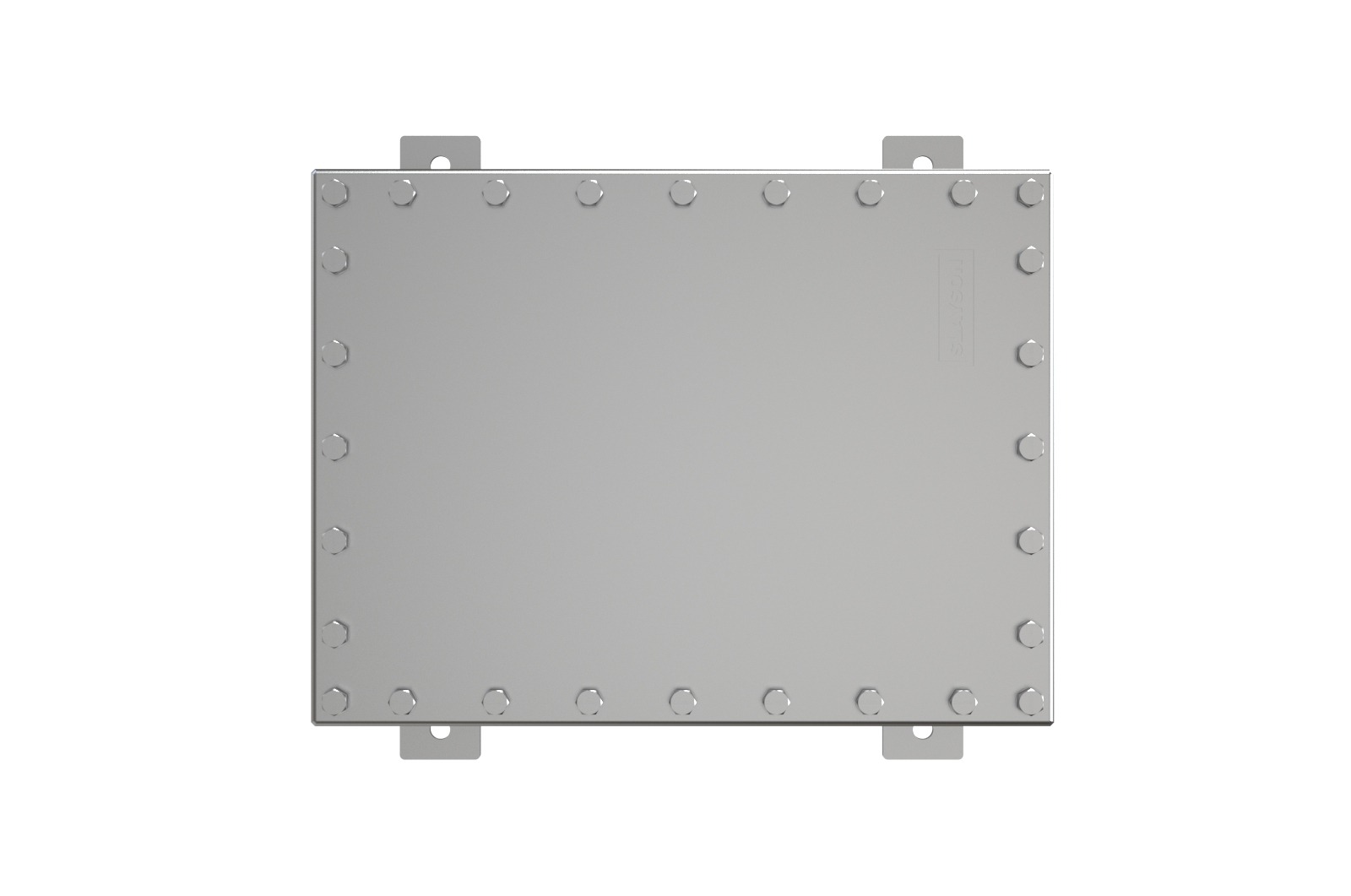

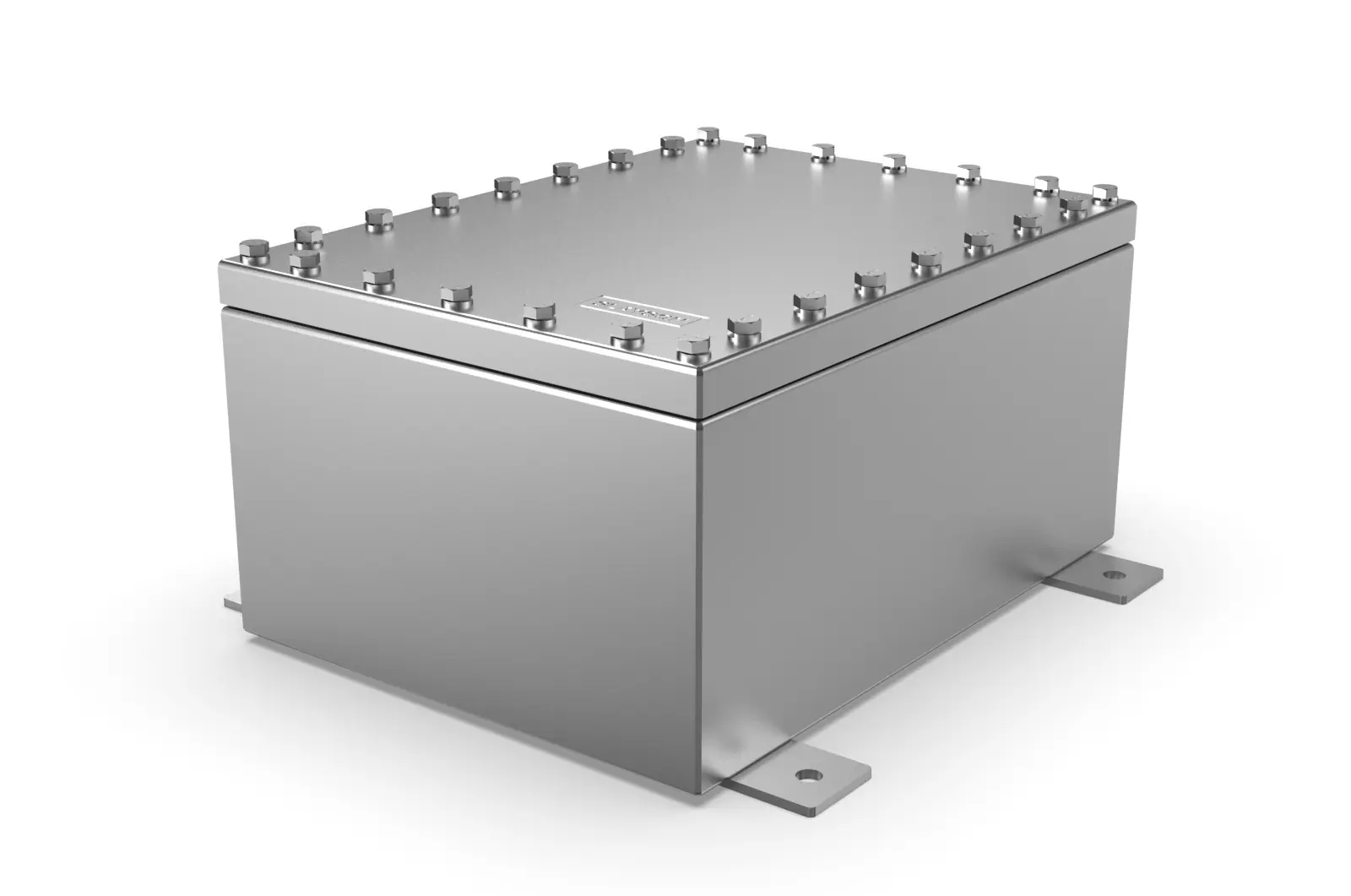

COMPACT SUBMERSIBLE ENCLOSURE OVERVIEW

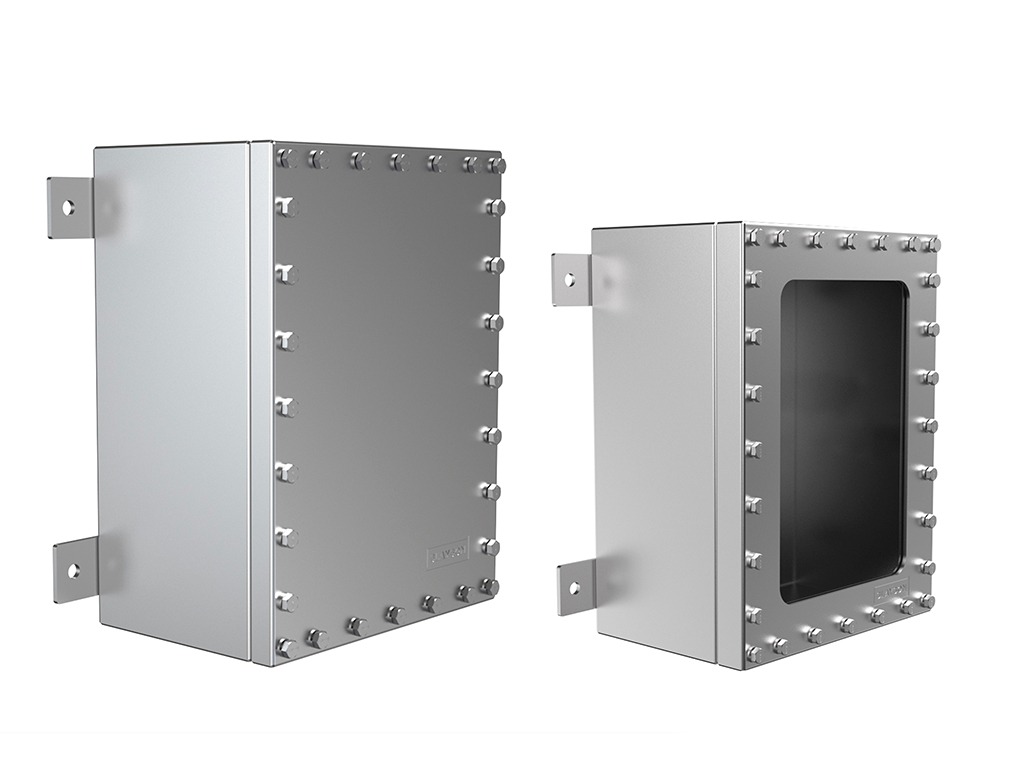

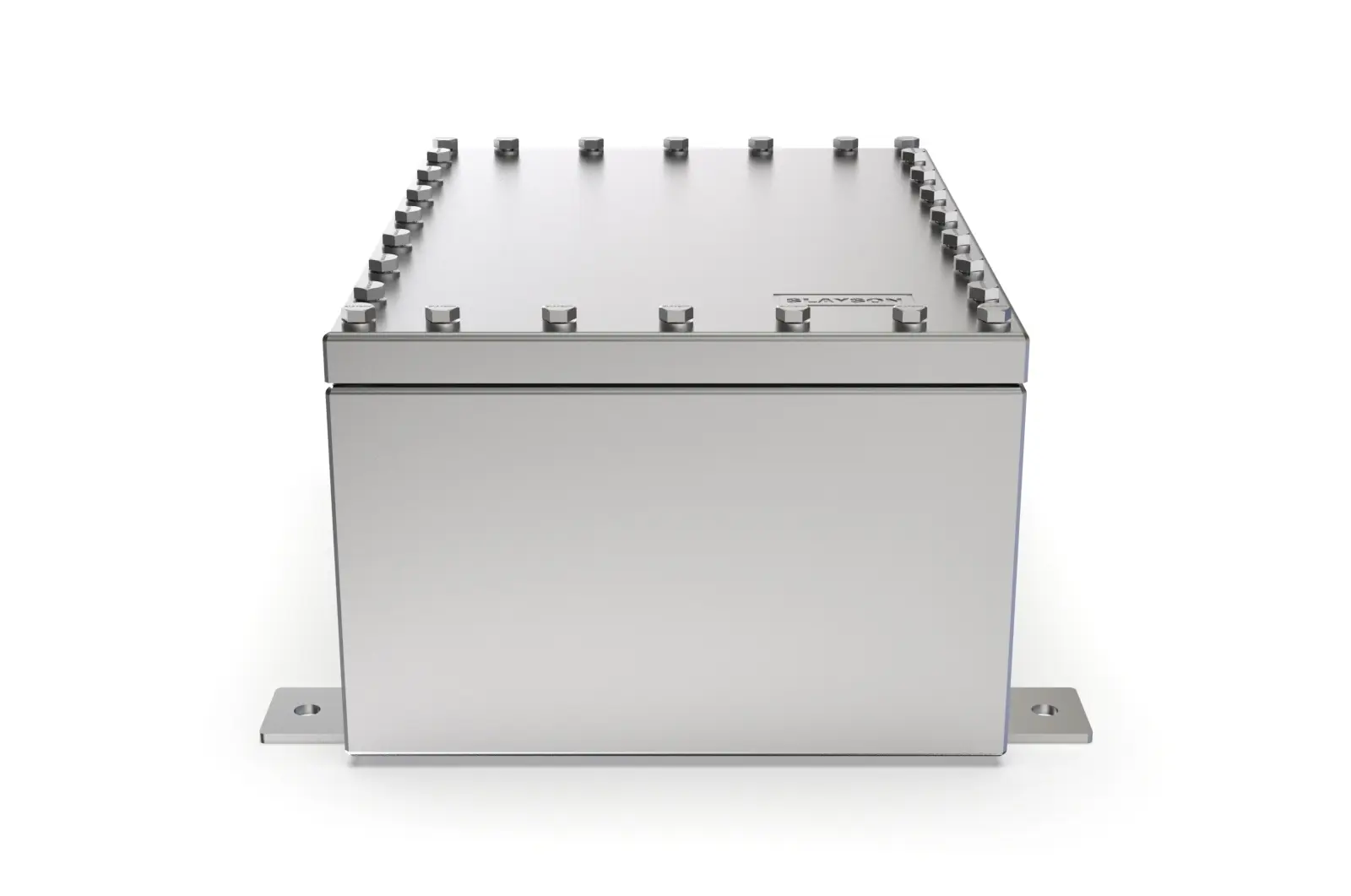

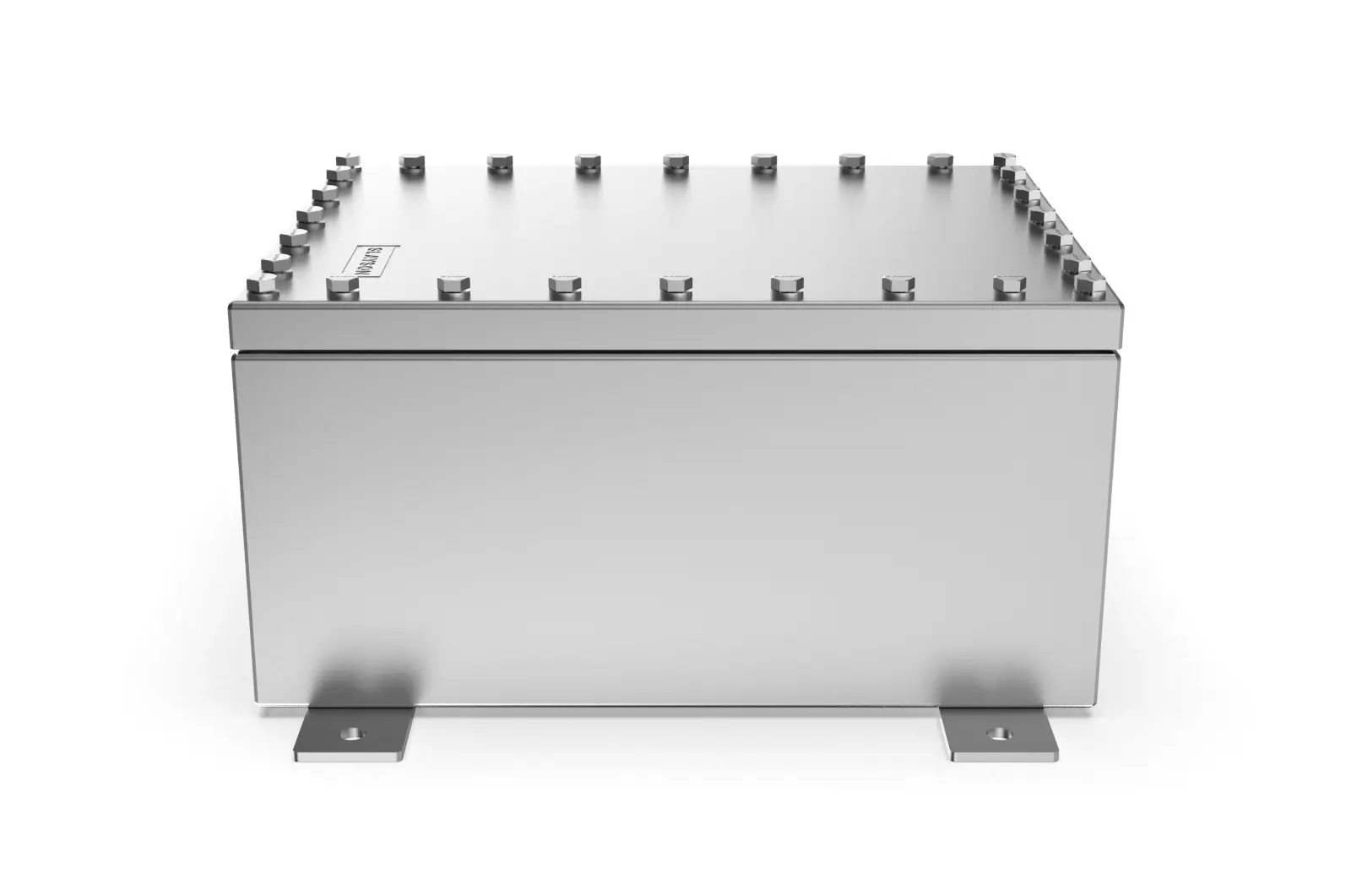

The SLAYSON® COMPACT SUBMERSIBLE Series has been engineered for locations where space is limited or restricted, and is rated NEMA 6P/ IP68 for partial or prolonged submersion. It will protect against particle and liquid ingress up to depths of 15ft/5m. The Compact Submersible Series comes standard in corrosion and impact resistant 14g 316 Marine Grade Stainless Steel making it capable of protecting your vital electrical equipment in harsh environments.

SLAYSON® COMPACT SUBMERSIBLE ENCLOSURES are a smaller version of the Standard Submersible enclosure. The COMPACT SUBMERSIBLE Series is available in a variety of sizes (10″x 10″ to 20″x 20″); each one is easily modified with our assortment of accessories. SLAYSON® design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON® will design and engineer a custom COMPACT SUBMERSIBLE enclosure to meet your requirements.
