IMPERIAL A B C D E INTERNAL MOUNT PLATE

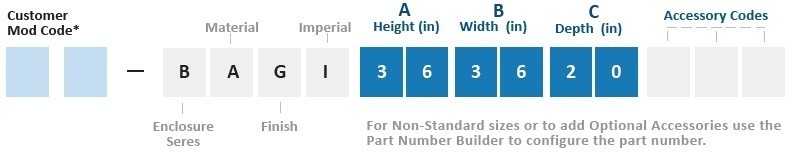

PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
BAGI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
BAGI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
BAGI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
BAGI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
BAGI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
BAGI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
BAGI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
BAGI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
BAGI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
BAGI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
BAGI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
BAGI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
BAGI342816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
BAGI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
BAGI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
BAGI342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
BAGI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
BAGI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
BAGI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
BAGI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
BAGI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
BAGI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
BAGI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
BAGI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
BAGI302016 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
BAGI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
BAGI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
BAGI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
BAGI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
BAGI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
BAGI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
BAGI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
BAGI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
BAGI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
BAGI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
BAGI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
BAGI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
BAGI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
BAGI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
BAGI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
BAGI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
BAGI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
BAGI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
BAGI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
BAGI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
BAGI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
BAGI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
BAGI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
BAGI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
BAGI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
BAGI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
BAGI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 20 508.0 10 254.0 0.08″
BAGI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 20 508.0 10 254.0 0.08″
BAGI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 20 508.0 10 254.0 0.08″
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
BAG909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BAG909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BAG909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BAG907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BAG907540 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BAG907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BAG906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BAG906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BAG906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BAG858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BAG858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BAG858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BAG857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BAG857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BAG857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BAG856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BAG856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BAG856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BAG757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BAG757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BAG757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BAG766040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BAG756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BAG756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BAG755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BAG755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BAG755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BAG707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BAG707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BAG707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BAG705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BAG705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BAG795525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BAG704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BAG704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BAG704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BAG656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BAG656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BAG656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BAG655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BAG655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BAG655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BAG654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BAG654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BAG654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BAG606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BAG606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BAG606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BAG604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BAG604525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BAG604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BAG603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
BAG603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
BAG603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00

STANDARD SUBMERSIBLE ENCLOSURE OVERVIEW

The STANDARD SUBMERSIBLE ENCLOSURE is the industry standard for power & utility, infrastructure and renewal energy companies requiring ultimate protection against extreme environmental conditions. Manufactured from corrosion resistant Stainless Steel Type 316 or Aluminum and a single piece Neoprene Gasket to provide watertight protection of vital electrical equipment. SLAYSON’s Standard SUBMERSIBLE range of enclosures and accessories deliver a reliable enclosures system to meet all industry environmental challenges.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
