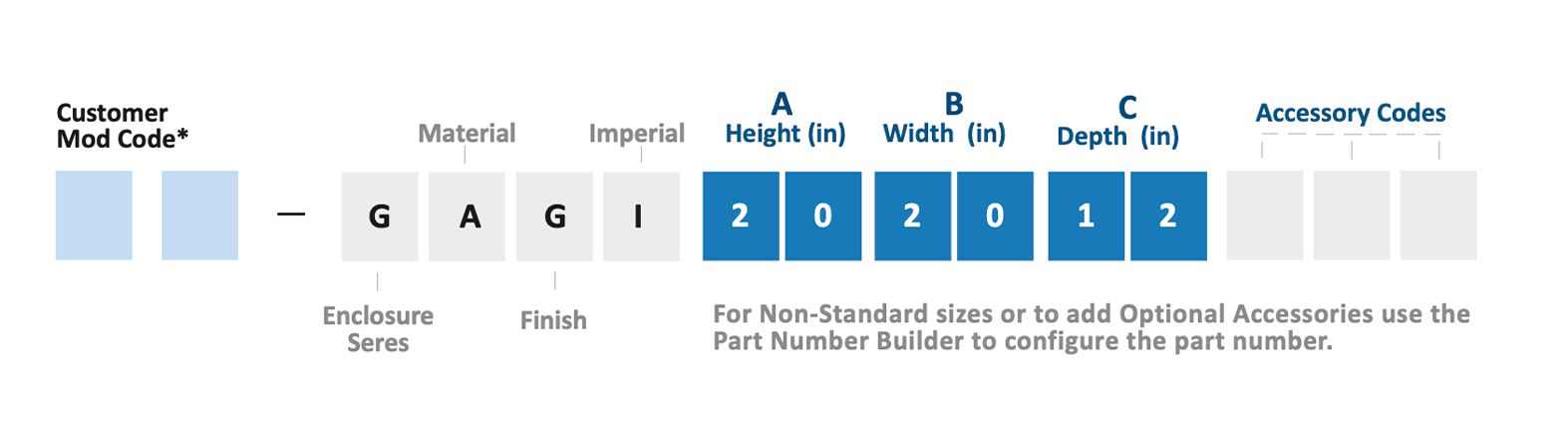

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
GAGI222216 22 558.8 22 558.8 16 406.4 18 457.2 24 609.6 18 457.2 18 457.2 14
GAGI222212 22 558.8 22 558.8 12 304.8 18 457.2 24 609.6 18 457.2 18 457.2 14
GAGI222210 22 558.8 22 558.8 10 254.0 18 457.2 24 609.6 18 457.2 18 457.2 14
GAGI222208 22 558.8 22 558.8 08 203.2 18 457.2 24 609.6 18 457.2 18 457.2 14
GAGI221612 22 558.8 16 406.4 12 304.8 18 457.2 18 457.2 18 457.2 12 304.8 14
GAGI221610 22 558.8 16 406.4 10 254.0 18 457.2 18 457.2 18 457.2 12 304.8 14
GAGI221608 22 558.8 16 406.4 08 203.2 18 457.2 18 457.2 18 457.2 12 304.8 14
GAGI221606 22 558.8 16 406.4 06 152.4 18 457.2 18 457.2 18 457.2 12 304.8 14
GAGI221210 22 558.8 12 304.8 10 254.0 18 457.2 14 355.6 18 457.2 08 203.2 14
GAGI221208 22 558.8 12 304.8 08 203.2 18 457.2 14 355.6 18 457.2 08 203.2 14
GAGI221206 22 558.8 12 304.8 06 152.4 18 457.2 14 355.6 18 457.2 08 203.2 14
GAGI202016 20 508.0 20 508.0 16 406.4 16 406.4 22 558.8 16 406.4 16 406.4 14
GAGI202012 20 508.0 20 508.0 12 304.8 16 406.4 22 558.8 16 406.4 16 406.4 14
GAGI202008 20 508.0 20 508.0 08 203.2 16 406.4 22 558.8 16 406.4 16 406.4 14
GAGI202006 20 508.0 20 508.0 06 152.4 16 406.4 22 558.8 16 406.4 16 406.4 14
GAGI201412 20 508.0 14 355.6 12 304.8 16 406.4 16 406.4 16 406.4 10 254.0 14
GAGI201410 20 508.0 14 355.6 10 254.0 16 406.4 16 406.4 16 406.4 10 254.0 14
GAGI201408 20 508.0 14 355.6 08 203.2 16 406.4 16 406.4 16 406.4 10 254.0 14
GAGI201406 20 508.0 14 355.6 06 152.4 16 406.4 16 406.4 16 406.4 10 254.0 14
GAGI201210 20 508.0 12 304.8 10 254.0 16 406.4 14 355.6 16 406.4 08 203.2 14
GAGI201208 20 508.0 12 304.8 08 203.2 16 406.4 14 355.6 16 406.4 08 203.2 14
GAGI201206 20 508.0 12 304.8 06 152.4 16 406.4 14 355.6 16 406.4 08 203.2 14
GAGI181814 18 457.2 18 457.2 14 355.6 14 355.6 20 508.0 14 355.6 14 355.6 14
GAGI181812 18 457.2 18 457.2 12 304.8 14 355.6 20 508.0 14 355.6 14 355.6 14
GAGI181808 18 457.2 18 457.2 08 203.2 14 355.6 20 508.0 14 355.6 14 355.6 14
GAGI181806 18 457.2 18 457.2 06 152.4 14 355.6 20 508.0 14 355.6 14 355.6 14
GAGI181412 18 457.2 14 355.6 12 304.8 14 355.6 16 406.4 14 355.6 10 254.0 14
GAGI181410 18 457.2 14 355.6 10 254.0 14 355.6 16 406.4 14 355.6 10 254.0 14
GAGI181408 18 457.2 14 355.6 08 203.2 14 355.6 16 406.4 14 355.6 10 254.0 14
GAGI181406 18 457.2 14 355.6 06 152.4 14 355.6 16 406.4 14 355.6 10 254.0 14
GAGI181210 18 457.2 12 304.8 10 254.0 14 355.6 14 355.6 14 355.6 08 203.2 14
GAGI181208 18 457.2 12 304.8 08 203.2 14 355.6 14 355.6 14 355.6 08 203.2 14
GAGI181206 18 457.2 12 304.8 06 152.4 14 355.6 14 355.6 14 355.6 08 203.2 14
GAGI161612 16 406.4 16 406.4 12 304.8 12 304.8 18 457.2 12 304.8 12 304.8 14
GAGI161610 16 406.4 16 406.4 10 254.0 12 304.8 18 457.2 12 304.8 12 304.8 14
GAGI161608 16 406.4 16 406.4 08 203.2 12 304.8 18 457.2 12 304.8 12 304.8 14
GAGI161606 16 406.4 16 406.4 06 152.4 12 304.8 18 457.2 12 304.8 12 304.8 14
GAGI161412 16 406.4 14 355.6 12 304.8 12 304.8 16 406.4 12 304.8 10 254.0 14
GAGI161410 16 406.4 14 355.6 10 254.0 12 304.8 16 406.4 12 304.8 10 254.0 14
GAGI161408 16 406.4 14 355.6 08 203.2 12 304.8 16 406.4 12 304.8 10 254.0 14
GAGI161406 16 406.4 14 355.6 06 152.4 12 304.8 16 406.4 12 304.8 10 254.0 14
GAGI161210 16 406.4 12 304.8 10 254.0 12 304.8 14 355.6 12 304.8 08 203.2 14
GAGI161208 16 406.4 12 304.8 08 203.2 12 304.8 14 355.6 12 304.8 08 203.2 14
GAGI161206 16 406.4 12 304.8 06 152.4 12 304.8 14 355.6 12 304.8 08 203.2 14
GAGI141412 14 355.6 14 355.6 12 304.8 10 254.0 16 406.4 10 254.0 10 254.0 14
GAGI141410 14 355.6 14 355.6 10 254.0 10 254.0 16 406.4 10 254.0 10 254.0 14
GAGI141408 14 355.6 14 355.6 08 203.2 10 254.0 16 406.4 10 254.0 10 254.0 14
GAGI141406 14 355.6 14 355.6 06 152.4 10 254.0 16 406.4 10 254.0 10 254.0 14
GAGI141210 14 355.6 12 304.8 10 254.0 10 254.0 14 355.6 10 254.0 08 203.2 14
GAGI141208 14 355.6 12 304.8 08 203.2 10 254.0 14 355.6 10 254.0 08 203.2 14
GAGI141206 14 355.6 12 304.8 06 152.4 10 254.0 14 355.6 10 254.0 08 203.2 14
GAGI121210 12 304.8 12 304.8 10 254.0 08 203.2 14 355.6 08 203.2 08 203.2 14
GAGI121208 12 304.8 12 304.8 08 203.2 08 203.2 14 355.6 08 203.2 08 203.2 14
GAGI121206 12 304.8 12 304.8 06 152.4 08 203.2 14 355.6 08 203.2 08 203.2 14
GAGI121008 12 304.8 10 254.0 08 203.2 08 203.2 12 304.8 08 203.2 06 152.4 14
GAGI121006 12 304.8 10 254.0 06 152.4 08 203.2 12 304.8 08 203.2 06 152.4 14



METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
GAG555545 55 550.0 55 550.0 40 400.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
GAG555530 55 550.0 55 550.0 30 300.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
GAG555525 55 550.0 55 550.0 25 250.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
GAG555520 55 550.0 55 550.0 20 200.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
GAG554030 55 550.0 40 400.0 30 300.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
GAG554025 55 550.0 40 400.0 25 250.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
GAG554020 55 550.0 40 400.0 20 200.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
GAG554015 55 550.0 40 400.0 15 150.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
GAG553025 55 550.0 30 300.0 25 250.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
GAG553020 55 550.0 30 300.0 20 200.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
GAG553015 55 550.0 30 300.0 15 150.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
GAG505040 50 500.0 50 500.0 40 400.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
GAG505030 50 500.0 50 500.0 30 300.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
GAG505020 50 500.0 50 500.0 20 200.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
GAG505015 50 500.0 50 500.0 15 150.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
GAG503530 50 500.0 35 350.0 30 300.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
GAG503525 50 500.0 35 350.0 25 250.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
GAG503520 50 500.0 35 350.0 20 200.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
GAG503515 50 500.0 35 350.0 15 150.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
GAG503025 50 500.0 30 300.0 25 250.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
GAG503020 50 500.0 30 300.0 20 200.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
GAG503015 50 500.0 30 300.0 15 150.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
GAG454535 45 450.0 45 450.0 35 350.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
GAG454530 45 450.0 45 450.0 30 300.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
GAG454520 45 450.0 45 450.0 20 200.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
GAG454515 45 450.0 45 450.0 15 150.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
GAG453530 45 450.0 35 350.0 30 300.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
GAG453525 45 450.0 35 350.0 25 250.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
GAG453520 45 450.0 35 350.0 20 200.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
GAG453515 45 450.0 35 350.0 15 150.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
GAG453025 45 450.0 30 300.0 25 250.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
GAG453020 45 450.0 30 300.0 20 200.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
GAG453015 45 450.0 30 300.0 15 150.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
GAG404030 40 400.0 40 400.0 30 300.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
GAG404025 40 400.0 40 400.0 25 250.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
GAG404020 40 400.0 40 400.0 20 200.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
GAG404015 40 400.0 40 400.0 15 150.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
GAG403530 40 400.0 35 350.0 30 300.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
GAG403525 40 400.0 35 350.0 25 250.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
GAG403520 40 400.0 35 350.0 20 200.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
GAG403515 40 400.0 35 350.0 15 150.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
GAG403025 40 400.0 30 300.0 25 250.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
GAG403020 40 400.0 30 300.0 20 200.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
GAG403015 40 400.0 30 300.0 15 150.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
GAG353530 35 350.0 35 350.0 30 300.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
GAG353525 35 350.0 35 350.0 25 250.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
GAG353520 35 350.0 35 350.0 20 200.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
GAG353515 35 350.0 35 350.0 15 150.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
GAG353025 35 350.0 30 300.0 25 250.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
GAG353020 35 350.0 30 300.0 20 200.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
GAG353015 35 350.0 30 300.0 15 150.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
GAG303025 30 300.0 30 300.0 25 250.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
GAG303020 30 300.0 30 300.0 20 200.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
GAG303015 30 300.0 30 300.0 15 150.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
GAG302520 30 300.0 25 250.0 20 200.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00
GAG302515 30 300.0 25 250.0 15 150.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00



COMPACT SUBMERSIBLE ENCLOSURE OVERVIEW

The SLAYSON® COMPACT WATERPROOF Series has been engineered for environments where space is limited or equipment must be protected in challenging outdoor or industrial conditions. Rated NEMA 6 & IP67, it is designed to perform fully submerged for up to 1.5 metres for 24 hours, offering dependable protection against water, dust, and other environmental hazards. Constructed from impact and corrosion-resistant 14g 316 Marine Grade Stainless Steel, the COMPACT WATERPROOF Series safeguards vital electrical components across power, infrastructure, utility, and renewable energy sectors.

If your project requires a different size or configuration, SLAYSON® can design and engineer a custom COMPACT WATERPROOF ENCLOSURE to suit your exact specifications.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
