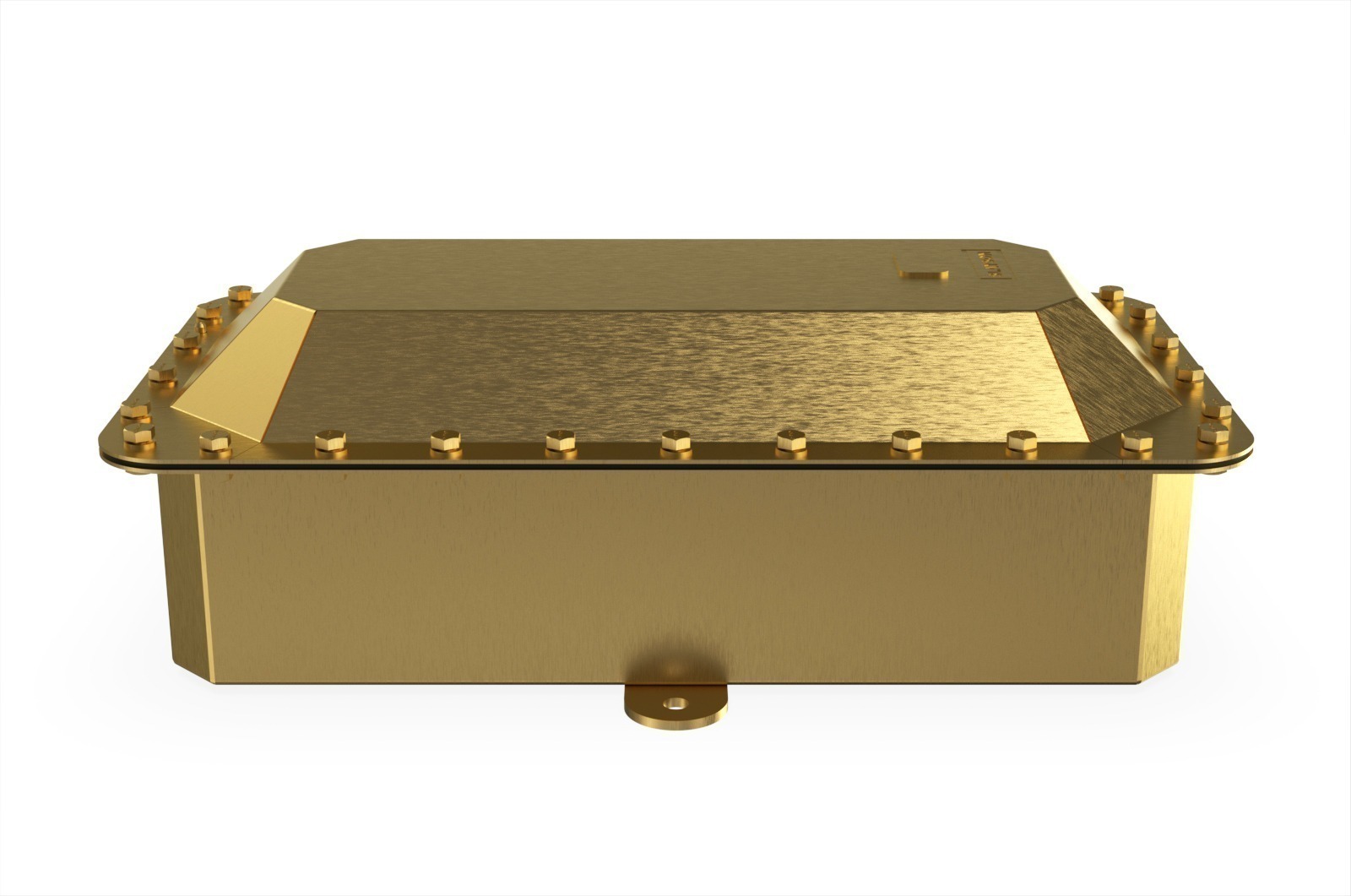

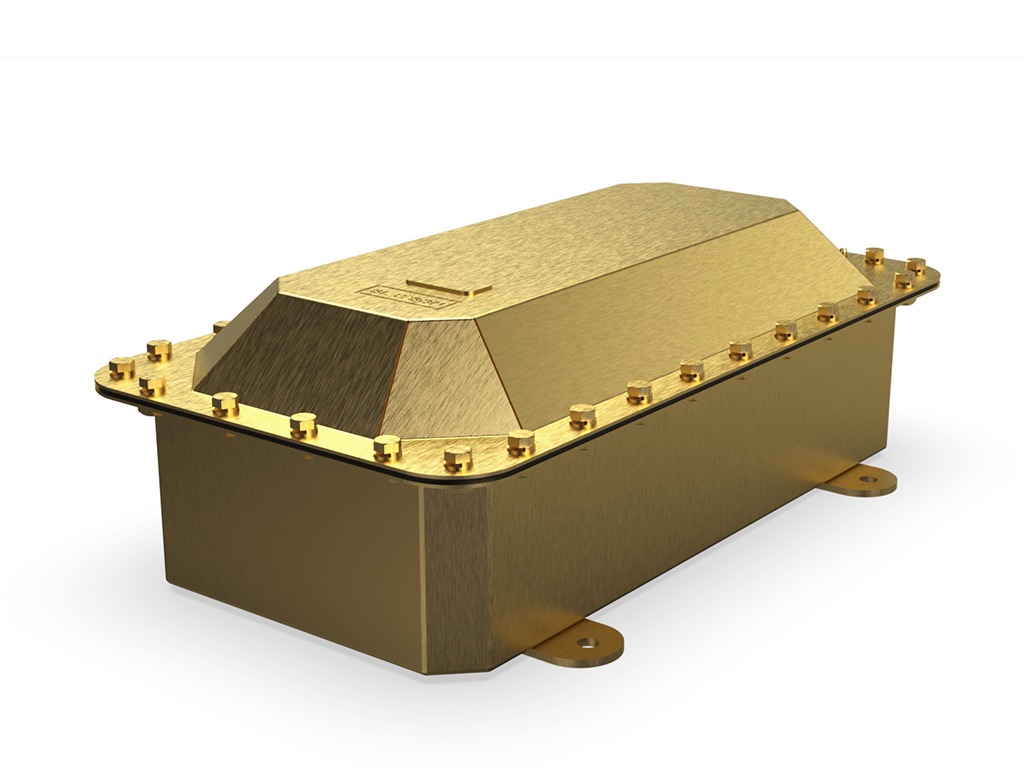

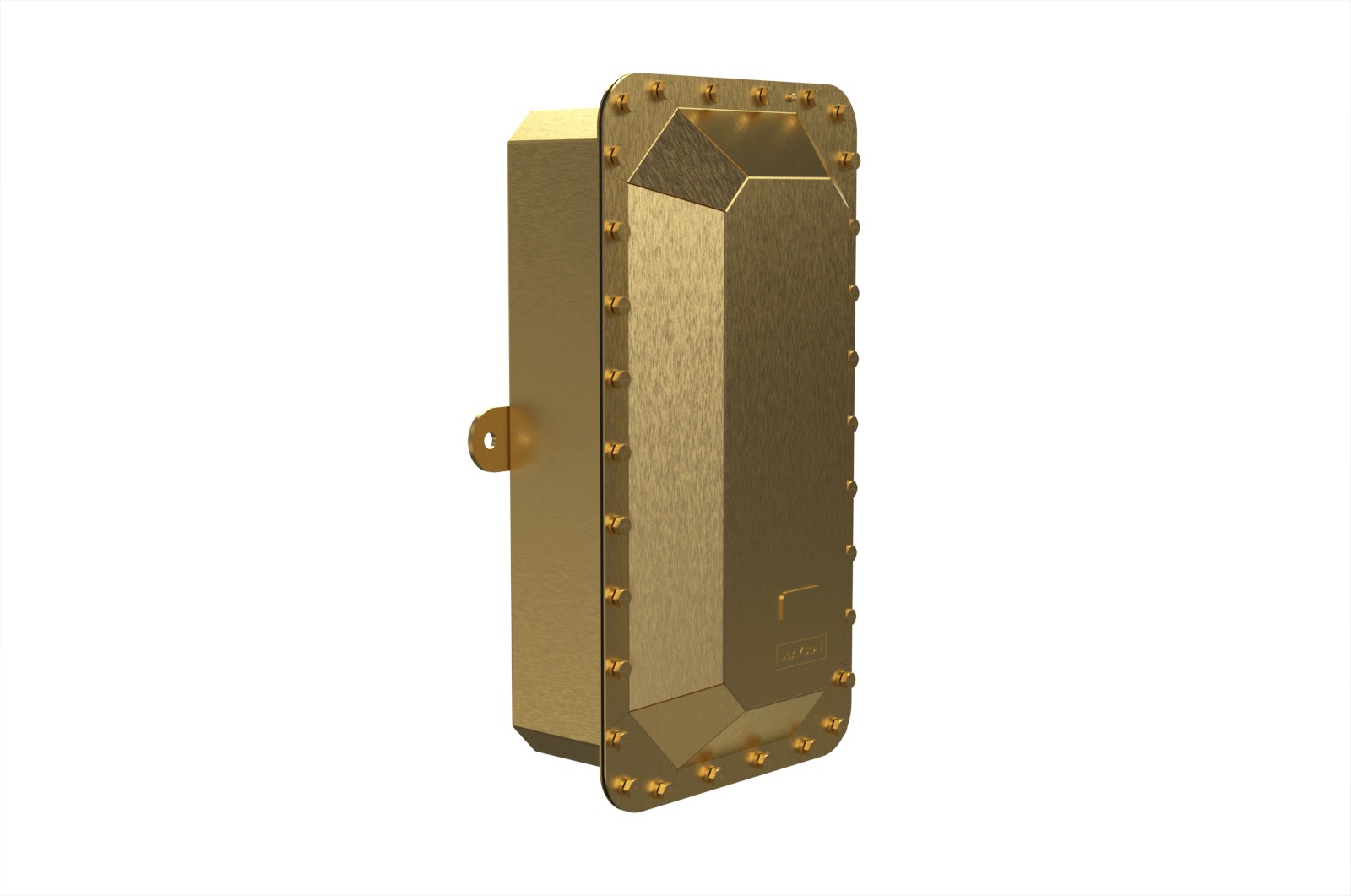

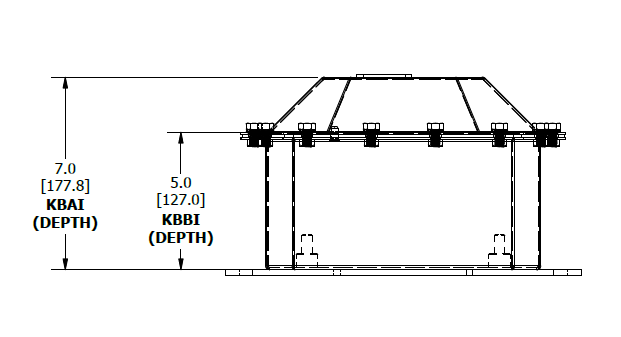

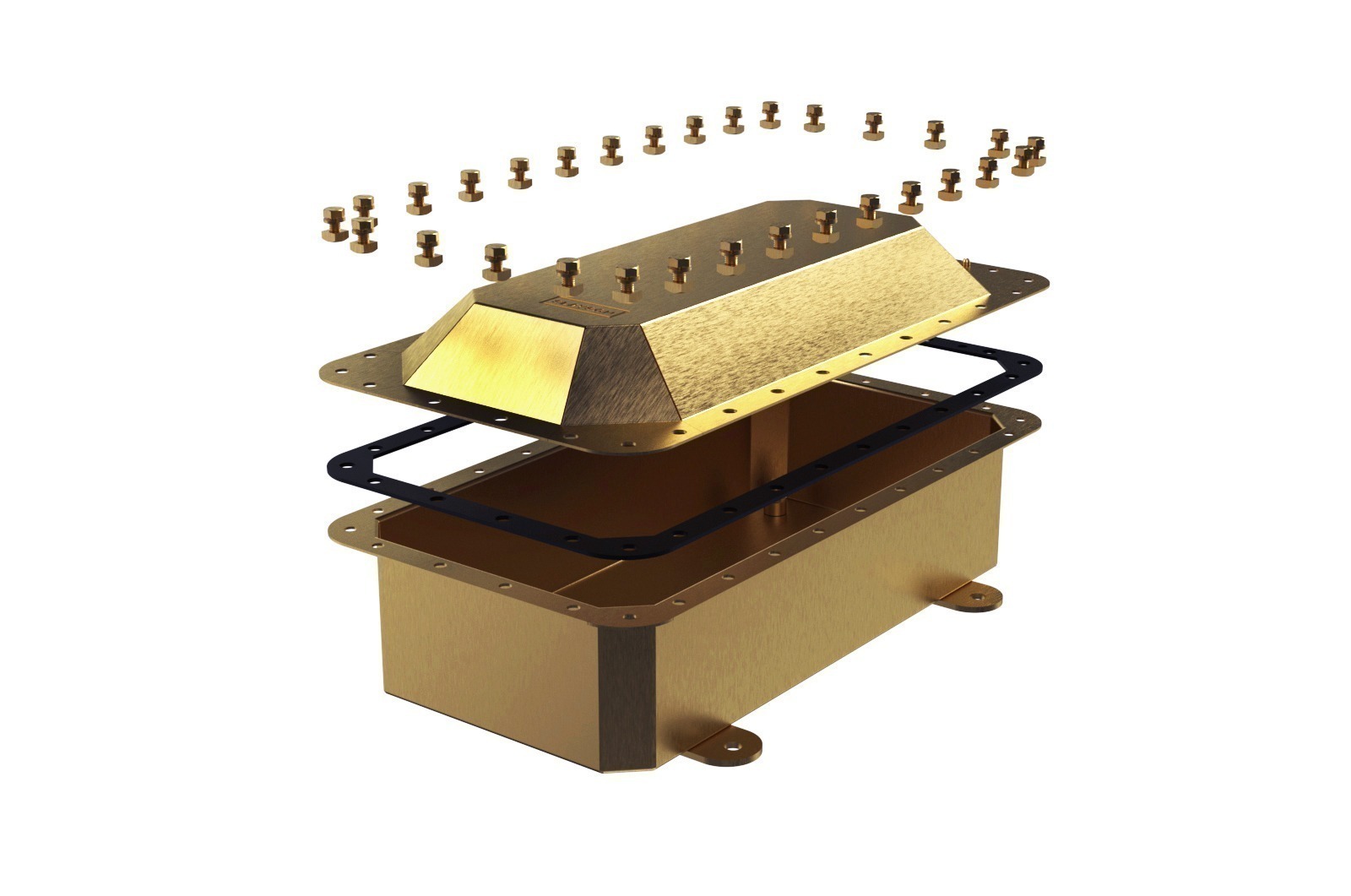

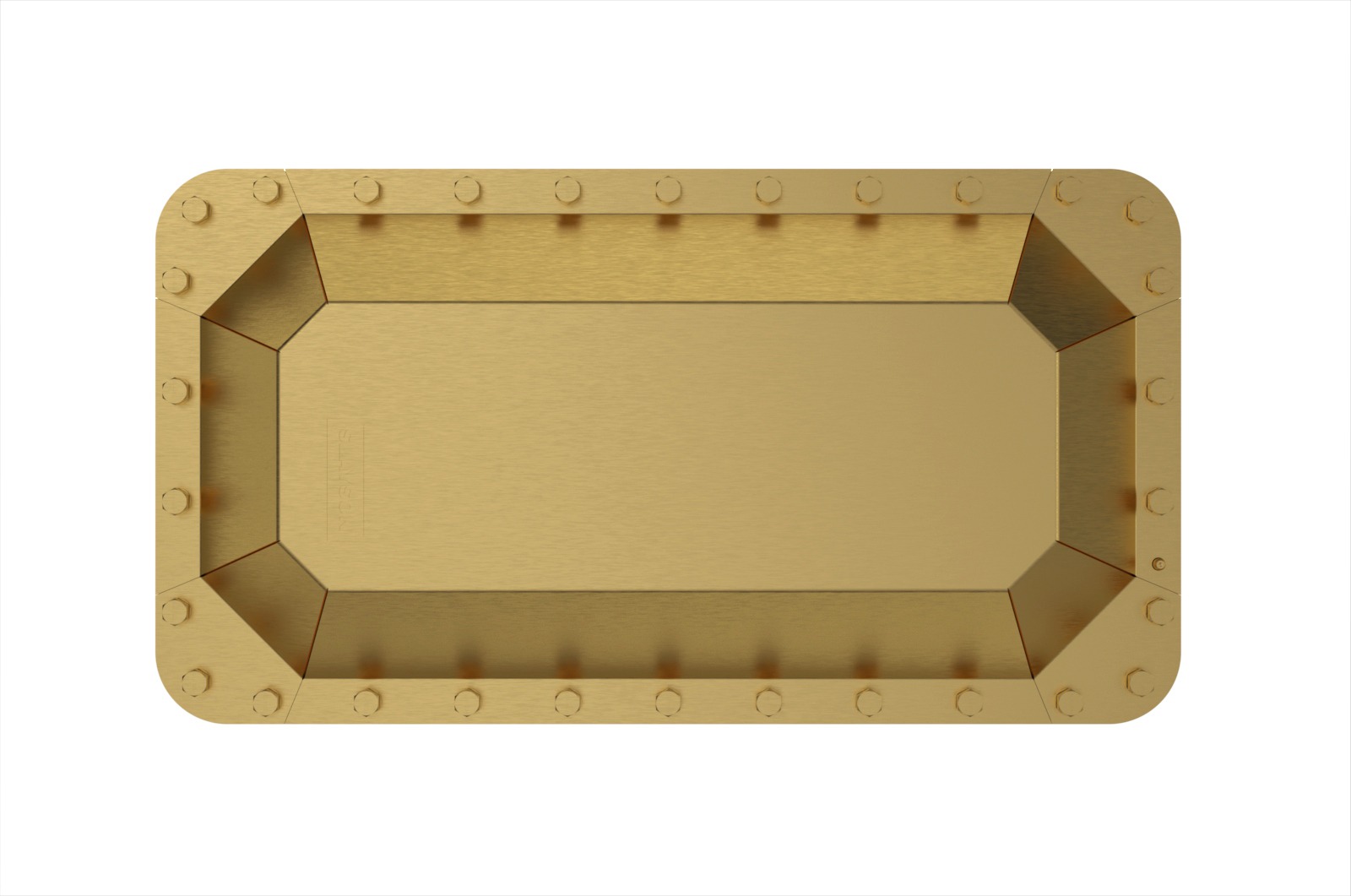

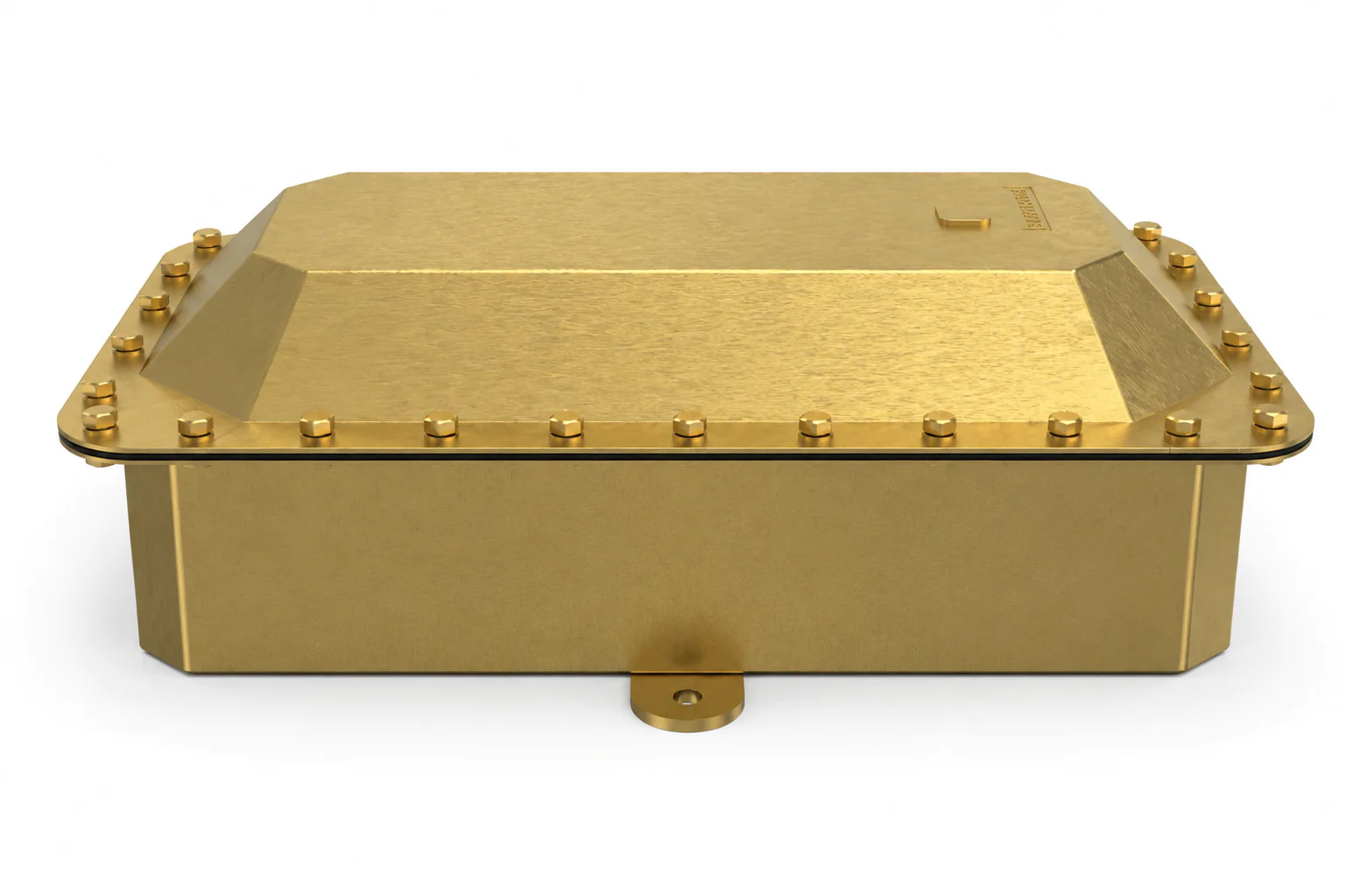

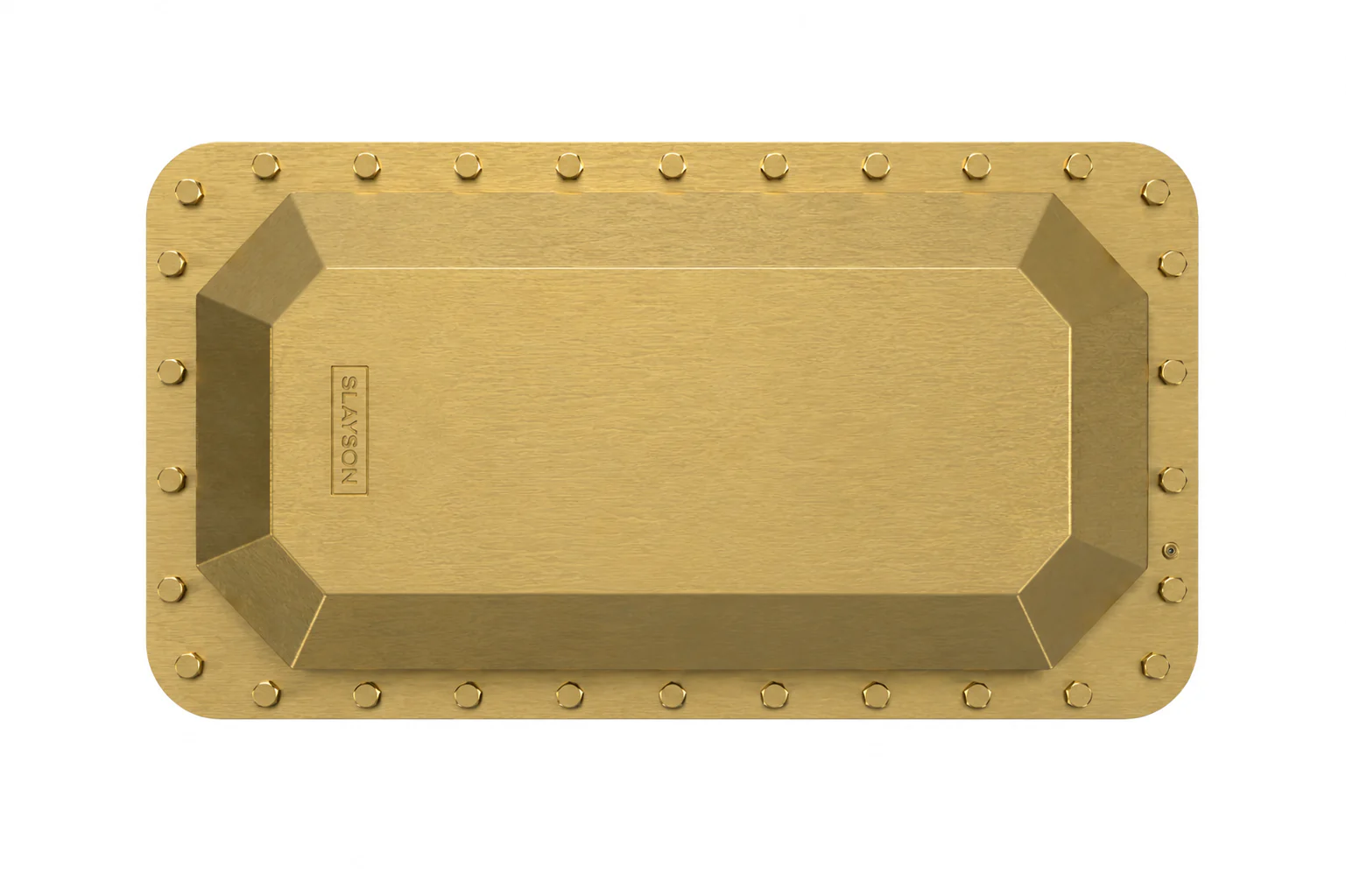

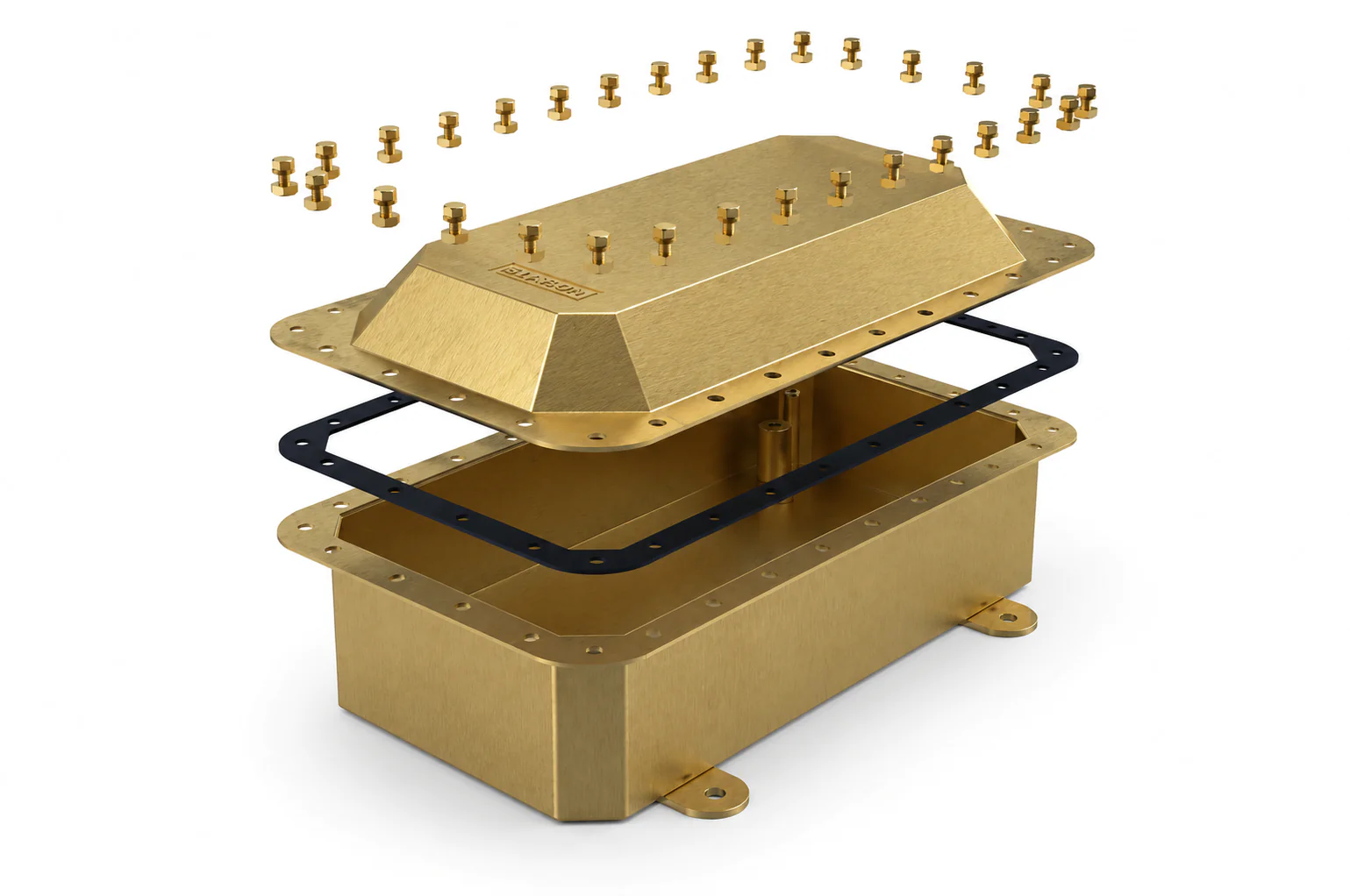

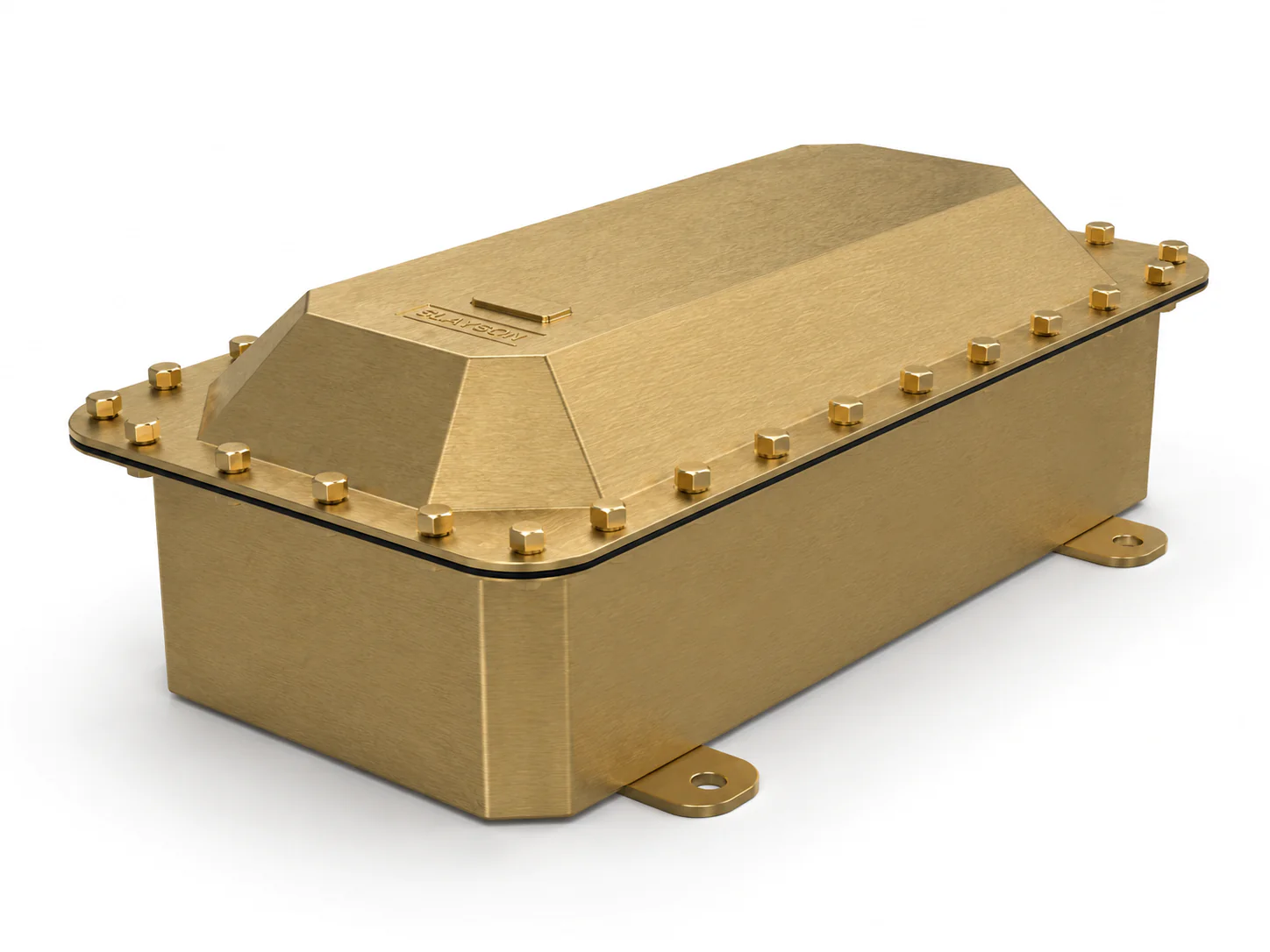

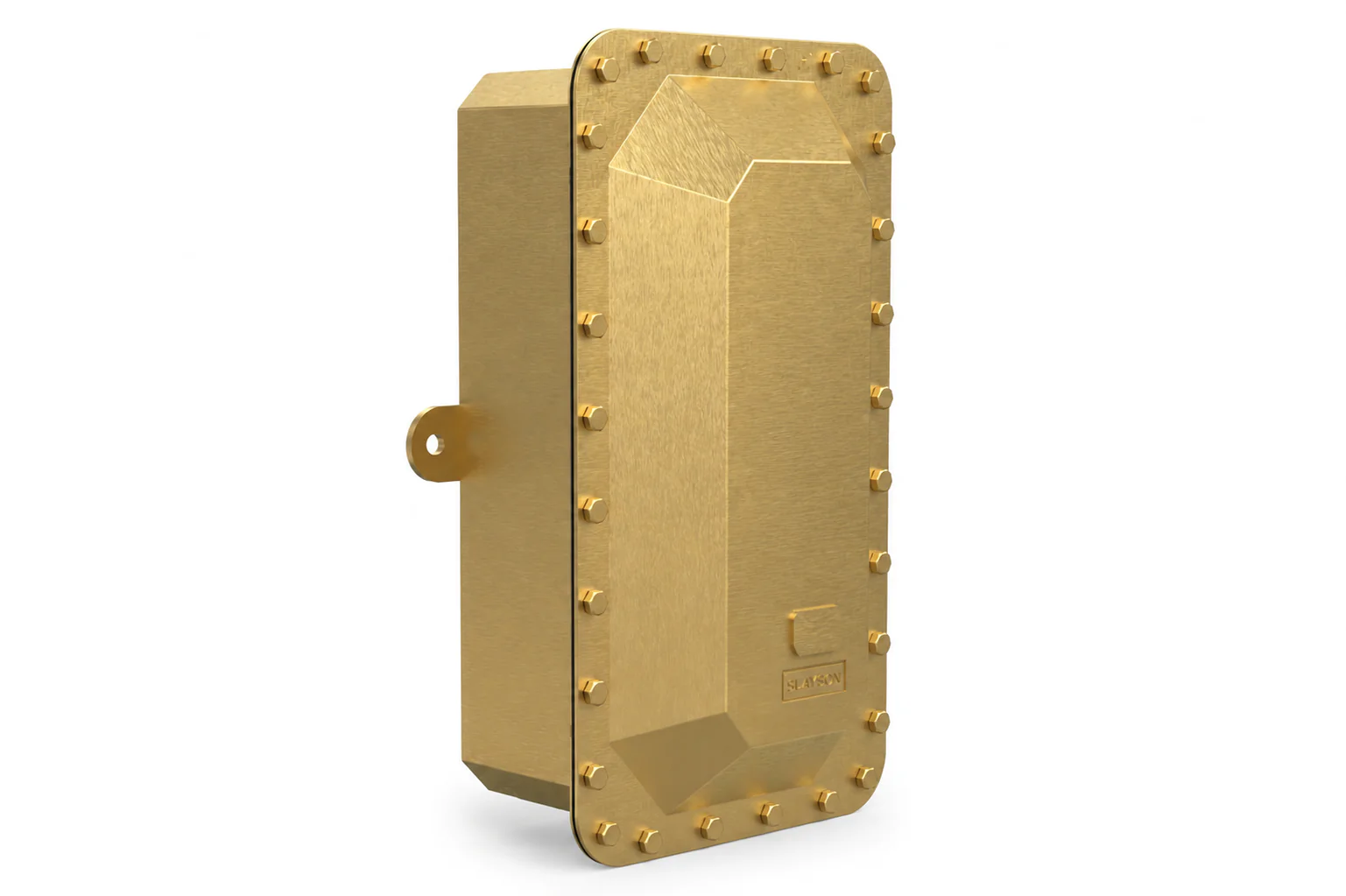

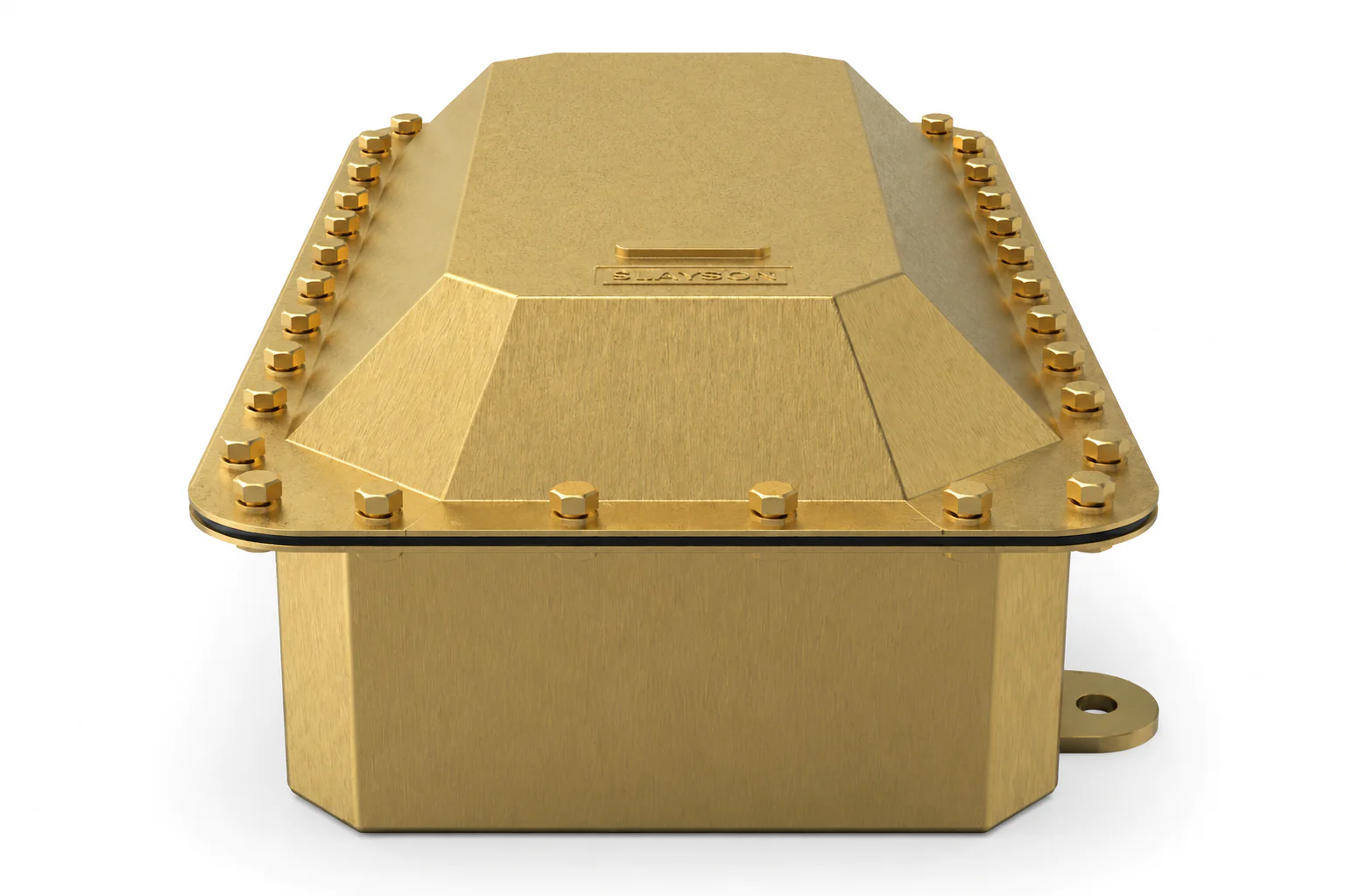

IMPERIAL A B C D INTERNAL MOUNT PLATE

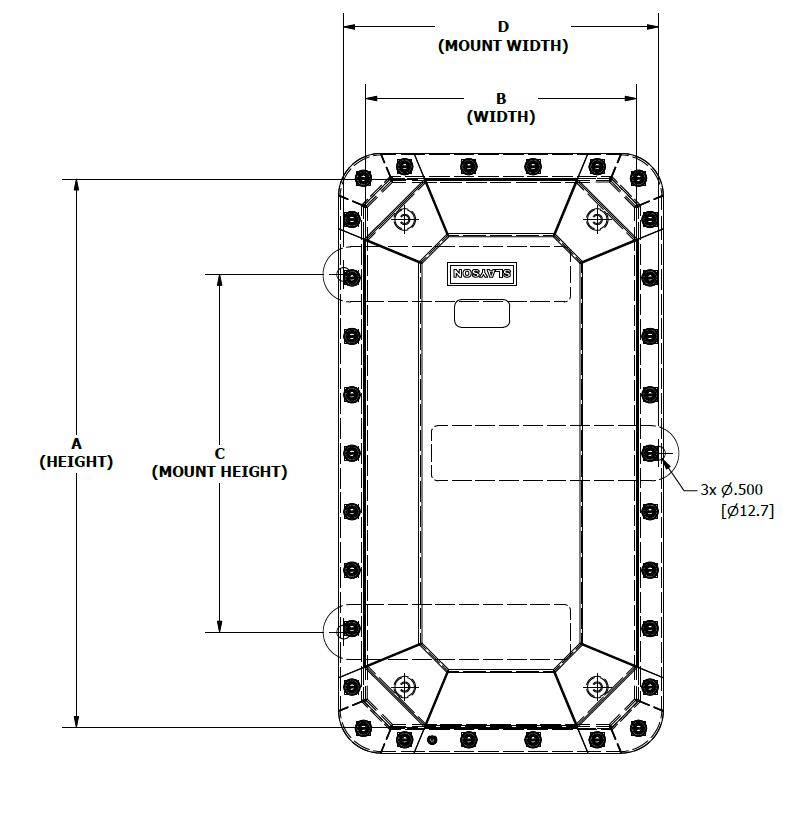

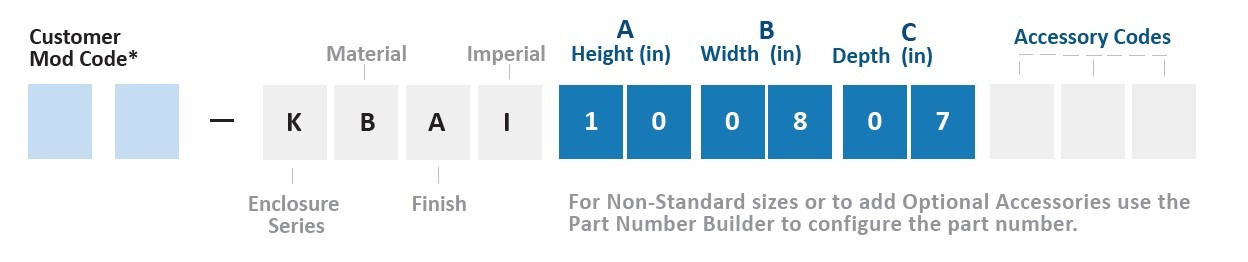

PART NUMBER Height Width Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm
KBAI100807 10 254.0 8 203.2 6.25 158.8 9.44 239.8 9 228.6 7 177.8 0.08″
KBAI120807 12 307.8 8 203.2 8.25 209.5 9.44 239.8 11 279.4 7 177.8 0.08″
KBAI101007 10 254.0 10 254.0 5.75 146.0 11.44 290.6 9 228.6 9 228.6 0.08″
KBAI131007 13 330.2 10 254.0 9.25 235.2 11.44 290.6 12 304.8 9 228.6 0.08″
KBAI161007 16 406.4 10 254.0 11.25 285.7 11.44 290.6 15 381.0 9 228.6 0.08″
KBAI181007 18 457.2 10 254.0 14.25 361.9 11.44 290.6 17 431.8 9 228.6 0.08″
KBAI201007 20 508.0 10 254.0 13 330.2 11.44 290.6 19 482.6 9 228.6 0.08″
KBAI131207 13 330.2 12 304.8 9.25 234.9 13.44 341.4 12 304.8 11 279.4 0.08″
KBAI171207 17 431.8 12 304.8 12 304.8 13.44 341.4 16 406.4 11 279.4 0.08″
KBAI241207 24 609.6 12 304.8 6.5 165.1 13.44 341.4 23 584.2 11 279.4 0.08″
KBAI141407 14 355.6 14 355.6 10.25 260.3 15.44 392.2 13 330.2 13 330.2 0.08″
KBAI161407 16 406.4 14 355.6 12.25 311.1 15.44 392.2 15 381.0 13 330.2 0.08″
KBAI201407 20 508.0 14 355.6 16 406.4 15.44 392.2 19 482.6 13 330.2 0.08″
KBAI261407 26 660.4 14 355.6 7 177.8 15.44 392.2 25 635.0 13 330.2 0.08″
IMPERIAL A B C D INTERNAL MOUNT PLATE
PART NUMBER Height Width Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm
KBA252020 25 250.0 20 200.0 15 150.0 25 250.0 25 250.0 20 200.0 2.00
KBA302020 30 300.0 20 200.0 20 200.0 25 250.0 30 300.0 20 200.0 2.00
KBA252520 25 250.0 25 250.0 15 150.0 30 300.0 25 250.0 25 250.0 2.00
KBA352520 35 350.0 25 250.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
KBA402520 40 400.0 25 250.0 30 300.0 30 300.0 40 400.0 25 250.0 2.00
KBA452520 45 450.0 25 250.0 35 350.0 30 300.0 45 450.0 25 250.0 2.00
KBA202520 20 500.0 25 250.0 35 350.0 30 300.0 50 500.0 25 250.0 2.00
KBA353020 35 350.0 30 300.0 25 250.0 35 350.0 30 300.0 30 300.0 2.00
KBA453020 45 450.0 30 300.0 30 300.0 35 350.0 40 400.0 30 300.0 2.00
KBA603020 60 600.0 30 300.0 15 150.0 35 350.0 60 600.0 30 300.0 2.00
KBA353520 35 350.0 35 350.0 25 250.0 40 400.0 35 350.0 35 350.0 2.00
KBA403520 40 400.0 35 350.0 30 300.0 40 400.0 35 350.0 35 350.0 2.00
KBA503520 50 500.0 35 350.0 40 400.0 40 400.0 50 500.0 35 350.0 2.00
KBA653520 65 650.0 35 350.0 20 200.0 40 400.0 65 650.0 35 350.0 2.00
