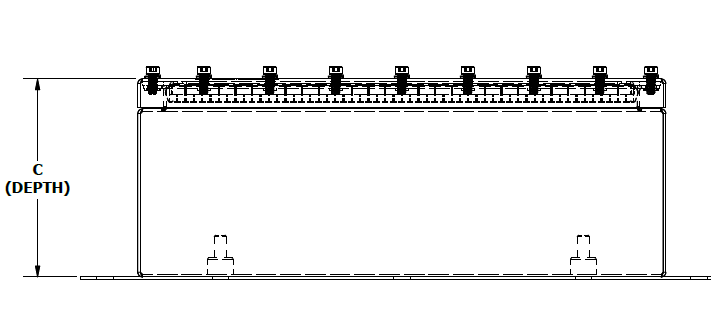

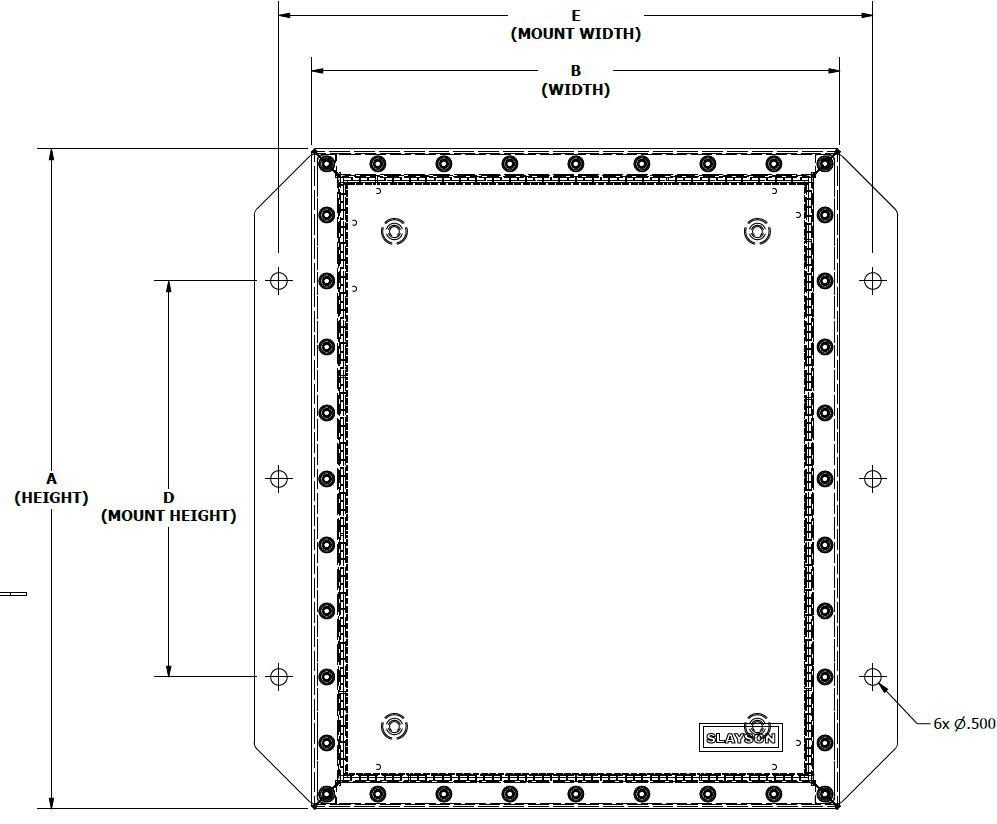

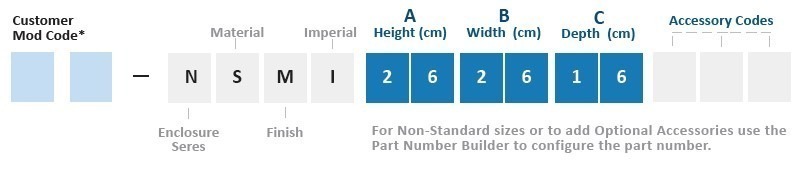

| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| NSMI262616 | 26 | 660.4 | 26 | 660.4 | 16 | 406.4 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 14 |
| NSMI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 28 | 711.2 | 24 | 609.6 | 24 | 609.6 | 14 |
| NSMI262214 | 26 | 660.4 | 22 | 558.8 | 14 | 355.6 | 22 | 558.8 | 24 | 609.6 | 24 | 609.6 | 20 | 508.0 | 14 |
| NSMI262012 | 26 | 660.4 | 20 | 508.0 | 12 | 304.8 | 22 | 558.8 | 22 | 558.8 | 24 | 609.6 | 18 | 457.2 | 14 |
| NSMI261410 | 26 | 660.4 | 14 | 355.6 | 10 | 254.0 | 22 | 558.8 | 16 | 406.4 | 24 | 609.6 | 12 | 304.8 | 14 |
| NSMI242416 | 24 | 609.6 | 24 | 609.6 | 16 | 406.4 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 14 |
| NSMI242414 | 24 | 609.6 | 24 | 609.6 | 14 | 355.6 | 20 | 508.0 | 26 | 660.4 | 22 | 558.8 | 22 | 558.8 | 14 |
| NSMI242014 | 24 | 609.6 | 20 | 508.0 | 14 | 355.6 | 20 | 508.0 | 22 | 558.8 | 22 | 558.8 | 18 | 457.2 | 14 |
| NSMI241812 | 24 | 609.6 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 20 | 508.0 | 22 | 558.8 | 16 | 406.4 | 14 |
| NSMI241210 | 24 | 609.6 | 12 | 304.8 | 10 | 254.0 | 20 | 508.0 | 14 | 355.6 | 22 | 558.8 | 10 | 254.0 | 14 |
| NSMI222214 | 22 | 558.8 | 22 | 558.8 | 14 | 355.6 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 14 |
| NSMI222212 | 22 | 558.8 | 22 | 558.8 | 12 | 304.8 | 18 | 457.2 | 24 | 609.6 | 20 | 508.0 | 20 | 508.0 | 14 |
| NSMI221812 | 22 | 558.8 | 18 | 457.2 | 12 | 304.8 | 18 | 457.2 | 20 | 508.0 | 20 | 508.0 | 16 | 406.4 | 14 |
| NSMI221410 | 22 | 558.8 | 14 | 355.6 | 10 | 254.0 | 18 | 457.2 | 16 | 406.4 | 20 | 508.0 | 12 | 304.8 | 14 |
| NSMI221008 | 22 | 558.8 | 10 | 254.0 | 08 | 203.2 | 18 | 457.2 | 12 | 304.8 | 20 | 508.0 | 8 | 203.2 | 14 |
| NSMI202014 | 20 | 508.0 | 20 | 508.0 | 14 | 355.6 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 14 |
| NSMI202012 | 20 | 508.0 | 20 | 508.0 | 12 | 304.8 | 16 | 406.4 | 22 | 558.8 | 18 | 457.2 | 18 | 457.2 | 14 |
| NSMI201612 | 20 | 508.0 | 16 | 406.4 | 12 | 304.8 | 16 | 406.4 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 |
| NSMI201210 | 20 | 508.0 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 14 |
| NSMI201208 | 20 | 508.0 | 12 | 304.8 | 08 | 203.2 | 16 | 406.4 | 14 | 355.6 | 18 | 457.2 | 10 | 254.0 | 14 |
| NSMI181814 | 18 | 457.2 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 14 |
| NSMI181812 | 18 | 457.2 | 18 | 457.2 | 12 | 304.8 | 14 | 355.6 | 20 | 508.0 | 16 | 406.4 | 16 | 406.4 | 14 |
| NSMI181612 | 18 | 457.2 | 16 | 406.4 | 12 | 304.8 | 14 | 355.6 | 18 | 457.2 | 16 | 406.4 | 14 | 355.6 | 14 |
| NSMI181410 | 18 | 457.2 | 14 | 355.6 | 10 | 254.0 | 14 | 355.6 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 14 |
| NSMI181208 | 18 | 457.2 | 12 | 304.8 | 08 | 203.2 | 14 | 355.6 | 14 | 355.6 | 16 | 406.4 | 08 | 203.2 | 14 |
| NSMI161612 | 16 | 406.4 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 14 |
| NSMI161610 | 16 | 406.4 | 16 | 406.4 | 10 | 254.0 | 12 | 304.8 | 18 | 457.2 | 14 | 355.6 | 14 | 355.6 | 14 |
| NSMI161410 | 16 | 406.4 | 14 | 355.6 | 10 | 254.0 | 12 | 304.8 | 16 | 406.4 | 14 | 355.6 | 12 | 304.8 | 14 |
| NSMI161208 | 16 | 406.4 | 12 | 304.8 | 08 | 203.2 | 12 | 304.8 | 14 | 355.6 | 14 | 355.6 | 08 | 203.2 | 14 |
| NSMI141412 | 14 | 355.6 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 06 | 152.4 | 14 |
| NSMI141410 | 14 | 355.6 | 14 | 355.6 | 10 | 254.0 | 10 | 254.0 | 16 | 406.4 | 12 | 304.8 | 12 | 304.8 | 14 |
| NSMI141210 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 10 | 254.0 | 14 | 355.6 | 12 | 304.8 | 10 | 254.0 | 14 |
| NSMI141008 | 14 | 355.6 | 10 | 254.0 | 08 | 203.2 | 10 | 254.0 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 14 |
| NSMI121210 | 12 | 304.8 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 06 | 152.4 | 14 |
| NSMI121208 | 12 | 304.8 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 14 | 355.6 | 10 | 254.0 | 04 | 101.6 | 14 |
| NSMI121008 | 12 | 304.8 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 12 | 304.8 | 08 | 203.2 | 08 | 203.2 | 14 |
| NSMI120806 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 08 | 203.2 | 10 | 254.0 | 08 | 203.2 | 08 | 203.2 | 14 |
| NSMI101008 | 10 | 254.0 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 06 | 152.4 | 14 |
| NSMI101006 | 10 | 254.0 | 10 | 254.0 | 06 | 152.4 | 06 | 152.4 | 12 | 304.8 | 08 | 203.2 | 05 | 127.0 | 14 |
| NSMI100806 | 10 | 254.0 | 08 | 203.2 | 06 | 152.4 | 06 | 152.4 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 14 |
| NSMI080806 | 08 | 203.2 | 08 | 203.2 | 06 | 152.4 | 04 | 101.6 | 10 | 254.0 | 06 | 152.4 | 04 | 101.6 | 14 |
| NSMI080804 | 08 | 203.2 | 08 | 203.2 | 04 | 101.6 | 04 | 101.6 | 10 | 254.0 | 07 | 177.8 | 05 | 127.0 | 14 |
| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| NSM656540 | 65 | 650.0 | 65 | 650.0 | 40 | 400.0 | 55 | 550.0 | 70 | 700.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| NSM656535 | 65 | 650.0 | 65 | 650.0 | 35 | 350.0 | 55 | 550.0 | 70 | 700.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| NSM655535 | 65 | 650.0 | 55 | 500.0 | 35 | 350.0 | 55 | 550.0 | 60 | 600.0 | 60 | 600.0 | 50 | 500.0 | 2.00 |
| NSM655030 | 65 | 650.0 | 50 | 500.0 | 30 | 300.0 | 55 | 550.0 | 55 | 550.0 | 60 | 600.0 | 45 | 450.0 | 2.00 |
| NSM653625 | 65 | 650.0 | 35 | 350.0 | 25 | 250.0 | 55 | 550.0 | 40 | 400.0 | 60 | 600.0 | 30 | 300.0 | 2.00 |
| NSM606040 | 60 | 600.0 | 60 | 600.0 | 40 | 400.0 | 50 | 500.0 | 65 | 650.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| NSM606035 | 60 | 600.0 | 60 | 600.0 | 35 | 350.0 | 50 | 500.0 | 65 | 650.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| NSM605035 | 60 | 600.0 | 50 | 500.0 | 35 | 350.0 | 50 | 500.0 | 55 | 550.0 | 55 | 550.0 | 45 | 450.0 | 2.00 |
| NSM604530 | 60 | 600.0 | 45 | 450.0 | 30 | 300.0 | 50 | 500.0 | 50 | 500.0 | 55 | 550.0 | 40 | 400.0 | 2.00 |
| NSM603025 | 60 | 600.0 | 30 | 300.0 | 25 | 250.0 | 50 | 500.0 | 35 | 350.0 | 55 | 550.0 | 25 | 250.0 | 2.00 |
| NSM555535 | 55 | 550.0 | 55 | 550.0 | 35 | 350.0 | 45 | 450.0 | 60 | 600.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| NSM555530 | 55 | 550.0 | 55 | 550.0 | 30 | 300.0 | 45 | 450.0 | 60 | 600.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |
| NSM554530 | 55 | 550.0 | 45 | 450.0 | 30 | 300.0 | 45 | 450.0 | 50 | 500.0 | 50 | 500.0 | 40 | 400.0 | 2.00 |
| NSM553525 | 55 | 550.0 | 35 | 350.0 | 25 | 250.0 | 45 | 450.0 | 40 | 400.0 | 50 | 500.0 | 30 | 300.0 | 2.00 |
| NSM552520 | 55 | 550.0 | 25 | 250.0 | 20 | 200.0 | 45 | 450.0 | 30 | 300.0 | 50 | 500.0 | 20 | 200.0 | 2.00 |
| NSM505035 | 50 | 500.0 | 50 | 500.0 | 35 | 350.0 | 40 | 400.0 | 55 | 550.0 | 45 | 450.0 | 45 | 450.0 | 2.00 |
| NSM505030 | 50 | 500.0 | 50 | 500.0 | 30 | 300.0 | 40 | 400.0 | 55 | 550.0 | 45 | 450.0 | 45 | 450.0 | 2.00 |
| NSM504030 | 50 | 500.0 | 40 | 400.0 | 30 | 300.0 | 40 | 400.0 | 45 | 450.0 | 45 | 450.0 | 35 | 350.0 | 2.00 |
| NSM504025 | 50 | 500.0 | 30 | 300.0 | 25 | 250.0 | 40 | 400.0 | 35 | 350.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| NSM503020 | 50 | 500.0 | 30 | 300.0 | 20 | 200.0 | 40 | 400.0 | 35 | 350.0 | 45 | 450.0 | 25 | 250.0 | 2.00 |
| NSM454535 | 45 | 450.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 50 | 500.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| NSM454530 | 45 | 450.0 | 45 | 450.0 | 30 | 300.0 | 35 | 350.0 | 50 | 500.0 | 40 | 400.0 | 40 | 400.0 | 2.00 |
| NSM454030 | 45 | 450.0 | 40 | 400.0 | 30 | 300.0 | 35 | 350.0 | 45 | 450.0 | 40 | 400.0 | 35 | 350.0 | 2.00 |
| NSM453525 | 45 | 450.0 | 35 | 350.0 | 25 | 250.0 | 35 | 350.0 | 40 | 400.0 | 40 | 400.0 | 30 | 300.0 | 2.00 |
| NSM453020 | 45 | 450.0 | 30 | 300.0 | 20 | 200.0 | 35 | 350.0 | 35 | 350.0 | 40 | 400.0 | 25 | 250.0 | 2.00 |
| NSM404030 | 40 | 400.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| NSM404025 | 40 | 400.0 | 40 | 400.0 | 25 | 250.0 | 30 | 300.0 | 45 | 450.0 | 35 | 350.0 | 35 | 350.0 | 2.00 |
| NSM403525 | 40 | 400.0 | 35 | 350.0 | 25 | 250.0 | 30 | 300.0 | 40 | 400.0 | 35 | 350.0 | 30 | 300.0 | 2.00 |
| NSM403020 | 40 | 400.0 | 30 | 300.0 | 20 | 200.0 | 30 | 300.0 | 35 | 350.0 | 35 | 350.0 | 25 | 250.0 | 2.00 |
| NSM353530 | 35 | 350.0 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| NSM353525 | 35 | 350.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 40 | 400.0 | 30 | 300.0 | 30 | 300.0 | 2.00 |
| NSM353025 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 25 | 250.0 | 35 | 350.0 | 30 | 300.0 | 25 | 250.0 | 2.00 |
| NSM352520 | 35 | 350.0 | 25 | 250.0 | 20 | 200.0 | 25 | 250.0 | 30 | 300.0 | 30 | 300.0 | 20 | 200.0 | 2.00 |
| NSM303025 | 30 | 300.0 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| NSM303020 | 30 | 300.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 35 | 350.0 | 25 | 250.0 | 25 | 250.0 | 2.00 |
| NSM302520 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 20 | 200.0 | 30 | 300.0 | 25 | 250.0 | 20 | 200.0 | 2.00 |
| NSM302015 | 30 | 300.0 | 20 | 200.0 | 15 | 150.0 | 20 | 200.0 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 2.00 |
| NSM252520 | 25 | 250.0 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| NSM252515 | 25 | 250.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 30 | 300.0 | 20 | 200.0 | 20 | 200.0 | 2.00 |
| NSM252015 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 15 | 150.0 | 25 | 250.0 | 20 | 200.0 | 15 | 150.0 | 2.00 |
| NSM202015 | 20 | 200.0 | 20 | 200.0 | 15 | 150.0 | 10 | 100.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 2.00 |
| NSM202010 | 20 | 200.0 | 20 | 200.0 | 10 | 100.0 | 10 | 100.0 | 25 | 250.0 | 15 | 150.0 | 15 | 150.0 | 2.00 |

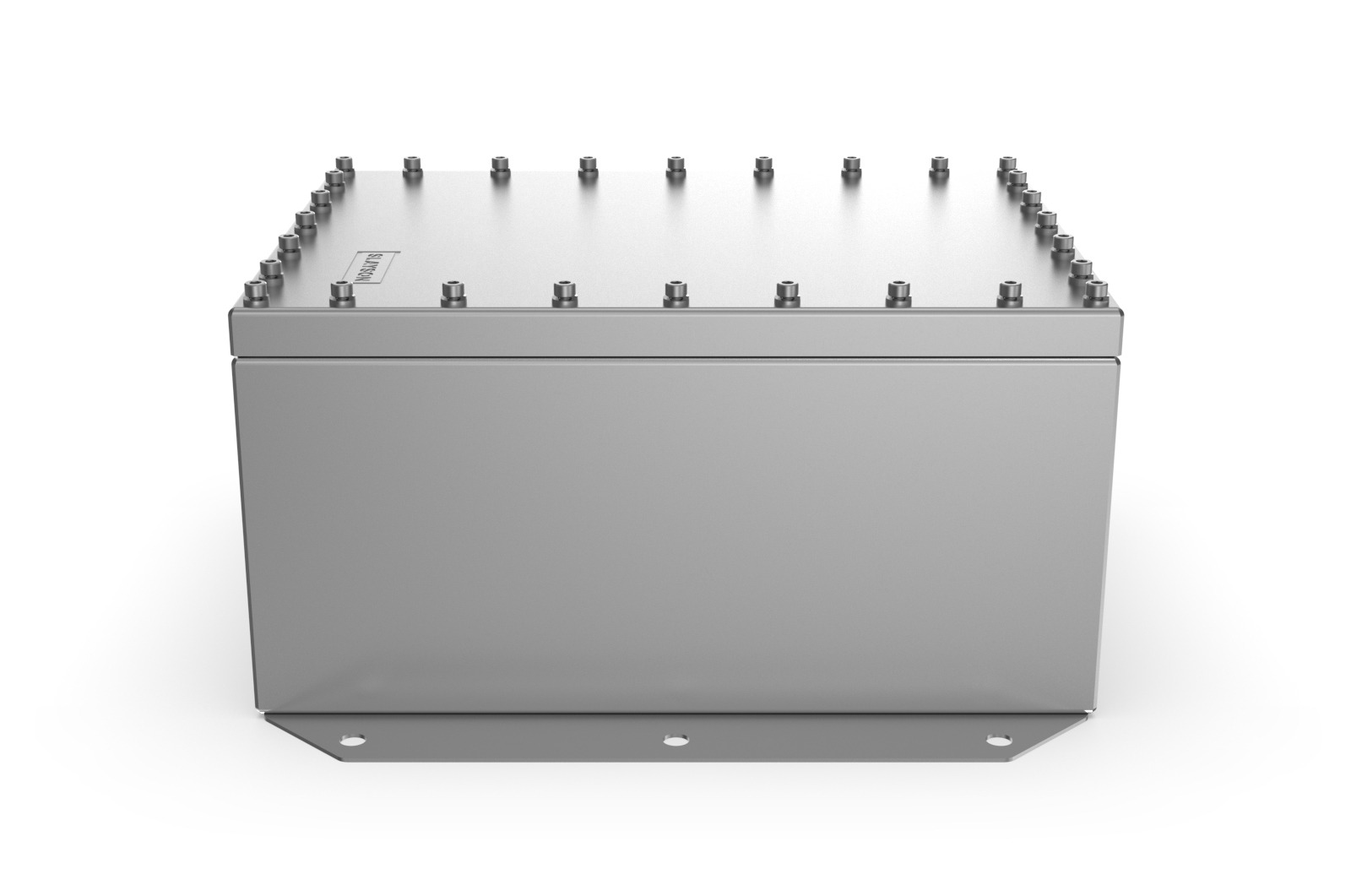

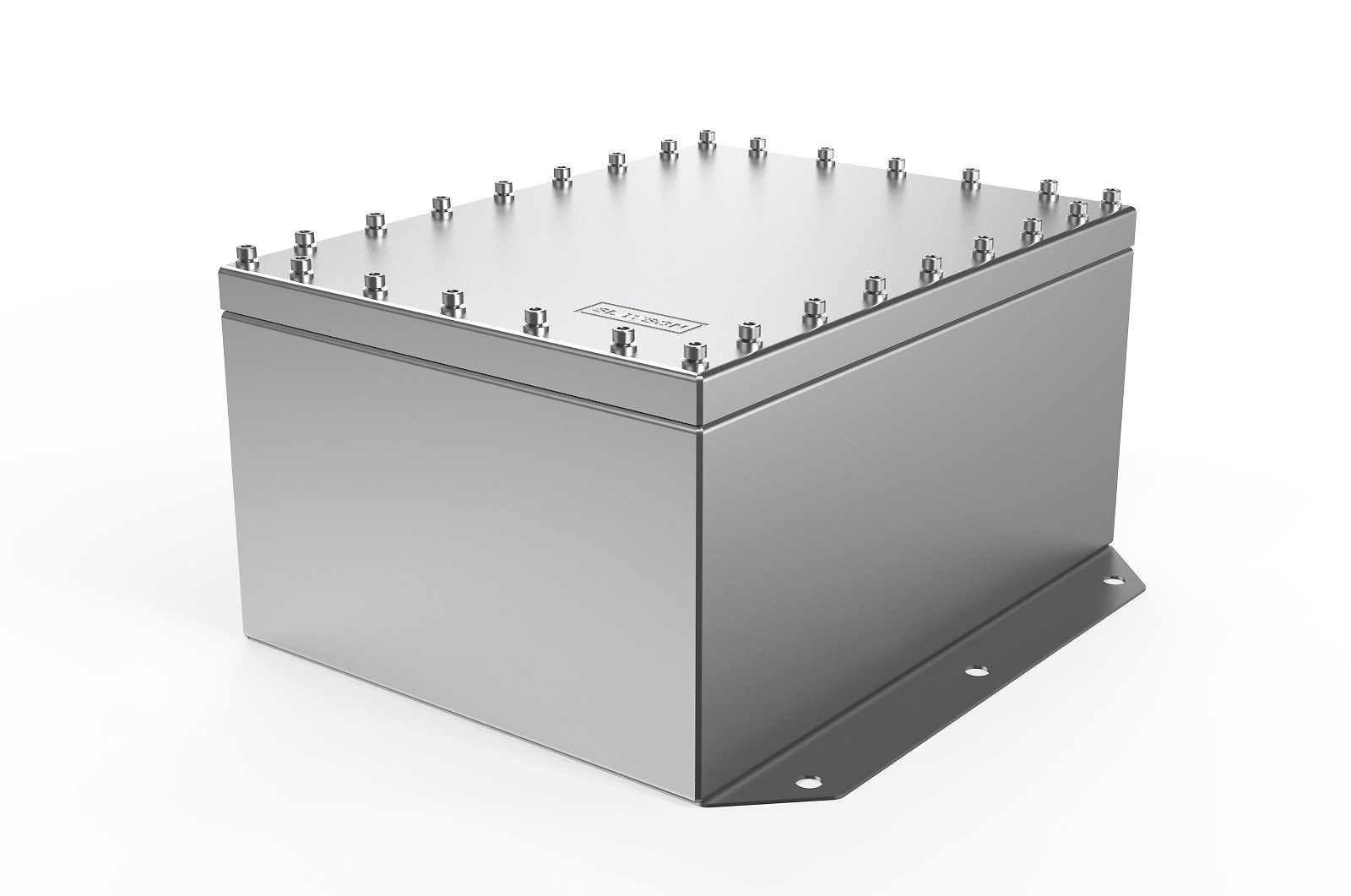

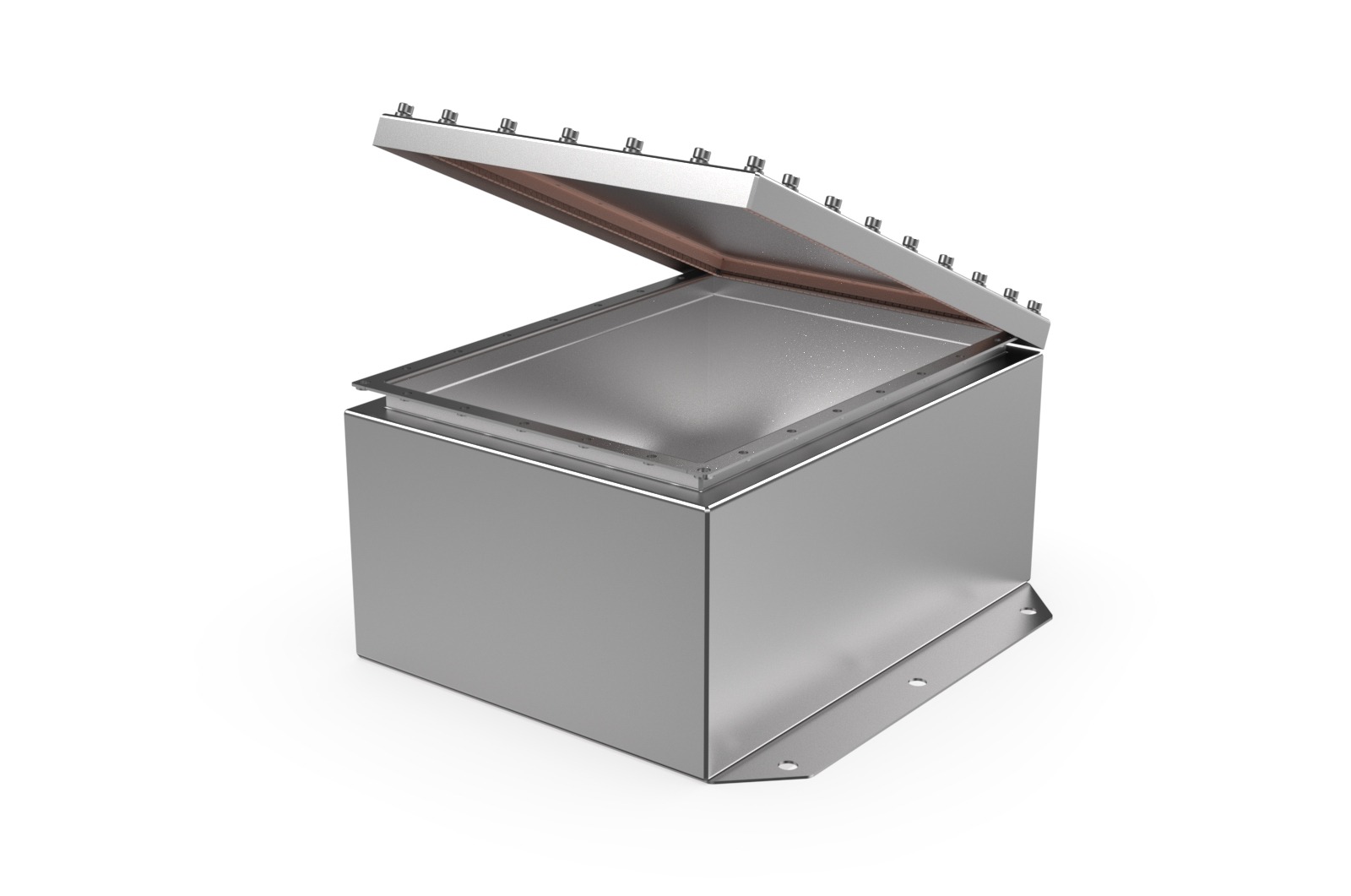

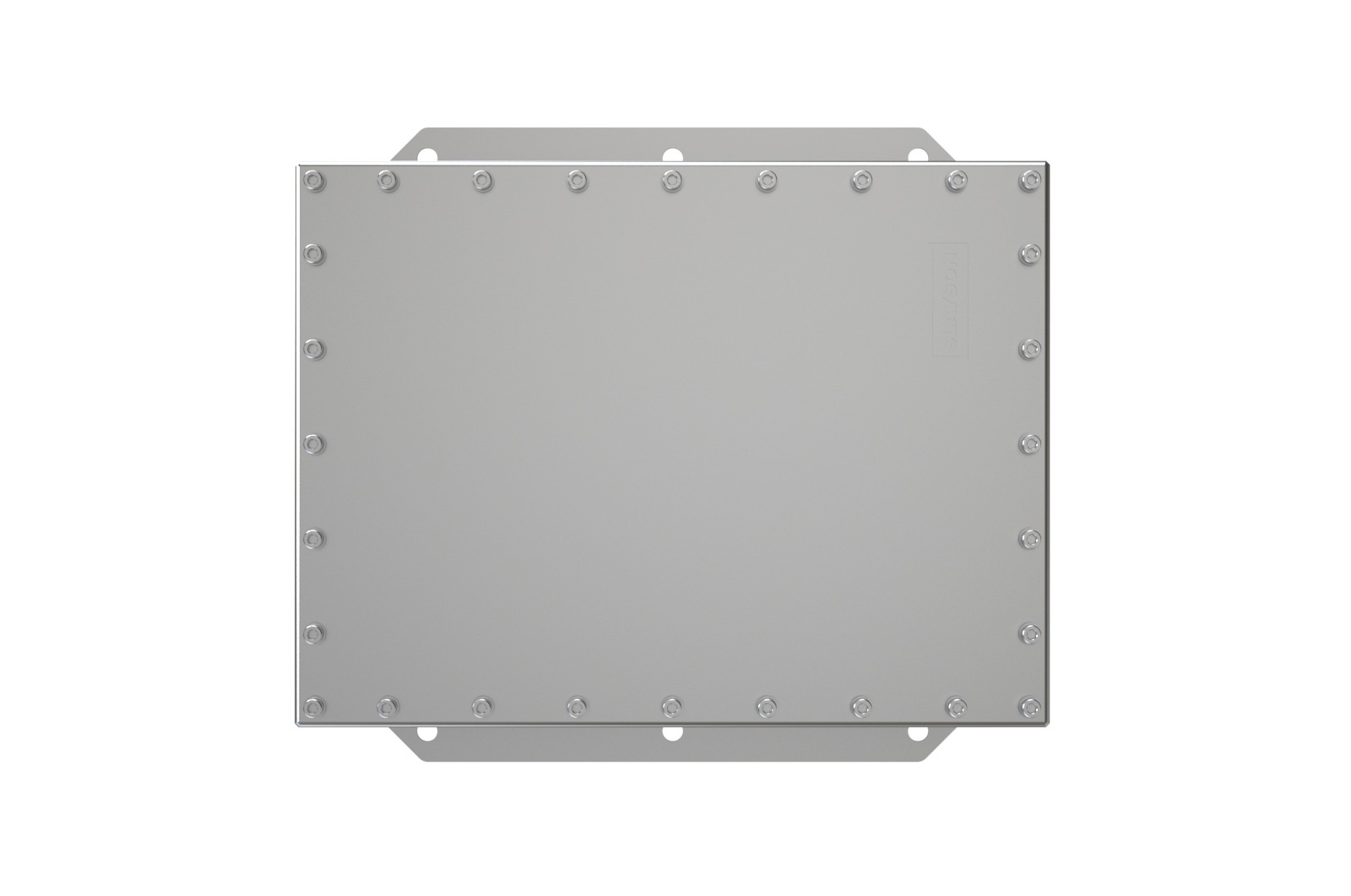

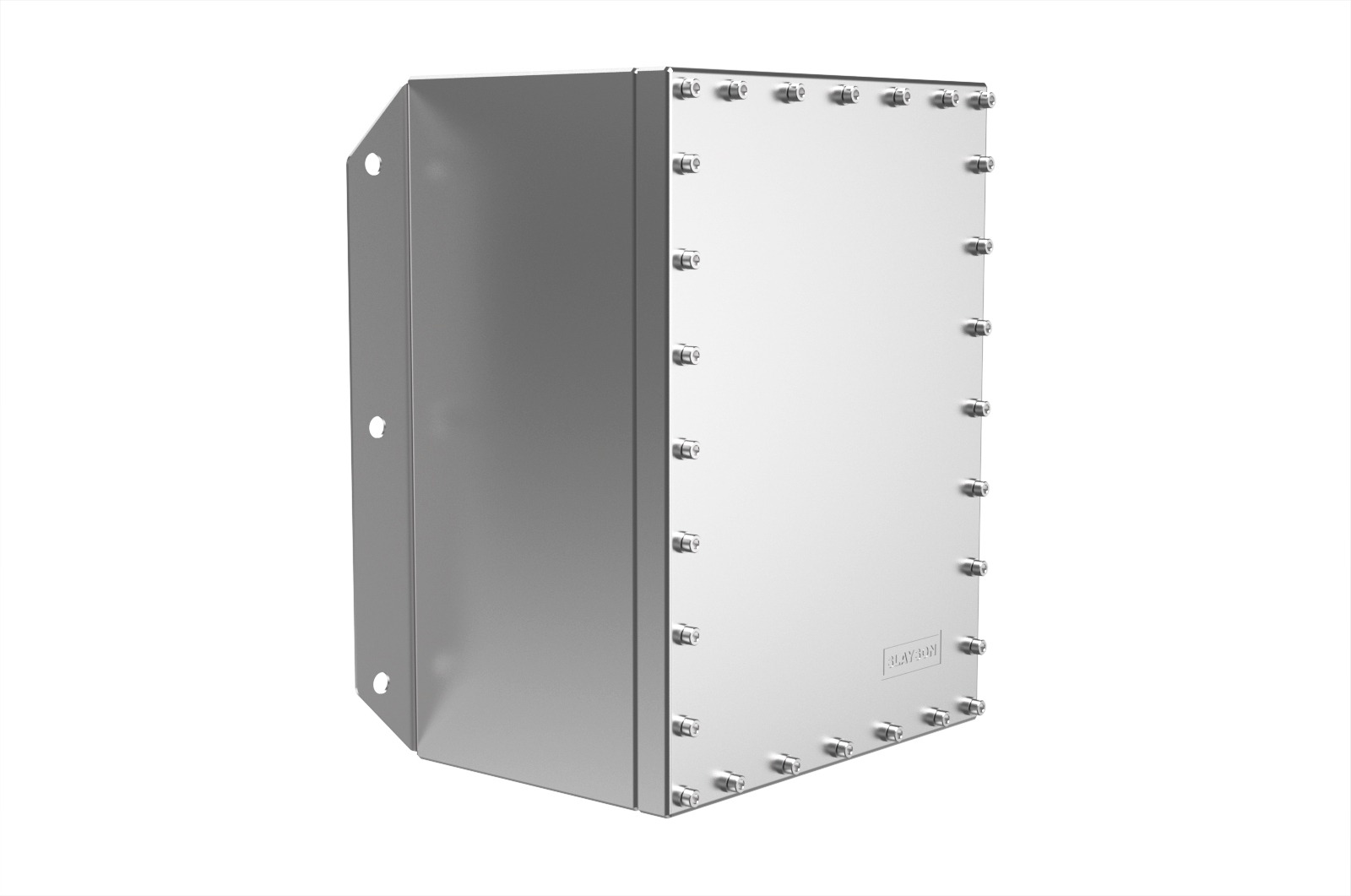

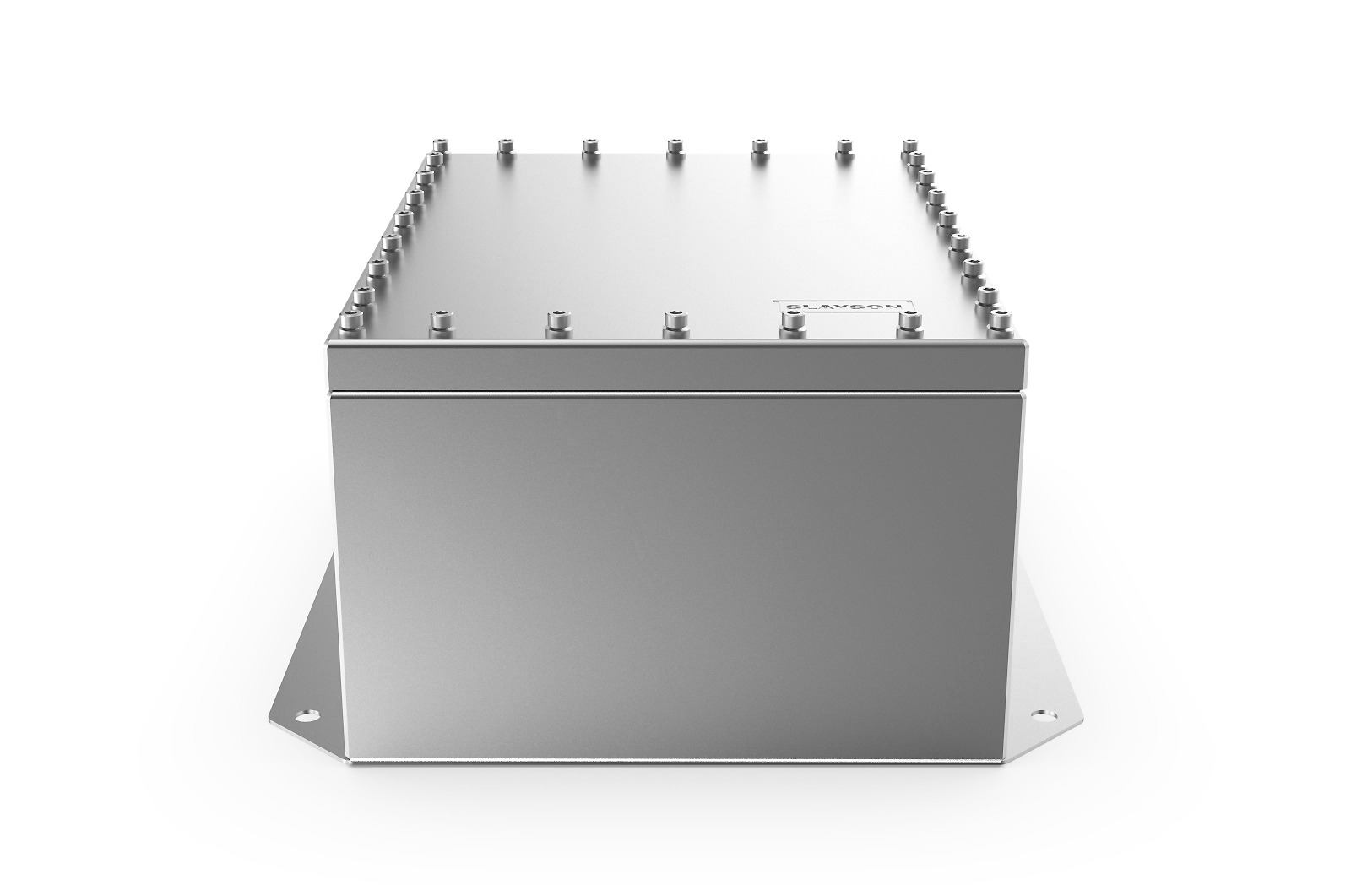

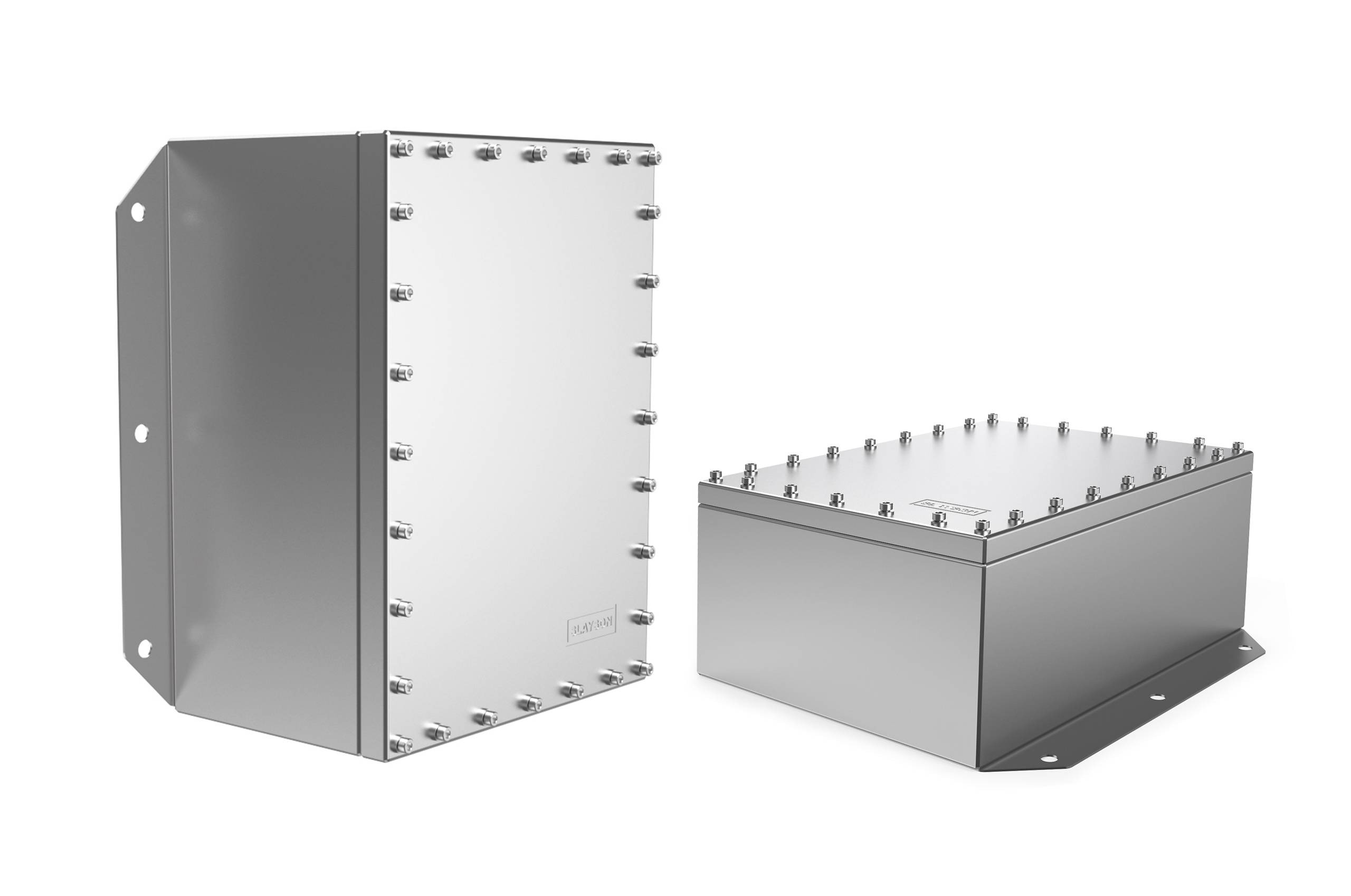

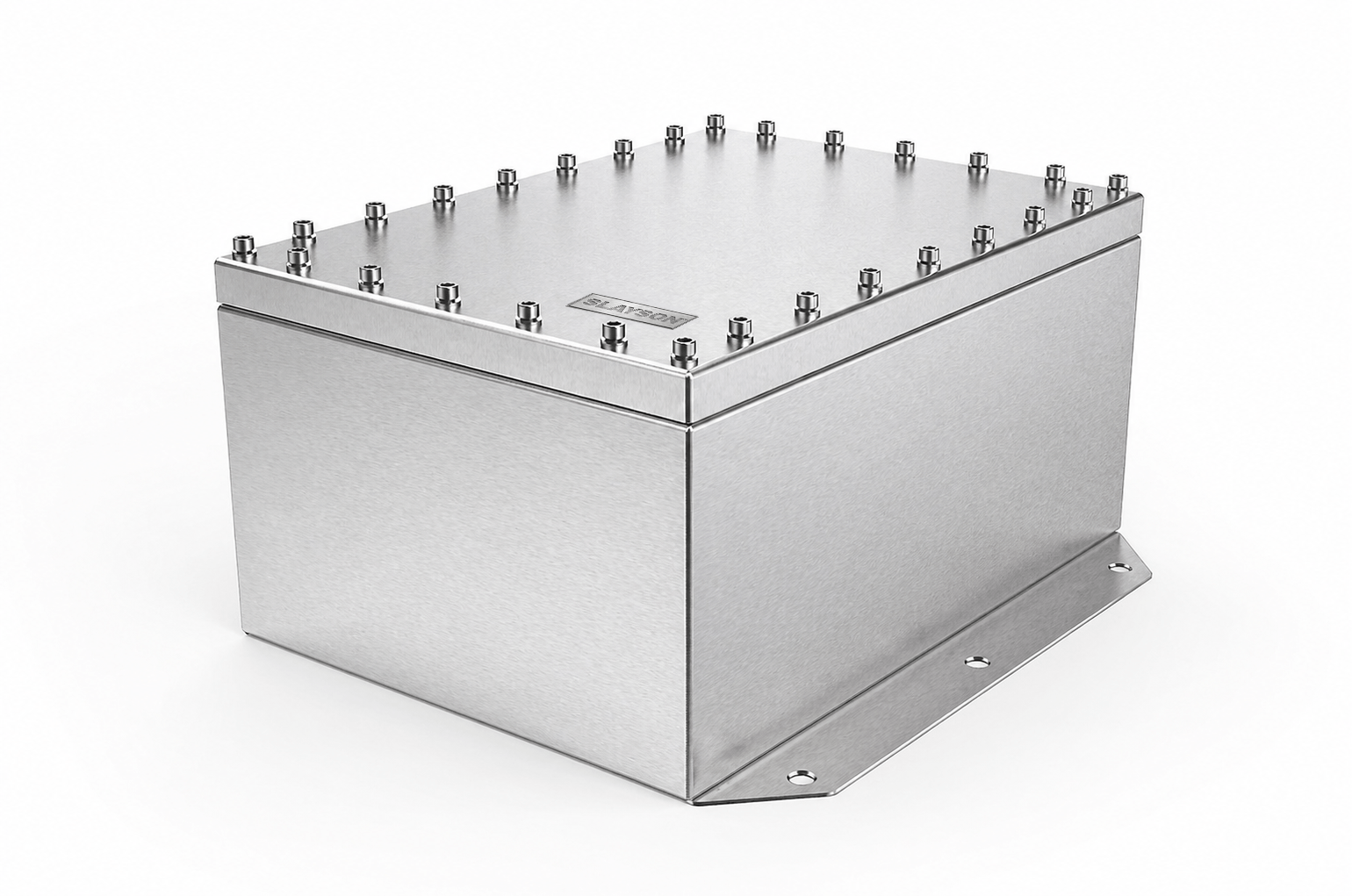

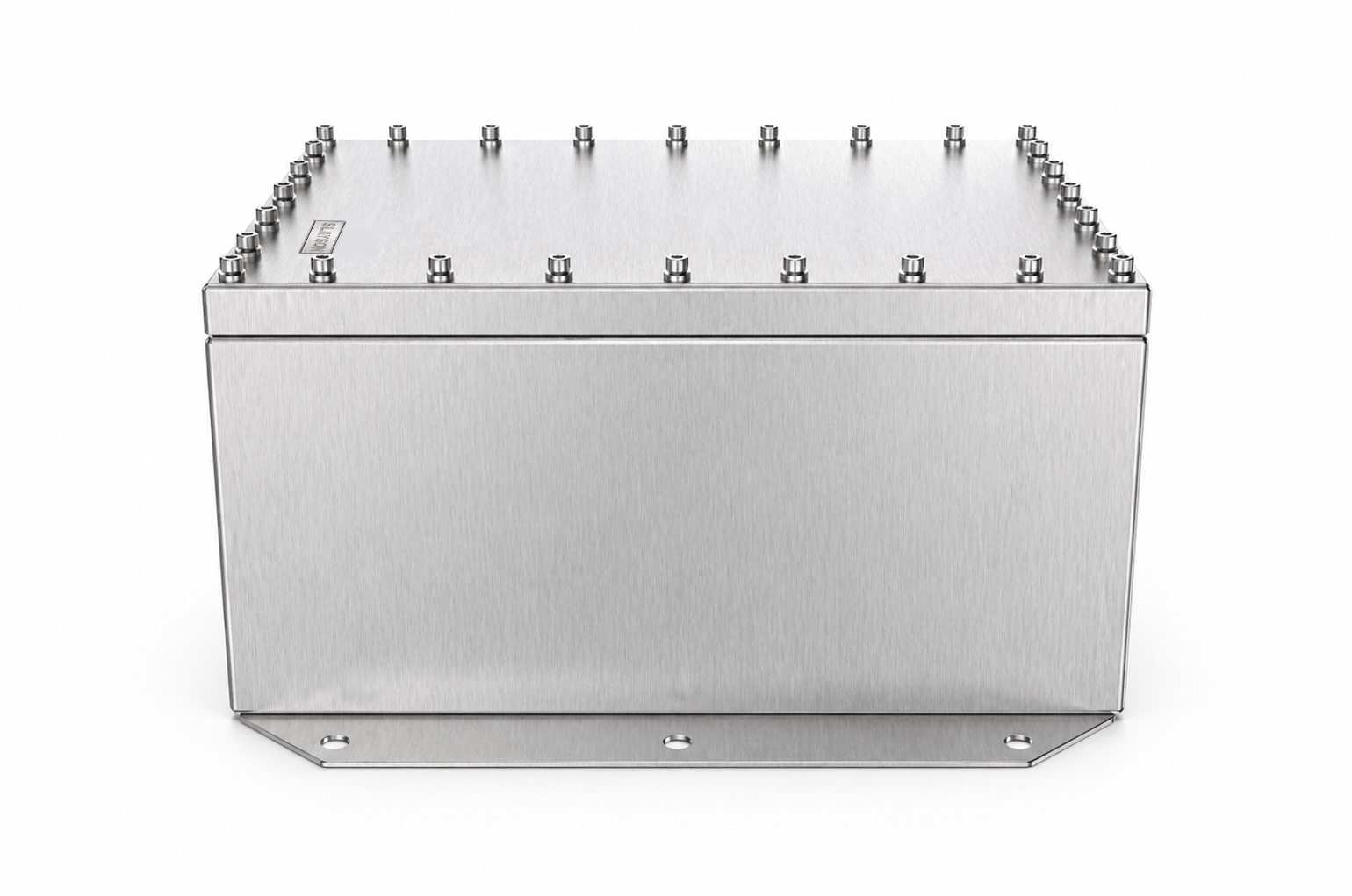

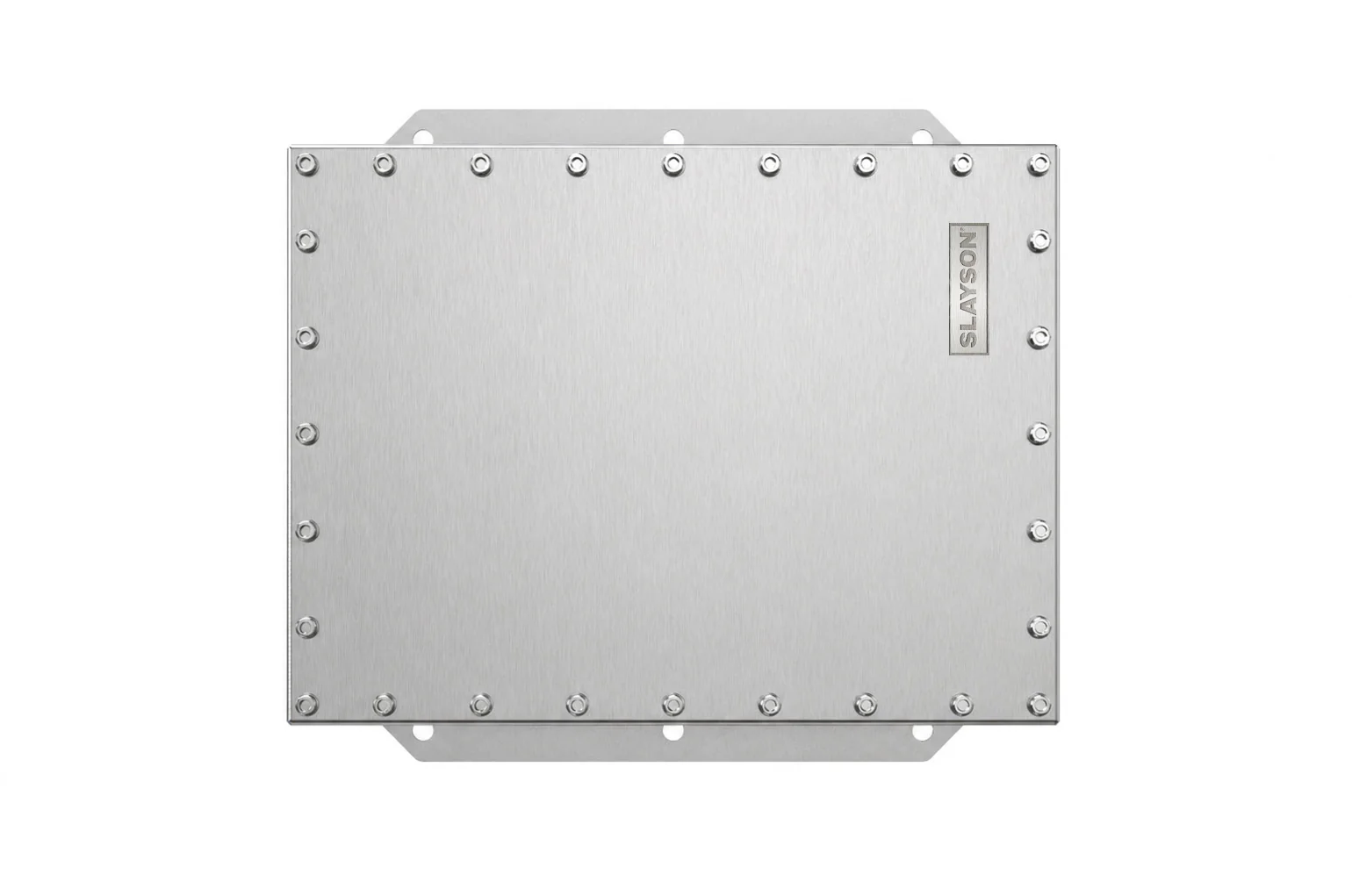

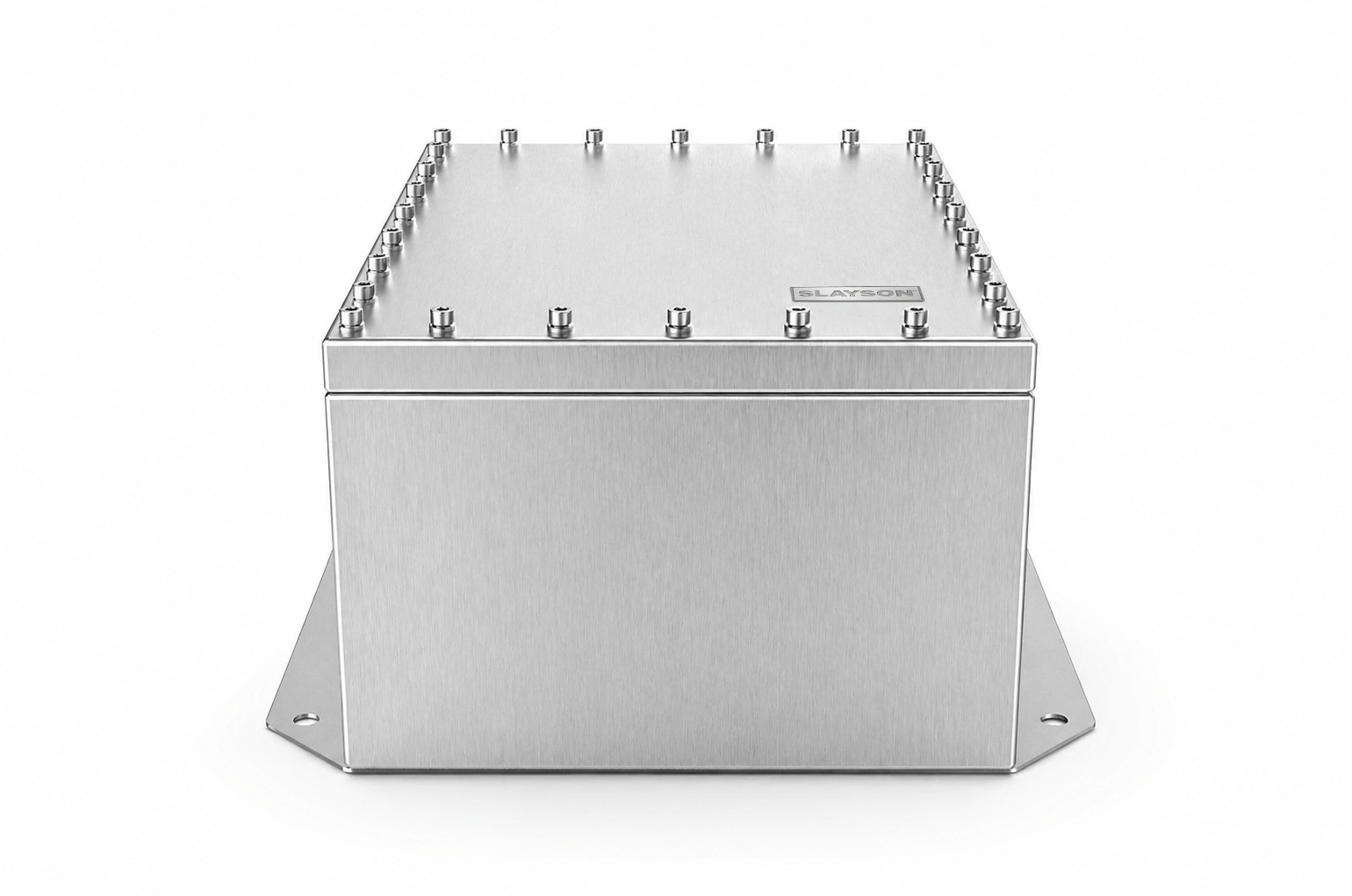

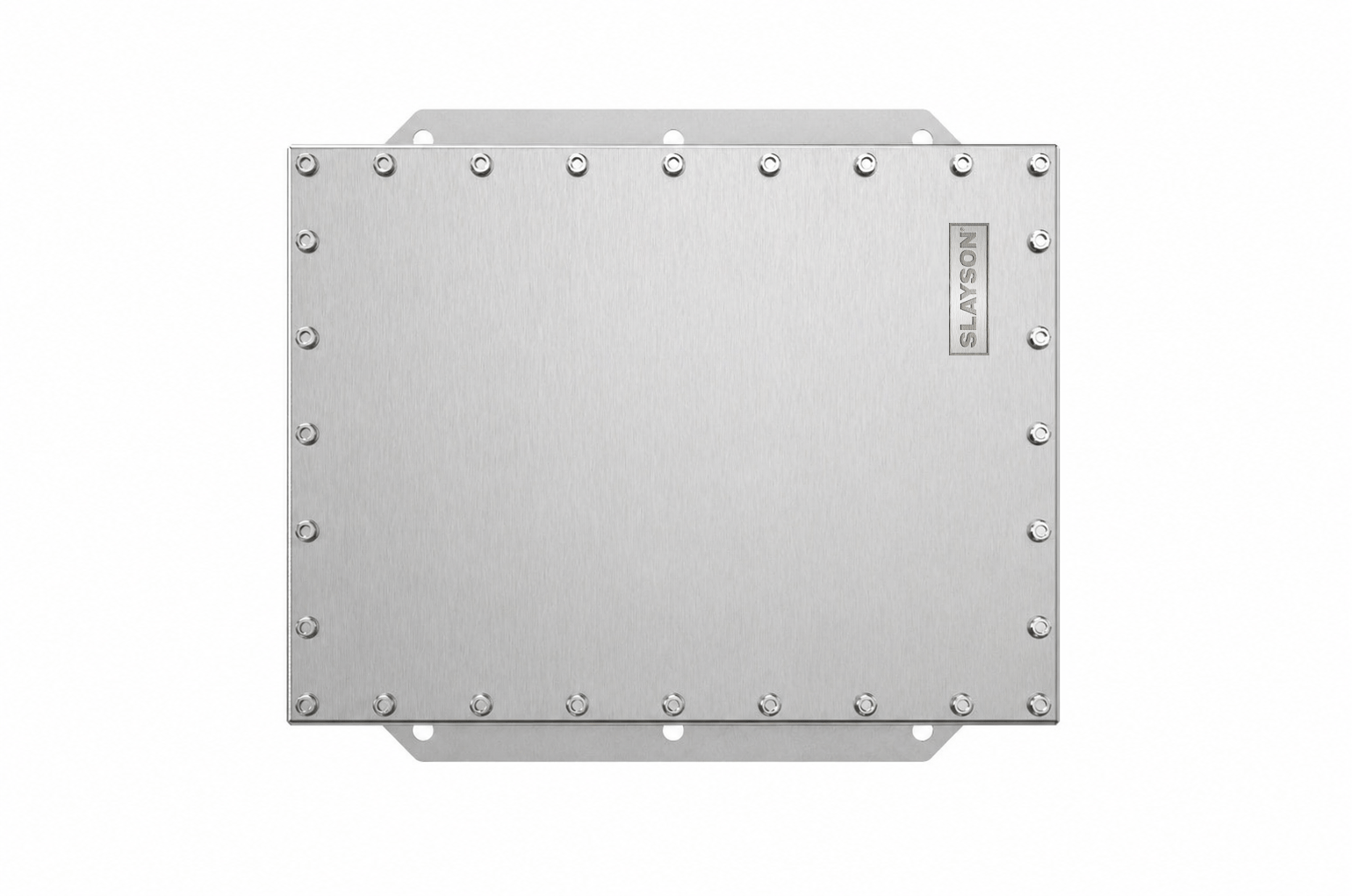

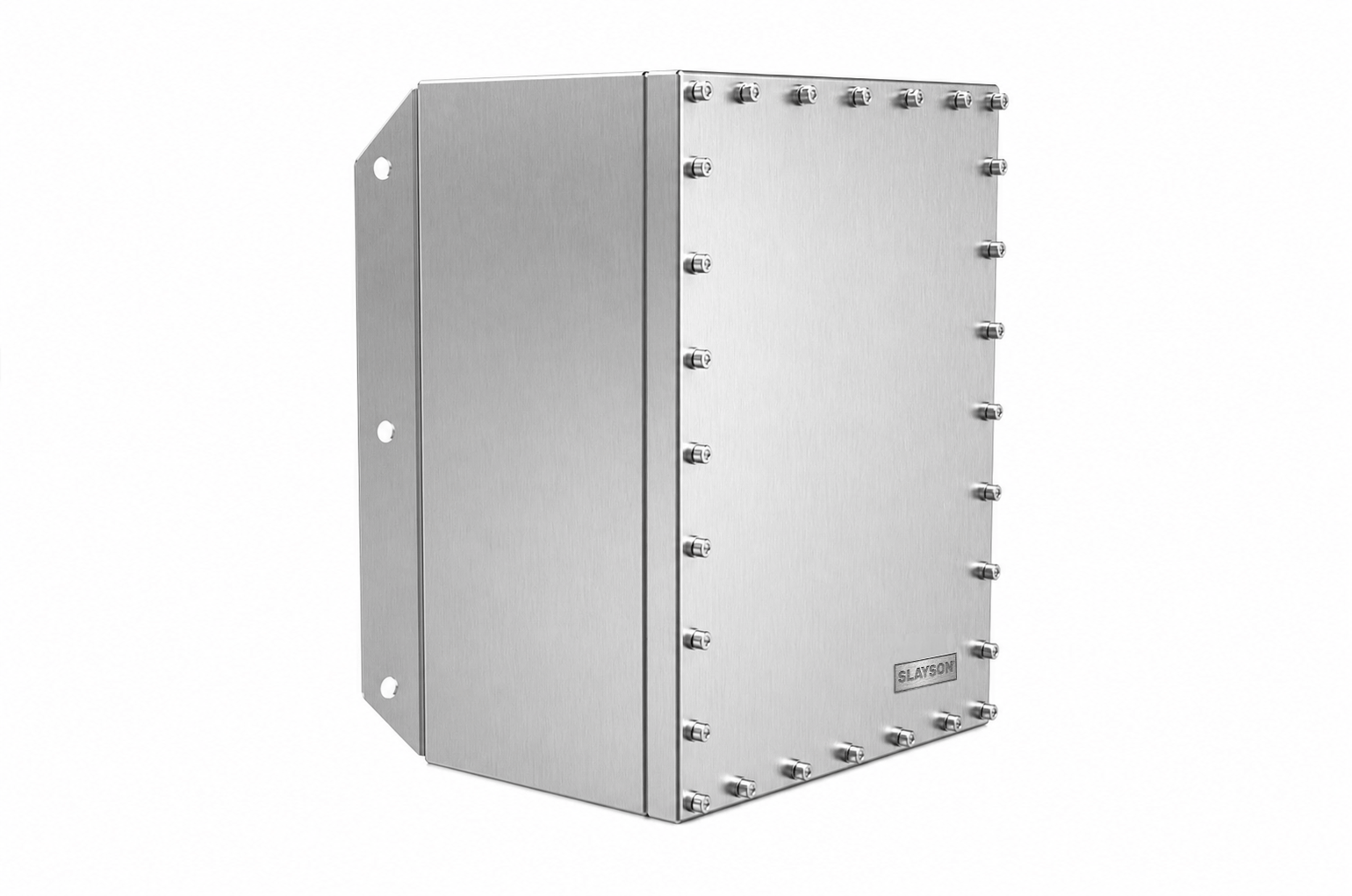

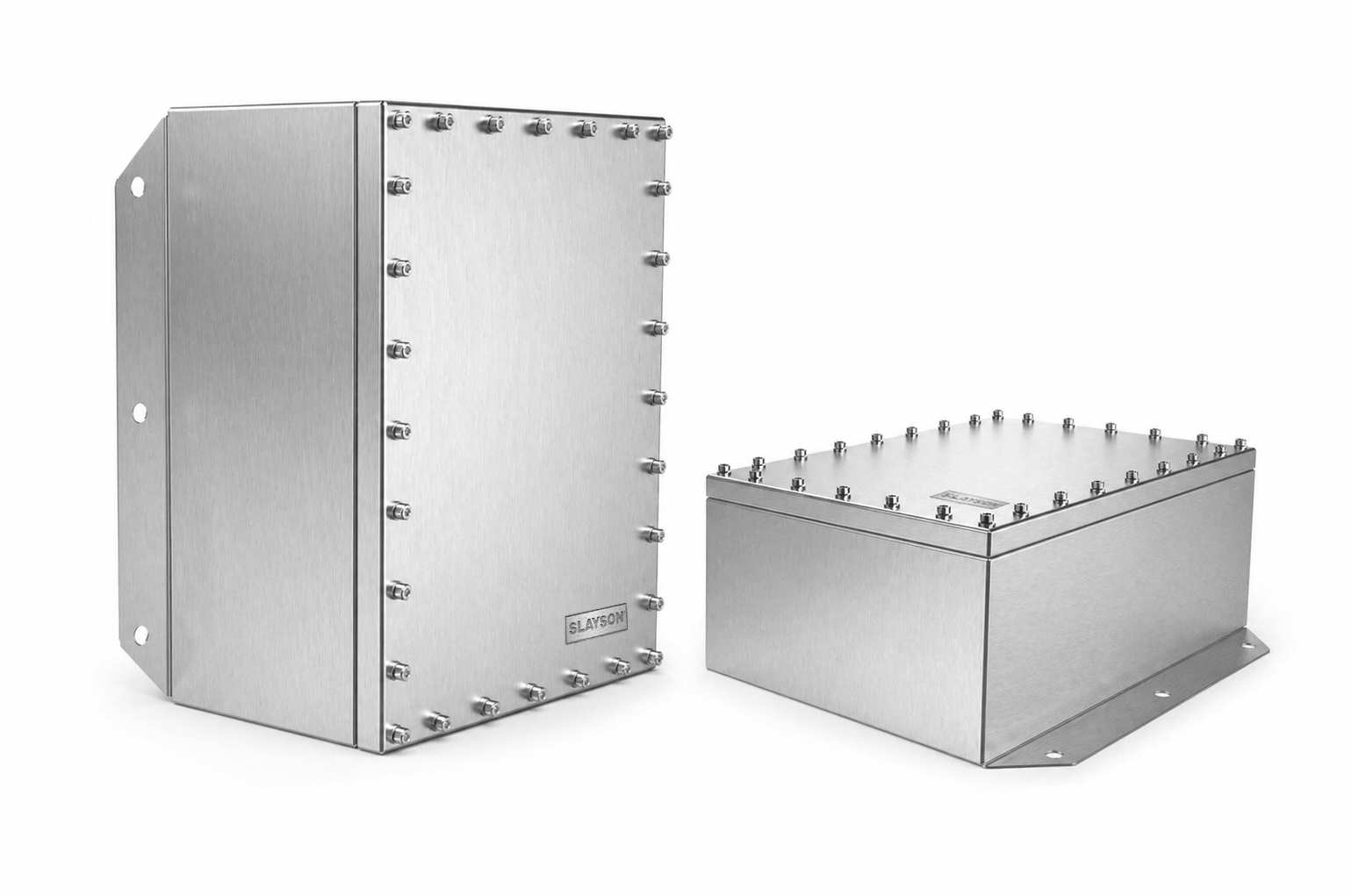

NAV-6P MARINE SUBMERSIBLE ENCLOSURE OVERVIEW

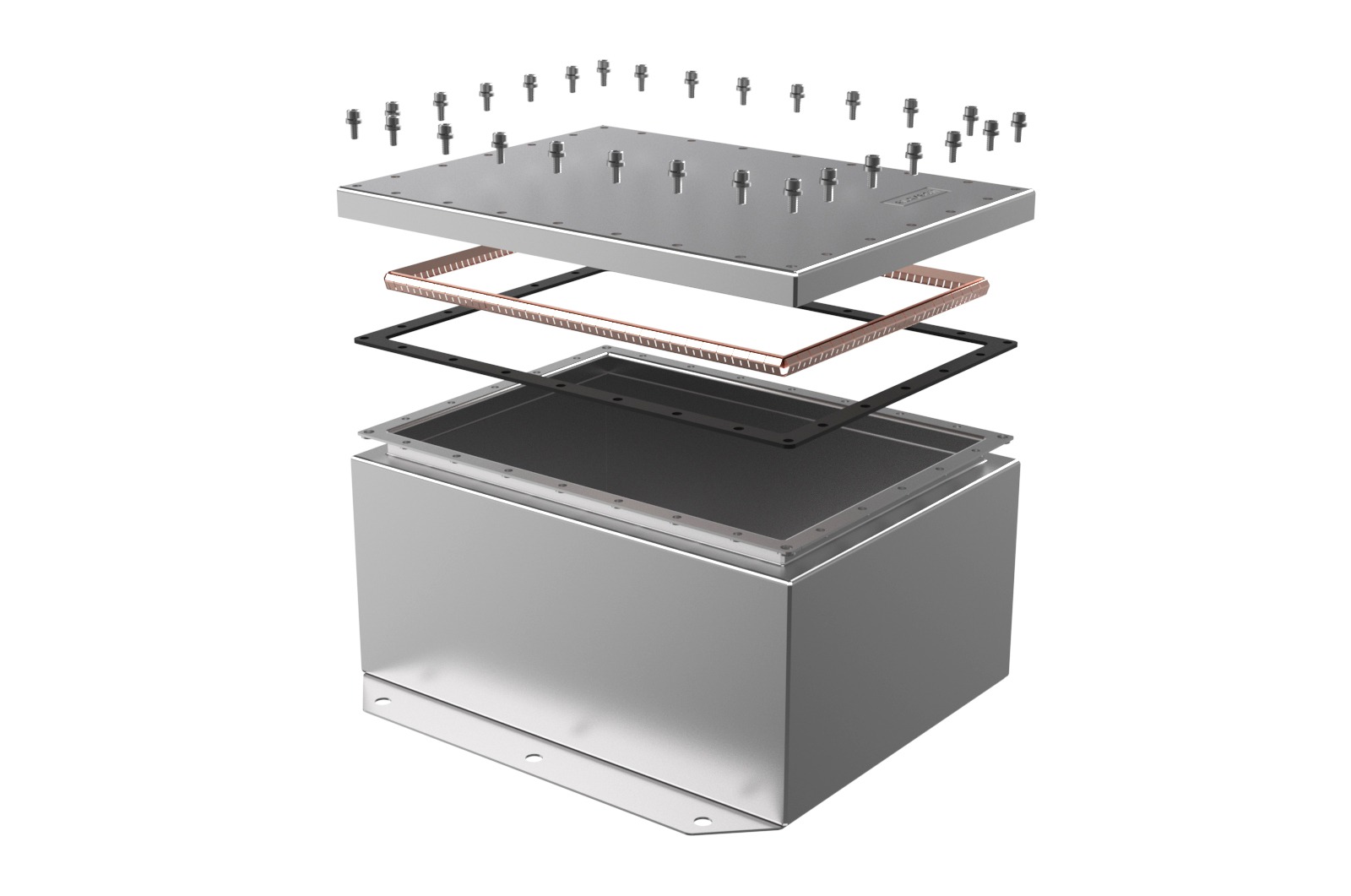

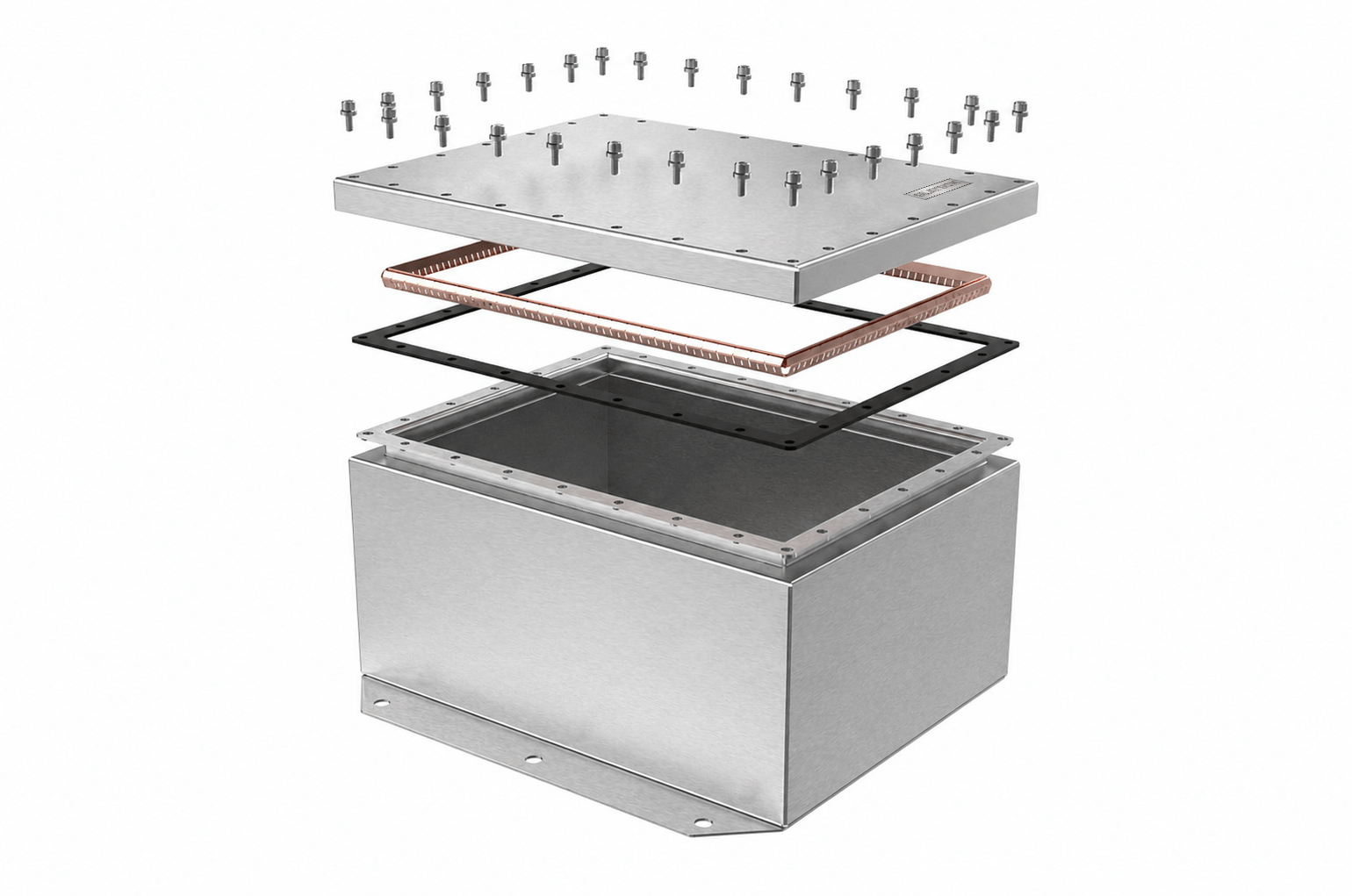

The SLAYSON® NAV-6P Series has been engineered for the Navy, and is rated NEMA 6P/IP68 for both indoor and outdoor applications. SLAYSON® NAV-6P enclosures are used extensively on Navy Vessels, Support Vessels, Heavy Equipment, Onshore Equipment, Communications, Weapons Systems and similar applications to protect from dust and water ingress up to depths of 15ft/5m. The NAV-6P comes standard in Marine Grade 316 Stainless Steel with EMC Dual Gasket Technology (EDGT) to ensure vital electrical equipment is protected from continuous EMF/RFI interference.
SLAYSON® NAV-6P enclosures are available in an array of finishes such as Navy Grey, White, Black, Anodized Black and more. The NAV-6P Series is available in a variety of sizes (8″x 8″ to 16″x 16″); each one is easily modified with our assortment of accessories. SLAYSON® design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.
If you cannot find the size you need, SLAYSON® will design and engineer a custom NAV-6P enclosure to meet your requirements.
