| IMPERIAL | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||

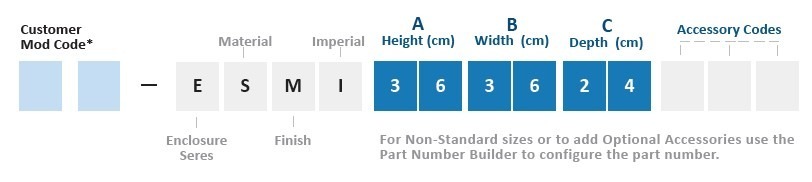

| ESMI363624 | 36 | 914.4 | 36 | 914.4 | 24 | 609.6 | 32 | 812.8 | 38 | 956.2 | 32 | 812.8 | 32 | 812.8 | 14 |
| ESMI363612 | 36 | 914.4 | 36 | 914.4 | 12 | 304.8 | 32 | 812.8 | 38 | 956.2 | 32 | 812.8 | 32 | 812.8 | 14 |
| ESMI343424 | 34 | 863.3 | 34 | 863.3 | 24 | 609.6 | 30 | 762.0 | 36 | 914.4 | 30 | 762.0 | 30 | 762,0 | 14 |
| ESMI343412 | 34 | 863.3 | 34 | 863.3 | 12 | 304.8 | 30 | 762.0 | 36 | 914.4 | 30 | 762.0 | 30 | 762,0 | 14 |
| ESMI303018 | 30 | 762.0 | 30 | 762.0 | 18 | 457.2 | 26 | 660.4 | 32 | 812.8 | 26 | 660.4 | 26 | 660.4 | 14 |
| ESMI302818 | 30 | 762.0 | 28 | 711.2 | 18 | 457.2 | 26 | 660.4 | 28 | 711.2 | 26 | 660.4 | 26 | 660.4 | 14 |
| ESMI282816 | 28 | 711.2 | 28 | 711.2 | 16 | 406.4 | 24 | 609.6 | 30 | 762.0 | 24 | 609.6 | 24 | 609.6 | 14 |
| ESMI282416 | 28 | 711.2 | 24 | 609.6 | 16 | 406.4 | 24 | 609.6 | 26 | 660.4 | 24 | 609.6 | 24 | 609.6 | 14 |
| ESMI262614 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 28 | 711.2 | 22 | 558.8 | 22 | 558.8 | 14 |
| ESMI262214 | 26 | 660.4 | 26 | 660.4 | 14 | 355.6 | 22 | 558.8 | 24 | 609.6 | 22 | 558.8 | 22 | 558.8 | 14 |
| METRIC | A | B | C | D | E | INTERNAL MOUNT PLATE | |||||||||
| PART NUMBER | Height | Width | Depth | Mount Height | Mount Width | Height | Width | Gauge | |||||||
| cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | cm | mm | ||
| ESM909060 | 90 | 900.0 | 90 | 900.0 | 60 | 600.0 | 80 | 800.0 | 95 | 950.0 | 80 | 800.0 | 80 | 800.0 | 2.00 |
| ESM909030 | 90 | 900.0 | 90 | 900.0 | 30 | 300.0 | 80 | 800.0 | 95 | 950.0 | 80 | 800.0 | 80 | 800.0 | 2.00 |
| ESM858560 | 85 | 850.0 | 85 | 850.0 | 60 | 600.0 | 75 | 750.0 | 90 | 900.0 | 75 | 750.0 | 75 | 750.0 | 2.00 |
| ESM858530 | 85 | 850.0 | 85 | 850.0 | 30 | 300.0 | 75 | 750.0 | 90 | 900.0 | 75 | 750.0 | 75 | 750.0 | 2.00 |
| ESM757545 | 75 | 750.0 | 75 | 750.0 | 45 | 450.0 | 65 | 650.0 | 80 | 800.0 | 65 | 650.0 | 65 | 650.0 | 2.00 |
| ESM756545 | 75 | 750.0 | 65 | 650.0 | 45 | 450.0 | 65 | 650.0 | 70 | 700.0 | 65 | 650.0 | 55 | 550.0 | 2.00 |
| ESM707040 | 70 | 700.0 | 70 | 700.0 | 40 | 400.0 | 60 | 600.0 | 75 | 750.0 | 60 | 600.0 | 60 | 600.0 | 2.00 |
| ESM706040 | 70 | 700.0 | 60 | 600.0 | 40 | 400.0 | 60 | 600.0 | 65 | 650.0 | 60 | 600.0 | 55 | 550.0 | 2.00 |
| ESM656535 | 65 | 650.0 | 65 | 650.0 | 35 | 350.0 | 55 | 550.0 | 70 | 700.0 | 55 | 550.0 | 55 | 550.0 | 2.00 |
| ESM655535 | 65 | 650.0 | 55 | 550.0 | 35 | 350.0 | 55 | 550.0 | 60 | 600.0 | 55 | 550.0 | 45 | 450.0 | 2.00 |
| ESM606030 | 60 | 600.0 | 60 | 600.0 | 30 | 300.0 | 50 | 500.0 | 65 | 650.0 | 50 | 500.0 | 50 | 500.0 | 2.00 |

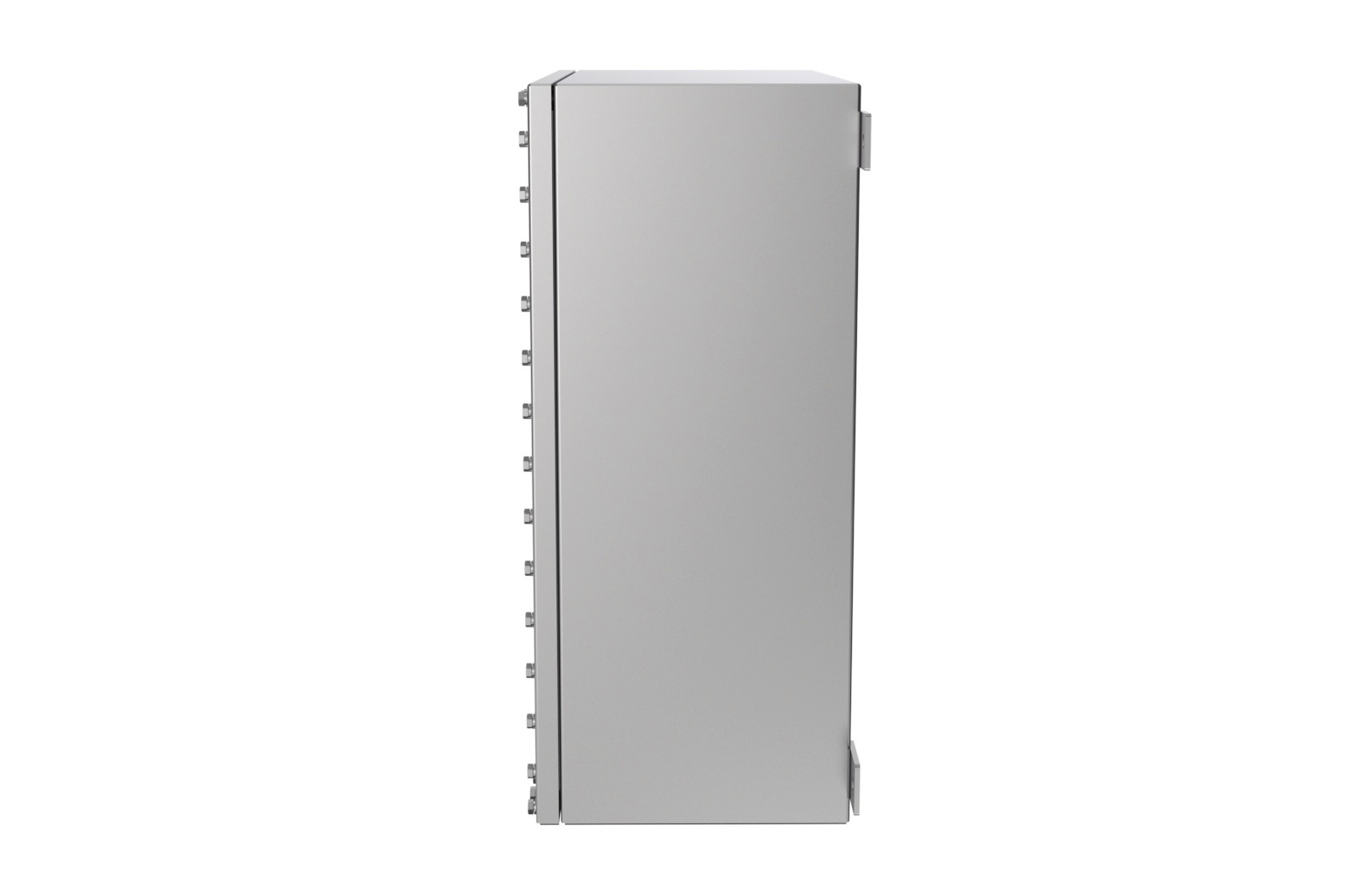

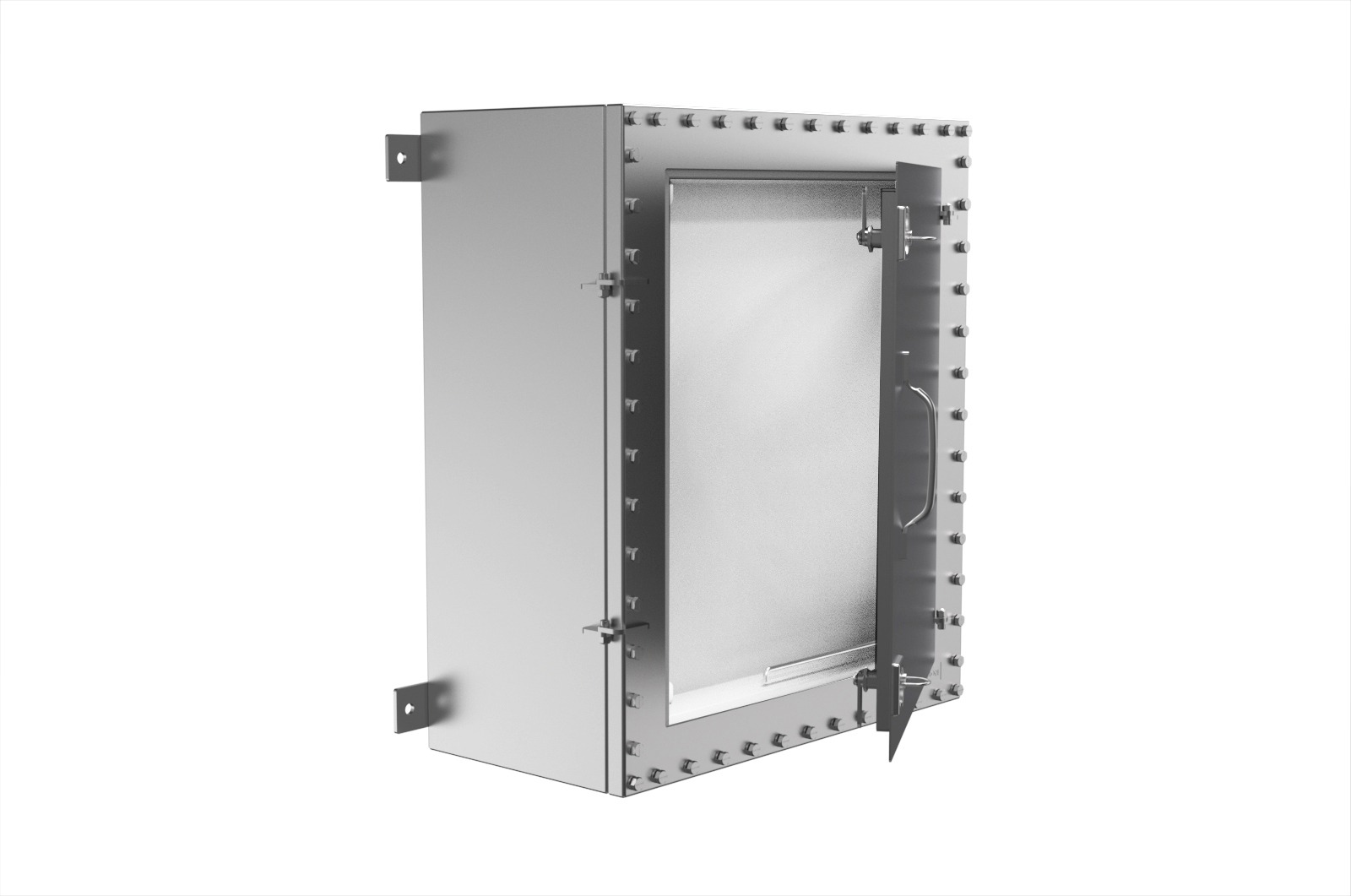

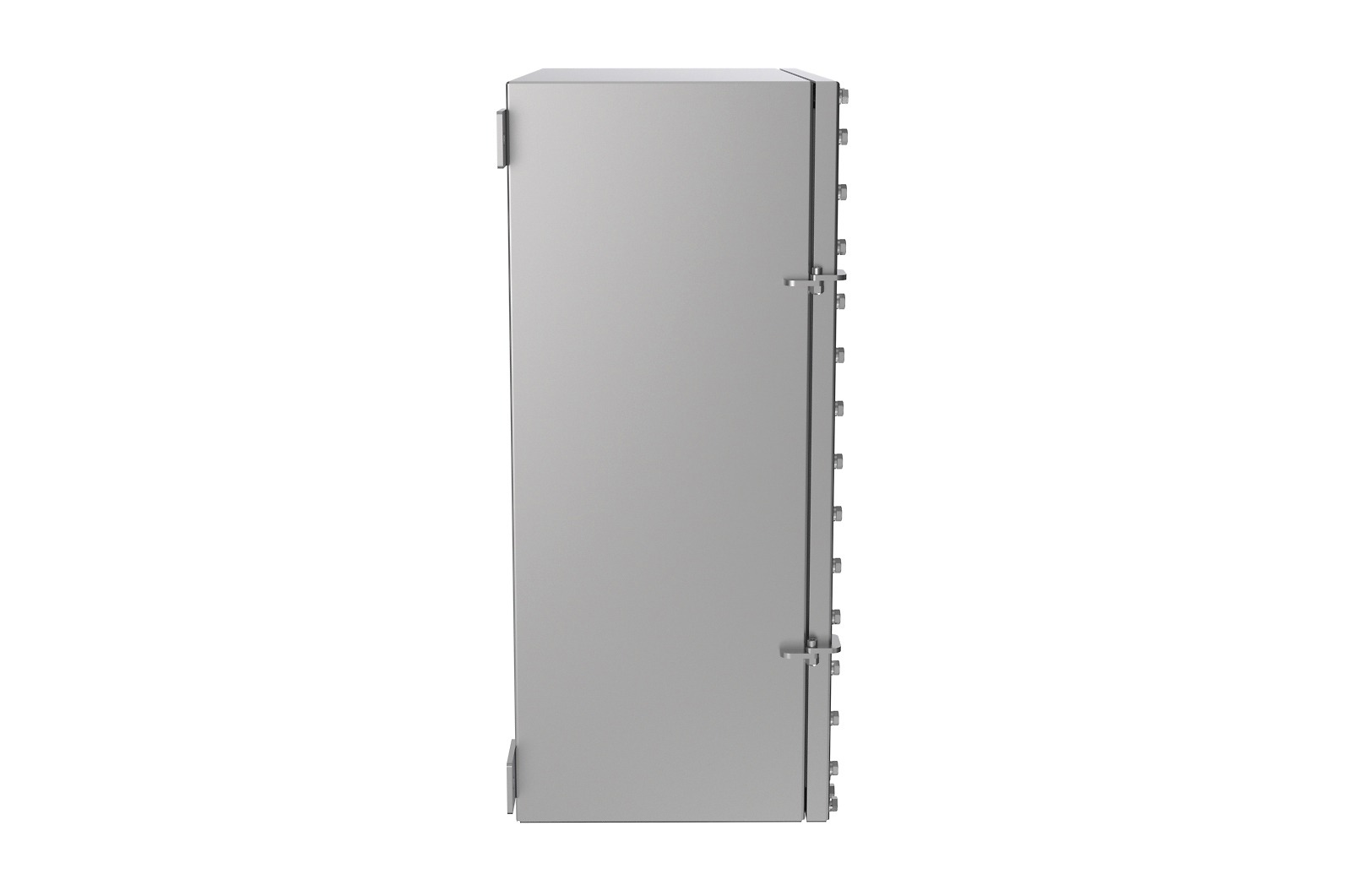

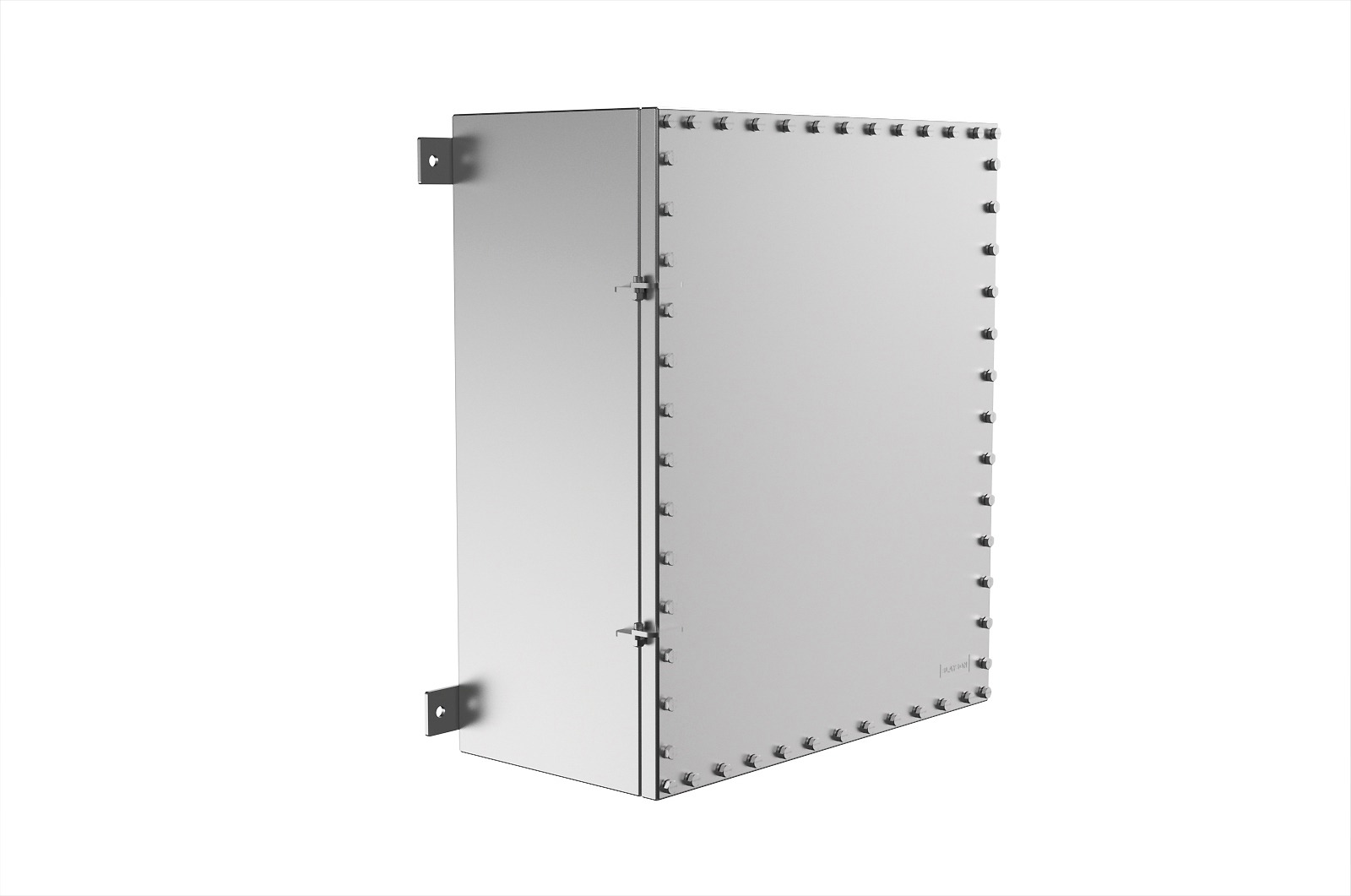

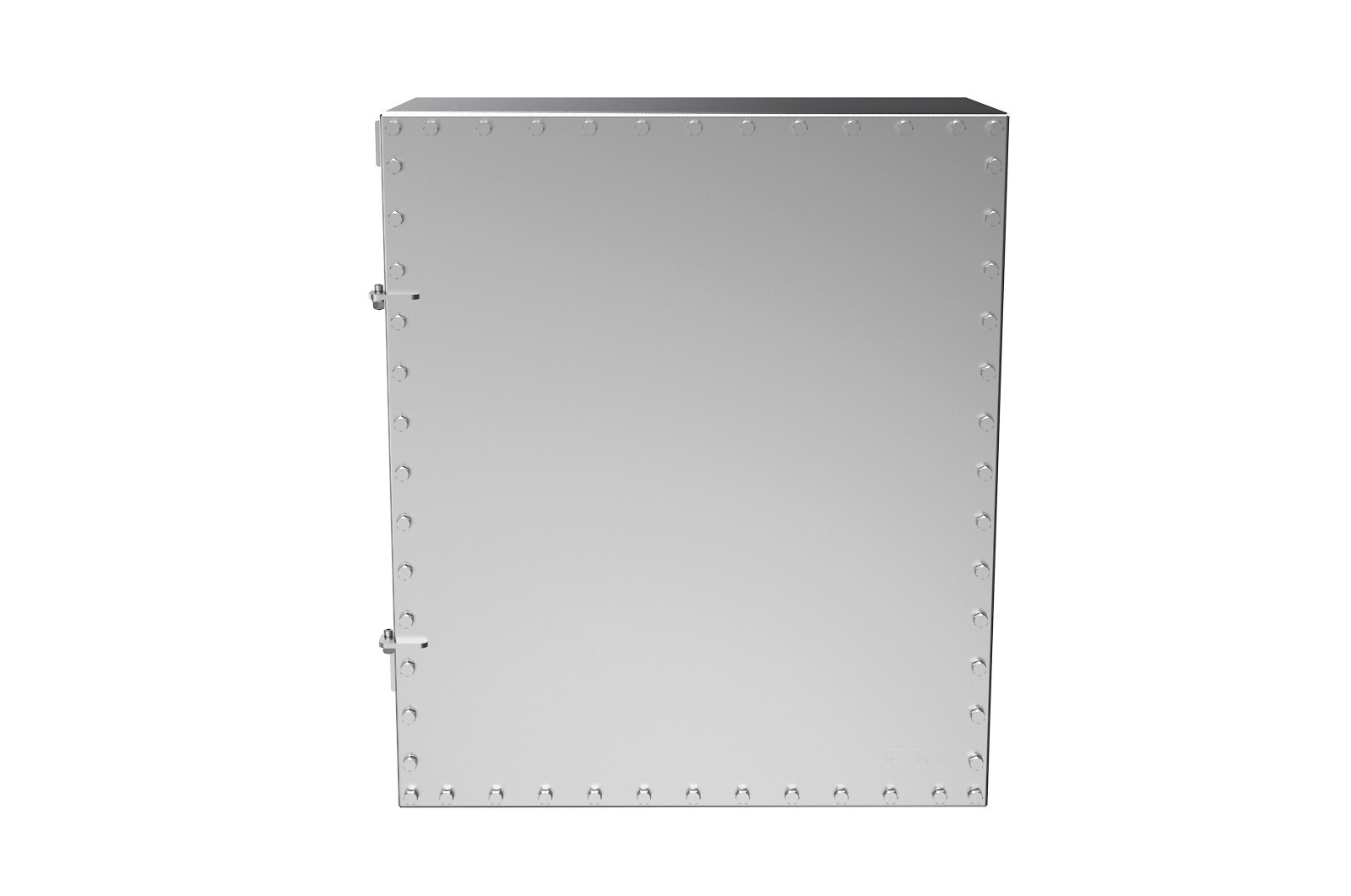

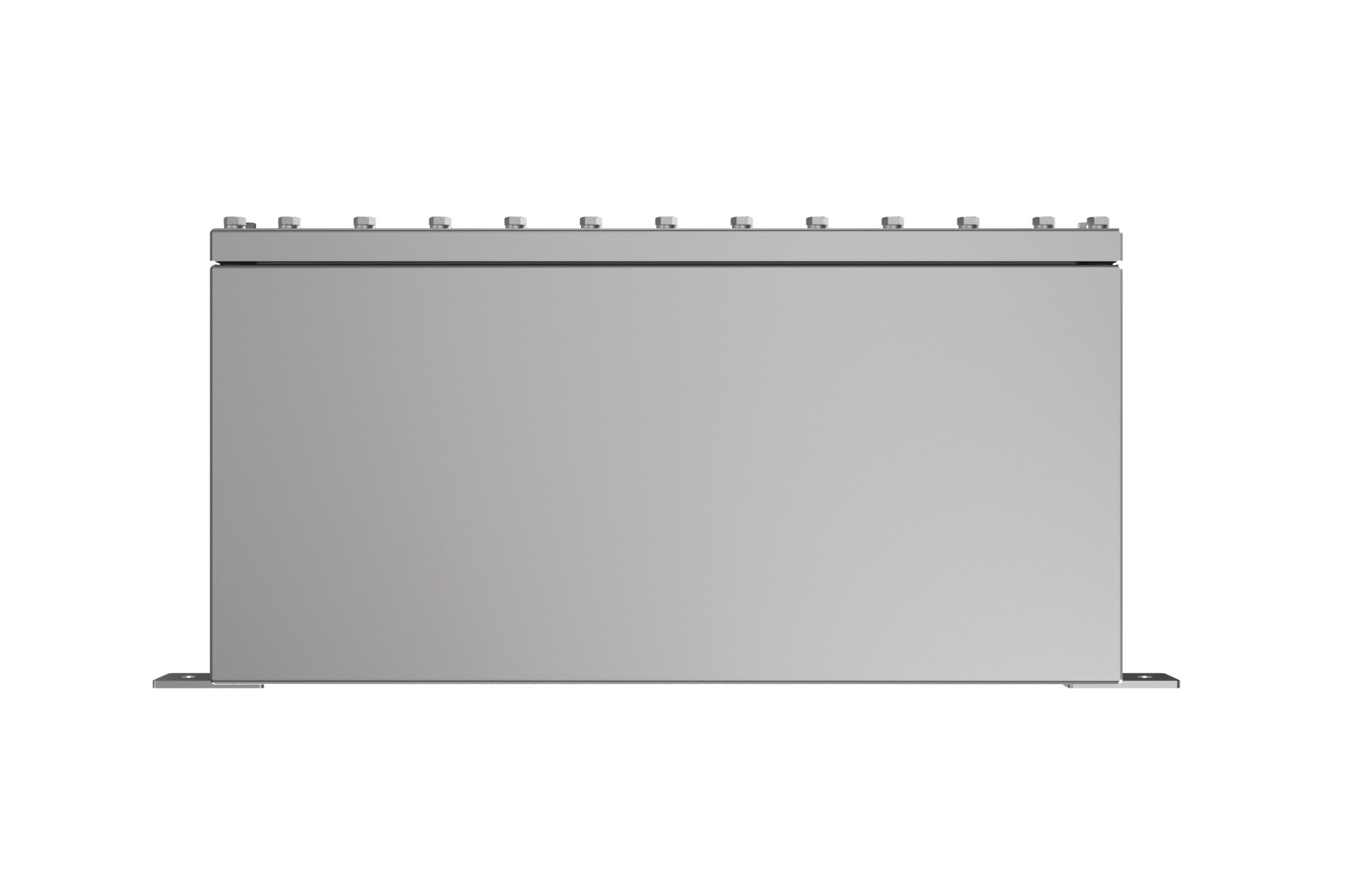

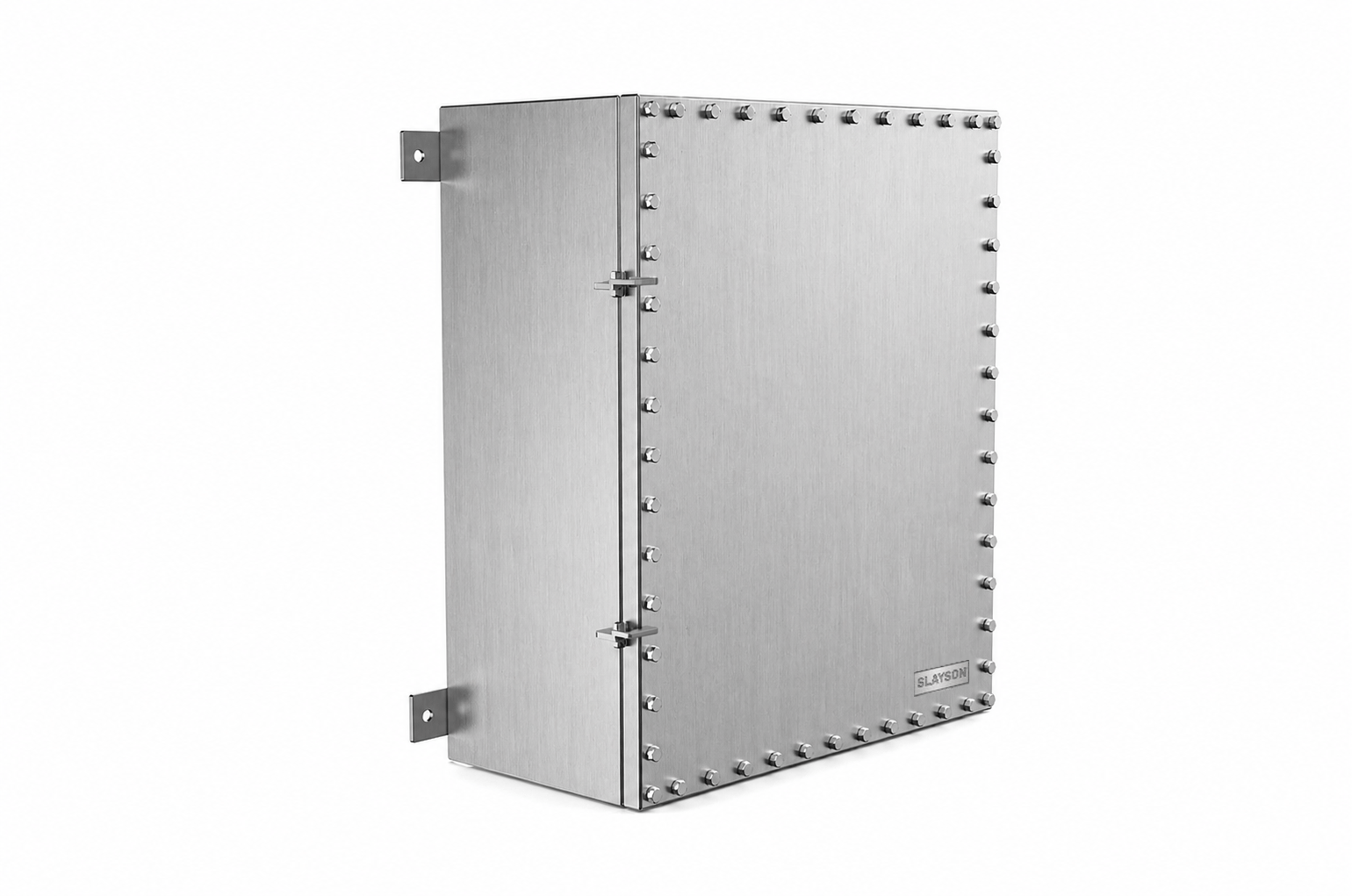

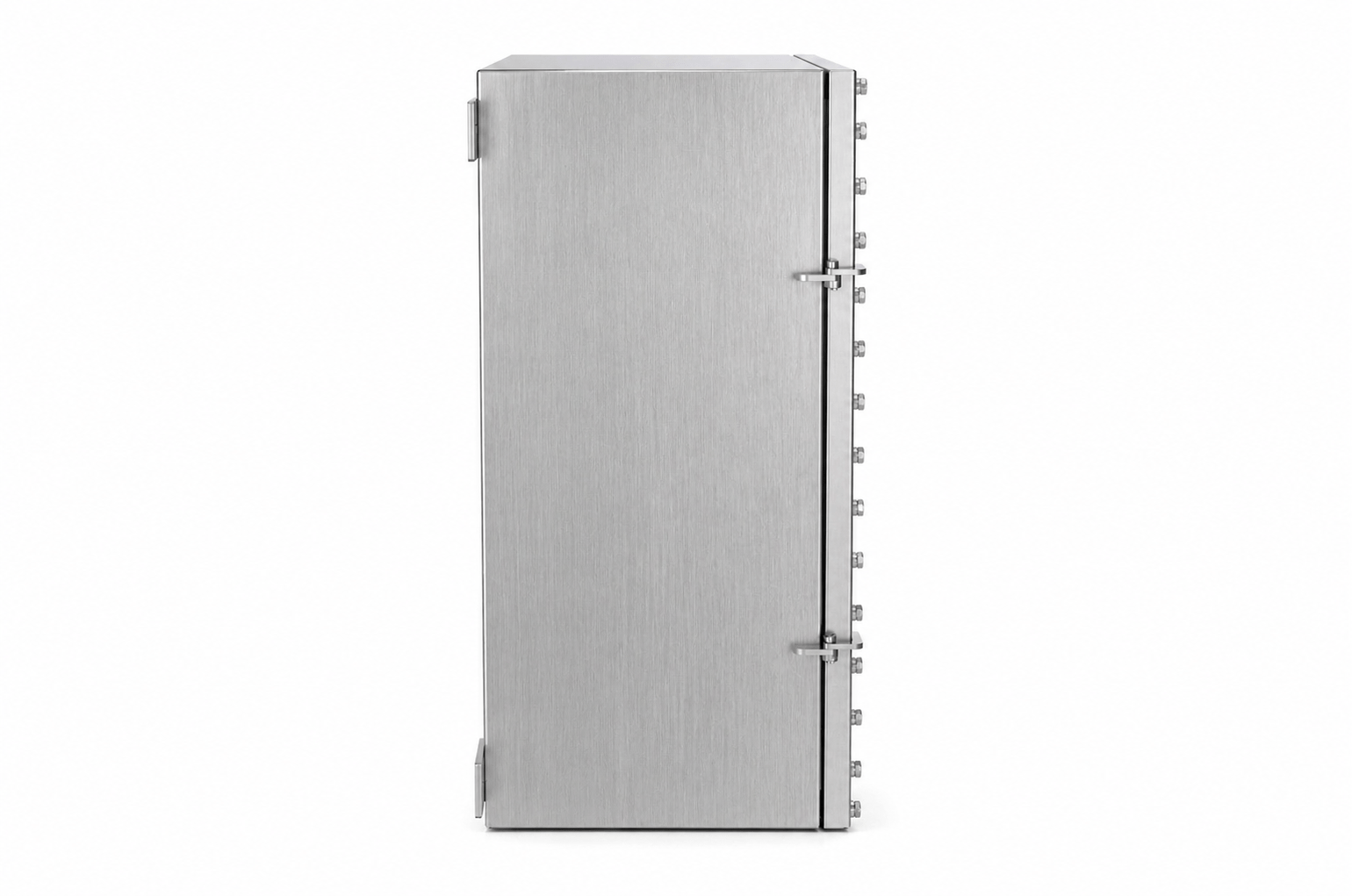

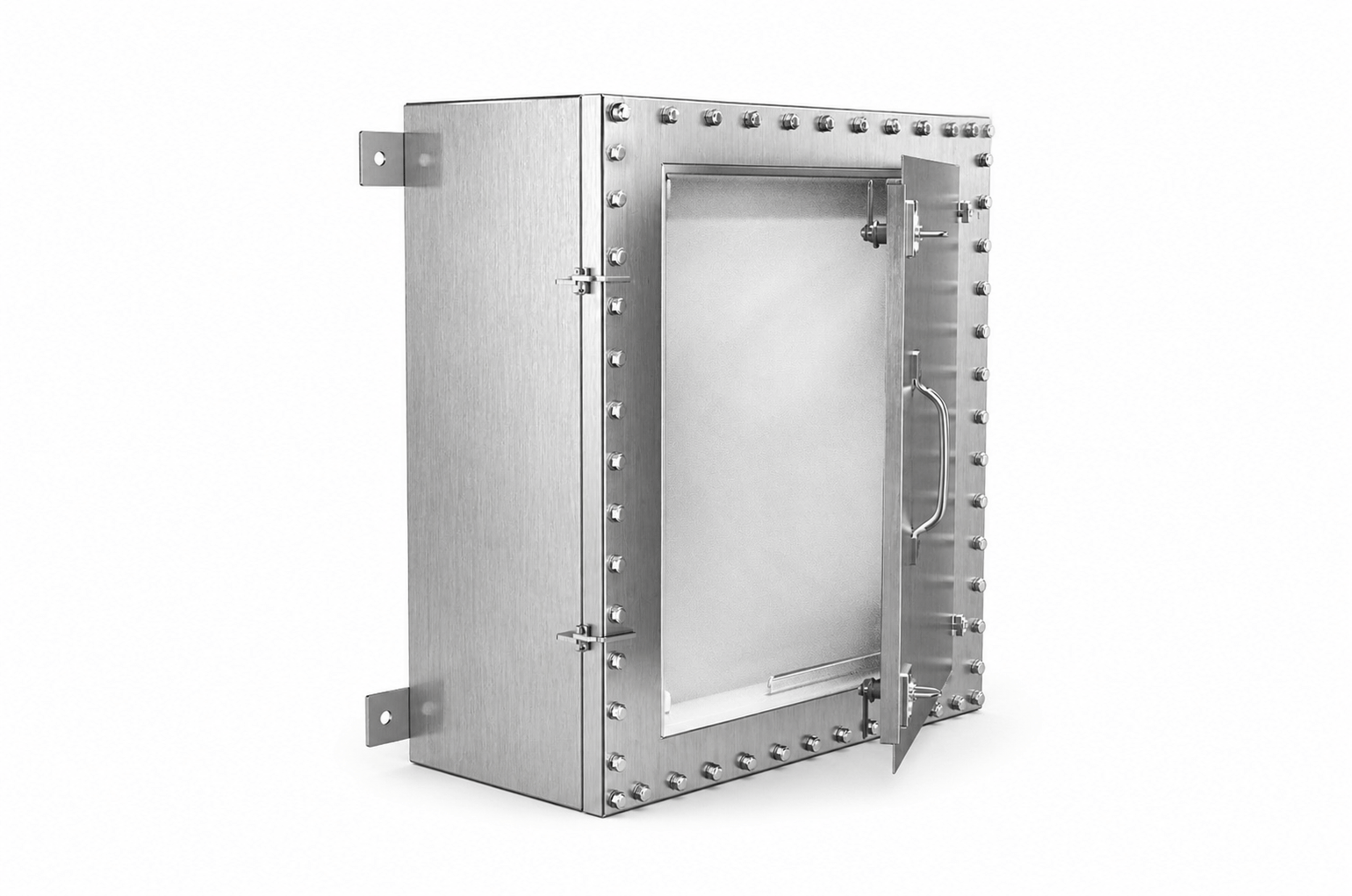

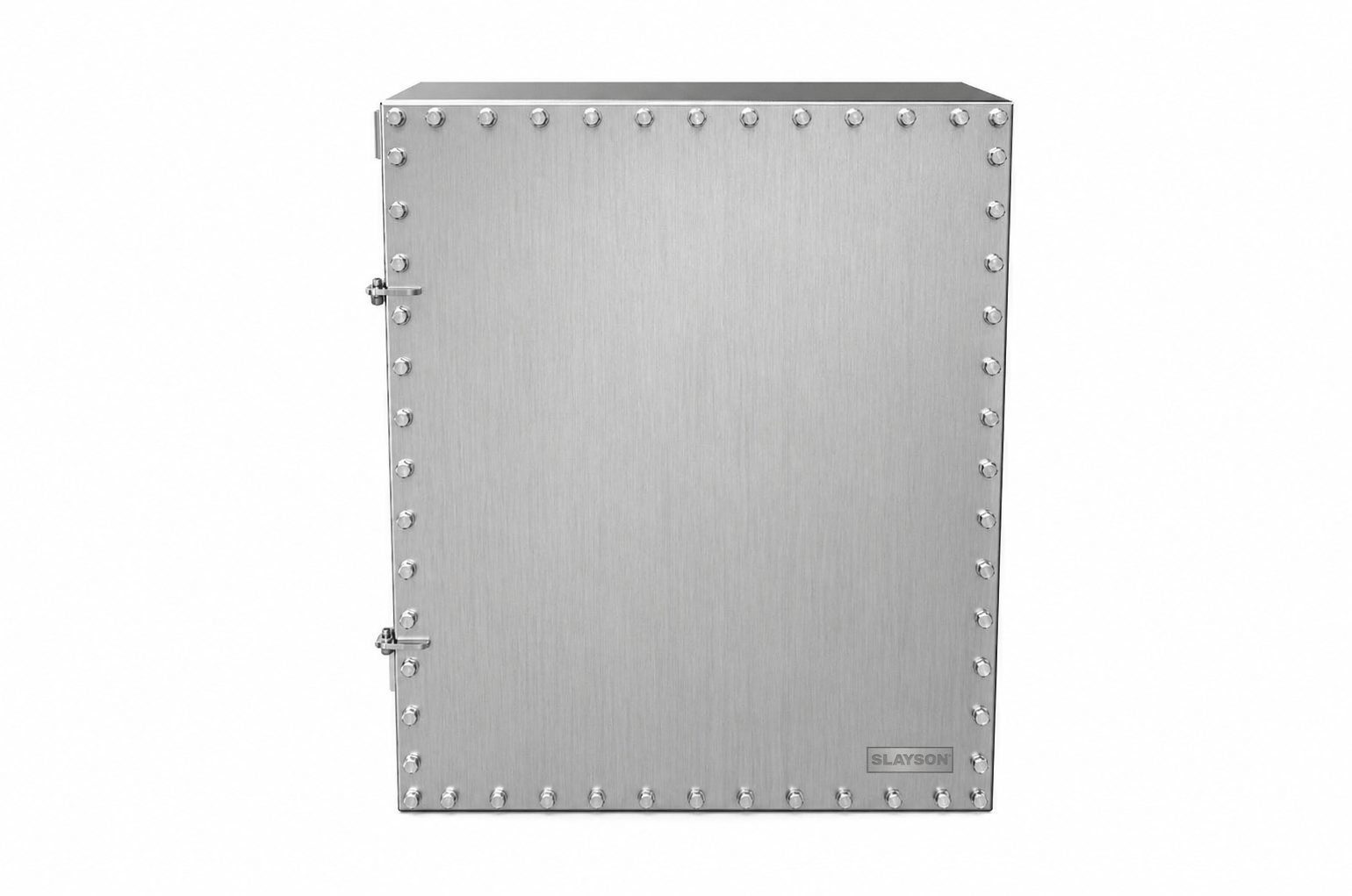

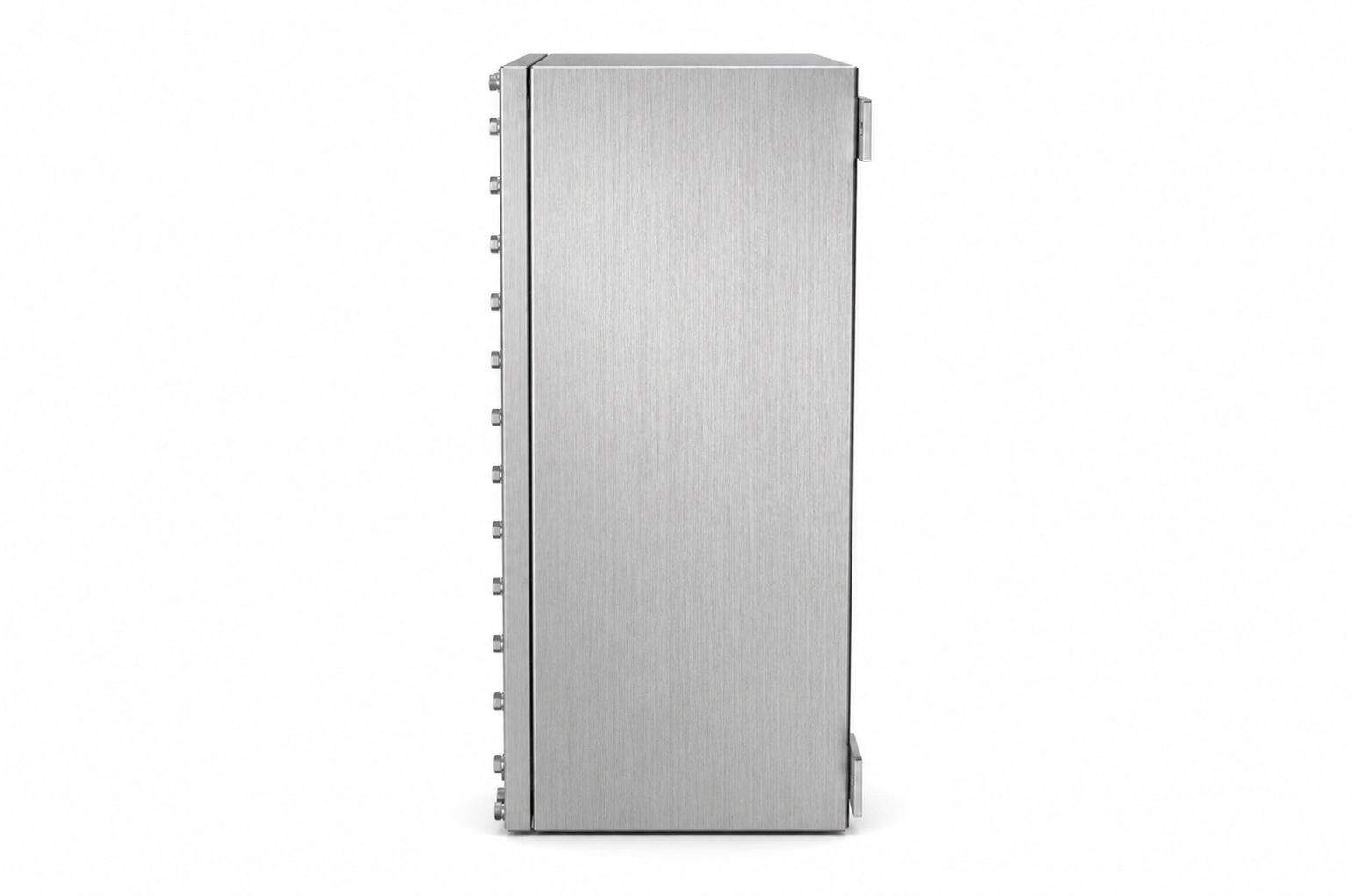

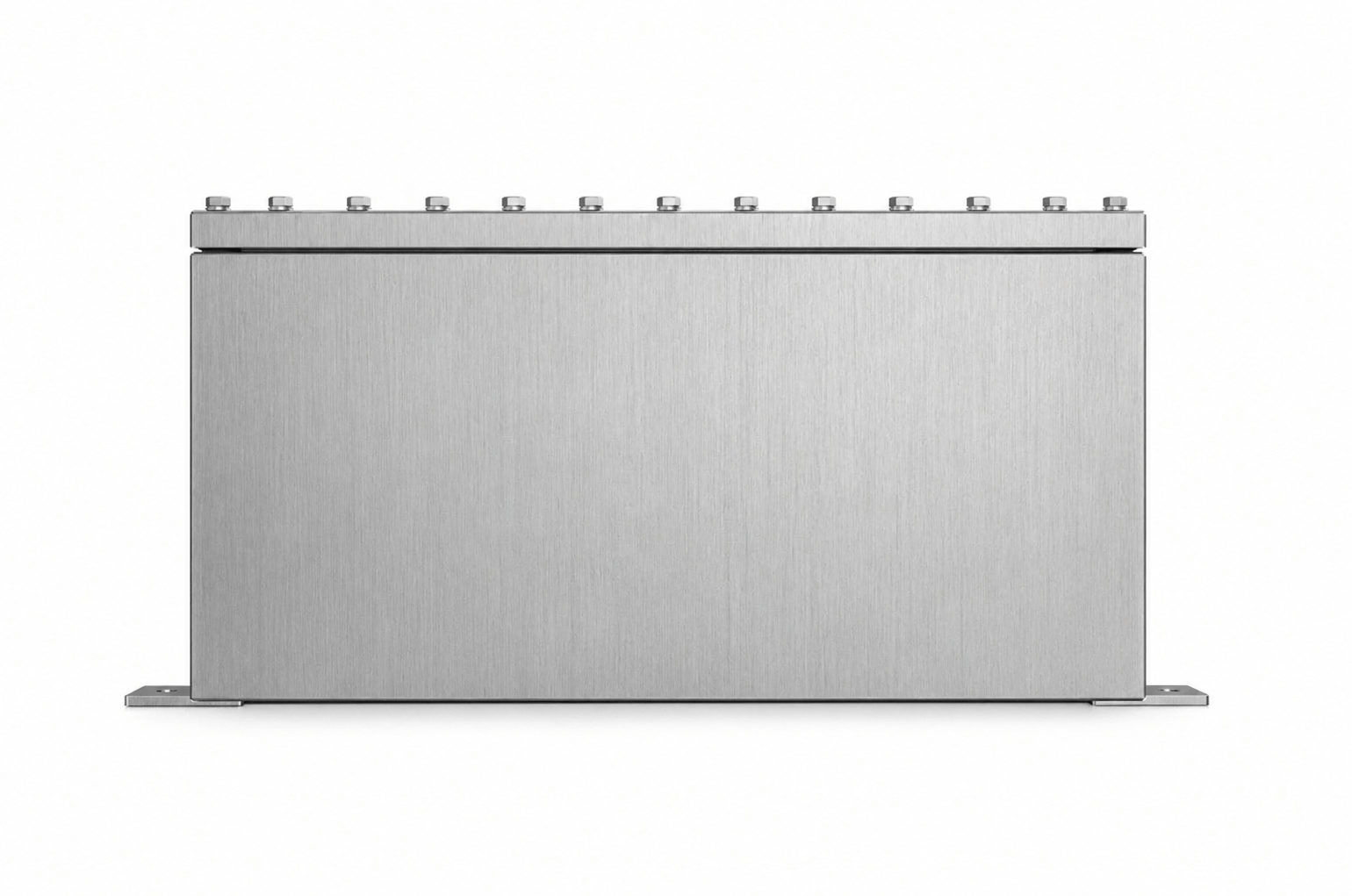

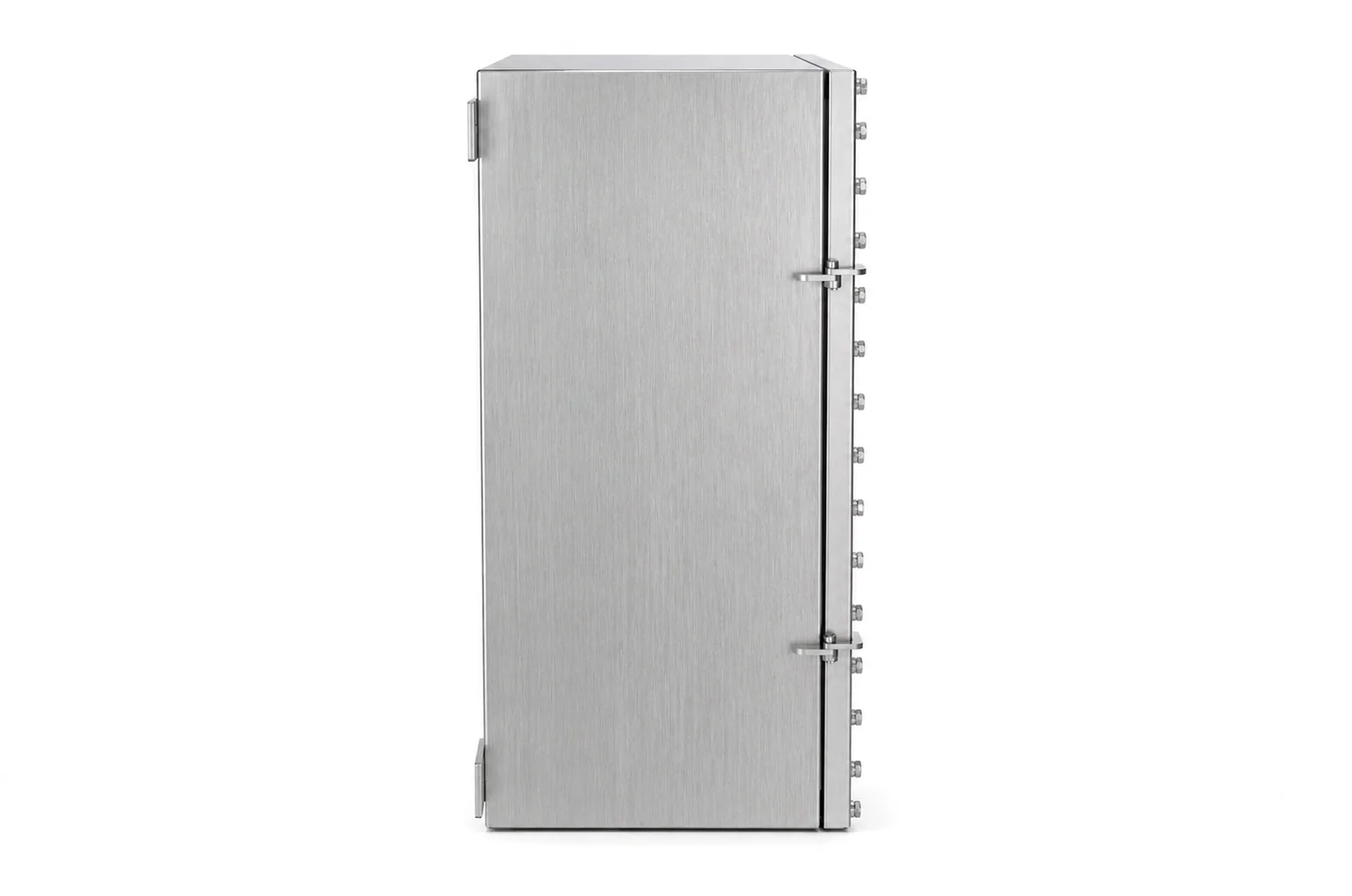

NAV-CONTROL-6P SHIELDED PANEL OVERVIEW

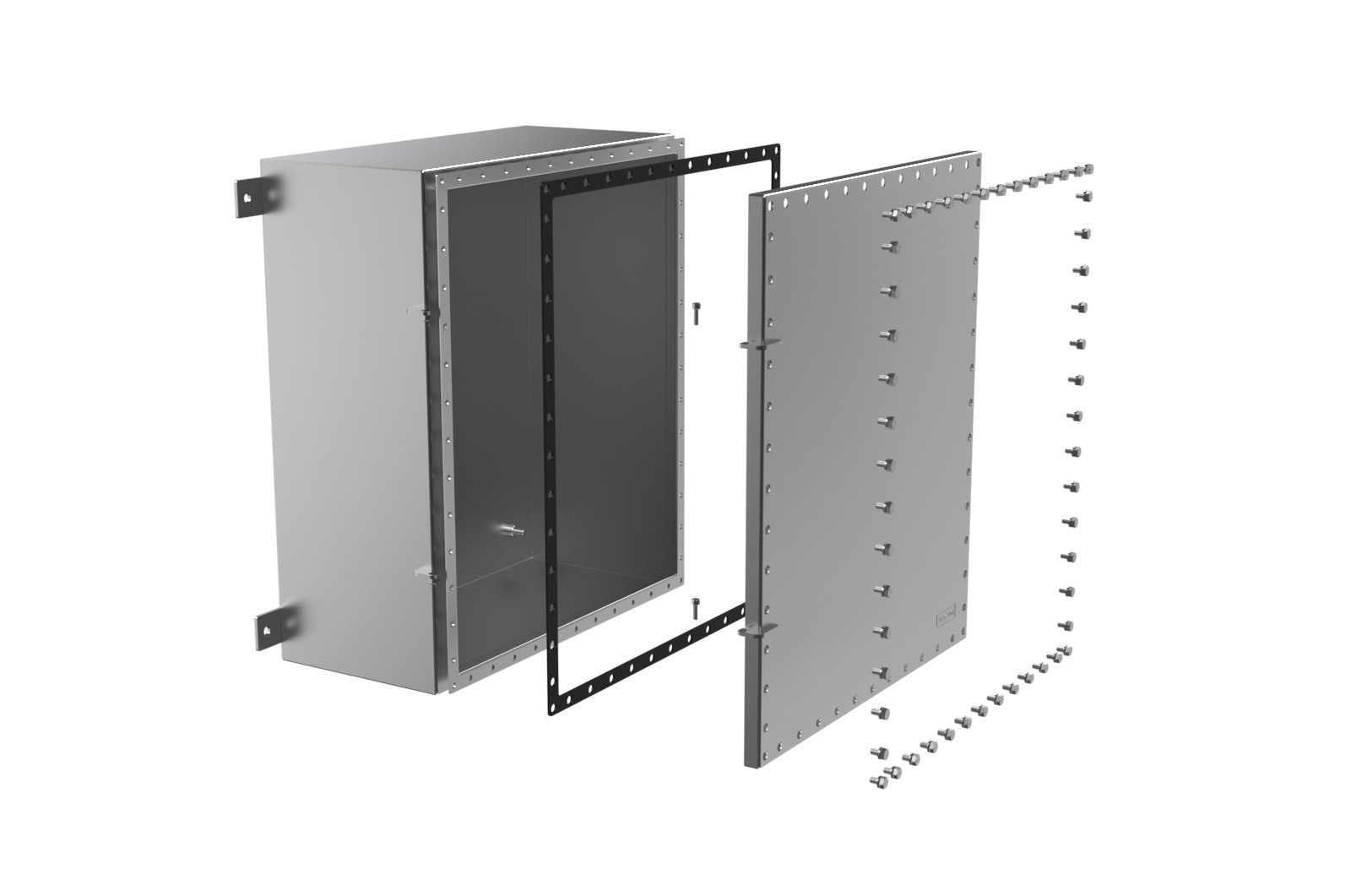

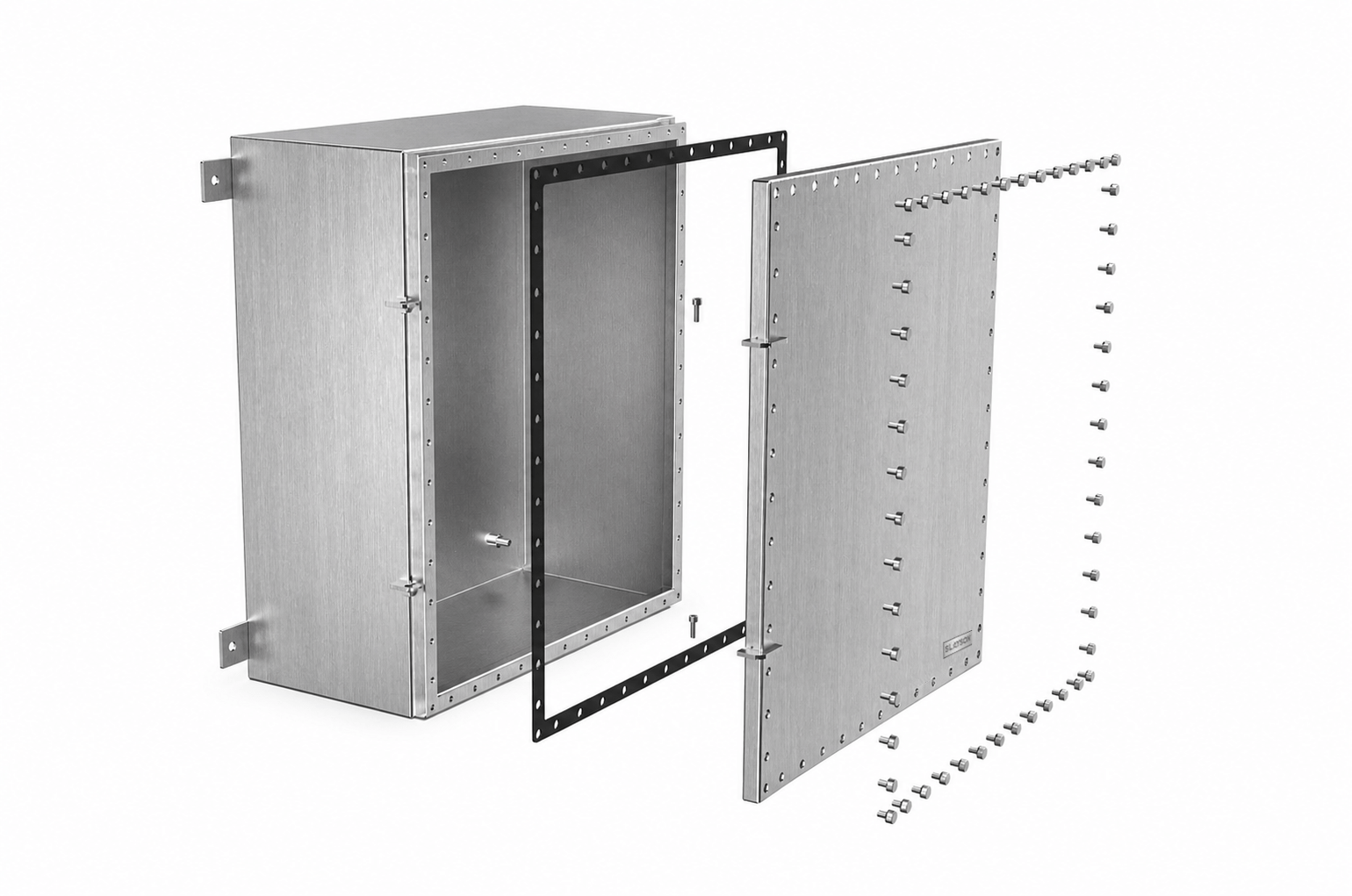

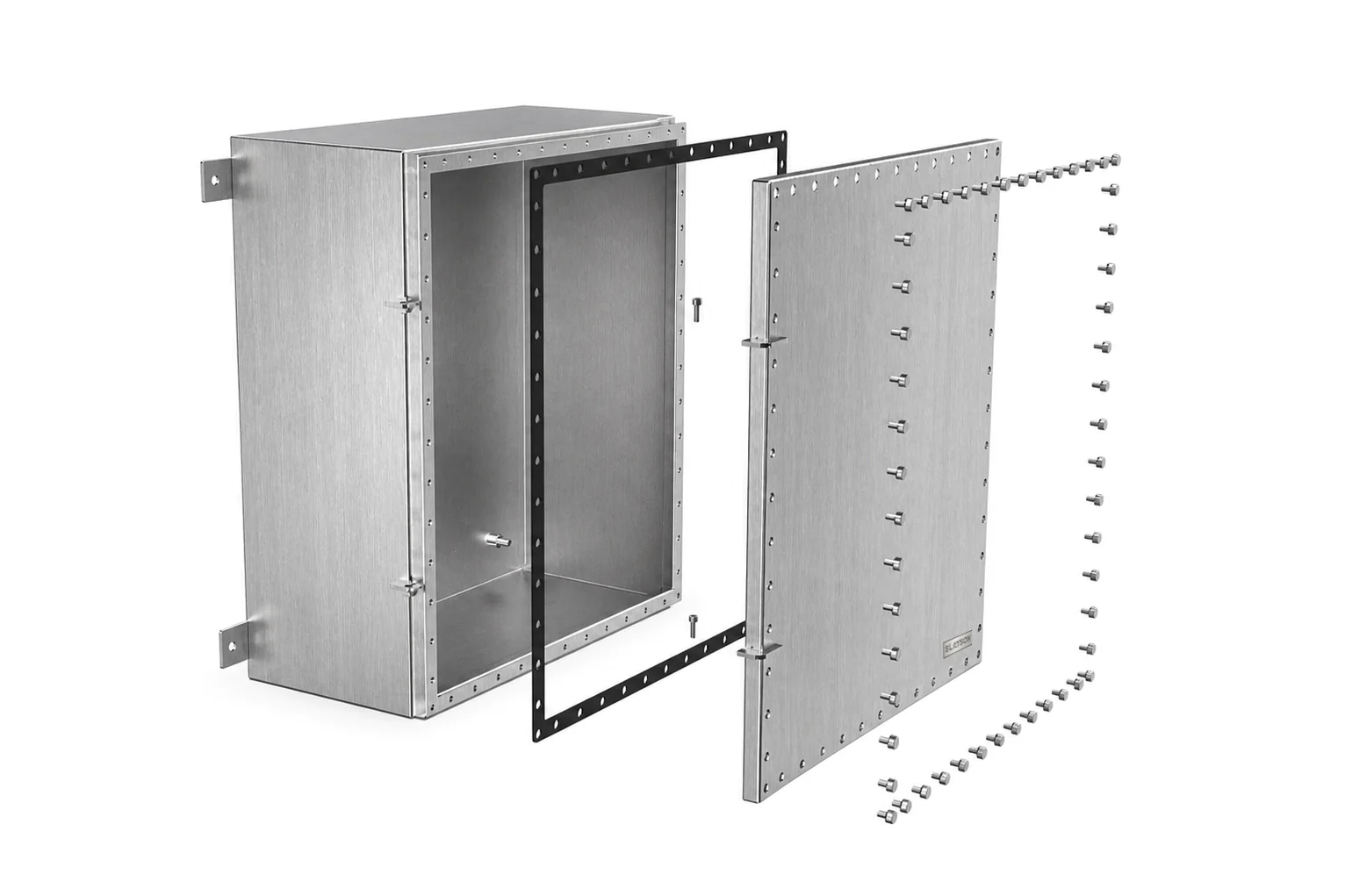

The SLAYSON® NAV-CONTROL-6P SHIELDED PANEL Series has been engineered for the Navy, and is rated NEMA 6P/IP68 for both indoor and outdoor applications. SLAYSON® NAV-CONTROL-6P enclosures are used extensively on Navy Vessels, Support Vessels, Heavy Equipment, Onshore Equipment, Communications, Weapons Systems and similar applications to protect from dust and water ingress up to depths of 15ft/5m. The NAV-CONTROL-6P comes standard in Marine Grade 316 Stainless Steel with EMC Dual Gasket Technology (EDGT) to ensure vital electrical equipment is protected from continuous EMF/RFI interference.
SLAYSON® NAV-CONTROL-6P enclosures are available in an array of finishes such as Navy Grey, White, Black, Anodized Black and more. The NAV-CONTROL-6P Series is available in a variety of sizes (8″x 8″ to 16″x 16″); each one is easily modified with our assortment of accessories. SLAYSON® design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.
If you cannot find the size you need, SLAYSON® will design and engineer a custom NAV-CONTROL-6P enclosure to meet your requirements.
