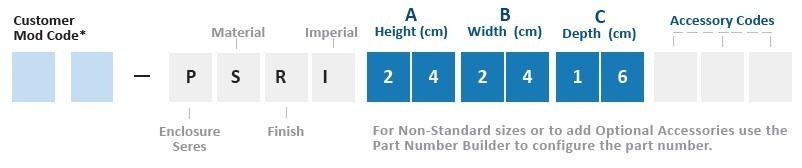

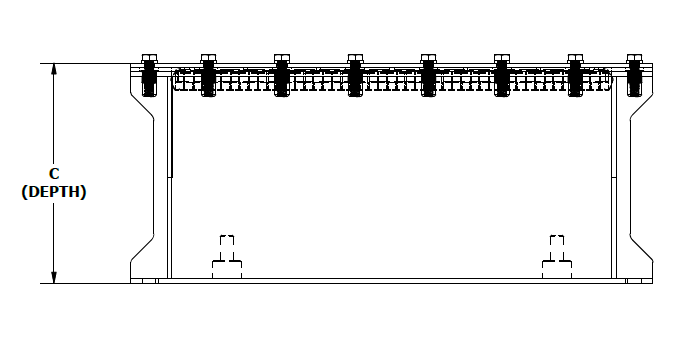

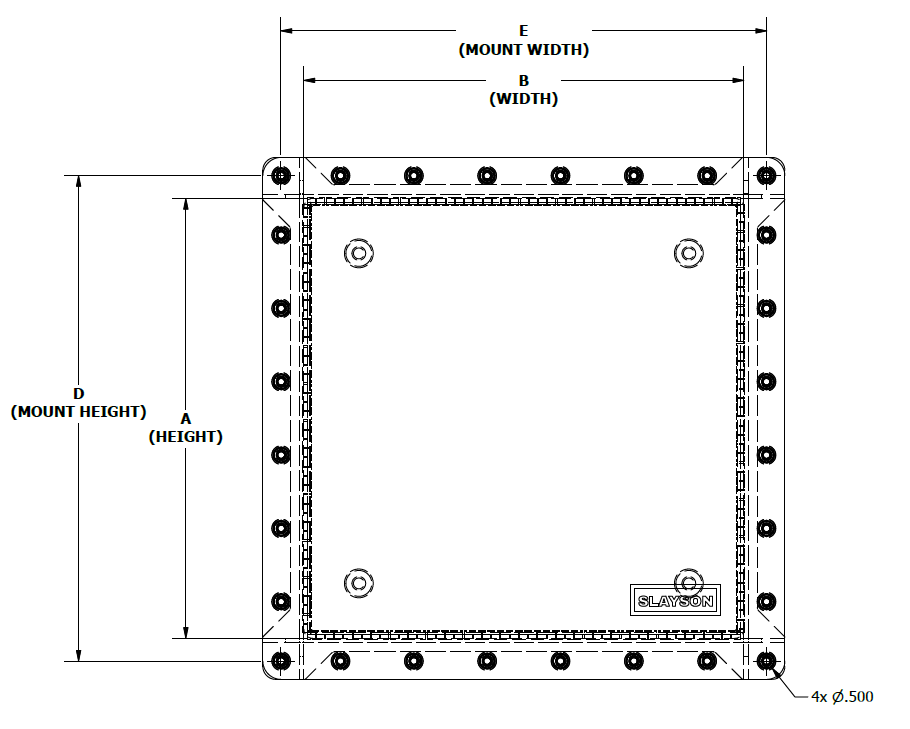

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
PSRI242416 24 609.6 24 609.6 16 406.4 25.25 641.4 25.25 641.4 22 558.8 22 558.8 12
PSRI242412 24 609.6 24 609.6 12 304.8 25.25 641.4 25.25 641.4 22 558.8 22 558.8 12
PSRI242422 24 609.6 22 558.8 14 355.6 25.25 641.4 23.25 590.6 22 558.8 20 508.0 12
PSRI242012 24 609.6 20 508.0 12 304.8 25.25 641.4 21.25 539.8 22 558.8 18 457.2 12
PSRI242810 24 609.6 18 457.2 10 254.0 25.25 641.4 19.25 489.0 22 558.8 16 406.4 12
PSRI222216 22 558.8 22 558.8 16 406.4 23.25 590.6 23.25 590.6 20 508.0 20 508.0 12
PSRI222212 22 558.8 22 558.8 12 304.8 23.25 590.6 23.25 590.6 20 508.0 20 508.0 12
PSRI222014 22 558.8 20 508.0 14 355.6 23.25 590.6 21.25 539.8 20 508.0 18 457.2 12
PSRI221812 22 558.8 18 457.2 12 304.8 23.25 590.6 19.25 489.0 20 508.0 16 406.4 12
PSRI221610 22 558.8 16 406.4 10 254.0 23.25 590.6 17.25 438.2 20 508.0 14 355.6 12
PSRI202014 20 508.0 20 508.0 14 355.6 21.25 539.8 21.25 539.8 18 457.2 18 457.2 12
PSRI202010 20 508.0 20 508.0 10 254.0 21.25 539.8 21.25 539.8 18 457.2 18 457.2 12
PSRI201812 20 508.0 18 457.2 12 304.8 21.25 539.8 19.25 489.0 18 457.2 16 406.4 12
PSRI201610 20 508.0 16 406.4 10 254.0 21.25 539.8 17.25 438.2 18 457.2 14 355.6 12
PSRI201408 20 508.0 14 355.6 08 203.2 21.25 539.8 15.25 387.4 18 457.2 12 304.8 12
PSRI181814 18 457.2 18 457.2 14 355.6 19.25 489.0 19.25 489.0 16 406.4 16 406.4 12
PSRI181810 18 457.2 18 457.2 10 254.0 19.25 489.0 19.25 489.0 16 406.4 16 406.4 12
PSRI181612 18 457.2 16 406.4 12 304.8 19.25 489.0 17.25 438.2 16 406.4 14 355.6 12
PSRI181410 18 457.2 14 355.6 10 254.0 19.25 489.0 15.25 387.4 16 406.4 12 304.8 12
PSRI181208 18 457.2 12 304.8 08 203.2 19.25 489.0 13.25 336.6 16 406.4 10 254.0 12
PSRI161612 16 406.4 16 406.4 12 304.8 17.25 438.2 17.25 438.2 14 355.6 14 355.6 12
PSRI161610 16 406.4 16 406.4 10 254.0 17.25 438.2 17.25 438.2 14 355.6 14 355.6 12
PSRI161410 16 406.4 14 355.6 10 254.0 17.25 438.2 15.25 387.4 14 355.6 12 304.8 12
PSRI161208 16 406.4 12 304.8 08 203.2 17.25 438.2 13.25 336.6 14 355.6 10 254.0 12
PSRI161006 16 406.4 10 254.0 06 152.4 17.25 438.2 11.25 285.8 14 355.6 08 203.2 12
PSRI141410 14 355.6 14 355.6 10 254.0 15.25 387.4 15.25 387.4 12 304.8 12 304.8 12
PSRI141408 14 355.6 14 355.6 08 203.2 15.25 387.4 15.25 387.4 12 304.8 12 304.8 12
PSRI141208 14 355.6 12 304.8 08 203.2 15.25 387.4 13.25 336.6 12 304.8 10 254.0 12
PSRI141006 14 355.6 10 254.0 06 152.4 15.25 387.4 11.25 285.8 12 304.8 08 203.2 12
PAMI140804 14 355.6 08 203.2 04 101.6 15.25 387.4 9.25 235.0 12 304.8 06 152.4 12
PSRI121210 12 304.8 12 304.8 10 254.0 13.25 336.6 13.25 336.6 10 254.0 10 254.0 12
PSRI121208 12 304.8 12 304.8 08 203.2 13.25 336.6 13.25 336.6 10 254.0 10 254.0 12
PSRI121008 12 304.8 10 254.0 08 203.2 13.25 336.6 11.25 285.8 10 254.0 08 203.2 12
PSRI120806 12 304.8 08 203.2 06 152.4 13.25 336.6 9.25 235.0 10 254.0 06 152.4 12
PSRI120604 12 304.8 06 152.4 04 101.6 13.25 336.6 7.25 184.2 10 254.0 04 101.6 12
PSRI101008 10 254.0 10 254.0 08 203.2 11.25 285.8 11.25 285.8 08 203.2 08 203.2 12
PSRI101006 10 254.0 10 254.0 06 152.4 11.25 285.8 11.25 285.8 08 203.2 08 203.2 12
PSRI100806 10 254.0 08 203.2 06 152.4 11.25 285.8 9.25 235.0 08 203.2 06 152.4 12
PSRI100604 10 254.0 06 152.4 04 101.6 11.25 285.8 7.25 184.2 08 203.2 05 127.0 12
PSRI080806 08 203.2 08 203.2 06 152.4 9.25 235.0 9.25 235.0 06 152.4 04 101.6 12
PSRI080604 08 203.2 06 152.4 04 101.6 9.25 235.0 7.25 184.2 06 152.4 04 101.6 12
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
PSR606040 60 600.0 60 600.0 40 400.0 63 630.0 63 630.0 55 550.0 55 550.0 3.00
PSR606030 60 600.0 60 600.0 30 300.0 63 630.0 63 630.0 55 550.0 55 550.0 3.00
PSR605535 60 600.0 55 550.0 35 350.0 63 630.0 58 580.0 55 550.0 50 500.0 3.00
PSR605030 60 600.0 50 500.0 30 300.0 63 630.0 53 530.0 55 550.0 45 450.0 3.00
PSR604525 60 600.0 45 450.0 25 250.0 63 630.0 48 480.0 55 550.0 40 400.0 3.00
PSR555540 55 550.0 55 550.0 40 400.0 58 580.0 58 580.0 50 500.0 50 500.0 3.00
PSR555530 55 550.0 55 550.0 30 300.0 58 580.0 58 580.0 50 500.0 50 500.0 3.00
PSR555035 55 550.0 50 500.0 35 350.0 58 580.0 53 530.0 50 500.0 45 450.0 3.00
PSR554530 55 550.0 45 450.0 30 300.0 58 580.0 48 480.0 50 500.0 40 400.0 3.00
PSR554025 55 550.0 40 400.0 25 250.0 58 580.0 43 430.0 50 500.0 35 350.0 3.00
PSR505035 50 500.0 50 500.0 35 350.0 53 530.0 53 530.0 45 450.0 45 450.0 3.00
PSR505025 50 500.0 50 500.0 25 250.0 53 530.0 53 530.0 45 450.0 45 450.0 3.00
PSR504530 50 500.0 45 450.0 30 300.0 53 530.0 48 480.0 45 450.0 40 400.0 3.00
PSR504025 50 500.0 40 400.0 25 250.0 53 530.0 43 430.0 45 450.0 35 350.0 3.00
PSR503520 50 500.0 35 350.0 20 200.0 53 530.0 38 380.0 45 450.0 30 300.0 3.00
PSR454535 45 450.0 45 450.0 35 350.0 48 480.0 48 480.0 40 400.0 40 400.0 3.00
PSR454525 45 450.0 45 450.0 25 250.0 48 480.0 48 480.0 40 400.0 40 400.0 3.00
PSR454030 45 450.0 40 400.0 30 300.0 48 480.0 43 430.0 40 400.0 35 350.0 3.00
PSR453525 45 450.0 35 350.0 25 250.0 48 480.0 38 380.0 40 400.0 30 300.0 3.00
PSR453020 45 450.0 30 300.0 20 200.0 48 480.0 33 330.0 40 400.0 25 250.0 3.00
PSR404030 40 400.0 40 400.0 30 300.0 43 430.0 43 430.0 35 350.0 35 350.0 3.00
PSR404025 40 400.0 40 400.0 25 250.0 43 430.0 43 430.0 35 350.0 35 350.0 3.00
PSR403525 40 400.0 35 350.0 25 250.0 43 430.0 38 380.0 35 350.0 30 300.0 3.00
PSR403020 40 400.0 30 300.0 20 200.0 43 430.0 33 330.0 35 350.0 25 250.0 3.00
PSR402515 40 400.0 25 250.0 15 150.0 43 430.0 28 280.0 35 350.0 20 200.0 3.00
PSR353525 35 350.0 35 350.0 25 250.0 38 380.0 38 380.0 30 300.0 30 300.0 3.00
PSR353520 35 350.0 35 350.0 20 200.0 38 380.0 38 380.0 30 300.0 30 300.0 3.00
PSR353020 35 350.0 30 300.0 20 200.0 38 380.0 33 330.0 30 300.0 25 250.0 3.00
PSR352515 35 350.0 25 250.0 15 150.0 38 380.0 28 280.0 30 300.0 20 200.0 3.00
PSR352010 35 350.0 20 200.0 10 100.0 38 380.0 23 230.0 30 300.0 15 150.0 3.00
PSR303025 30 300.0 30 300.0 25 250.0 33 330.0 33 330.0 25 250.0 25 250.0 3.00
PSR303020 30 300.0 30 300.0 20 200.0 33 330.0 33 330.0 25 250.0 25 250.0 3.00
PSR302520 30 300.0 25 250.0 20 200.0 33 330.0 28 280.0 25 250.0 20 200.0 3.00
PSR302015 30 300.0 20 200.0 15 150.0 33 330.0 23 230.0 25 250.0 15 150.0 3.00
PSR301510 30 300.0 15 150.0 10 100.0 33 330.0 18 180.0 25 250.0 10 100.0 3.00
PSR252520 25 250.0 25 250.0 20 200.0 28 280.0 28 280.0 20 200.0 20 200.0 3.00
PSR252515 25 250.0 25 250.0 15 150.0 28 280.0 28 280.0 20 200.0 20 200.0 3.00
PSR252015 25 250.0 20 200.0 15 150.0 28 280.0 23 230.0 20 200.0 15 150.0 3.00
PSR251510 25 250.0 15 150.0 10 100.0 28 280.0 18 180.0 20 200.0 10 100.0 3.00
PSR202015 20 200.0 20 200.0 15 150.0 23 230.0 23 230.0 15 150.0 15 150.0 3.00
PSR201510 20 200.0 15 150.0 10 100.0 23 230.0 18 180.0 15 150.0 10 100.0 3.00

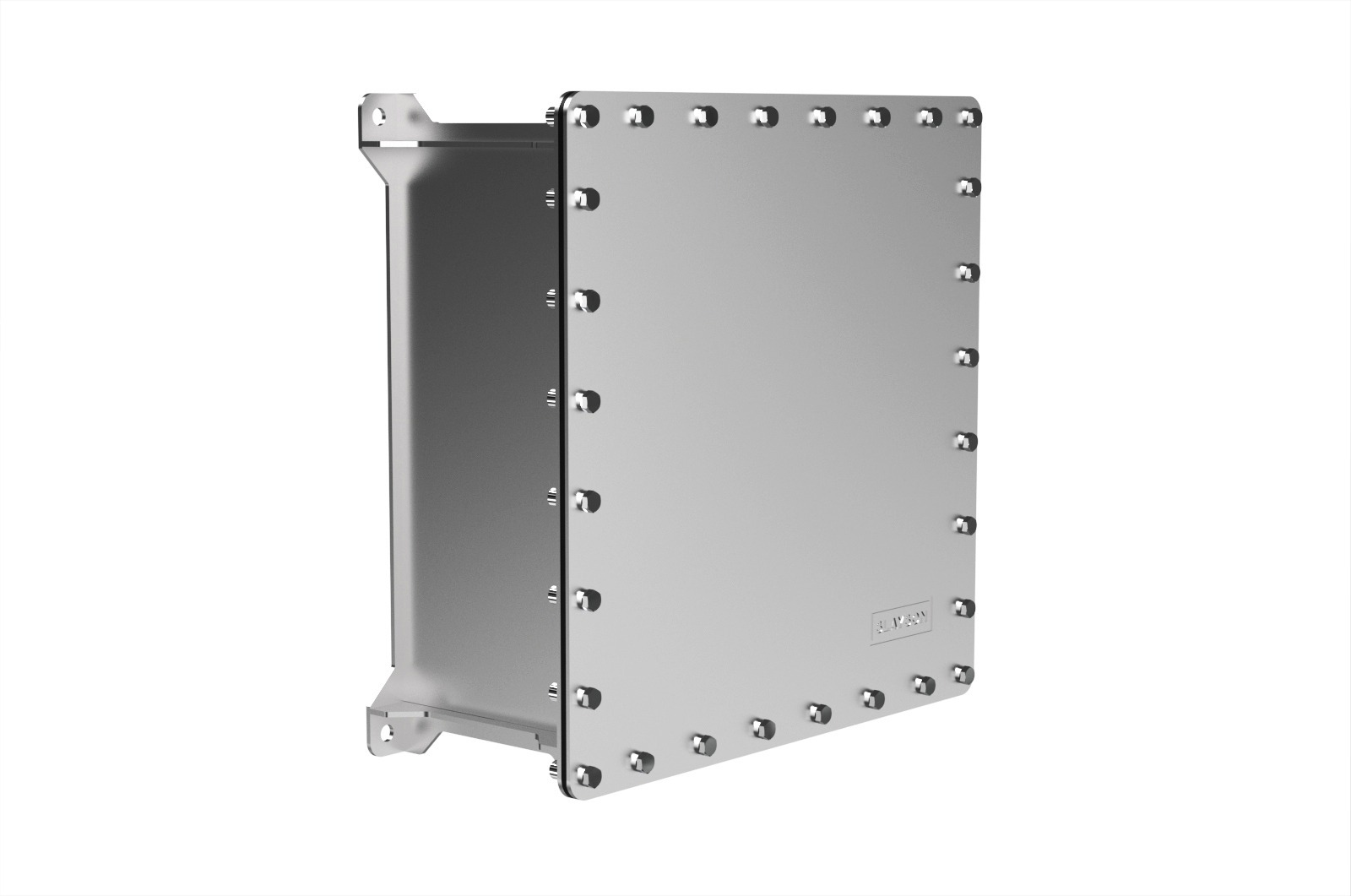

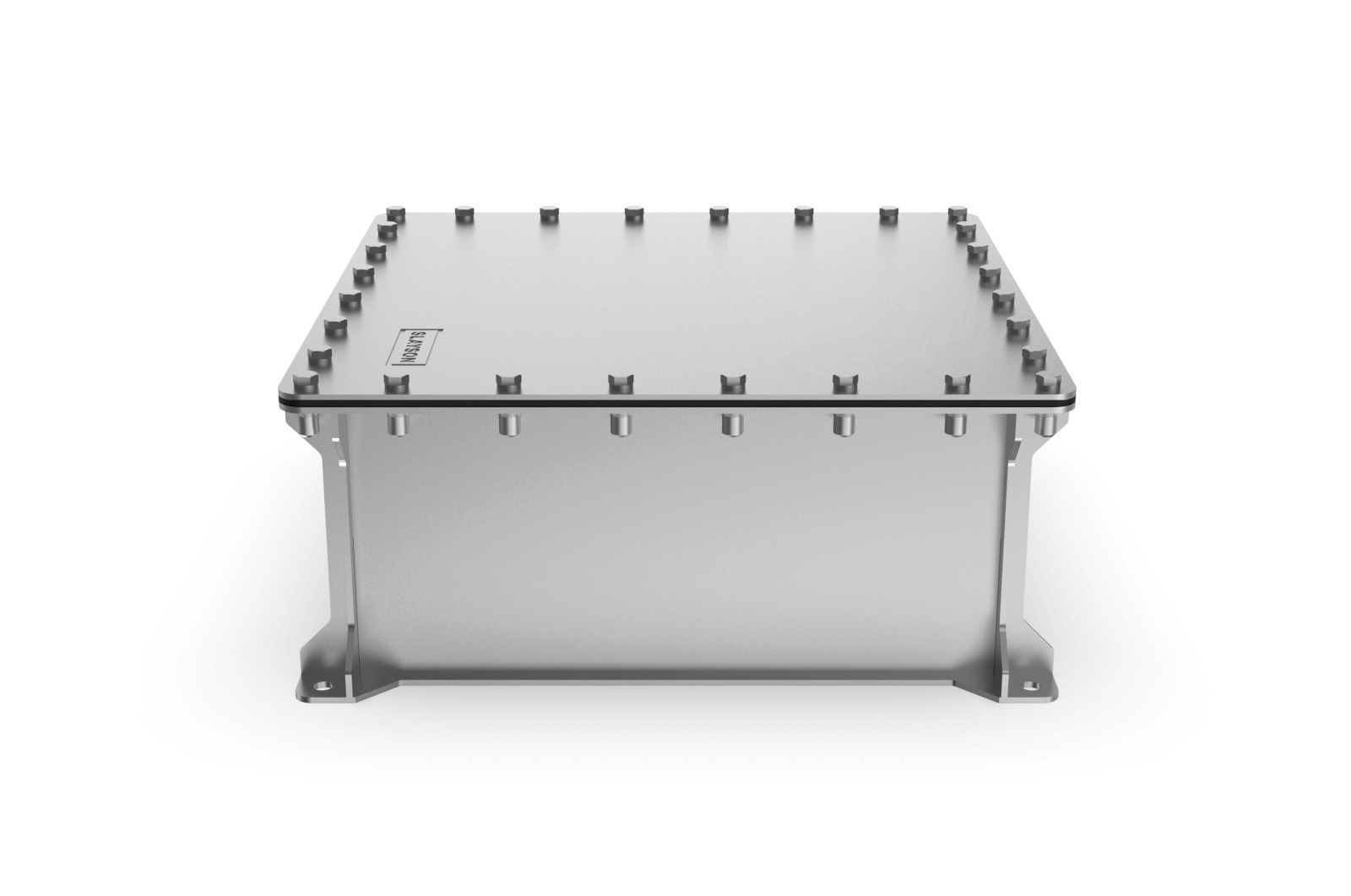

NAV-XP-6P MARINE INTERLOCK BOX OVERVIEW

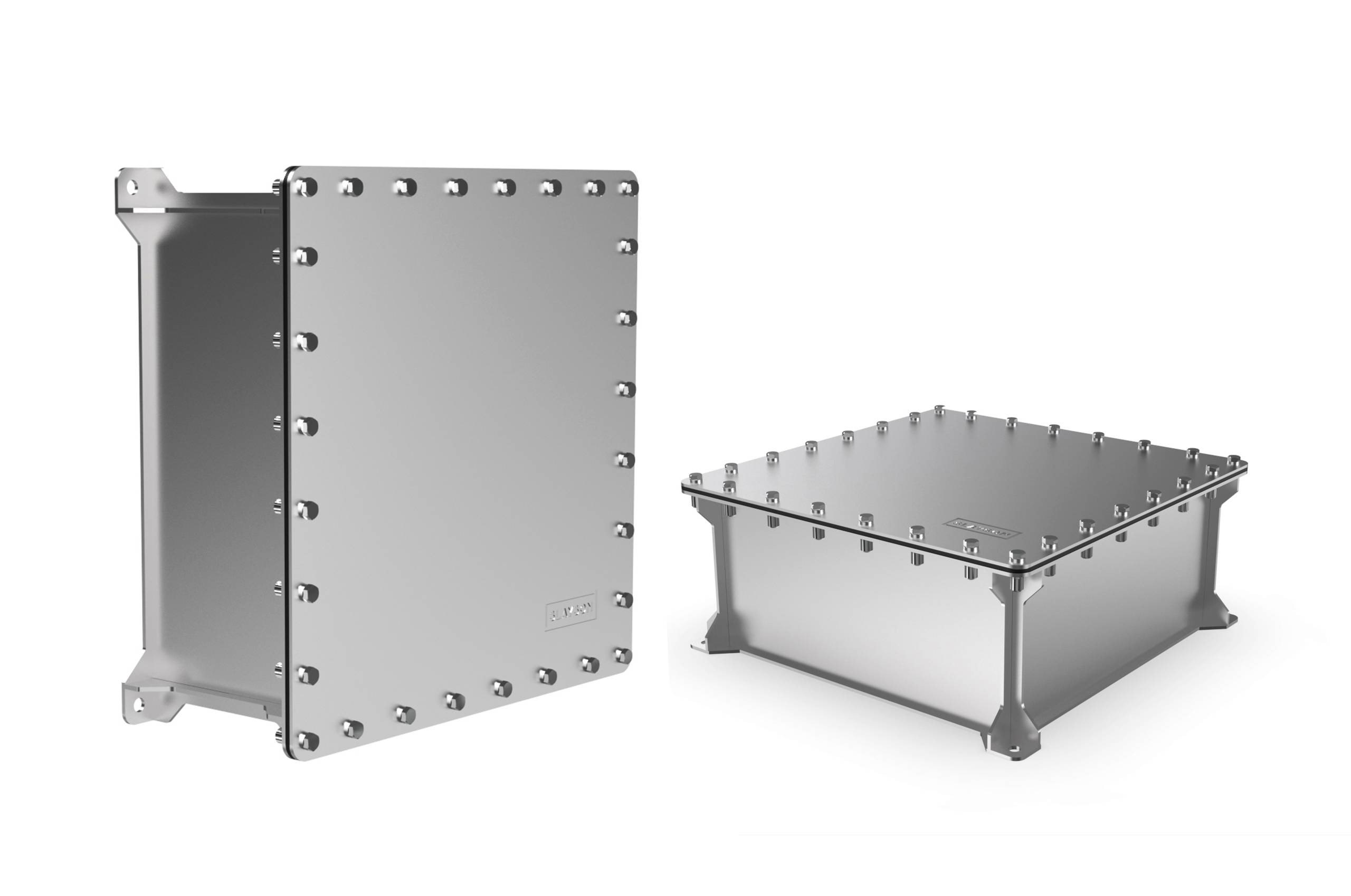

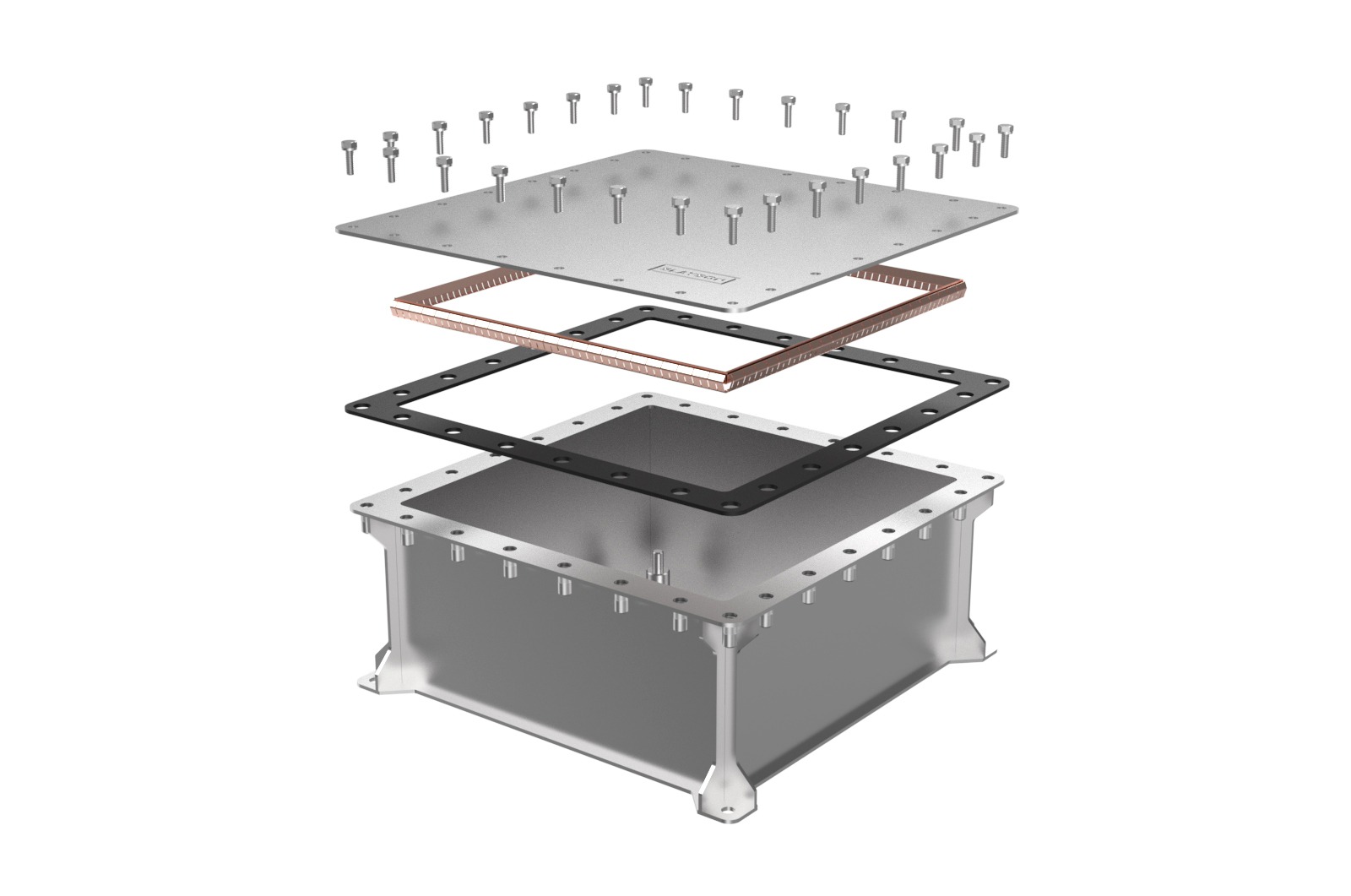

The NAV-XP-6P MARINE INTERLOCK BOX offers reliable protection for shipboard systems, Naval vessels and marine electronic hardware deployed in the harshest environments. Manufactured from Type 316 Stainless Steel this Enclosure series has hermetic sealing preventing any ingress of dust and water, with dual Beryllium Copper gasket to insure complete 360° EMC/RFI immunity. The NAV-XP-6P offers a COTS range of corrosion resistant enclosures and accessories, delivering a proven and flexible enclosure system to Naval specification.
