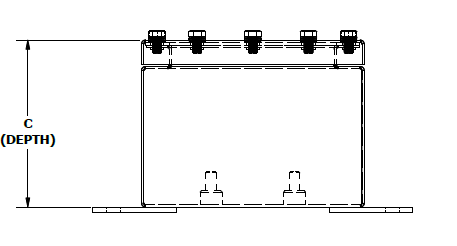

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
LSMI120404 12 304.8 04 101.6 04 101.6 10 254.0 06 152.4 11 279.4 03 76.2 14
LSMI120406 12 304.8 04 101.6 06 152.4 10 254.0 06 152.4 11 279.4 03 76.2 14
LSMI120408 12 304.8 04 101.6 08 203.2 10 254.0 06 152.4 11 279.4 03 76.2 14
LSMI120410 12 304.8 04 101.6 10 254.0 10 254.0 06 152.4 11 279.4 03 76.2 14
LSMI120604 12 304.8 06 152.4 04 101.6 10 254.0 08 203.2 11 279.4 05 127.0 14
LSMI120606 12 304.8 06 152.4 06 152.4 10 254.0 08 203.2 11 279.4 05 127.0 14
LSMI120608 12 304.8 06 152.4 08 203.2 10 254.0 08 203.2 11 279.4 05 127.0 14
LSMI120610 12 304.8 06 152.4 10 254.0 10 254.0 08 203.2 11 279.4 05 127.0 14
LSMI120804 12 304.8 08 203.2 04 101.6 10 254.0 10 254.0 11 279.4 07 177.8 14
LSMI120806 12 304.8 08 203.2 06 152.4 10 254.0 10 254.0 11 279.4 07 177.8 14
LSMI120808 12 304.8 08 203.2 08 203.2 10 254.0 10 254.0 11 279.4 07 177.8 14
LSMI120810 12 304.8 08 203.2 10 254.0 10 254.0 10 254.0 11 279.4 07 177.8 14
LSMI121004 12 304.8 10 254.0 04 101.6 10 254.0 12 304.8 11 279.4 09 228.6 14
LSMI121006 12 304.8 10 254.0 06 152.4 10 254.0 12 304.8 11 279.4 09 228.6 14
LSMI121008 12 304.8 10 254.0 08 203.2 10 254.0 12 304.8 11 279.4 09 228.6 14
LSMI121010 12 304.8 10 254.0 10 254.0 10 254.0 12 304.8 11 279.4 09 228.6 14
LSMI180404 18 457.2 04 101.6 04 101.6 16 406.4 06 152.4 17 431.8 03 76.2 14
LSMI180406 18 457.2 04 101.6 06 152.4 16 406.4 06 152.4 17 431.8 03 76.2 14
LSMI180408 18 457.2 04 101.6 08 203.2 16 406.4 06 152.4 17 431.8 03 76.2 14
LSMI180410 18 457.2 04 101.6 10 254.0 16 406.4 06 152.4 17 431.8 03 76.2 14
LSMI180604 18 457.2 06 152.4 04 101.6 16 406.4 08 203.2 17 431.8 05 127.0 14
LSMI180606 18 457.2 06 152.4 06 152.4 16 406.4 08 203.2 17 431.8 05 127.0 14
LSMI180608 18 457.2 06 152.4 08 203.2 16 406.4 08 203.2 17 431.8 05 127.0 14
LSMI180610 18 457.2 06 152.4 10 254.0 16 406.4 08 203.2 17 431.8 05 127.0 14
LSMI180804 18 457.2 08 203.2 04 101.6 16 406.4 10 254.0 17 431.8 07 177.8 14
LSMI180806 18 457.2 08 203.2 06 152.4 16 406.4 10 254.0 17 431.8 07 177.8 14
LSMI180808 18 457.2 08 203.2 08 203.2 16 406.4 10 254.0 17 431.8 07 177.8 14
LSMI180810 18 457.2 08 203.2 10 254.0 16 406.4 10 254.0 17 431.8 07 177.8 14
LSMI181004 18 457.2 10 254.0 04 101.6 16 406.4 12 304.8 17 431.8 09 228.6 14
LSMI181006 18 457.2 10 254.0 06 152.4 16 406.4 12 304.8 17 431.8 09 228.6 14
LSMI181008 18 457.2 10 254.0 08 203.2 16 406.4 12 304.8 17 431.8 09 228.6 14
LSMI181010 18 457.2 10 254.0 10 254.0 16 406.4 12 304.8 17 431.8 09 228.6 14
LSMI240404 24 609.6 04 101.6 04 101.6 22 558.8 06 152.4 23 584.2 03 76.2 14
LSMI240406 24 609.6 04 101.6 06 152.4 22 558.8 06 152.4 23 584.2 03 76.2 14
LSMI240408 24 609.6 04 101.6 08 203.2 22 558.8 06 152.4 23 584.2 03 76.2 14
LSMI240410 24 609.6 04 101.6 10 254.0 22 558.8 06 152.4 23 584.2 03 76.2 14
LSMI240604 24 609.6 06 152.4 04 101.6 22 558.8 08 203.2 23 584.2 05 127.0 14
LSMI240606 24 609.6 06 152.4 06 152.4 22 558.8 08 203.2 23 584.2 05 127.0 14
LSMI240608 24 609.6 06 152.4 08 203.2 22 558.8 08 203.2 23 584.2 05 127.0 14
LSMI240610 24 609.6 06 152.4 10 254.0 22 558.8 08 203.2 23 584.2 05 127.0 14
LSMI240804 24 609.6 08 203.2 04 101.6 22 558.8 10 254.0 23 584.2 07 177.8 14
LSMI240806 24 609.6 08 203.2 06 152.4 22 558.8 10 254.0 23 584.2 07 177.8 14
LSMI240808 24 609.6 08 203.2 08 203.2 22 558.8 10 254.0 23 584.2 07 177.8 14
LSMI240810 24 609.6 08 203.2 10 254.0 22 558.8 10 254.0 23 584.2 07 177.8 14
LSMI241004 24 609.6 10 254.0 04 101.6 22 558.8 12 304.8 23 584.2 09 228.6 14
LSMI241006 24 609.6 10 254.0 06 152.4 22 558.8 12 304.8 23 584.2 09 228.6 14
LSMI241008 24 609.6 10 254.0 08 203.2 22 558.8 12 304.8 23 584.2 09 228.6 14
LSMI241010 24 609.6 10 254.0 10 254.0 22 558.8 12 304.8 23 584.2 09 228.6 14



METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
LSM301010 30 300.0 10 100.0 10 100.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LSM301015 30 300.0 10 100.0 15 150.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LSM301020 30 300.0 10 100.0 20 200.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LSM301025 30 300.0 10 100.0 25 250.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LSM301510 30 300.0 15 150.0 10 100.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LSM301515 30 300.0 15 150.0 15 150.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LSM301520 30 300.0 15 150.0 20 200.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LSM301525 30 300.0 15 150.0 25 250.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LSM302010 30 300.0 20 200.0 10 100.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LSM302015 30 300.0 20 200.0 15 150.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LSM302020 30 300.0 20 200.0 20 200.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LSM302025 30 300.0 20 200.0 25 250.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LSM302510 30 300.0 25 250.0 10 100.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LSM302515 30 300.0 25 250.0 15 150.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LSM302520 30 300.0 25 250.0 20 200.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LSM302525 30 300.0 25 250.0 25 250.0 40 400.0 30 300.0 30 300.0 25 250.0 2.00
LSM451010 45 450.0 10 100.0 10 100.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LSM451015 45 450.0 10 100.0 15 150.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LSM451020 45 450.0 10 100.0 20 200.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LSM451025 45 450.0 10 100.0 25 250.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LSM451010 45 450.0 15 150.0 10 100.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LSM451515 45 450.0 15 150.0 15 150.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LSM451520 45 450.0 15 150.0 20 200.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LSM451525 45 450.0 15 150.0 25 250.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LSM452010 45 450.0 20 200.0 10 100.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LSM452015 45 450.0 20 200.0 15 150.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LSM452020 45 450.0 20 200.0 20 200.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LSM452025 45 450.0 20 200.0 25 250.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LSM452510 45 450.0 25 250.0 10 100.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LSM452515 45 450.0 25 250.0 15 150.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LSM452520 45 450.0 25 250.0 20 200.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LSM452525 45 450.0 25 250.0 25 250.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LSM601010 60 600.0 10 100.0 10 100.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LSM601015 60 600.0 10 100.0 15 150.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LSM601020 60 600.0 10 100.0 20 200.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LSM601025 60 600.0 10 100.0 25 250.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LSM601010 60 600.0 15 150.0 10 100.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LSM601515 60 600.0 15 150.0 15 150.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LSM601520 60 600.0 15 150.0 20 200.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LSM601525 60 600.0 15 150.0 25 250.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LSM602010 60 600.0 20 200.0 10 100.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LSM602015 60 600.0 20 200.0 15 150.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LSM602020 60 600.0 20 200.0 20 200.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LSM602025 60 600.0 20 200.0 25 250.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LSM602510 60 600.0 25 250.0 10 100.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LSM602515 60 600.0 25 250.0 15 150.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LSM602520 60 600.0 25 250.0 20 200.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LSM602525 60 600.0 25 250.0 25 250.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00

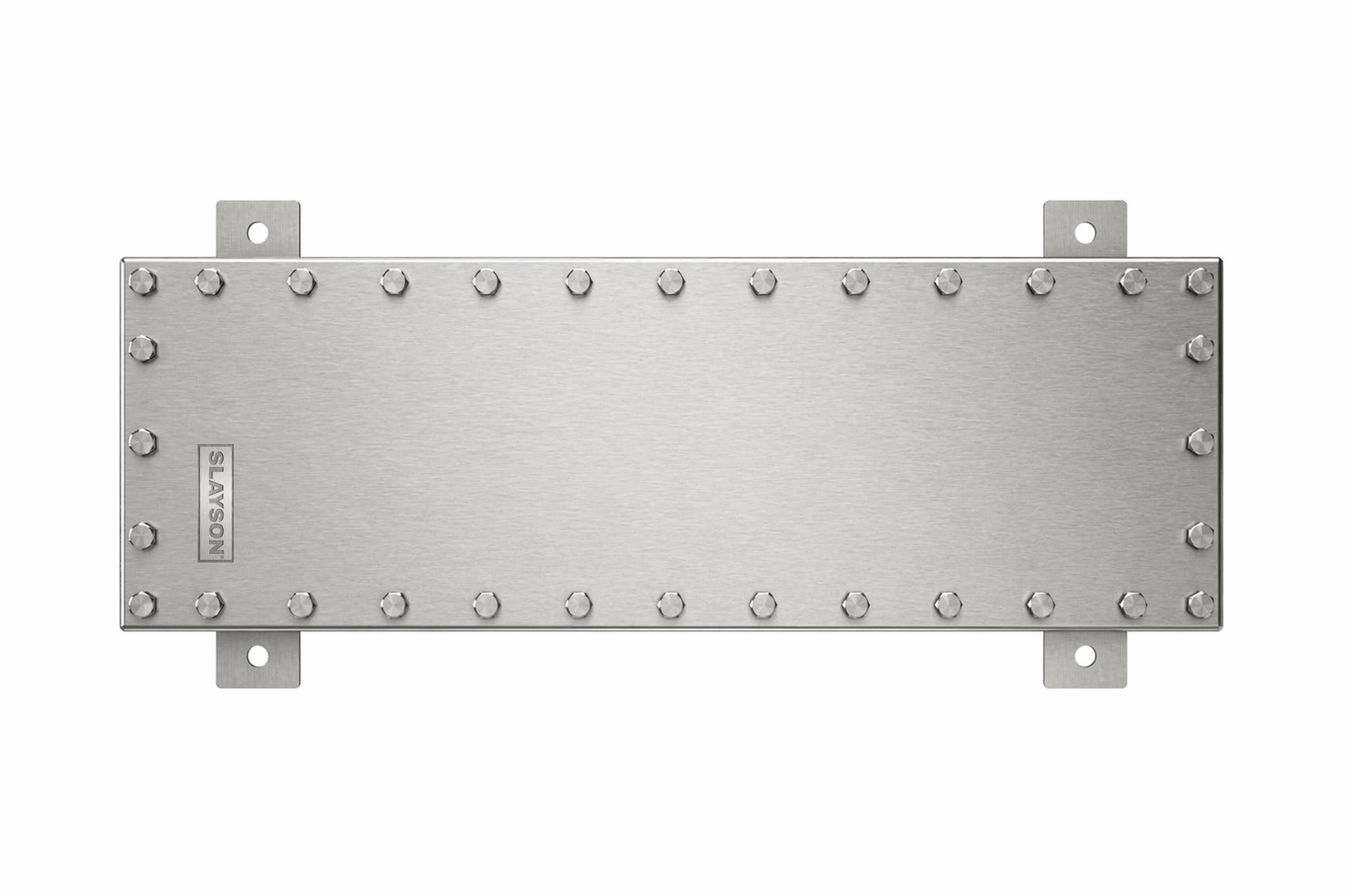

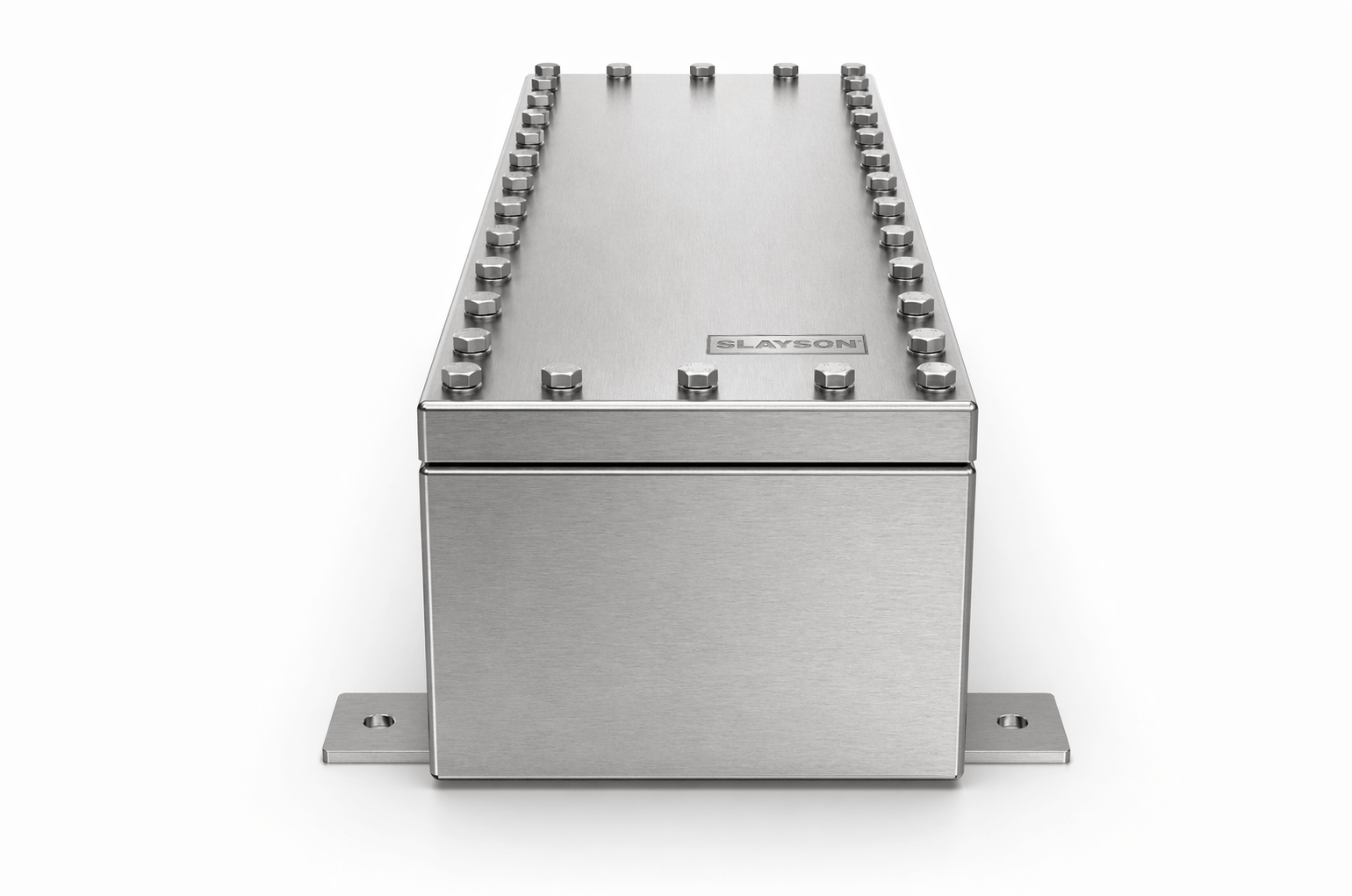

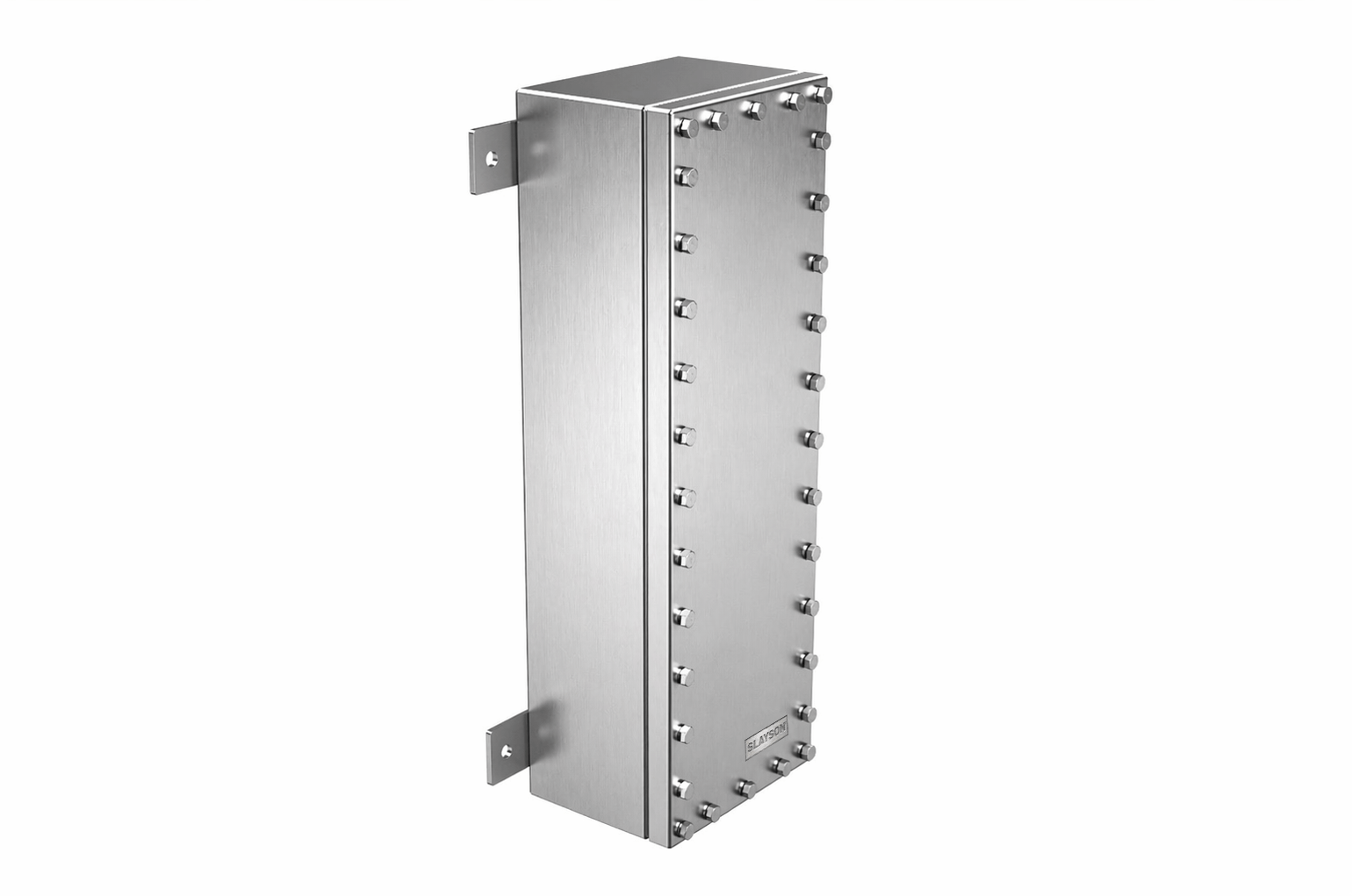

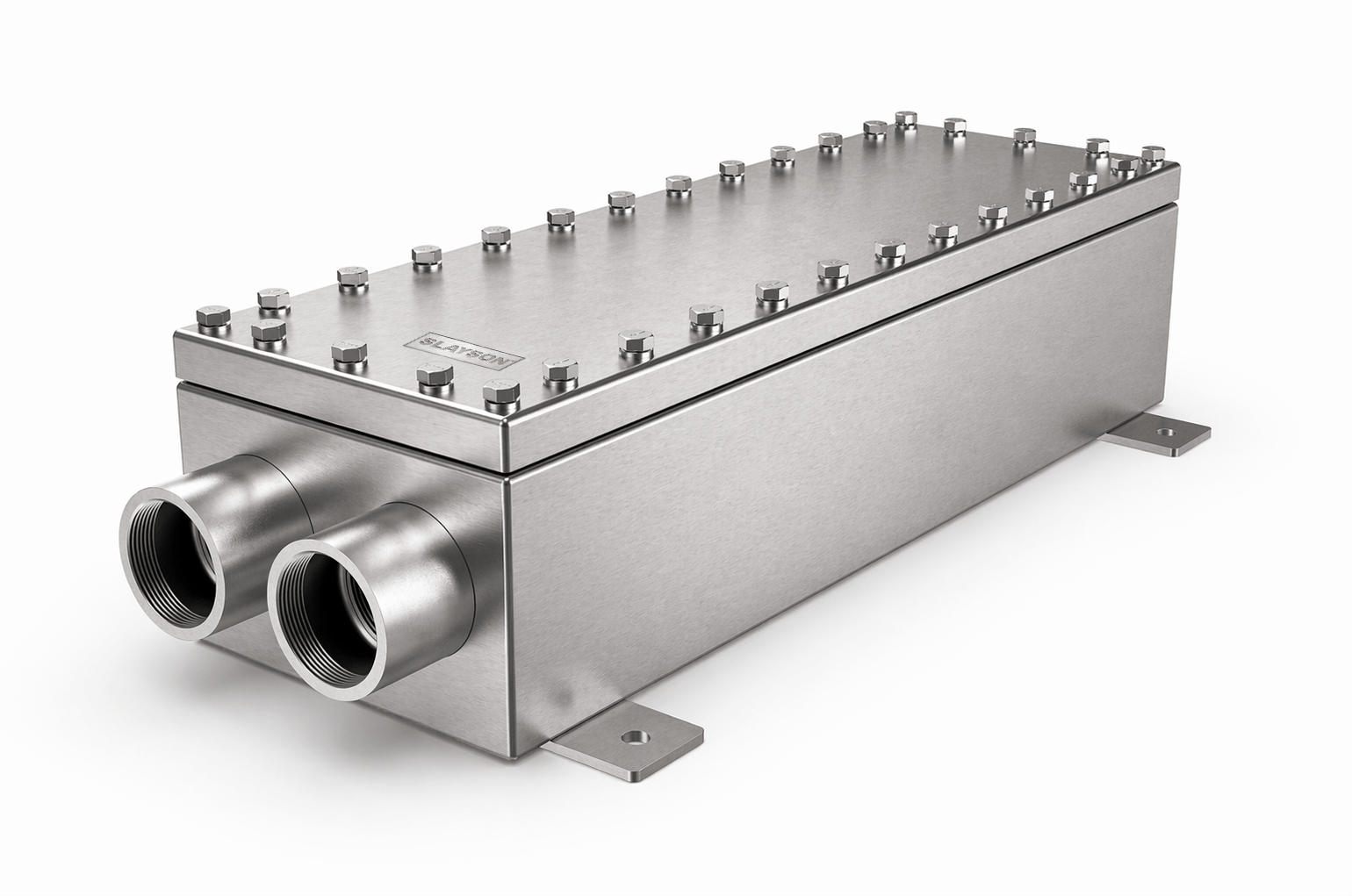

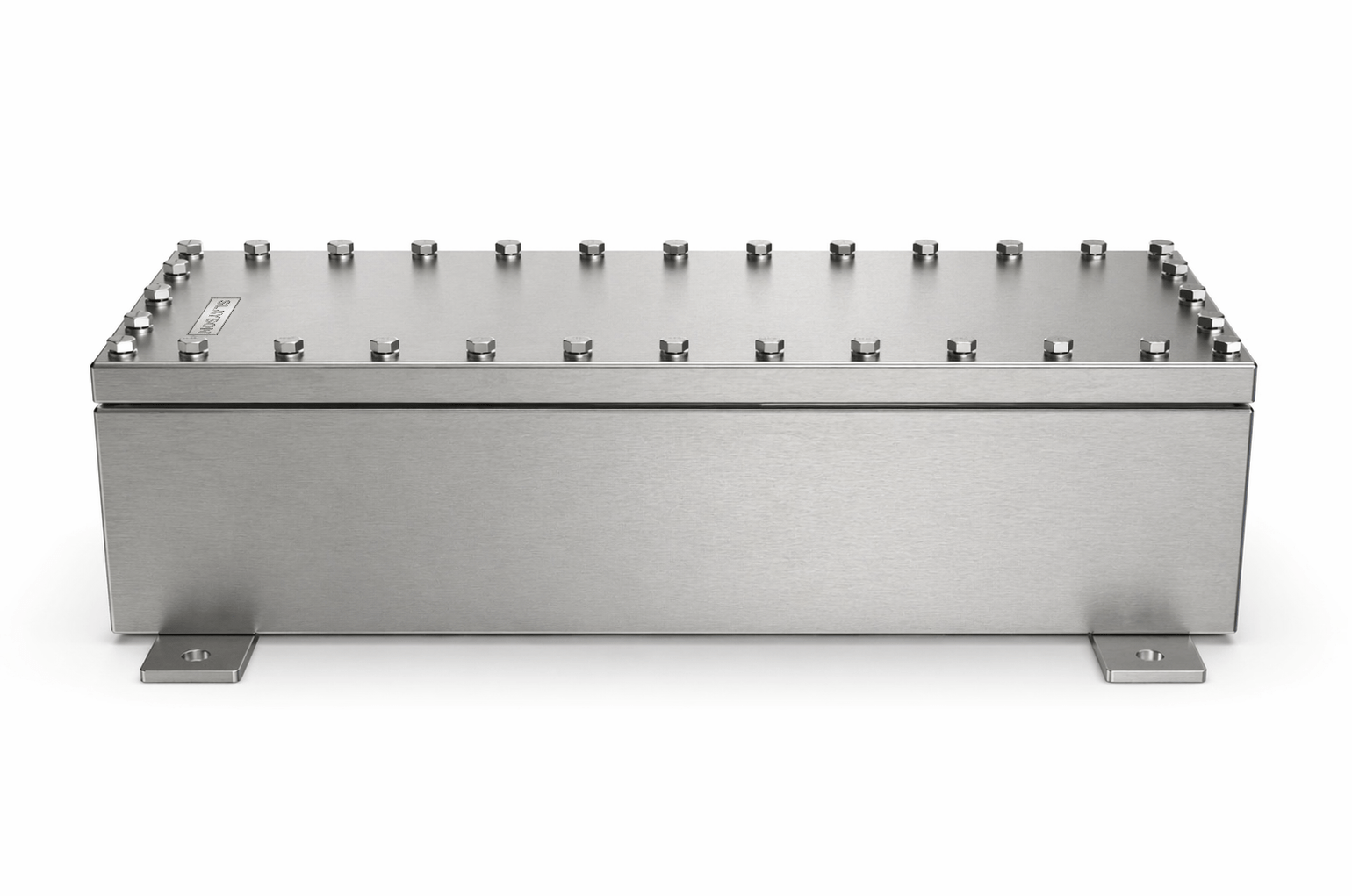

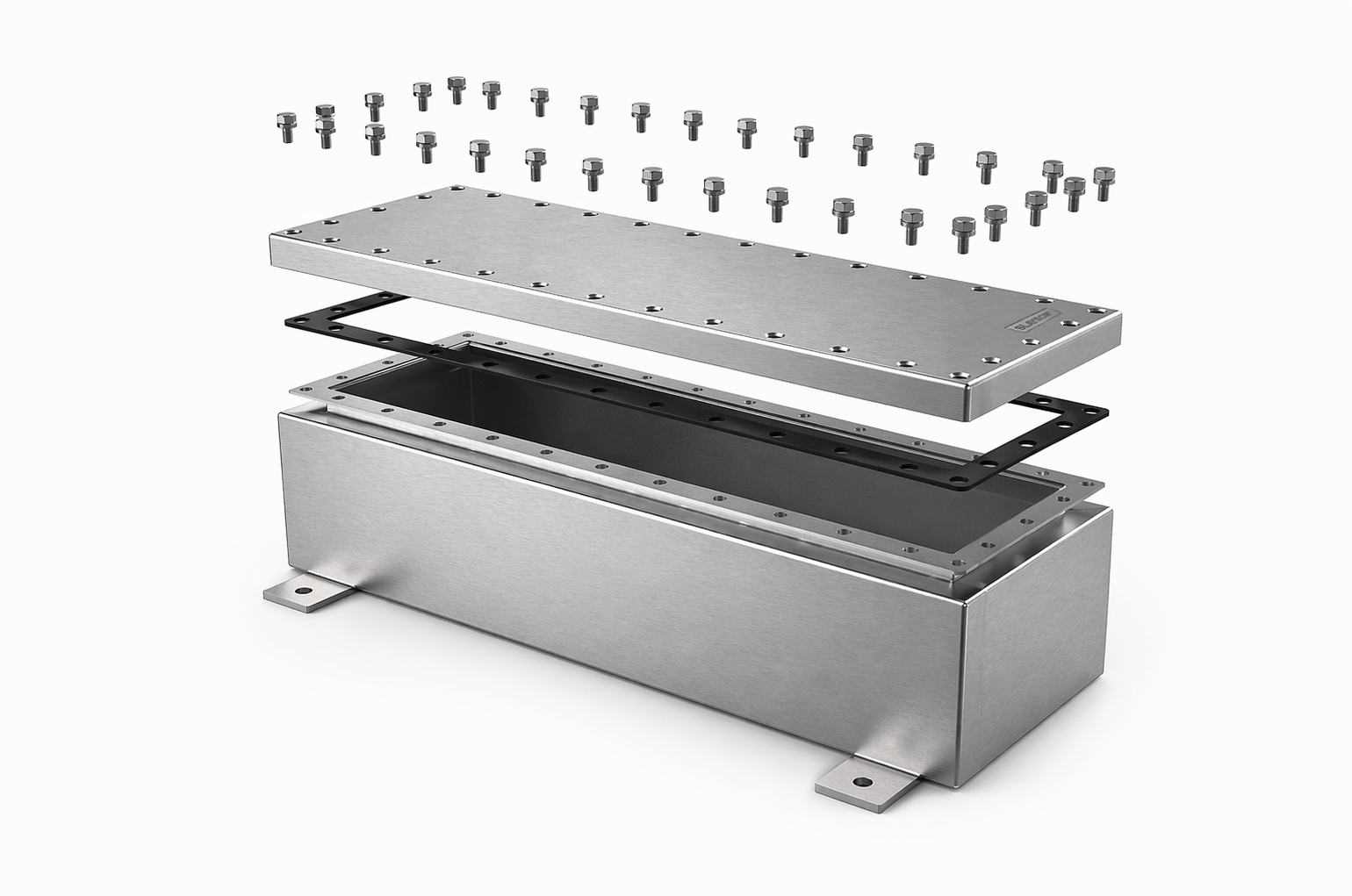

SUBMERSIBLE PULL BOX OVERVIEW

The SLAYSON® SUBMERSIBLE PULL BOX series has been designed for the inline installation of conduit systems, serving as pull and splice boxes to protect conductors in threaded rigid conduit, connect lengths of conduit, and provide access to conductors for maintenance and future system changes. It is rated to NEMA 6P/IP68 for partial or prolonged submersion, safeguarding against particle and liquid ingress at depths of up to 15ft/5m. The SUBMERSIBLE PULL BOX Series comes standard in corrosion and impact-resistant 14g 316 Marine Grade Stainless Steel or Aluminum with a Marine Grade Polyester Paint Finish, making it capable of protecting vital electrical conductors, connections, and splices in harsh environments.

The SUBMERSIBLE PULL BOX Series is available in standard straight, 45º, and 90º configurations, ranging from 12" to 48" lengths, all easily customizable with our range of accessories. SLAYSON's design and engineering teams work closely with clients to ensure the delivery of the exact enclosure needed.

If you cannot find the size you require, SLAYSON will design and engineer a Submersible Pull Box to meet your specific project requirements.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.
