IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
AAGI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
AAGI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
AAGI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 32 812.8 32 812.8 0.08″
AAGI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
AAGI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
AAGI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 32 812.8 26 660.4 0.08″
AAGI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
AAGI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
AAGI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 32 812.8 20 508.0 0.08″
AAGI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
AAGI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
AAGI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 30 762.0 30 762.0 0.08″
AAGI242816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
AAGI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
AAGI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 30 762.0 24 609.6 0.08″
AAGI2342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
AAGI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
AAGI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 30 762.0 20 508.0 0.08″
AAGI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
AAGI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
AAGI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 26 660.4 26 660.4 0.08″
AAGI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
AAGI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
AAGI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 26 660.4 20 508.0 0.08″
AAGI302016 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
AAGI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
AAGI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 26 660.4 16 406.4 0.08″
AAGI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
AAGI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
AAGI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 24 609.6 24 609.6 0.08″
AAGI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
AAGI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
AAGI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 24 609.6 18 457.2 0.08″
AAGI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
AAGI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
AAGI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 24 609.6 14 355.6 0.08″
AAGI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
AAGI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
AAGI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 22 558.8 22 558.8 0.08″
AAGI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
AAGI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
AAGI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 22 558.8 16 406.4 0.08″
AAGI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
AAGI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
AAGI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 22 558.8 12 304.8 0.08″
AAGI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
AAGI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
AAGI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 20 508.0 20 508.0 0.08″
AAGI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
AAGI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
AAGI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 20 508.0 14 355.6 0.08″
AAGI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 20 508.0 10 254.0 0.08″
AAGI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 20 508.0 10 254.0 0.08″
AAGI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 20 508.0 10 254.0 0.08″



METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
AAG909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
AAG909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
AAG909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
AAG907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
AAG907550 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
AAG907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
AAG906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
AAG906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
AAG906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
AAG858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
AAG858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
AAG858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
AAG857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
AAG857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
AAG857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
AAG856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
AAG856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
AAG856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
AAG757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
AAG757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
AAG757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
AAG756040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
AAG756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
AAG756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
AAG755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
AAG755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
AAG755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
AAG707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
AAG707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
AAG707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
AAG705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
AAG705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
AAG705525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
AAG704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
AAG704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
AAG704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
AAG656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
AAG656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
AAG656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
AAG655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
AAG655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
AAG655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
AAG654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
AAG654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
AAG654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
AAG606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
AAG606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
AAG606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
AAG604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
AAG604525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
AAG604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
AAG603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
AAG603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
AAG603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00



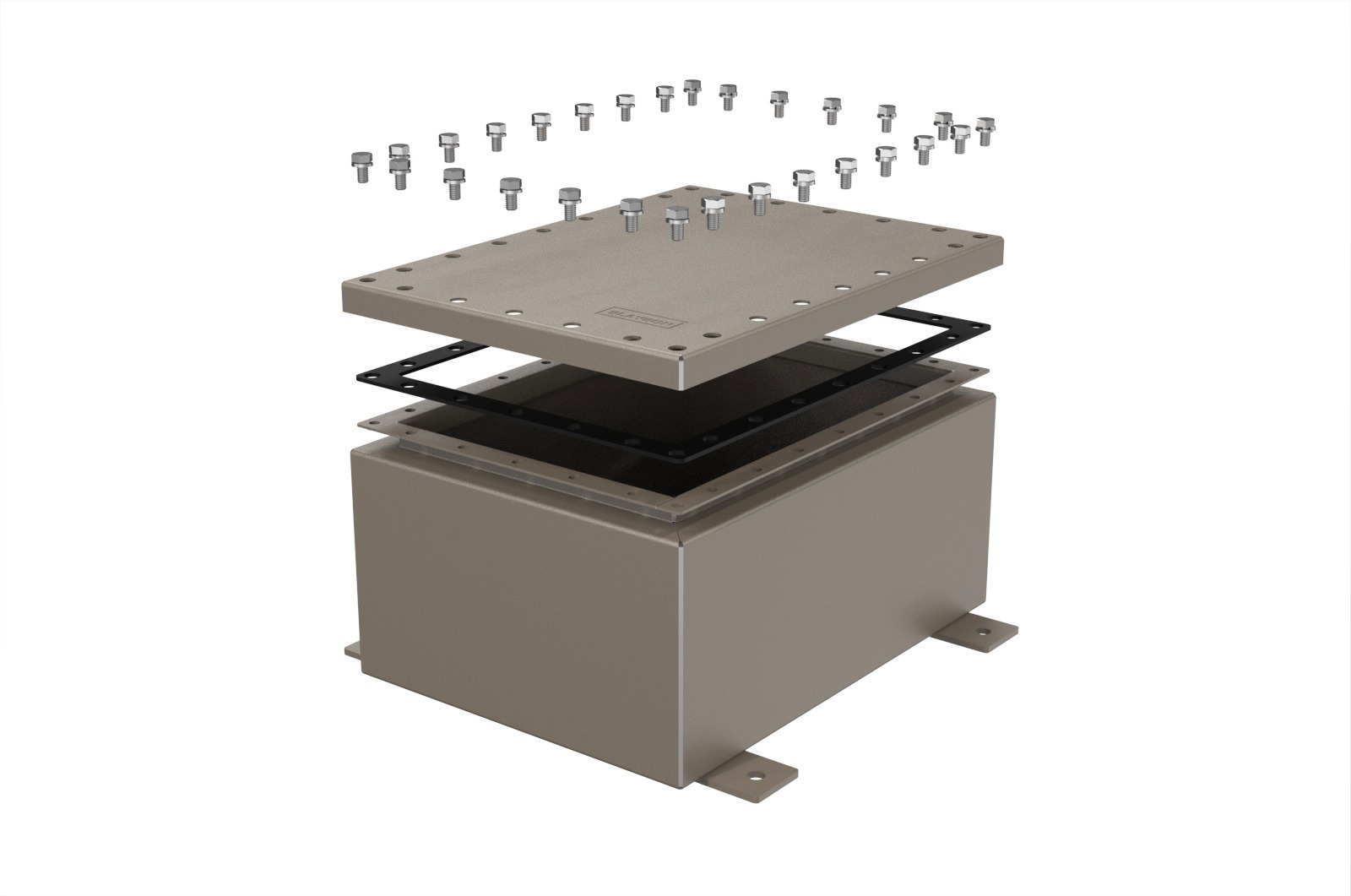

SUBMERSIBLE STANDARD OVERVIEW

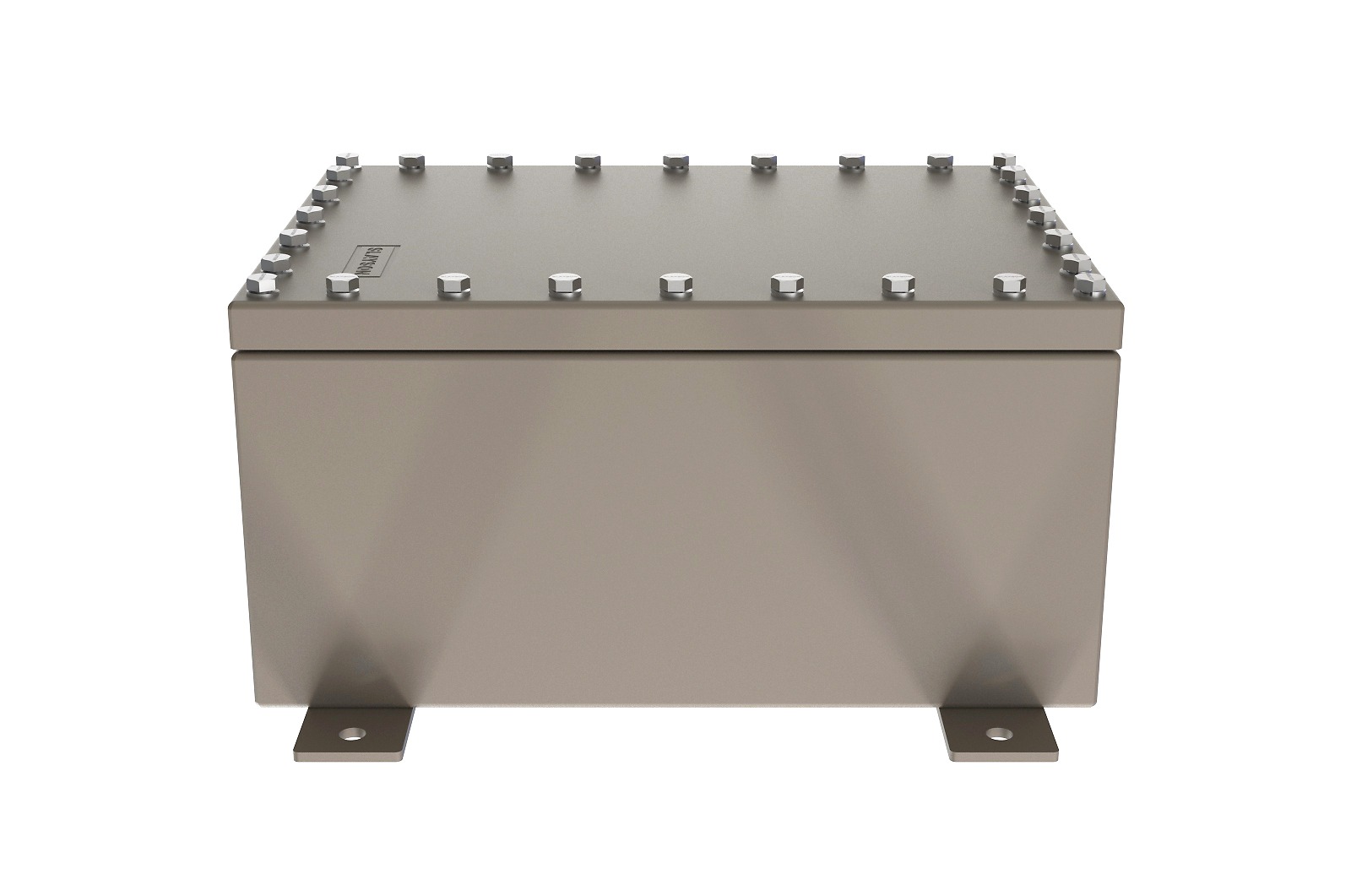

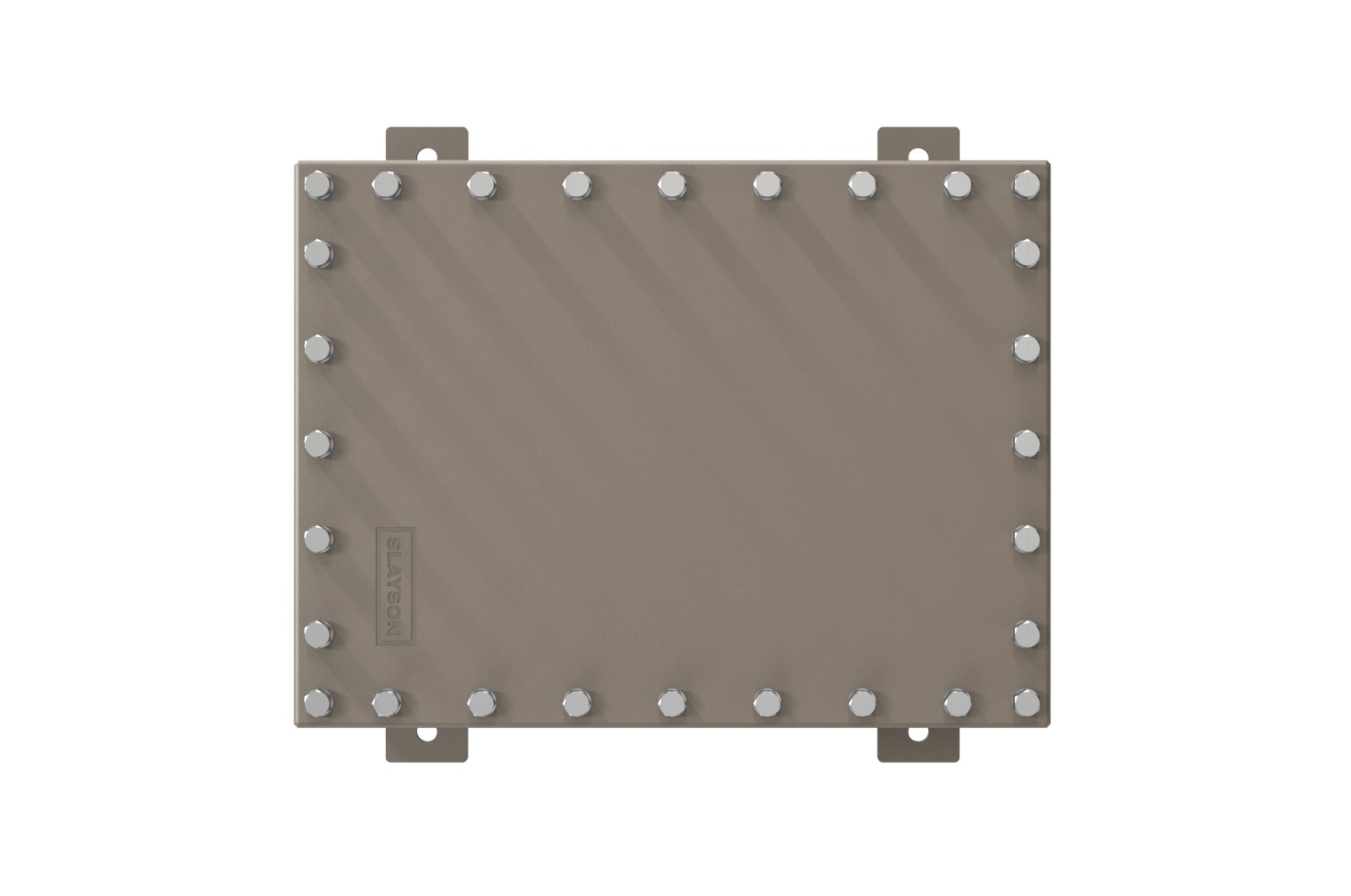

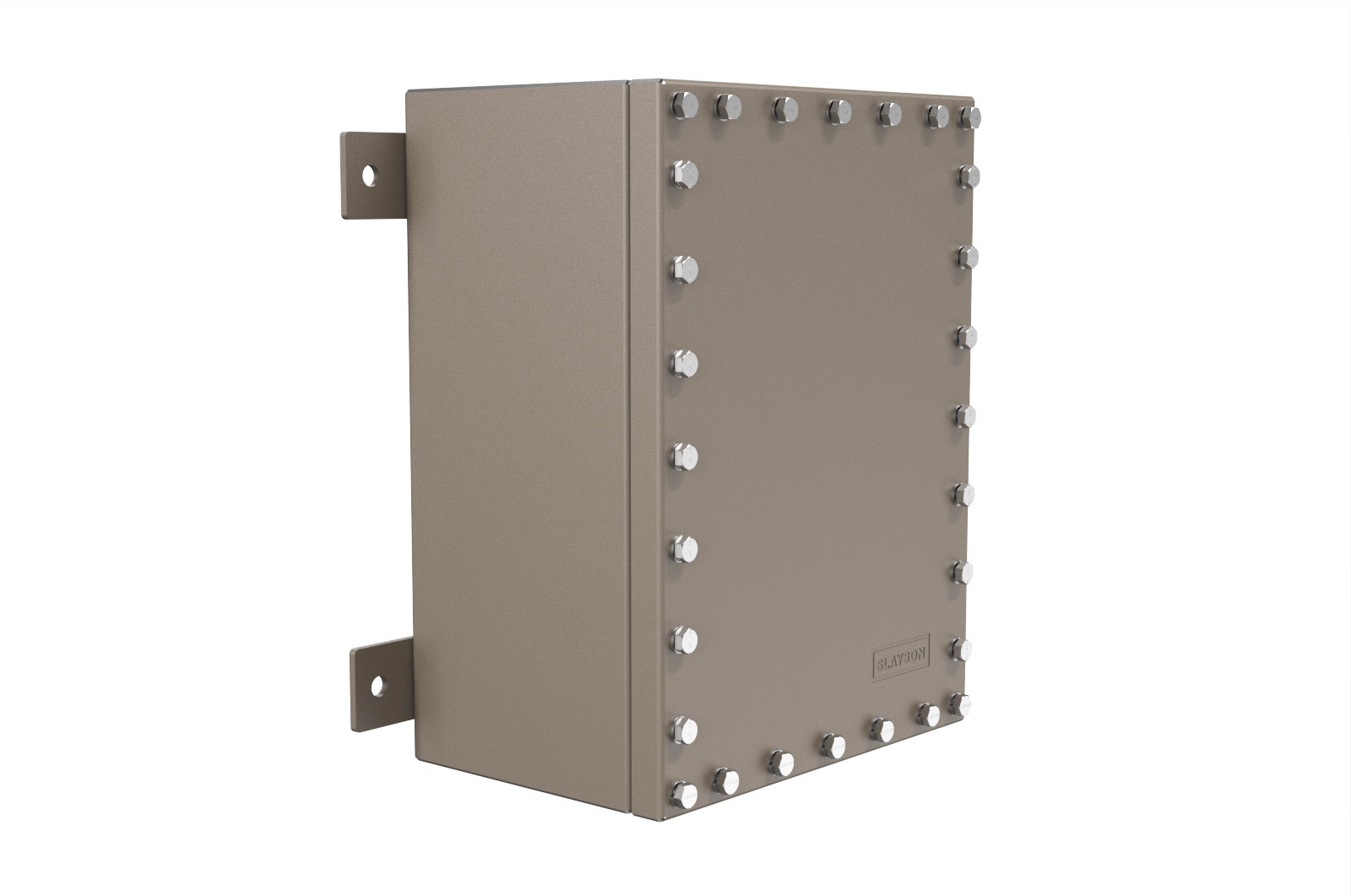

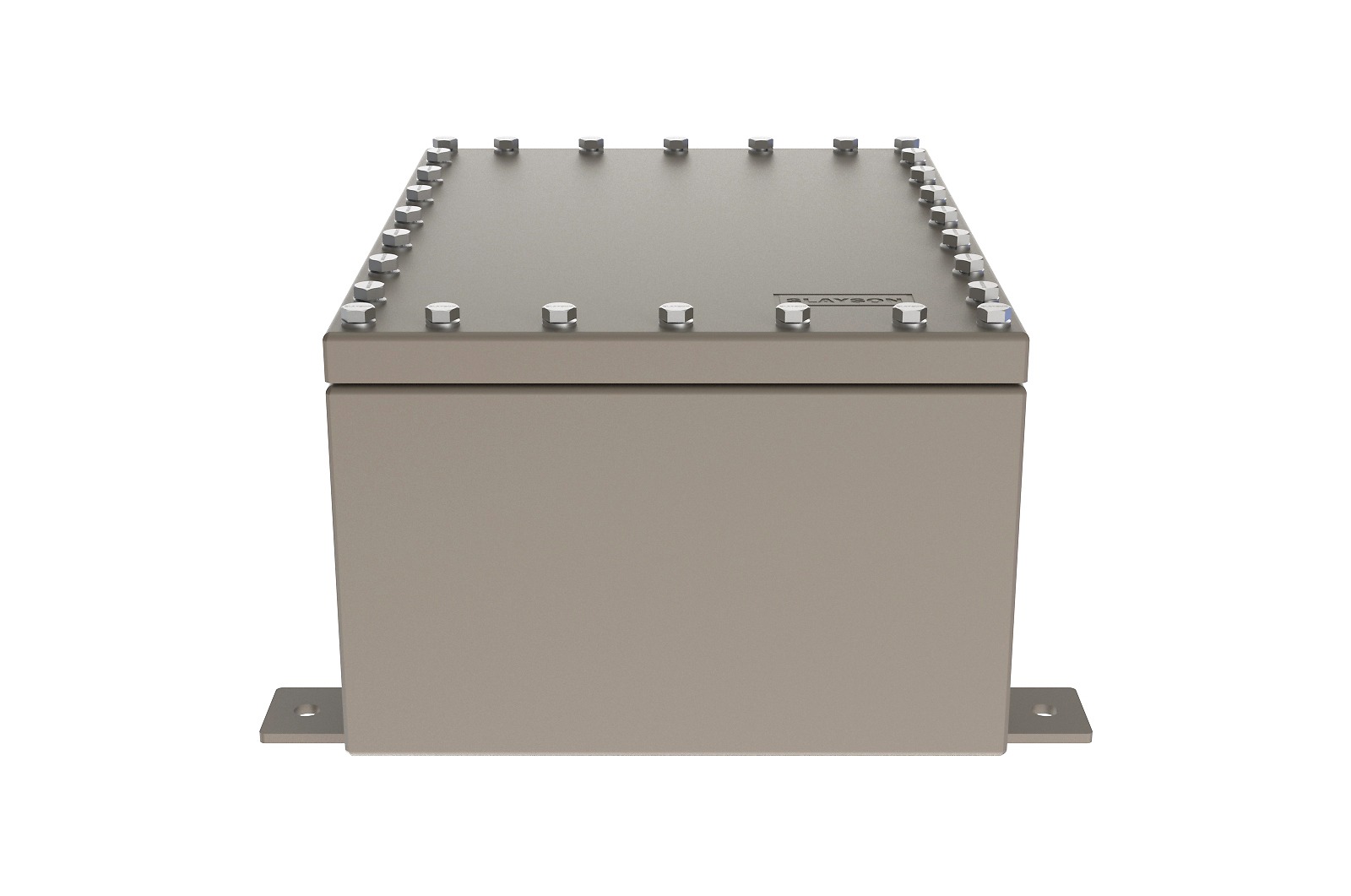

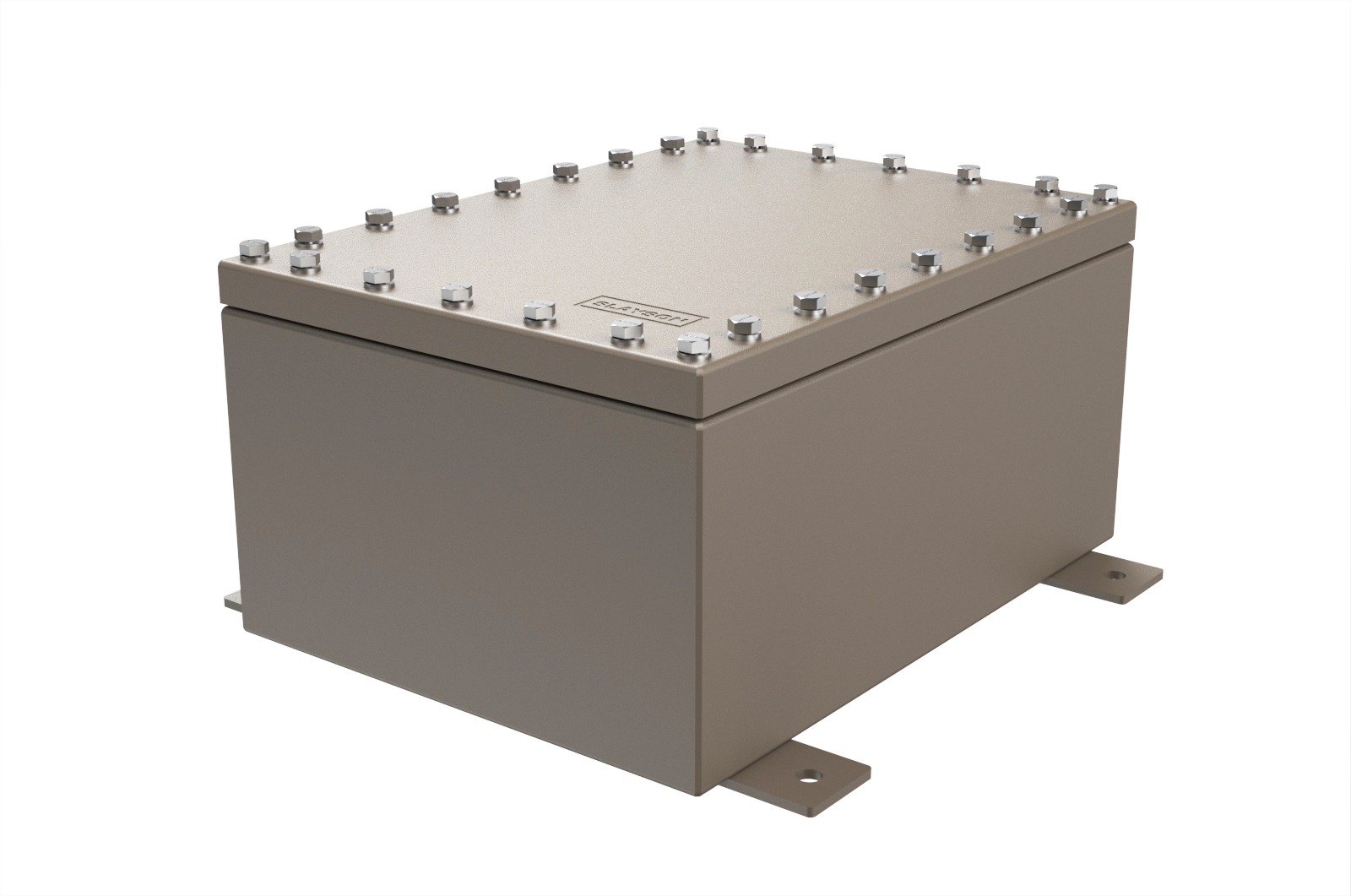

SLAYSON STANDARD SUBMERSIBLE ENCLOSURE offers NEMA 6P / IP68 protection against water and dust ingress at depths up to 15ft / 5m. ALUMINUM STANDARD SUBMERSIBLE ENCLOSURE are manufactured as standard from 2.00mm Aluminum*, ensuring protection in harsh and corrosive environments.
