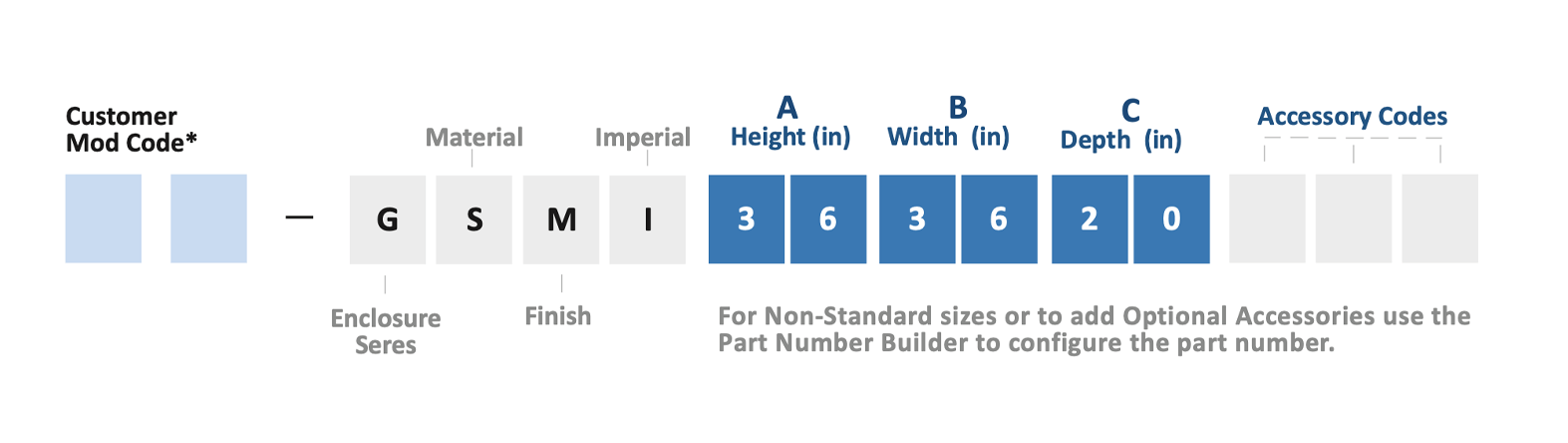

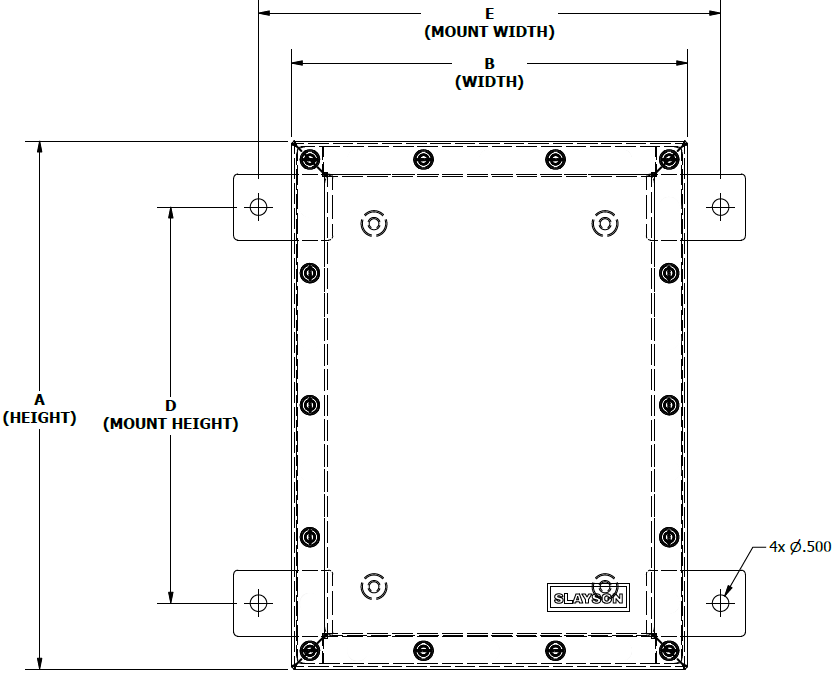

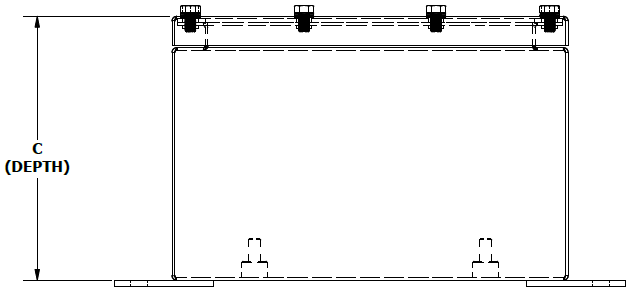

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
GSMI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 32 812.8 32 812.8 14
GSMI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 32 812.8 32 812.8 14
GSMI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 32 812.8 32 812.8 14
GSMI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 32 812.8 26 660.4 14
GSMI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 32 812.8 26 660.4 14
GSMI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 32 812.8 26 660.4 14
GSMI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 32 812.8 20 508.0 14
GSMI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 32 812.8 20 508.0 14
GSMI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 32 812.8 20 508.0 14
GSMI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 30 762.0 30 762.0 14
GSMI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 30 762.0 30 762.0 14
GSMI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 30 762.0 30 762.0 14
GSMI242816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 30 762.0 24 609.6 14
GSMI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 30 762.0 24 609.6 14
GSMI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 30 762.0 24 609.6 14
GSMI342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 30 762.0 20 508.0 14
GSMI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 30 762.0 20 508.0 14
GSMI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 30 762.0 20 508.0 14
GSMI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 26 660.4 26 660.4 14
GSMI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 26 660.4 26 660.4 14
GSMI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 26 660.4 26 660.4 14
GSMI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 26 660.4 20 508.0 14
GSMI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 26 660.4 20 508.0 14
GSMI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 26 660.4 20 508.0 14
GSMI302016 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 26 660.4 16 406.4 14
GSMI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 26 660.4 16 406.4 14
GSMI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 26 660.4 16 406.4 14
GSMI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 24 609.6 24 609.6 14
GSMI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 24 609.6 24 609.6 14
GSMI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 24 609.6 24 609.6 14
GSMI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 24 609.6 18 457.2 14
GSMI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 24 609.6 18 457.2 14
GSMI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 24 609.6 18 457.2 14
GSMI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 24 609.6 14 355.6 14
GSMI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 24 609.6 14 355.6 14
GSMI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 24 609.6 14 355.6 14
GSMI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 22 558.8 22 558.8 14
GSMI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 22 558.8 22 558.8 14
GSMI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 22 558.8 22 558.8 14
GSMI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 22 558.8 16 406.4 14
GSMI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 22 558.8 16 406.4 14
GSMI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 22 558.8 16 406.4 14
GSMI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 22 558.8 12 304.8 14
GSMI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 22 558.8 12 304.8 14
GSMI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 22 558.8 12 304.8 14
GSMI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 20 508.0 20 508.0 14
GSMI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 20 508.0 20 508.0 14
GSMI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 20 508.0 20 508.0 14
GSMI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 20 508.0 14 355.6 14
GSMI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 20 508.0 14 355.6 14
GSMI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 20 508.0 14 355.6 14
GSMI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 20 508.0 10 254.0 14
GSMI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 20 508.0 10 254.0 14
GSMI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 20 508.0 10 254.0 14
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
GSM909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
GSM909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
GSM909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
GSM907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
GSM907550 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
GSM907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
GSM906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
GSM906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
GSM906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
GSM858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
GSM858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
GSM858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
GSM857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
GSM857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
GSM857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
GSM856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
GSM856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
GSM856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
GSM757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
GSM757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
GSM757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
GSM756040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
GSM756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
GSM756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
GSM755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
GSM755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
GSM755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
GSM707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
GSM707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
GSM707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
GSM705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
GSM705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
GSM705525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
GSM704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
GSM704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
GSM704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
GSM656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
GSM656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
GSM656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
GSM655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
GSM655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
GSM655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
GSM654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
GSM654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
GSM654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
GSM606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
GSM606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
GSM606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
GSM604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
GSM604525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
GSM604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
GSM603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
GSM603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
GSM603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00

STANDARD WATERPROOF ENCLOSURE OVERVIEW

The SLAYSON® STANDARD WATERPROOF ENCLOSURE offers NEMA 6 & IP67 protection against water and dust ingress at depths up to 5ft (1.5m) for 24 hours. These enclosures are manufactured as standard from 2.00mm Marine Grade Stainless Steel 316, ensuring long-term durability and performance in harsh and corrosive environments.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.

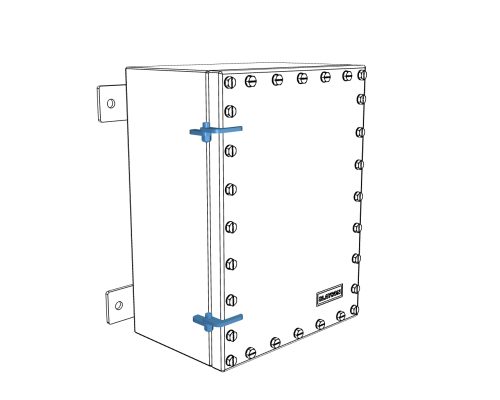

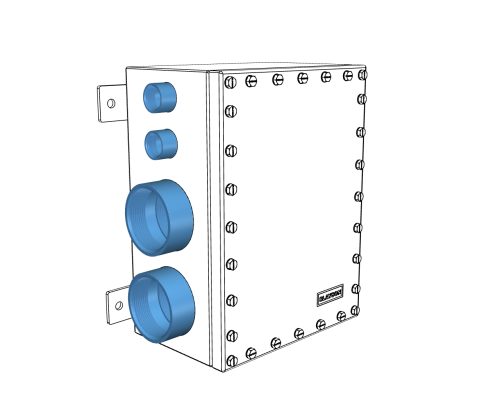

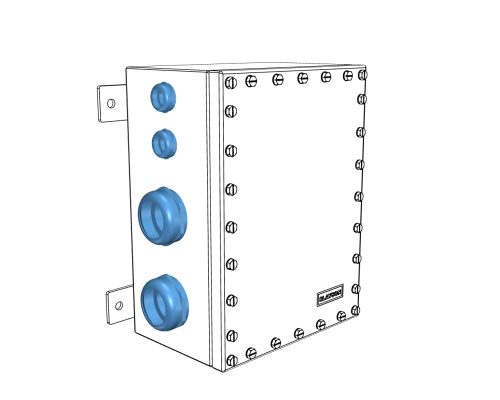

ACCESSORIES

Precision Engineering. Absolute Protection.
Get in touch to discuss your specific needs.
