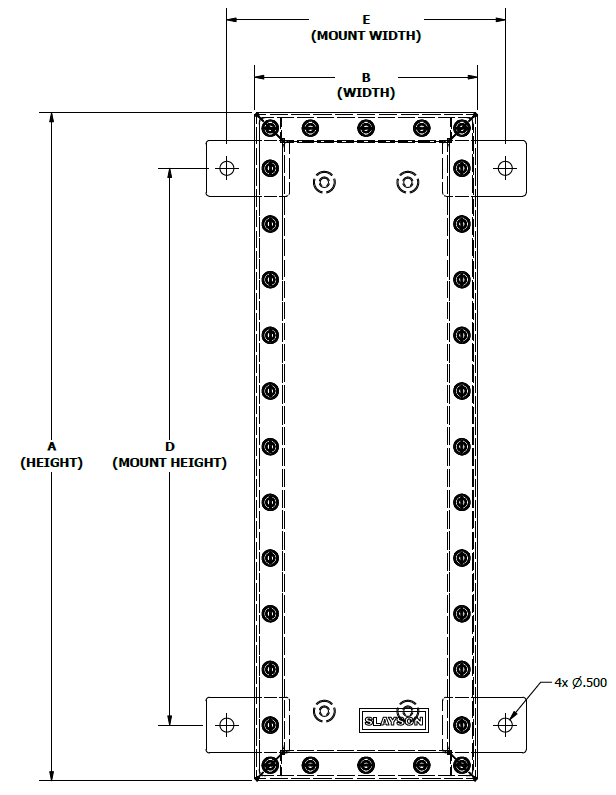

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm

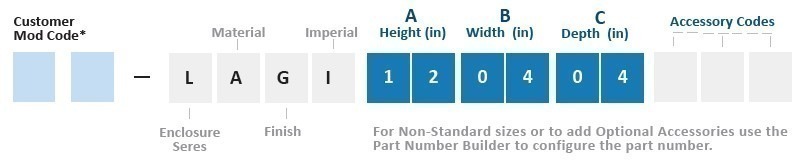

LAGI120404 12 304.8 04 101.6 04 101.6 10 254.0 06 152.4 11 279.4 03 76.2 14
LAGI120406 12 304.8 04 101.6 06 152.4 10 254.0 06 152.4 11 279.4 03 76.2 14
LAGI120408 12 304.8 04 101.6 08 203.2 10 254.0 06 152.4 11 279.4 03 76.2 14
LAGI120410 12 304.8 04 101.6 10 254.0 10 254.0 06 152.4 11 279.4 03 76.2 14
LAGI120604 12 304.8 06 152.4 04 101.6 10 254.0 08 203.2 11 279.4 05 127.0 14
LAGI120606 12 304.8 06 152.4 06 152.4 10 254.0 08 203.2 11 279.4 05 127.0 14
LAGI120608 12 304.8 06 152.4 08 203.2 10 254.0 08 203.2 11 279.4 05 127.0 14
LAGI120610 12 304.8 06 152.4 10 254.0 10 254.0 08 203.2 11 279.4 05 127.0 14
LAGI120804 12 304.8 08 203.2 04 101.6 10 254.0 10 254.0 11 279.4 07 177.8 14
LAGI120806 12 304.8 08 203.2 06 152.4 10 254.0 10 254.0 11 279.4 07 177.8 14
LAGI120808 12 304.8 08 203.2 08 203.2 10 254.0 10 254.0 11 279.4 07 177.8 14
LAGI120810 12 304.8 08 203.2 10 254.0 10 254.0 10 254.0 11 279.4 07 177.8 14
LAGI121004 12 304.8 10 254.0 04 101.6 10 254.0 12 304.8 11 279.4 09 228.6 14
LAGI121006 12 304.8 10 254.0 06 152.4 10 254.0 12 304.8 11 279.4 09 228.6 14
LAGI121008 12 304.8 10 254.0 08 203.2 10 254.0 12 304.8 11 279.4 09 228.6 14
LAGI121010 12 304.8 10 254.0 10 254.0 10 254.0 12 304.8 11 279.4 09 228.6 14
LAGI180404 18 457.2 04 101.6 04 101.6 16 406.4 06 152.4 17 431.8 03 76.2 14
LAGI180406 18 457.2 04 101.6 06 152.4 16 406.4 06 152.4 17 431.8 03 76.2 14
LAGI180408 18 457.2 04 101.6 08 203.2 16 406.4 06 152.4 17 431.8 03 76.2 14
LAGI180410 18 457.2 04 101.6 10 254.0 16 406.4 06 152.4 17 431.8 03 76.2 14
LAGI180604 18 457.2 06 152.4 04 101.6 16 406.4 08 203.2 17 431.8 05 127.0 14
LAGI180606 18 457.2 06 152.4 06 152.4 16 406.4 08 203.2 17 431.8 05 127.0 14
LAGI180608 18 457.2 06 152.4 08 203.2 16 406.4 08 203.2 17 431.8 05 127.0 14
LAGI180610 18 457.2 06 152.4 10 254.0 16 406.4 08 203.2 17 431.8 05 127.0 14
LAGI180804 18 457.2 08 203.2 04 101.6 16 406.4 10 254.0 17 431.8 07 177.8 14
LAGI180806 18 457.2 08 203.2 06 152.4 16 406.4 10 254.0 17 431.8 07 177.8 14
LAGI180808 18 457.2 08 203.2 08 203.2 16 406.4 10 254.0 17 431.8 07 177.8 14
LAGI180810 18 457.2 08 203.2 10 254.0 16 406.4 10 254.0 17 431.8 07 177.8 14
LAGI181004 18 457.2 10 254.0 04 101.6 16 406.4 12 304.8 17 431.8 09 228.6 14
LAGI181006 18 457.2 10 254.0 06 152.4 16 406.4 12 304.8 17 431.8 09 228.6 14
LAGI181008 18 457.2 10 254.0 08 203.2 16 406.4 12 304.8 17 431.8 09 228.6 14
LAGI181010 18 457.2 10 254.0 10 254.0 16 406.4 12 304.8 17 431.8 09 228.6 14
LAGI240404 24 609.6 04 101.6 04 101.6 22 558.8 06 152.4 23 584.2 03 76.2 14
LAGI240406 24 609.6 04 101.6 06 152.4 22 558.8 06 152.4 23 584.2 03 76.2 14
LAGI240408 24 609.6 04 101.6 08 203.2 22 558.8 06 152.4 23 584.2 03 76.2 14
LAGI240410 24 609.6 04 101.6 10 254.0 22 558.8 06 152.4 23 584.2 03 76.2 14
LAGI240604 24 609.6 06 152.4 04 101.6 22 558.8 08 203.2 23 584.2 05 127.0 14
LAGI240606 24 609.6 06 152.4 06 152.4 22 558.8 08 203.2 23 584.2 05 127.0 14
LAGI240608 24 609.6 06 152.4 08 203.2 22 558.8 08 203.2 23 584.2 05 127.0 14
LAGI240610 24 609.6 06 152.4 10 254.0 22 558.8 08 203.2 23 584.2 05 127.0 14
LAGI240804 24 609.6 08 203.2 04 101.6 22 558.8 10 254.0 23 584.2 07 177.8 14
LAGI240806 24 609.6 08 203.2 06 152.4 22 558.8 10 254.0 23 584.2 07 177.8 14
LAGI240808 24 609.6 08 203.2 08 203.2 22 558.8 10 254.0 23 584.2 07 177.8 14
LAGI240810 24 609.6 08 203.2 10 254.0 22 558.8 10 254.0 23 584.2 07 177.8 14
LAGI241004 24 609.6 10 254.0 04 101.6 22 558.8 12 304.8 23 584.2 09 228.6 14
LAGI241006 24 609.6 10 254.0 06 152.4 22 558.8 12 304.8 23 584.2 09 228.6 14
LAGI241008 24 609.6 10 254.0 08 203.2 22 558.8 12 304.8 23 584.2 09 228.6 14
LAGI241010 24 609.6 10 254.0 10 254.0 22 558.8 12 304.8 23 584.2 09 228.6 14



METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
LAG301010 30 300.0 10 100.0 10 100.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LAG301015 30 300.0 10 100.0 15 150.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LAG301020 30 300.0 10 100.0 20 200.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LAG301025 30 300.0 10 100.0 25 250.0 25 250.0 15 150.0 30 300.0 10 100.0 2.00
LAG301510 30 300.0 15 150.0 10 100.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LAG301515 30 300.0 15 150.0 15 150.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LAG301520 30 300.0 15 150.0 20 200.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LAG301525 30 300.0 15 150.0 25 250.0 25 250.0 20 200.0 30 300.0 15 150.0 2.00
LAG302010 30 300.0 20 200.0 10 100.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LAG302015 30 300.0 20 200.0 15 150.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LAG302020 30 300.0 20 200.0 20 200.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LAG302025 30 300.0 20 200.0 25 250.0 25 250.0 25 250.0 30 300.0 20 200.0 2.00
LAG302510 30 300.0 25 250.0 10 100.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LAG302515 30 300.0 25 250.0 15 150.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LAG302520 30 300.0 25 250.0 20 200.0 25 250.0 30 300.0 30 300.0 25 250.0 2.00
LAG302525 30 300.0 25 250.0 25 250.0 40 400.0 30 300.0 30 300.0 25 250.0 2.00
LAG451010 45 450.0 10 100.0 10 100.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LAG451015 45 450.0 10 100.0 15 150.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LAG451020 45 450.0 10 100.0 20 200.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LAG451025 45 450.0 10 100.0 25 250.0 40 400.0 15 150.0 45 450.0 10 100.0 2.00
LAG451010 45 450.0 15 150.0 10 100.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LAG451515 45 450.0 15 150.0 15 150.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LAG451520 45 450.0 15 150.0 20 200.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LAG451525 45 450.0 15 150.0 25 250.0 40 400.0 20 200.0 45 450.0 15 150.0 2.00
LAG452010 45 450.0 20 200.0 10 100.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LAG452015 45 450.0 20 200.0 15 150.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LAG452020 45 450.0 20 200.0 20 200.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LAG452025 45 450.0 20 200.0 25 250.0 40 400.0 25 250.0 45 450.0 20 200.0 2.00
LAG452510 45 450.0 25 250.0 10 100.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LAG452515 45 450.0 25 250.0 15 150.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LAG452520 45 450.0 25 250.0 20 200.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LAG452525 45 450.0 25 250.0 25 250.0 40 400.0 30 300.0 45 450.0 25 250.0 2.00
LAG601010 60 600.0 10 100.0 10 100.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LAG601015 60 600.0 10 100.0 15 150.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LAG601020 60 600.0 10 100.0 20 200.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LAG601025 60 600.0 10 100.0 25 250.0 55 550.0 15 150.0 60 600.0 10 100.0 2.00
LAG601010 60 600.0 15 150.0 10 100.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LAG601515 60 600.0 15 150.0 15 150.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LAG601520 60 600.0 15 150.0 20 200.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LAG601525 60 600.0 15 150.0 25 250.0 55 550.0 20 200.0 60 600.0 15 150.0 2.00
LAG602010 60 600.0 20 200.0 10 100.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LAG602015 60 600.0 20 200.0 15 150.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LAG602020 60 600.0 20 200.0 20 200.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LAG602025 60 600.0 20 200.0 25 250.0 55 550.0 25 250.0 60 600.0 20 200.0 2.00
LAG602510 60 600.0 25 250.0 10 100.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LAG602515 60 600.0 25 250.0 15 150.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LAG602520 60 600.0 25 250.0 20 200.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00
LAG602525 60 600.0 25 250.0 25 250.0 55 550.0 30 300.0 60 600.0 25 250.0 2.00

SUBMERSIBLE PULL BOX OVERVIEW

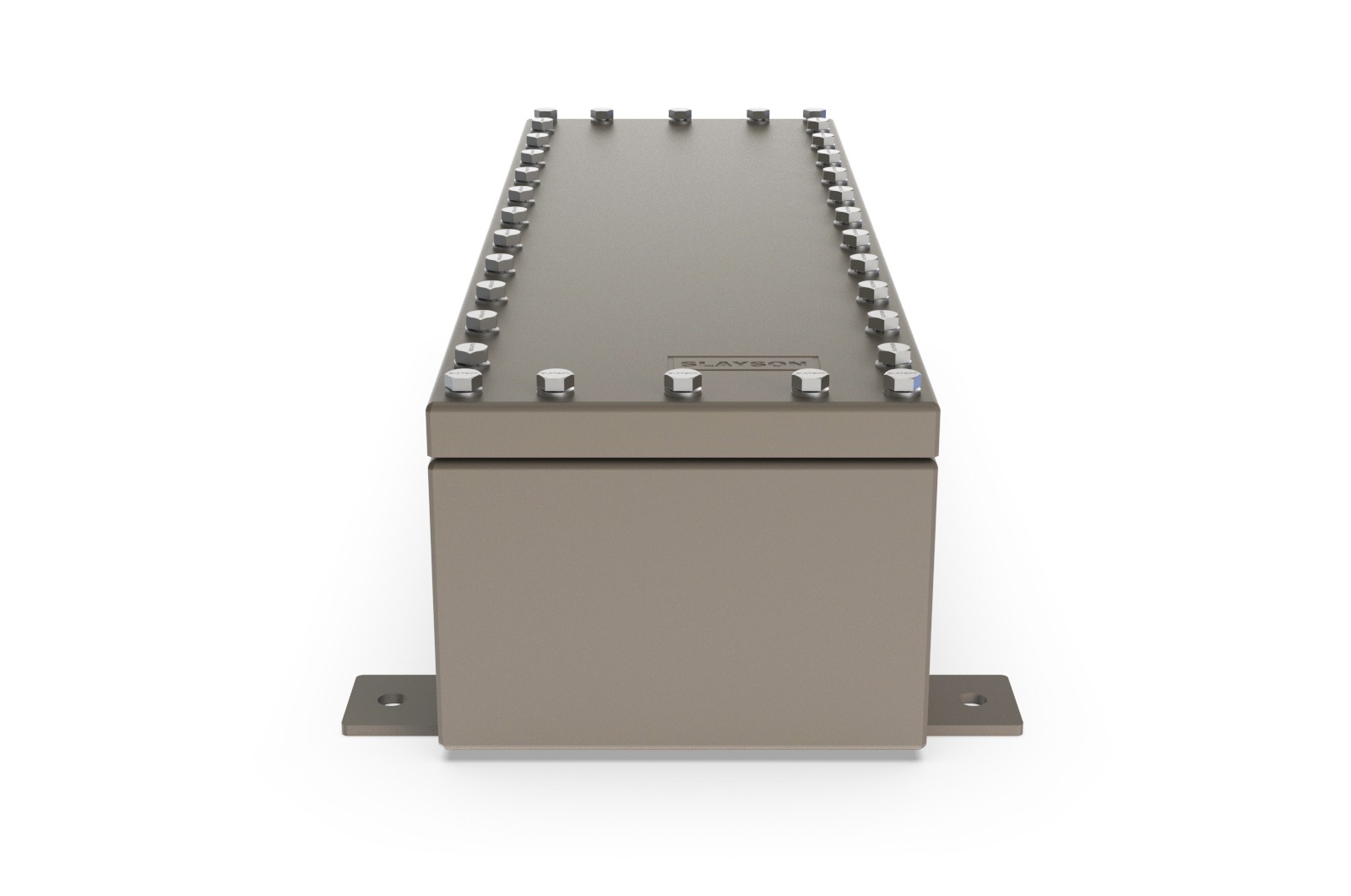

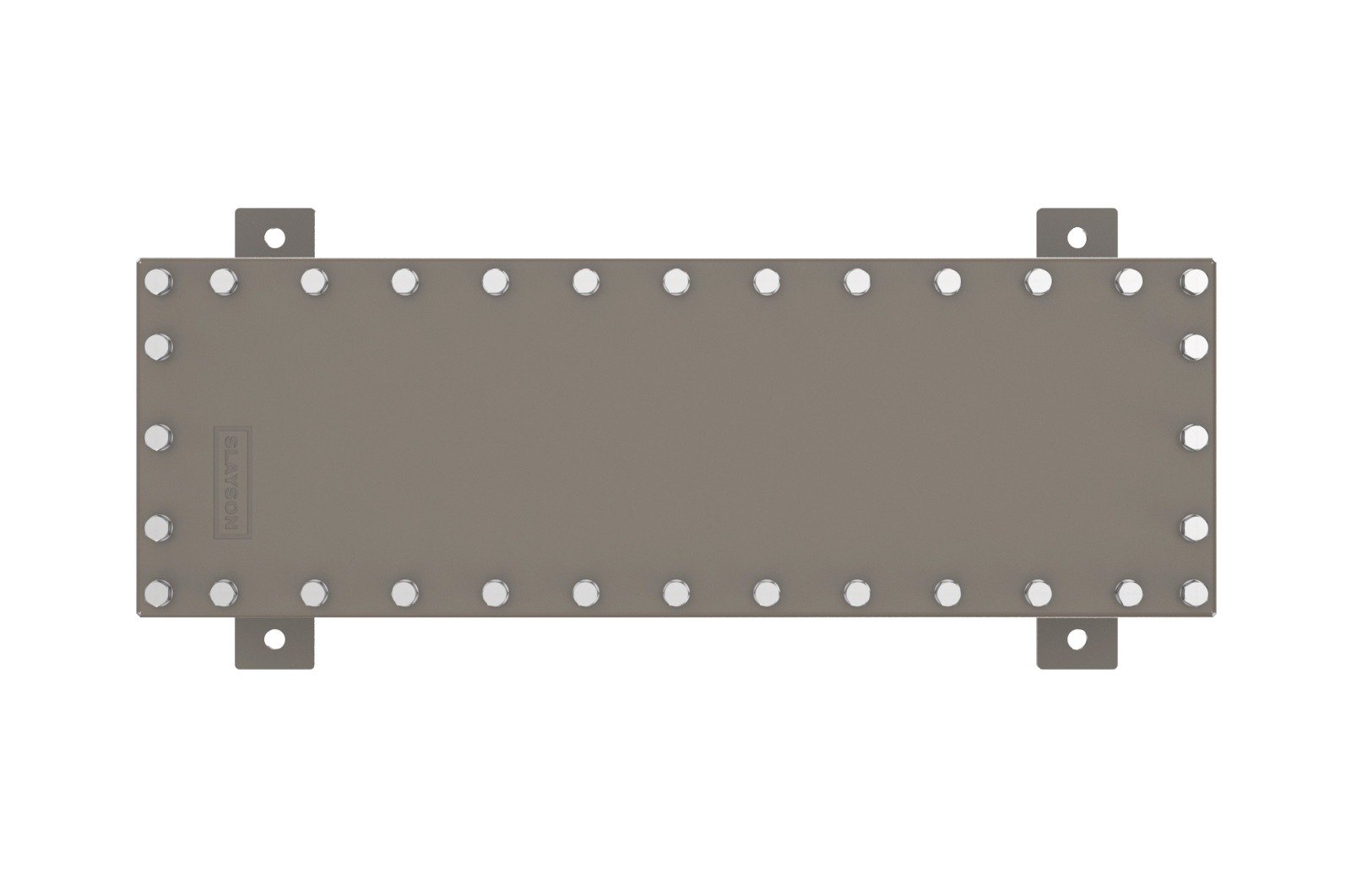

The SLAYSON® SUBMERSIBLE PULL BOX series has been designed for the inline installation of conduit systems, serving as pull and splice boxes to protect conductors in threaded rigid conduit, connect lengths of conduit, and provide access to conductors for maintenance and future system changes. It is rated to NEMA 6P/IP68 for partial or prolonged submersion, safeguarding against particle and liquid ingress at depths of up to 15ft/5m. The SUBMERSIBLE PULL BOX Series comes standard in corrosion and impact-resistant 14g 316 Marine Grade Stainless Steel or Aluminum with a Marine Grade Polyester Paint Finish, making it capable of protecting vital electrical conductors, connections, and splices in harsh environments.

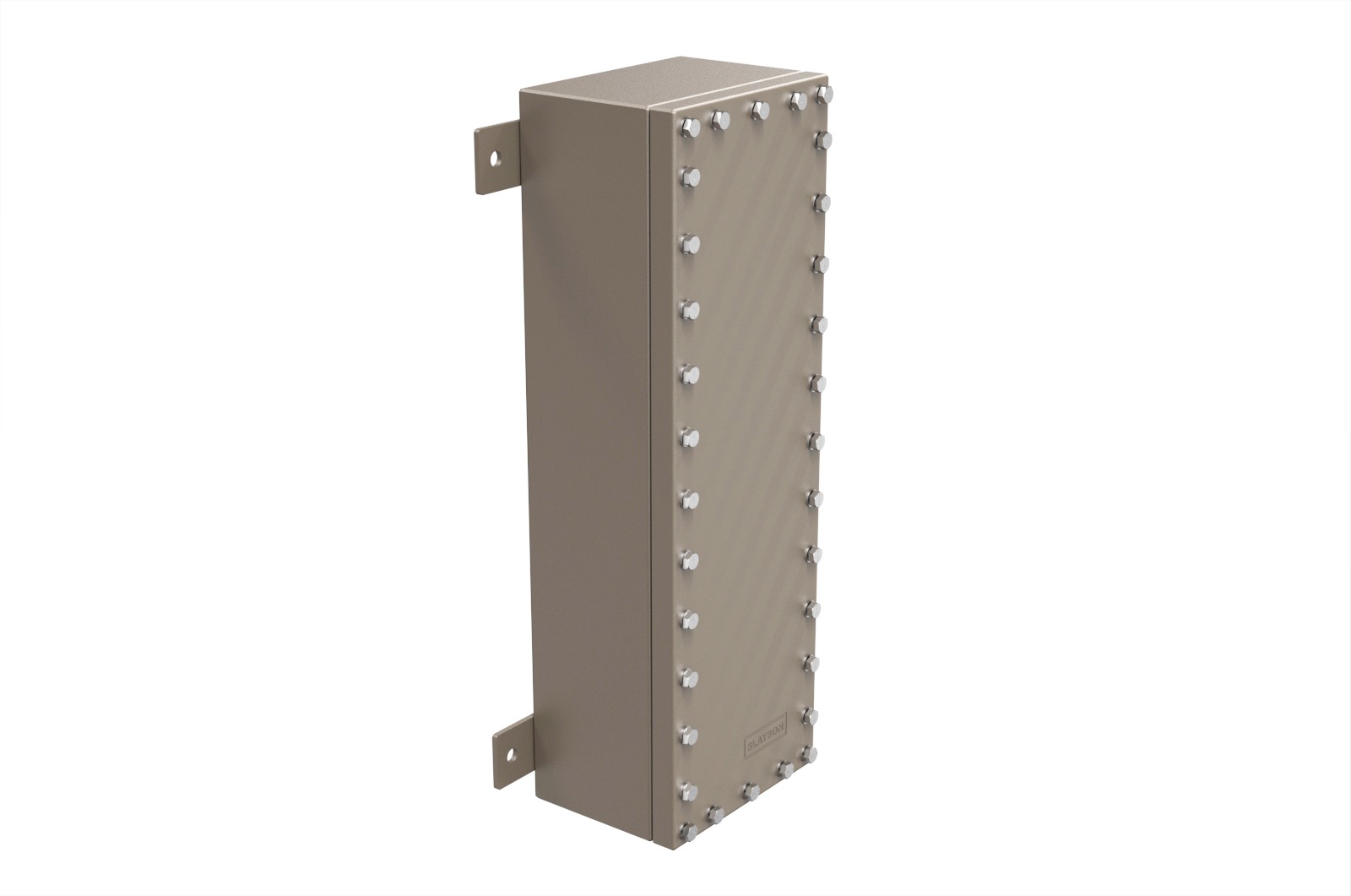

The SUBMERSIBLE PULL BOX Series is available in standard straight, 45º, and 90º configurations, ranging from 12" to 48" lengths, all easily customizable with our range of accessories. SLAYSON's design and engineering teams work closely with clients to ensure the delivery of the exact enclosure needed.

If you cannot find the size you require, SLAYSON will design and engineer a Submersible Pull Box to meet your specific project requirements.

Design With Us

Get direct access to our experienced engineering team & accelerate your design process using our 3D CAD, engineering drawings & test data.

Locally Made

SLAYSON® is a proudly American-owned company. All our products are made in local facilities across Europe, the UK, North America, & Asia-Pacific.

ACCESSORIES

Precision Engineering. Absolute Protection.
Get in touch to discuss your specific needs.
