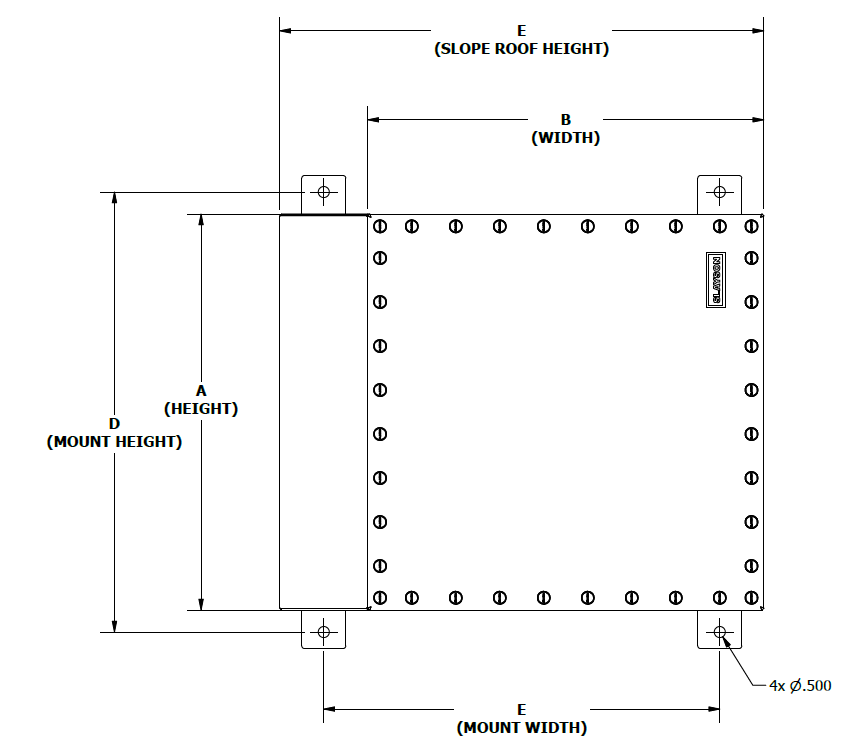

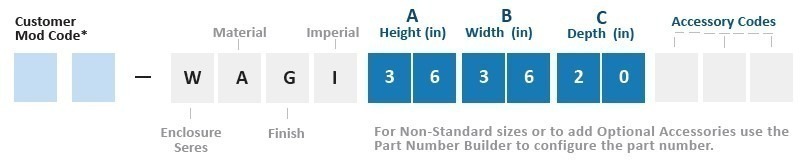

IMPERIAL A B C D E F INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Slope Roof Height Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm in mm
WAGI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 40 400.0 32 812.8 32 812.8 0.08″
WAGI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 40 400.0 32 812.8 32 812.8 0.08″
WAGI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 40 400.0 32 812.8 32 812.8 0.08″
WAGI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 34 340.0 32 812.8 26 660.4 0.08″
WAGI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 34 340.0 32 812.8 26 660.4 0.08″
WAGI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 34 340.0 32 812.8 26 660.4 0.08″
WAGI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 28 280.0 32 812.8 20 508.0 0.08″
WAGI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 28 280.0 32 812.8 20 508.0 0.08″
WAGI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 28 280.0 32 812.8 20 508.0 0.08″
WAGI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 38 380.0 30 762.0 30 762.0 0.08″
WAGI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 38 380.0 30 762.0 30 762.0 0.08″
WAGI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 38 380.0 30 762.0 30 762.0 0.08″
WAGI342816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 32 320.0 30 762.0 24 609.6 0.08″
WAGI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 32 320.0 30 762.0 24 609.6 0.08″
WAGI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 32 320.0 30 762.0 24 609.6 0.08″
WAGI342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 28 280.0 30 762.0 20 508.0 0.08″
WAGI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 28 280.0 30 762.0 20 508.0 0.08″
WAGI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 28 280.0 30 762.0 20 508.0 0.08″
WAGI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 34 340.0 26 660.4 26 660.4 0.08″
WAGI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 34 340.0 26 660.4 26 660.4 0.08″
WAGI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 34 340.0 26 660.4 26 660.4 0.08″
WAGI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 28 280.0 26 660.4 20 508.0 0.08″
WAGI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 28 280.0 26 660.4 20 508.0 0.08″
WAGI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 28 280.0 26 660.4 20 508.0 0.08″
WAGI302015 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 24 240.0 26 660.4 16 406.4 0.08″
WAGI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 24 240.0 26 660.4 16 406.4 0.08″
WAGI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 24 240.0 26 660.4 16 406.4 0.08″
WAGI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 32 320.0 24 609.6 24 609.6 0.08″
WAGI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 32 320.0 24 609.6 24 609.6 0.08″
WAGI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 32 320.0 24 609.6 24 609.6 0.08″
WAGI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 26 260.0 24 609.6 18 457.2 0.08″
WAGI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 26 260.0 24 609.6 18 457.2 0.08″
WAGI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 26 260.0 24 609.6 18 457.2 0.08″
WAGI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 22 220.0 24 609.6 14 355.6 0.08″
WAGI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 22 220.0 24 609.6 14 355.6 0.08″
WAGI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 22 220.0 24 609.6 14 355.6 0.08″
WAGI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 30 300.0 22 558.8 22 558.8 0.08″
WAGI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 30 300.0 22 558.8 22 558.8 0.08″
WAGI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 30 300.0 22 558.8 22 558.8 0.08″
WAGI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 24 240.0 22 558.8 16 406.4 0.08″
WAGI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 24 240.0 22 558.8 16 406.4 0.08″
WAGI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 24 240.0 22 558.8 16 406.4 0.08″
WAGI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 20 200.0 22 558.8 12 304.8 0.08″
WAGI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 20 200.0 22 558.8 12 304.8 0.08″
WAGI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 20 200.0 22 558.8 12 304.8 0.08″
WAGI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 28 280.0 20 508.0 20 508.0 0.08″
WAGI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 28 280.0 20 508.0 20 508.0 0.08″
WAGI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 28 280.0 20 508.0 20 508.0 0.08″
WAGI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 22 220.0 20 508.0 14 355.6 0.08″
WAGI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 22 220.0 20 508.0 14 355.6 0.08″
WAGI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 22 220.0 20 508.0 14 355.6 0.08″
WAGI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 18 180.0 20 508.0 10 254.0 0.08″
WAGI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 18 180.0 20 508.0 10 254.0 0.08″
WAGI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 18 180.0 20 508.0 10 254.0 0.08″
METRIC A B C D E F INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Slope Roof Height Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm cm mm
WAG909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 100 1000.0 80 800.0 80 800.0 2.00
WAG909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 100 1000.0 80 800.0 80 800.0 2.00
WAG909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 100 1000.0 80 800.0 80 800.0 2.00
WAG907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 85 850.0 80 800.0 65 650.0 2.00
WAG907540 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 85 850.0 80 800.0 65 650.0 2.00
WAG907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 85 850.0 80 800.0 65 650.0 2.00
WAG906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 70 700.0 80 800.0 50 500.0 2.00
WAG906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 70 700.0 80 800.0 50 500.0 2.00
WAG906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 70 700.0 80 800.0 50 500.0 2.00
WAG858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 95 950.0 75 750.0 75 750.0 2.00
WAG858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 95 950.0 75 750.0 75 750.0 2.00
WAG858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 95 950.0 75 750.0 75 750.0 2.00
WAG857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 80 800.0 75 750.0 60 600.0 2.00
WAG857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 80 800.0 75 750.0 60 600.0 2.00
WAG857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 80 800.0 75 750.0 60 600.0 2.00
WAG856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 70 700.0 75 750.0 50 500.0 2.00
WAG856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 70 700.0 75 750.0 50 500.0 2.00
WAG856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 70 700.0 75 750.0 50 500.0 2.00
WAG757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 85 850.0 65 650.0 65 650.0 2.00
WAG757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 85 850.0 65 650.0 65 650.0 2.00
WAG757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 85 850.0 65 650.0 65 650.0 2.00
WAG756040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 70 700.0 65 650.0 50 500.0 2.00
WAG756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 70 700.0 65 650.0 50 500.0 2.00
WAG756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 70 700.0 65 650.0 50 500.0 2.00
WAG755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 60 600.0 65 650.0 40 400.0 2.00
WAG755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 60 600.0 65 650.0 40 400.0 2.00
WAG755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 60 600.0 65 650.0 40 400.0 2.00
WAG707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 80 800.0 60 600.0 60 600.0 2.00
WAG707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 80 800.0 60 600.0 60 600.0 2.00
WAG707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 80 800.0 60 600.0 60 600.0 2.00
WAG705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 65 650.0 60 600.0 45 450.0 2.00
WAG705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 65 650.0 60 600.0 45 450.0 2.00
WAG705525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 65 650.0 60 600.0 45 450.0 2.00
WAG704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 55 550.0 60 600.0 35 350.0 2.00
WAG704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 55 550.0 60 600.0 35 350.0 2.00
WAG704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 55 550.0 60 600.0 35 350.0 2.00
WAG656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 75 750.0 55 550.0 55 550.0 2.00
WAG656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 75 750.0 55 550.0 55 550.0 2.00
WAG656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 75 750.0 55 550.0 55 550.0 2.00
WAG655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 60 600.0 55 550.0 40 400.0 2.00
WAG655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 60 600.0 55 550.0 40 400.0 2.00
WAG655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 60 600.0 55 550.0 40 400.0 2.00
WAG654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 50 500.0 55 550.0 30 300.0 2.00
WAG654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 50 500.0 55 550.0 30 300.0 2.00
WAG654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 50 500.0 55 550.0 30 300.0 2.00
WAG606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 70 700.0 50 500.0 50 500.0 2.00
WAG606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 70 700.0 50 500.0 50 500.0 2.00
WAG606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 70 700.0 50 500.0 50 500.0 2.00
WAG604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 55 550.0 50 500.0 35 350.0 2.00
WAG694525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 55 550.0 50 500.0 35 350.0 2.00
WAG604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 55 550.0 50 500.0 35 350.0 2.00
WAG603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 45 450.0 50 500.0 25 250.0 2.00
WAG603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 45 450.0 50 500.0 25 250.0 2.00
WAG603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 45 450.0 50 500.0 25 250.0 2.00

SUBMERSIBLE WATERSHED ENCLOSURE OVERVIEW

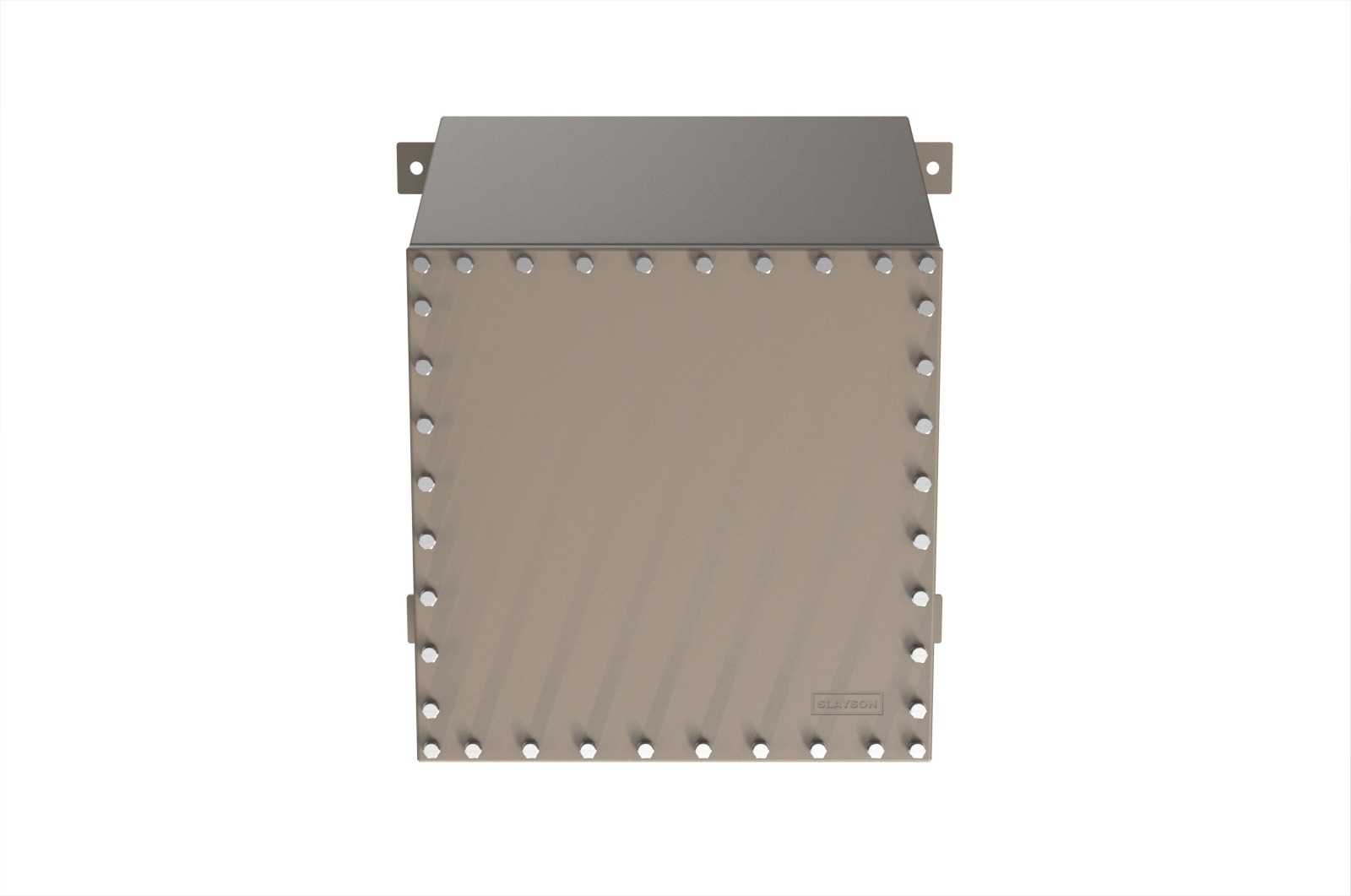

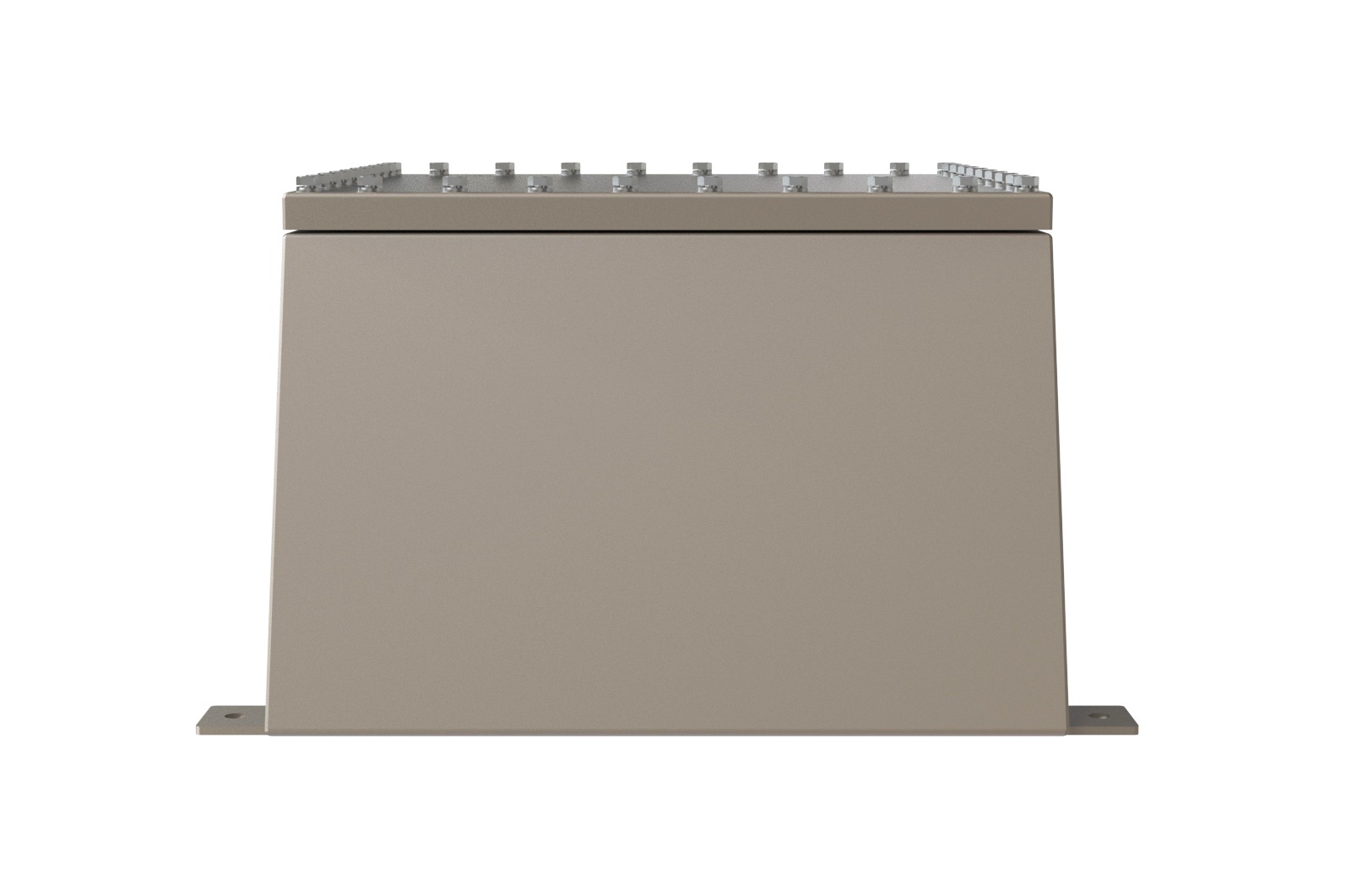

The SLAYSON SUBMERSIBLE WATERSHED Series has been engineered with a sloped top, and is rated NEMA 6P/ IP68 for partial or prolonged submersion. Its sloped roof keeps objects from being placed on top and allows liquids to run off, protecting vital electrical equipment from particle and liquid ingress up to depths of 15ft/5m. The SUBMERSIBLE WATERSHED Series comes standard in corrosion and impact resistant 14g 316 Marine Grade Stainless Steel and Aerospace Grade Aluminum on request making it capable of protecting vital electrical equipment in harsh environments.

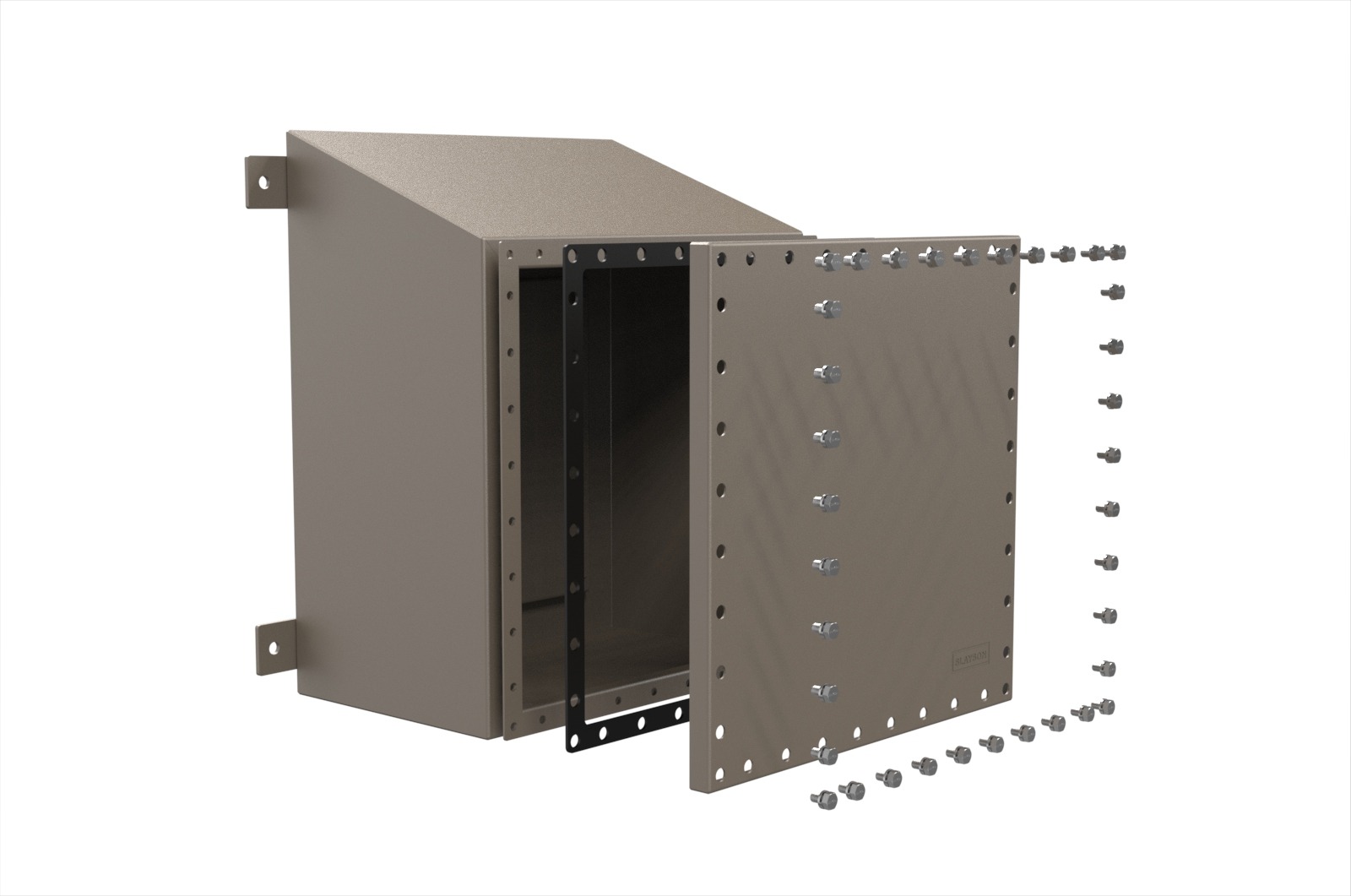

SLAYSON SUBMERSIBLE WATERSHED ENCLOSURES are manufactured with a flange to prevent water from entering when the enclosure is open. It is also capable of withstanding high temperature, high pressure wash downs. The SUBMERSIBLE WATERSHED Series is available in a variety of sizes (24″x 24″ to 36″x 36″); each one is easily modified with our assortment of accessories. SLAYSON® design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.
