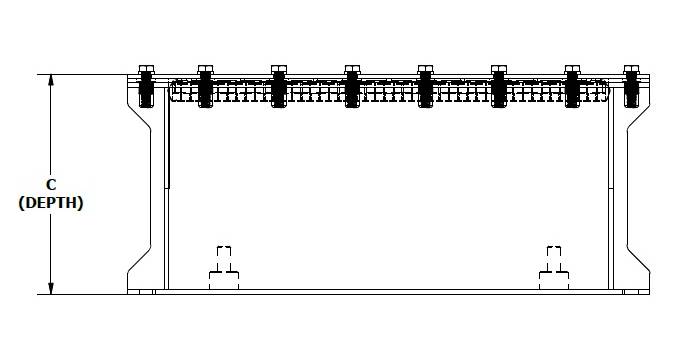

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
PADI242416 24 609.6 24 609.6 16 406.4 25.25 641.4 25.25 641.4 22 558.8 22 558.8 0.120”
PADI242412 24 609.6 24 609.6 12 304.8 25.25 641.4 25.25 641.4 22 558.8 22 558.8 0.120”
PADI242214 24 609.6 22 558.8 14 355.6 25.25 641.4 23.25 590.6 22 558.8 20 508.0 0.120”
PADI242012 24 609.6 20 508.0 12 304.8 25.25 641.4 21.25 539.8 22 558.8 18 457.2 0.120”
PADI241810 24 609.6 18 457.2 10 254.0 25.25 641.4 19.25 489.0 22 558.8 16 406.4 0.120”
PADI222216 22 558.8 22 558.8 16 406.4 23.25 590.6 23.25 590.6 20 508.0 20 508.0 0.120”
PADI222212 22 558.8 22 558.8 12 304.8 23.25 590.6 23.25 590.6 20 508.0 20 508.0 0.120”
PADI222014 22 558.8 20 508.0 14 355.6 23.25 590.6 21.25 539.8 20 508.0 18 457.2 0.120”
PADI221812 22 558.8 18 457.2 12 304.8 23.25 590.6 19.25 489.0 20 508.0 16 406.4 0.120”
PADI221610 22 558.8 16 406.4 10 254.0 23.25 590.6 17.25 438.2 20 508.0 14 355.6 0.120”
PADI202014 20 508.0 20 508.0 14 355.6 21.25 539.8 21.25 539.8 18 457.2 18 457.2 0.120”
PADI202010 20 508.0 20 508.0 10 254.0 21.25 539.8 21.25 539.8 18 457.2 18 457.2 0.120”
PADI201812 20 508.0 18 457.2 12 304.8 21.25 539.8 19.25 489.0 18 457.2 16 406.4 0.120”
PADI201610 20 508.0 16 406.4 10 254.0 21.25 539.8 17.25 438.2 18 457.2 14 355.6 0.120”
PADI201408 20 508.0 14 355.6 08 203.2 21.25 539.8 15.25 387.4 18 457.2 12 304.8 0.120”
PADI181814 18 457.2 18 457.2 14 355.6 19.25 489.0 19.25 489.0 16 406.4 16 406.4 0.120”
PADI181810 18 457.2 18 457.2 10 254.0 19.25 489.0 19.25 489.0 16 406.4 16 406.4 0.120”
PADI181612 18 457.2 16 406.4 12 304.8 19.25 489.0 17.25 438.2 16 406.4 14 355.6 0.120”
PADI181410 18 457.2 14 355.6 10 254.0 19.25 489.0 15.25 387.4 16 406.4 12 304.8 0.120”
PADI181208 18 457.2 12 304.8 08 203.2 19.25 489.0 13.25 336.6 16 406.4 10 254.0 0.120”
PADI161612 16 406.4 16 406.4 12 304.8 17.25 438.2 17.25 438.2 14 355.6 14 355.6 0.120”
PADI161610 16 406.4 16 406.4 10 254.0 17.25 438.2 17.25 438.2 14 355.6 14 355.6 0.120”
PADI161410 16 406.4 14 355.6 10 254.0 17.25 438.2 15.25 387.4 14 355.6 12 304.8 0.120”
PADI161208 16 406.4 12 304.8 08 203.2 17.25 438.2 13.25 336.6 14 355.6 10 254.0 0.120”
PADI161006 16 406.4 10 254.0 06 152.4 17.25 438.2 11.25 285.8 14 355.6 08 203.2 0.120”
PADI141410 14 355.6 14 355.6 10 254.0 15.25 387.4 15.25 387.4 12 304.8 12 304.8 0.120”
PADI141408 14 355.6 14 355.6 08 203.2 15.25 387.4 15.25 387.4 12 304.8 12 304.8 0.120”
PADI141208 14 355.6 12 304.8 08 203.2 15.25 387.4 13.25 336.6 12 304.8 10 254.0 0.120”
PADI141006 14 355.6 10 254.0 06 152.4 15.25 387.4 11.25 285.8 12 304.8 08 203.2 0.120”
PADI140804 14 355.6 08 203.2 04 101.6 15.25 387.4 9.25 235.0 12 304.8 06 152.4 0.120”
PADI121210 12 304.8 12 304.8 10 254.0 13.25 336.6 13.25 336.6 10 254.0 10 254.0 0.120”
PADI121208 12 304.8 12 304.8 08 203.2 13.25 336.6 13.25 336.6 10 254.0 10 254.0 0.120”
PADI121008 12 304.8 10 254.0 08 203.2 13.25 336.6 11.25 285.8 10 254.0 08 203.2 0.120”
PADI120806 12 304.8 08 203.2 06 152.4 13.25 336.6 9.25 235.0 10 254.0 06 152.4 0.120”
PADI120604 12 304.8 06 152.4 04 101.6 13.25 336.6 7.25 184.2 10 254.0 04 101.6 0.120”
PADI101008 10 254.0 10 254.0 08 203.2 11.25 285.8 11.25 285.8 08 203.2 08 203.2 0.120”
PADI101006 10 254.0 10 254.0 06 152.4 11.25 285.8 11.25 285.8 08 203.2 08 203.2 0.120”
PADI100806 10 254.0 08 203.2 06 152.4 11.25 285.8 9.25 235.0 08 203.2 06 152.4 0.120”
PADI100604 10 254.0 06 152.4 04 101.6 11.25 285.8 7.25 184.2 08 203.2 05 127.0 0.120”
PADI080806 08 203.2 08 203.2 06 152.4 9.25 235.0 9.25 235.0 06 152.4 04 101.6 0.120”
PADI080604 08 203.2 06 152.4 04 101.6 9.25 235.0 7.25 184.2 06 152.4 04 101.6 0.120”
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
PAD606040 60 600.0 60 600.0 40 400.0 63 630.0 63 630.0 55 550.0 55 550.0 3.00
PAD606030 60 600.0 60 600.0 30 300.0 63 630.0 63 630.0 55 550.0 55 550.0 3.00
PAD605535 60 600.0 55 550.0 35 350.0 63 630.0 58 580.0 55 550.0 50 500.0 3.00
PAD605030 60 600.0 50 500.0 30 300.0 63 630.0 53 530.0 55 550.0 45 450.0 3.00
PAD604525 60 600.0 45 450.0 25 250.0 63 630.0 48 480.0 55 550.0 40 400.0 3.00
PAD555540 55 550.0 55 550.0 40 400.0 58 580.0 58 580.0 50 500.0 50 500.0 3.00
PAD555530 55 550.0 55 550.0 30 300.0 58 580.0 58 580.0 50 500.0 50 500.0 3.00
PAD555035 55 550.0 50 500.0 35 350.0 58 580.0 53 530.0 50 500.0 45 450.0 3.00
PAD554530 55 550.0 45 450.0 30 300.0 58 580.0 48 480.0 50 500.0 40 400.0 3.00
PAD554025 55 550.0 40 400.0 25 250.0 58 580.0 43 430.0 50 500.0 35 350.0 3.00
PAD505035 50 500.0 50 500.0 35 350.0 53 530.0 53 530.0 45 450.0 45 450.0 3.00
PAD505025 50 500.0 50 500.0 25 250.0 53 530.0 53 530.0 45 450.0 45 450.0 3.00
PAD504530 50 500.0 45 450.0 30 300.0 53 530.0 48 480.0 45 450.0 40 400.0 3.00
PAD504025 50 500.0 40 400.0 25 250.0 53 530.0 43 430.0 45 450.0 35 350.0 3.00
PAD503520 50 500.0 35 350.0 20 200.0 53 530.0 38 380.0 45 450.0 30 300.0 3.00
PAD454535 45 450.0 45 450.0 35 350.0 48 480.0 48 480.0 40 400.0 40 400.0 3.00
PAD454525 45 450.0 45 450.0 25 250.0 48 480.0 48 480.0 40 400.0 40 400.0 3.00
PAD454030 45 450.0 40 400.0 30 300.0 48 480.0 43 430.0 40 400.0 35 350.0 3.00
PAD453525 45 450.0 35 350.0 25 250.0 48 480.0 38 380.0 40 400.0 30 300.0 3.00
PAD453020 45 450.0 30 300.0 20 200.0 48 480.0 33 330.0 40 400.0 25 250.0 3.00
PAD404030 40 400.0 40 400.0 30 300.0 43 430.0 43 430.0 35 350.0 35 350.0 3.00
PAD404025 40 400.0 40 400.0 25 250.0 43 430.0 43 430.0 35 350.0 35 350.0 3.00
PAD403525 40 400.0 35 350.0 25 250.0 43 430.0 38 380.0 35 350.0 30 300.0 3.00
PAD403020 40 400.0 30 300.0 20 200.0 43 430.0 33 330.0 35 350.0 25 250.0 3.00
PAD402515 40 400.0 25 250.0 15 150.0 43 430.0 28 280.0 35 350.0 20 200.0 3.00
PAD353525 35 350.0 35 350.0 25 250.0 38 380.0 38 380.0 30 300.0 30 300.0 3.00
PAD353520 35 350.0 35 350.0 20 200.0 38 380.0 38 380.0 30 300.0 30 300.0 3.00
PAD353020 35 350.0 30 300.0 20 200.0 38 380.0 33 330.0 30 300.0 25 250.0 3.00
PAD352515 35 350.0 25 250.0 15 150.0 38 380.0 28 280.0 30 300.0 20 200.0 3.00
PAD352010 35 350.0 20 200.0 10 100.0 38 380.0 23 230.0 30 300.0 15 150.0 3.00
PAD303025 30 300.0 30 300.0 25 250.0 33 330.0 33 330.0 25 250.0 25 250.0 3.00
PAD303020 30 300.0 30 300.0 20 200.0 33 330.0 33 330.0 25 250.0 25 250.0 3.00
PAD302520 30 300.0 25 250.0 20 200.0 33 330.0 28 280.0 25 250.0 20 200.0 3.00
PAD302015 30 300.0 20 200.0 15 150.0 33 330.0 23 230.0 25 250.0 15 150.0 3.00
PAD301510 30 300.0 15 150.0 10 100.0 33 330.0 18 180.0 25 250.0 10 100.0 3.00
PAD252520 25 250.0 25 250.0 20 200.0 28 280.0 28 280.0 20 200.0 20 200.0 3.00
PAD252515 25 250.0 25 250.0 15 150.0 28 280.0 28 280.0 20 200.0 20 200.0 3.00
PAD252015 25 250.0 20 200.0 15 150.0 28 280.0 23 230.0 20 200.0 15 150.0 3.00
PAD251510 25 250.0 15 150.0 10 100.0 28 280.0 18 180.0 20 200.0 10 100.0 3.00
PAD202015 20 200.0 20 200.0 15 150.0 23 230.0 23 230.0 15 150.0 15 150.0 3.00
PAD201510 20 200.0 15 150.0 10 100.0 23 230.0 18 180.0 15 150.0 10 100.0 3.00

MIL-XP-68 INTERLOCK BOX OVERVIEW

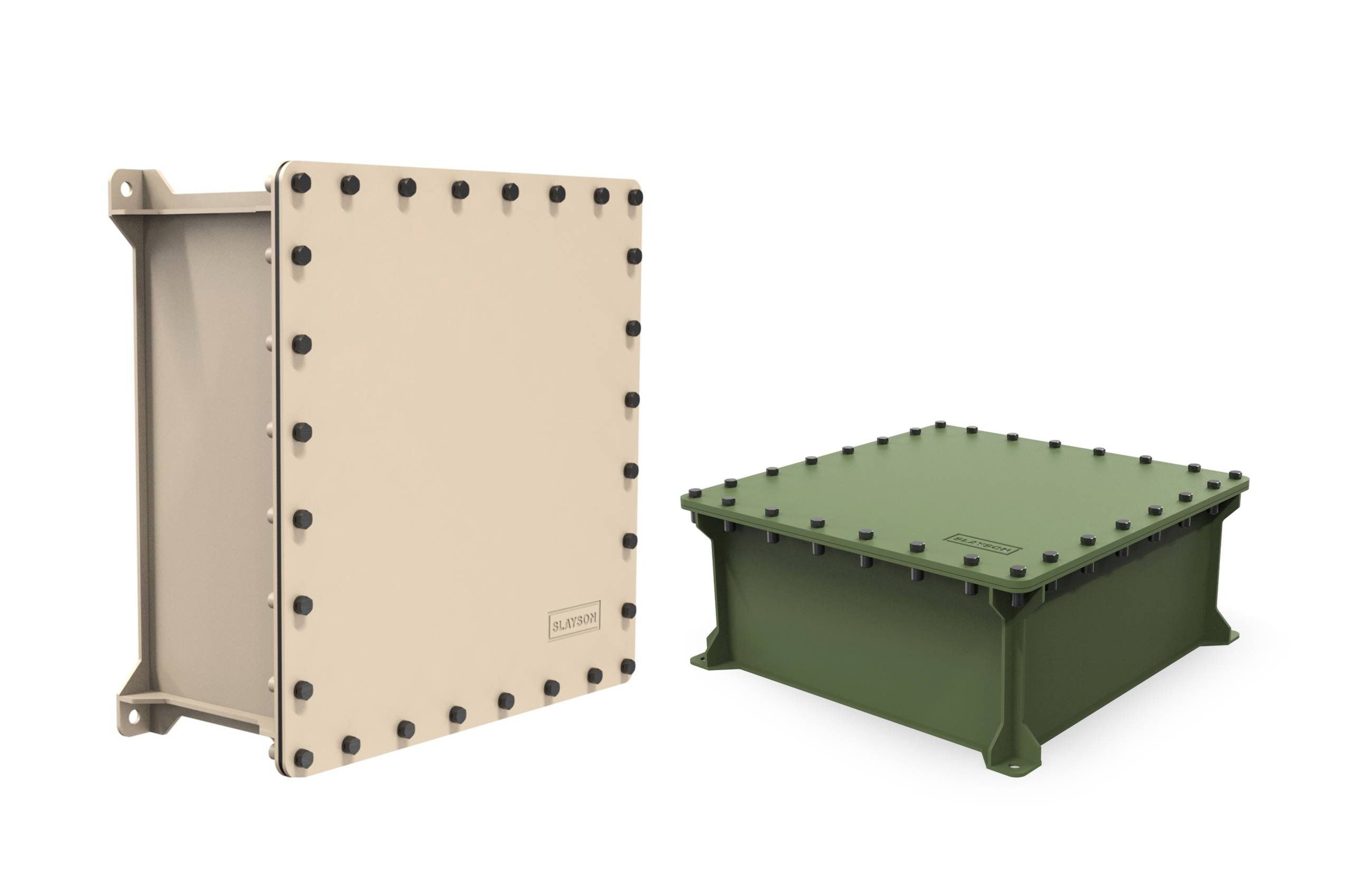

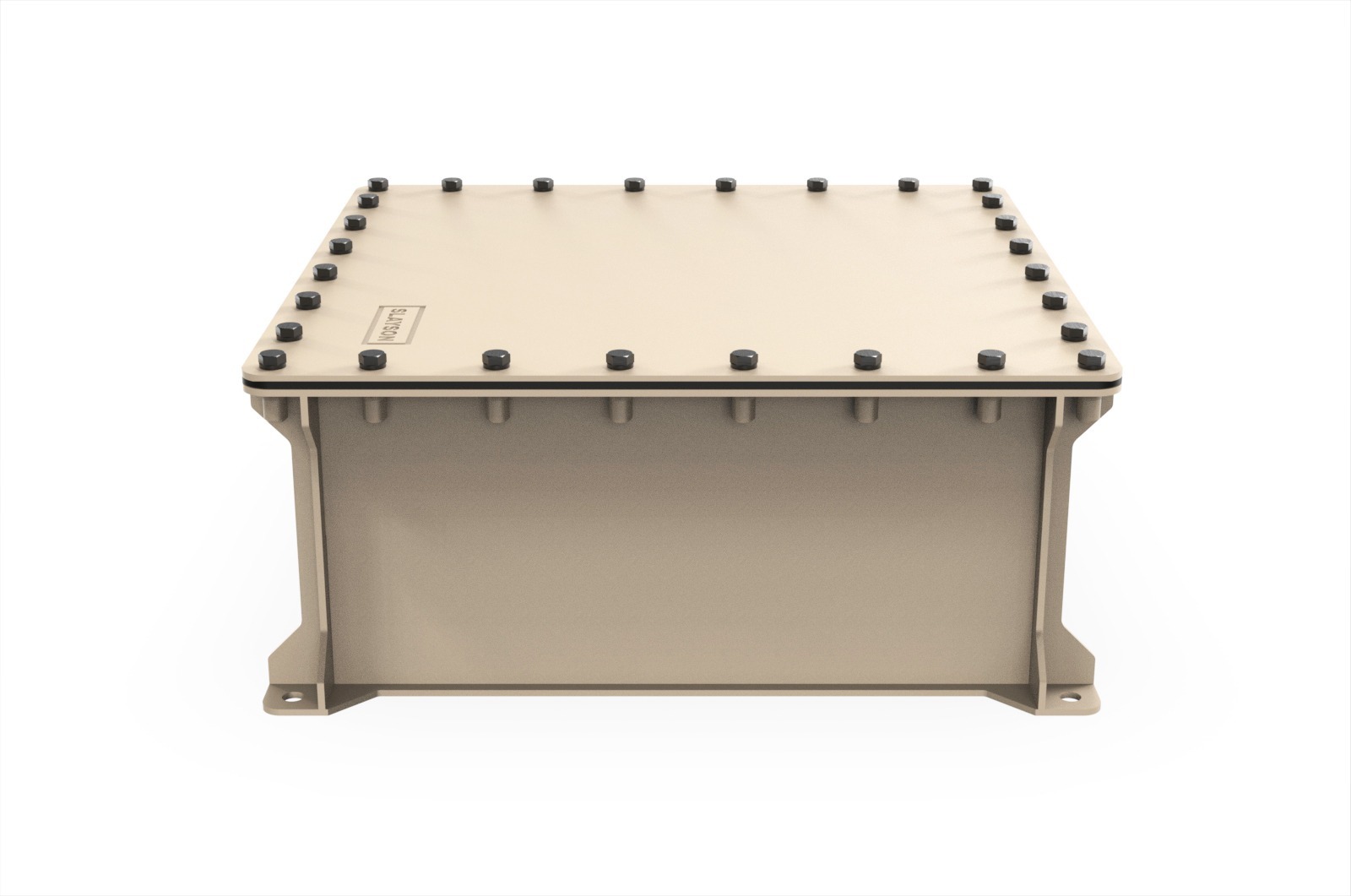

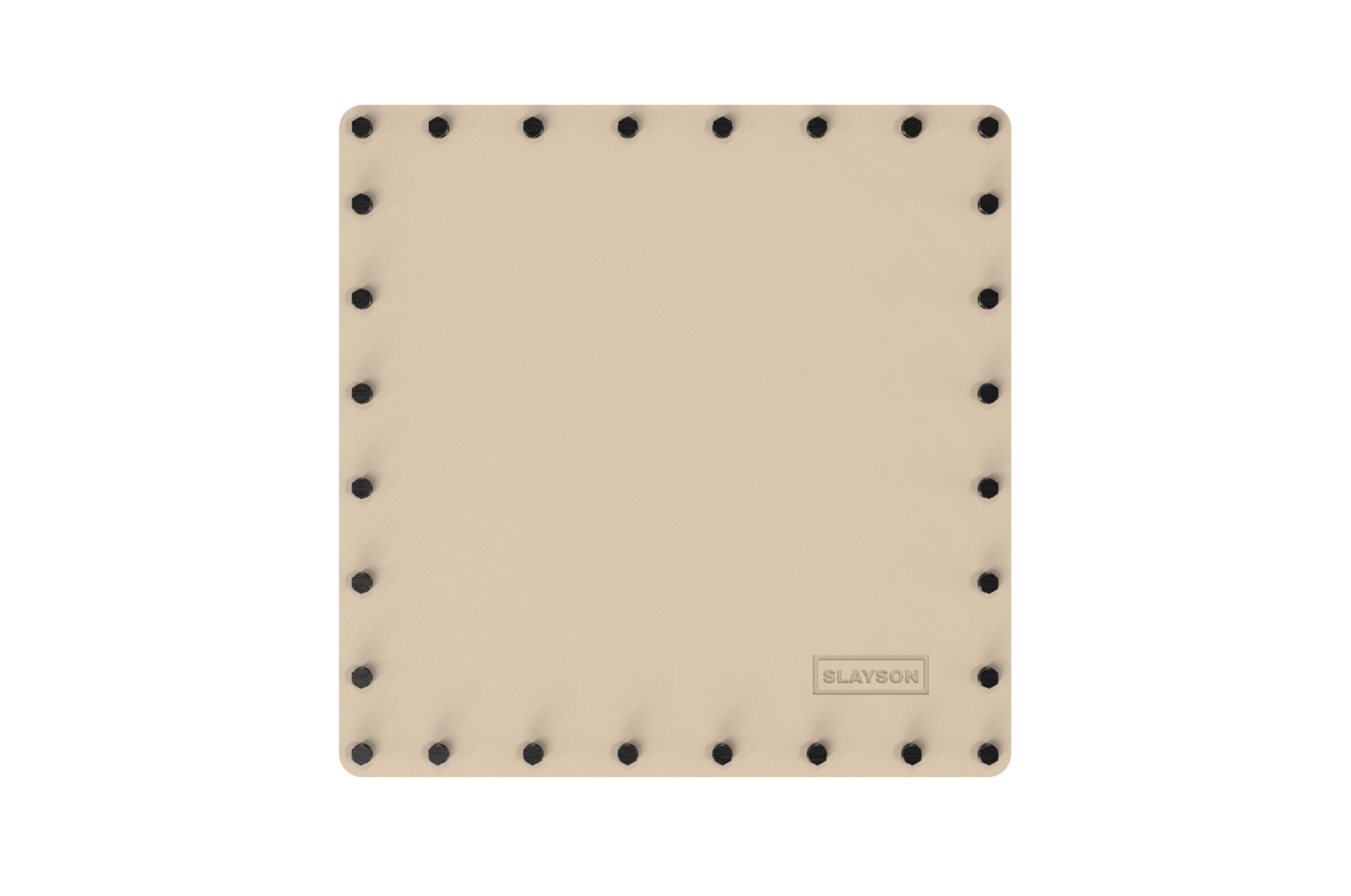

The MIL-XP-68 INTERLOCK BOX offers reliable protection for military systems, vehicles and electronic hardware deployed in the harshest environments. This Enclosure has hermetic sealing preventing any ingress of dust and water, with dual Beryllium Copper gasket to insure complete 360° EMC/EMP immunity. The MIL-XP-68 INTERLOCK BOX offers a COTS range of enclosures and accessories delivering a proven flexible enclosure system to military specification.
