SUBMERSIBLE STANDARD

NEMA 6P / IP68

Rating: 15ft, 5m

Material: Stainless Steel Type 316, Aluminum

Sizing: 24"x 24" to, 36"x36"

Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground

Specifications:

  • NEMA 6P, (4, 4X) and IP68, (IP67)
  • Submersible up to 15ft / 5 meters
  • Manufactured from 14 gauge Type 316 Marine Grade Stainless Steel
  • Seams continuously welded and ground smooth
  • Single piece Neoprene Gasket
  • Type 316 Stainless Steel Screws and Hardware
  • Mounting brackets on enclosure rear for wall mounting
  • Grounding studĀ  on enclosure body for Earthing and Bonding
  • Weld Studs installed for mounting Internal Backing Plates and Terminal Blocks
  • High Impact and Crush Resistance
  • Custom Sizes Available on request

Accessories:

  • Hinged Lid
  • Internal Back Plate
  • Internal Swing Out Panel
  • EMC / EMI / RFI Shielding (MIL-STD-285)
  • IP68 Stainless Steel Cable Glands / Cord Grips
  • Welded in Place 316 Stainless Steel Threaded Bosses
  • Flurosilicon (FVMQ) Gasket resistant to Fuels and Oils
  • Shock & Vibration Mounting Options (MIL-STD-810)
  • Clear Optical Viewing Lid

Finishes:

  • #3 Polish Finish
  • Paint and Powder Coat Finishes available in a variety of colors

Modifications and Customization:

SLAYSON excels at modifying and customizing all our products to meet your exact specifications. Contact our experienced Engineers about your project specific solution.

Enquiries at sales@slayson.com

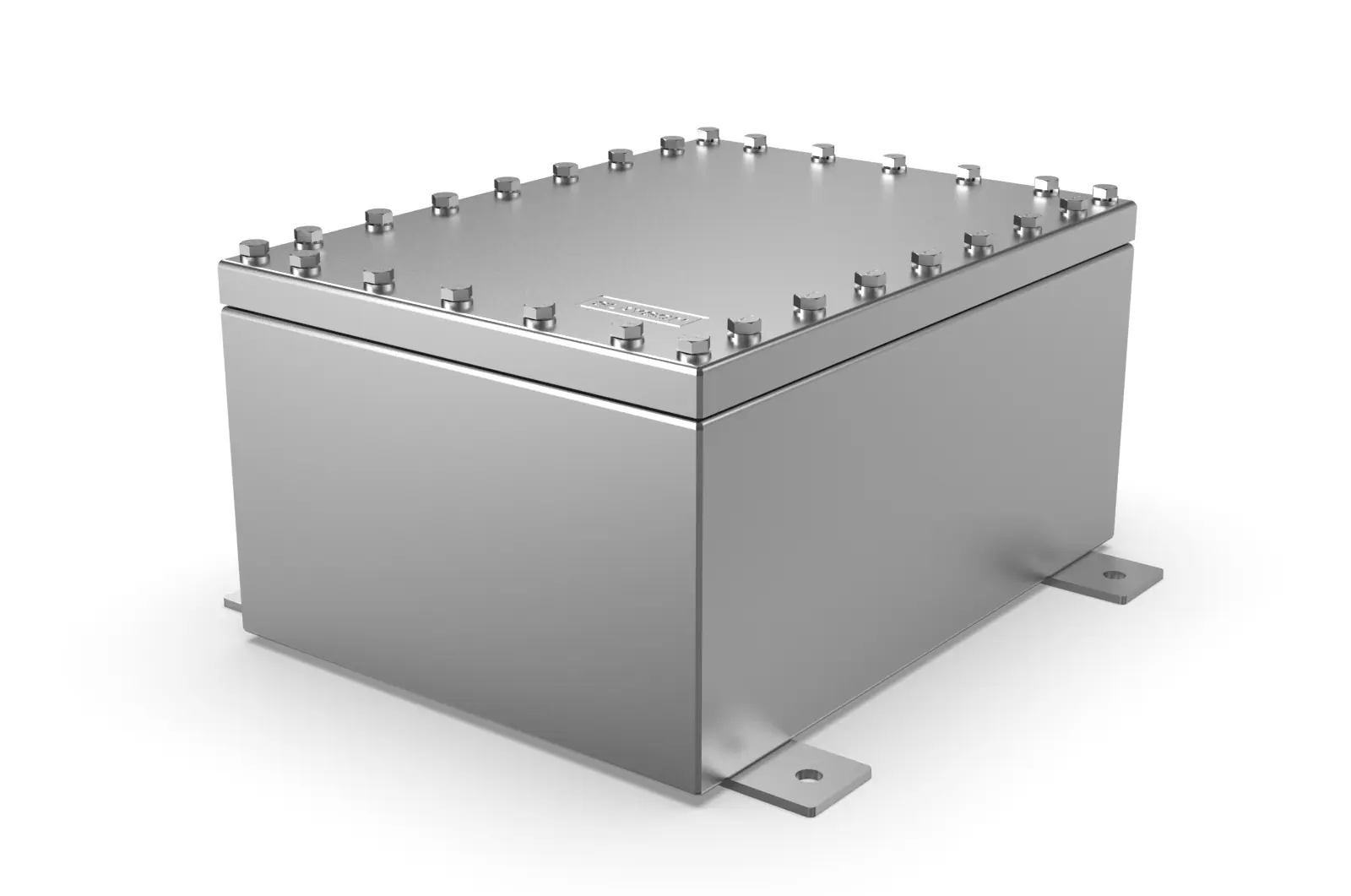

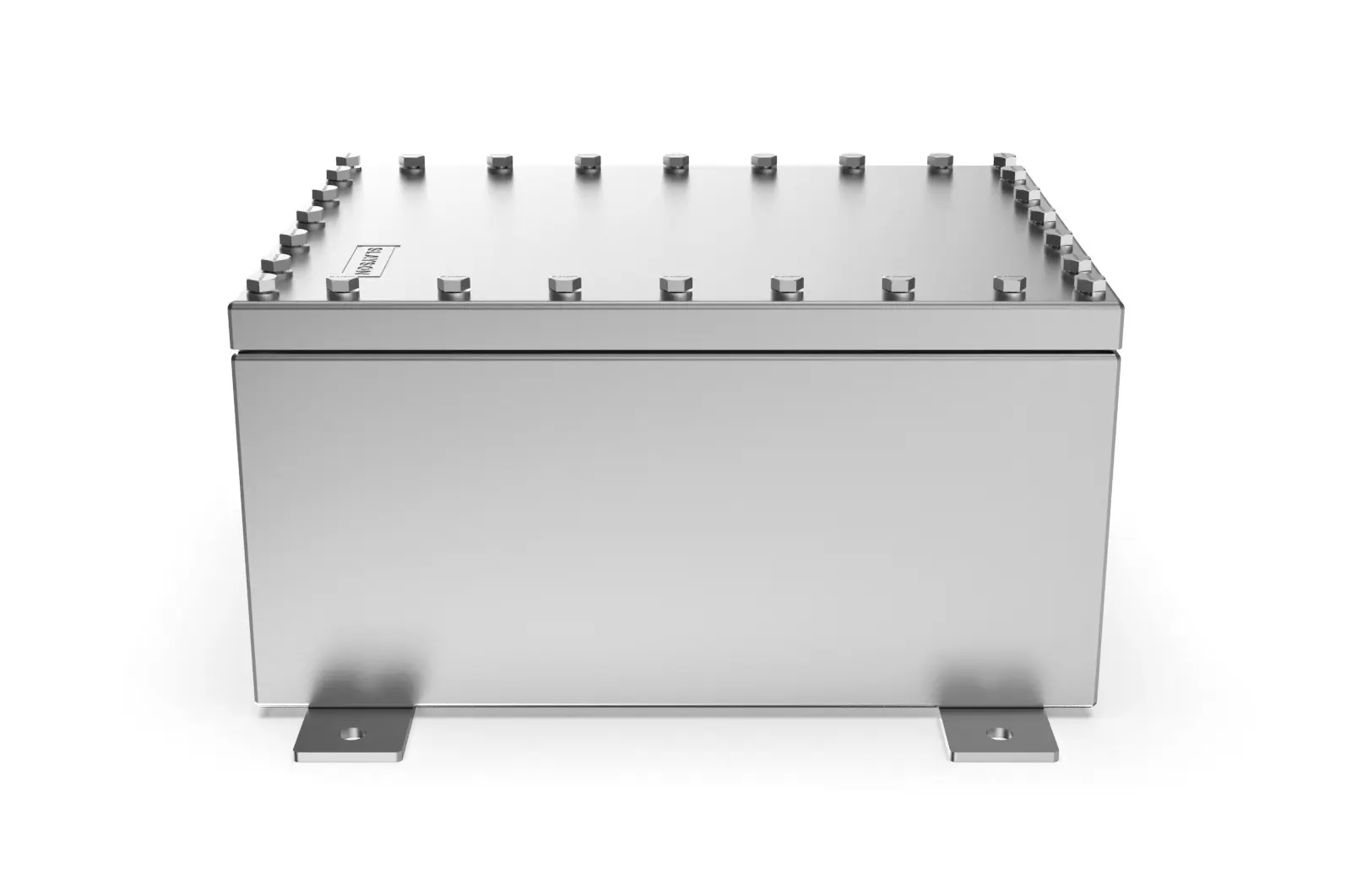

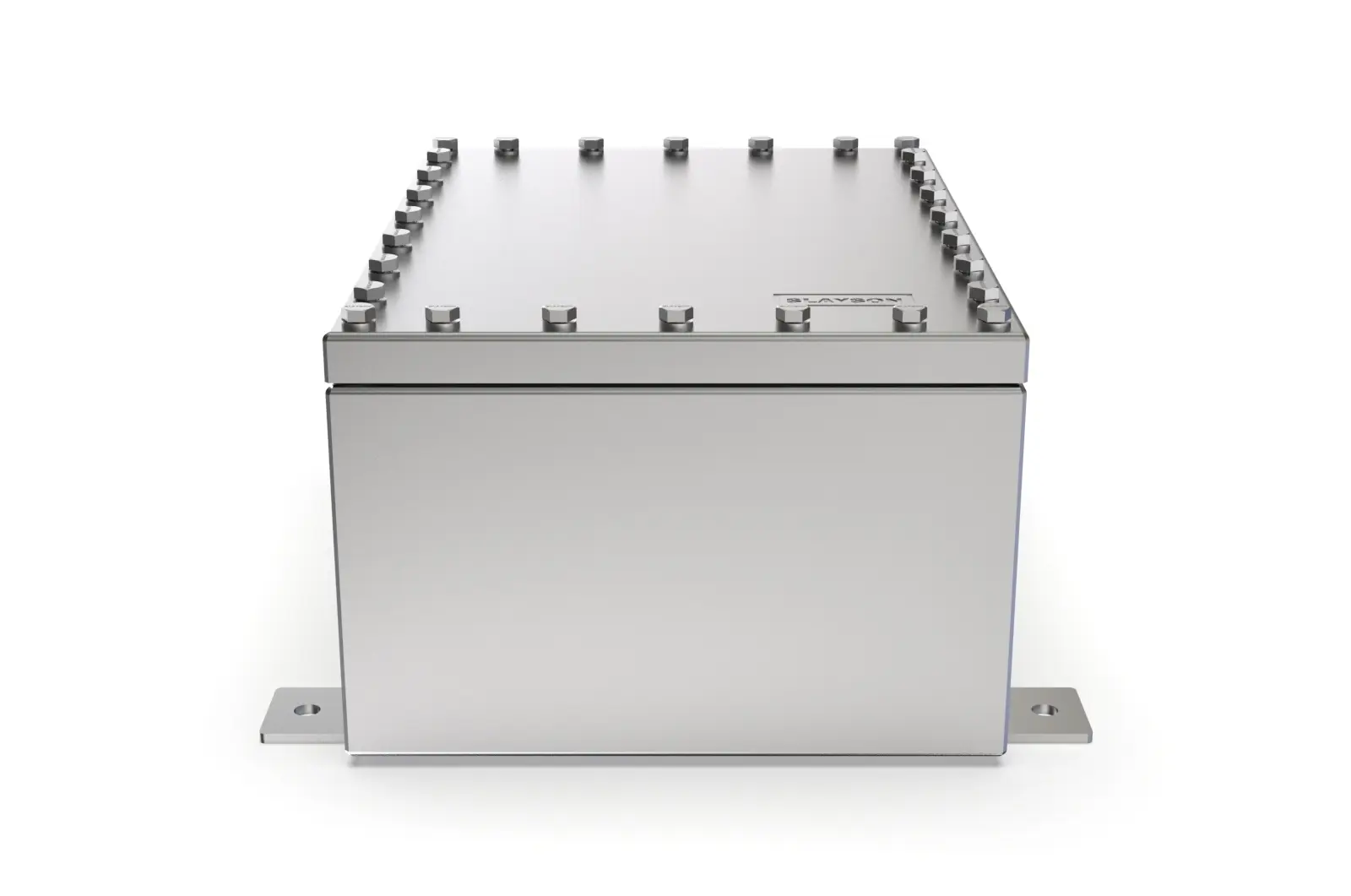

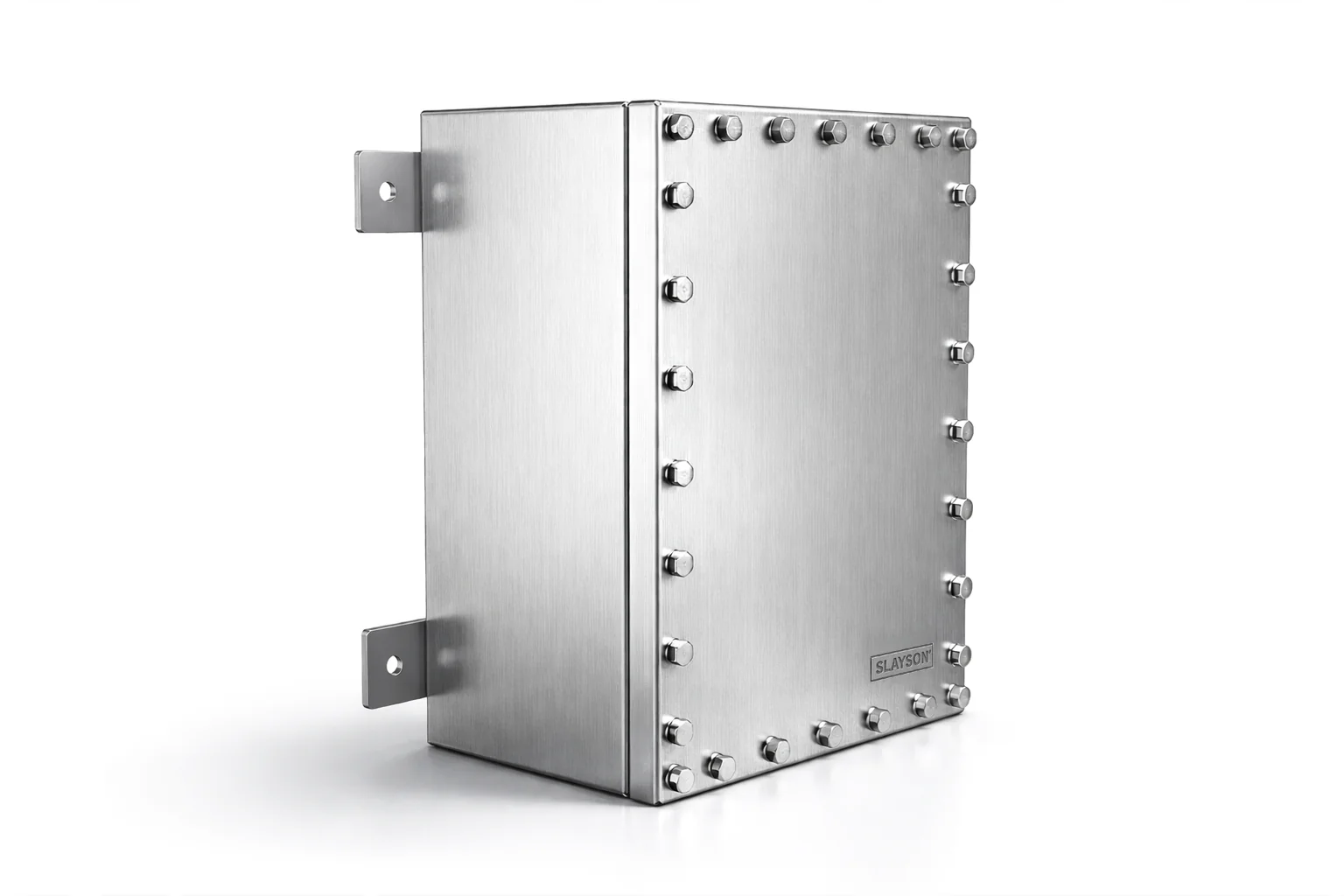

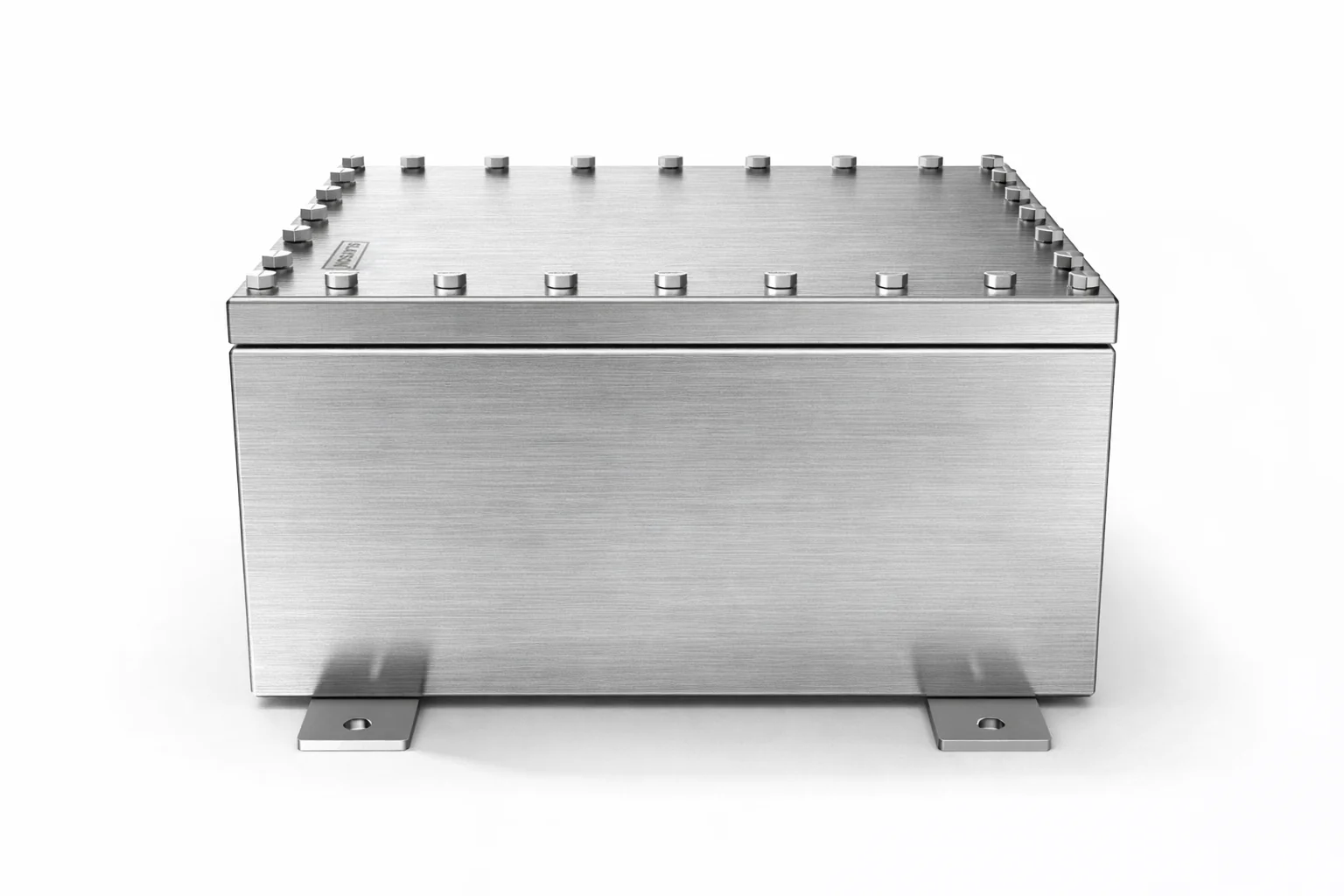

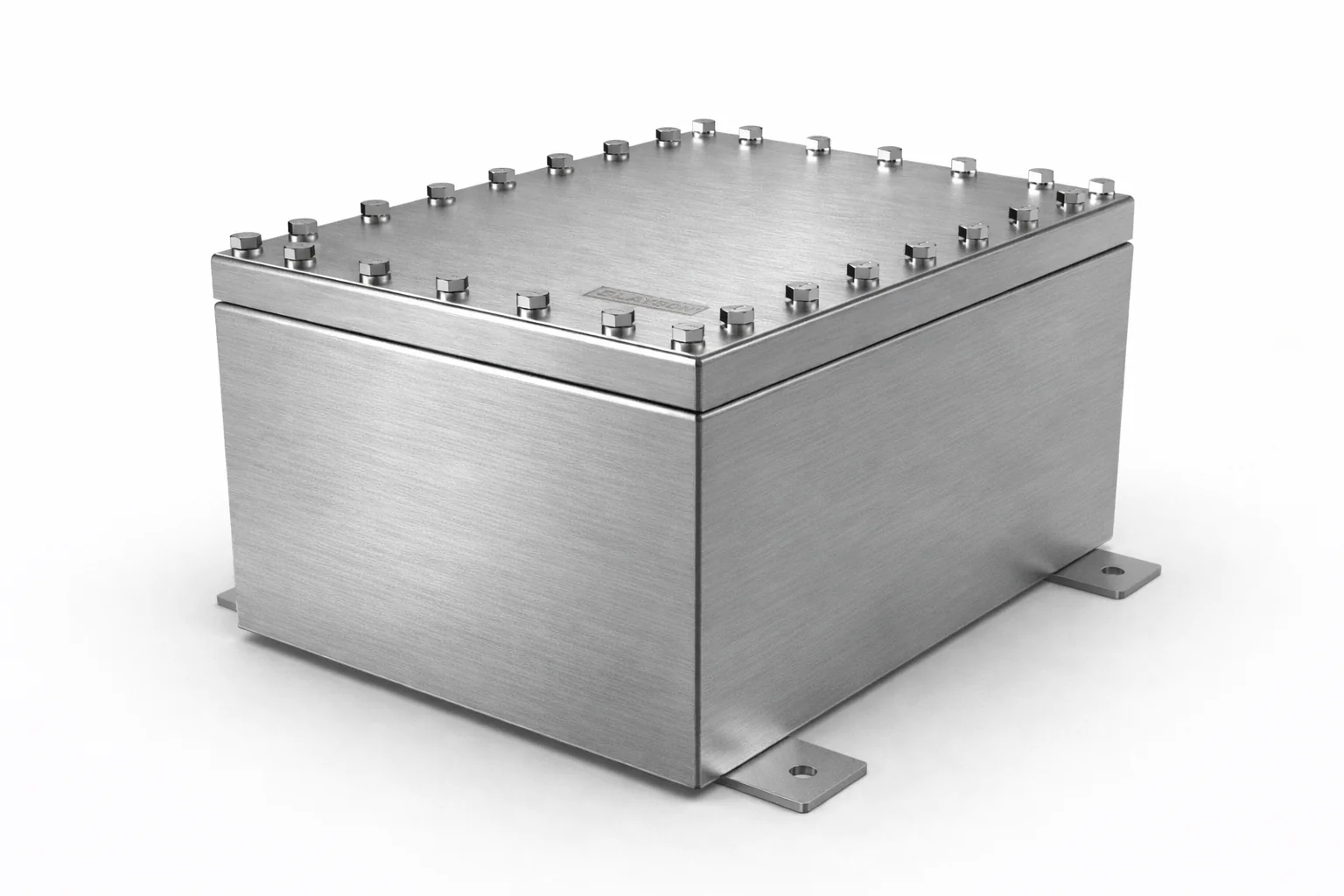

The SLAYSON Standard Submersible Series is another of our most popular submersible enclosures, and is rated NEMA 6P/ IP68 for partial or prolonged submersion. It will protect against particle and liquid ingress up to depths of 15ft/5m. The Standard Submersible Series comes standard in corrosion and impact resistant 14g 316 Marine Grade Stainless Steel or Aerospace Grade Aluminum upon request, making it capable of protecting vital electrical equipment in harsh environments.

SLAYSON Standard Submersible enclosures are available in a variety of sizes (24″x 24″ to 36″x 36″); each one is easily modified with our assortment of accessories. SLAYSON design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON will design and engineer a custom Standard Submersible enclosure to meet your requirements.


Part Number Material Code Builder

ASMI – Type 316 Marine Grade Stainless Steel (14 gauge)

AAMI – Aluminum (0.064″)

PART NUMBER Height (A): In (mm) Width (B): In (mm) Depth (C): In (mm) Mount Height (D): In (mm) Mount Width (E): In (mm) Back Plate Part Number Back Plate Height: In (mm) Back Plate Width: In (mm) Weight (lbs)
ASMI363624 36 (914.4) 36 (914.4) 24 (609.6) 32 (812.8) 38 (956.2) ASPI3232 32 (812.8) 32 (812.8) 53
ASMI363612 36 (914.4) 36 (914.4) 12 (304.8) 32 (812.8) 38 (956.2) ASPI3232 32 (812.8) 32 (812.8) 45
ASMI343424 34 (863.3) 34 (863.3) 24 (609.6) 30 (762) 36 (914.4) ASPI3030 30 (762) 30 (762) 51
ASMI343412 34 (863.3) 34 (863.3) 12 (304.8) 30 (762) 36 (914.4) ASPI3030 30 (762) 30 (762) 43
ASMI303018 30 (762) 30 (762) 18 (457.2) 26 (660.4) 32 (812.8) ASPI2626 26 (660.4) 26 (660.4) 43
ASMI302618 30 (762) 26 (660.4) 18 (457.2) 26 (660.4) 28 (711.2) ASPI2622 26 (660.4) 22 (558.8) 41
ASMI282816 28 (711.2) 28 (711.2) 16 (406.4) 24 (609.6) 30 (762) ASPI2424 24 (609.6) 24 (609.6) 40
ASMI282416 28 (711.2) 24 (609.6) 16 (406.4) 24 (609.6) 26 (660.4) ASPI2422 24 (609.6) 22 (558.8) 37
ASMI262614 26 (660.4) 26 (660.4) 14 (355.6) 22 (558.8) 28 (711.2) ASPI2222 22 (558.8) 22 (558.8) 36
ASMI262214 26 (660.4) 22 (558.8) 14 (355.6) 22 (558.8) 24 (609.6) ASPI2218 22 (558.8) 18 (457.2) 34
ASMI242412 24 (609.6) 24 (609.6) 12 (304.8) 20 (508) 26 (660.4) ASPI2020 20 (508) 20 (508) 33
